The Renogy Pro S1 12V 120Ah / 240Ah LiFePO4 Battery is built for motorhomes, vans, sailboats and off-grid homes that run demanding appliances. Its semi-solid-state cells use about 70% less liquid electrolyte than conventional lithium-ion cells, and Renogy rates them for 6,000 cycles at 80% depth of discharge, or more than 16 years at one full cycle per day.

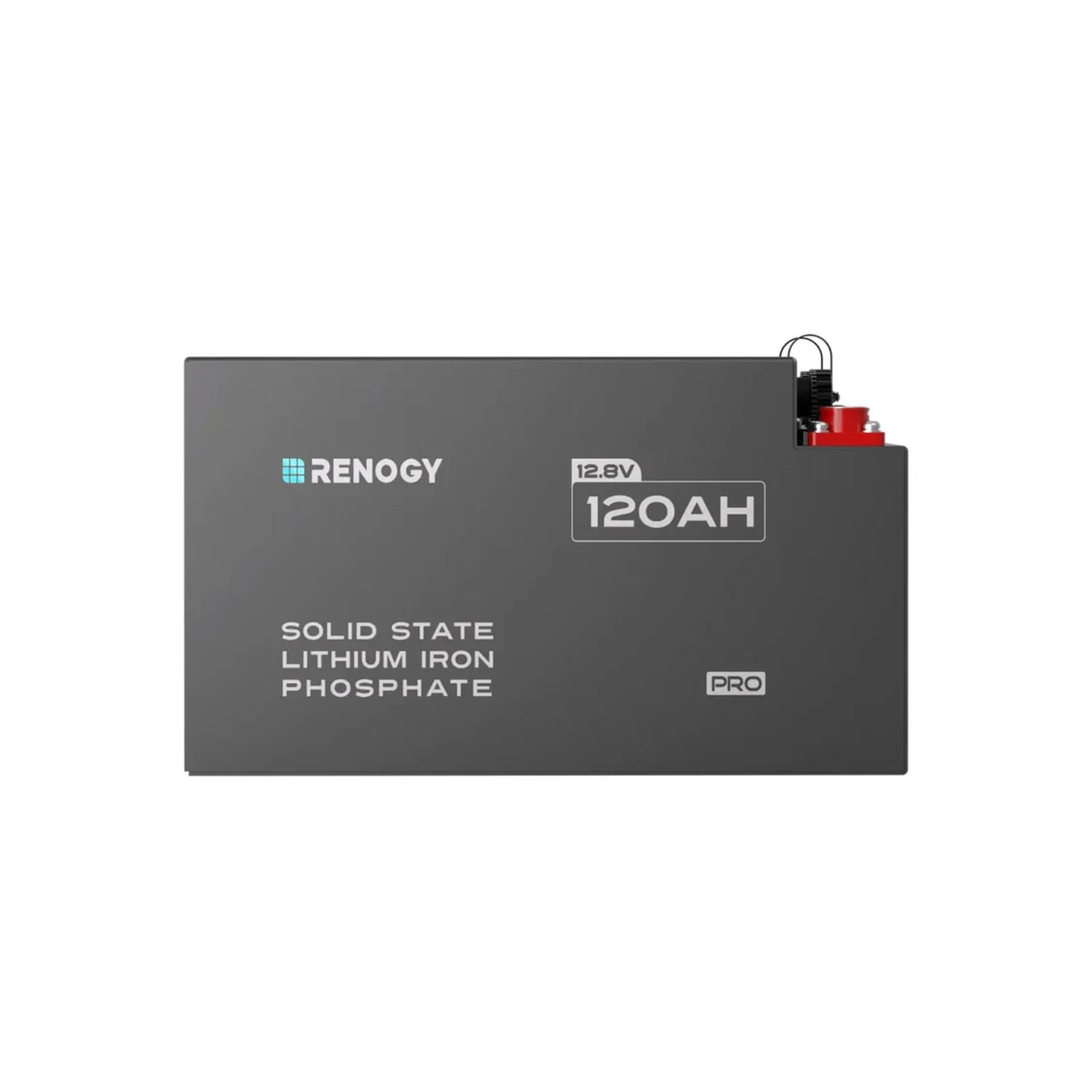

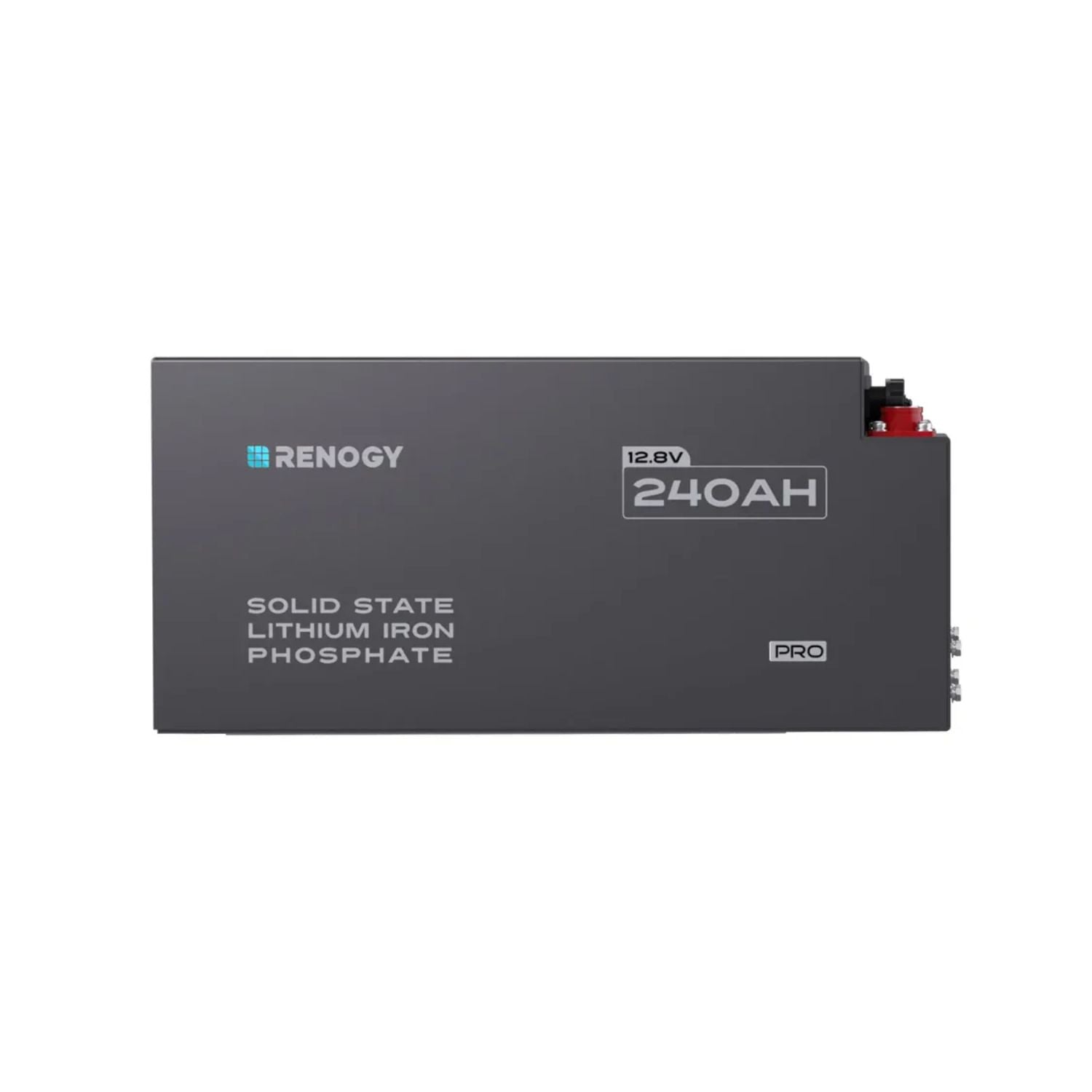

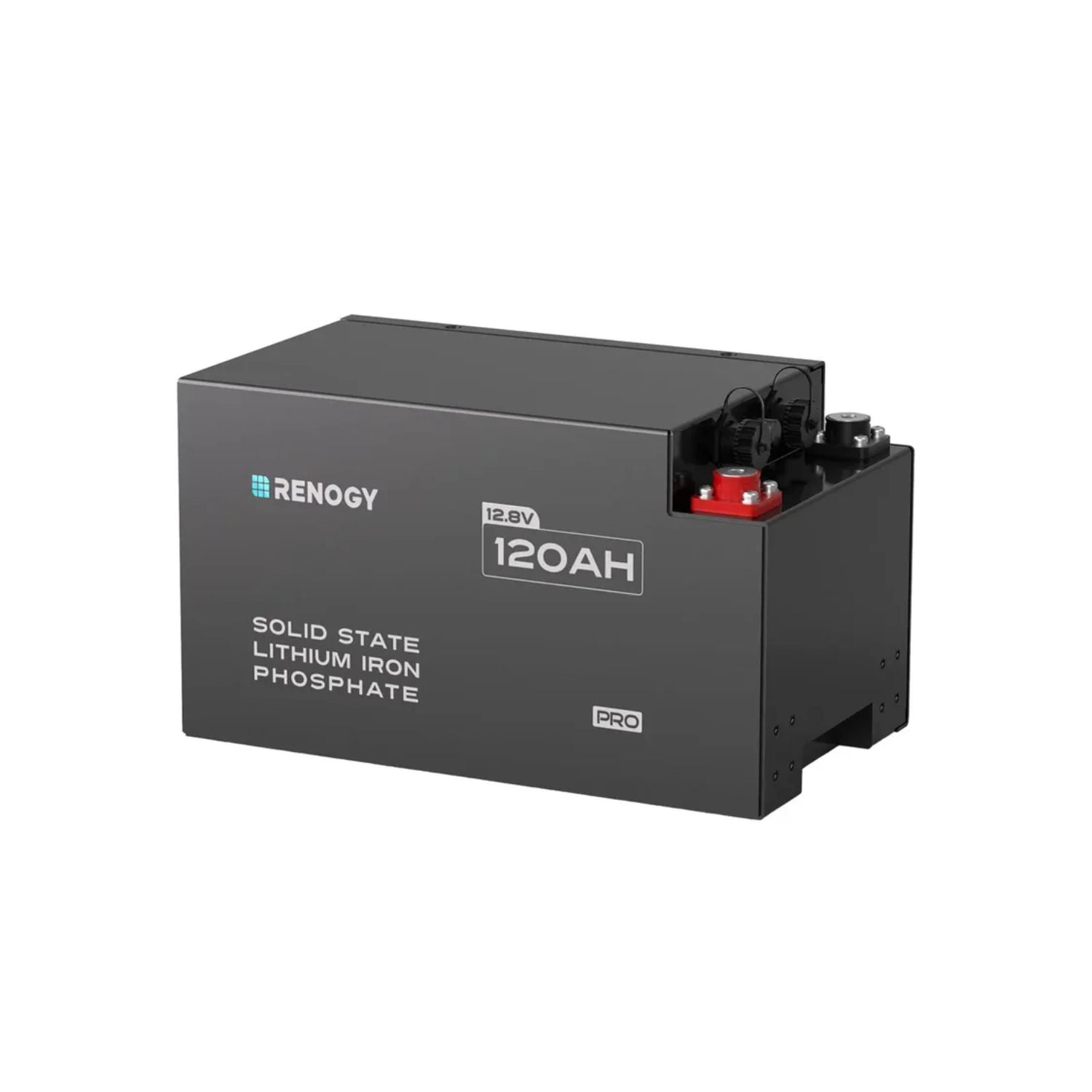

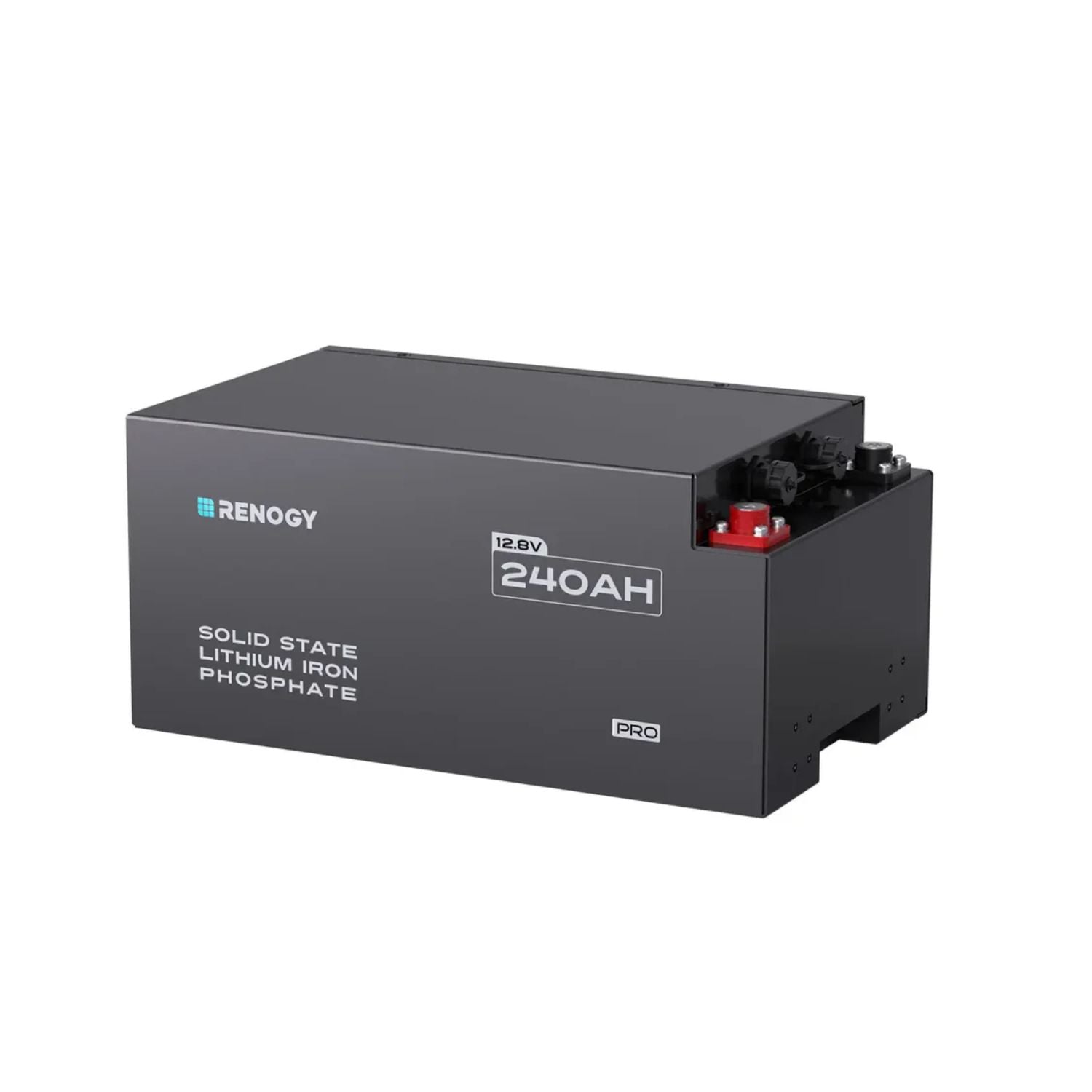

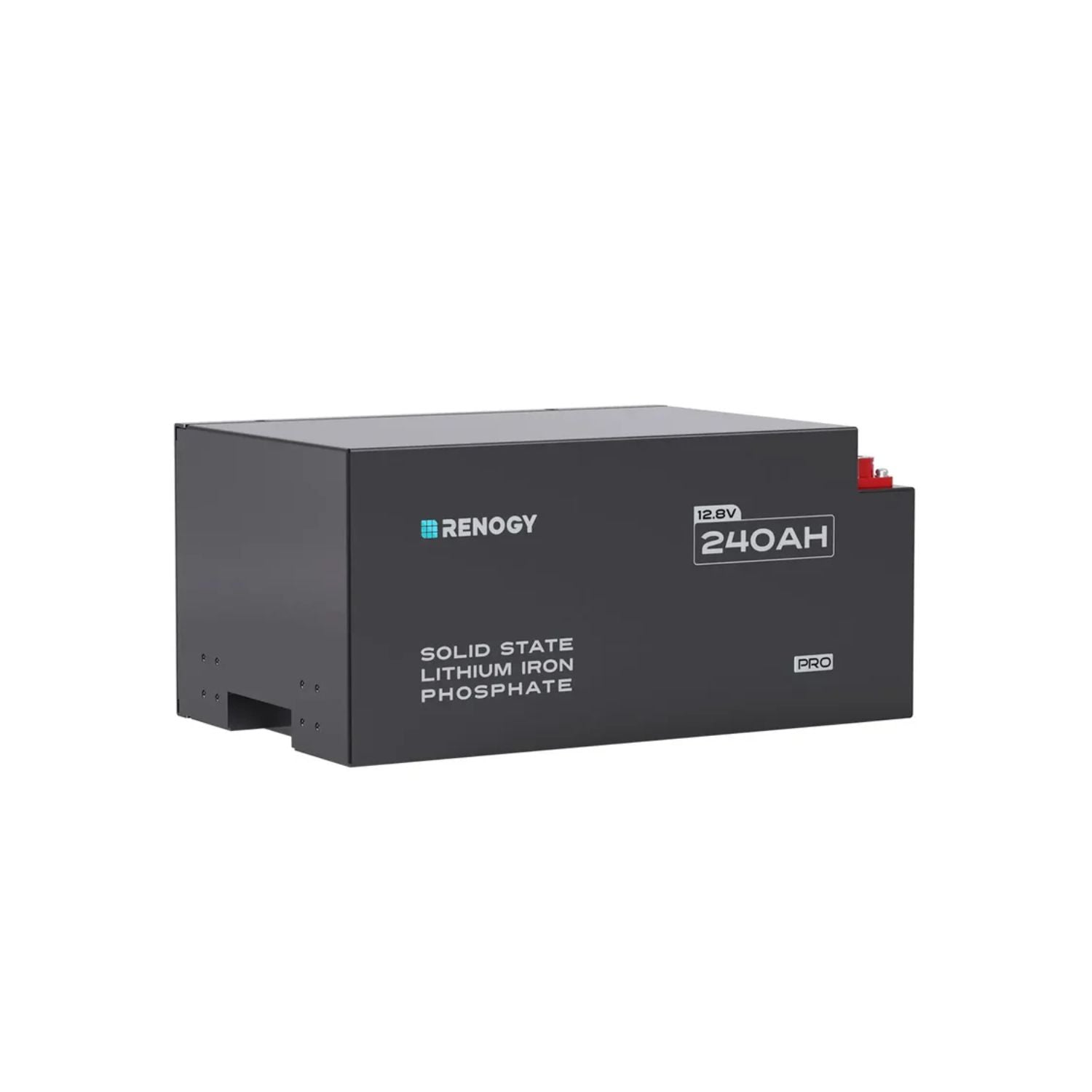

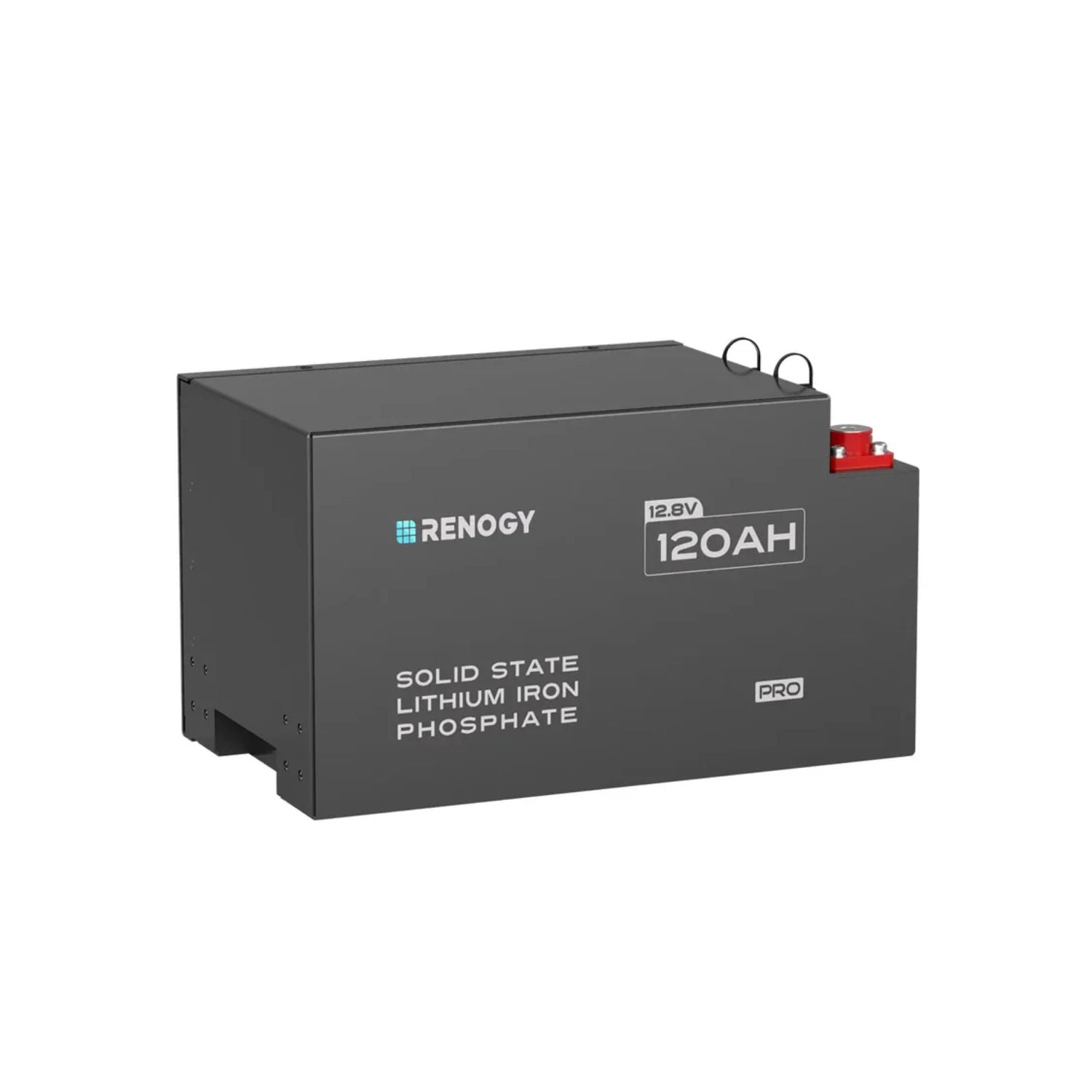

The Pro S1 120 stores 1,536Wh, delivers 150A continuously and is compact enough to fit under many RV seats. The Pro S1 240 stores 3,072Wh and delivers 240A continuously, more than 3,000W, enough to run an RV air conditioner, coffee maker or hair dryer. Both include self-heating, Bluetooth and CAN communication, a metal IP67 case and a 7-year warranty.
The Pro S1 120 supplies 150A continuously and 350A for 30 seconds, pairing well with an inverter up to about 1,800W. The Pro S1 240 supplies 240A continuously and 450A for 30 seconds, pairing with an inverter up to about 2,880W.
Instead of one hard cutoff, the BMS responds in stages. On the 240Ah model it allows 250A for 1 minute and 450A for 30 seconds, then cuts off at 480A within 200 milliseconds. That lets inverters and compressors start without nuisance trips while still stopping short circuits quickly. A self-controlled fuse adds a second line of defense.
High-wattage heating pads help the battery recover from low-temperature protection up to 70% faster than earlier designs, based on the 240Ah model, so it can keep charging through cold weather.
Enhanced Bluetooth reaches up to 32.8 yards (30 m) for monitoring voltage, current, capacity and heating status in the Renogy app. CAN ports allow wired communication with compatible system components, and firmware updates arrive over the air.
UL94 V-0 flame-retardant materials resist 10 seconds of direct burning without dripping. The IP67 enclosure can be submerged to 1 meter for 30 minutes, and the battery passes 24-hour salt spray testing for marine use. Mounting brackets hold it firmly in place on rough roads.
Semi-solid-state cells heat up about nine times more slowly than traditional liquid lithium cells, lowering the risk of thermal runaway in hot conditions.
Motorhomes and travel trailers. Run air conditioning, microwaves and other high-draw appliances off-grid.
Vans and overland rigs. Mount the compact Pro S1 120 under a seat for a refrigerator, Starlink, lights and pumps.
Sailboats and coastal homes. IP67 and salt spray resistance suit marine environments.
Off-grid and backup power. Build a 12V, 24V or 48V bank of up to 16 batteries.
Pro S1 120 versus Pro S1 240. The 120Ah model is smaller and lighter at 29.5 lbs and suits under-seat installs. The 240Ah model doubles the capacity and output for whole-RV power, at 56.21 lbs.
Versus the PRO 12V 200Ah. The PRO 200Ah connects in parallel only. The Pro S1 supports 4S4P, adds CAN communication and staged overcurrent protection, and is rated for 6,000 cycles.
Versus conventional LiFePO4 batteries. Standard batteries typically have a single overcurrent limit, plastic cases and no self-heating. The Pro S1 is built for heavy loads and harsh conditions.
This may be a good fit if
No. It uses semi-solid-state cells with about 70% less liquid electrolyte than conventional lithium-ion cells.
No. Bluetooth is built in, and CAN ports are included for wired communication.
Yes. It is rated IP67, meaning it can be submerged up to 1 meter (39.37 inches) for 30 minutes.
About 6,000 cycles at 80% depth of discharge, depending on temperature and storage conditions.
The Renogy Pro S1 12V LiFePO4 Battery brings high output, staged protection, self-heating and a rugged IP67 metal case to RVs, boats and off-grid homes. At Outbound Power, we help customers match batteries to inverters, chargers and appliances. If you have questions, our team is happy to help.
Renogy Pro S1 12V 120Ah / 240Ah LiFePO4 Battery Specifications |
|
|---|---|
| Pro S1 120Ah | |
| Model | RBT12120LFP-SBH-US |
| Rated Capacity | 120Ah (0.5C, 25°C) |
| Energy | 1,536Wh |
| Max Continuous Charge Current | 120A |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 350A for 30 seconds |
| Overcurrent Protection Stages | 165A for 1 min, 240A for 30 s, 360A for 200 ms |
| Dimensions (L x W x H) | 12.8 x 7.44 x 7.4 in (325 x 189 x 188 mm) |
| Weight | 29.5 lbs (13.4 kg) |
| Pro S1 240Ah | |
| Model | RBT12240LFP-SBH-US |
| Rated Capacity | 240Ah (0.5C, 25°C) |
| Energy | 3,072Wh |
| Max Continuous Charge Current | 240A |
| Max Continuous Discharge Current | 240A |
| Peak Discharge Current | 450A for 30 seconds |
| Overcurrent Protection Stages | 250A for 1 min, 450A for 30 s, 480A for 200 ms |
| Dimensions (L x W x H) | 15.94 x 9.61 x 7.4 in (405 x 244 x 188 mm) |
| Weight | 56.21 lbs (25.5 kg) |
| Both Models | |
| Chemistry | Lithium iron phosphate (LiFePO4), semi-solid-state cells |
| Nominal Voltage | 12.8V |
| Charge Voltage | 14.4V |
| Voltage Range | 10.8V to 14.6V |
| Cycle Life | 6,000 cycles at 80% DOD (0.5C/1C, 25°C) |
| Self-Heating | Yes |
| Charge Temperature Range | -4°F to 131°F (-20°C to 55°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 5% to 95% |
| Connection | Up to 4S4P |
| Communication | Bluetooth (up to 32.8 yd / 30 m) and CAN, OTA updates |
| Terminal Bolts | M8 x 1.25 x 12 mm and M8 x 1.25 x 16 mm |
| Recommended Terminal Torque | 70.8 in-lbs (8 N·m) |
| Flame Retardancy | UL94 V-0 |
| Protection Rating | IP67, 24-hour salt spray tested |
| Certifications | MSDS, UN38.3, FCC, CE, PSE, RoHS, RCM, IC, UKCA |
| Warranty | 7 years |
