Rich Solar 200 Watt Complete Solar Kit

The Rich Solar 200 Watt Complete Solar Kit Combines Solar, a LiFePO4 Battery and a 2000W Inverter in One 12V System

The Rich Solar 200 Watt Complete Solar Kit is a 12V off-grid power system with every main component matched and ready to install. It includes a MEGA 200 monocrystalline panel, a BRAVO 30 30A MPPT charge controller, an ALPHA 1 12V 100Ah LiFePO4 battery and a NOVA PURE 2K 2000W pure sine wave inverter, plus the brackets, fuse and cables to connect them.

The panel produces about 0.7kWh per day with 4 peak sun hours, the battery stores 1.28kWh, and the inverter delivers 2,000W continuous and 4,000W surge of 120V AC power. It is a practical starting system for RVs, vans, cabins, camping and emergency backup power.

Rich Solar 200 Watt Complete Solar Kit Features

MEGA 200 Monocrystalline Panel

The MEGA 200 generates 10.9A at its maximum power point to charge 12V batteries. It has anti-reflective coated tempered glass, an anodized aluminum frame, 14 pre-drilled holes and good low-light performance, with a 25-year power output warranty and 10-year workmanship warranty.

BRAVO 30 MPPT Charge Controller With Bluetooth

The BRAVO 30 reaches up to 99.5% MPPT tracking efficiency and 98% conversion efficiency. It auto-detects 12V or 24V systems, supports LiFePO4 and lead-acid profiles, and has an LCD and LED display plus built-in Bluetooth for the RICH SOLAR app.

ALPHA 1 12V 100Ah LiFePO4 Battery

The ALPHA 1 stores 1,280Wh and is rated for over 5,000 cycles. It has a 100A BMS, an internal heater for charging in low temperatures, Bluetooth monitoring from your phone, an IP65 rating and a UL94 V-0 flame-retardant case. It weighs 24 pounds and carries a 5-year warranty.

NOVA PURE 2K Pure Sine Wave Inverter

The NOVA PURE 2K converts 12V DC to 120V AC at 60 Hz with over 88% efficiency. It has three AC outlets and a 5V 2.1A USB port, overload protection on both the DC input and AC output, and LED indicators for under-voltage, over-voltage, over-temperature, overload and short circuit conditions.

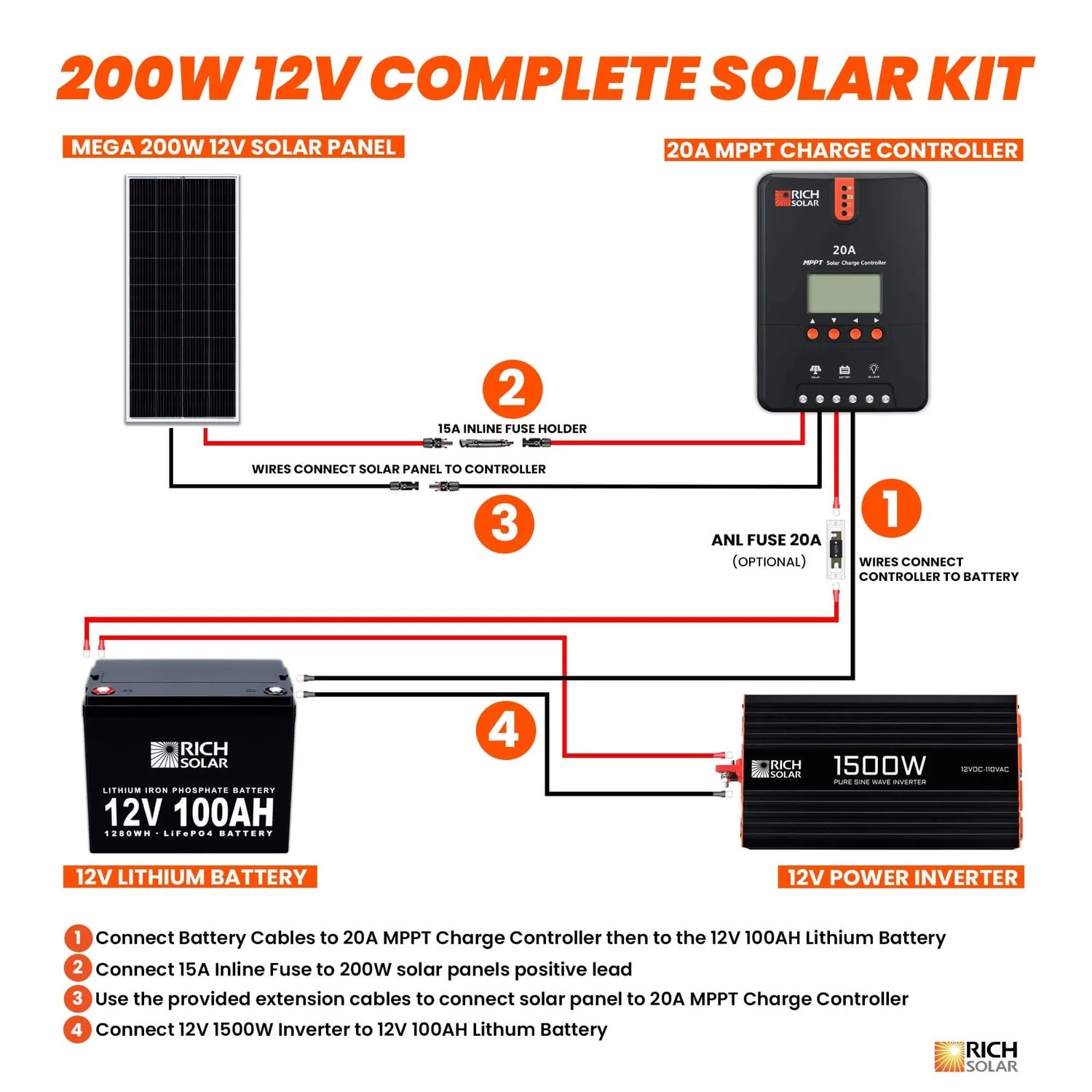

All the Cables and Hardware

The kit includes Z brackets, a cable entry housing, a 15A inline fuse, a 30 ft panel-to-controller cable set, a 10 ft controller-to-battery cable set and a 4 ft 2/0 AWG inverter-to-battery cable set. You do not have to size the main wires yourself.

Real-World Applications

RVs and travel trailers. Run lights, fans, a 12V fridge and AC devices like a laptop or TV while camping off-grid.

Camper vans. A compact, complete system for a small roof and a single battery.

Cabins. Power lights and small appliances where there is no grid connection.

Emergency backup. Keep a router, phones, lights and small appliances running during an outage.

How It Compares to Common Alternatives

Versus the 200 Watt Solar Kit. The basic 200W kit includes only the panel, controller, brackets and cables. The complete kit adds the ALPHA 1 battery, the NOVA PURE 2K inverter and the inverter cables.

Versus a portable power station. A power station is self-contained, but this kit uses separate components you can install permanently, repair individually and expand over time.

Versus the 400 Watt Complete Solar Kit. The 400W complete kit doubles the solar array for faster recharging. Choose the 200W kit for smaller roofs and lighter daily use.

Is This Kit the Right Fit

• Daily energy. Plan on about 0.7kWh of solar per day with 4 peak sun hours. Actual output depends on location, season, tilt and shading.
• Inverter load. The ALPHA 1 is rated for 100A continuous discharge, which is about 1,280W at 12.8V. For long runs near the inverter's 2,000W rating, plan for added battery capacity.
• Roof space. The MEGA 200 panel measures 58.7 x 26.8 x 1.2 inches and weighs 24 pounds.
• Expansion. The BRAVO 30 is rated for about 500W of solar at 12V, so you can add panels later.

This may be a good fit if

• You want a complete 12V solar system with battery and inverter in one order
• You need 120V AC power for small appliances and electronics
• You camp or store your rig in cold weather and want a heated battery
• You want app monitoring for both the controller and the battery

Common Questions

What Can I Run With This Kit?

The inverter supplies up to 2,000W continuous for devices like a laptop, TV, fan or small kitchen appliance. How long they run depends on their wattage and the 1.28kWh stored in the battery.

Can the Battery Charge in Cold Weather?

Yes. The ALPHA 1 has an internal heater that warms the cells so the battery can charge in low temperatures. Charging is rated from 32°F to 131°F.

Can I Add More Panels Later?

Yes. The BRAVO 30 is rated for about 500W of solar on a 12V system, with an 8V to 100V solar input range. Stay within the controller's voltage and current limits.

Are the Inverter Cables Included?

Yes. A 4 ft 2/0 AWG battery cable set with 3/8 inch lugs connects the inverter to the battery.

What's Included

• 1 x MEGA 200 12V 200W Panel (RS-M200)
• 1 x BRAVO 30 30A MPPT Charge Controller (RS-MPPT30PB)
• 1 x ALPHA 1 12V 100Ah Lithium Battery (RS-B121S)
• 1 x 2000W 12V Inverter (RS-V2P12)
• 1 x Z Bracket Set, 4 Brackets per Set (RS-ZB4C)
• 1 x Cable Entry Housing (RS-C2B)
• 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
• 1 x 30 ft 10 AWG Solar Cable Set, Panel to Controller (RS-30101)
• 1 x 10 ft 10 AWG Battery Cable Set, Controller to Battery (RS-1010)
• 1 x 2/0 AWG 3/8 Inch Battery Cable Set, 4 ft, Inverter to Battery (RS-2/0A4F3)

A Complete 12V System in One Kit

The Rich Solar 200 Watt Complete Solar Kit gives you solar charging, lithium storage and pure sine wave AC power from matched components that are ready to install. At Outbound Power, we help customers size their solar, battery and inverter to fit the way they use power. If you have questions, our team is happy to help.
