Rich Solar 40 Amp MPPT Solar Charge Controller

Name: Rich Solar 40 Amp MPPT Solar Charge Controller
Brand: Rich Solar
SKU: RS-MPPT40
Price: 159.99 USD
Availability: InStock

by Rich Solar

SKU: RS-MPPT40

$159.99

Found a lower price?

Send us a request and we’ll beat it today — guaranteed!

1-888-976-5443 (Call/Text)

sales@outboundpower.com

Instant Live Chat

Quantity

Authorized Retailer

Free 30-Day Returns

Friendly Lifetime Support

Optimize Your Solar Power System For Peak Performance With The Rich Solar 40 Amp MPPT Solar Charge Controller

The Rich Solar 40 Amp MPPT Solar Charge Controller is a powerful addition to any off-grid or grid-tied solar power system. This advanced controller maximizes the output from your solar panels, ensuring your batteries are efficiently charged and your system operates at its full potential.

Rich Solar 40 Amp MPPT Solar Charge Controller Features

Automatically detects 12V or 24V DC system voltages
Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
Features diverse load control; also capable of charging over-discharged lithium batteries

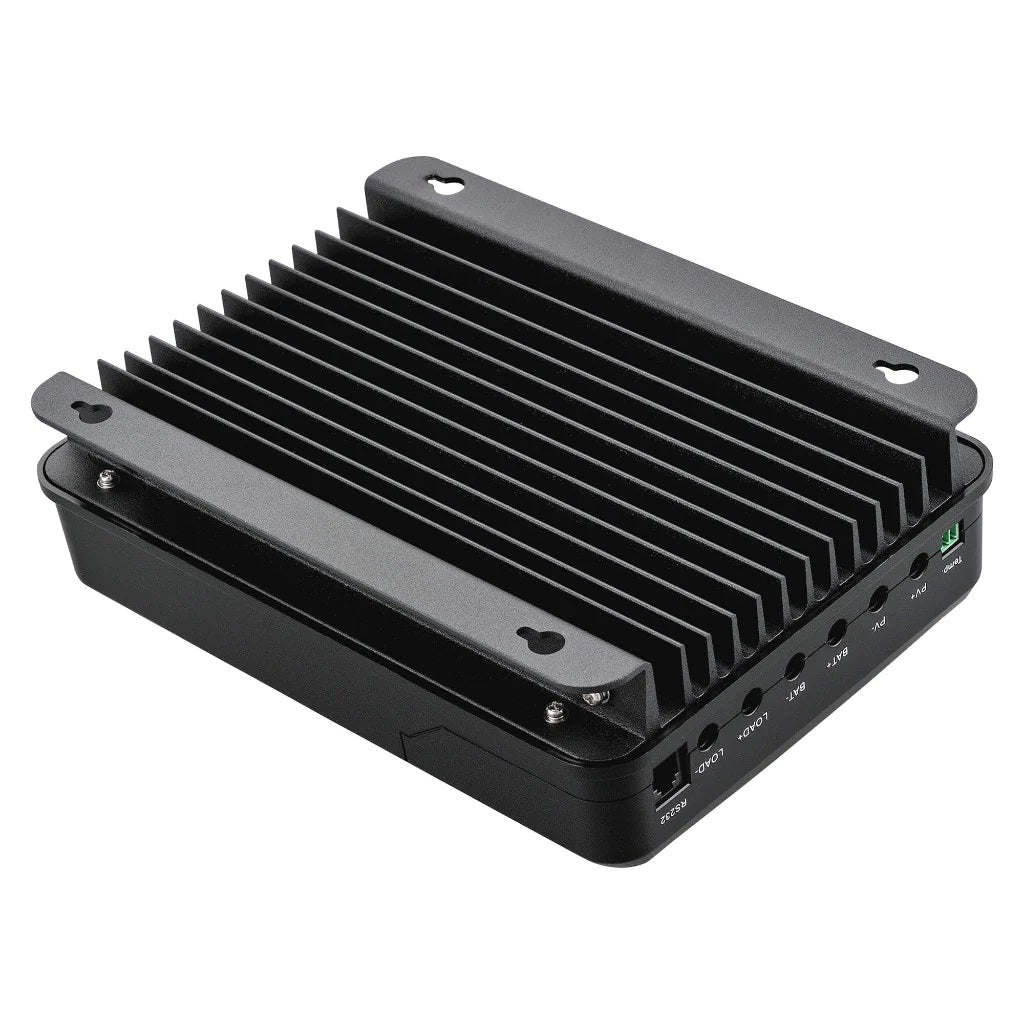

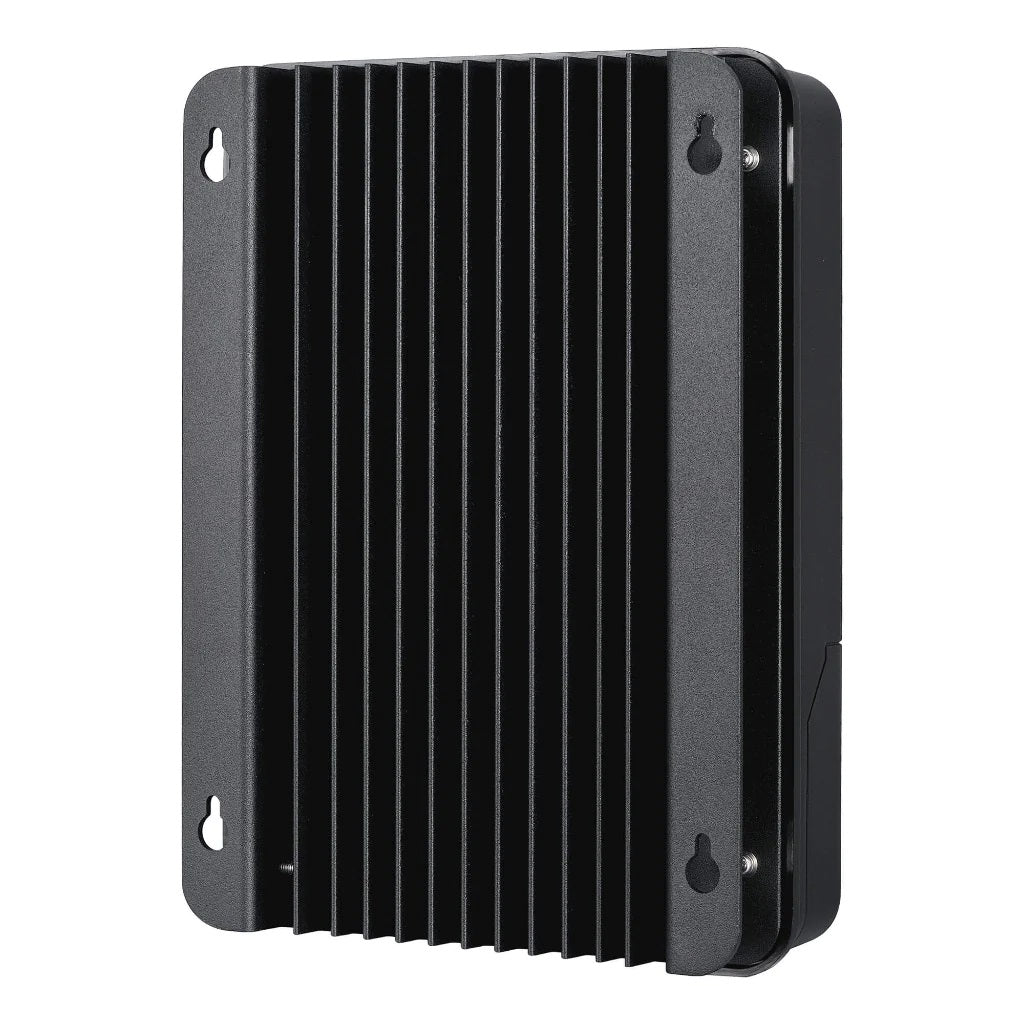

Die-cast aluminum design allows for efficient heat dissipation
RS232 port to communicate with BT-1 Bluetooth module.

What's In The Box

1 x RICH SOLAR 40 Amp MPPT Solar Charge Controller

Rich Solar 40 Amp MPPT Solar Charge Controller Specifications

Rated Battery Current:	40A
Rated Load Current:	20A
Max. PV Input Short Current:	50A
Max. Battery Voltage:	32V
Max Solar Input Voltage:	100VDC
Charge circuit voltage drop:	≤ 0.26V
Discharge Circuit Voltage drop:	≤ 0.15V
Working Temperature:	-35°C to +45°C
Max Terminal Size:	8AWG
Rated Load Current:	10% to 90% NC
Overall Dimension:	9.37 x 6.81 x 2.85 in
Net Weight:	4.41 lb

Rich Solar 40 Amp MPPT Solar Charge Controller Manual

Rich Solar 40 Amp MPPT Solar Charge Controller Manual
