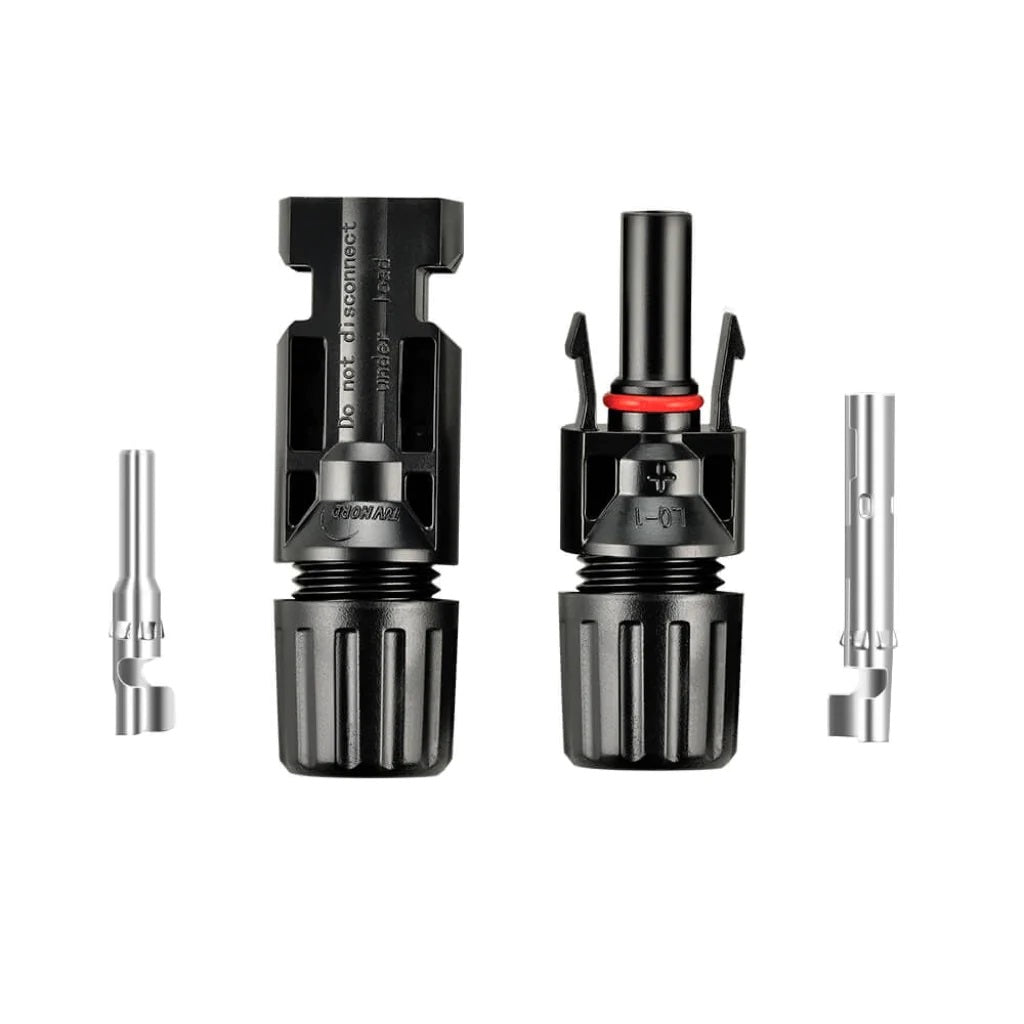

The Rich Solar Solar Connectors are a pack of five female and five male MC4-compatible solar connectors for building and repairing photovoltaic wiring. Use them to terminate custom-length solar cables, replace a damaged connector or add connections to an RV, cabin or off-grid array.
Each connector is rated for 30A and 1000V DC, carries an IP67 rating against water and dust, and fits 10 AWG or 12 AWG solar cable. Tin-plated copper contacts and PA/PC insulation are built for demanding outdoor environments.

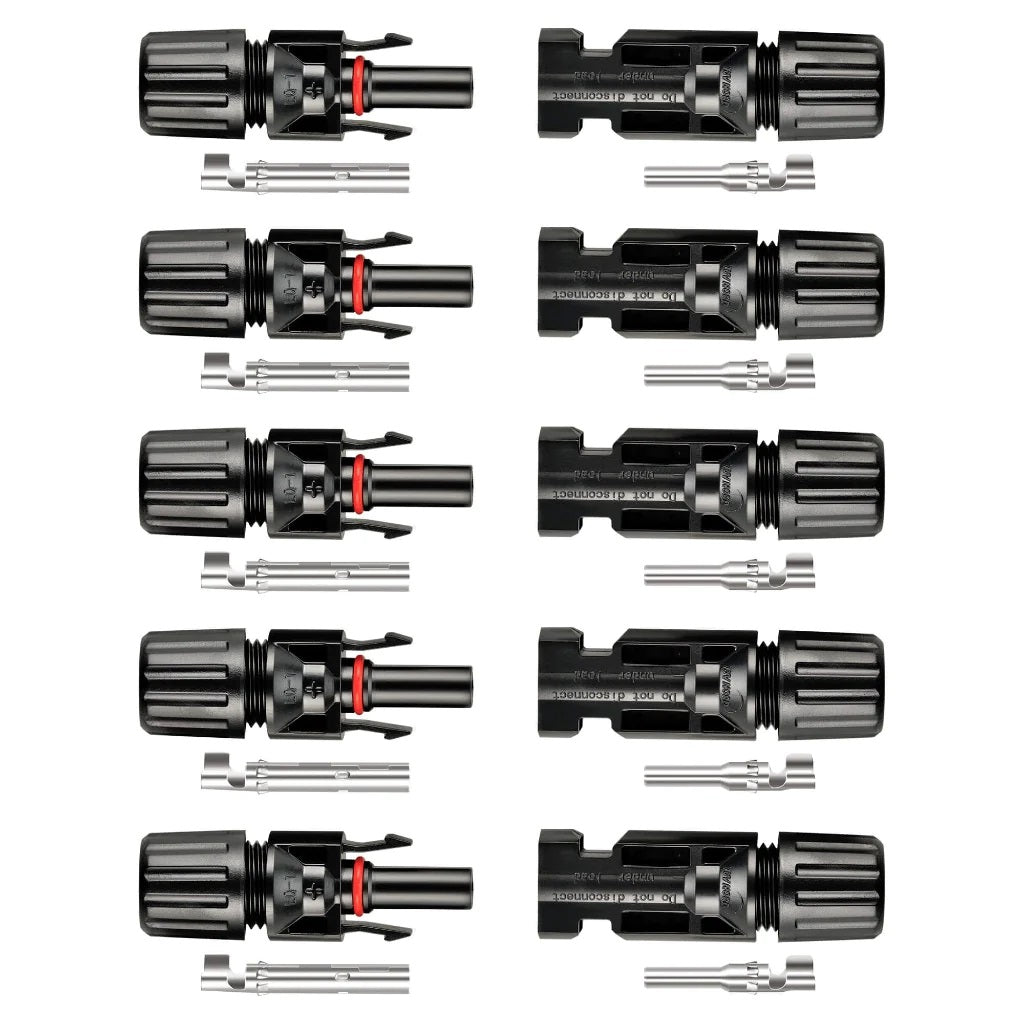

Each package includes five female connectors and five male connectors, enough to finish both ends of several cable runs or to keep spares on hand for repairs.
The connectors are compatible with standard solar connectors (MC4 compatible), so they mate with the leads on most solar panels, extension cables and charge controller cables.
Each connector is rated for 30A of current and up to 1000V DC, which covers 12V, 24V and 48V systems as well as higher-voltage strings for grid-tied and hybrid inverters.
The IP67 rating protects against water, dust and harsh outdoor conditions. The connectors operate from -40°F to 194°F for roofs, decks and ground mounts in any season.
Once assembled, the connectors snap together and come apart easily without special tools, which makes it simple to move panels or service your system.
The connectors accept 10 AWG or 12 AWG solar cable, the two sizes most often used for panel leads and solar extension cables.
Custom cable lengths. Cut solar cable to the exact length you need and add connectors to each end.
Repairs. Replace a cracked, corroded or damaged connector on a panel lead or extension cable.
RV installs. Terminate cables after routing them through a roof entry or cabinet.
Off-grid and DIY systems. Build combiner runs and connections for cabins, sheds and ground mounts.
Versus pre-made cables. Pre-made cables are faster to install, but they come in fixed lengths. Loose connectors let you build cables to fit your exact layout.
Versus generic connectors. Mixing connector types can lead to poor contact. Using one connector family across your system keeps every connection consistent.
Versus hardwiring. Spliced or terminal-block connections are harder to undo. Solar connectors let you disconnect panels for service without cutting wire.
This may be a good fit if
Each package includes five female connectors and five male connectors.
They are compatible with standard MC4-compatible solar connectors, which are used on most solar panels and cables.
Yes. They carry an IP67 rating for protection against water and dust.
The connectors fit 10 AWG and 12 AWG solar cable. Match the connector to your cable size and keep the circuit within the 30A rating.
The Rich Solar Solar Connectors give you weatherproof, MC4-compatible male and female connectors for building and repairing your own solar cables. At Outbound Power, we help customers choose cables, connectors and fuses for their solar systems. If you have questions, our team is happy to help.
Rich Solar Solar Connectors Specifications |
|
|---|---|
| Model | RS-SC5P |
| Package Contents | 5 female, 5 male connectors |
| Connector Type | Standard solar connector (MC4 compatible) |
| Rated Current | 30A |
| Maximum Voltage | 1000V DC |
| Protection Rating | IP67 |
| Compatible Wire Size | 10 AWG, 12 AWG |
| Contact Material | Tin-plated copper |
| Insulation Material | PA/PC |
| Operating Temperature | -40°F to 194°F |
| Package Dimensions | 4 x 8 in |
| Gross Weight | 1 lb |
