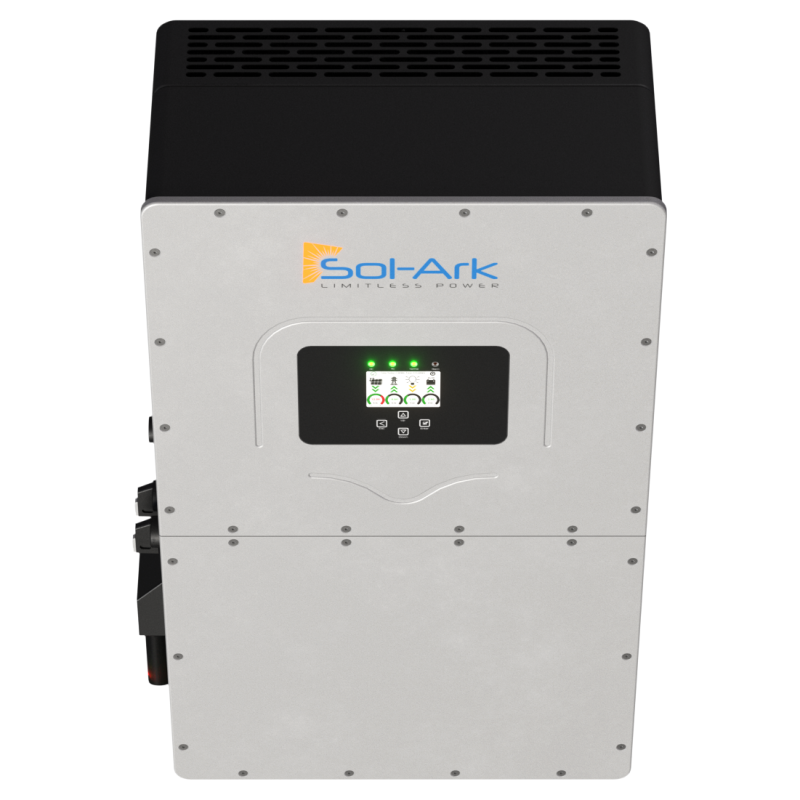

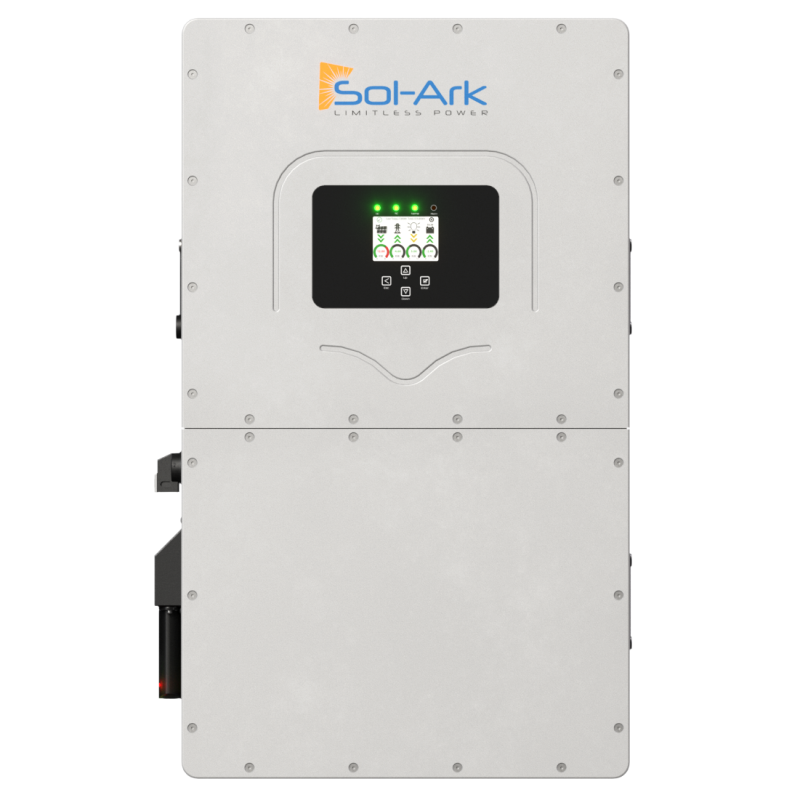

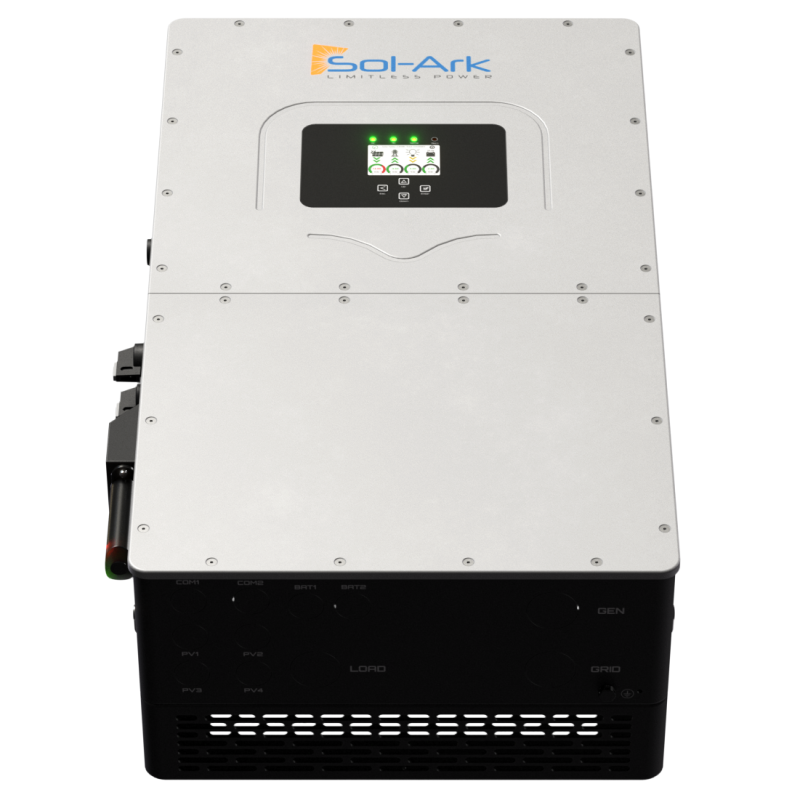

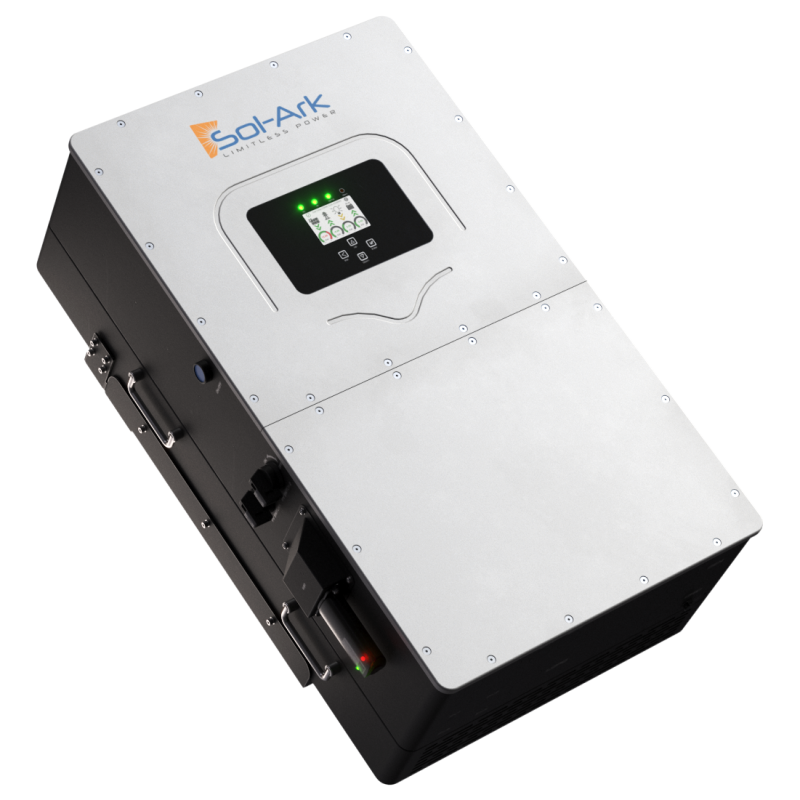

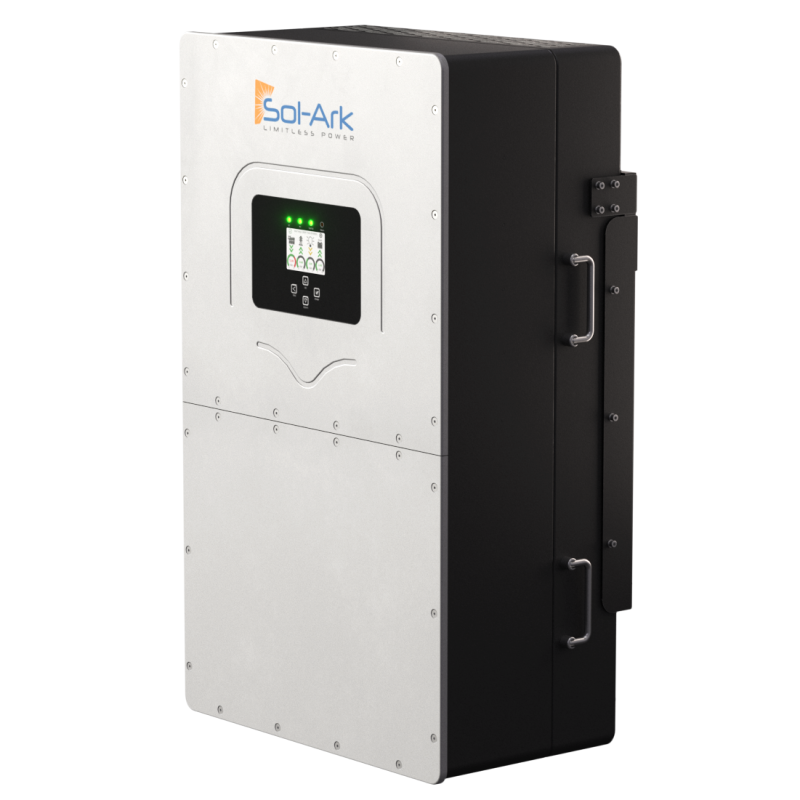

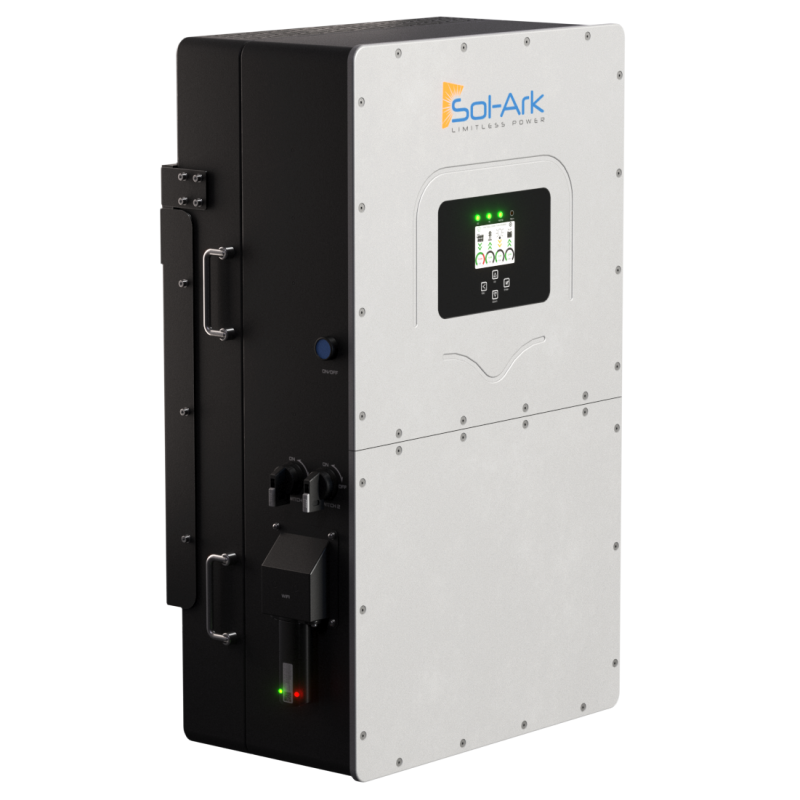

Sol-Ark 60K-3P-480V Hybrid Inverter System Delivers 60,000W For Commercial And Industrial Power Management
The Sol-Ark 60K-3P-480V Hybrid Inverter System is designed for commercial and industrial solar-plus-storage applications that require substantial three-phase power management. With 60,000W of continuous three-phase output at 277/480V, four MPPT trackers, 200A grid pass-through, and integrated management of solar, battery, grid, and generator power, it provides a central platform for coordinating multiple energy sources. It supports grid-connected, off-grid, and battery backup operating modes while offering remote monitoring through included Wi-Fi and LAN hardware.
Sol-Ark 60K-3P-480V Hybrid Inverter System Features
60,000W Three-Phase Output For High-Demand Power Systems
The inverter provides up to 60,000W of continuous real power through a 277/480V three-phase AC output. Its maximum output current is 72.3A, while its seven-second off-grid peak apparent power reaches 120,000VA at 144A. That combination gives system designers substantial output capacity for larger commercial and industrial electrical loads.
Four MPPT Trackers So You Can Manage Large Solar Arrays
Four independent maximum power point trackers help manage solar input across a larger PV system. The inverter accepts up to 78,000W of PV power at STC, with a nominal PV voltage range of 150–850V and maximum input voltage of 1,000V. Each MPPT supports up to 36A of input current and two PV strings.
- 78,000W maximum allowed PV power at STC
- Four MPP trackers
- Two PV strings per MPPT
- 150–850V nominal PV voltage range
- 1,000V maximum input voltage
- 120,000W maximum AC-coupled input
Hybrid Energy Management For Flexible Power Planning
The Sol-Ark 60K-3P-480V combines hybrid inverter and solar charge control functions while managing solar, battery, grid, and generator power. Grid-connected, off-grid, and battery backup operating modes allow the system to be configured around different power-management requirements rather than relying on a single operating method.
200A Grid Pass-Through For Larger Electrical Systems
With a maximum grid pass-through current of 200A, this system is built to handle substantial grid-connected power flows. A 5ms adjustable backup transfer time also supports rapid transitions for backup operation. The output power factor is adjustable from +/- 0.8, providing additional flexibility when designing the electrical system.
High-Voltage Battery Support For Scalable Storage
The battery input is designed around lithium iron phosphate batteries with two battery inputs and a nominal DC voltage above 600V. The operating voltage range is 160–800V, with a battery capacity range of 50–9,900Ah and a maximum battery charge or discharge current of 100A, or 50A per input.
Active BMS communication is required for lithium batteries. The inverter supports CANBus and RS485 BMS communication, helping coordinate battery operation with the larger energy system.
Parallel Operation For Expanded System Capacity
The Sol-Ark 60K-3P-480V can be stacked with up to 12 units in parallel. This provides an expansion path for system designs that require multiple inverters rather than relying on a single inverter for the entire installation.
Integrated Protection For Solar And Power System Equipment
Protection features are integrated into the inverter, including a PV DC disconnect, ground fault detection, PV rapid shutdown control, PV arc fault detection, PV input lightning protection, and PV string reverse polarity protection. Surge protection is provided through DC Type II and AC Type III protection.
Real-World Applications For Commercial And Industrial Power
The Sol-Ark 60K-3P-480V is intended for substantial stationary energy systems rather than portable power applications. Its three-phase 277/480V output, high PV input capacity, high-voltage battery architecture, and grid pass-through capability make it relevant to commercial and industrial solar storage projects.
-
Commercial backup power where substantial three-phase loads need battery-supported energy management
-
Industrial solar storage where large PV arrays and high-voltage battery storage are part of the system design
-
Grid-connected solar systems requiring integrated management of solar, grid, and battery power
-
Off-grid power systems designed around high-capacity three-phase loads and battery storage
-
Generator-supported systems using the integrated automatic generator start function
Sol-Ark 60K-3P-480V Compared With Smaller Inverter Systems
Smaller residential inverters and portable power stations are designed around lower power requirements and different electrical configurations. The Sol-Ark 60K-3P-480V operates at a 277/480V three-phase output and provides 60,000W of continuous real power, making it a substantially different class of equipment.
It is also more than a standalone solar inverter. Its integrated hybrid functionality combines solar charge control with management of battery, grid, and generator power. The ability to operate in grid-connected, off-grid, and battery backup modes gives system designers more options for configuring a larger energy system.
Buyer Guidance For The Sol-Ark 60K-3P-480V Hybrid Inverter System
This inverter is best considered as part of a professionally planned commercial or industrial power system. Before purchasing, customers should verify that the system's electrical requirements, PV array, battery configuration, and operating environment align with the inverter's specifications.
This May Be A Good Fit If:
- You need up to 60,000W of continuous three-phase AC output.
- Your project uses a 277/480V three-phase electrical configuration.
- You are planning a solar array up to the stated 78,000W PV input rating.
- You need high-voltage lithium iron phosphate battery integration.
- You want grid-connected, off-grid, and battery backup operating modes.
- You need substantial grid pass-through capacity up to 200A.
- You may need to parallel multiple inverter units, with up to 12 units supported.
Customers should also confirm battery BMS communication requirements before purchase, since active BMS communication is required for lithium batteries. The datasheet information provided also identifies CEC and SGIP listings as pending, so customers who require those specific listings should confirm their current status before ordering.
Common Questions About The Sol-Ark 60K-3P-480V
How Much Power Does The Sol-Ark 60K-3P-480V Provide?
The inverter provides 60,000W of maximum continuous real power through its three-phase AC output. Its nominal AC voltage is 277/480V.
How Much Solar Input Can This Inverter Handle?
The maximum allowed PV power is 78,000W at STC. The inverter has four MPPT trackers, with two PV strings per MPPT, and supports up to 1,000V maximum PV input voltage.
What Batteries Does The Sol-Ark 60K-3P-480V Use?
The listed battery chemistry is lithium iron phosphate. The system has two battery inputs, supports 160–800V operating voltage, and requires active BMS communication for lithium batteries through CANBus and RS485.
Can Multiple Sol-Ark 60K-3P-480V Units Be Used Together?
Yes. The listed specification states that the inverter is stackable with up to 12 units in parallel. The appropriate system configuration should be confirmed for the specific project.
Does The Inverter Support Generator Integration?
Yes. An integrated two-wire automatic generator start function is listed, allowing generator power to be managed as part of the broader energy system.
Sol-Ark 60K-3P-480V Hybrid Inverter System Specifications
|
| Max. Allowed PV Power |
78,000W |
| Nominal PV Voltage Range |
150–850V |
| Startup Voltage |
150V |
| Max. PV Input Voltage |
1,000V |
| Max. Input Current Per MPPT |
36A |
| Max. Short Circuit Current Per MPPT |
55A |
| No. Of MPP Trackers |
4 |
| PV Strings Per MPPT |
2 |
| Max. AC Coupled Input |
120,000W |
| Nominal AC Voltage |
277/480V, 3-Phase |
| Grid Frequency |
50 / 60Hz |
| Max. Continuous Real Power |
60,000W, 3-Phase |
| Max. Output Current |
72.3A |
| Peak Apparent Power |
120,000VA @ 144A for 7 Seconds, Off-Grid |
| Max. Grid Passthrough Current |
200A |
| Power Factor Output Range |
+/- 0.8 Adjustable |
| Backup Transfer Time |
5ms, Adjustable |
| CEC Efficiency |
96.5% |
| Max. Efficiency |
97.5% |
| DC To AC Design |
Transformerless DC |
| Stackable |
Up To 12 In Parallel |
| Battery Chemistry |
Lithium Iron Phosphate |
| No. Of Battery Inputs |
2 |
| Battery Input Terminal Rating |
50A |
| Nominal Battery DC Voltage |
> 600V |
| Battery Operating Voltage Range |
160–800V |
| Battery Capacity Range |
50–9,900Ah |
| Max. Battery Charge / Discharge Current |
100A, 50A Per Input |
| Charge Controller Type |
3-Stage With Equalization |
| Grid To Battery Charging Efficiency |
96.0% |
| Automatic Generator Start |
2-Wire Start, Integrated |
| BMS Communication |
CANBus & RS485 |
| Dimensions (H × W × D) |
894 × 528 × 295 mm (35.2 × 20.8 × 11.6 in) |
| Weight |
172 lb |
| Enclosure |
IP65 / NEMA 3R |
| Ambient Temperature |
-40–60°C, > 45°C Derating |
| Noise |
< 30 dB @ 25°C (77°F) |
| Idle Consumption |
60W |
| Communication And Monitoring |
Wi-Fi & LAN Hardware Included |
| Warranty |
10 Years |
| PV DC Disconnect |
Integrated |
| Ground Fault Detection |
Integrated |
| PV Rapid Shutdown Control |
Integrated |
| PV Arc Fault Detection |
Integrated |
| PV Input Lightning Protection |
Integrated |
| PV String Reverse Polarity Protection |
Integrated |
| Surge Protection |
DC Type II / AC Type III |
| Certifications And Listings |
UL 1741-2021 Including UL 1741SB; CSA C22.2 No. 107.1-16; IEEE 1547-2018, 1547a-2020 & 1547.1-2020; UL 1699B; CEC And SGIP Pending |
What’s Included
- 1 x Sol-Ark 60K-3P-480V Hybrid Inverter System
Choose The Sol-Ark 60K-3P-480V For Long-Term Power Planning
For commercial and industrial projects, choosing an inverter is about more than a single output number. PV capacity, battery voltage, grid requirements, operating modes, communication, expansion, and protection all need to work together as part of the larger power system. The Sol-Ark 60K-3P-480V brings these functions together in a high-capacity three-phase hybrid inverter with 60,000W continuous output, four MPPT trackers, high-voltage battery support, 200A grid pass-through, remote monitoring hardware, and support for parallel operation. Outbound Power can help you evaluate the specifications and system requirements so you can select power equipment that fits the project rather than simply buying more capacity than you need.
