Wagan SlimLine 800 Watt 12 Volt AC Power Inverter
Condition: New
Condition: New

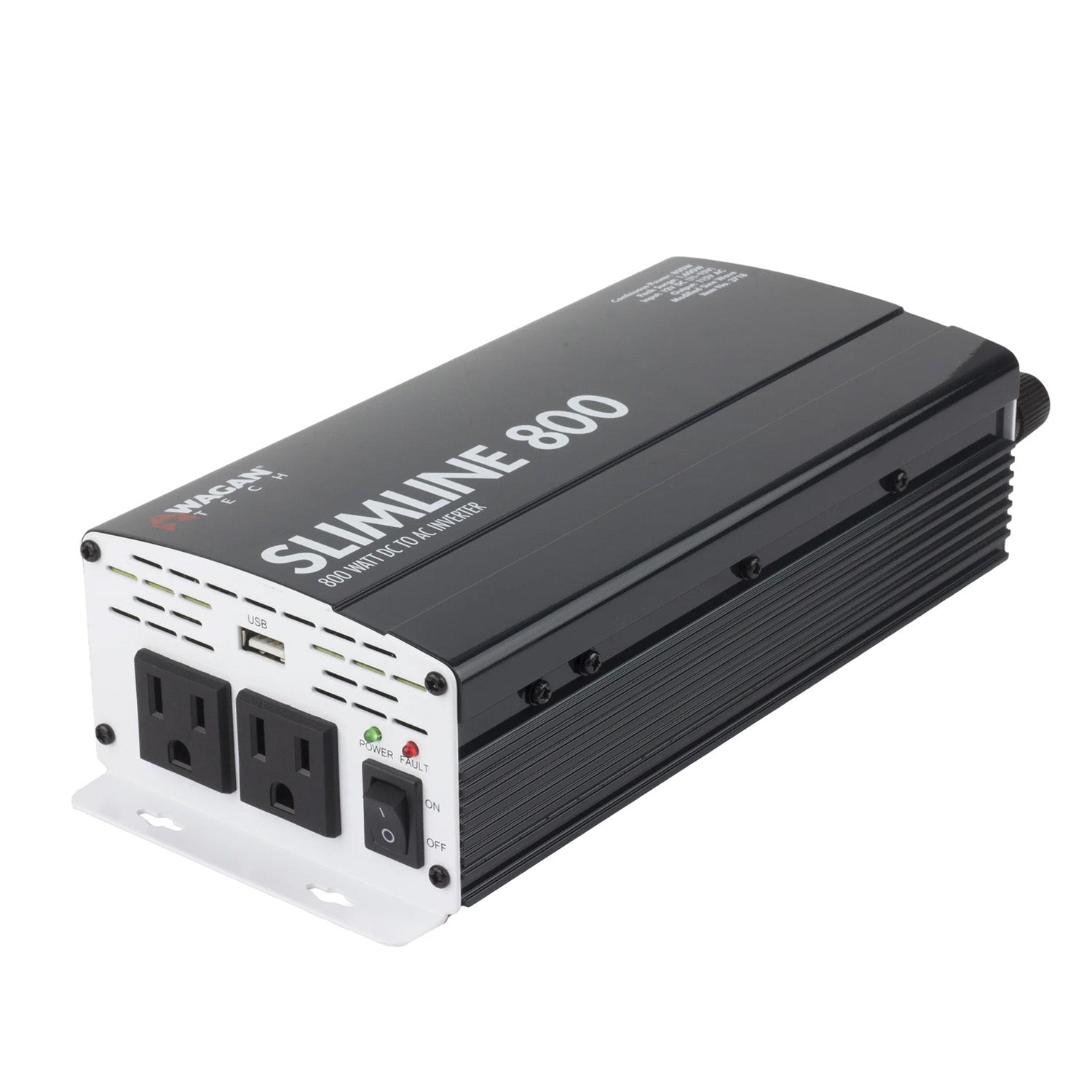

The Wagan Tech SlimLine 800W Inverter is high output, compact, and slim; hence the reason it is a part of the Slimline Inverter family. Designed to be compact, lightweight, and offering full 800 watts of continuous TrueRated power; the SlimLine 800W is the solution to your power needs.
Taking cues from its big brother, the SlimLine 800W Inverter is small in size, but offers huge performance. 800 Watts of continuous TrueRated power, 2 AC receptacles (wall power outlet) as you’d find in your home, 2.1A USB Power Port, thermal cooling fans, and a slew of safeties built in, the SlimLine 800W Inverter is exactly what you’ve been looking for!
In your vehicle, boat, motorcycle, RV, truck, Camper, tail-gating, camping, kid’s soccer games, or anywhere you need to turn DC (battery) power into AC (household) power is where the AC Inverter 800W will shine! 800 continuous watts means that you can run your appliance without worry of the SlimLine 800W Inverter letting you down like lesser inverters.

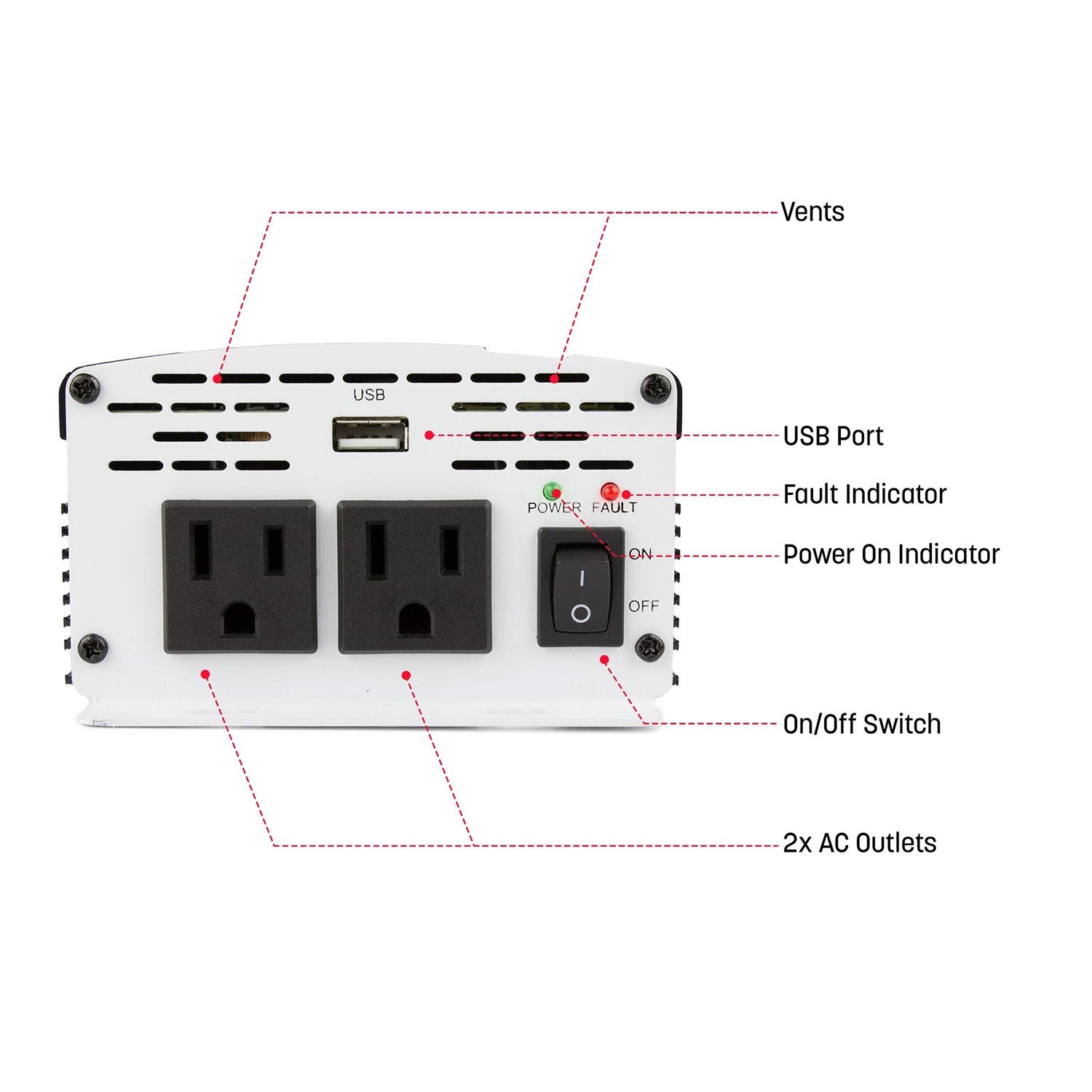

On the front of the SlimLine 800W Inverter you will find 2 standard US 3-prong AC outlets, a 2.1A USB Power Port, Red fault LED light, Green Power LED light, Cooling Vents, Power switch, and the front mounting flange.

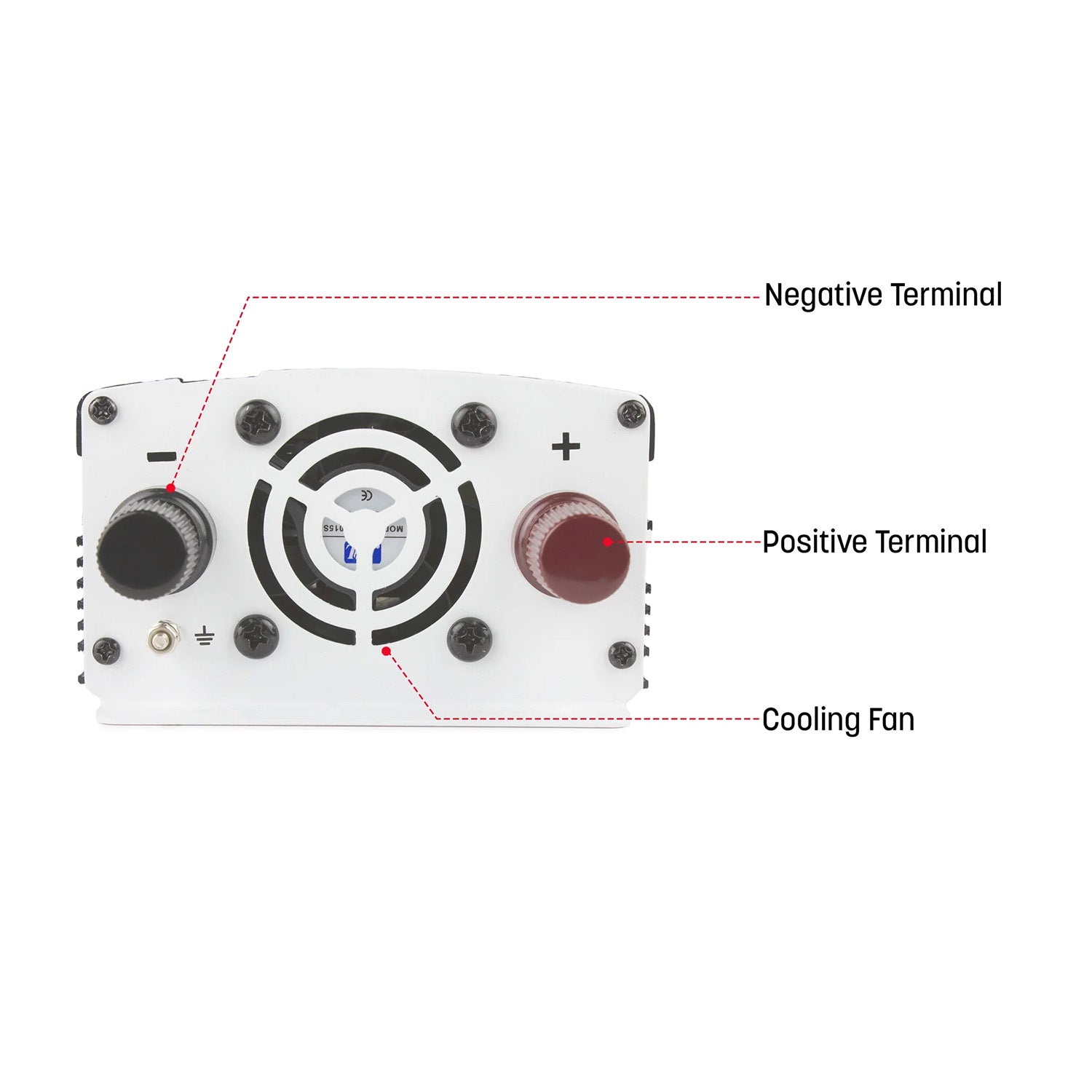

The rear of the SlimLine 800W Inverter offers: Black (Negative) threaded battery terminal, Red (Positive) threaded battery terminal, Neutral to ground bonding terminal (wing-nut), mounting flange, and the thermal cooling fan.
TrueRated Power is Wagan Tech’s coined term for truth in advertising and performance. Simply put, our TrueRated inverters are tested at full load (the number printed on the inverter) and will sustain that load continuously for 24 hours.
TrueRated Power™ | 800W |
Surge Power | 1,600W |
AC Output | 115V |
Frequency | 60Hz |
Socket Type | U.S. standard 3-prong (3x) |
USB Power Ports | (1x) 5V, 2.1A |
Maximum Efficiency | 88% |
Output Waveform | Modified Sine Wave |
Overload Protection | Automatic shutdown |
Overvoltage Shutdown | 15.5V±0.5V DC |
Overheating Protection | Cooling fan with automatic shutdown |
Overheat Shut-down | Yes |
Short circuit and reverse polarity protection | Internal Fuses |
Internal Fuses | 3 x 35A |
Cooling Fan | Temperature Controlled |
DC Input | 12V |
DC Cable | 3 feet, 8AWG (Included) |
Input Range | 11V to 15V |
Low battery alarm | 10.5V ± 0.5V |
Low battery automatic shutdown | 10.0V ± 0.5V |
No load current draw | < 0.3A |
NTG Bond | Yes |
True Ground | Yes |
Net Weight | 2.3 lbs. |
Dimensions L x W x H (in.) | 10.3 x 2.5 x 4.3 |
Warranty | 2 years |
