The Faraday Defense T.R.A.P.-B EMP Vehicle Protection Connects Across Your Battery to Help Suppress Damaging Transients at the Source

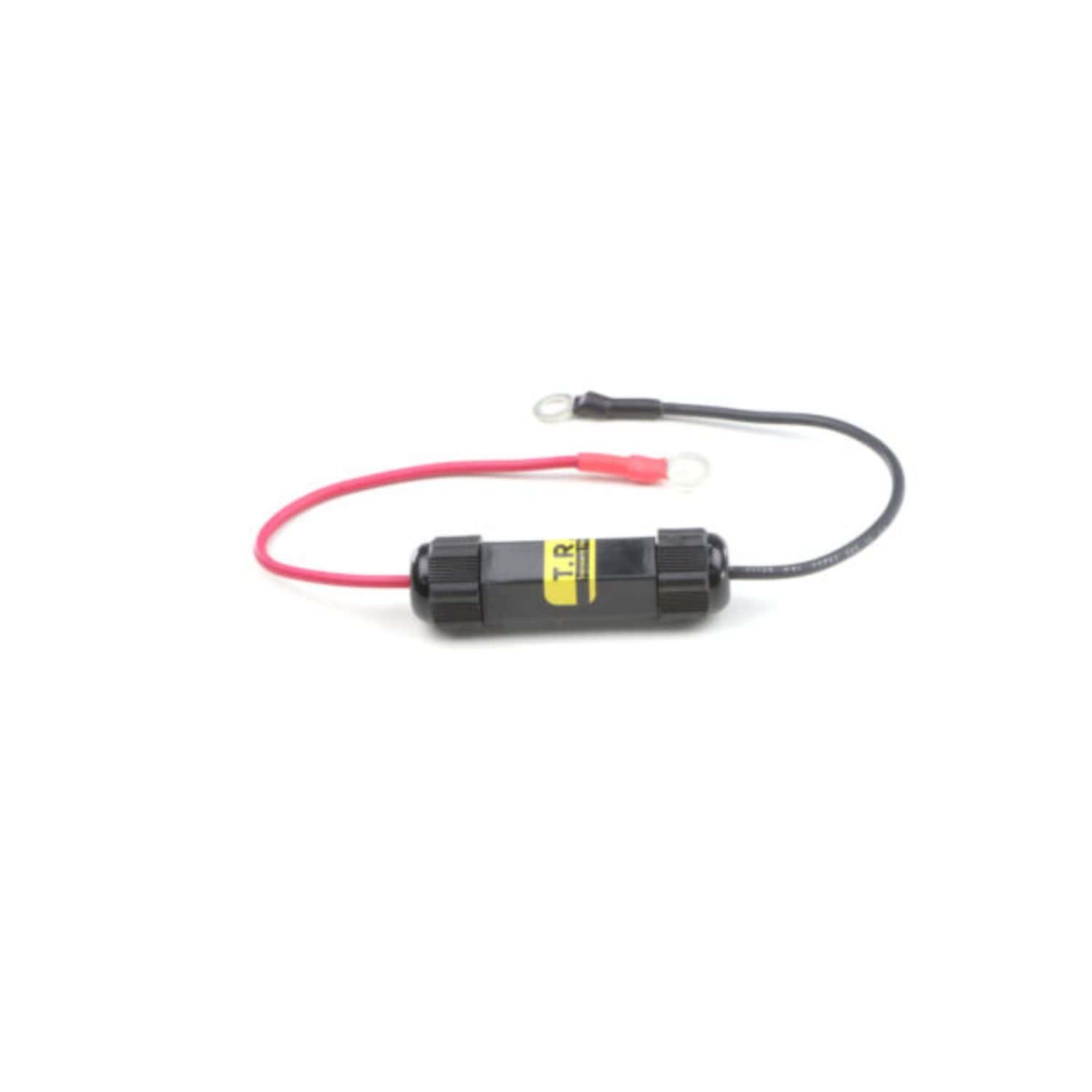

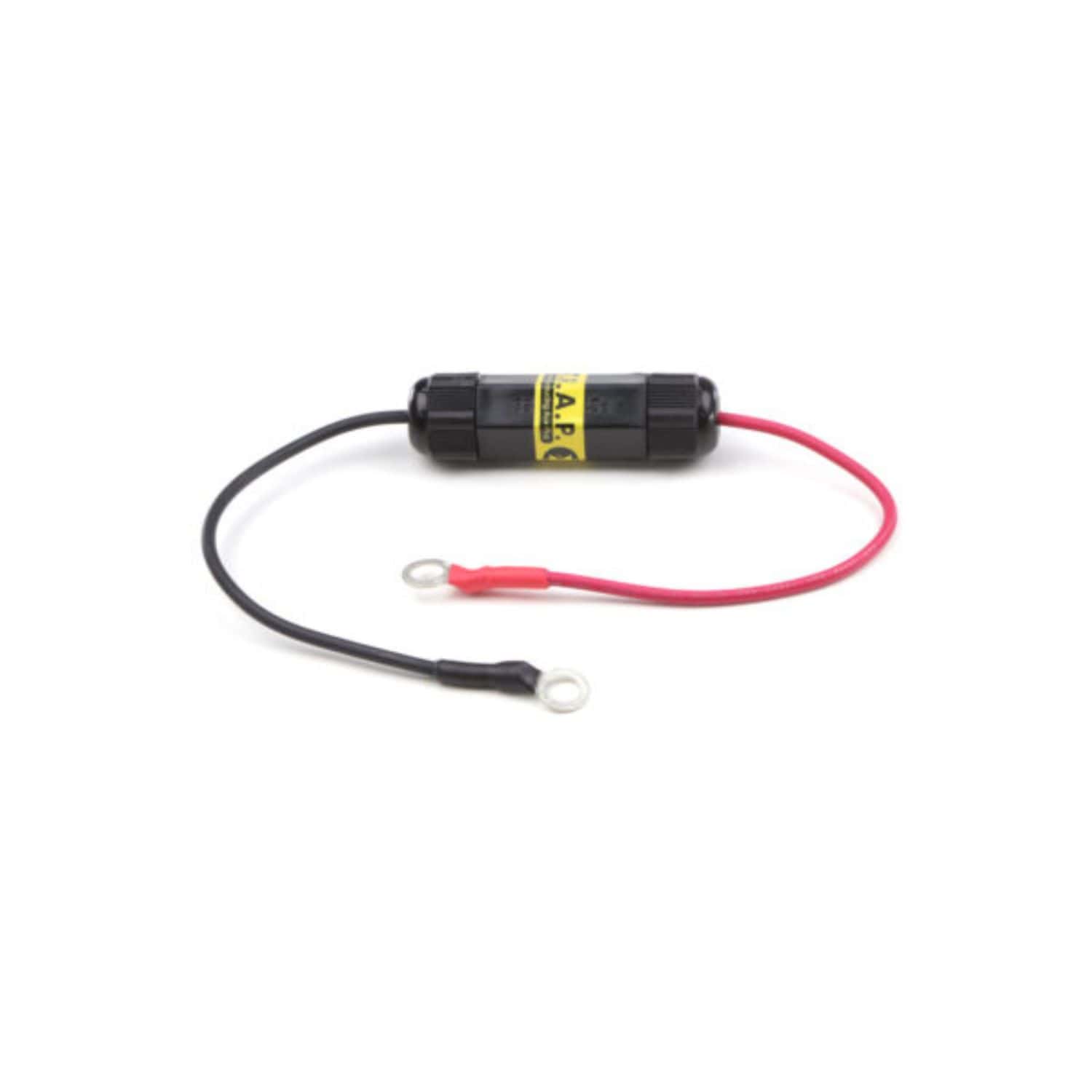

The Faraday Defense T.R.A.P.-B puts a 5,000-watt transient voltage suppression device into a weatherproof module that connects across your vehicle's battery terminals. It contains the same AEC Q101 qualified suppression device as the plug-in T.R.A.P., in a form factor made for use across the battery.
Faraday designed it to help protect your vehicle from load changes, conducted transients from a charging port, radiated energy from a nearby lightning strike and an overhead electromagnetic pulse (EMP). It suits drivers who want transient protection right at the battery, either on its own or together with T.R.A.P. plugs in the auxiliary outlets. Each unit is hand assembled in the US.
Faraday Defense T.R.A.P.-B EMP Vehicle Protection Features
5,000-Watt Suppression Across the Battery
The T.R.A.P.-B contains a 5,000-watt transient voltage suppression device, the same AEC Q101 qualified part used in the T.R.A.P. Connected across the battery terminals, it works to suppress transients right at the battery.
IP68 Rated Weatherproof Module
The module is IP68 rated, with integrated rubber o-rings and marine-grade heatshrink. Faraday describes the package as weatherproof, so it can sit in the engine bay next to the battery.
Ring Terminals for Simple Attachment
Faraday fits the T.R.A.P.-B with ring terminals for easy installation and attachment at the battery. The module uses automotive-grade wire and copper terminals, and the ring terminals can be changed out if needed.
Works With the Ignition Off
Interconnected cable assemblies can still receive damaging energy when the vehicle is parked. T.R.A.P. products keep acting as a high-frequency energy sink even when the vehicle is unpowered, so the T.R.A.P.-B keeps working while the vehicle is parked.
Essentially Zero Battery Drain
T.R.A.P. products draw essentially zero current except when there is a significant overvoltage. You can leave the T.R.A.P.-B connected to the battery without draining it.
Real-World Applications
Everyday vehicles. Connect a T.R.A.P.-B across the battery of your car or truck for transient protection that stays in place whether you're driving or parked.
Pairing with T.R.A.P. plugs. Faraday recommends a T.R.A.P. in every auxiliary power outlet together with a T.R.A.P.-B across the battery, so energy traps sit at several points in the vehicle.
Emergency-ready vehicles. For a vehicle you keep ready for storms, outages or other emergencies, the T.R.A.P.-B adds EMP and lightning transient protection at the battery.
Practical Comparison
T.R.A.P.-B Versus the Plug-In T.R.A.P.
Both contain the same AEC Q101 qualified transient suppression device. The T.R.A.P. plugs into an auxiliary power outlet. The T.R.A.P.-B connects across the battery terminals with ring terminals in a weatherproof module. Faraday suggests using both for fuller coverage.
T.R.A.P.-B Versus an Unsealed Suppressor
A component left unsealed in the engine bay is exposed to the weather. The T.R.A.P.-B's module is IP68 rated and sealed with integrated rubber o-rings and marine-grade heatshrink.
Buyer Guidance
Installing Across the Battery

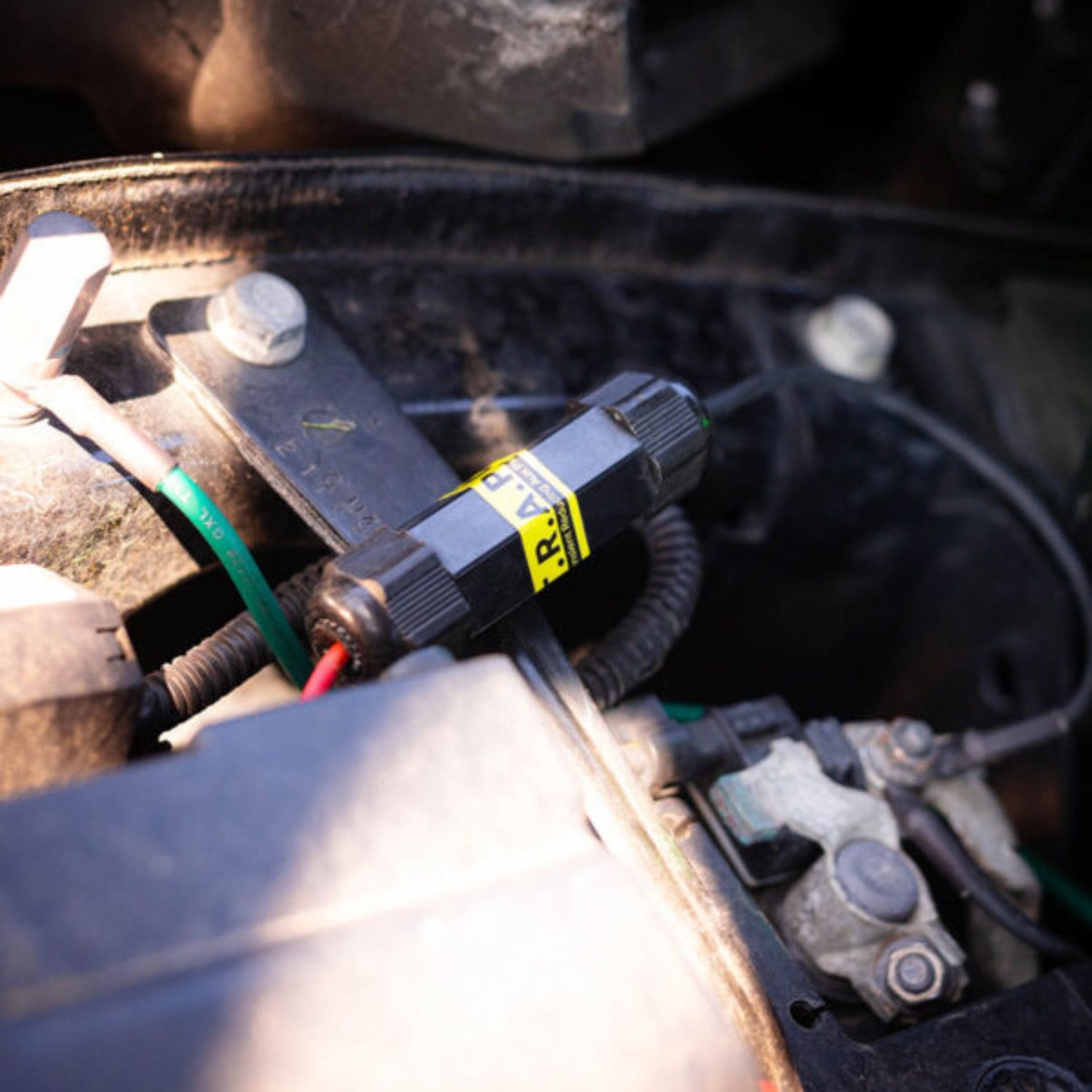

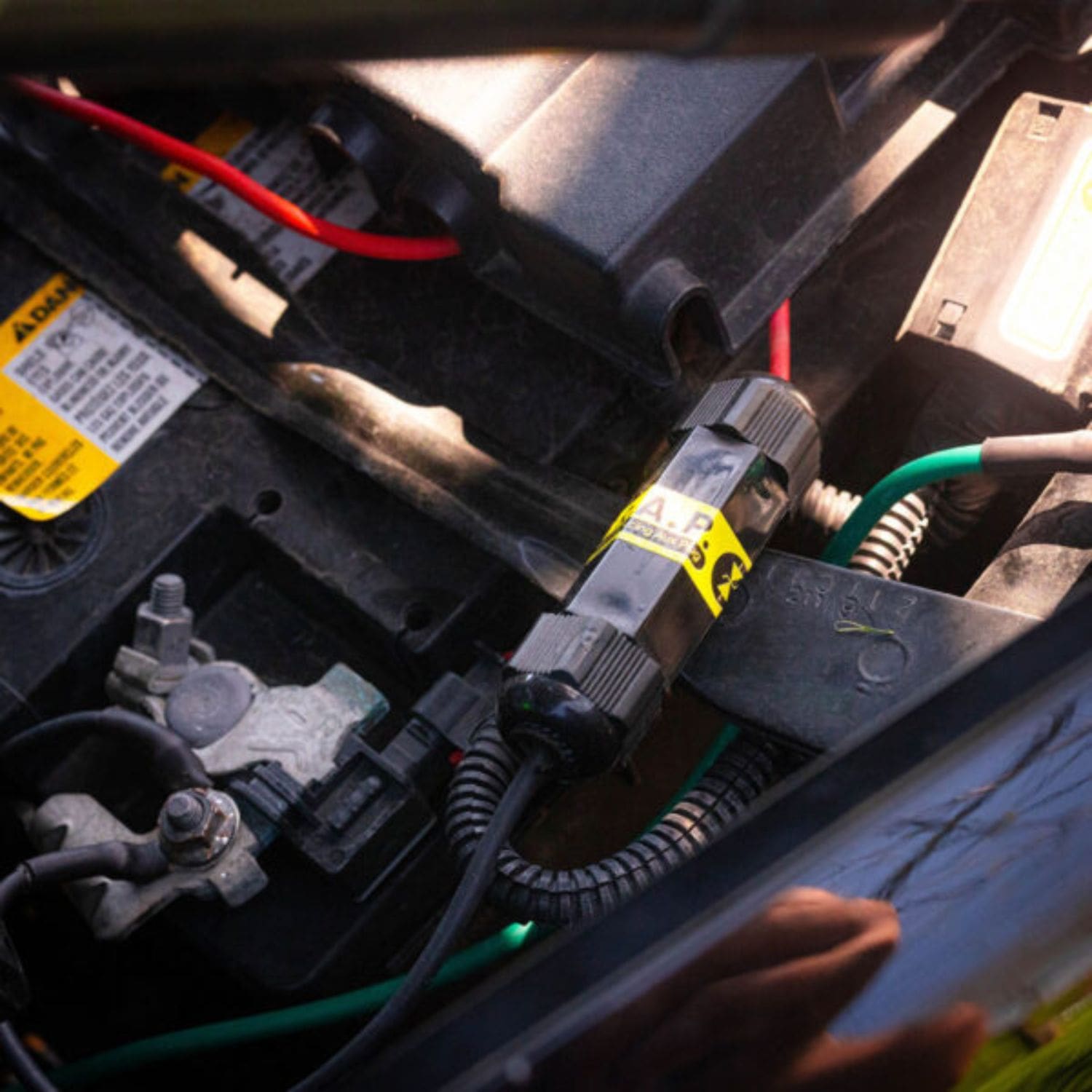

The T.R.A.P.-B connects across the vehicle's battery terminals using its ring terminals. If you aren't comfortable working at your vehicle's battery, have a qualified technician install it.
Building Out Your Protection
Faraday says putting energy traps at multiple points in a vehicle does a better job of shunting away unwanted energy. Start with a T.R.A.P.-B at the battery, then add a T.R.A.P. to each auxiliary power outlet.
This May Be A Good Fit If
You want transient protection right at the battery
You already use a T.R.A.P. in your auxiliary outlets
You want a sealed module for under the hood
You want protection that works with the ignition off
Common Questions
How Can Something This Small Help Against an EMP?
Faraday explains that the danger to vehicles from an EMP is the high voltage introduced on the cables by E1 and E2. Those transients last only nanoseconds to microseconds, so small devices can suppress them. A home is different, because it would also see a powerful E1 current surge from the power grid.
Can I Use It With Other T.R.A.P.s?
Yes. Faraday recommends a T.R.A.P. in every auxiliary power outlet along with the T.R.A.P.-B across the battery.
Will the T.R.A.P.-B Drain My Battery?
No. T.R.A.P. products draw essentially zero current except when there is a significant overvoltage.
Can I Change the Ring Terminals?
Yes. The ring terminals on the T.R.A.P.-B can be swapped out.
What's Included
1 x Faraday Defense T.R.A.P.-B Battery Transient Suppressor With Ring Terminals
Sealed Transient Protection at Your Battery
The Faraday Defense T.R.A.P.-B EMP Vehicle Protection gives your battery a 5,000-watt, AEC Q101 qualified transient suppressor in an IP68 rated module that stays active with the ignition off. If you'd like help pairing it with T.R.A.P. plugs for your vehicle, the Outbound Power team is happy to help.
Essentially zero except during significant overvoltage
Protection
Transient Sources
Load changes, charging port transients, nearby lightning, overhead EMP
EMP Threat Addressed
E1 and E2 transient voltages on vehicle cables
Works With Ignition Off
Yes, acts as a high-frequency energy sink when unpowered
Battery Drain
No
Construction
Enclosure
Weatherproof module, IP68 rated
Seals
Integrated rubber o-rings
Wire
Automotive-grade
Terminal Material
Copper
Heatshrink
Marine-grade
Assembly
Hand assembled in the US
Installation
Method
Connect across the battery terminals with the ring terminals
Ring Terminals
Can be changed out
Recommended Pairing
T.R.A.P.-B across the battery plus a T.R.A.P. in every auxiliary outlet
