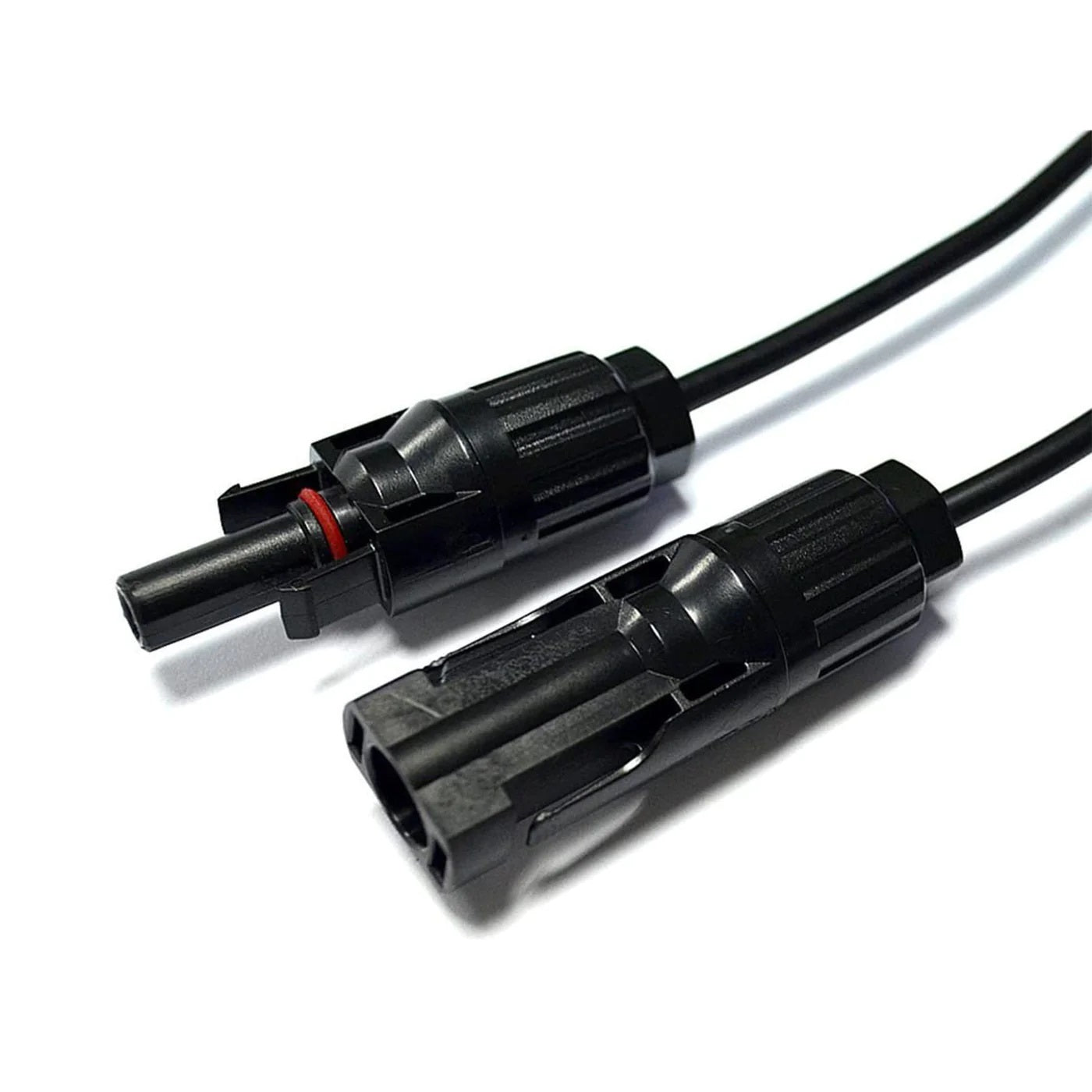

ACOPower 3 Pairs of Male and Female Solar Connectors Make Weatherproof, Locking PV Connections
This pack of ACOPower solar connectors includes 3 male and 3 female MC4-compatible PV connectors. Use them to add connectors to cut solar cable, build custom-length extension cables, or replace a damaged connector on a panel lead or charge controller cable.
Each connector snaps together with a self-locking latch that holds firmly and releases easily with the unlocking tab. Once mated, the pair is IP67 rated against water and dust, and the UV-resistant housing is made for years outdoors on roofs, ground mounts and boats.
ACOPower 3 Pairs PV Solar Panel Connectors Features
Self-Locking Connection
The male and female halves click together and lock. They release only when the latch is pressed, so vibration and cable movement will not pull them apart.

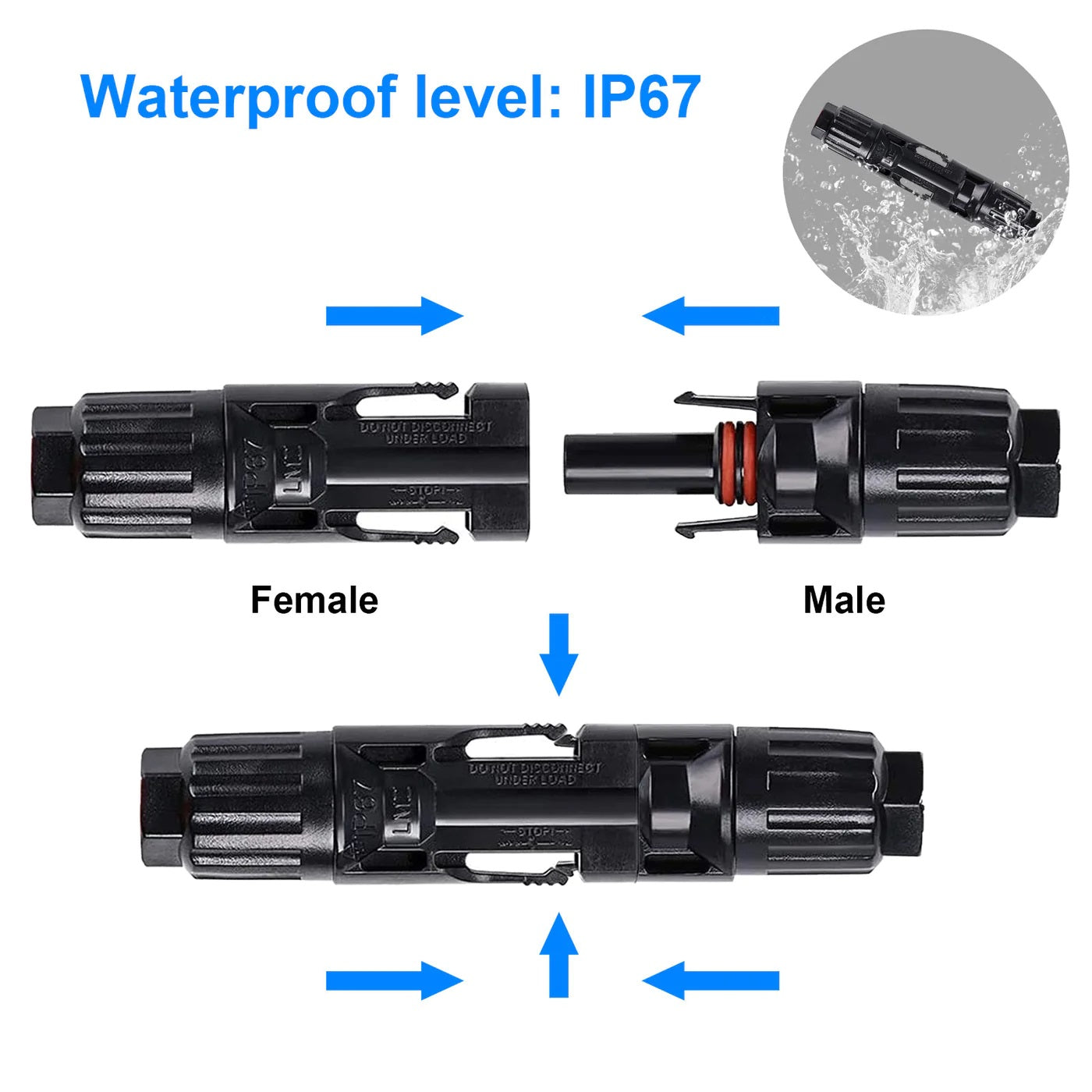

IP67 Weatherproof
Seals keep water and dust out of the mated connection for reliable performance in rain and snow.
Silver-Plated Copper Contacts
Silver-plated copper contacts keep resistance low for efficient power transfer.
Rated for High Voltage Arrays
The connectors are rated to 1000V DC under TUV and 600V under UL, well above typical RV and off-grid array voltages.
Tough, UV-Resistant Housing
PC/PA insulation resists aging and UV and carries a UL94-V0 or 5VA flame rating. The connectors work from -40°C to +90°C.
Real-World Applications
Custom cable runs. Cut solar cable to the exact length you need and add connectors to both ends.
Repairs. Replace a broken or corroded connector on a panel or extension cable.
Controller wiring. Add connectors to the PV input leads of a charge controller for plug-in panel connections.
How It Compares to Common Alternatives
Versus pre-made extension cables. Pre-made cables are ready to use. Separate connectors let you set exact lengths and avoid coiled excess cable.
Versus mixed-brand connectors. Pairing connectors from different makers can lead to poor fit. Using matched pairs gives the most reliable connection.
Is This Solar Connector the Right Fit
-
Cable. Common 10 to 14 AWG solar cable.
-
Tools. A crimping tool for solar connectors and a wire stripper.
-
Use. Indoor or outdoor solar wiring.
This may be a good fit if
- You are building or repairing solar cables
- You need weatherproof, locking connections
- You want spares for your solar kit
Common Questions
What Is Included in Each Pair?
One male and one female connector, each with its housing and seal.
What Cable Sizes Do They Fit?
They are designed for standard solar cable, typically 10 to 14 AWG.
Do I Need a Special Tool?
A solar connector crimping tool gives the most reliable connection. Unlocking requires pressing the latch, which a connector spanner makes easier.
What's Included

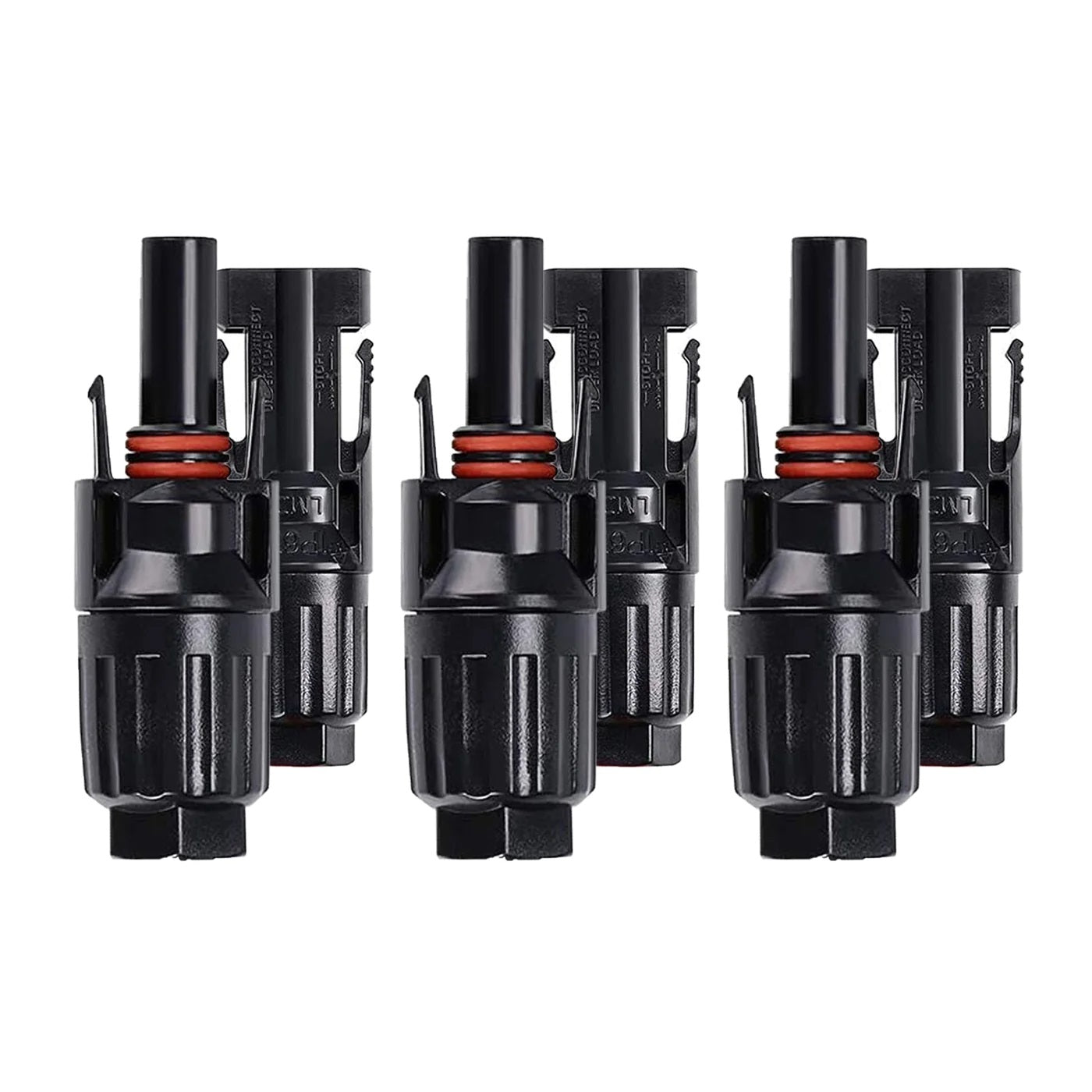

- 3 x Male PV Solar Connector
- 3 x Female PV Solar Connector
Secure Connections for Every Solar Cable
These ACOPower solar connectors give you 3 weatherproof, locking male and female pairs for building and repairing solar cables. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
ACOPower 3 Pairs Solar Connectors Specifications
|
| Quantity |
3 male + 3 female |
| Connector Type |
MC4-compatible PV connector |
| Ingress Protection |
IP67 (mated) |
| Rated Voltage |
1000V DC (TUV), 600V (UL) |
| Contact Material |
Silver-plated copper |
| Insulation |
PC/PA, UV and aging resistant |
| Flame Class |
UL94-V0 or UL94-5VA |
| Protection Class |
Class II |
| Temperature Range |
-40°C to +90°C |
| Unmating Force |
200 N |
| Certifications |
CE, TUV |
