ACOPower Plk 100W Portable Solar Panel Kit

The ACOPower PLK 100W Portable Solar Panel Kit Sets Up in Minutes to Charge 12V Batteries and Power Stations Away From the Grid

The ACOPower PLK 100W Portable Solar Panel Kit is a portable solar charger made up of two folding monocrystalline panels in a lightweight briefcase. It produces up to 100 watts in full sun. With about 5 hours of good sun it can produce around 500 watt hours a day, depending on location and season.

A ProteusX 20A waterproof charge controller comes pre-installed, so you can clip the kit straight onto a 12V battery. To charge a solar generator or power station that has its own controller, connect the removable MC4 cables directly and bypass the ProteusX. You can even charge a 12V battery and a solar generator at the same time.

ACOPower PLK 100W Portable Solar Panel Kit Features

High-Efficiency Monocrystalline Cells

ACOPower uses monocrystalline cells with up to 23% conversion efficiency, so the panel delivers more power from a smaller footprint than polycrystalline designs.

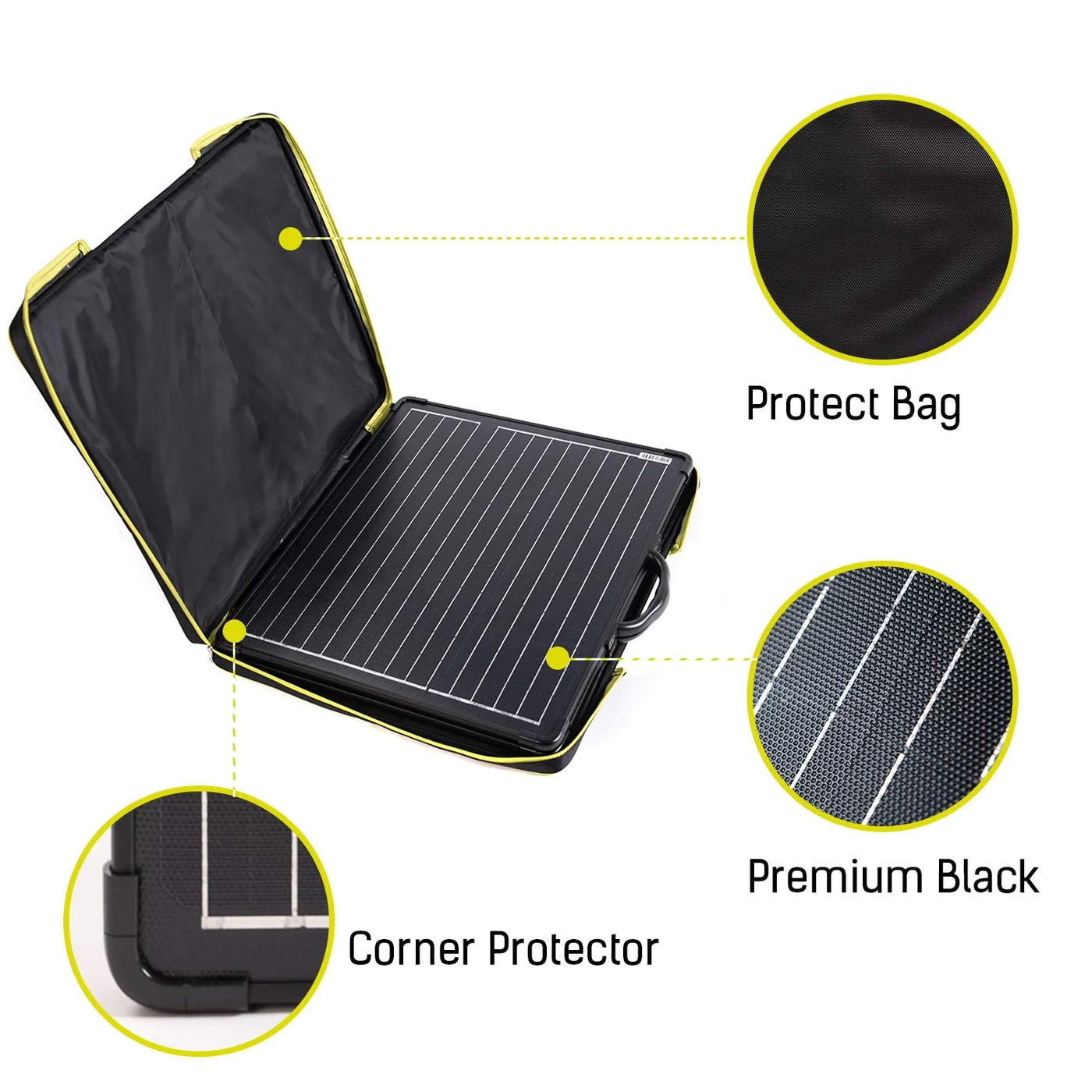

Fold, Carry and Set Up

The panels fold together like a briefcase with a handle and corner protectors. Built-in support legs adjust so you can angle the panel toward the sun, and a carry bag protects it in storage.

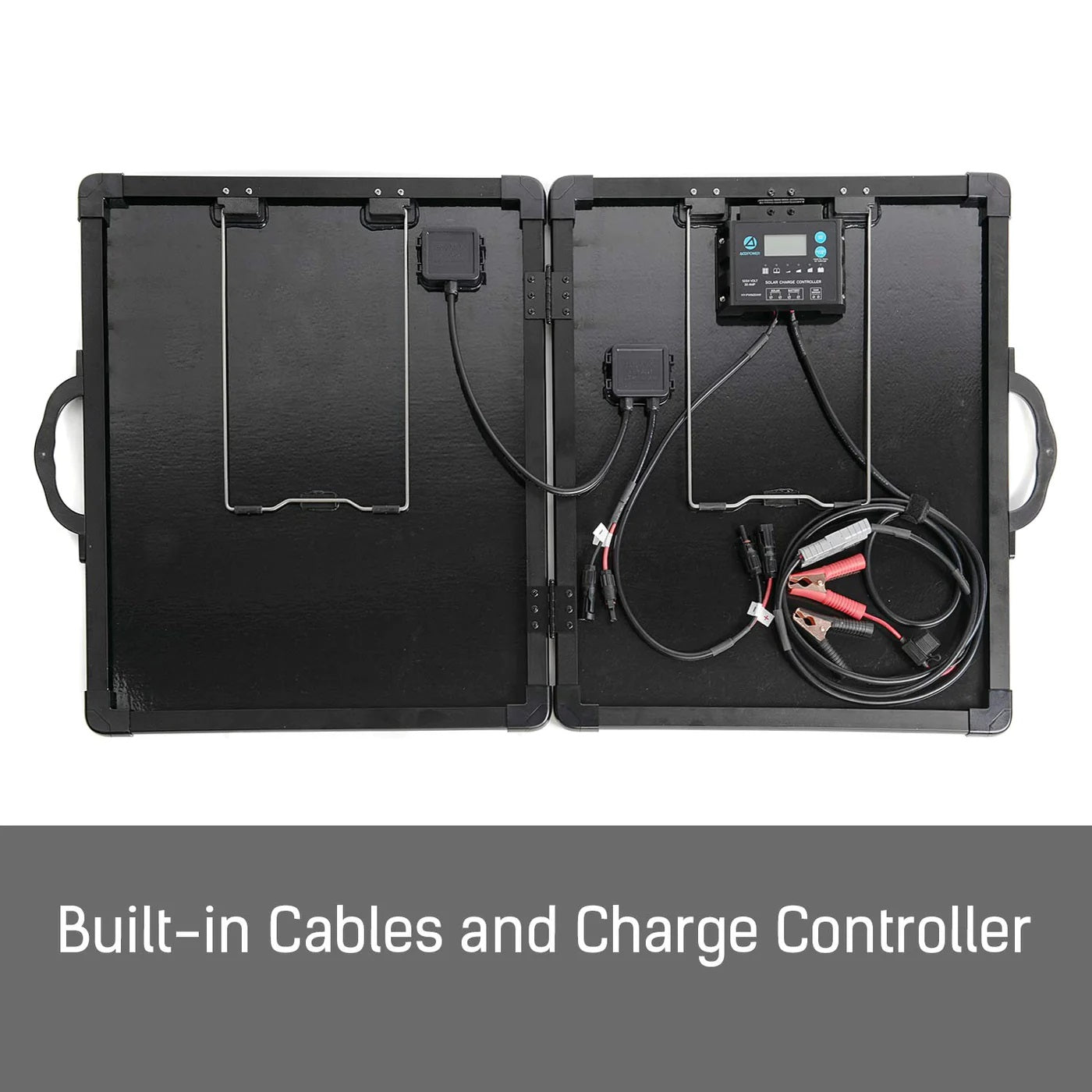

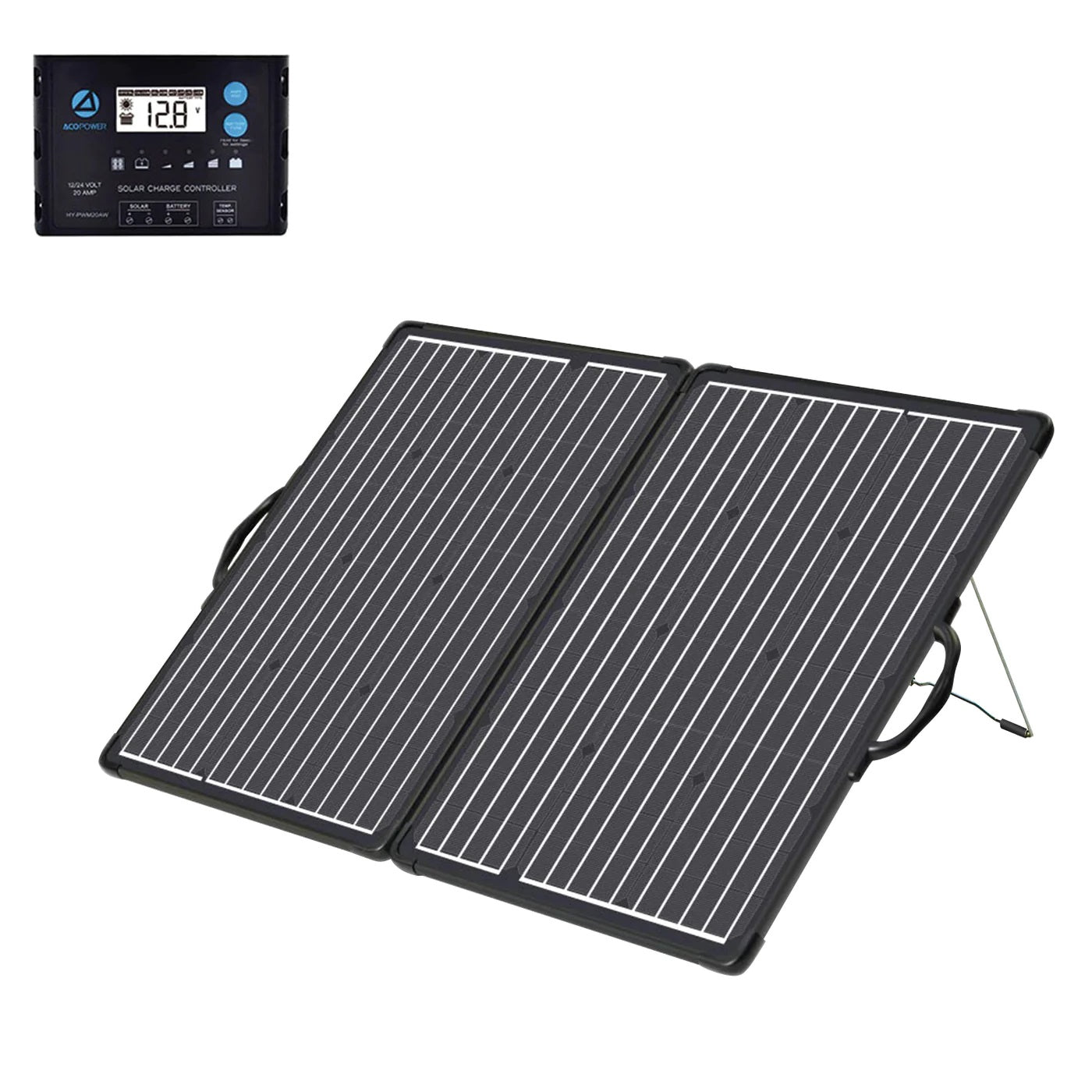

ProteusX 20A Waterproof Charge Controller

The pre-installed ProteusX is a 20 amp PWM controller with a backlit LCD that shows volts, amps, amp hours and the battery preset. It is negative ground, waterproof, and works with eight battery types: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Lead Crystal and Calcium. Its 20A rating handles up to 360W of solar at 12V.

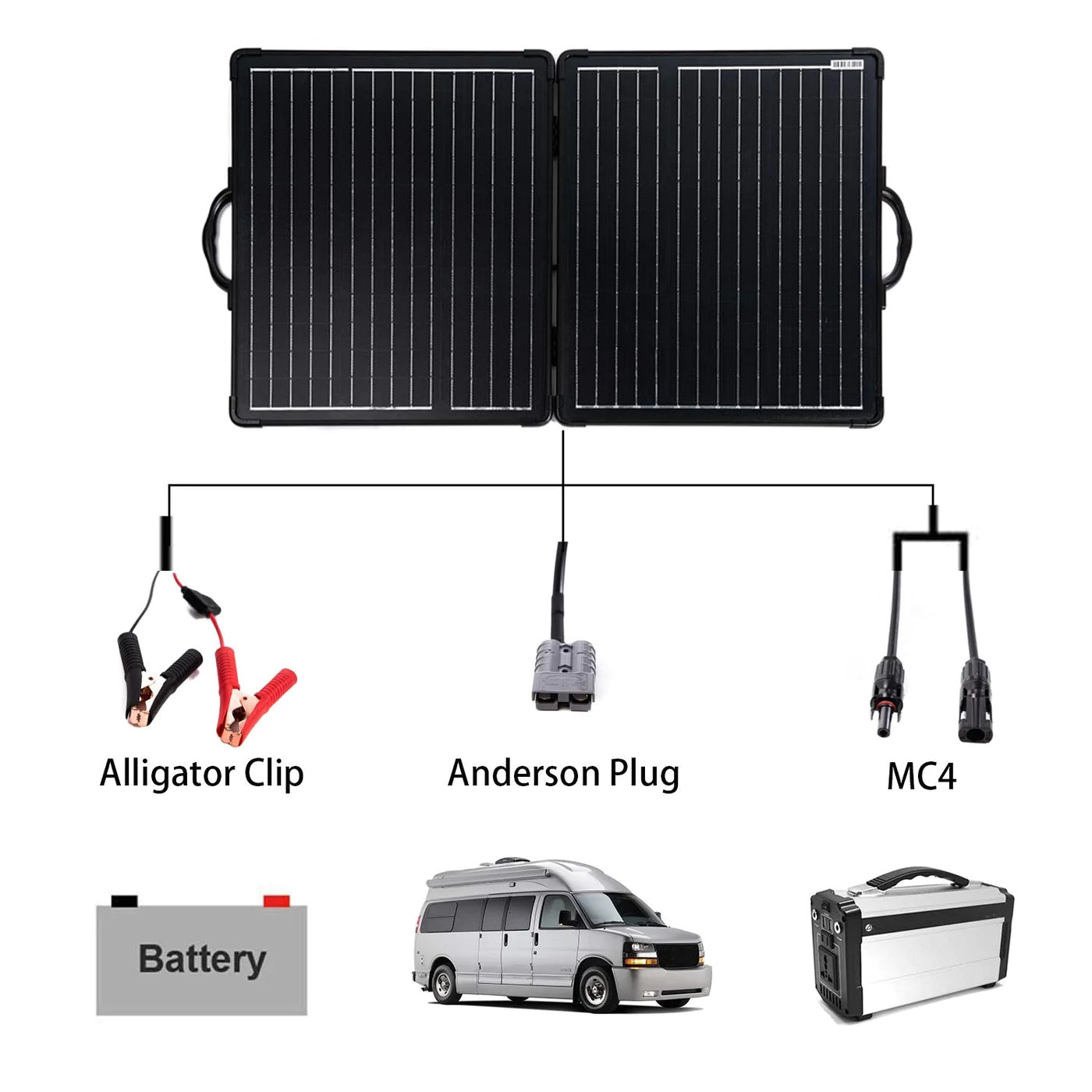

Battery Clips and Anderson Plug

The controller output uses battery clips with an inline fuse for direct connection to a 12V battery. An Anderson plug connects to ACOPower adapters for pre-wired RV and camper solar ports.

Expandable

Connect a second panel in parallel with MC4 Y branch connectors for faster charging, keeping the combined current within the controller rating. ACOPower says the kit can be expanded to a maximum of 200W of panels with adapter cables.

Real-World Applications

Camping and overlanding. Recharge a camper battery or portable fridge battery while parked in the sun.

Solar generators. Charge a portable power station through its built-in controller with MC4 adapters.

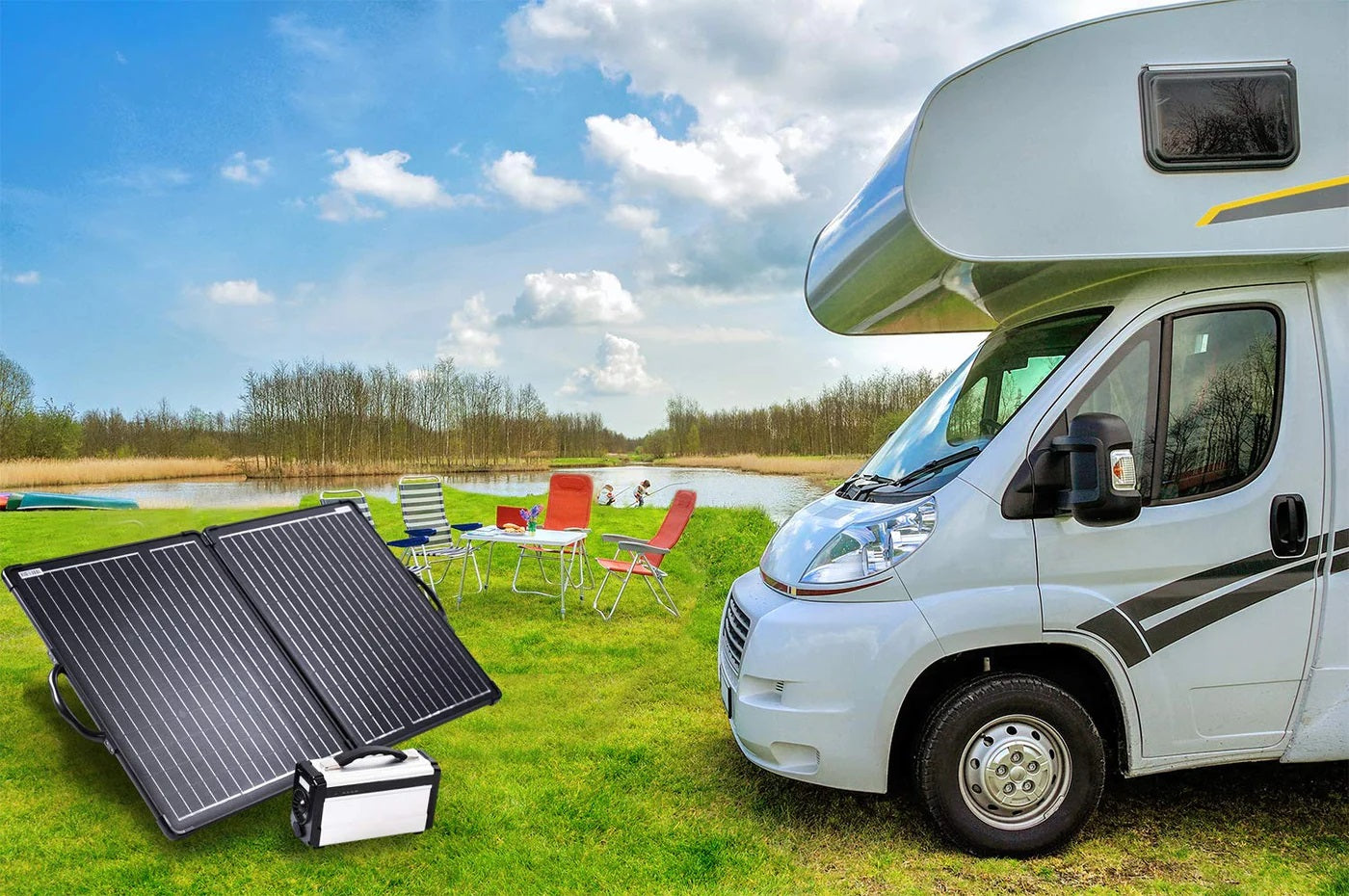

RV boondocking. Add solar without mounting panels on the roof, and park in the shade while the panel sits in the sun.

Emergency backup. Keep batteries charged during power outages.

How It Compares to Common Alternatives

Versus roof-mounted panels. A portable panel can be aimed at the sun and moved as it tracks across the sky, and it needs no drilling. Roof panels charge while you drive and need no setup.

Versus panels without a controller. A bare portable panel needs a separate controller to charge a battery. This kit is ready to clip on.

Versus other sizes. ACOPower offers portable kits from 90W to 200W. Larger kits charge faster but fold to a bigger, heavier package.

Is This Portable Solar Kit the Right Fit

• What you are charging. A 12V or 24V battery through the ProteusX, or a power station through the MC4 cables.
• Daily energy. Around 500Wh on a clear day, or roughly 35Ah into a 12V battery.
• Setup. A sunny spot with no shade, within reach of your battery or power station.
• Storage. Keep it folded and dry when not in use.

This may be a good fit if

• You camp or travel and want solar without roof mounting
• You need to keep a battery or power station charged off grid
• You want a kit that connects to a battery out of the box
• You want something easy to store between trips

Common Questions

Can I Charge a Power Station With It?

Yes. Disconnect the MC4 cables from the ProteusX and connect them to your power station with the adapter that came with it, so the station's own controller manages charging.

Is It Waterproof?

The kit is IP65 rated and the ProteusX controller is waterproof, but fold and store it when not in use to protect the hinges and cables.

What Battery Settings Does It Support?

The ProteusX defaults to sealed (AGM). Change the preset to match your battery, including LiFePO4 and other lithium types.

How Do I Test It?

Set a multimeter to DC volts and measure across the MC4 cables in direct sun. ACOPower says open circuit voltage should read about 17.6V to 23V.

What's Included

• 1 x ACOPower PLK 100W Portable Solar Panel with supporting legs and handle
• 1 x ProteusX 20A Charge Controller (pre-installed)
• 1 x Battery clips with fuse
• 1 x Anderson plug
• 1 x Pair of MC4 cables
• 1 x Soft carry bag
• 1 x User Manual

Portable 100 Watt Solar Power for Life Off the Grid

The ACOPower PLK 100W Portable Solar Panel Kit gives you clean, quiet solar charging that folds away when you are done, with a waterproof controller ready to charge a battery out of the box. At Outbound Power, we help customers pick the right portable solar kit for their batteries and power stations. If you have questions, our team is happy to help.
