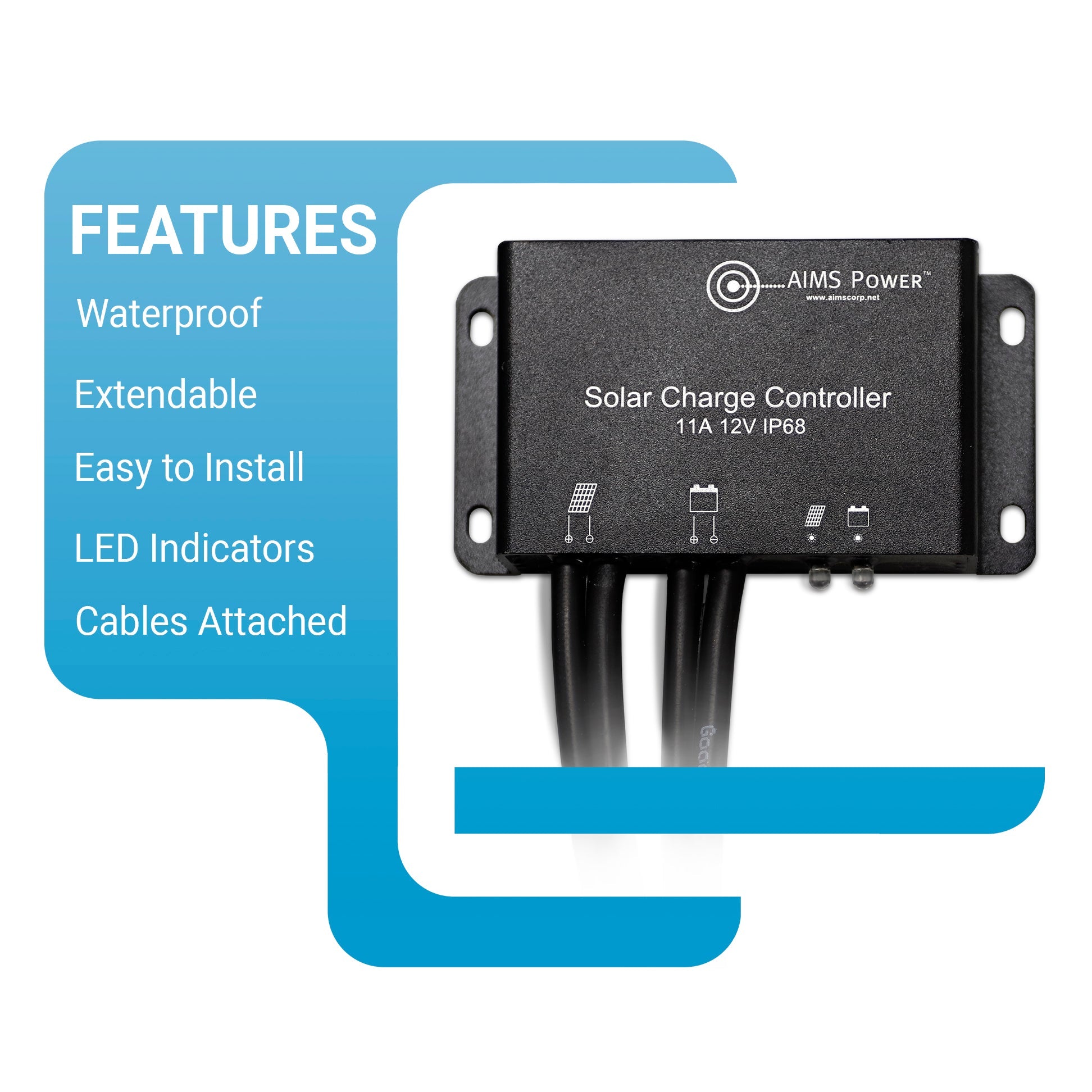

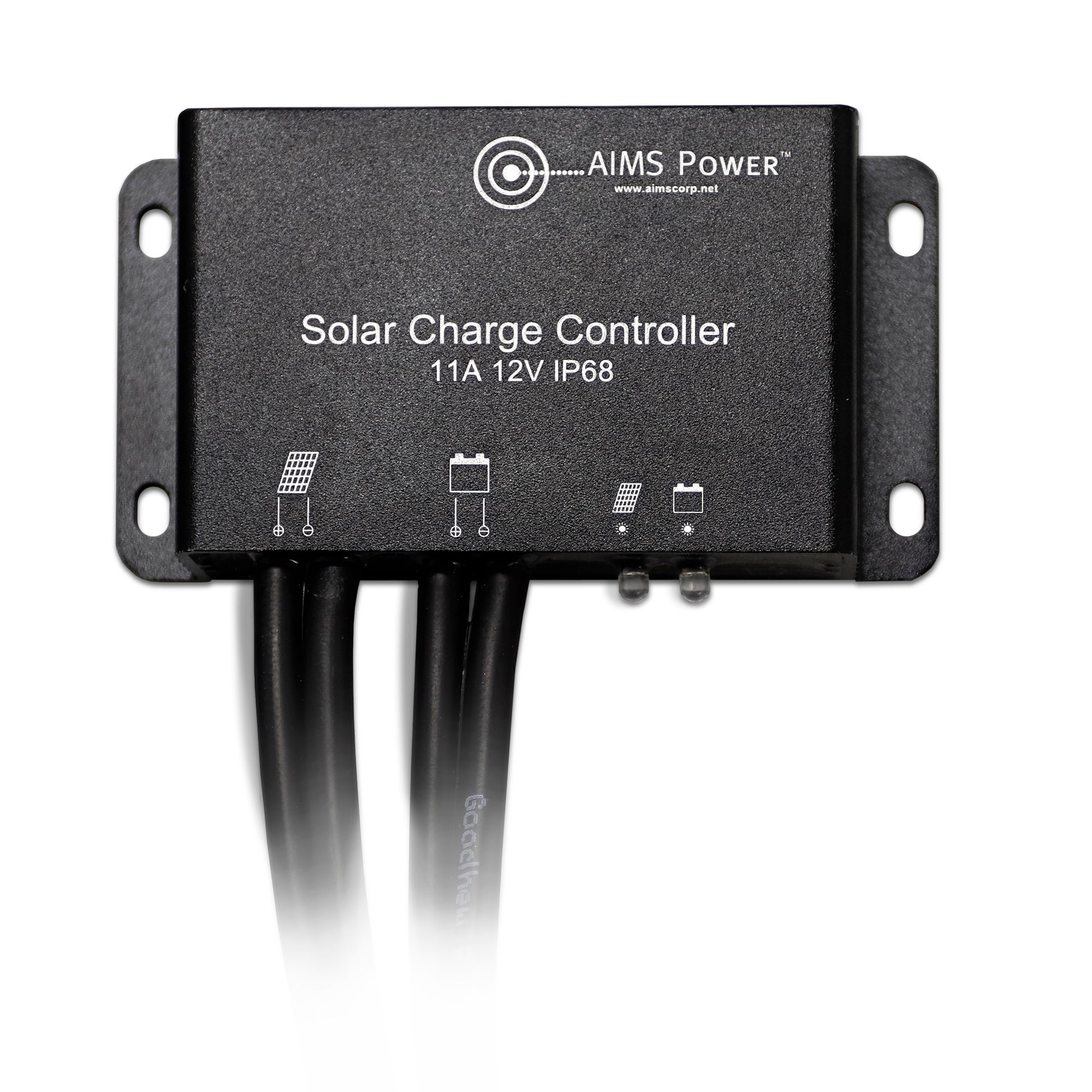

The AIMS Power 11 Amp PWM Waterproof Solar Charge Controller is a compact, pre-wired controller that makes adding solar to a 12 volt battery system fast and easy. It comes with the solar panel and battery cables already attached, and built-in MC4 connectors let you plug in and extend your panel wiring without extra crimping. Rated IP68 waterproof, it charges all battery types including lithium, handles up to 190 watts of solar input and fits in a space smaller than a deck of cards. It is a practical choice for small panels on RVs, boats, trailers, sheds and other 12 volt setups.

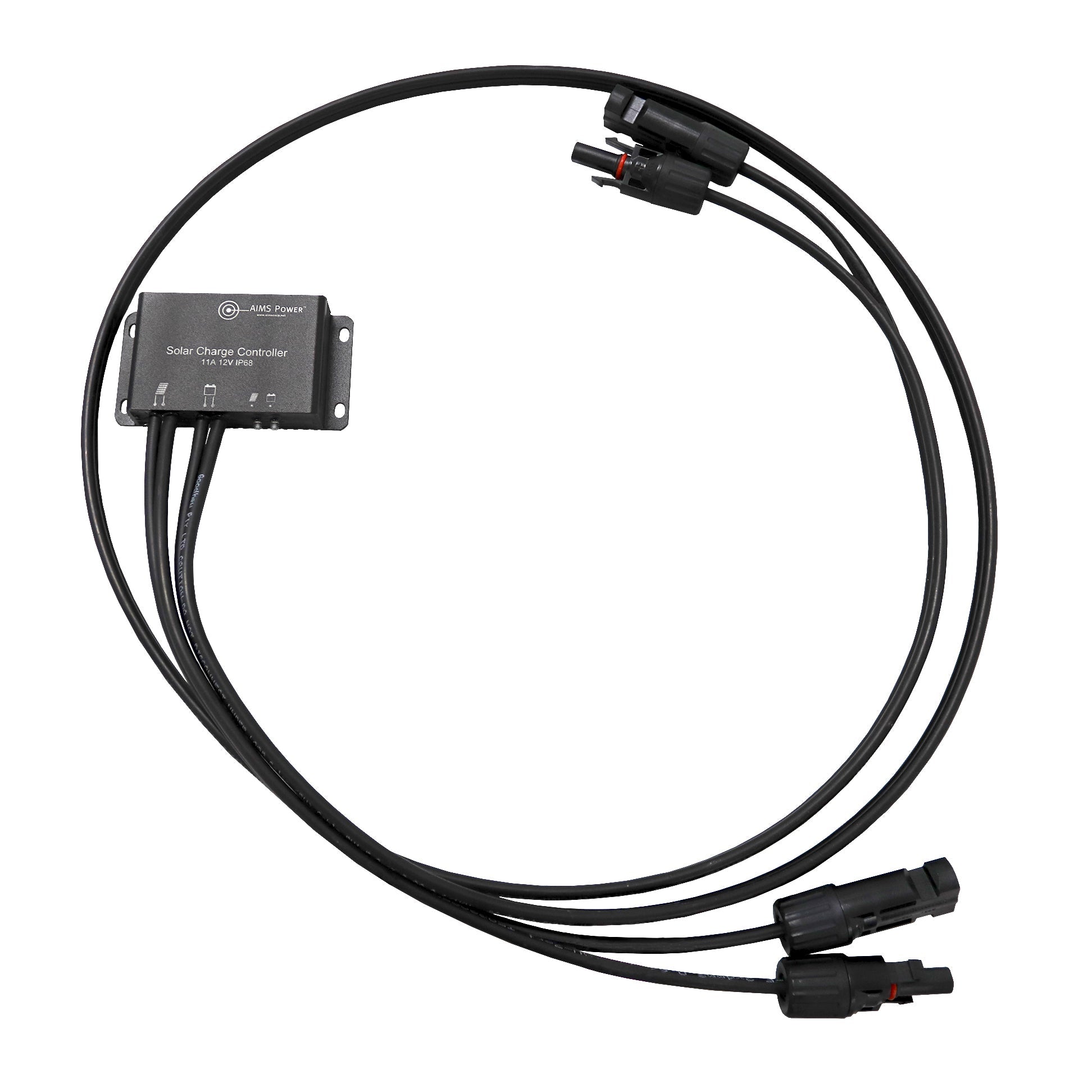

The controller includes the solar panel and battery cables, so setup is quick. The PV input cable is 13 inches long with MC4 connectors for easy extension, and the battery output cable is 5 feet long.
An IP68 rating protects the controller against water and dust, so it can be mounted in exposed locations where an open-board controller would not survive.
AIMS Power states the controller charges all battery types, including lithium. It uses a 2 stage charging process with a boost charge of 14.2 volts and a float charge of 13.8 volts.
The controller delivers a maximum charge current of 11 amps and accepts up to 190 watts of PV input, depending on sunlight, with maximum PV input voltage under 30 volts open circuit.
LED indicators provide a quick visual check on charging status.
At 3.25" x 1.75" x .625" and half a pound, the controller tucks into tight spaces near the battery.
RVs and campers. Add a small solar panel to keep a 12 volt house or chassis battery topped up.
Boats. The IP68 rating suits marine environments where spray and moisture are common.
Trailers and equipment. Maintain batteries on trailers, gates and remote equipment.
Sheds and small off-grid setups. Charge a 12 volt battery for lighting and small DC loads.
Versus MPPT controllers. MPPT controllers can harvest more energy from larger arrays but cost more. For small 12 volt systems with panels under 30 volts open circuit, a PWM controller like this one is a simple, economical choice.
Versus non-waterproof controllers. Standard controllers need a dry, protected mounting location. This IP68 controller can be mounted where moisture is a concern.
Versus larger AIMS Power controllers. AIMS Power offers higher-amp controllers for bigger arrays. This 11 amp model is sized for small panels up to 190 watts.
This may be a good fit if
Yes. AIMS Power states it charges all battery types, including lithium.
Up to 190 watts of PV input, depending on sunlight, with an open circuit voltage under 30 volts.
Yes. The controller is rated IP68.
Boost charge is 14.2 volts for 2 hours, float charge is 13.8 volts and boost charge recovery is 13.2 volts.
The AIMS Power 11 Amp PWM Waterproof Solar Charge Controller brings quick, pre-wired installation and IP68 protection to small 12 volt solar systems. At Outbound Power, we help customers match panels, controllers and batteries for RVs, boats and off-grid projects. Contact our team and we will help you size your system.
AIMS Power 11 Amp PWM Waterproof Solar Charge Controller Specifications |
|
|---|---|
| Battery System | 12V |
| Controller Type | PWM, 2 Stage Charger |
| Max Charge Current | 11A |
| Max PV Input Voltage | <30Voc |
| Max PV Input Power | 190W (Depending on Sunlight) |
| Boost Charge | 14.2V |
| Boost Charge Duration | 2 Hours |
| Float Charge | 13.8V |
| Boost Charge Recovery Voltage | 13.2V |
| Over Discharge Recovery Voltage | 11.1V |
| Battery Compatibility | All Battery Types Including Lithium |
| PV Input Cable Length | 13 Inches With MC4 Connectors |
| Battery Output Cable Length | 5 Feet |
| Indicators | LED |
| Waterproof Rating | IP68 |
| Operating Temperature | -32°F to 140°F (-35°C to 60°C) |
| Dimensions | 3.25" × 1.75" × .625" |
| Weight | 0.5 lb Unit, 1 lb Shipped |
