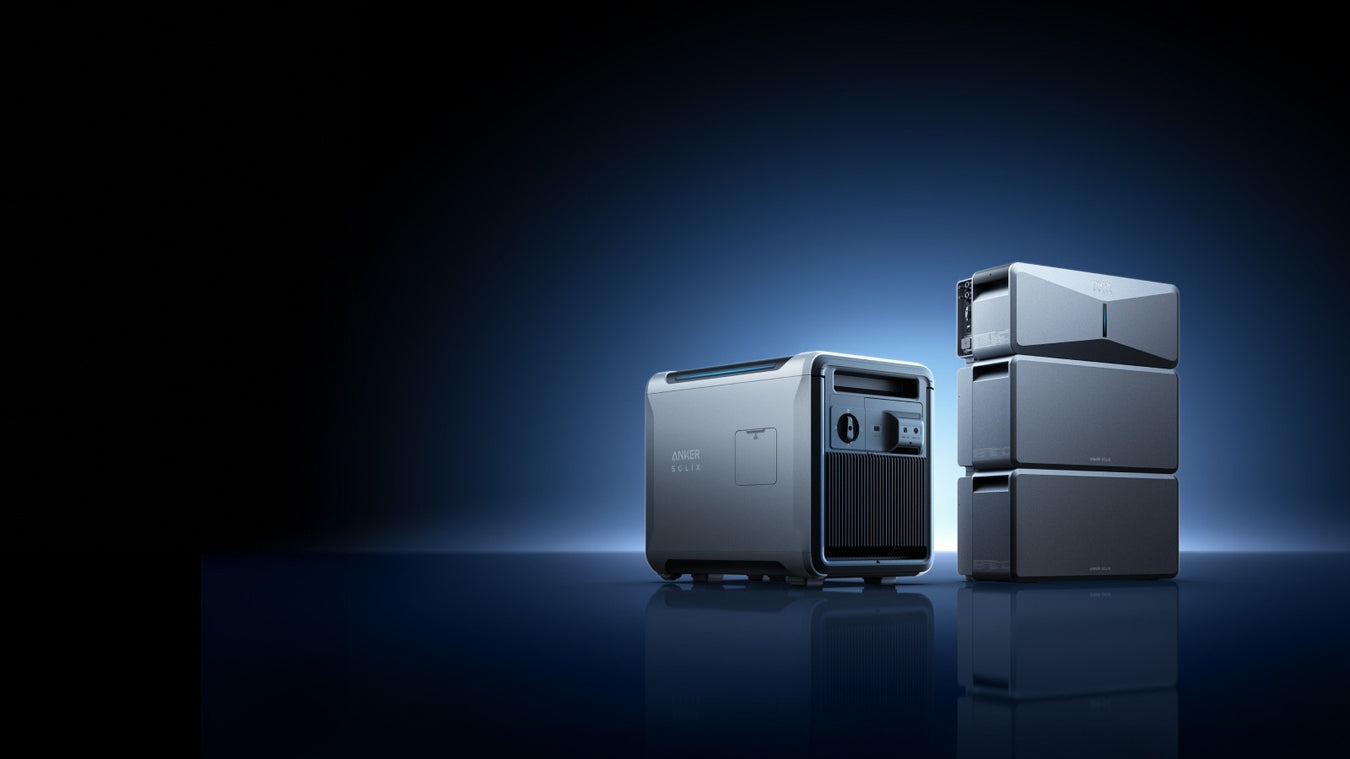

Anker SOLIX E10 Power Module Specifications
|
| Rated Voltage |
120 / 240 VAC (Split Phase) |
| Rated Frequency |
60Hz |
| Maximum Continuous Output Power (with Battery) |
7,680W / 32A |

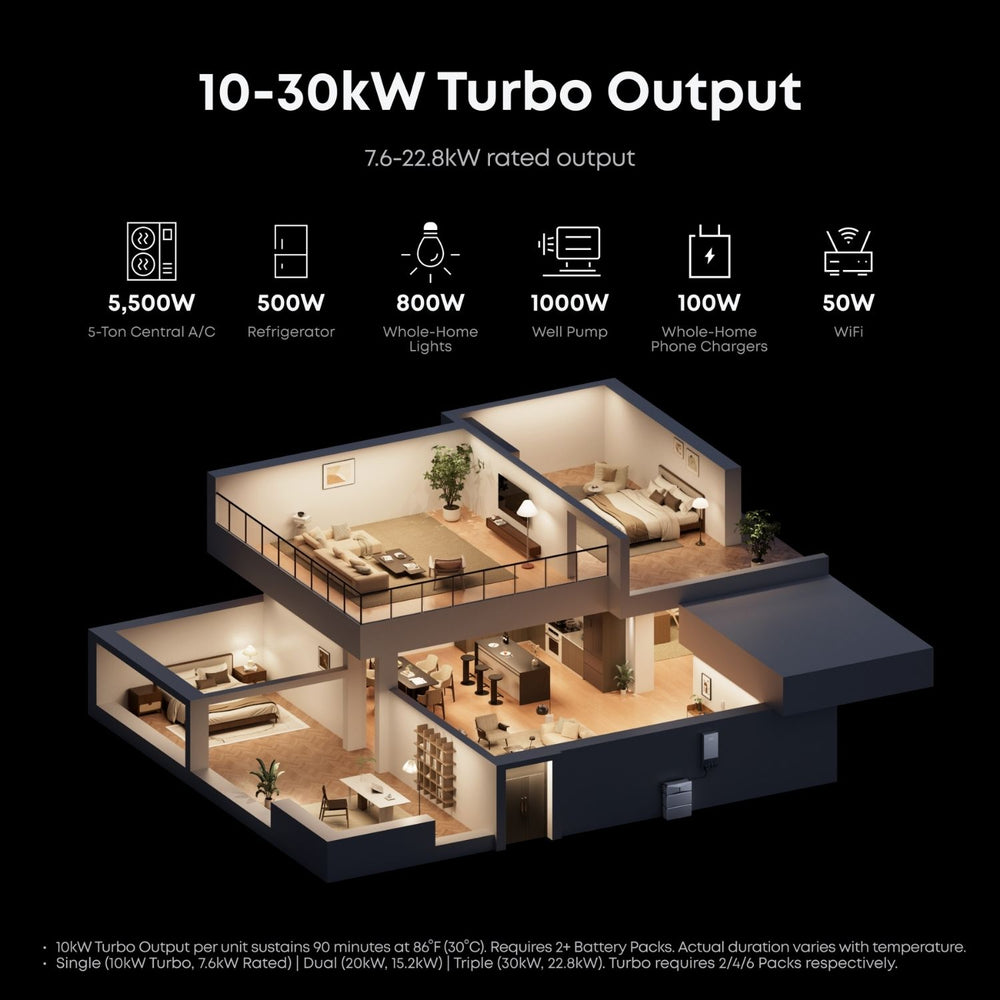

| Turbo Backup Output (2 Batteries) |
10,000W / 41.6A (90 minutes) |
| LRA Equivalent Ability |
120A (1 inverter, 1 battery) |
|
155A (1 inverter, 2+ batteries) |
|
275A (2+ inverters, 2+ batteries each) |
Input Specifications
|
|
| AC Input Port (Recharging) |
1,800W, 120V / 15A* |
| AC Input Port (High Power) |
7,680W, 240V / 32A |
| AC Input Port (Bypass) |
9,600W, 240V / 40A |

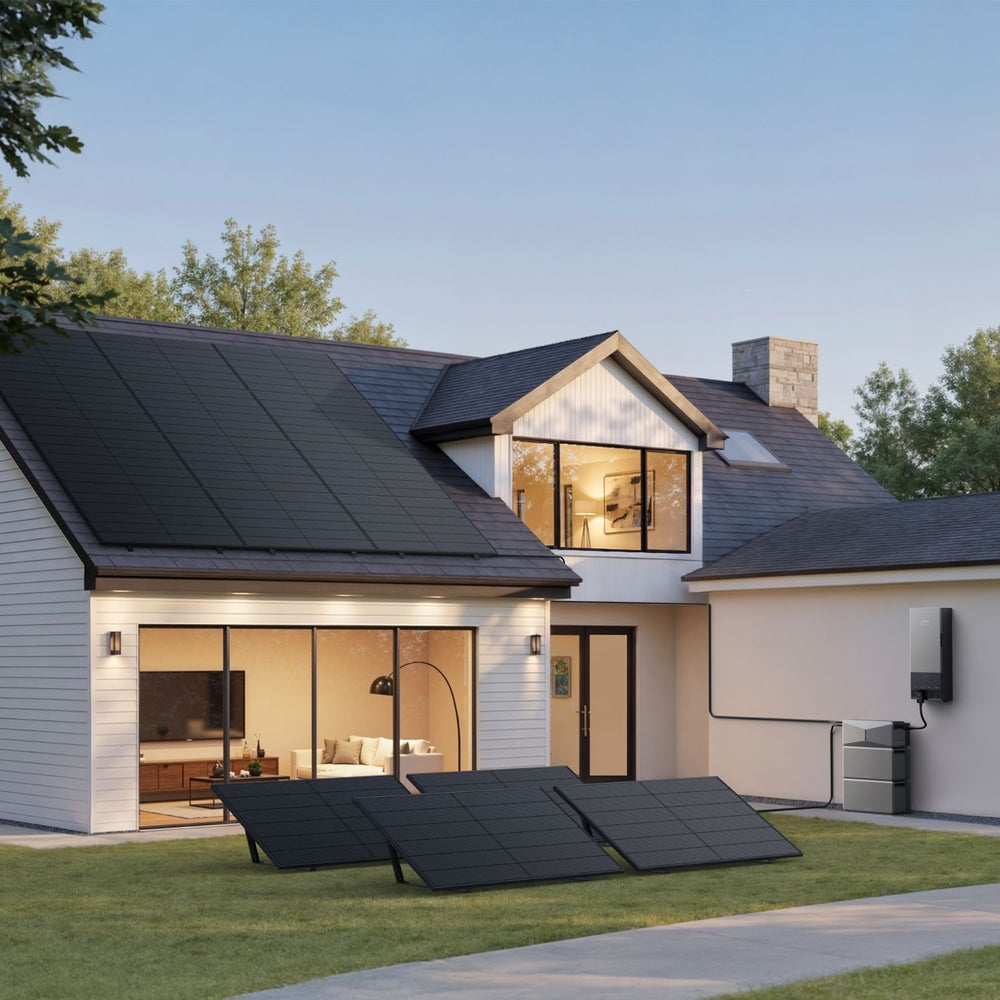

| PV (Solar) Input |
2 × 4,500W, 30–450V DC, 15A (Imp) |
| DC Generator Input |
4,500W |

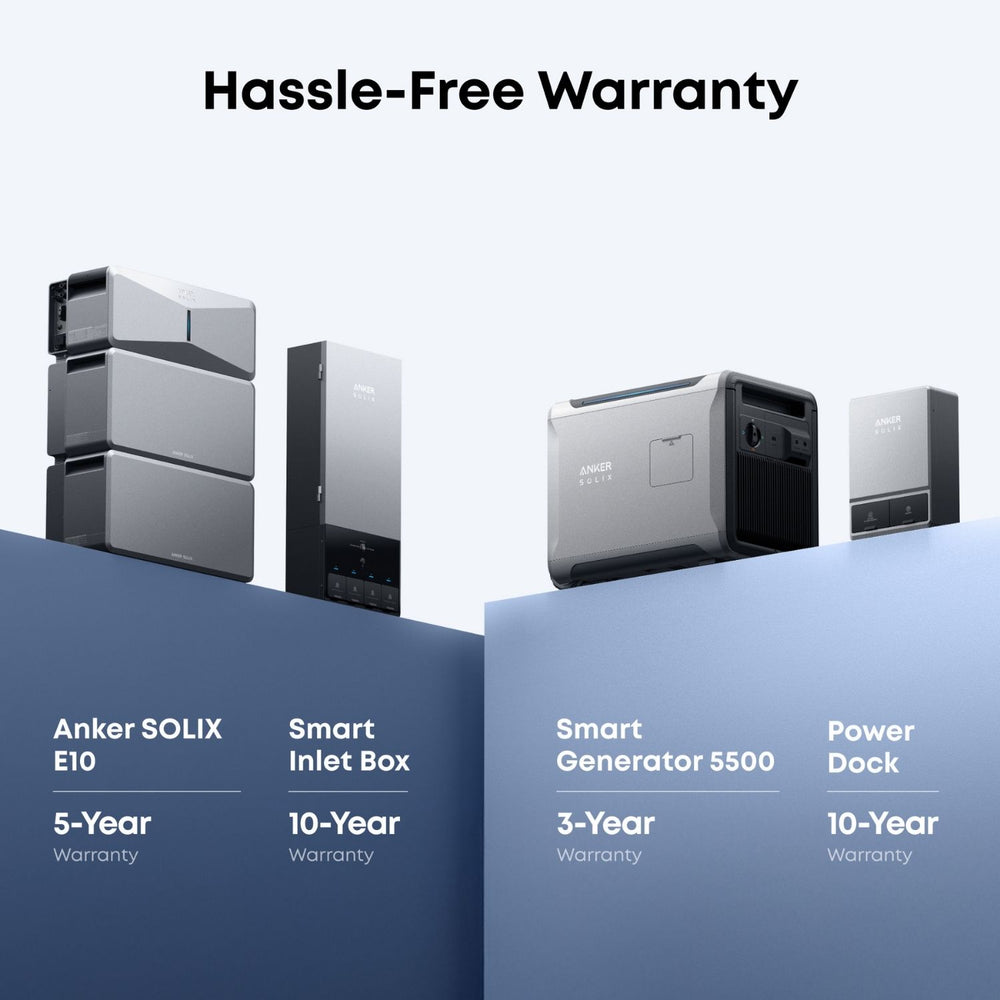

| Warranty |
5 Years |
| Enclosure Type |
NEMA Type 4 (IP66) |
| Operating Temperature |
-4°F to 131°F (-20°C to 55°C) |
| Connectivity |
Wi-Fi, Bluetooth |
| Dimensions (W × H × D) |
26.4 × 11.8 × 10.2 in (670 × 300 × 260 mm) |
| Weight |
60.6 lbs (27.5 kg) |
| Remarks – AC Input Port Recharging |
<3 hours when input current exceeds 12A |

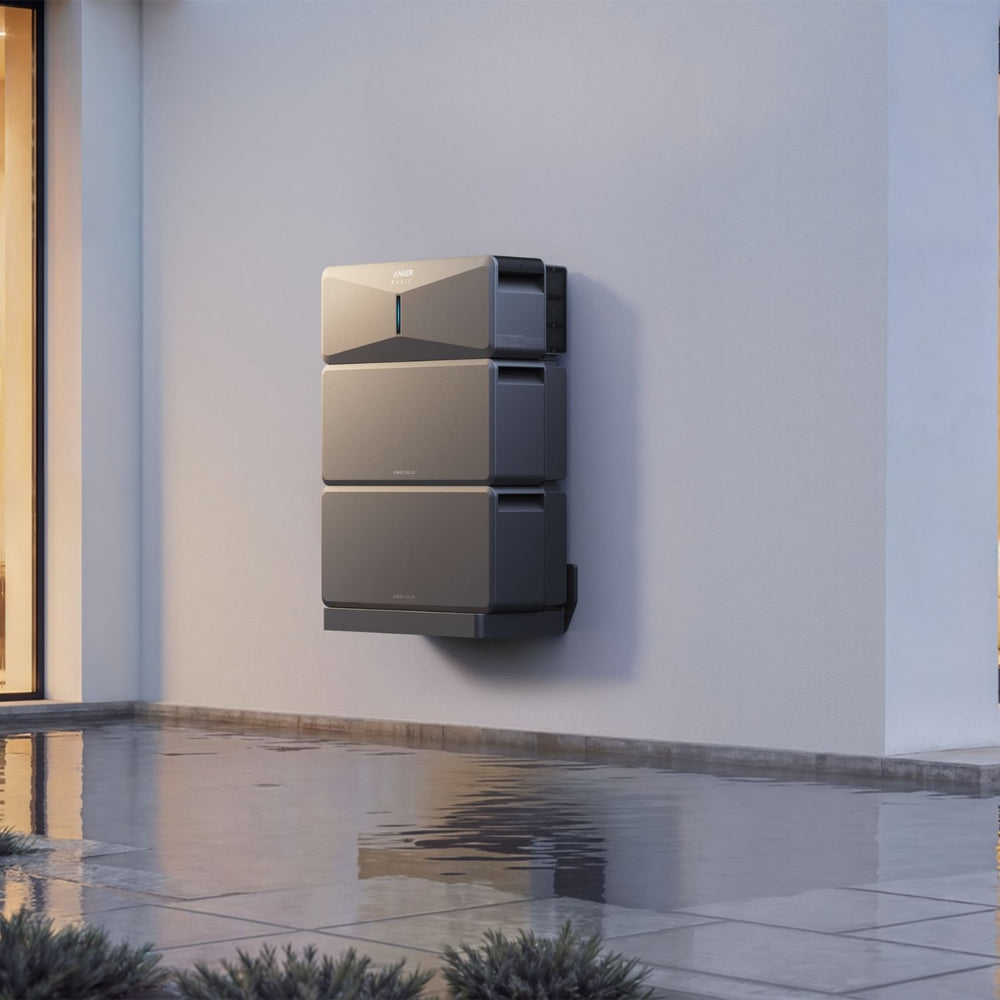

Anker SOLIX B6000 Battery Module
|
| Battery Type |
Li-ion (LFP) |
| Power Capacity |

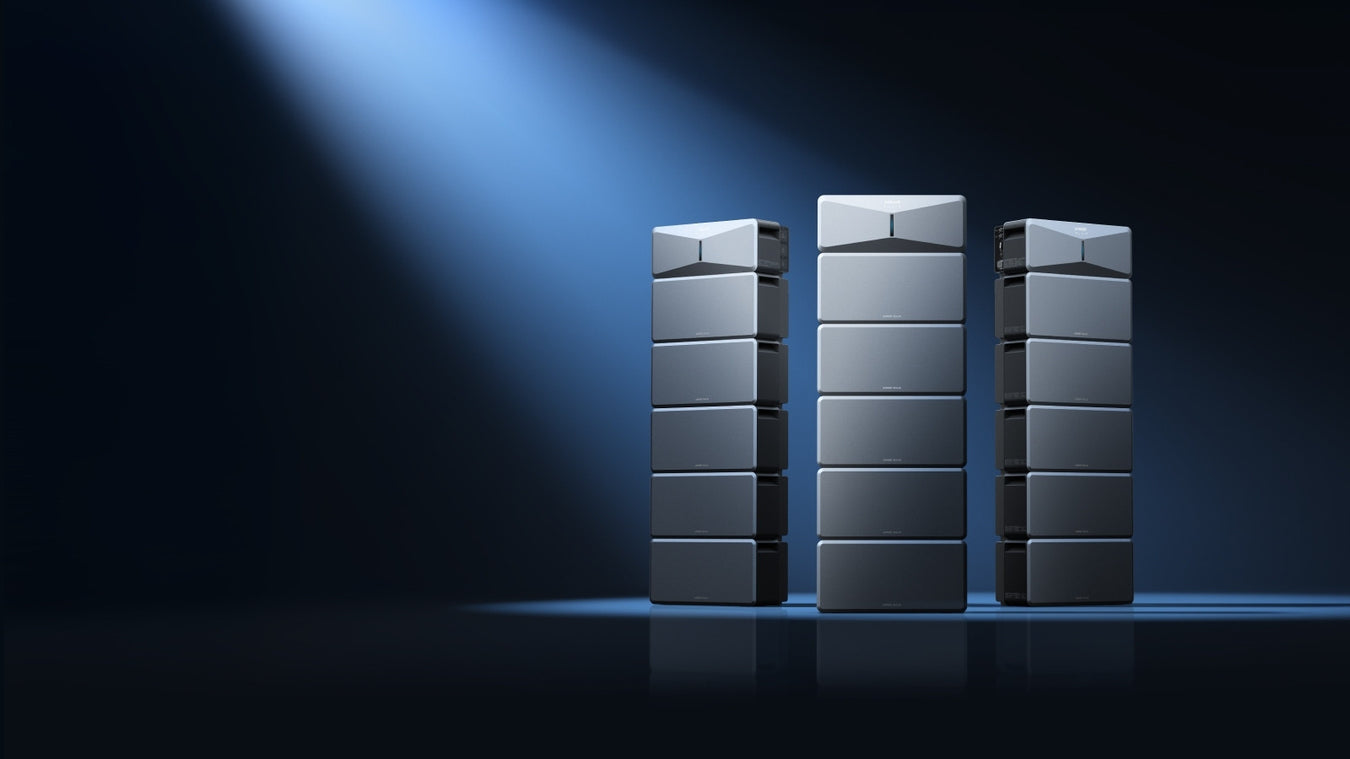

6,144 Wh per battery Up to 30kWh per power module Up to 60kWh with two power modules Up to 90kWh with three power modules |
| Warranty |
5 Years |
| Enclosure Type |
NEMA Type 4 (IP66) |
| Operating Temperature |
-4°F to 131°F (-20°C to 55°C) |

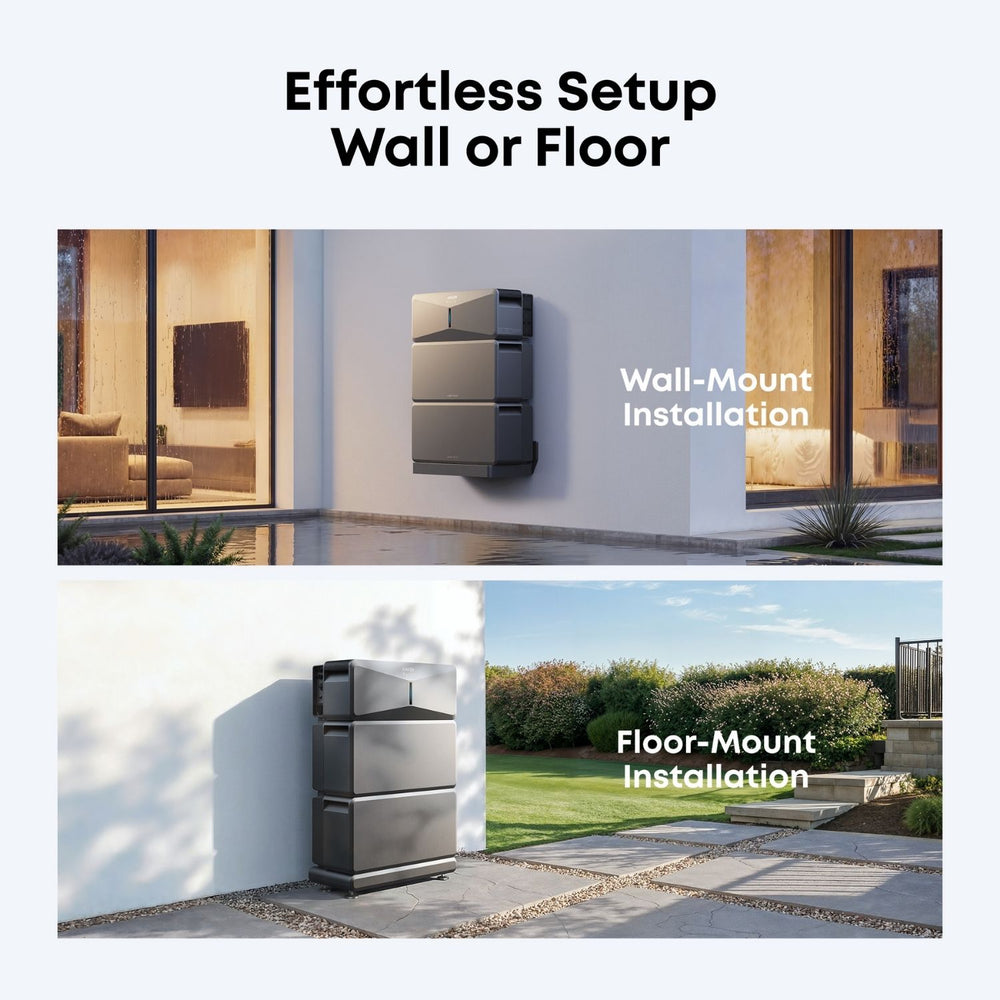

| Installation Option |
Floor mounting or wall mounting |
| Dimensions (W × H × D) |
26.4 × 12.7 × 11.1 in (670 × 322 × 281 mm) |
| Weight |
130 lbs (59 kg) |

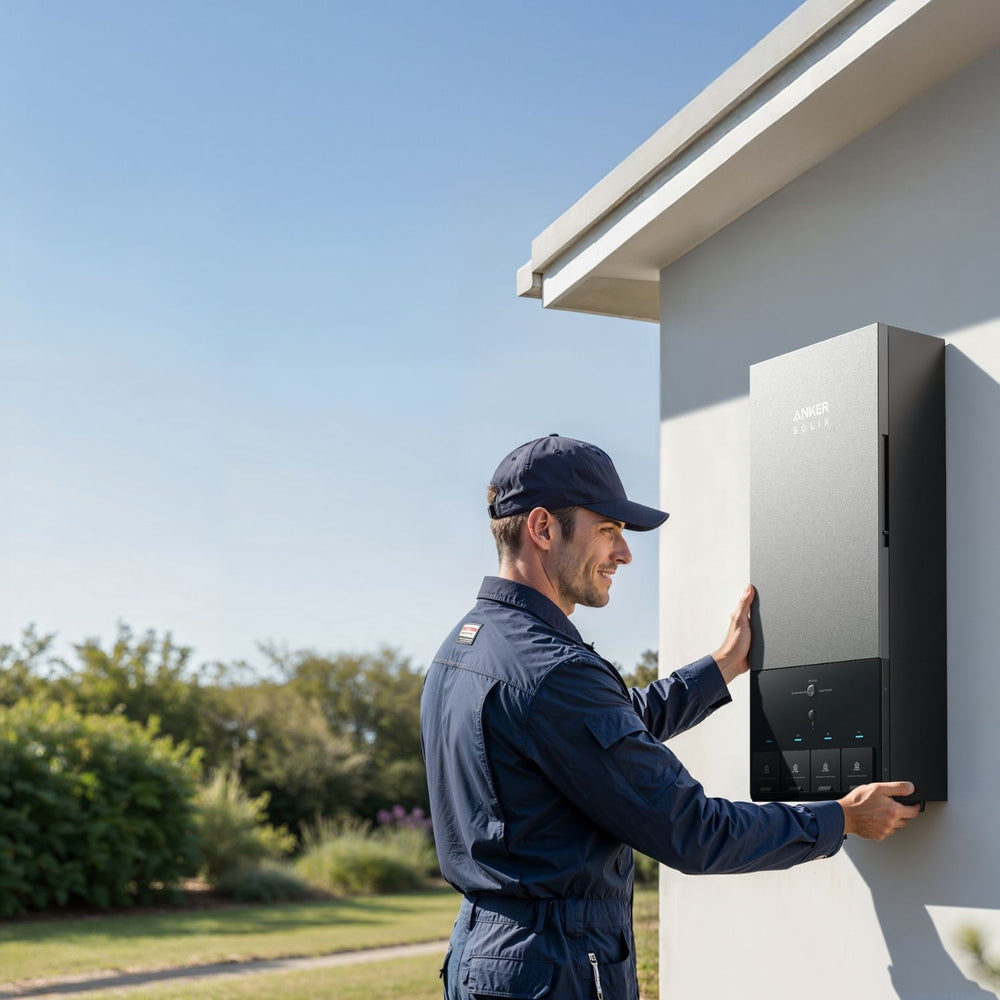

Anker SOLIX Power Dock Specifications
|
| Rated Voltage |
120 / 240 VAC (Split Phase) |
| Rated Frequency |
60 Hz |

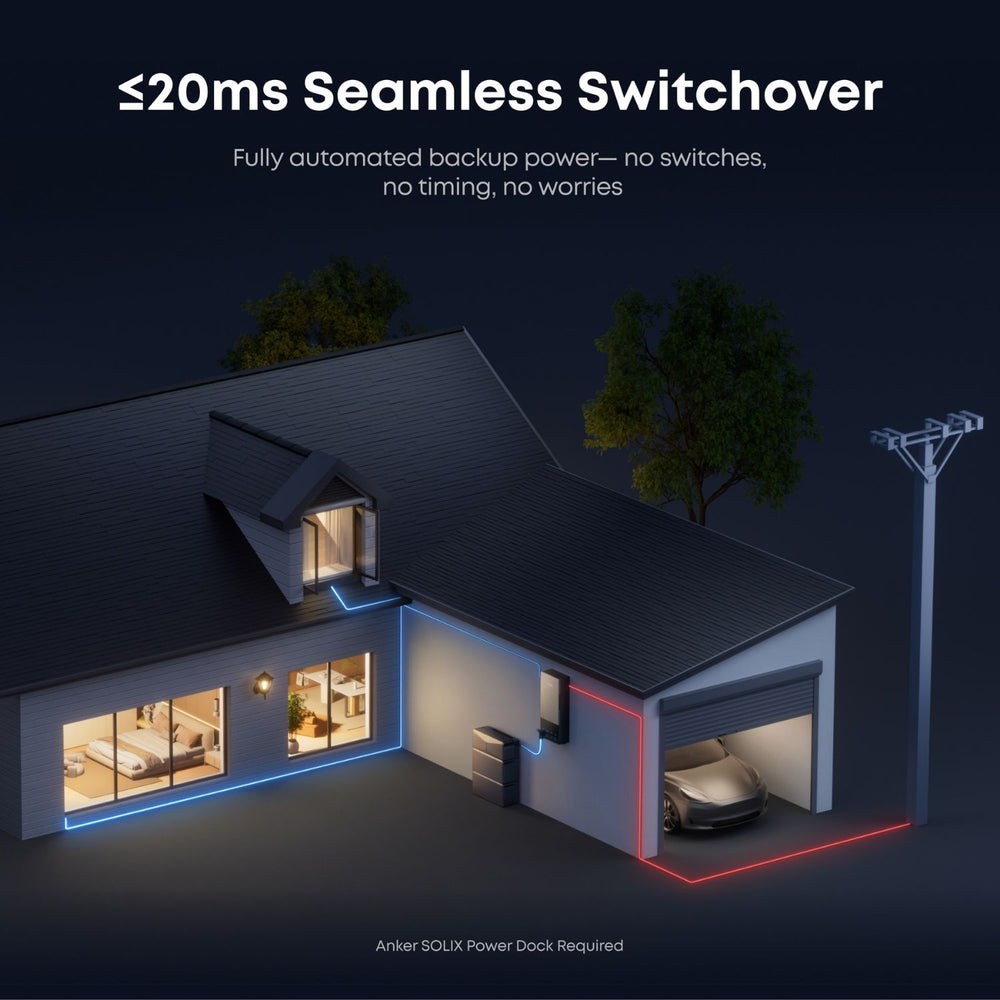

| Switchover Time |
≤ 20 ms |
| Grid Connection |
200 A maximum, 160 A continuous |
| Subpanel Connection |
200 A maximum, 160 A continuous |
| Plug & Play AC Ports |
4 × 100 A, total ≤ 160 A |
| Circuits 1 & 2 (Load or Generator) |
100 A maximum, 80 A continuous |
| Circuits 7 & 8 (Load or AC Solar) |
80 A maximum, 64 A continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) |
60 A maximum, 48 A continuous |
| Circuits for Batteries |
125 A maximum, 100 A continuous |
| Warranty |
10 Years |
| Enclosure Type |
NEMA Type 3R |
| Operating Temperature |
-4°F to 131°F (-20°C to 55°C) |
| Installation Option |
Wall mounting |
| Dimensions (W × H × D) |
36.1 × 15 × 7.1 in (916 × 380 × 180 mm) |
| Weight |
60 lbs (27.2 kg) |
| Connectivity |
Wi-Fi, Bluetooth |
Anker SOLIX Smart Inlet Box Specifications
|
| Rated Voltage |
120 / 240 VAC (Split Phase) |
| Rated Frequency |
60 Hz |
| Maximum On-Grid Port Continuous Current |
100 A (32 A max for E10 On-Grid Port) |
| Maximum Backup Port Continuous Current |
100 A (40 A max for E10 Backup Port) |
| Warranty |
10 Years |
| Enclosure Type |
NEMA Type 3R |
| Operating Temperature |
-4°F to 131°F (-20°C to 55°C) |
| Installation Option |
Wall mounting |
| Dimensions (W × H × D) |
16.5 × 11 × 5.2 in (418 × 280 × 131 mm) |
| Weight |
14.3 lbs (6.5 kg) |

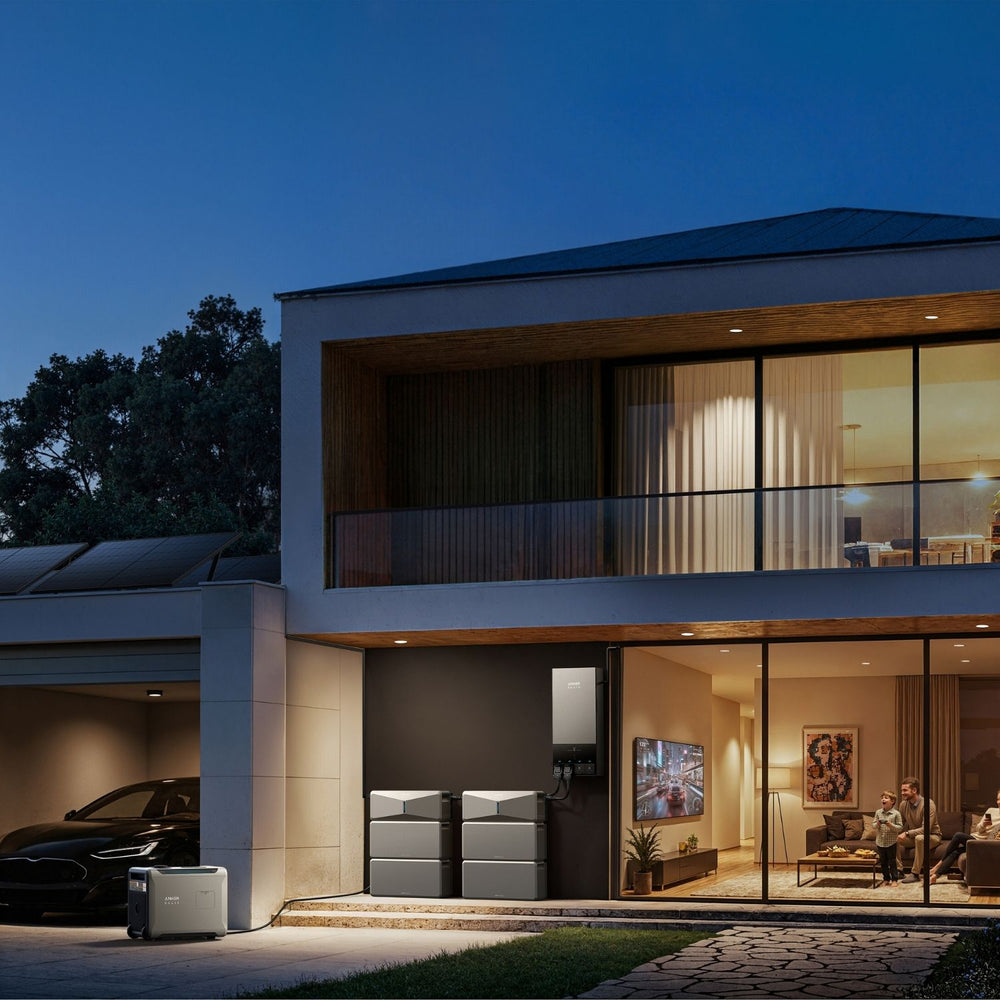

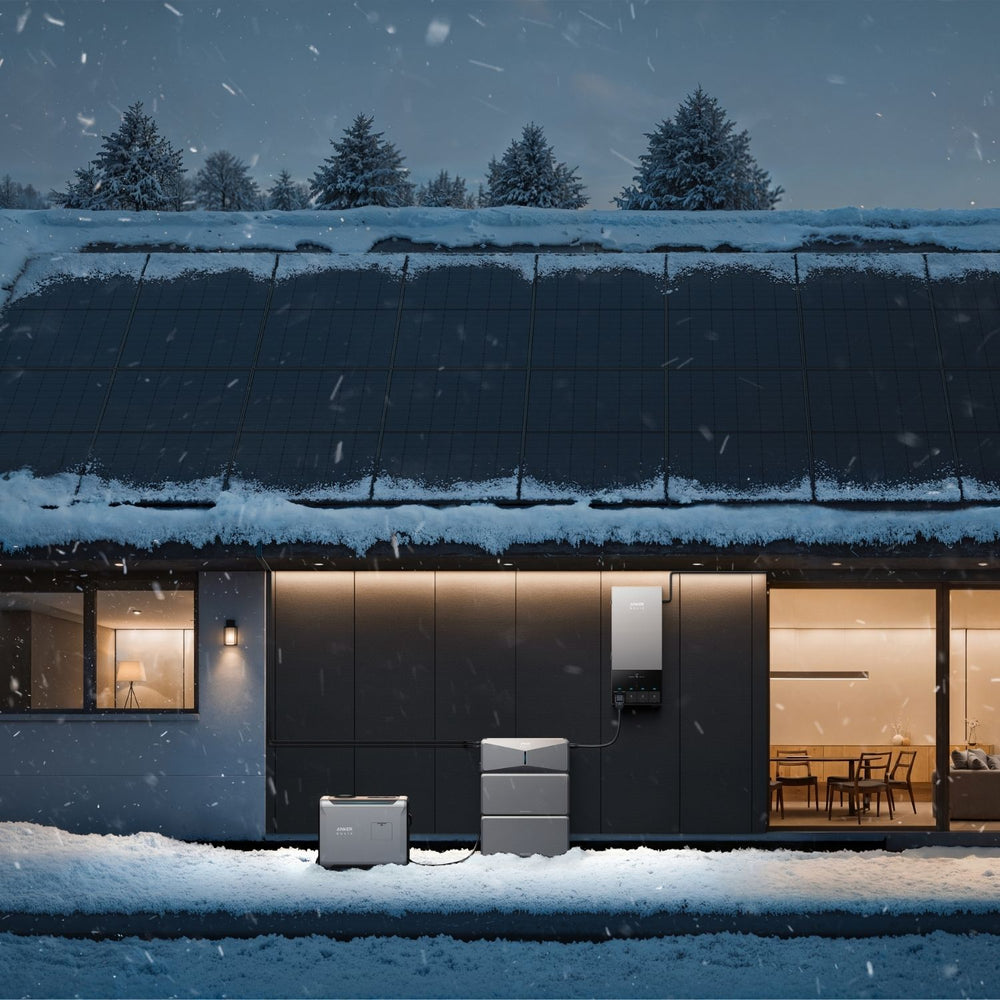

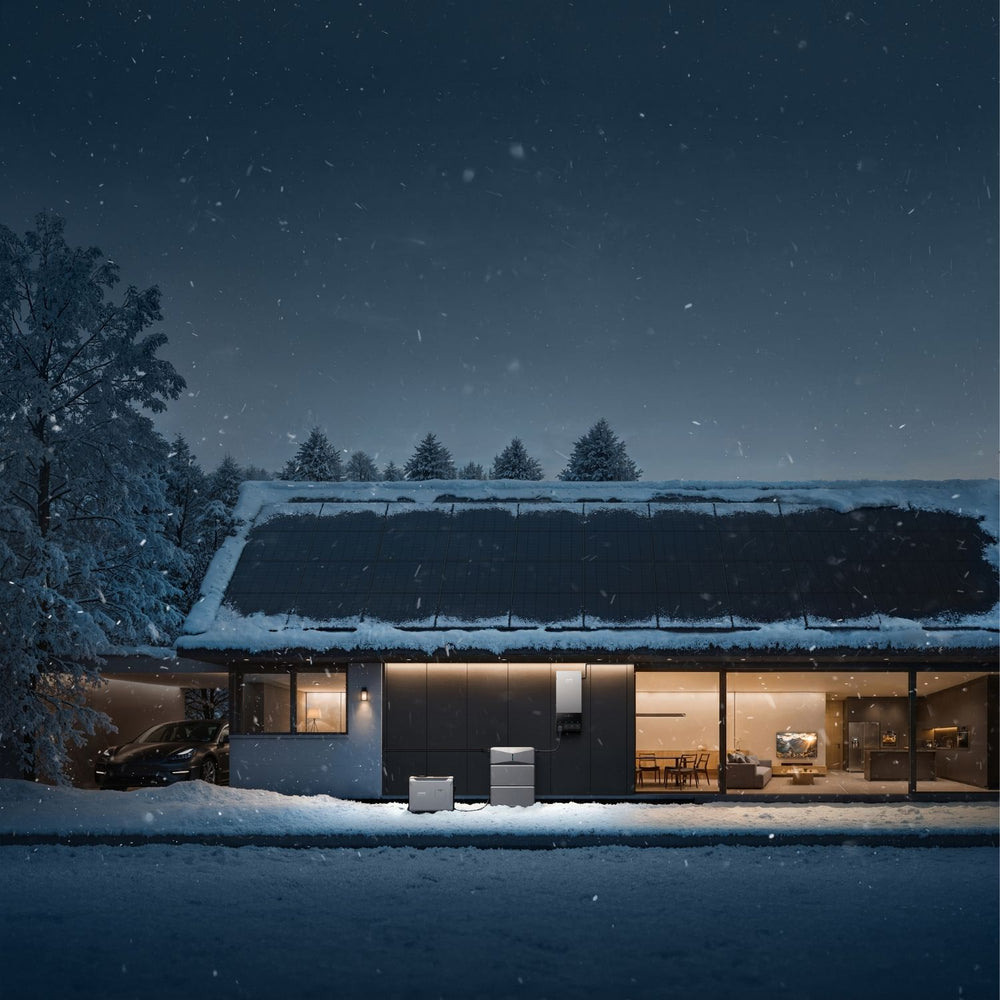

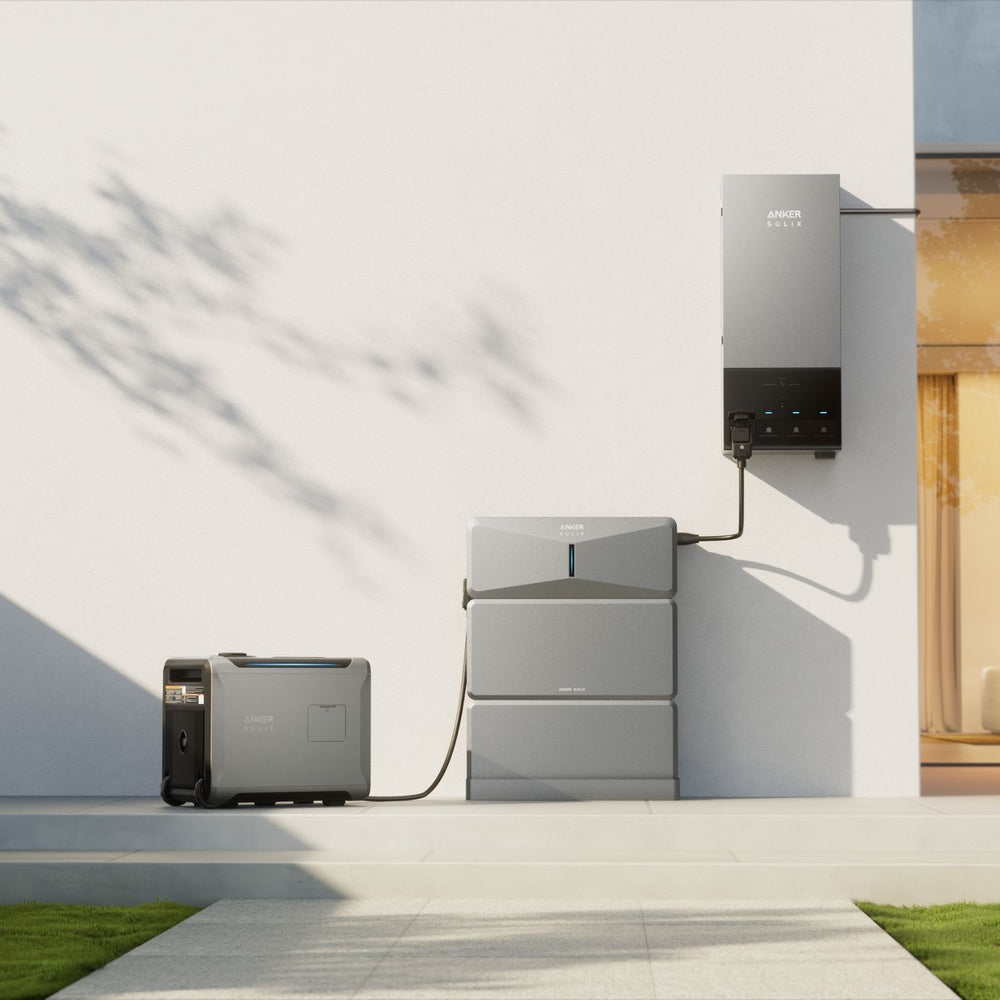

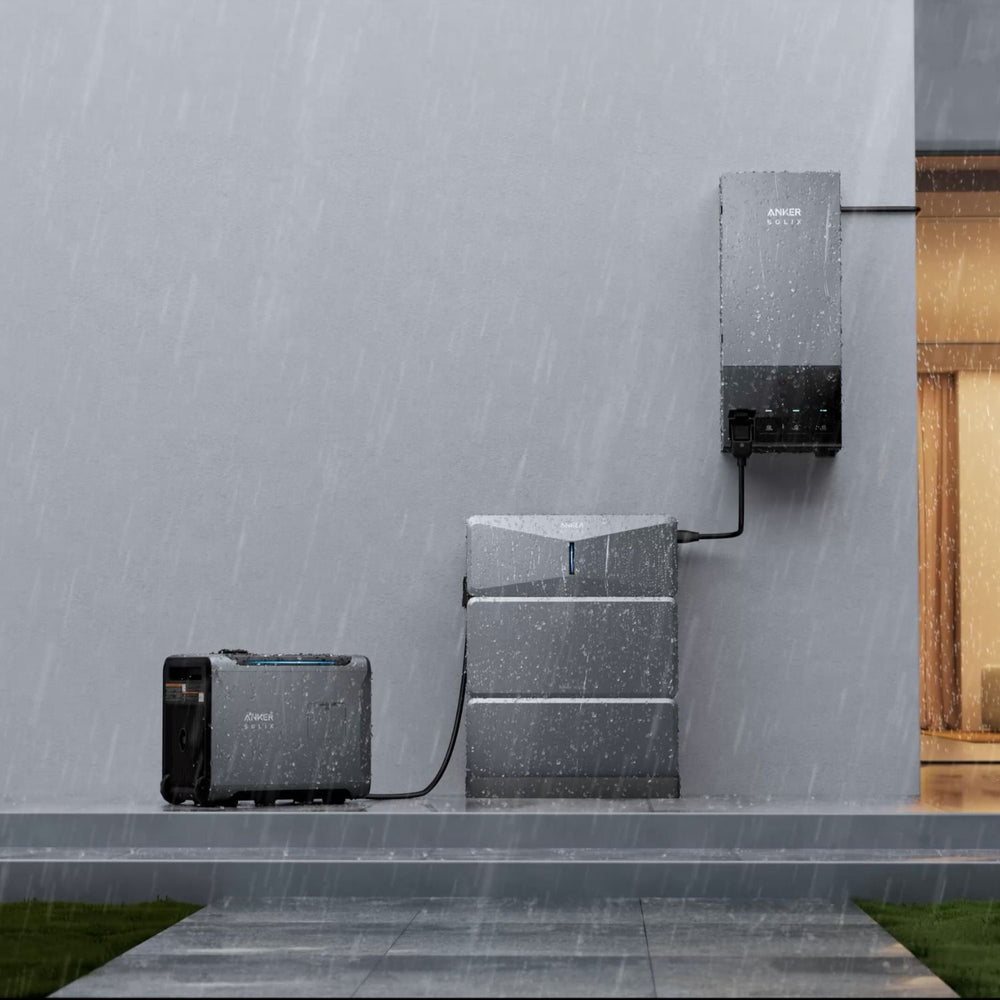

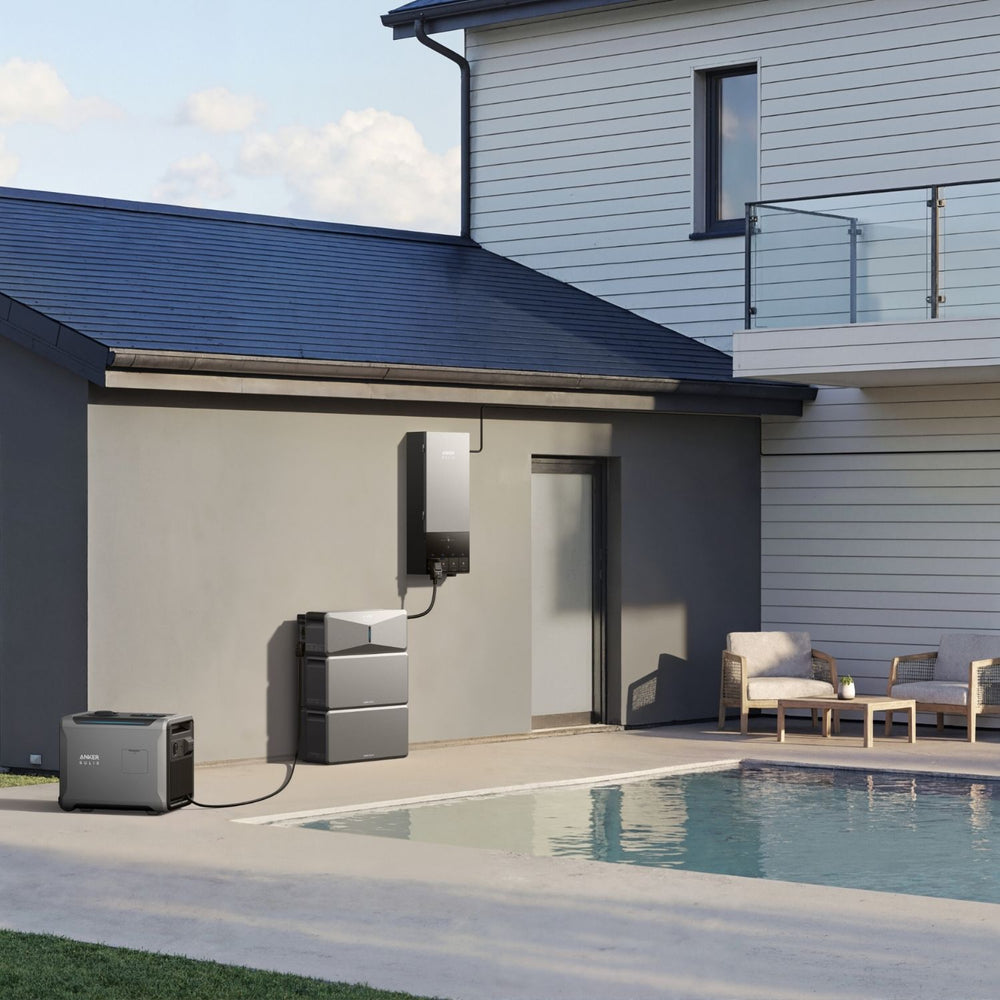

Anker SOLIX 5500 Smart Generator Specifications
|
| Fuel Type |

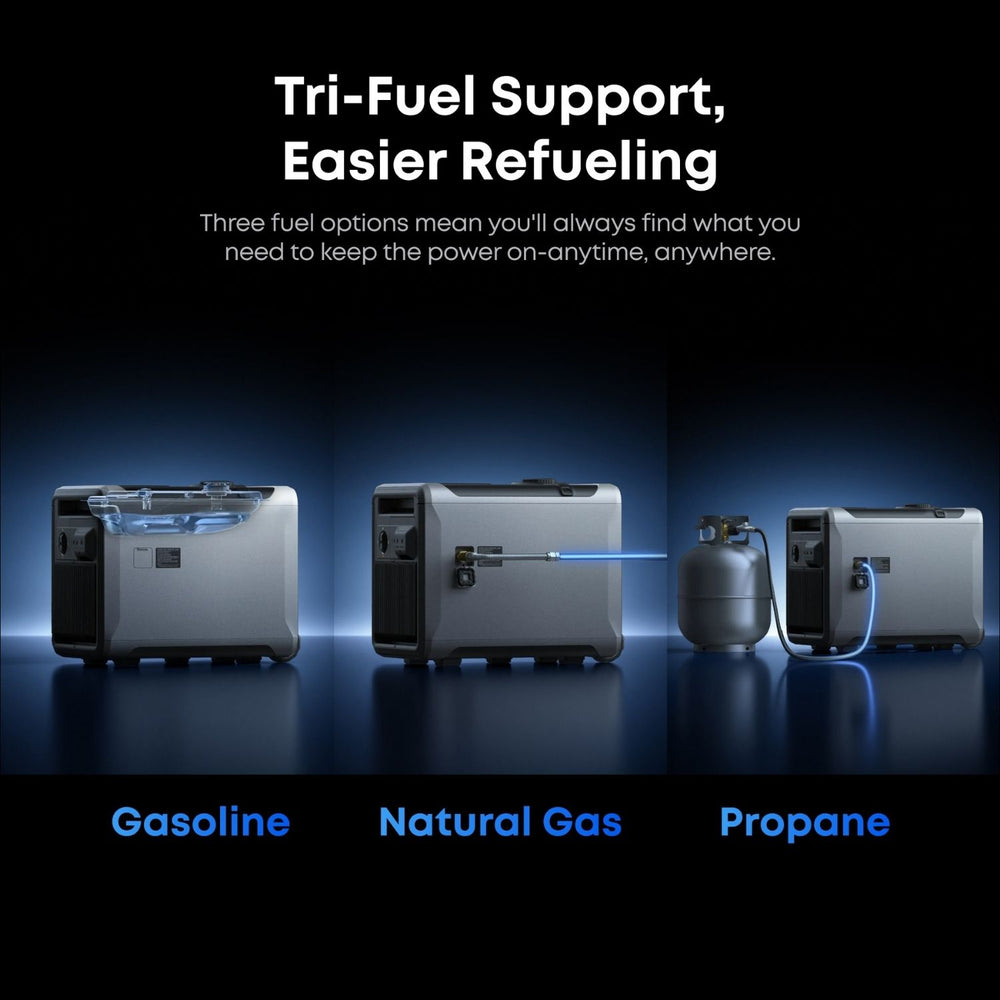

Tri-Fuel: Gasoline (GAS), Propane (LPG), Natural Gas (NG) |
| Generator Type |
Inverter Generator |
| Starting Power |
5,500 VA |
| DC Rated Power |
4,500W (GAS) | 4,500W (LPG) | 4,000W (NG) |
| AC Rated Power |
3,600W (GAS, LPG, NG), 120V, 60Hz |
| AC Output Inlet |
NEMA 5-20R ×1, TT-30R ×1 |
| Warranty |
3 Years |
| Enclosure Type |
Type 3R |
| Flood Protection |
3" (80 mm) |
| Operating Temperature |
-4°F to 131°F (-20°C to 55°C) |
| Product Dimensions (W × H × D) |
27.9 × 22.2 × 16.5 in (709 × 565 × 420 mm) |
| Product Weight |
110 lbs (50 kg) |
| Start Type |
Recoil Start Electric Button Start App Start (Bluetooth/Wi-Fi) Remote Control by ESS Scheduled Automatic Start |
| Certifications / Listing |
EPA Compliant |
| CO Protection |
CO Alert |
| Running Modes |
Turbo Mode, ECO Mode, Quiet Mode |
| Noise (ECO Mode) |
69 dB(A) @ 23 ft (7 m) |
| Operating Altitude |
≤6,561 ft (2,000 m) |
| Engine Size |
224 cc |
| Engine Type |
4-Stroke, Variable Speed |
| Gasoline Tank |
10 L (2.64 gal), Metal |
| Engine Oil |
10W-40, 22 oz / 650 ml* (*Choose type according to regional conditions) |
| Wheels |
Yes |
