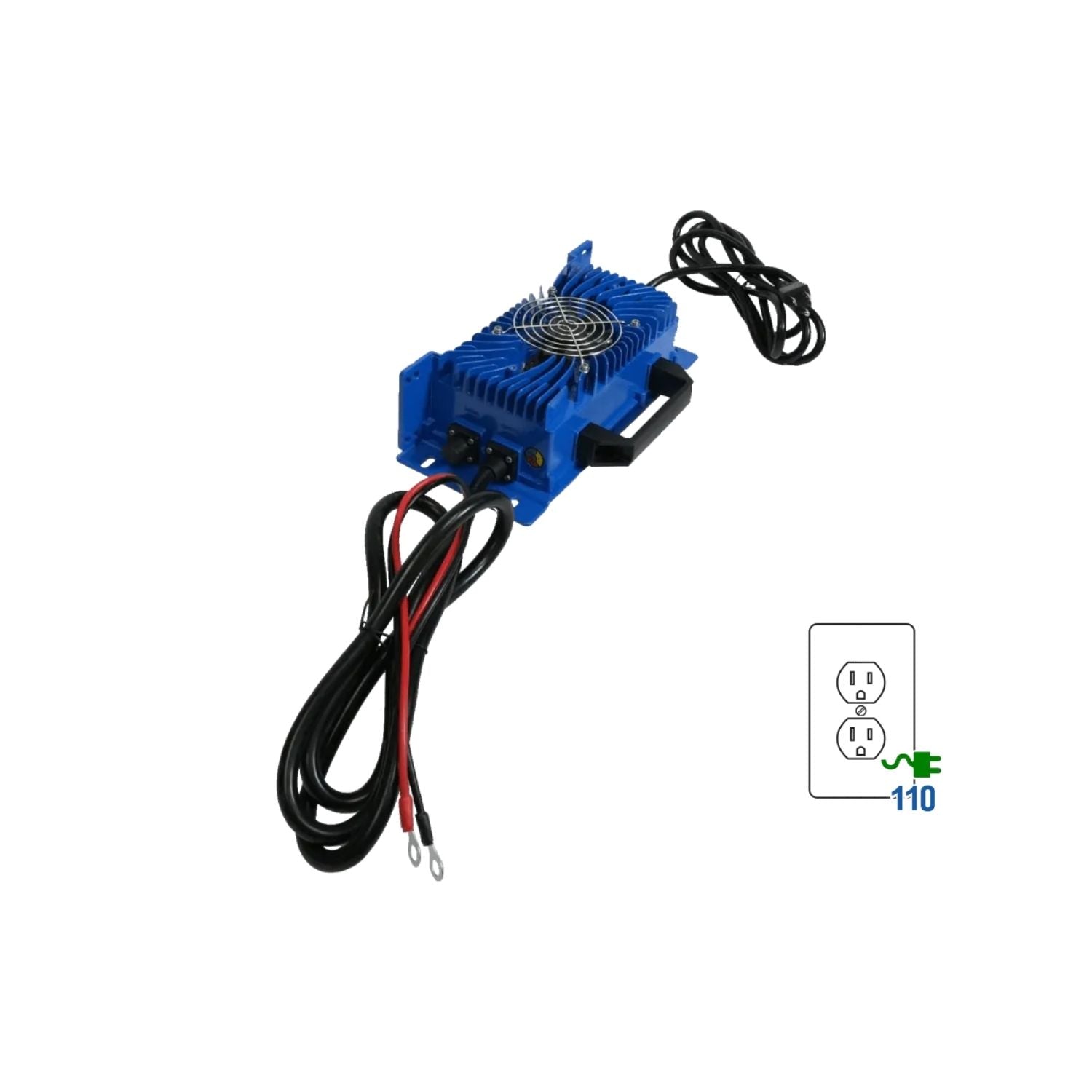

The BigBattery 24V 30A Charger Delivers a 28.8V Lithium Charge Through Secure Ring Terminals
The BigBattery 24V 30A Charger delivers up to 30 amps at 28.8V DC to charge 24V LiFePO4 batteries. It plugs into a standard 110V AC outlet and connects to the battery with ring terminals that bolt directly to the battery posts.
With 30A of output, it charges a 64Ah 24V battery in a little over two hours and suits utility vehicles, scissor lifts and other 24V equipment. BigBattery provides lifetime USA-based technical support, and the charger ships from Texas.
BigBattery 24V 30A Lithium Charger Features
30A Charging Current
Up to 30A of output for fast charging of 24V lithium batteries and banks.
28.8V LiFePO4 Profile
The 28.8V DC maximum output matches the charge range of 24V LiFePO4 batteries.
Ring Terminal Connection
Ring terminals bolt to the battery terminals for a secure, vibration-resistant connection.
Compact Design
At 6.2 x 9.1 x 3.2 in and 4.9 lbs, with a 21.7 in DC cable and 19.3 in AC cable, it fits on a shelf or in a vehicle.
Real-World Applications
24V equipment. Charge scissor lifts, scrubbers and utility vehicles between shifts.
24V RV and marine. Recharge a 24V house battery from shore power.
How It Compares to Common Alternatives
Versus a lead-acid charger. A lead-acid charger cannot fully and safely charge LiFePO4. This charger uses the lithium charge profile BigBattery batteries need.
Versus a generic lithium charger. BigBattery matches this charger to its own batteries, so it delivers the correct voltage for those models and avoids tripping the BMS.
Is This Charger the Right Fit
-
Battery. BigBattery 24V LiFePO4 batteries. Confirm your battery model with our team if you are unsure.
-
Power source. A standard 110V AC outlet.
-
Connection. Ring terminals on the DC side and a 110V AC plug.
This may be a good fit if
- You own a compatible BigBattery battery
- You need a replacement or second charger
- You are switching from a lead-acid charger
Common Questions
Which Batteries Does It Work With?
BigBattery 24V LiFePO4 batteries. Confirm your battery model with our team if you are unsure.
How Long Does It Take to Charge?
Divide the battery's amp hours by 30A and allow extra time for the taper near full. A 64Ah battery takes a little over two hours from empty.
Can I Use a Lead-Acid Charger Instead?
No. Lead-acid chargers use absorption and float voltages designed for a different chemistry, which typically leaves a LiFePO4 battery undercharged and can trip its BMS. A matched lithium charger delivers the correct profile.
What's Included
- 1 x BigBattery 24V 30A Lithium Charger
The Right Charger for Your Battery
The BigBattery 24V 30A Lithium Charger keeps your BigBattery lithium battery properly charged with a matched 28.8V DC profile. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
BigBattery 24V 30A Charger Specifications
|
| SKU |
PWS051 |
| Battery Voltage |
24V LiFePO4 |
| Input Voltage |
110V AC |
| Input Current |
9A or less |
| Max Output Voltage |
28.8V DC |
| Max Output Current |
30A |
| Output Frequency |
50/60Hz |
| Connection Type |
Ring terminals |
| Weight |
4.9 lbs |
| Dimensions (D x W x H) |
6.2 x 9.1 x 3.2 in |
| DC Cable Length |
21.7 in |
| AC Cable Length |
19.3 in |
