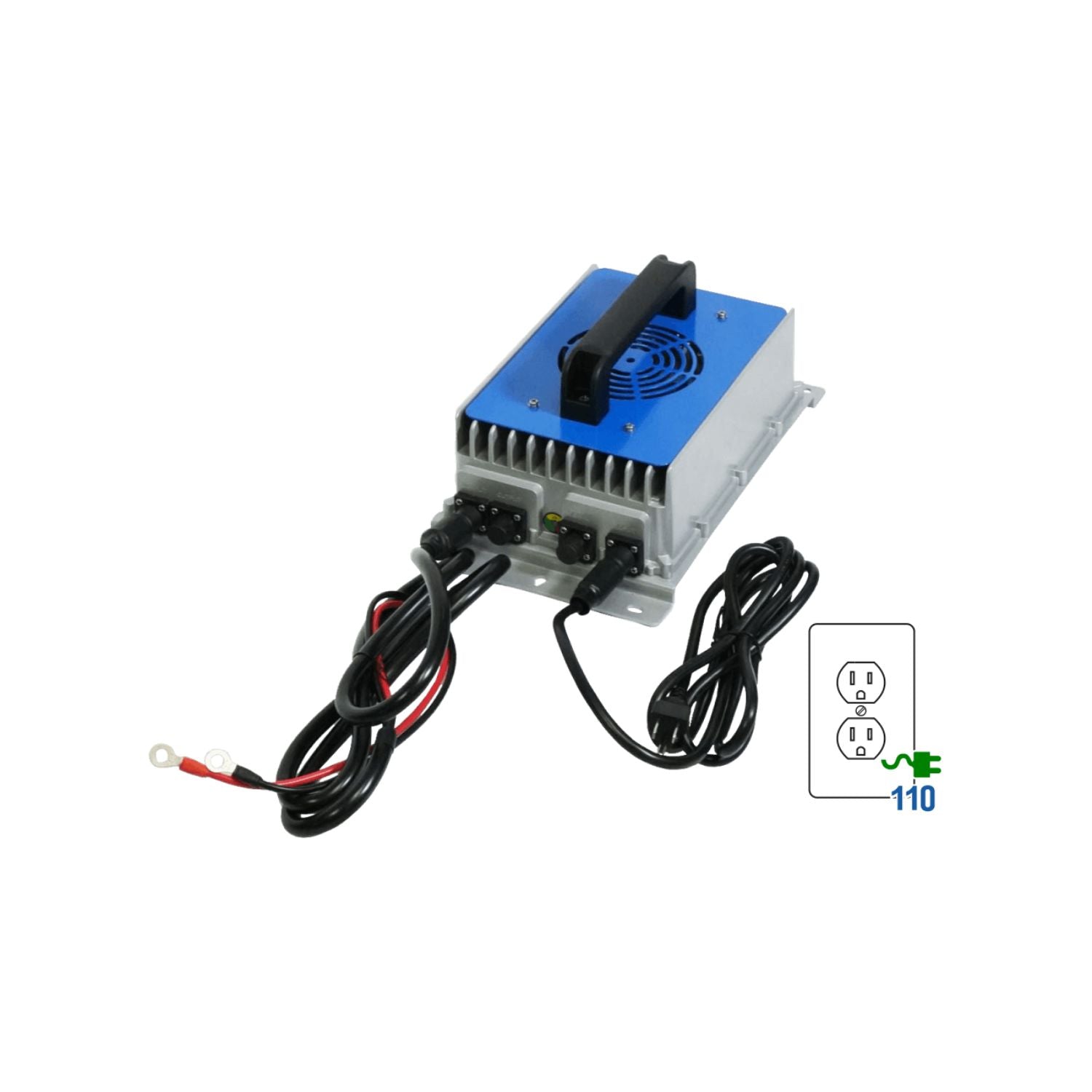

The BigBattery 72V 15A Charger Charges the RAPTOR 2 and Other 72V LiFePO4 Packs Overnight From a Standard Outlet
The BigBattery 72V 15A Charger delivers up to 15 amps at 86.4V DC, within the 85.2V to 87.6V charge range of the BigBattery 72V RAPTOR 2. It runs from any standard 110V AC outlet and connects to the battery with ring terminals for a secure, vibration-resistant connection.
It is built for 72V golf carts, utility and transport vehicles, industrial equipment and RAPTOR 2 systems. BigBattery provides lifetime USA-based technical support, and the charger ships from Texas.
BigBattery 72V 15A Lithium Charger Features
Matched to the RAPTOR 2
The 86.4V DC output sits within the RAPTOR 2 charge range.
15A Output
A 100Ah RAPTOR 2 recharges from empty in about seven to eight hours, which suits overnight charging.
Standard 110V Input
No special outlet is needed.
Ring Terminal Connection
Bolted ring terminals resist vibration.
Portable
At 9.2 lbs with 44 in cables, it can be moved between vehicles.
Real-World Applications
72V golf carts and LSVs. Charge overnight from any garage outlet.
Utility and transport vehicles. Recharge resort and campus vehicles between shifts.
Industrial equipment. Charge 72V material handling and support equipment.
How It Compares to Common Alternatives
Versus a lead-acid charger. A lead-acid charger cannot fully and safely charge LiFePO4. This charger uses the lithium charge profile BigBattery batteries need.
Versus a generic lithium charger. BigBattery matches this charger to its own batteries, so it delivers the correct voltage for those models and avoids tripping the BMS.
Is This Charger the Right Fit
-
Battery. 72V LiFePO4 battery systems, including the BigBattery 72V RAPTOR 2.
-
Power source. A standard 110V AC outlet.
-
Connection. Ring terminals on the DC side and a 110V AC plug.
This may be a good fit if
- You own a compatible BigBattery battery
- You need a replacement or second charger
- You are switching from a lead-acid charger
Common Questions
Which Batteries Does It Work With?
72V LiFePO4 battery systems, including the BigBattery 72V RAPTOR 2.
How Long Does It Take to Charge a RAPTOR 2?
At 15A, a 100Ah RAPTOR 2 takes about seven to eight hours from empty. The RAPTOR 2 accepts up to 100A, so a higher-output charger would be faster.
Can I Use a Lead-Acid Charger Instead?
No. Lead-acid chargers use absorption and float voltages designed for a different chemistry, which typically leaves a LiFePO4 battery undercharged and can trip its BMS. A matched lithium charger delivers the correct profile.
15A or 13A, Which 72V Charger Should I Choose?
BigBattery says the 15A ring terminal charger is slightly faster, while its 13A IP65 charger is rated for outdoor exposure. Choose based on where the charger will live.
What's Included
- 1 x BigBattery 72V 15A Lithium Charger
The Right Charger for Your Battery
The BigBattery 72V 15A Lithium Charger keeps your BigBattery lithium battery properly charged with a matched 86.4V DC profile. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
BigBattery 72V 15A Charger Specifications
|
| SKU |
PWS054 |
| Battery Voltage |
72V LiFePO4 |
| Input Voltage |
110V AC |
| Max Output Voltage |
86.4V DC |
| Max Output Current |
15A |
| Output Frequency |
50/60Hz |
| Connection Type |
Ring terminals |
| Compatible Batteries |
BigBattery 72V RAPTOR 2 and 72V LiFePO4 systems |
| Weight |
9.2 lbs |
| Dimensions (D x W x H) |
6.6 x 11.25 x 5.1 in |
| DC Cable Length |
44.5 in |
| AC Cable Length |
44 in |
