The BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panel Keeps Producing Power When Part of Your Roof Is Shaded
The BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panel pairs 25% efficient N-Type TOPCon cells with BougeRV's ShadePower anti-shading design. BougeRV says it can still deliver up to 130W when a third of its surface is covered. It weighs 7.9 pounds, bends up to 270°, and carries an IP68 waterproof rating, which suits RV roofs, boats, vans and off-grid systems with vents, racks or masts in the way.
This listing offers one, two, three, four, eight or ten panels. Every option uses the same Arch Pro panel, SKU SP004, for a matched array.
BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panel Features
ShadePower Technology for Partial Shade
Shade from roof fans, air conditioners and racks can cut a flexible panel's output sharply. BougeRV's ShadePower design is engineered to limit that loss, sustaining up to 130W with 33% of the surface obstructed.
28 Bypass Diodes for Hot-Spot Protection
Twenty-eight bypass diodes route current around shaded or damaged cells. This helps prevent localized overheating and protects the cells, for longer life in strong summer sun.
N-Type TOPCon Cells With 16BB
BougeRV rates the N-Type TOPCon cells at 25% efficiency, ahead of traditional PERC cells. Sixteen busbars shorten the current path, which reduces internal resistance and power loss and helps the panel run cooler under load.
Ultralight, Slim and Flexible
At 7.9 pounds and about 53 x 31 inches, the panel adds little weight to a roof. It bends up to 270° to follow curved RV roofs, marine decks, trailers and overlanding rigs.
Dual Fiberglass and IP68 Protection
A dual-layer fiberglass shield resists heat, corrosion and harsh conditions. The IP68 rating means the panel is built to handle full immersion and extreme weather, and BougeRV rates it for 2,400Pa wind and 5,400Pa snow loads.
Three Ways to Install
Mount the panel with tape, adhesive or its pre-drilled holes, depending on your surface and how permanent you want the install to be.
Real-World Applications
RV living. Get more from a crowded RV roof, where vents and air conditioners cast shade for part of the day.
Boats and yachts. The panel resists heat, humidity and salt air, and its low profile suits decks and biminis.
Van life and road trips. Keep a house battery charged on long drives without depending on shore power.
Rooftop tents and overlanding. A flexible panel on a tent or rack powers lights, fans and a portable fridge at camp.
Off-grid cabins. Build a solar setup for remote sites where light conditions change through the day.
How It Compares to Common Alternatives
Versus standard flexible panels. Many flexible panels lose most of their output when part of the surface is shaded. Arch Pro adds ShadePower and 28 bypass diodes to hold more output in partial shade.
Versus rigid framed panels. A rigid 200W panel needs brackets and adds far more weight. Arch Pro follows curves at 7.9 pounds, though a rigid panel can stand off the roof for cooling and airflow.
Versus the Arch 2.0 100W. Both use 25% N-Type TOPCon cells with 16BB. Arch Pro doubles the wattage per panel and adds ShadePower with 28 bypass diodes and a listed IP68 rating.
Is This Panel the Right Fit
-
System voltage. BougeRV says Arch Pro works with 12V and 24V battery systems. Its 36.4V open-circuit voltage calls for an MPPT charge controller.
-
Wiring more panels. Wire panels in series to raise voltage or in parallel to raise current. Keep the combined open-circuit voltage within your controller's limit.
-
Shade on your roof. If roof gear shades part of the array during the day, ShadePower helps more here than in open, unshaded spots.
-
Fuse and system limits. Each panel has a 15A maximum series fuse rating and a 1,000V DC maximum system voltage.
This may be a good fit if
- Your roof has vents, racks or an air conditioner that cast shade
- You want a light, flexible panel for an RV, van or boat
- You need a waterproof panel for marine use
- You plan to build a larger matched array over time
Common Questions
What Is the Efficiency of the Arch Pro 200W?
BougeRV rates its N-Type TOPCon cells at 25% conversion efficiency.
Can This Panel Be Used With 12V and 24V Systems?
Yes. BougeRV lists the Arch Pro 200W as compatible with both 12V and 24V battery systems, for RVs, boats and off-grid homes.
How Flexible Is the Panel?
It can bend up to 270°, so it conforms to curved surfaces such as RV roofs and boat decks.
Can I Use Multiple Panels Together?
Yes. Connect panels in series to increase voltage or in parallel to increase current, depending on your system, to scale up for bigger batteries or higher loads.
What's Included

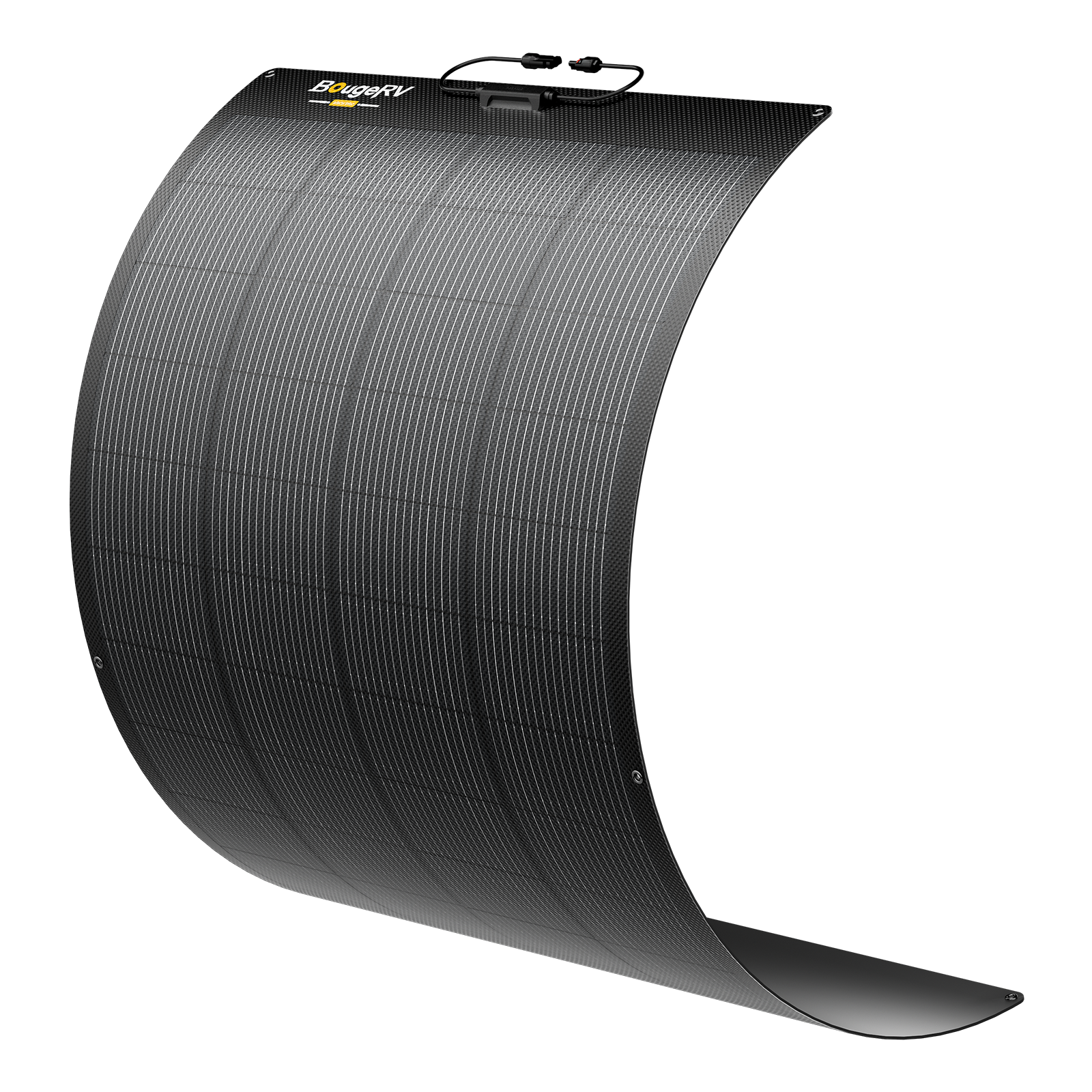

- 1 x BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panel (1 Solar Panel Option)

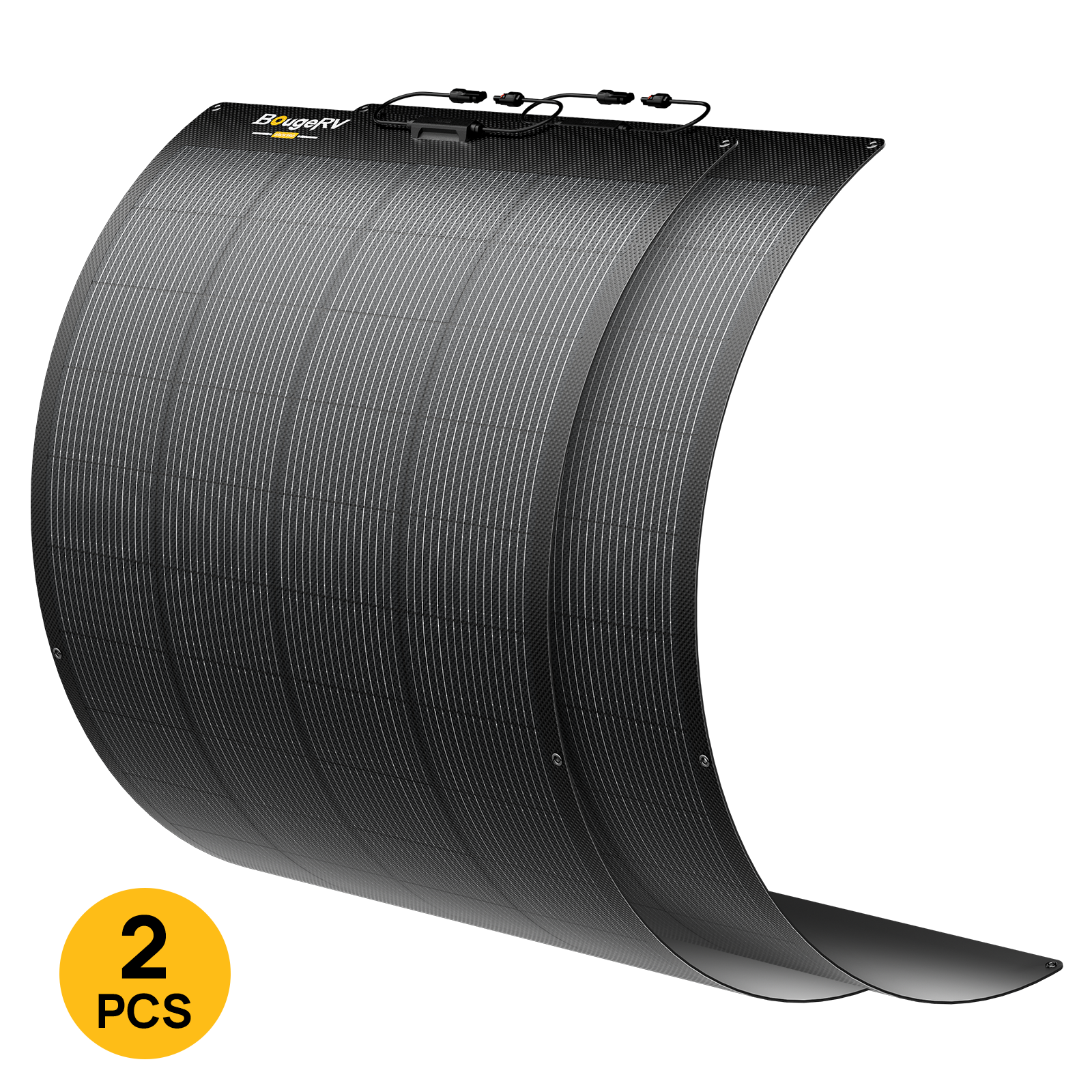

- 2 x BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panels (2 Solar Panels Option)

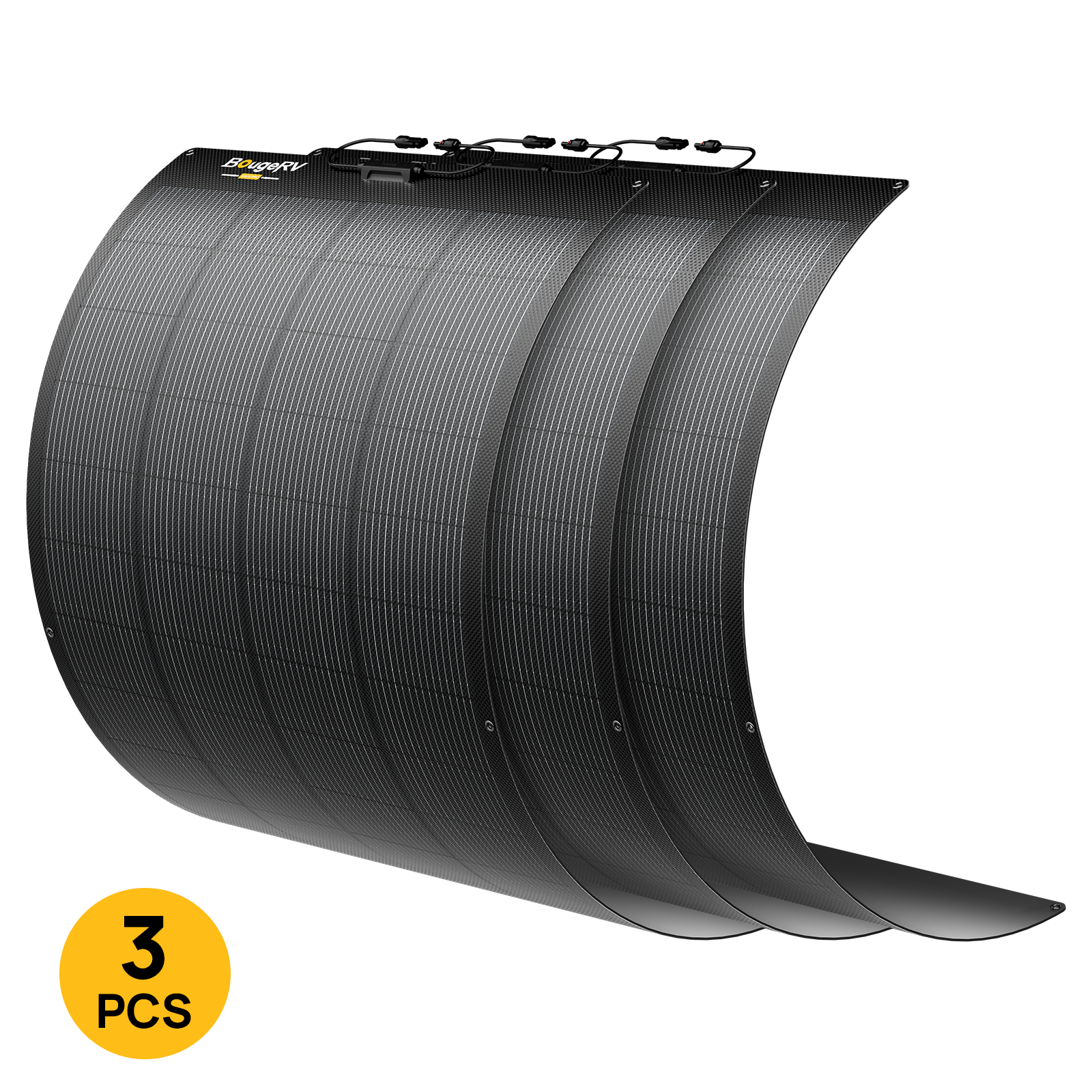

- 3 x BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panels (3 Solar Panels Option)

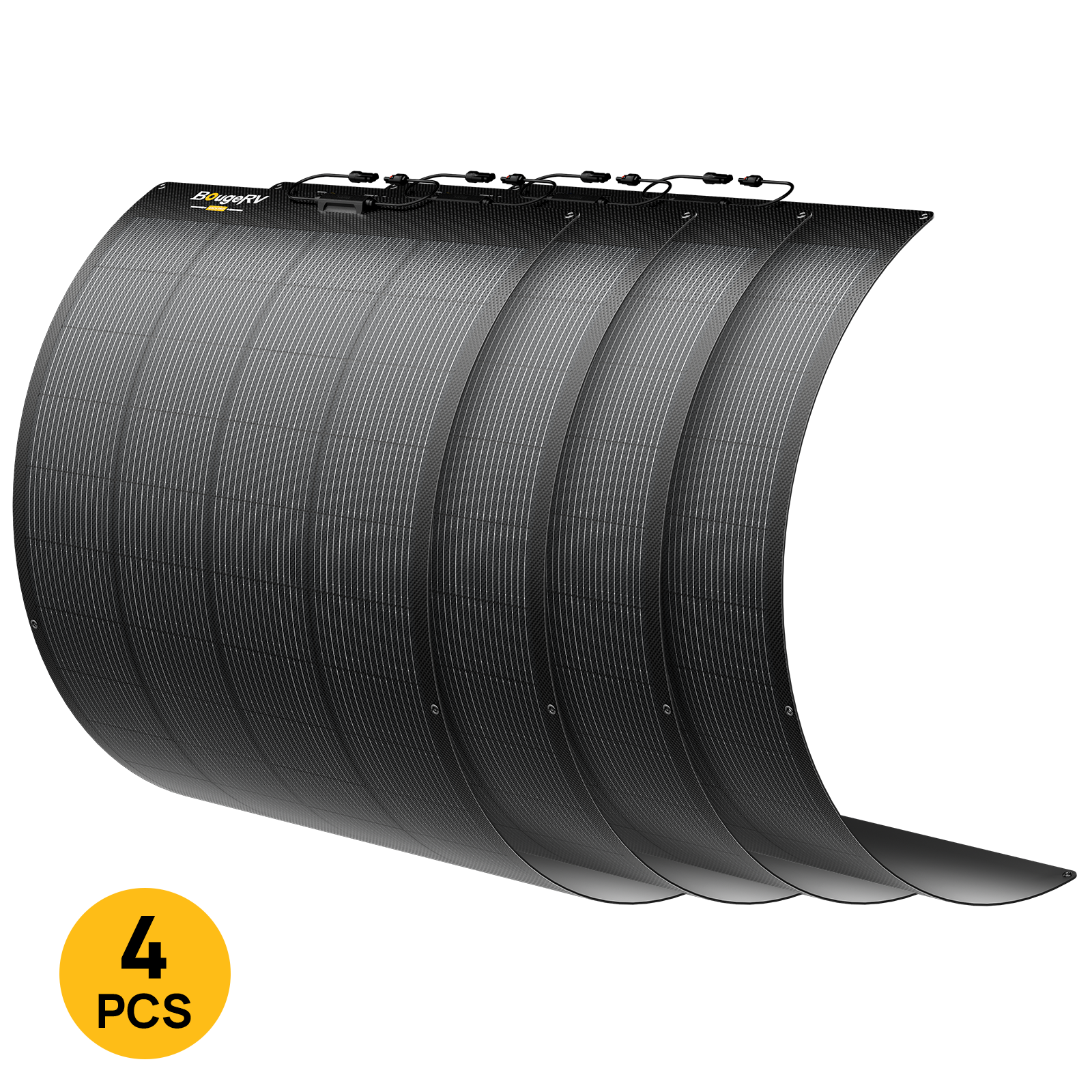

- 4 x BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panels (4 Solar Panels Option)

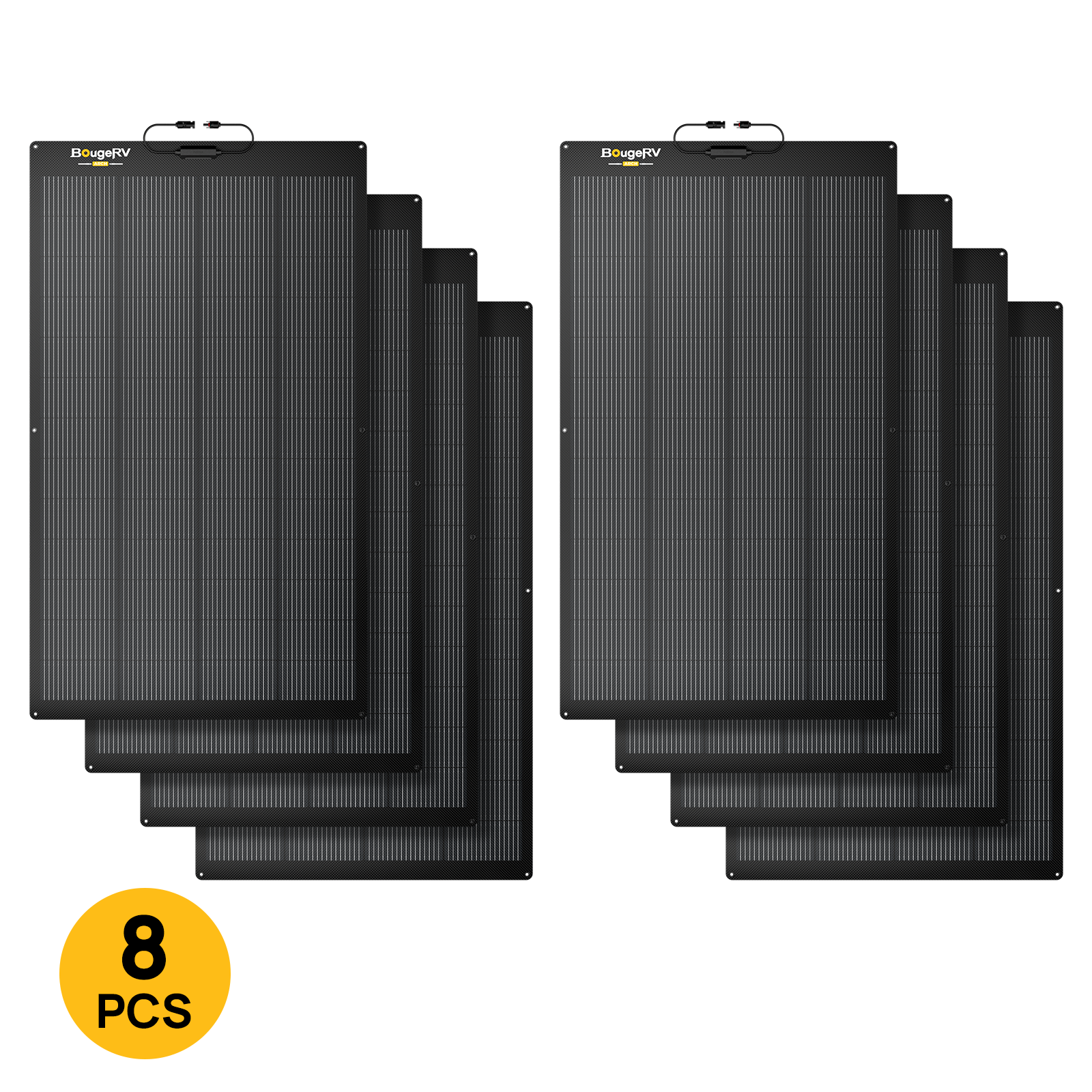

- 8 x BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panels (8 Solar Panels Option)

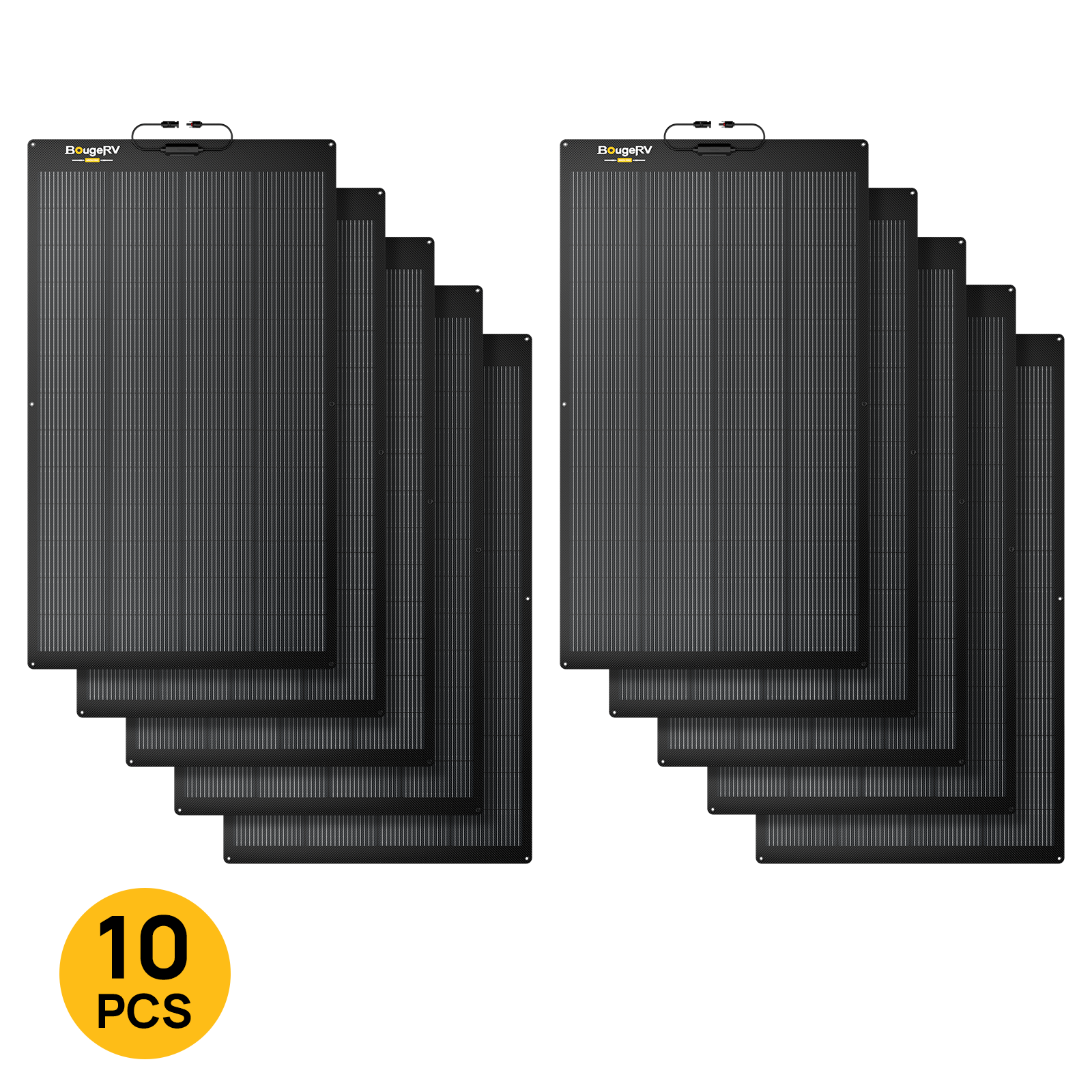

- 10 x BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panels (10 Solar Panels Option)
Solar That Works Around Shade
The BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panel gives RVs, boats and off-grid systems light, waterproof solar that holds more output in partial shade. At Outbound Power, we help customers plan roof layouts, wiring and charge controllers for flexible solar. If you have questions about Arch Pro, our team is happy to help.
BougeRV Arch Pro 200W ShadePower N-Type Flexible Solar Panel Specifications
|
| SKU |
SP004 (1 panel); SP004-2, -3, -4, -8, -10 (multi-packs) |
| Maximum Power (Pmax) |
200W ±5% |
| Open Circuit Voltage (Voc) |
36.4V ±5% |
| Max Power Voltage (Vmp) |
31.1V ±5% |
| Max Power Current (Imp) |
6.43A ±5% |
| Short Circuit Current (Isc) |
6.7A ±5% |
| Cell Type |
N-Type TOPCon, 16BB |
| Solar Cell Efficiency |
25% |
| Shade Performance |
Up to 130W with 33% of the surface shaded (BougeRV rating) |
| Bypass Diodes |
28 |
| Temperature Coefficient (Pmax) |
-0.35%/°C |
| Temperature Coefficient (Voc) |
-0.3%/°C |
| Temperature Coefficient (Isc) |
+0.048%/°C |
| Operating Temperature |
-40°F to 185°F |
| Series Fuse Rating |
15A |
| Max System Voltage |
1,000V DC |
| Waterproof Rating |
IP68 |
| Load Rating |
2,400Pa wind; 5,400Pa snow |
| Flexibility |
Up to 270° |
| Construction |
Dual-layer fiberglass |
| Installation |
Tape, adhesive or pre-drilled holes |
| Dimensions |
53 x 31 x 0.1 in |
| Weight |
7.9 lbs per panel |
| Warranty |
5 years materials and workmanship; 25 years power output (80%) |
