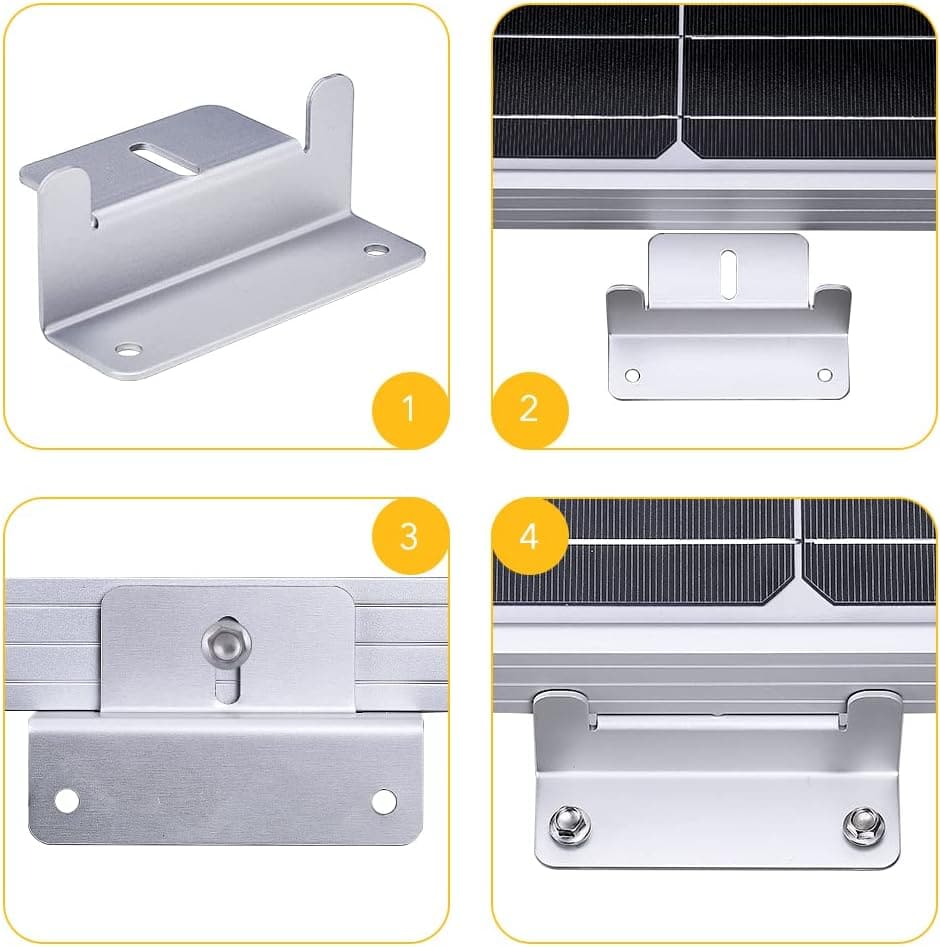

BougeRV Solar Panel Mounting Z Bracket Mount Kits are low-profile aluminum feet that fix a framed solar panel to a flat surface. The Z shape gives a stable mount with a little clearance under the panel, and long 24mm slots line up with the mounting holes on most panel frames. BougeRV lists them for panels from 50W to 600W on rooftops, RVs, trailers, boats and yachts.
Choose 4 units (ISE049) for one panel up to 300W, 8 units (ISE060) for one panel of 300W or more, or 16 units (ISE078), which is four sets of four for multi-panel installs.
The brackets are made of corrosion-resistant aluminum alloy for long outdoor use. BougeRV says they are lighter than stainless steel mounts yet strong enough to support the panel without burdening the roof.

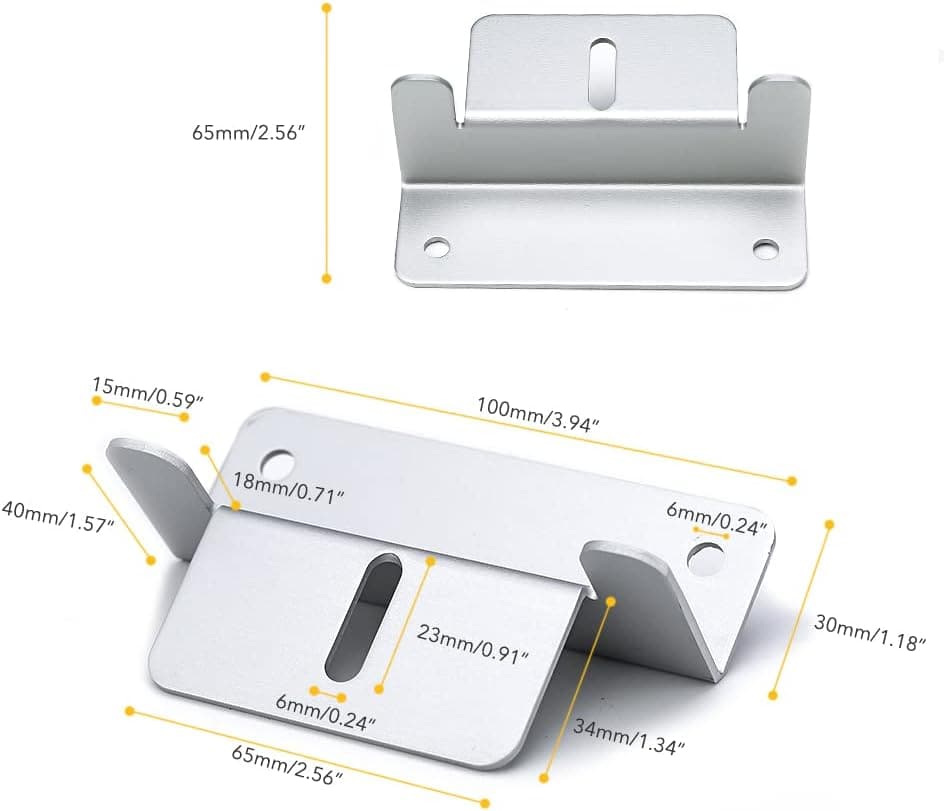

Long-shape holes reach 24mm, so the brackets line up with the mounting holes on most standard aluminum-framed panels. Added holes give extra stability.

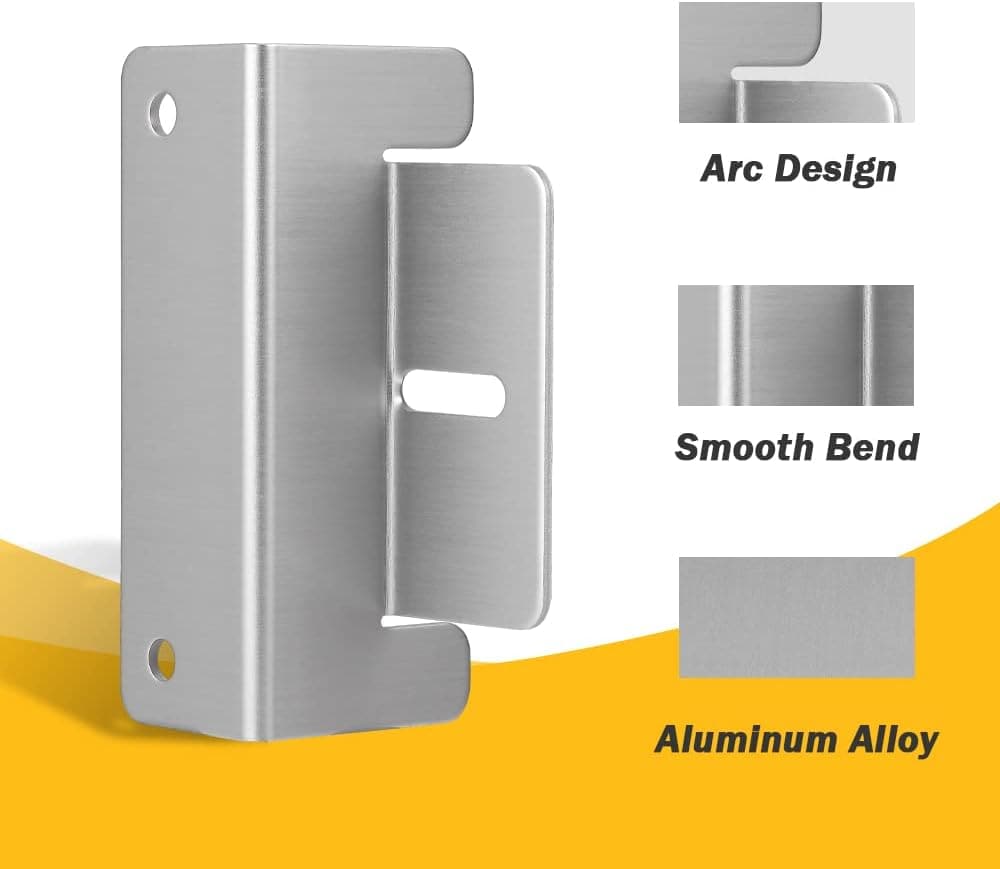

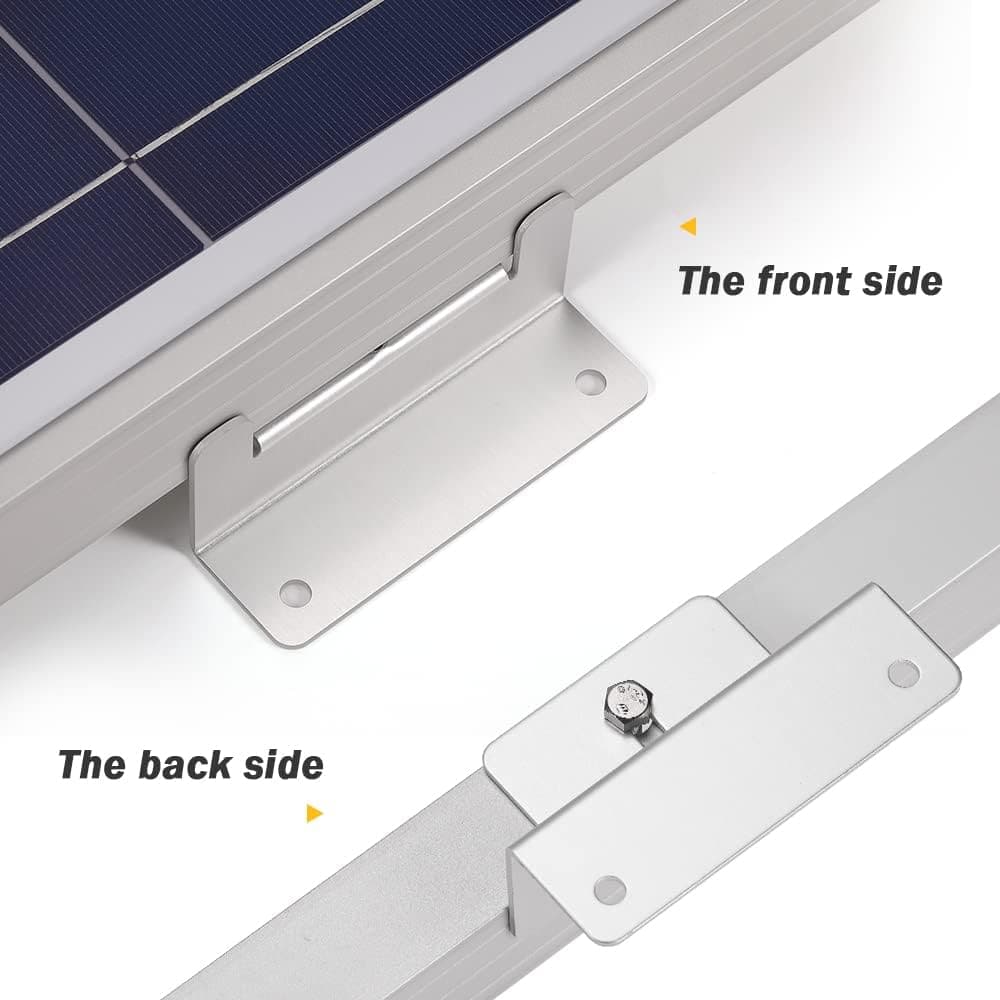

The bent Z profile with a set height makes the brackets easy to use on irregular surfaces, and the high edges help support the panel frame.
Each kit includes hex bolts, hex nuts, flat washers and split ring lock washers. BougeRV says the stainless steel fasteners make installation and removal easy.
Use the brackets on RV roofs, boats, sheds, garages and other flat surfaces, or attach them to a wooden frame you build yourself.
BougeRV covers these Z brackets with an 18-month warranty.
RV roofs. Mount a framed panel flat to the roof for a low-profile, aerodynamic install.
Boats and yachts. Fix a panel to a hardtop or flat deck surface with corrosion-resistant aluminum.
Sheds and garages. Add a small solar system to an outbuilding roof.
DIY frames. Attach panels to a wooden frame or stand you build for a ground or wall setup.
Versus tilt mounts. Tilt mounts angle the panel toward the sun. Z brackets keep it flat and close to the surface, which suits vehicles that travel at speed.
Versus stainless steel mounts. BougeRV says its aluminum brackets are lighter than stainless steel mounts, which helps keep roof weight down.
Versus adhesive mounting. Adhesive is for flexible panels. Z brackets bolt to the frame of a rigid panel and can be removed later.
This may be a good fit if
BougeRV suggests a 4-unit set for a single panel up to 300W and an 8-unit set for a panel of 300W or more.
The 24mm long slots are made to fit most panels with a standard aluminum frame and mounting holes, from 50W to 600W.

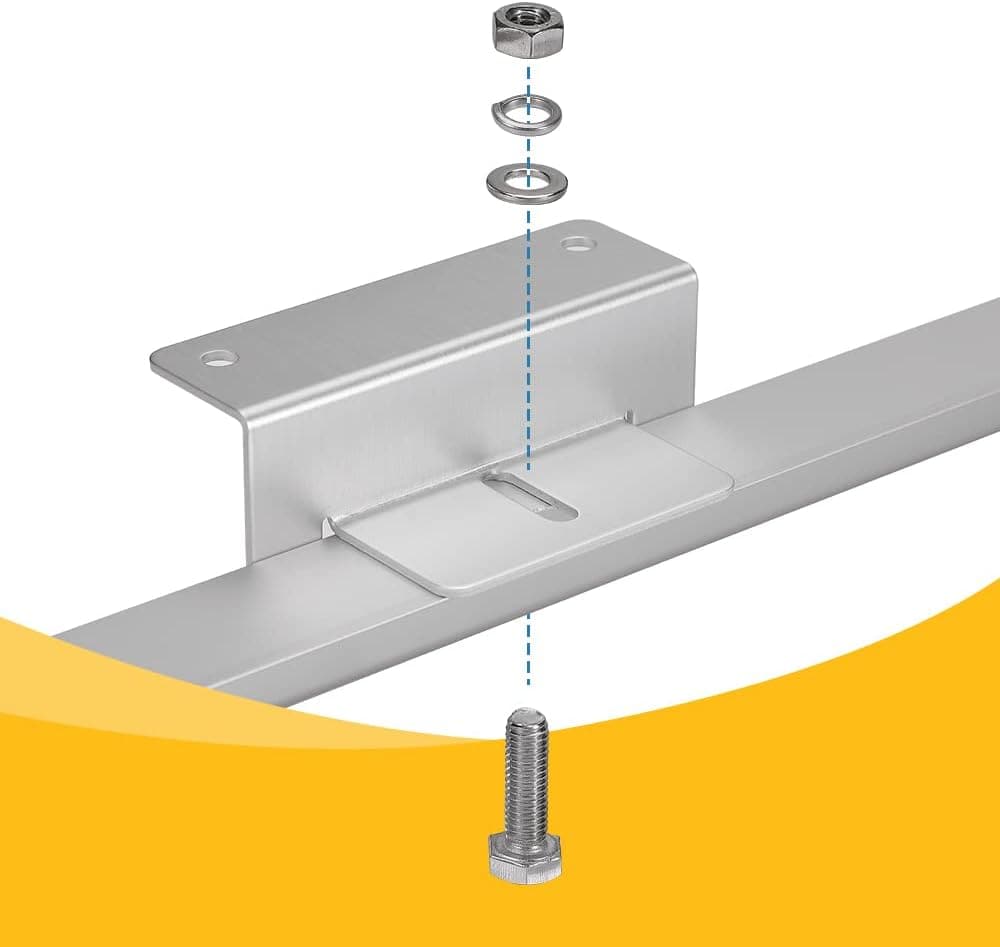

Each bracket comes with a 1/4-20 x 3/4 inch hex bolt, a hex nut, two flat washers and a split ring lock washer.

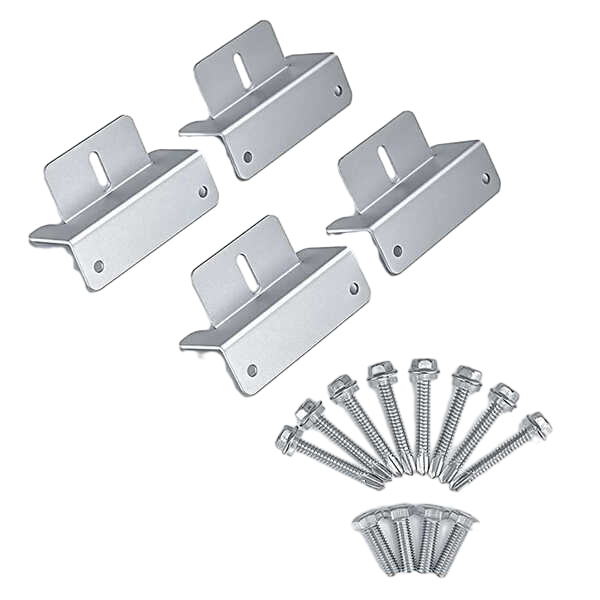

4 Units Z Brackets (ISE049)

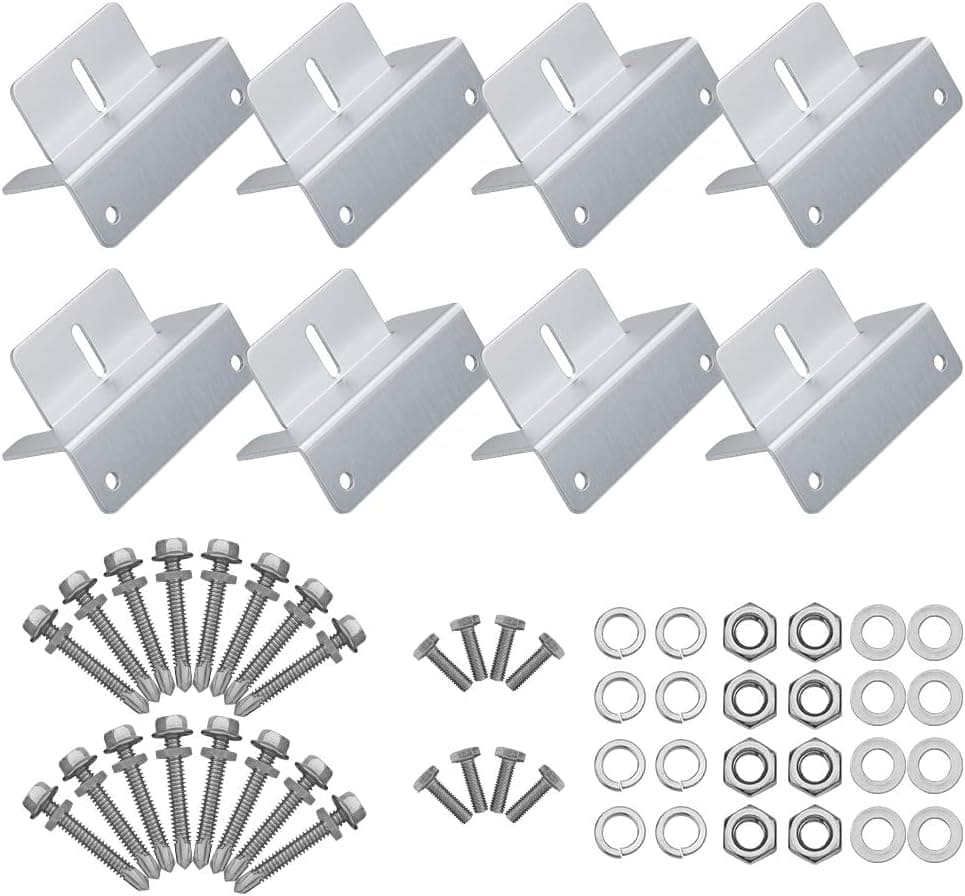

8 Units Z Brackets (ISE060)

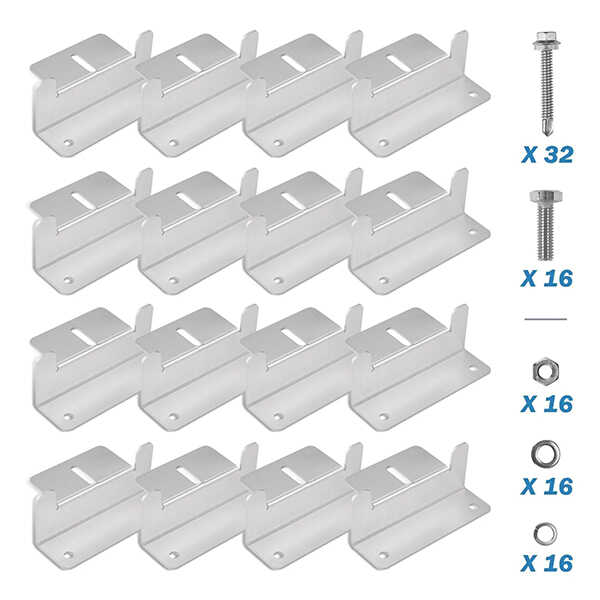

16 Units Z Brackets (ISE078)
BougeRV Solar Panel Mounting Z Bracket Mount Kits give framed solar panels a light, corrosion-resistant mount on RVs, boats and roofs. At Outbound Power, we help customers pick the right mounting hardware for their panels and surfaces. If you have questions about these Z brackets, our team is happy to help.
BougeRV Solar Panel Mounting Z Bracket Mount Kits Specifications |
|
|---|---|
| SKU | ISE049 (4 units); ISE060 (8 units); ISE078 (16 units, 4 sets) |
| Material | Corrosion-resistant aluminum alloy |
| Mounting Slot | 24mm long holes |
| Panel Range | 50W to 600W framed panels |
| Bolt Size | 1/4-20 x 3/4 in hex bolts |
| 4 Units Weight | 0.55 lb (0.25kg); for panels up to 300W |
| 8 Units Weight | 1.1 lb (0.5kg); for panels of 300W or more |
| Applications | RVs, boats, trailers, rooftops, sheds, garages, DIY frames |
| Warranty | 18 months |
