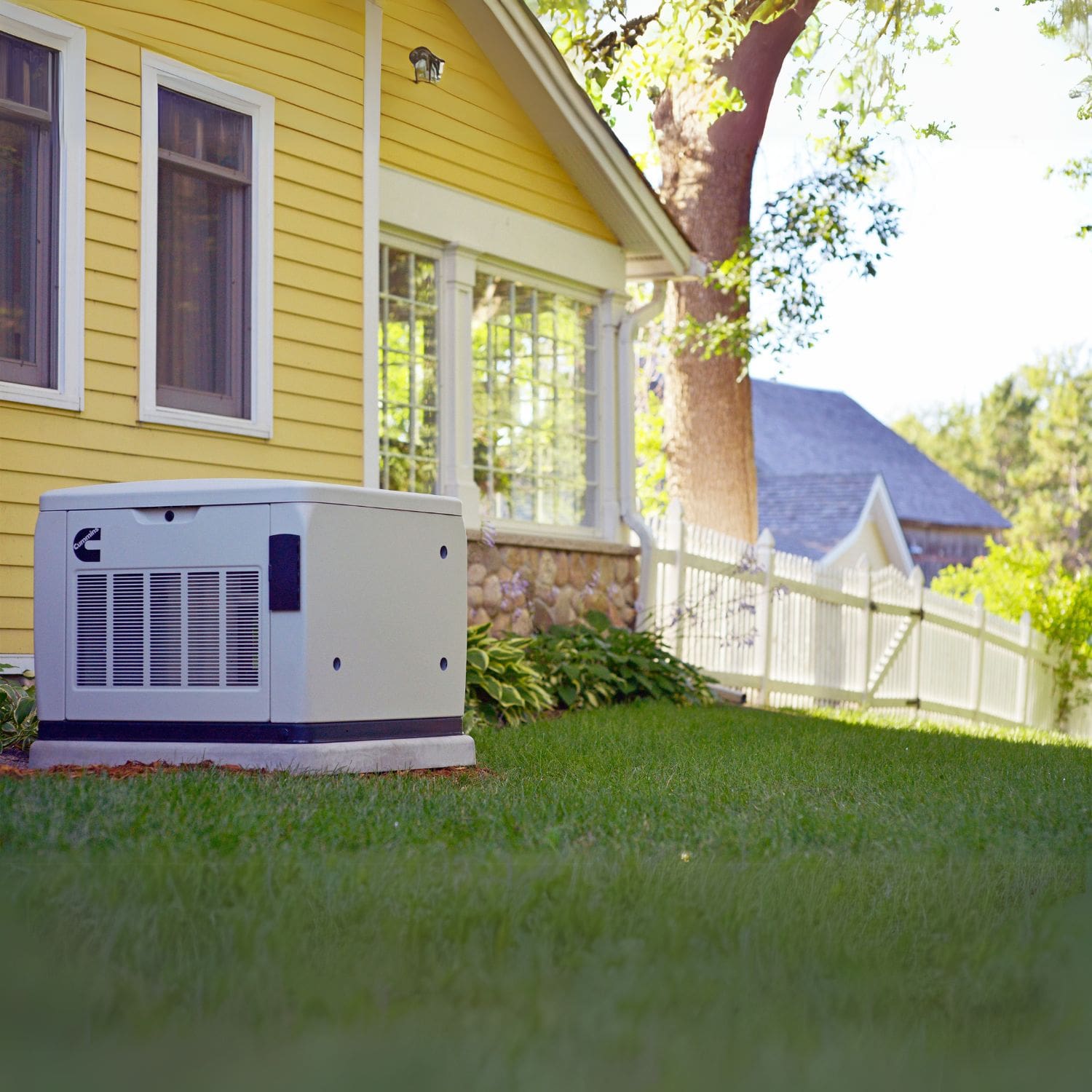

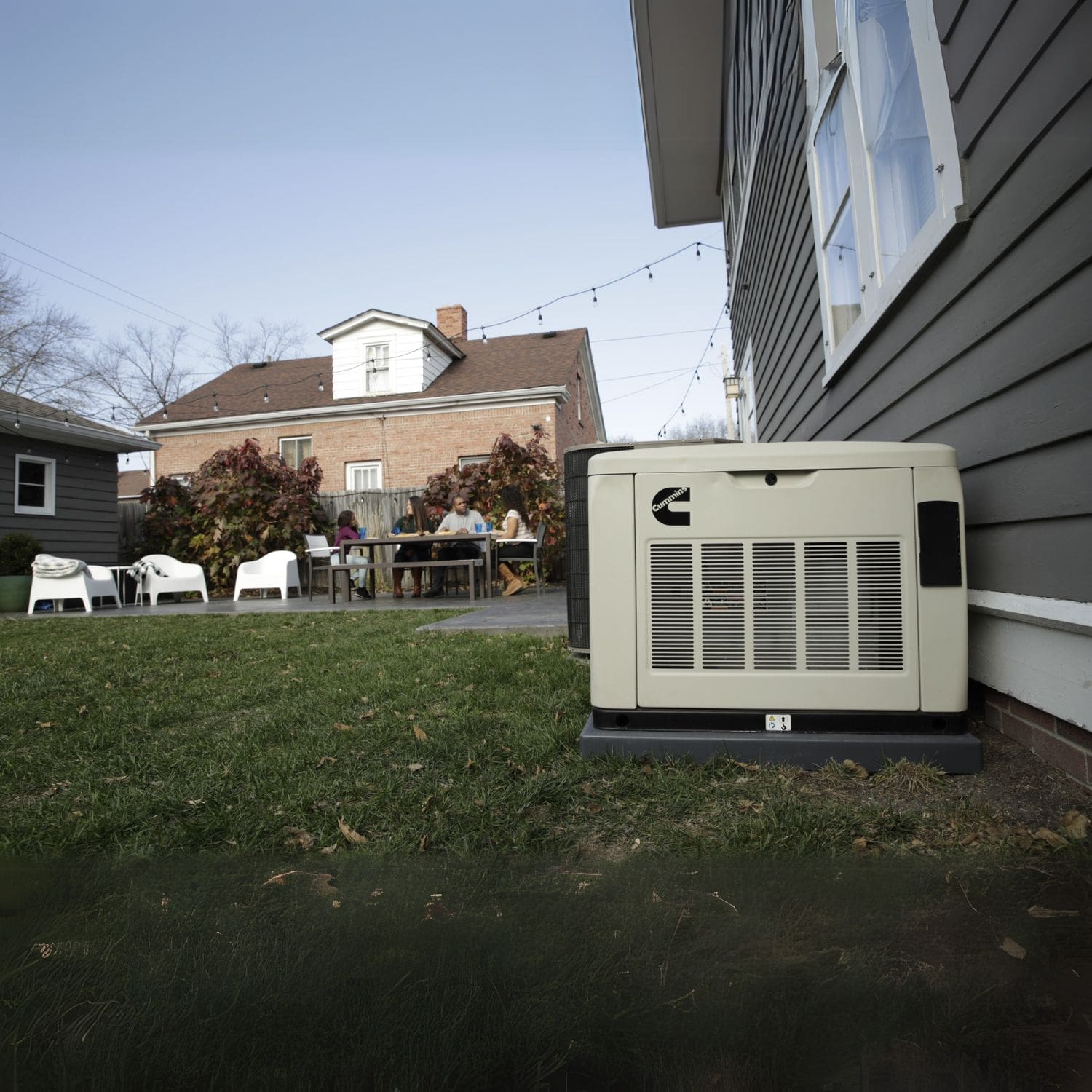

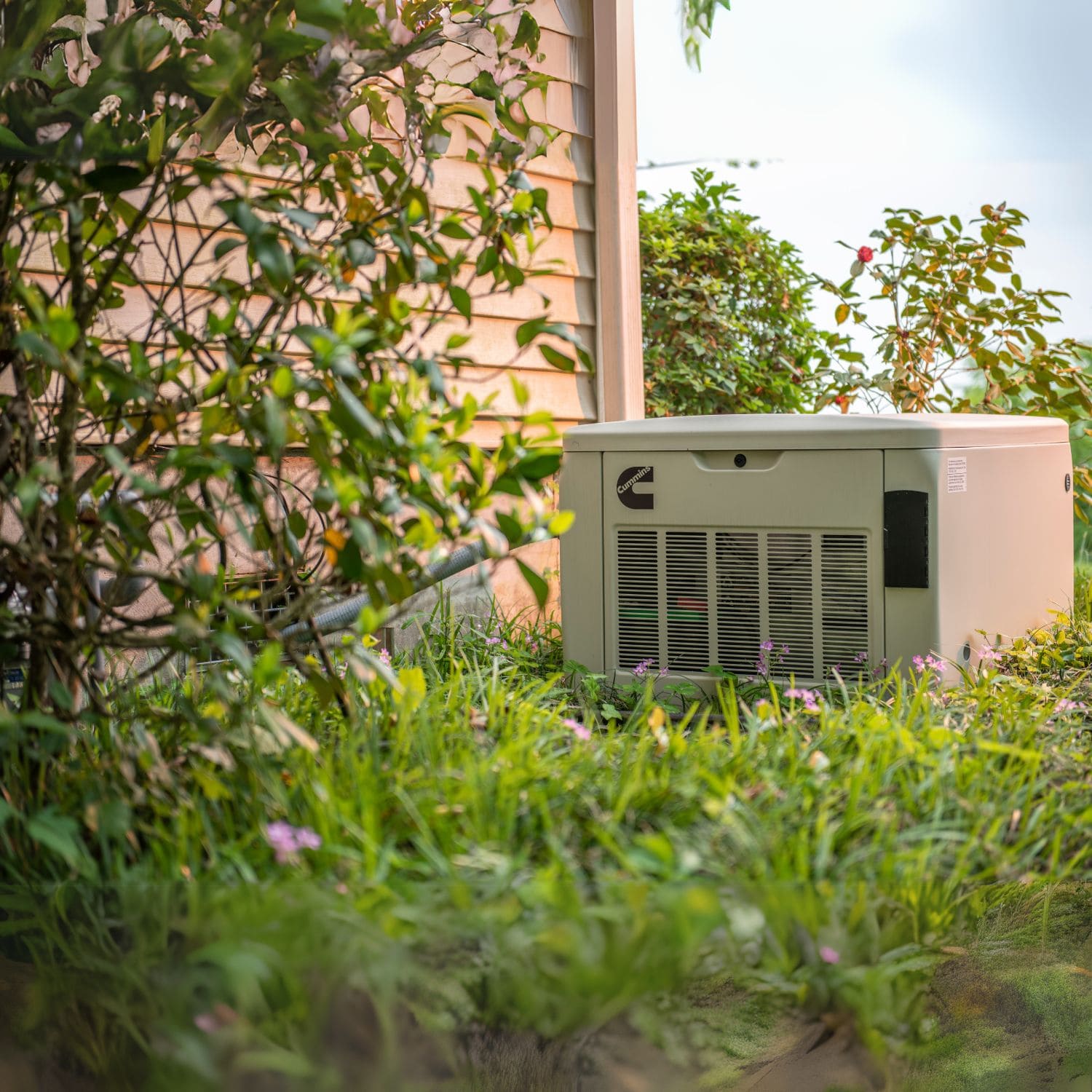

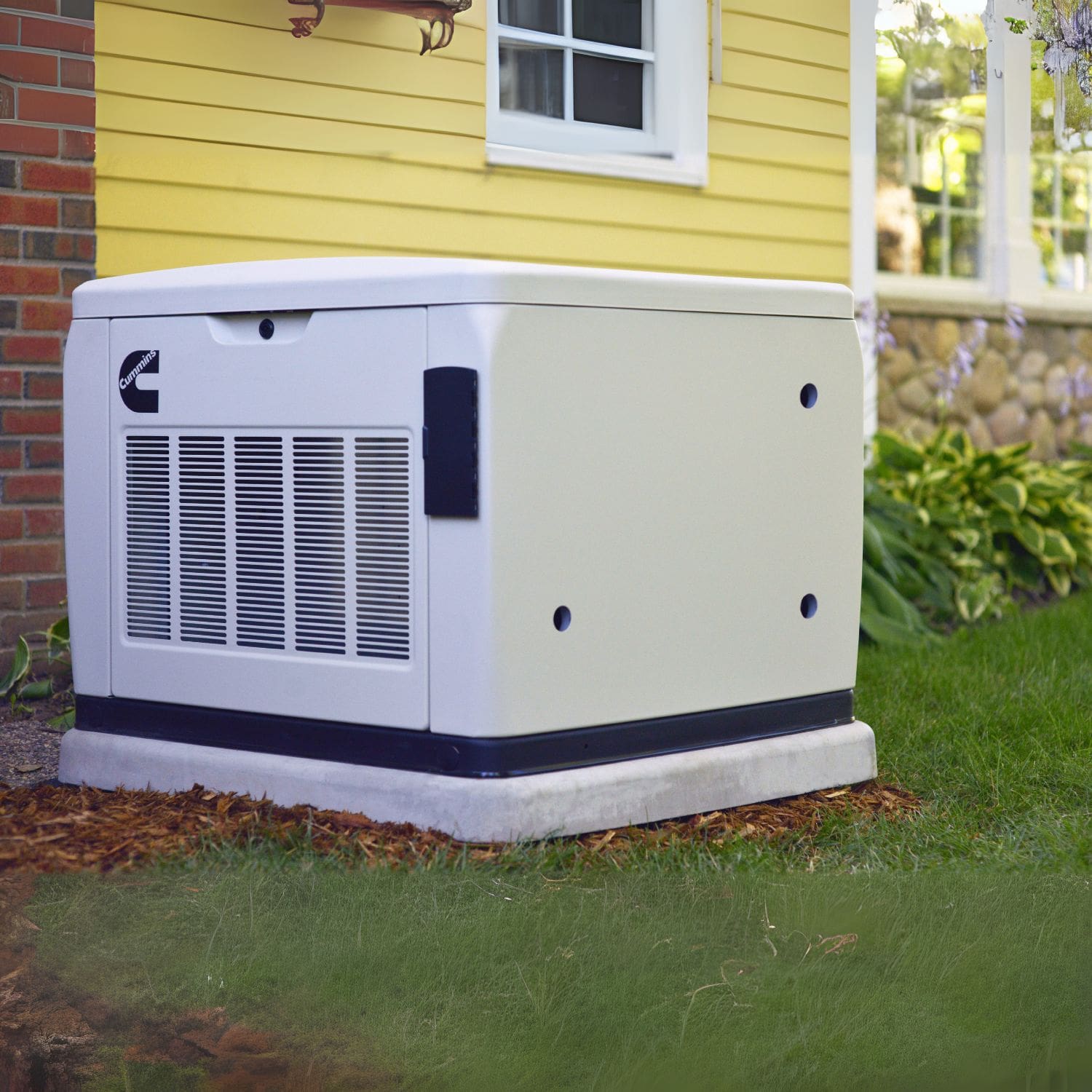

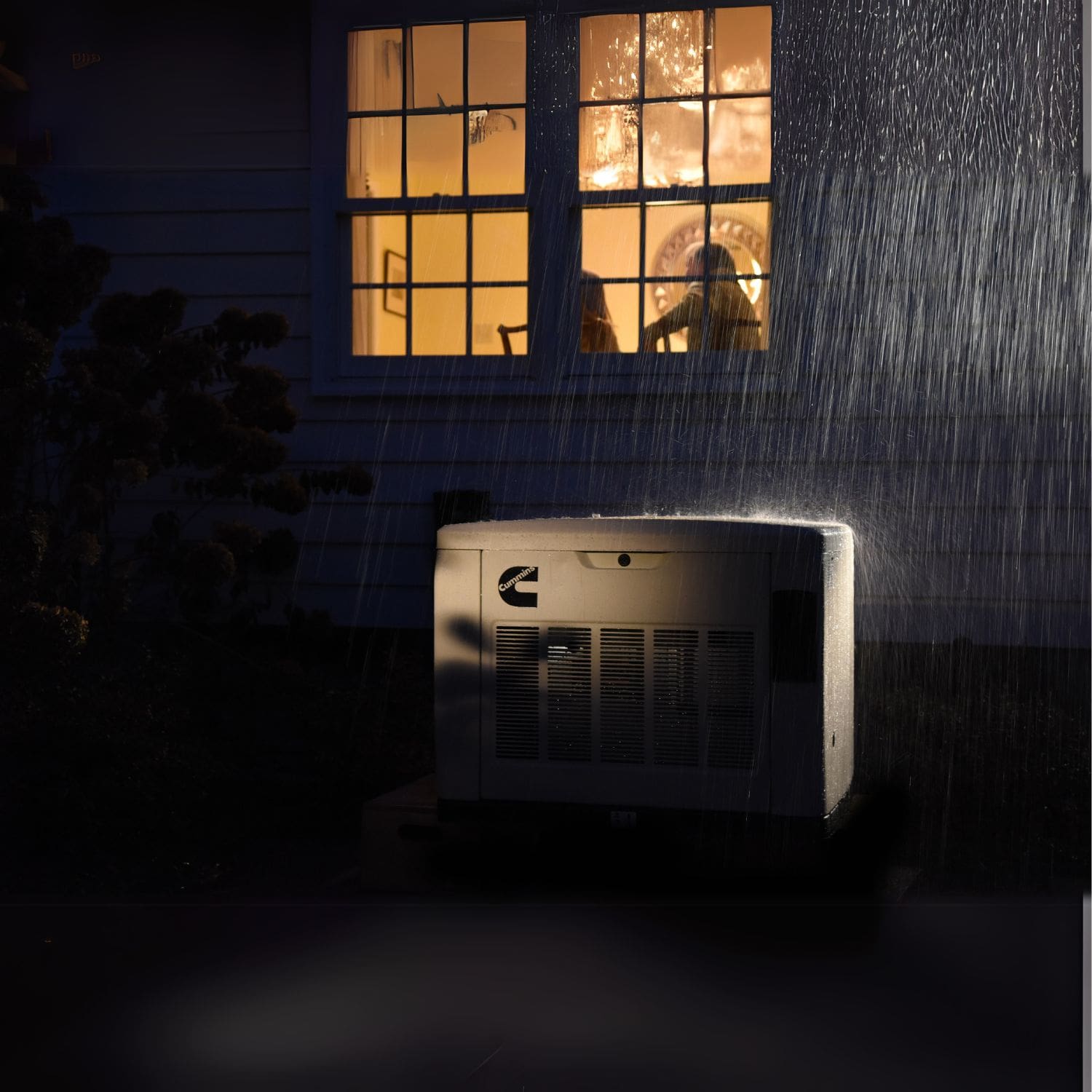

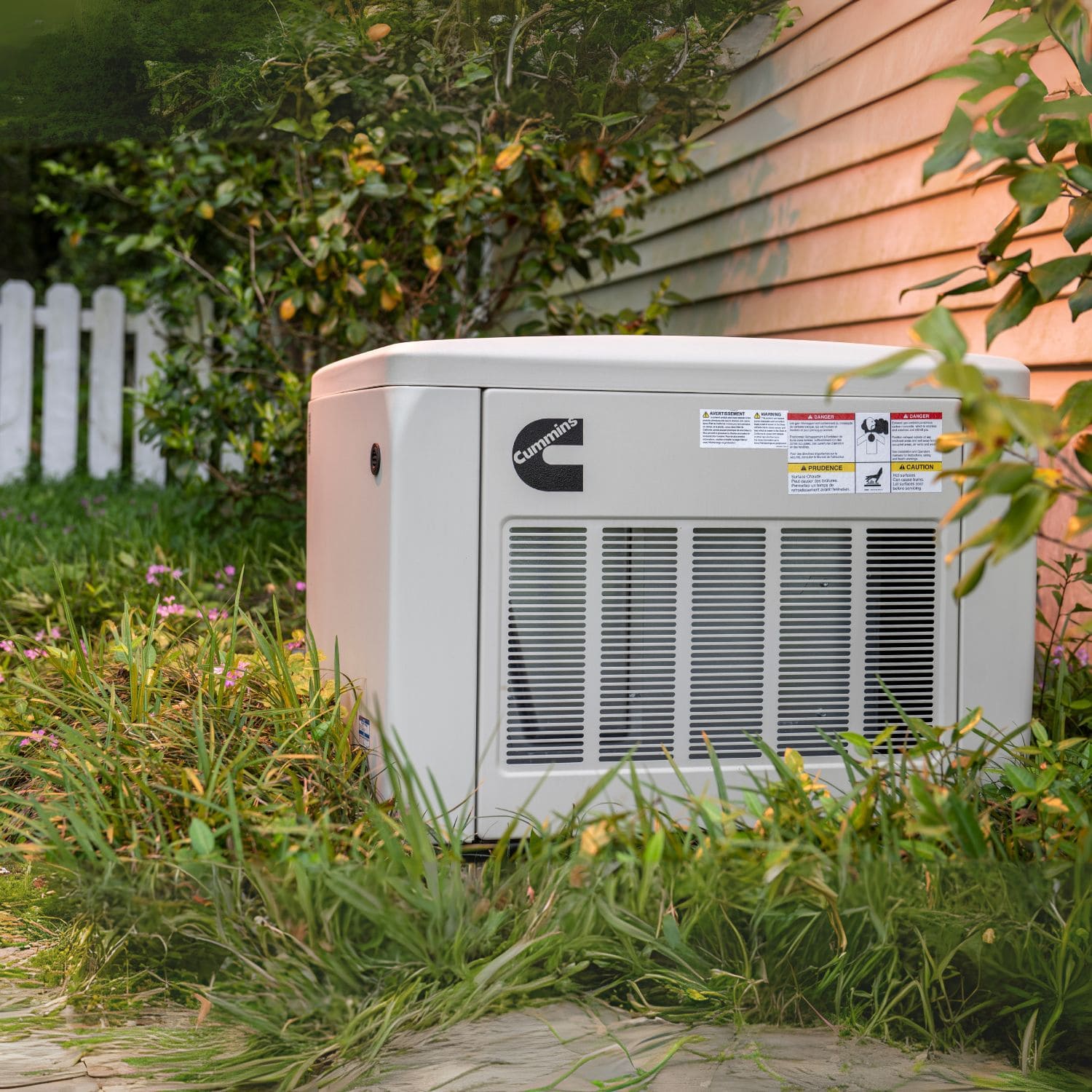

The Future Of Home Power Is Here With The Cummins RS17A 17kW Home Standby Generator
Power outages can be inconvenient, disruptive, and even dangerous. Imagine the peace of mind knowing that, no matter what Mother Nature throws your way, you’ll always have reliable power at your fingertips. With the Cummins RS17A 17kW Home Standby Generator, that peace of mind is now a reality. This isn't just a generator; it's an investment in your family's safety, comfort, and security.
Forget about flickering lights, spoiled food, and the frustration of a power outage. The Cummins RS17A is designed to seamlessly transition your home to backup power the moment the grid goes down, ensuring uninterrupted operation of essential appliances and systems. This means continuous heating and cooling, uninterrupted refrigeration, and protection for sensitive electronics, offering a level of resilience that other generators simply can't match.
Cummins RS17A 17kW Home Standby Generator Features
Keeps Essential Home Power Flowing Constantly
Never worry about power outages again. The Cummins RS17A ensures continuous power to essential appliances and systems, protecting your family's comfort and safety during storms or grid failures. Enjoy peace of mind knowing your home stays powered.

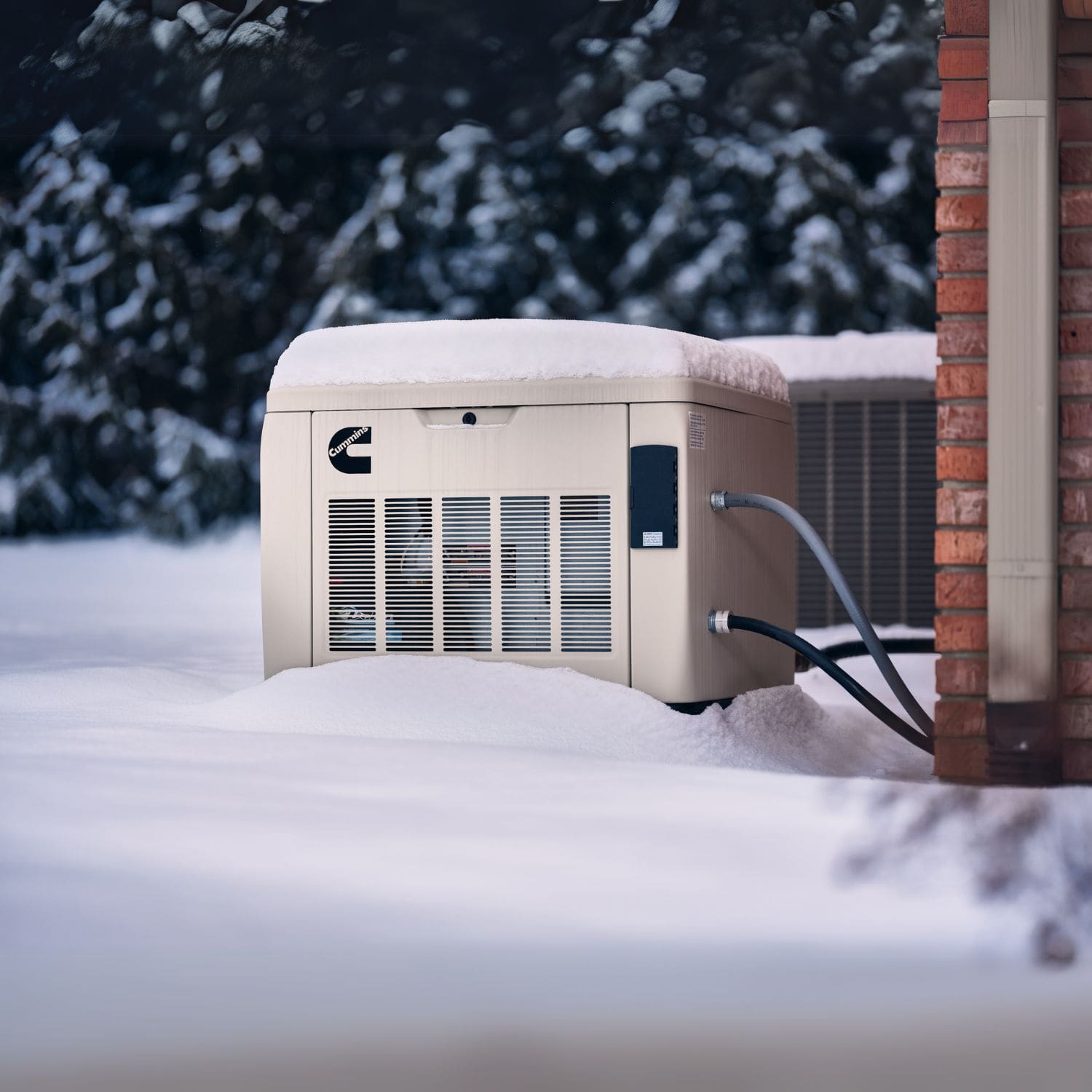

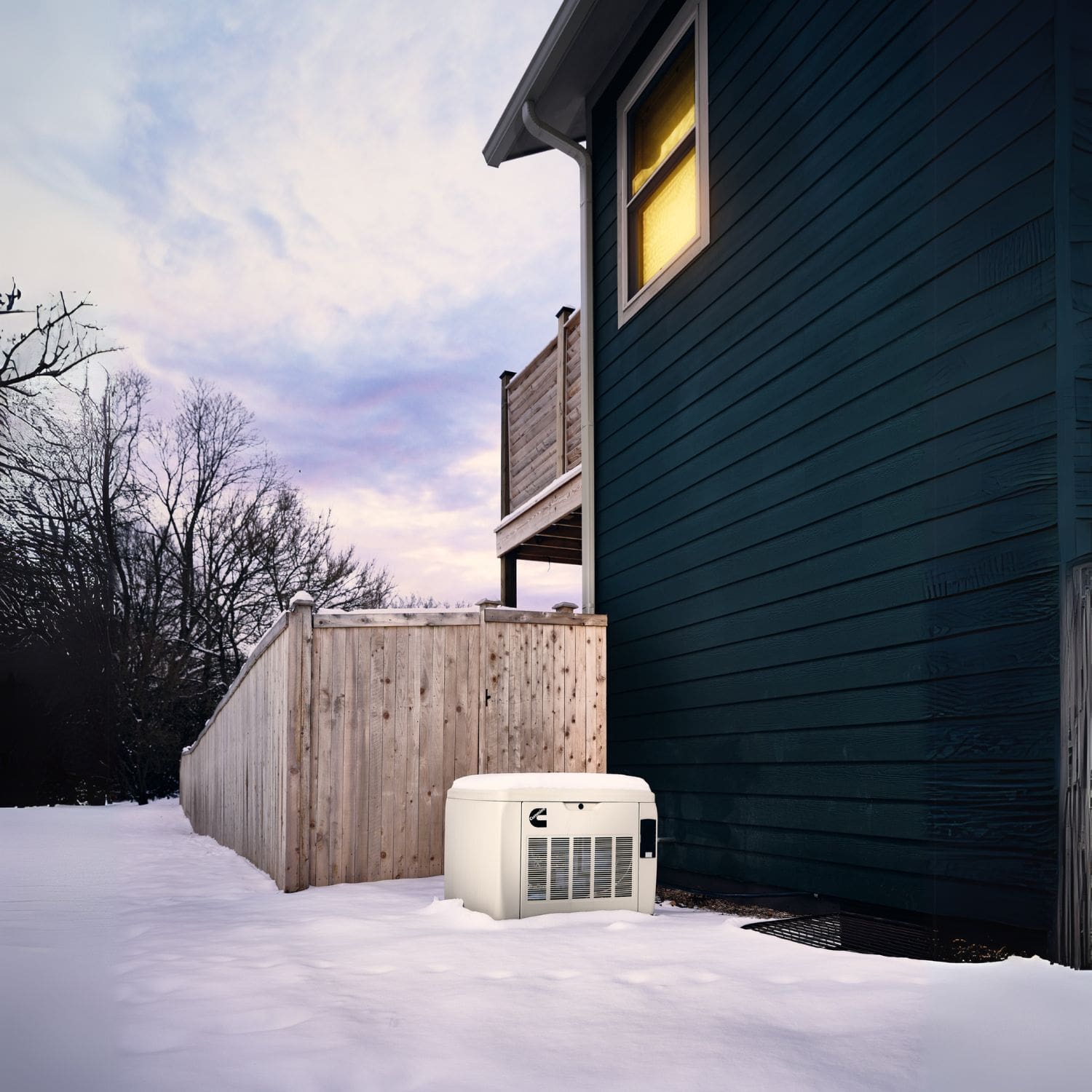

Handles Freezing Temperatures With Ease
Built to withstand harsh conditions, the RS17A operates reliably in freezing temperatures down to 0°F (-18°C). An optional kit extends this capability to an incredible -40°F (-40°C), ensuring power even in the most extreme winter weather.
Smart Power Use Prevents Overloads
Maximize efficiency and prevent overloads with the RS17A's smart power distribution. It intelligently manages power, ensuring essential appliances receive the electricity they need while preventing the generator from being overworked.
Schedule Tests To Keep It Running Smoothly
Keep your generator in peak condition with customizable test schedules. The RS17A offers flexible exercise modes allowing you to easily schedule regular tests to ensure optimal performance and readiness without excessive wear.

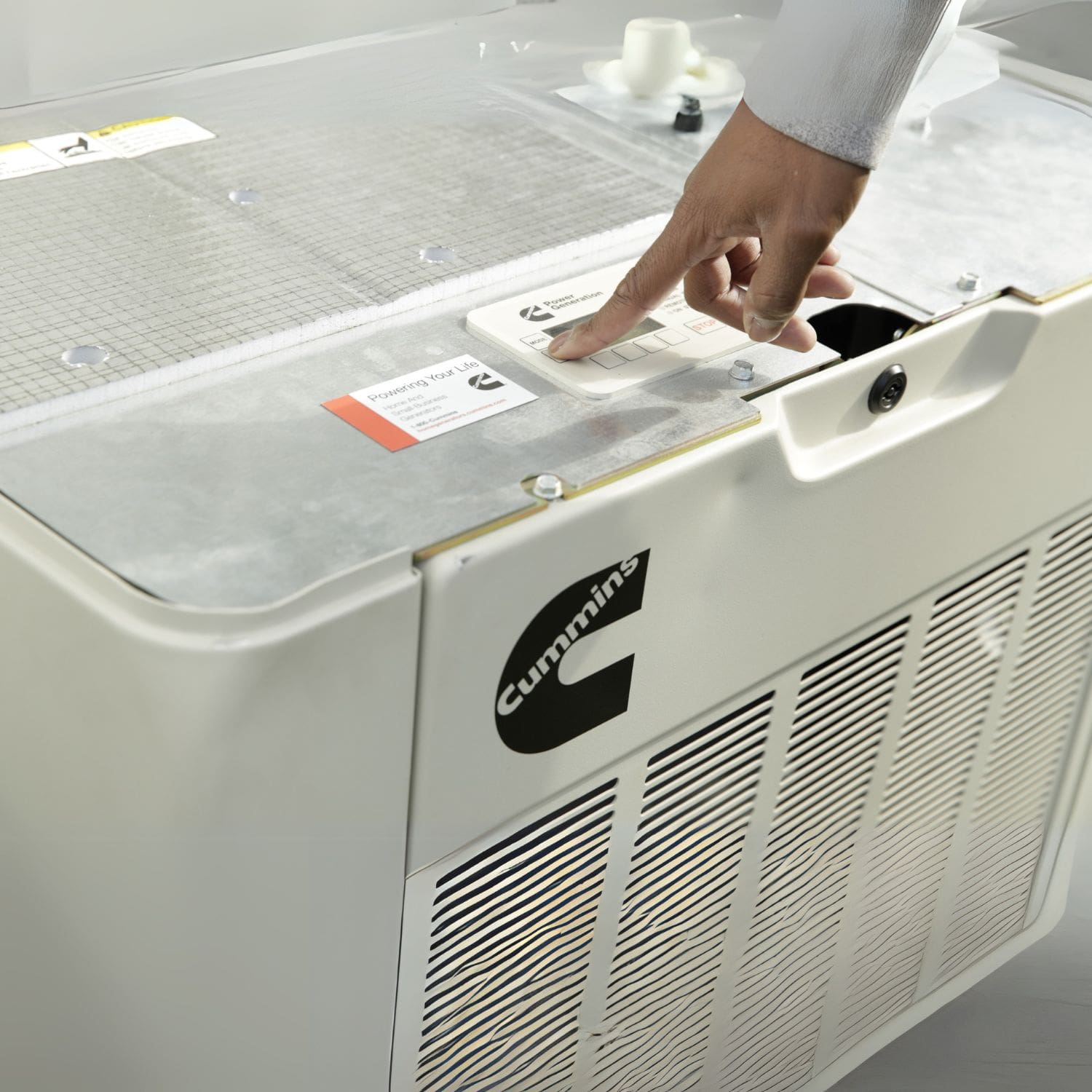

Monitor Your Generator From Anywhere
Monitor and manage your generator's status remotely, anytime. Conveniently check power levels, run diagnostics, and adjust settings from anywhere using your smartphone, tablet, or computer. Stay informed and in control.
Enjoy Backup Power Without The Sound
Enjoy the benefits of reliable backup power without the noise. The RS17A is engineered for significantly quieter operation than comparable models, ensuring minimal disruption to your home and neighborhood.

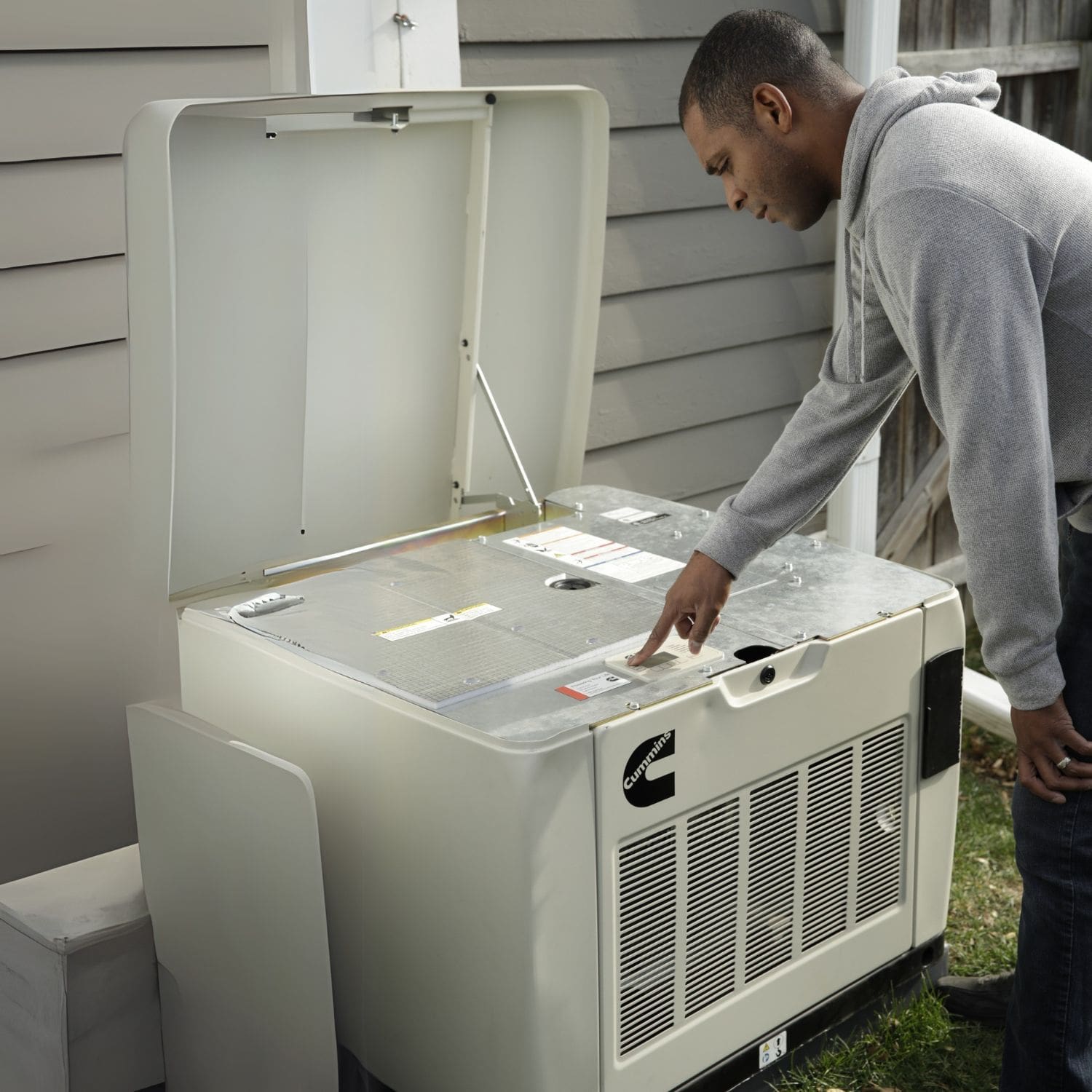

Designed For Simple Installation And Use
The RS17A simplifies home standby power. Designed for straightforward installation and maintenance, you'll spend less time on setup and more time enjoying the peace of mind it provides. Routine servicing is also easy and convenient.
Cummins RS17A 17kW Home Standby Generator Warranty
Cummins provides a 5-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
What's Included

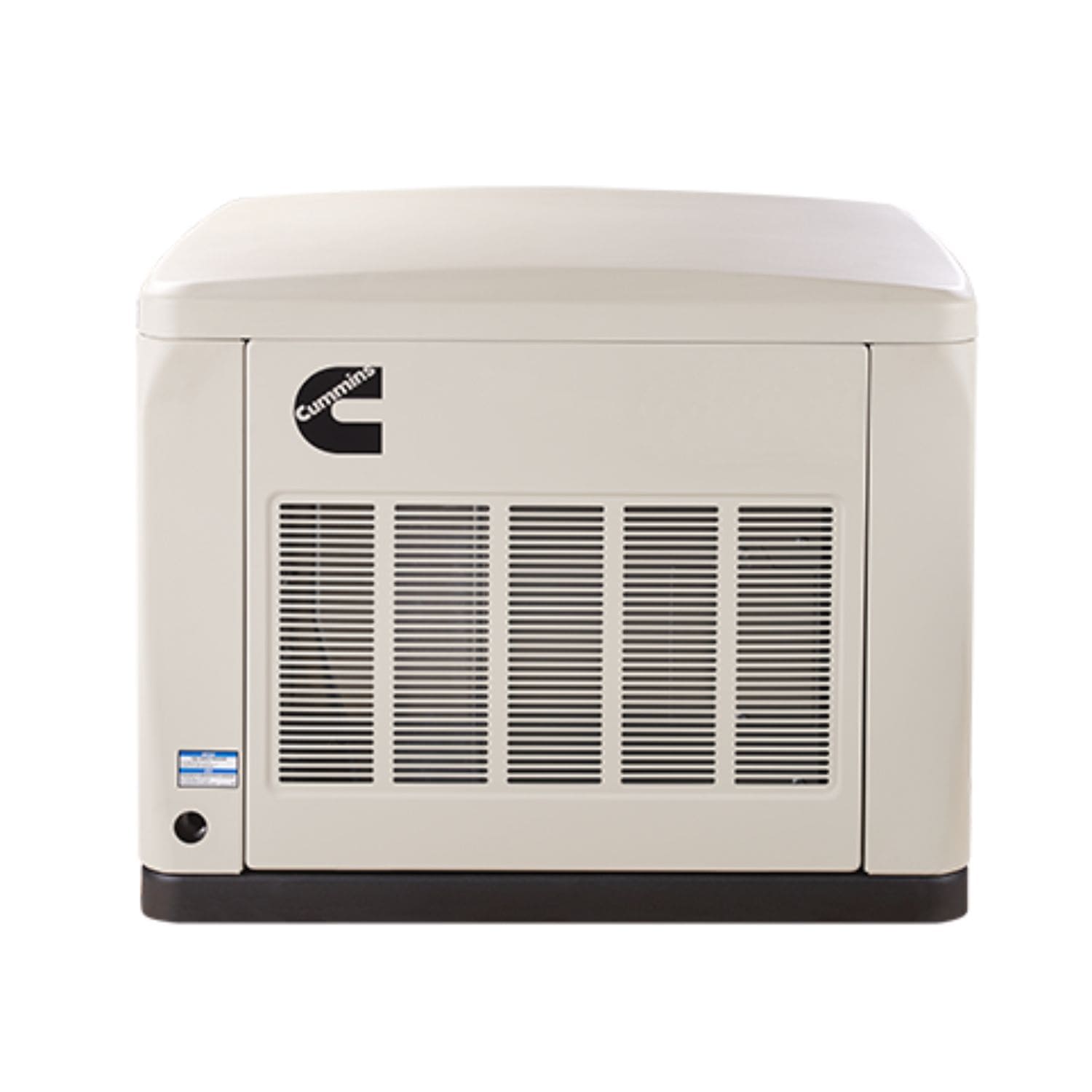

- 1 x Cummins RS17A 17kW Home Standby Generator
- 1 x RS In-home display (A053K028)
- 1 x Extreme Cold Weather Kit (A054B984)
- 1 x Enclosure Paint Touchup Kit (A043J735)
- 1 x Preventative Maintenance Kit (A054H068)
- 1 x Load Add/Load Shed Device (A051C329)

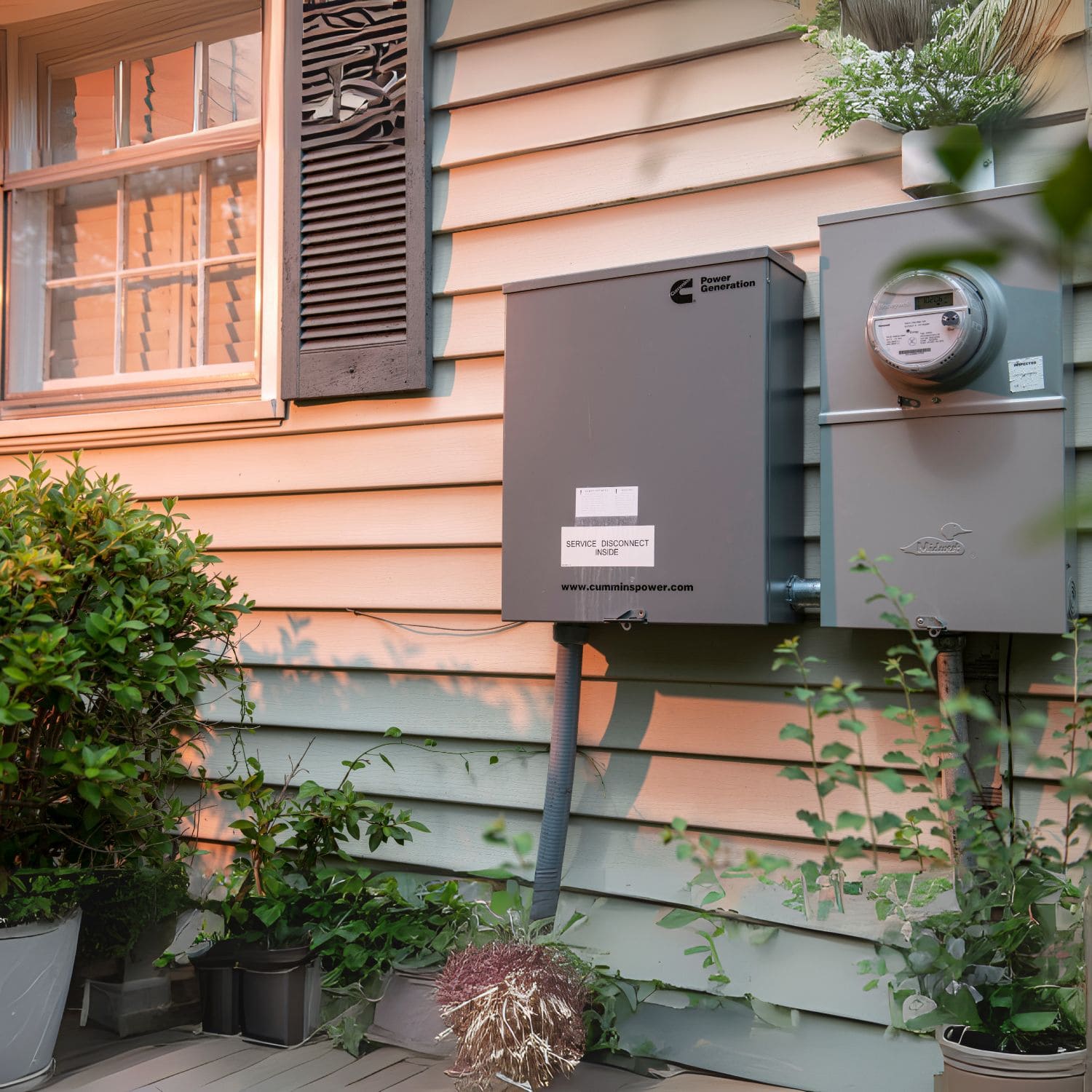

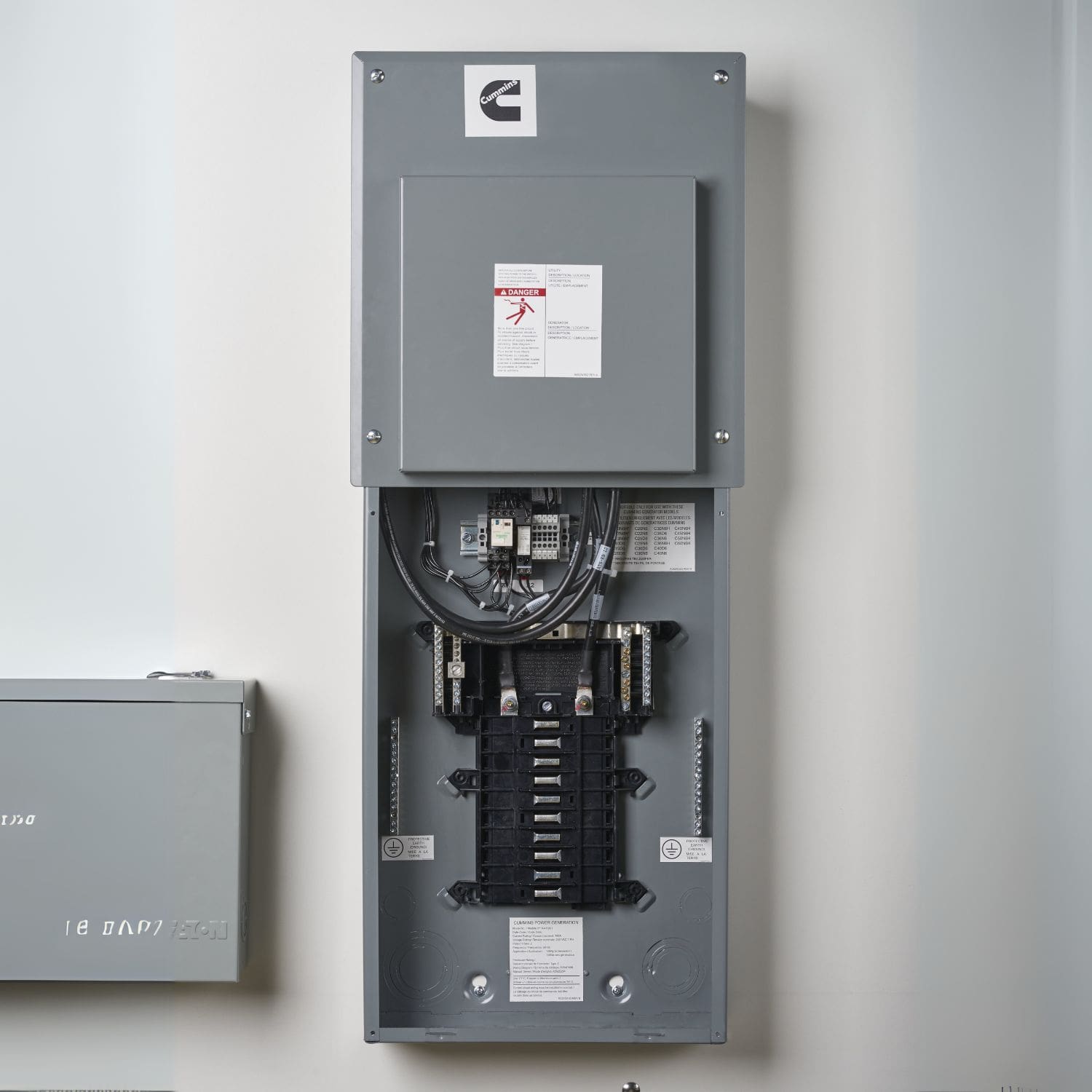

- 1 x Integrated ATS & Load Panel (A051C991)
- 1 x Concrete Composite Mounting Pad
- 1 x E-stop Kit (A044Z051)
- 1 x Battery (A052Y816)
Cummins RS17A 17kW Home Standby Generator Specifications
| Engine |
Natural gas/propane, Engine air cleaner, Synthetic engine oil, Oil drain extension tube, Low oil pressure shutdown |
| Fuel System |
Single fuel – natural gas or propane vapor, field selectable (Set to Natural gas from factory) |
| Alternator |
60 Hz, 1 phase, < 5% THD, Long life electrographic DC brushes, Slip ring heater
Control Display language – English, Under-hood built-in display |
| Control |
Display language – English, Under-hood built-in display |
| Electrical |
Single 100A circuit breaker, UL certified, Battery charging alternator, 4 Amp battery charger |
| Cooling |
Single direct drive blower |
| Enclosure |
Aluminum exterior, Galvanized steel interior, Withstands 180 mph wind loads (ASCE7-10) |
| Code Compliance |
UL 2200, CSA 22.2 and B149.1, EPA emissions, NFPA 37 – 18 inches |
| Warranty |
Base: 5 years / 2000 hours, Extended warranties available |
| Generator Set Performance |
Voltage regulation: ±1.25%, Steady state voltage variation: ±1.25%, Frequency regulation: Isochronous, Motor starting kVA: 40 (RS20A/AC), 34 (RS17A), 26 (RS13A), Steady state frequency variation: ±1.25% (±1.5% @ No load), Operating temperature: 122°F (50°C) to -40°F (-40°C) |
| Model |
QSJ999G |
| Part number |
A061C596 |
| Design |
Naturally aspirated, V-twin air-cooled |
| Bore |
3.54 in (89.9 mm) |
| Stroke |
3.09 in (78.5 mm) |
| Displacement |
60.96 in³ (999 CC) |
| Cylinder Block |
Aluminum |
| Battery Capacity |
Group 51R, 450 CCA at 32°F (0°C) |
| Starting Voltage |
12 Volt, negative ground |
| Rated Speed |
3600 rpm |
| Fuel Supply Pressure |
Minimum: NG - 3.5 in H2O (0.87 kPa) / LP - 6.0 in H2O (1.49 kPa), Maximum: NG & LP - 12.0 in H2O (3.0 kPa) |
| Size |
Length: 34.1 in (865 mm), Width: 36.0 in (915 mm), Height: 27.3 in (694 mm) |
| Sound |
65 dB(A) at 23 ft. (7 m) at normal load2 |
| Voltage / Frequency |
120/240V / 60Hz |
Weight
|
531 lbs/ 241kg
|
| Rated Power |
17 kW |
| Rated amp3(NG / LPV) |
70.8 / 70.8 |
Cummins RS17AE 17kW Home Standby Generator Specifications
| Engine |
Natural gas/propane, Engine air cleaner, Synthetic engine oil, Oil drain extension tube, Low oil pressure shutdown |
| Fuel System |
Single fuel – natural gas or propane vapor, field selectable (Set to Natural gas from factory) |
| Alternator |
60 Hz, 1 phase, < 5% THD, Long life electrographic DC brushes, Slip ring heater
Control Display language – English, Under-hood built-in display |
| Control |
Display language – English, Under-hood built-in display |
| Electrical |
Single 100A circuit breaker, UL certified, Battery charging alternator, 4 Amp battery charger |
| Cooling |
Single direct drive blower |
| Enclosure |
Aluminum exterior, Galvanized steel interior, Withstands 180 mph wind loads (ASCE7-10) |
| Code Compliance |
UL 2200, CSA 22.2 and B149.1, EPA emissions, NFPA 37 – 18 inches |
| Warranty |
Base: 5 years / 2000 hours, Extended warranties available |
| Generator Set Performance |
Voltage regulation: ±1.25%, Steady state voltage variation: ±1.25%, Frequency regulation: Isochronous, Motor starting kVA: 40 (RS20A/AC), 34 (RS17A), 26 (RS13A), Steady state frequency variation: ±1.25% (±1.5% @ No load), Operating temperature: 122°F (50°C) to -40°F (-40°C) |
| Model |
QSJ999G |
| Part number |
A062E511 |
| Design |
Naturally aspirated, V-twin air-cooled |
| Bore |
3.54 in (89.9 mm) |
| Stroke |
3.09 in (78.5 mm) |
| Displacement |
60.96 in³ (999 CC) |
| Cylinder Block |
Aluminum |
| Battery Capacity |
Group 51R, 450 CCA at 32°F (0°C) |
| Starting Voltage |
12 Volt, negative ground |
| Rated Speed |
3600 rpm |
| Fuel Supply Pressure |
Minimum: NG - 3.5 in H2O (0.87 kPa) / LP - 6.0 in H2O (1.49 kPa), Maximum: NG & LP - 12.0 in H2O (3.0 kPa) |
| Size |
Length: 34.1 in (865 mm), Width: 36.0 in (915 mm), Height: 27.3 in (694 mm) |
| Sound |
65 dB(A) at 23 ft. (7 m) at normal load2 |
| Voltage / Frequency |
120/240V / 60Hz |
Weight
|
531 lbs/ 241kg
|
| Rated Power |
17 kW |
| Rated amp3(NG / LPV) |
70.8 / 70.8 |
