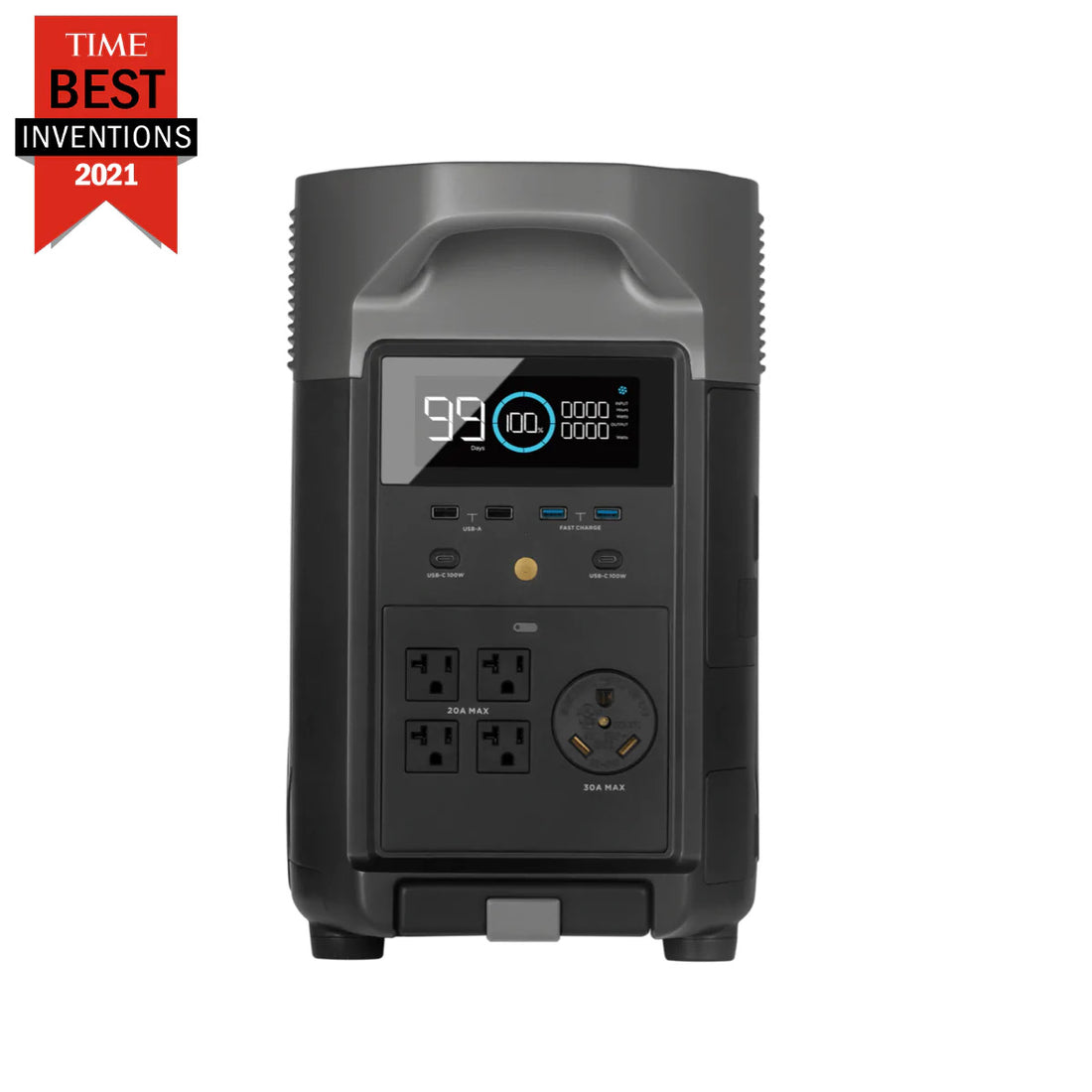

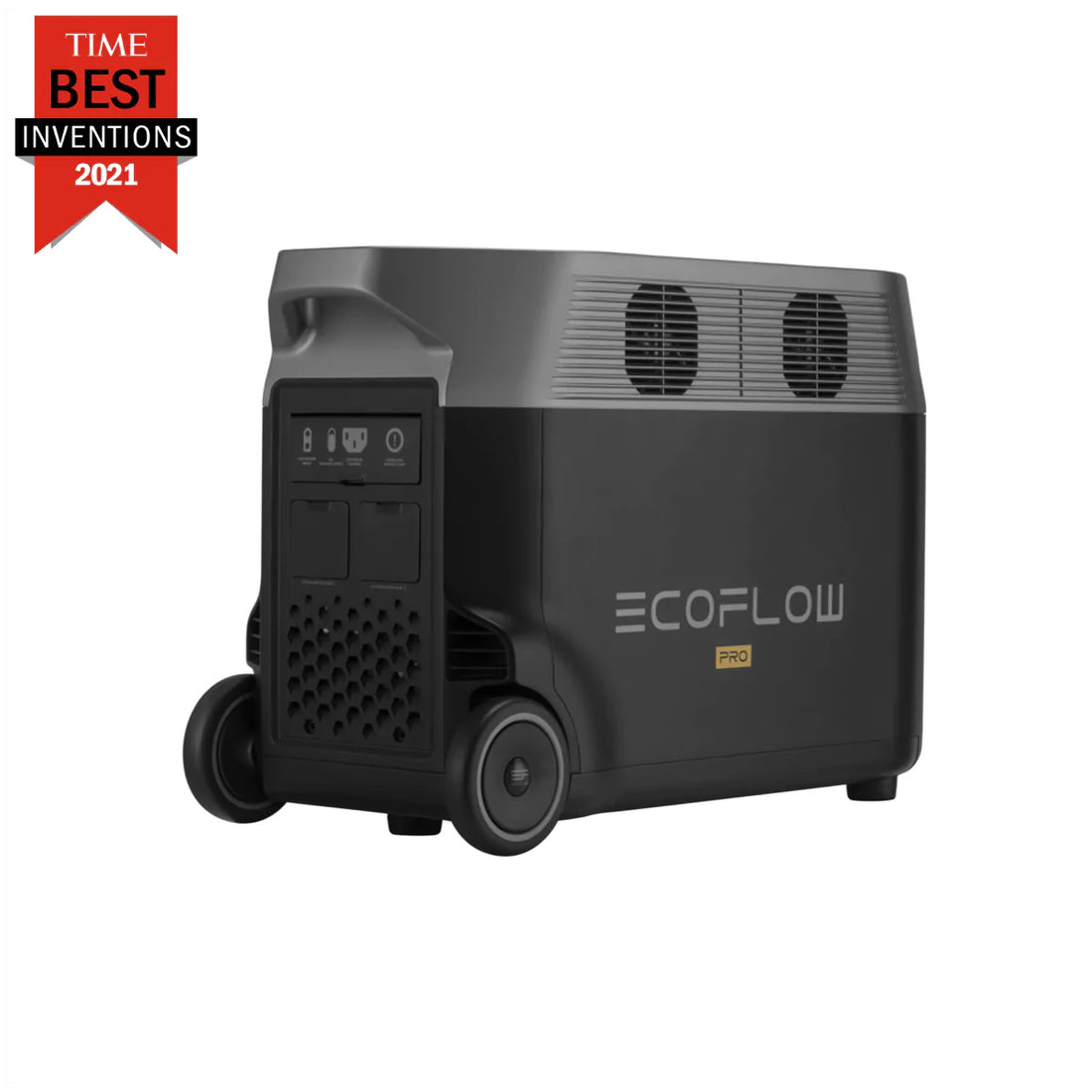

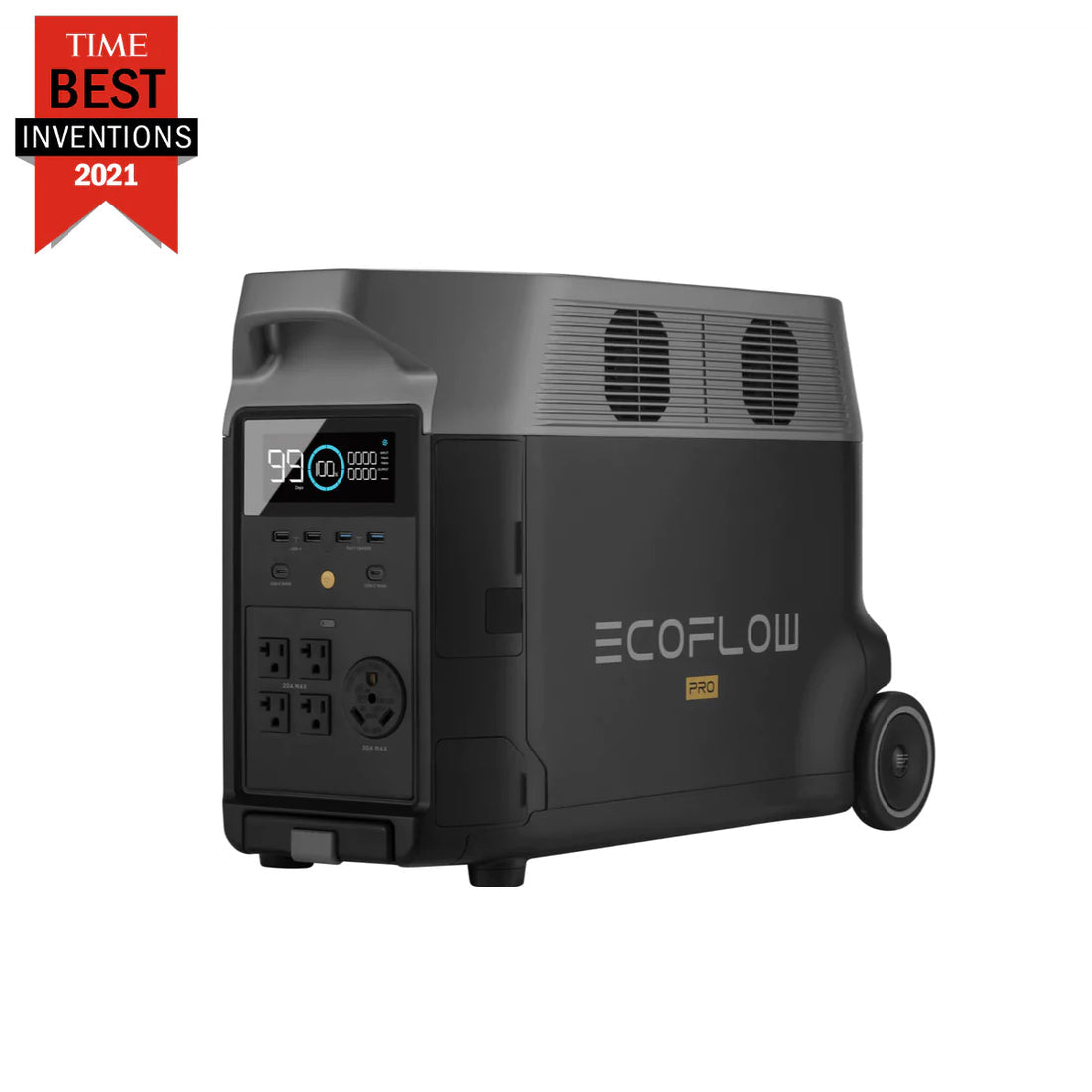

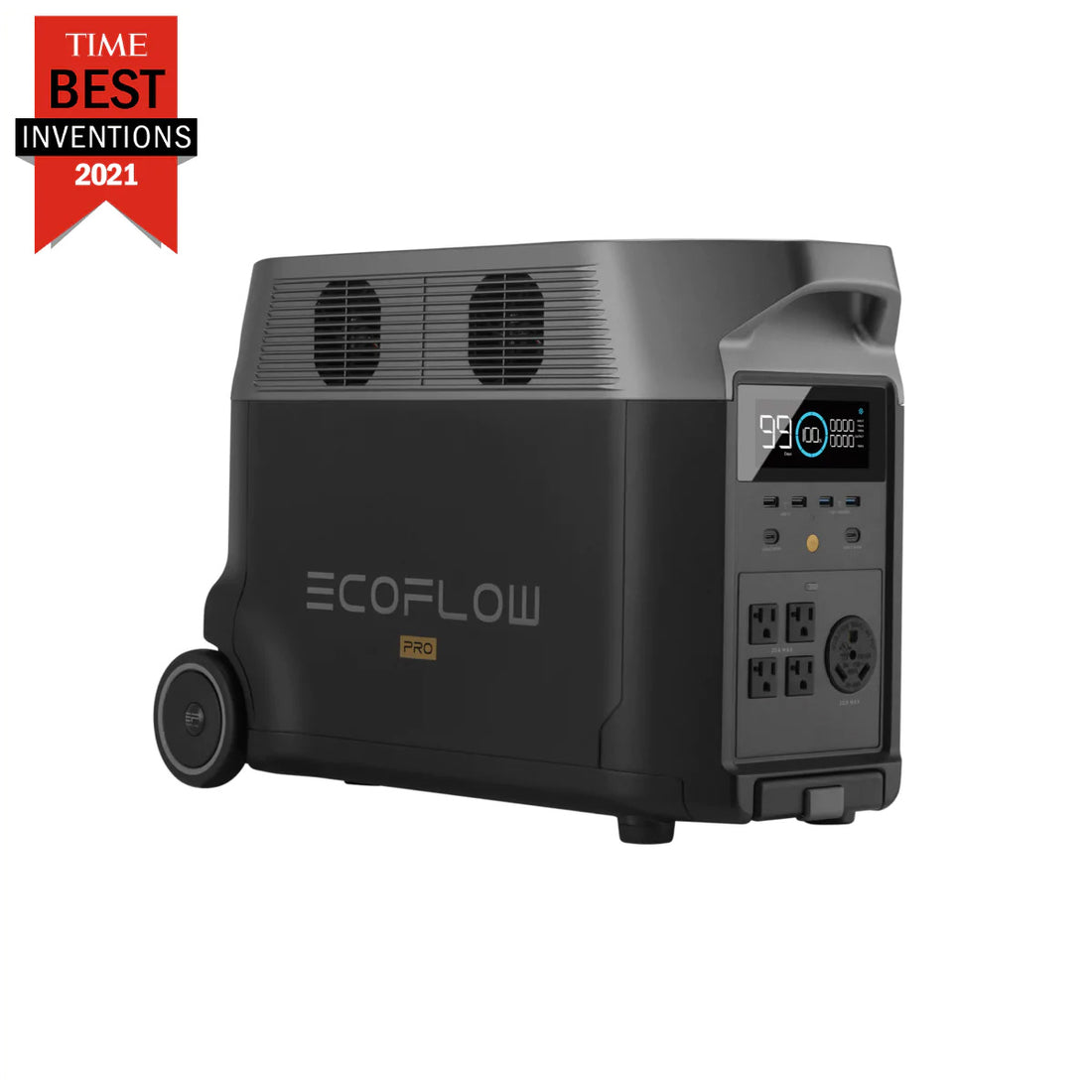

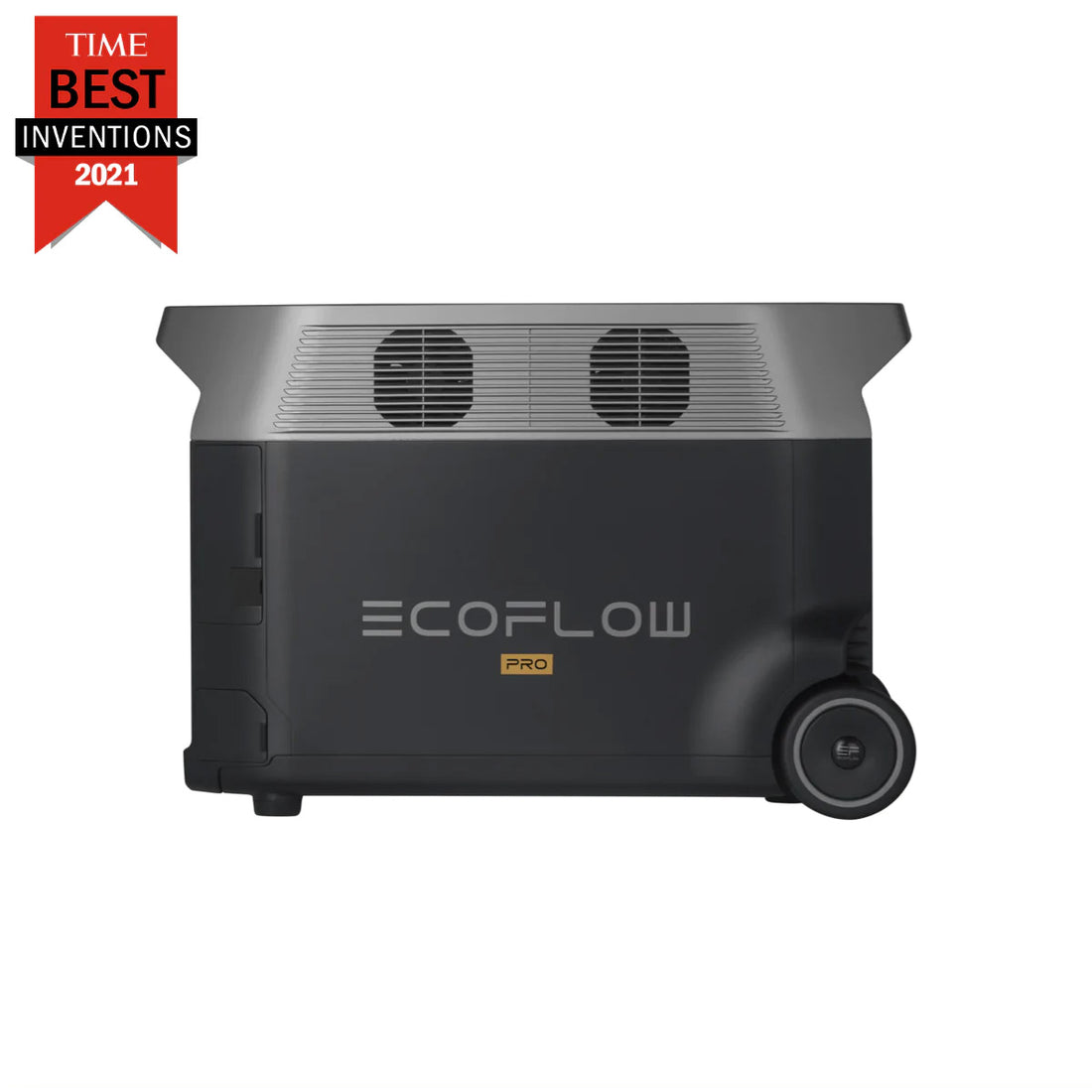

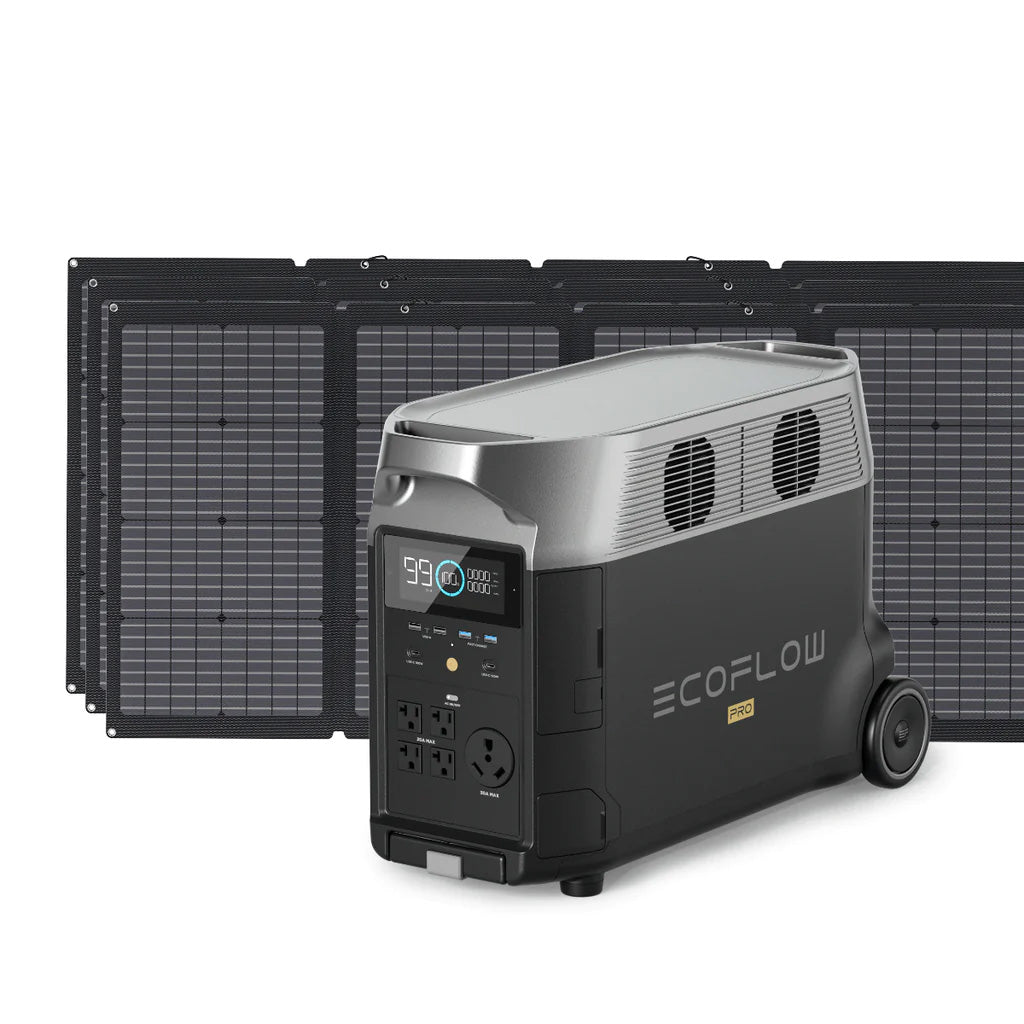

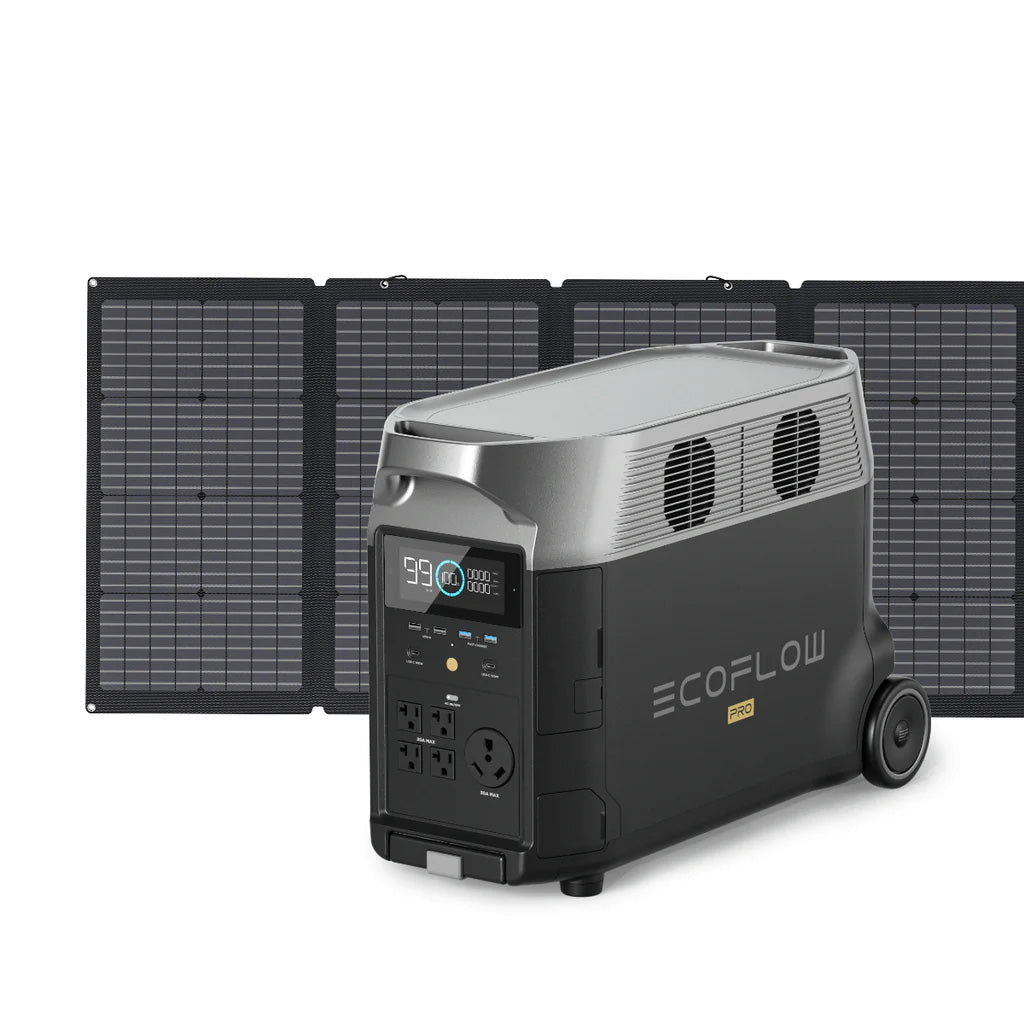

EcoFlow DELTA Pro + 220 Watt Bifacial Portable Solar Panel

by EcoFlow
Sale
Original Price $3,849.00
Current Price $3,799.00
Number of Solar Panels

Notify me when available

Why Buy From Us?

✔ Select Authorized EcoFlow Dealer
✔ Fast & Free Shipping
✔ Hassle-Free 30-Day Returns
✔ Price Beat Guarantee
✔ Manufacturer Warranty Included

Condition: New

SKU: TMR500-MS430-US

Fast & Free Shipping

On all products

Friendly Support

+1 (888) 976-5443

Hassle-Free Returns

Guaranteed for 30 days

100% Secure Checkout

Shop with confidence

Introducing the world's first portable home battery with an expandable ecosystem for home backup, smart energy management, lower energy bills, and more. The EcoFlow DELTA Pro is the next leap in portable power technology, offering you power security and independence, wherever you are.

The portable home battery: DELTA Pro supports a 3.6kWh capacity that can be expanded all the way to 25kWh. The kicker? You can integrate it directly with your home circuits via the Smart Home Panel. Ideal for home backup.

Power pretty much anything: DELTA Pro leads the industry when it comes to AC output. With 3600W you’ve got a portable generator that can power heavy-duty appliances such as dryers, AC units & more. Need even more power? Pair two units together to hit a massive 7200W.

An expandable ecosystem: DELTA Pro is more than a portable power station. It can be expanded with Extra Batteries, Smart Generators and even the Smart Home Panel. Control it all via your phone with the EcoFlow app.

The world’s fastest charging portable power station: DELTA Pro can charge via one of 6 methods. It's the first that can be charged from an EV station, and can even Multi-charge by combining methods to achieve a rapid 6500W charge. That’s the industry gold standard.

Integrates with your home: By using the Smart Home Panel (sold separately), DELTA Pro can provide power to up to 10 home circuits. Ideal for when a power outage hits, or for regular use to save on your bills.



EcoFlow DELTA Pro Features

Power for any situation.

From tailgate power to extreme blackouts that last for days on end, DELTA Pro delivers up to 25kWh of capacity. With that, you're covered for any situation. That's the industry gold standard.

EcoFlow DELTA Pro Portable Power Station Situations That Require Power



All the AC output you’ll need.

A single DELTA Pro unit packs a 3600W AC output, which can be expanded up to 4500W with X-Boost technology. Power 99.99% heavy-duty devices at home, outdoors, or at work. You can even pair two units together to achieve 7200W.

EcoFlow DELTA Pro Portable Power Station Power Major Appliances Such As Refrigerators and Air Conditioners



The world’s fastest charging portable power station.

MultiCharge delivers record-breaking speeds at 6500W. To reach 6500W, you can opt for these charging methods.

EcoFlow DELTA Pro Portable Power Station Charging Times



Fully charge in 1.8 hours.

EcoFlow’s X-Stream charging technology isn't just fast, it's safe too. The battery management system ensures safety and longevity while you fully charge DELTA Pro from a standard AC wall outlet in 1.8 hours*.

EcoFlow DELTA Pro Portable Power Station Fully Charged Times Based on Charging Options



Charge up at thousands of EV stations worldwide.

For the first time ever with a portable power station, you can charge up at thousands of EV stations worldwide. This unique charging method gives you up to 3400W fast charging on the go.

EcoFlow DELTA Pro Portable Power Station Charging at an EV Station



Go renewable with 1600W solar charging.

EcoFlow's suite of solar products give you a cost-effective renewable energy source to stay powered. You can use solar energy to charge DELTA Pro in just 2.8-5.6 hours. DELTA Pro has a wide voltage range from 11-150V, which makes it compatible with 90% of third-party solar panels with Solar connectors. And when the weather gets unpredictable, the smart maximum power point tracking (MPPT) automatically adjusts, maximizing your solar generation at any time of the day.

EcoFlow DELTA Pro Portable Power Station Charging With a Solar Panel While Camping



Get emergency backup power with the EcoFlow Smart Generator.

The EcoFlow Smart Generator serves as an emergency option that integrates with your DELTA Pro ecosystem. It auto-starts when your DELTA Pro hits a low level of charge, re-charges your DELTA Pro, and stops the engine all by itself once your DELTA Pro hits a full charge. Compared to a traditional gas generator, the EcoFlow Smart Generator delivers less energy loss, faster charging and higher efficiency.

EcoFlow DELTA Pro Portable Power Station Emergency Backup Power at Home



A battery that lasts for years on end.

DELTA Pro sports a brand-new LFP battery with 6500 cycles, which means you can use DELTA Pro for years and years before your unit reaches 50% of the original capacity. EcoFlow’s battery management system provides real-time analysis and regulation of voltage, current, and temperature. This unique protection mechanism makes DELTA Pro an incredibly safe and efficient home battery.

EcoFlow DELTA Pro Portable Power Station LFP Battery



Use the EcoFlow App to control & monitor your DELTA Pro.

Control DELTA Pro either on the unit itself, using the remote control accessory, or unlock a ton of customization via the EcoFlow app. On the app, you can access your power settings, such as charging and discharging levels, AC charge speeds, control the Smart Generator and a whole lot more.

EcoFlow DELTA Pro Portable Power Station Smartphone App Monitoring



The world’s first portable home battery ecosystem.

DELTA Pro's expandable ecosystem provides you with power during blackouts, customizable energy around the clock, and lower energy bills. How does it achieve all this? With a selection of extra batteries, smart generators, solar trackers, wind turbines, a smart home panel, and more. From backup power to reducing your reliance on the grid with green alternatives, the DELTA Pro ecosystem can be customized to your needs.

EcoFlow DELTA Pro Portable Power Station Complete Home Backup Power Setup



Introducing the EcoFlow Smart Home Panel.

The new EcoFlow Smart Home Panel is the heart of the DELTA Pro home battery ecosystem. It integrates up to two DELTA Pro units with 10 home circuits. Each DELTA Pro can be connected with extra batteries, solar panels, or smart generators, giving you uninterrupted power during blackouts, smart energy management for your critical loads, and lower energy bills.

EcoFlow DELTA Pro Portable Power Station Smart Home Panel



Uninterrupted home backup power.

With a fast 20ms switchover time, DELTA Pro and the Smart Home Panel can keep you powered on during a blackout. All the while, the EcoFlow app keeps you in the know, letting you select and modify your device priorities.

EcoFlow DELTA Pro Portable Power Station Providing Home Backup Power



Reduce your reliance on the power grid with Smart Energy Management.

The EcoFlow DELTA Pro ecosystem stores energy day and night, reducing your reliance on the grid and lowering your energy bills by combating time-of-use rates. It integrates directly with your home using the EcoFlow Smart Home Panel. The EcoFlow app gives you a smart breakdown of your energy habits, and you can customize your energy usage for any type of situation.

EcoFlow DELTA Pro Portable Power Station Smartphone App Monitoring Controls



RV living made easy.

With DELTA Pro, you can take home with you, wherever you go. It features wheels and a suitcase-esque extendable handle that makes transport easy. And if you’re looking for a complete power solution for RV road trips and outdoor adventures, DELTA Pro comes with dedicated 30A Anderson port and AC outlet.

EcoFlow DELTA Pro Portable Power Station Powering an RV



Power that means business.

Not only does DELTA Pro provide home backup and off-grid power, it also gives you a secure power source for any type of professional work. Whether you’re working at home or outdoors, from DIY to professional projects, DELTA Pro helps you get the job done.

EcoFlow DELTA Pro Portable Power Station Powering a Food Truck



EcoFlow DELTA Pro + 220W Bifacial Portable Solar Panel Specifications

EcoFlow DELTA Pro Specifications

  • Capacity: 3600Wh
  • Extra Battery: Support up to two DELTA Pro Smart Extra Battery/Smart Generator
  • AC Output: 5 outlets, 3600W total (Surge 7200W)
  • Max Device(s) Power Supported by X-Boost: 4500W
  • USB-A Output: 2 ports, 5V, 2.4A, 12W Max per port
  • USB-A Fast Charge: 2 ports, 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W Max per port
  • USB-C Output: 2 ports, 5/9/12/15/20V, 5A, 100W Max per port
  • Car Power Output: 12.6V, 10A, 126W Max
  • DC5521 Output: 2 ports, 12.6V, 3A, 38W Max per port
  • Anderson Port: 12.6V, 30A
  • AC Charging Input: 1800W Max, 120V~15A, 3000W Max, 240V~12.5A
  • Solar Charging Input: 1600W Max, 11-150V, 15A Max
  • Car Charging Input: Support 12V/24V battery, 8A
  • Battery Chemistry: LFP
  • Cycle Life: 6,500 cycles to 50% capacity, 3,500 cycles to 80% capacity
  • Connection: Wi-Fi, Bluetooth, wired
  • Net Weight: Approx. 99lbs./45kg
  • Dimension: 25*11.2*16.4 in/63.5*28.4*42cm

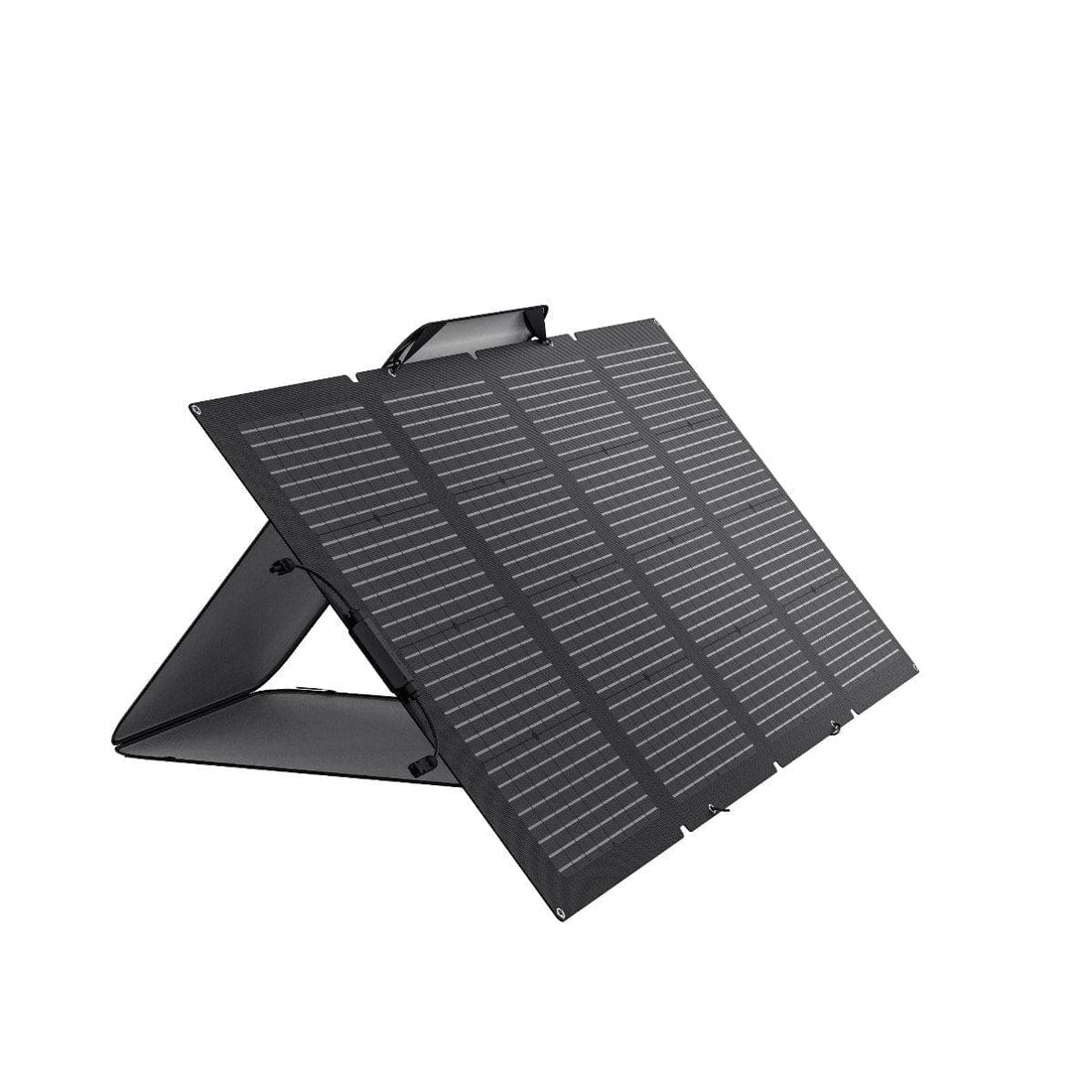

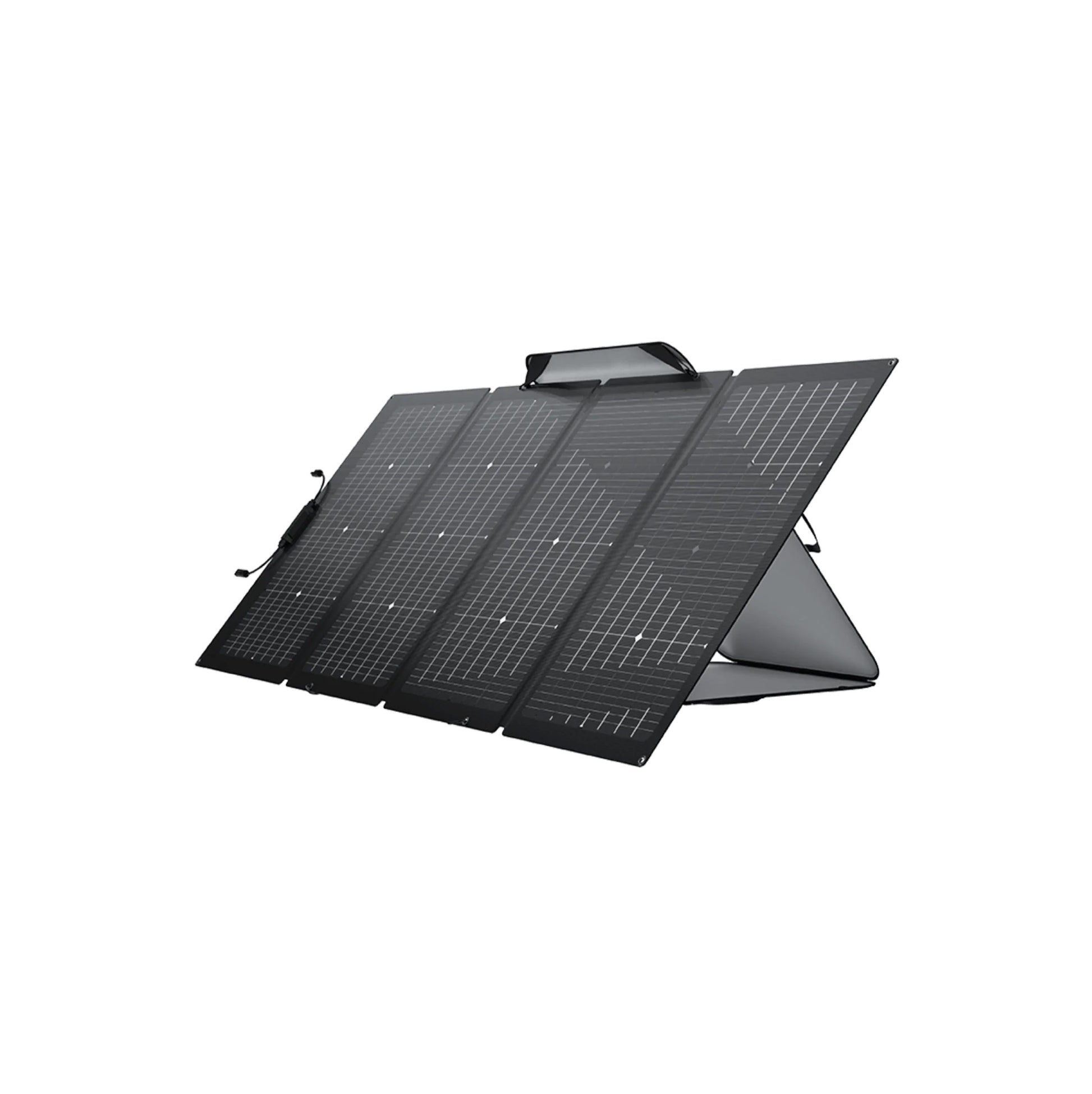

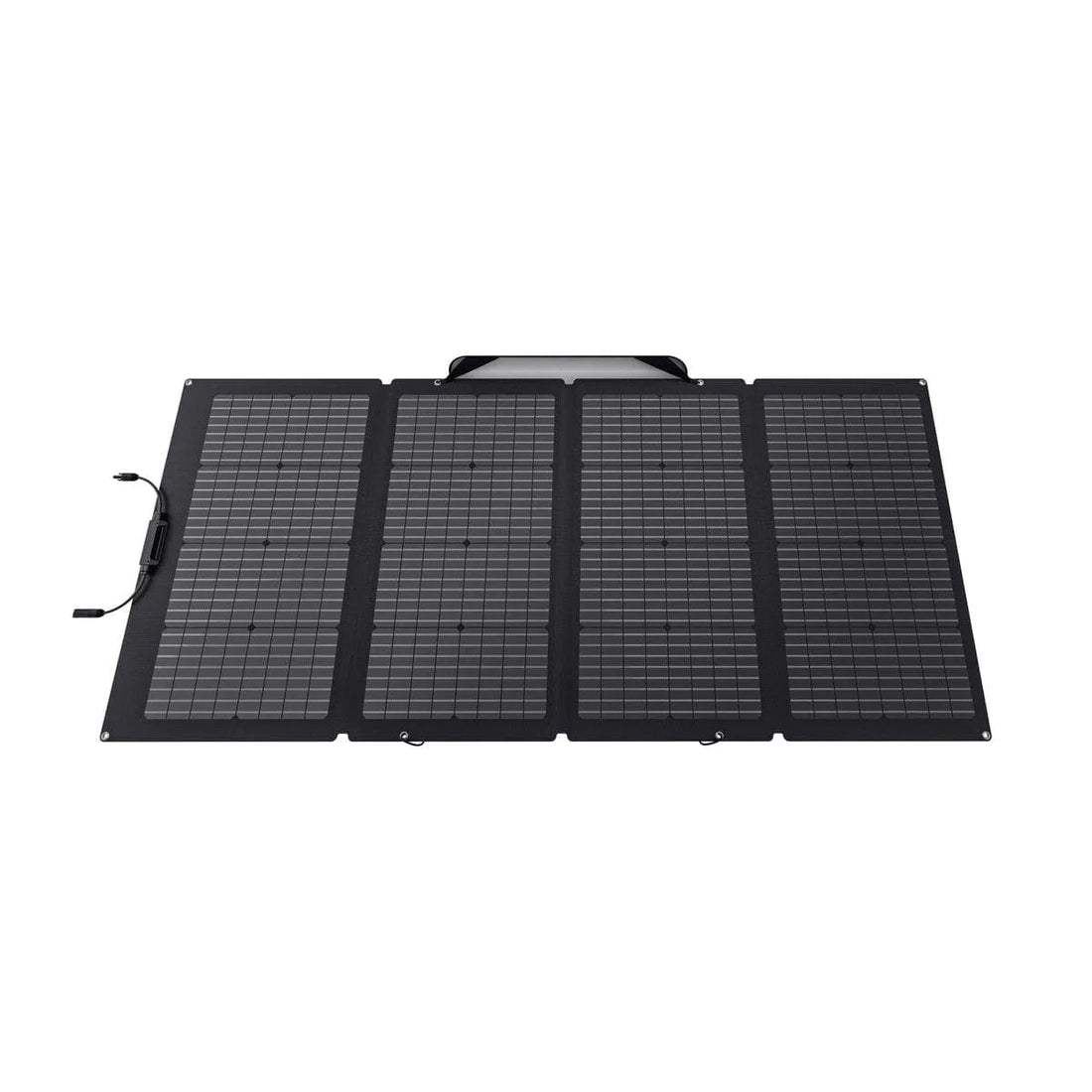

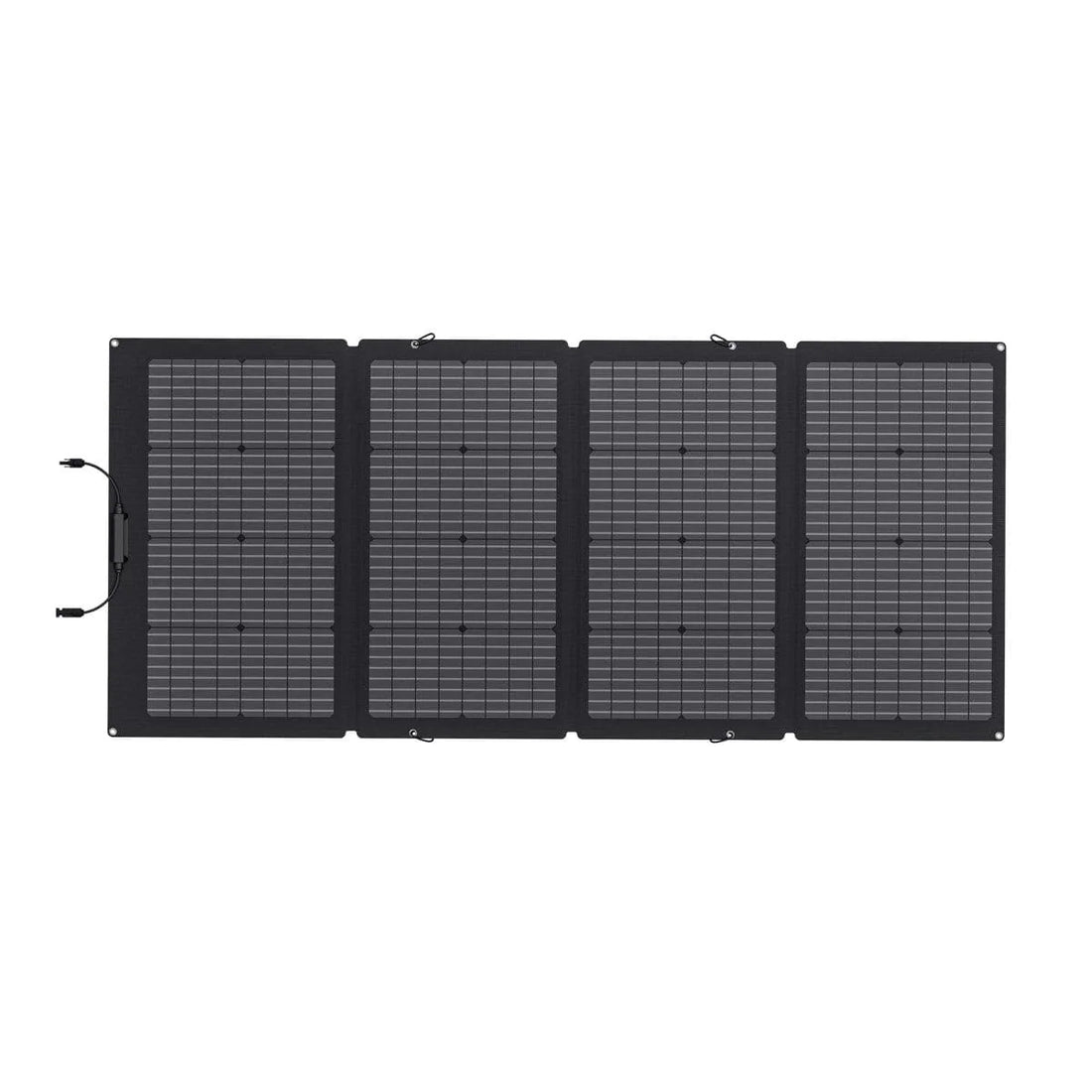

EcoFlow 220W Bifacial Portable Solar Panel Specifications

  • Rated Power: 220W Front Side/155W Rear Side
  • Cell Type: Monocrystalline Silicon
  • Efficiency: 22-23%
  • Dimensions: 82*183*2.5cm (32.3*72.0*1.0 in)
  • Open Circuit Voltage: 21.8V (Vmp 18.4V)
  • Short Circuit Current: 13A (Imp 12.0A) Front Side/ 8.8A (Imp8.4A) Rear Side
  • Weight (Solar Panel): Approx. 9.5kg (20.9lbs)


Frequently-Asked Questions

All the AC ports support 3600W (US) output?

For US version, you can only have max 3600W AC output on the 30A AC port.

What's the max input DELTA Pro can achieve?

When charging DELTA Pro and its extra battery together, you can reach 6500W max charging speeds by combining AC, solar and Smart Generator methods. For DELTA Pro single unit, you can recharge it at standard wall outlets (1800W max), at EV station (3400W max)/Smart Home Panel/240V outlets (3000W max).

How many solar panels can I use at the same time?

It depends on the combined voltage and current of the solar panels you choose. It's fine as long as the solar panels use MC4 connectors and their combined voltage and current are within 11-150 volts and under 15 amps.

Can I run a 240V device on the 120V US version?

You'll need to connect two DELTA Pro units to power 240V electronics. You can do this by: 1) the Double Voltage Hub and use the AC outlets on the hub, or 2) the Smart Home Panel and use your home's 240V outlets (you'll need to setup 240V wiring on the Smart Home Panel during installation).

How do I update the firmware?

First of all, make sure your DELTA Pro is connected to the EcoFlow App using Internet mode. Secondly, go to the Firmware section in the Setting of the DELTA Pro you're looking to upgrade. Check for the latest firmware and follow the steps to finish the upgrade.

How do I recharge DELTA Pro at 200V-240V in a 100V-120V region?

The cable provided with your DELTA Pro won’t plug into higher-voltage outlets, and you’ll need a third party adapter/charging cable.

Are portable solar panels effective?

Portable solar panels are an extremely effective, clean, and renewable way to charge a portable power station. EcoFlow 400W portable solar panels have a larger wattage than typical solar panels and are more efficient due to their monocrystalline cells. Spring up to three 400W portable solar panels and use with a DELTA Pro portable power station for input of 1600W. Additionally, EcoFlow portable power stations use an MPPT algorithm that ensures a constant energy supply. Unlike static solar panels, portable solar panels are easily moved and adjusted depending on where the sun is in the sky.

Where do you place portable solar panels?

Positioning portable solar panels at an angle between 30-45 degrees, facing the direction of the sun, is best. EcoFlow portable solar panels have a built-in stand that can be adjusted, depending on where the sun is in the sky.

Which solar panels are best for camping?

Solar panels that are portable, foldable, and lightweight are the best kind for camping. Pair one with a portable power station and string up to 4 together for immediate power that is clean, green, and renewable.

Does the 220W Bifacial Solar Panel generate a full 220W of power?

In most cases, it is normal for a solar panel not to deliver its full nominal power. Some of the reasons why this happens, as well as some suggestions for getting closer to the nominal power figure, are given below. 1. Light Intensity. The amount of light shining on the panel will result in fluctuations to the power output. You are more likely to achieve nominal power output figures closer to those obtained under test conditions when using the product on a clear day during the midday sun, than when using the product in the morning or later in the afternoon. Weather conditions will also affect the amount of sunlight that shines on the panel. For example, you are much less likely to achieve the figures for nominal power in hazy, cloudy or rainy conditions. 2. Surface Temperature. The temperature of the solar panel surface will also affect the amount of power generated. The lower the surface temperature of the panel, the more power will be produced. For example, solar panels generate more power when used during the winter than during the summer, and this is completely normal. Solar panels generally reach temperatures close to 60°C (140°F) during summer. This reduces nominal power by 13%, despite the higher levels of light shining on the panel. 3. Sunlight Angle. In optimal light conditions, the sun's rays should remain perpendicular to the surface of the panel for best performance. Power output is only marginally impacted by sunlight hitting the panel within 10° either side this 90° angle. 4. Panel Shading. The surface of the solar panel should not be shaded during use. Shading caused by shadows, foreign objects and glass can all greatly reduce power output. Performance Issues Caused by Malfunctioning Panels: If the panel still isn't generating power or its output remains far below expected nominal power figures after addressing the issues above, there may be an issue with the panel itself. Please contact Customer Support for assistance.

How much power can the 220W Bifacial Solar Panel generate under normal conditions?

This depends first and foremost on weather conditions. Generally speaking, on a clear day with no clouds in the sky, sunlight hitting the panel at a 90° angle usually generates 160W–180W of power in the 220W panel. (Current light conditions are normally 800W–900W/m2 (74.3W–83.6W/ft2) with a panel temperature of 50°C (122°F) under test conditions. Nominal power ratings are based on 1000W/m2 (92.9W/ft2) in AM1.5 conditions with a panel temperature of 25°C (77°F) under test conditions. Power output figures close nominal values were normally observed in the midday sun during the winter.)

What should I know about the operating temperature, storage, and use of the 220W Bifacial Solar Panel?

The operating temperature of the Bifacial Solar Panel is -20°C–85°C (-4°F–185°F). The panel should be folded into its original shape and stored in its Protective Case (Kickstand), which provides sufficient protection for the product. To extend the service life of the panel, ensure that the product is not exposed to external forces/impacts when not in use. The solar panel itself is made of glass and must not be dropped, pierced, bent, or sat on. These actions may break the glass and render the panel unusable. Any such damage will not be covered by the free warranty.

The 220W Bifacial Solar Panel has two sides. How can I tell which side is which, and how can I optimize power generation using the rear side of the panel?

The front side of the Bifacial Solar Panel has a junction box. This side of the panel generates power by being positioned perpendicular to the sun's rays. Since the rear side of the panel faces away from the sun, it does not generate electricity in the usual way. Generally speaking, the rear of the panel uses ambient light to increase the overall performance of the product by up to 5%-25%. This figure is higher if mirrors are used, or when ambient light levels are high. Using the product with the rear side of the panel facing the sun generates 80% of the power when compared to using the front side. Using the panel in this way does not have a negative effect on the product.

Can I use non-EcoFlow branded power stations with the 220W Bifacial Solar Panel?

Yes, but only certain types. The power station used must be compatible with MC4 standards in order to work properly. In addition, other brands of power station may not offer the same levels of compatibility as EcoFlow-branded power stations, may have lower nominal power ratings, and may not offer the same levels of performance.

Can I connect both 110W and 220W Bifacial Solar Panels together in series?

Yes, but this is not recommended. While the voltages of the two panels are identical, the current ratings are not. This means that when the panels are connected in series, the current will be limited to that of the 110W panel and the full performance potential of the 220W panel cannot be released, resulting in a 1+2<3 scenario. Please purchase panels of the same size if you intend to connect multiple panels in series.

Can I connect 220W Bifacial Solar Panels in parallel?

Yes, but this is not recommended. 220W solar panel have a maximum current rating of 12A. Though these panels can be connected in parallel, DELTA and RIVER series power stations only support a maximum current of 12A. Parallel connections increase power output by doubling the current, but connecting the panels in this way would result in a 1+1=1 scenario whereby the current is limited to 12A by the connected devices. We do not recommend connecting the panels in parallel, unless you use a different brand of power station with an input current of 20A or above.
