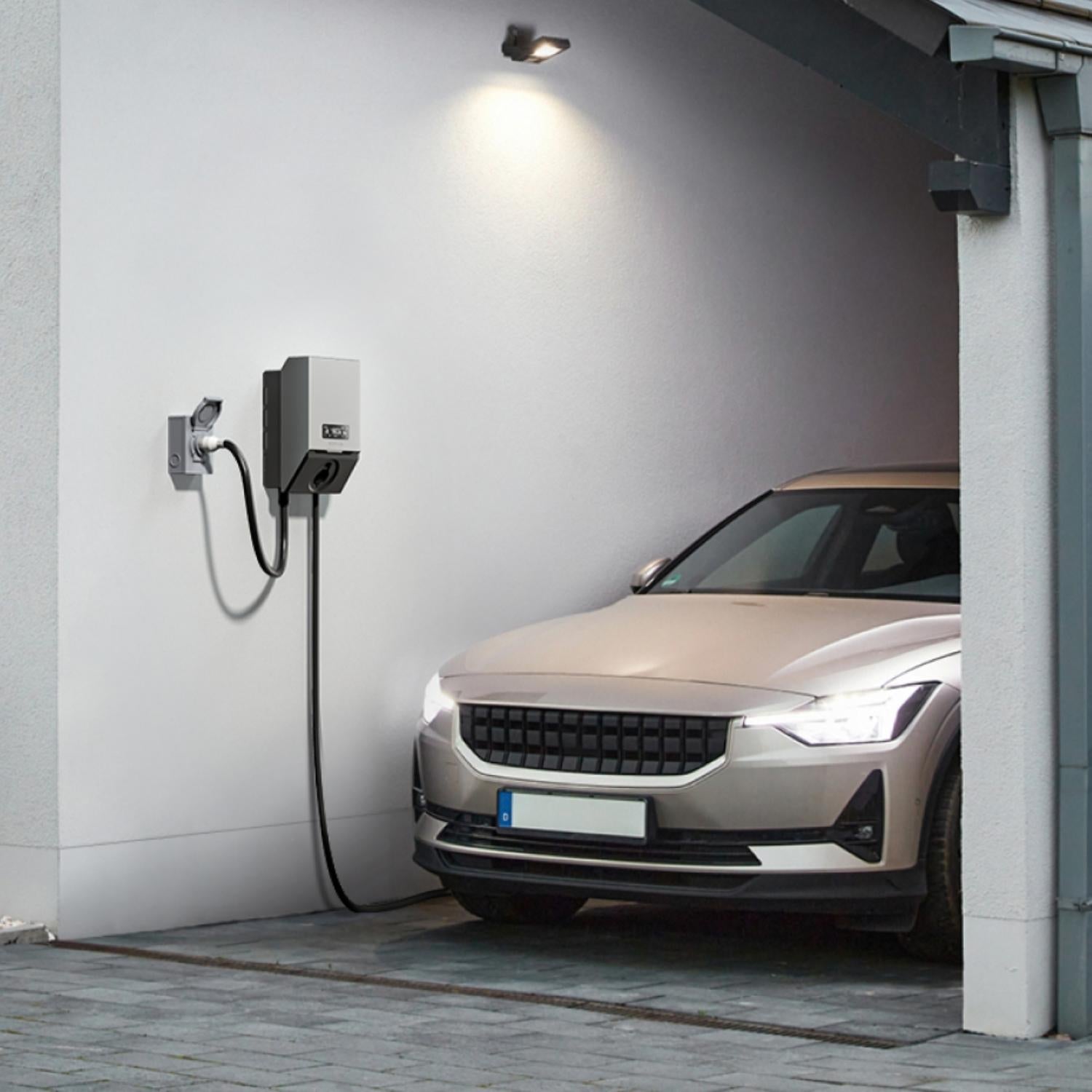

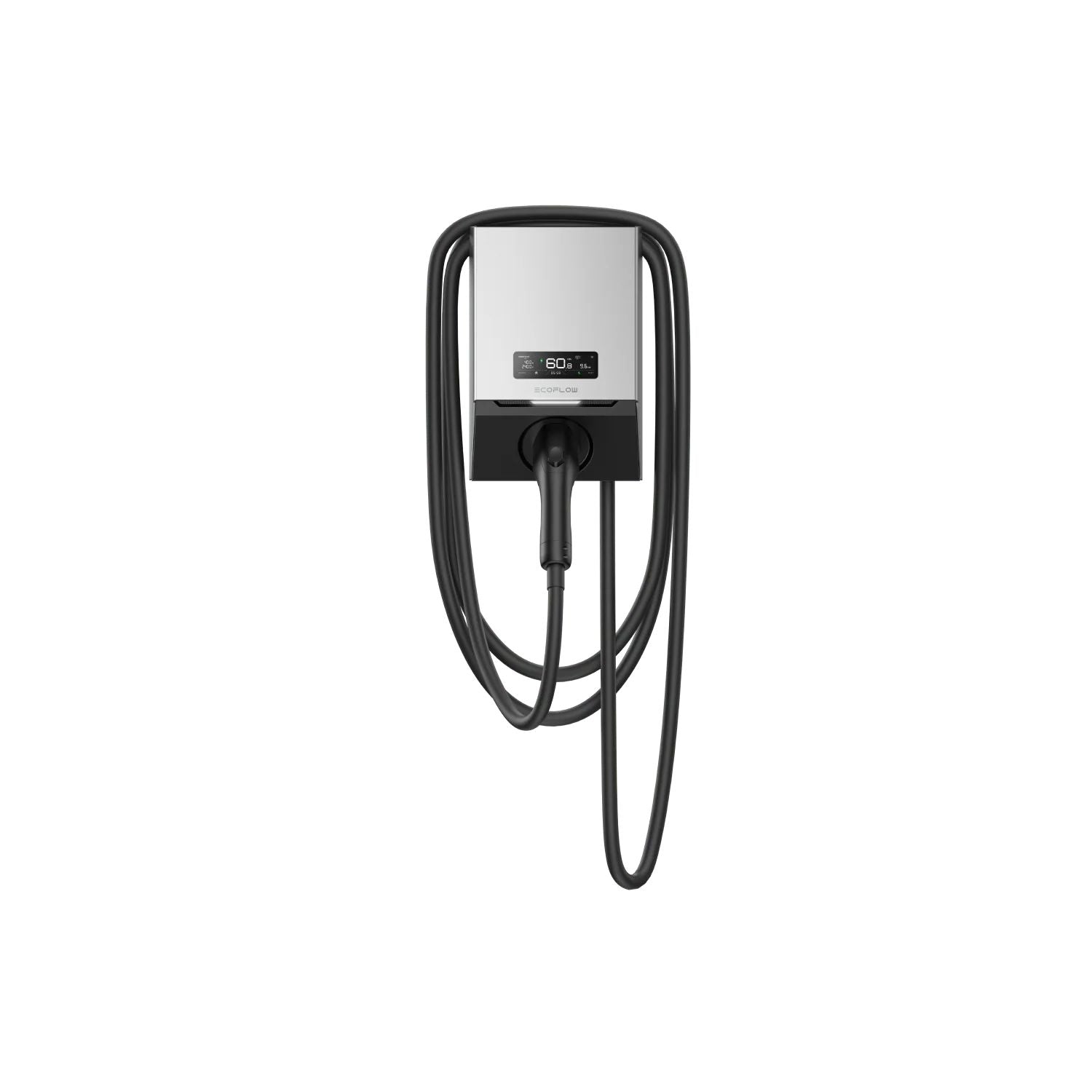

The EcoFlow PowerPulse EV Charger is a wall-mounted EV charger rated at 208/240V AC and 40A, with up to 9.6kW of output on grid power. It has an SAE J1772 connector on a 24.6 ft (7.5 m) charging cable and works with most major electric vehicles in the U.S., including Tesla models with a separately purchased NACS adapter.

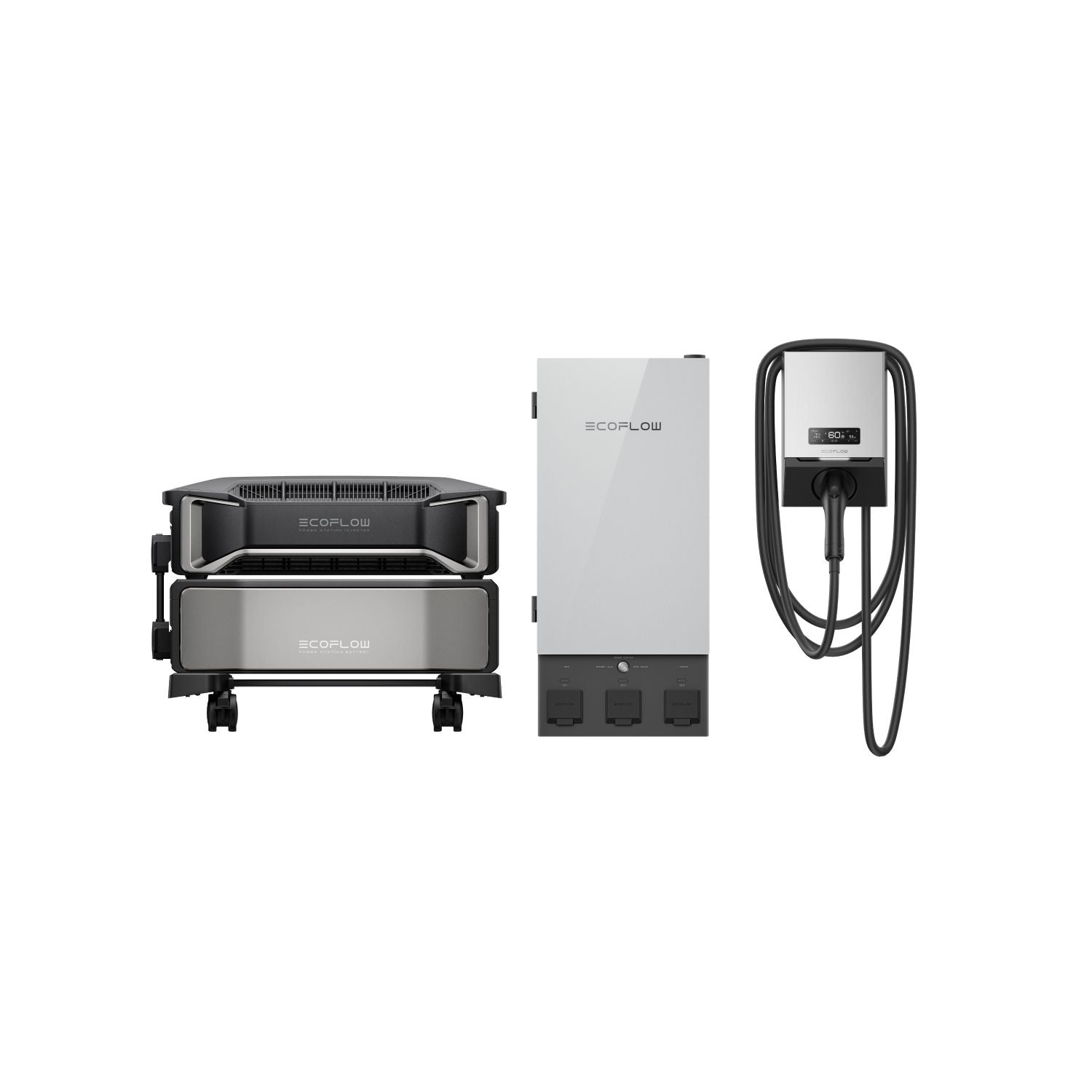

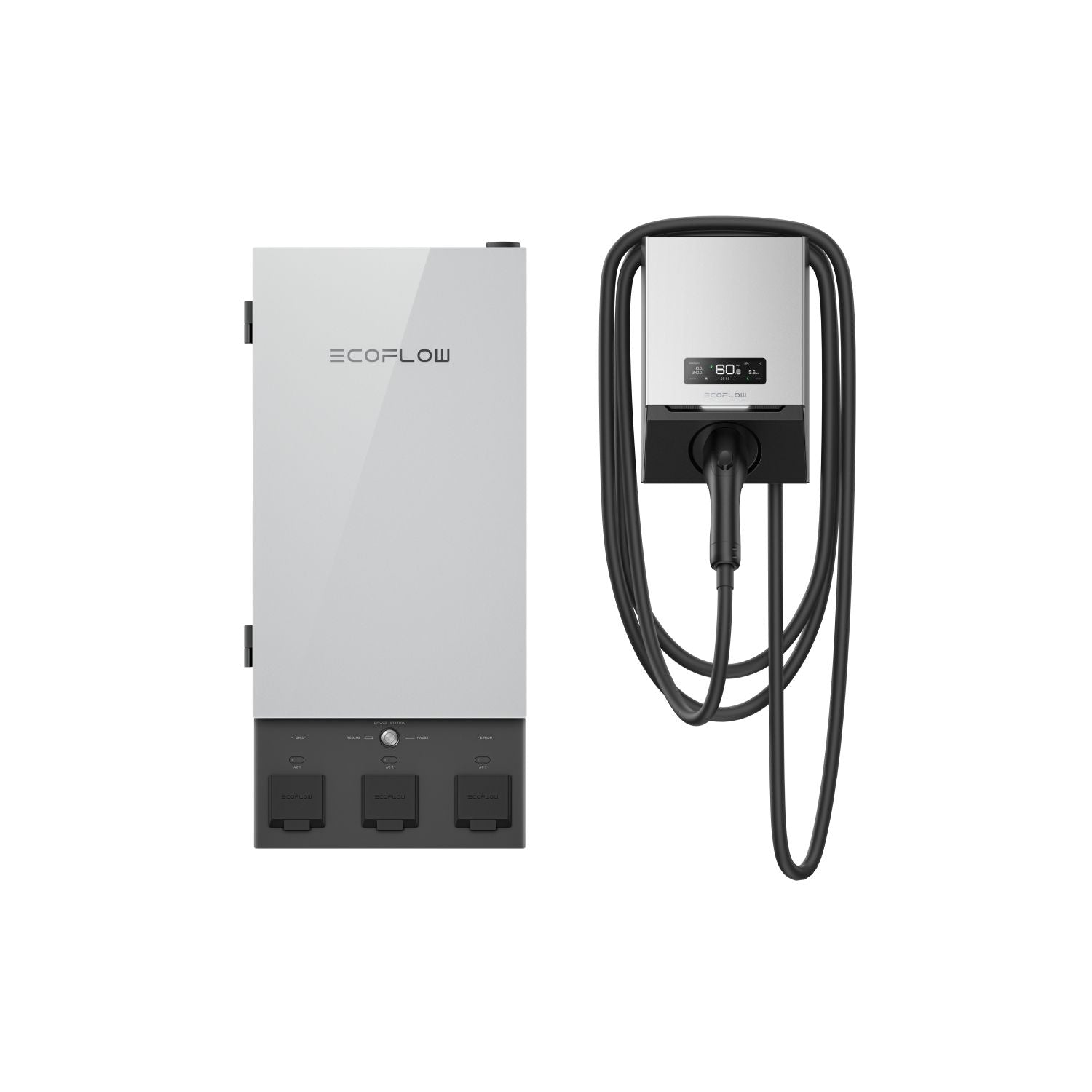

It is for EV owners who want faster home charging, and for EcoFlow owners who want to charge from solar or a DELTA Pro Ultra battery. This page offers the charger on its own, with a Smart Home Panel 2, or with a Smart Home Panel 2 and a DELTA Pro Ultra.
Connected to the grid alone, the charger delivers up to 9.6kW at 40A. EcoFlow says that is enough to add 35 miles of range per hour for a Tesla Model 3. In a setup with a Smart Home Panel 2 or DELTA Pro Ultra, output is up to 7.2kW.
With a Smart Home Panel 2, a DELTA Pro Ultra or both, you choose Eco mode, Surplus solar only or Instant charging, and set the charging current from 6A to 30A. All three modes use solar first when it's available. Eco mode can follow the Smart Home Panel 2's TOU or scheduled tasks settings, so your EV can charge during off-peak hours or on your own schedule.

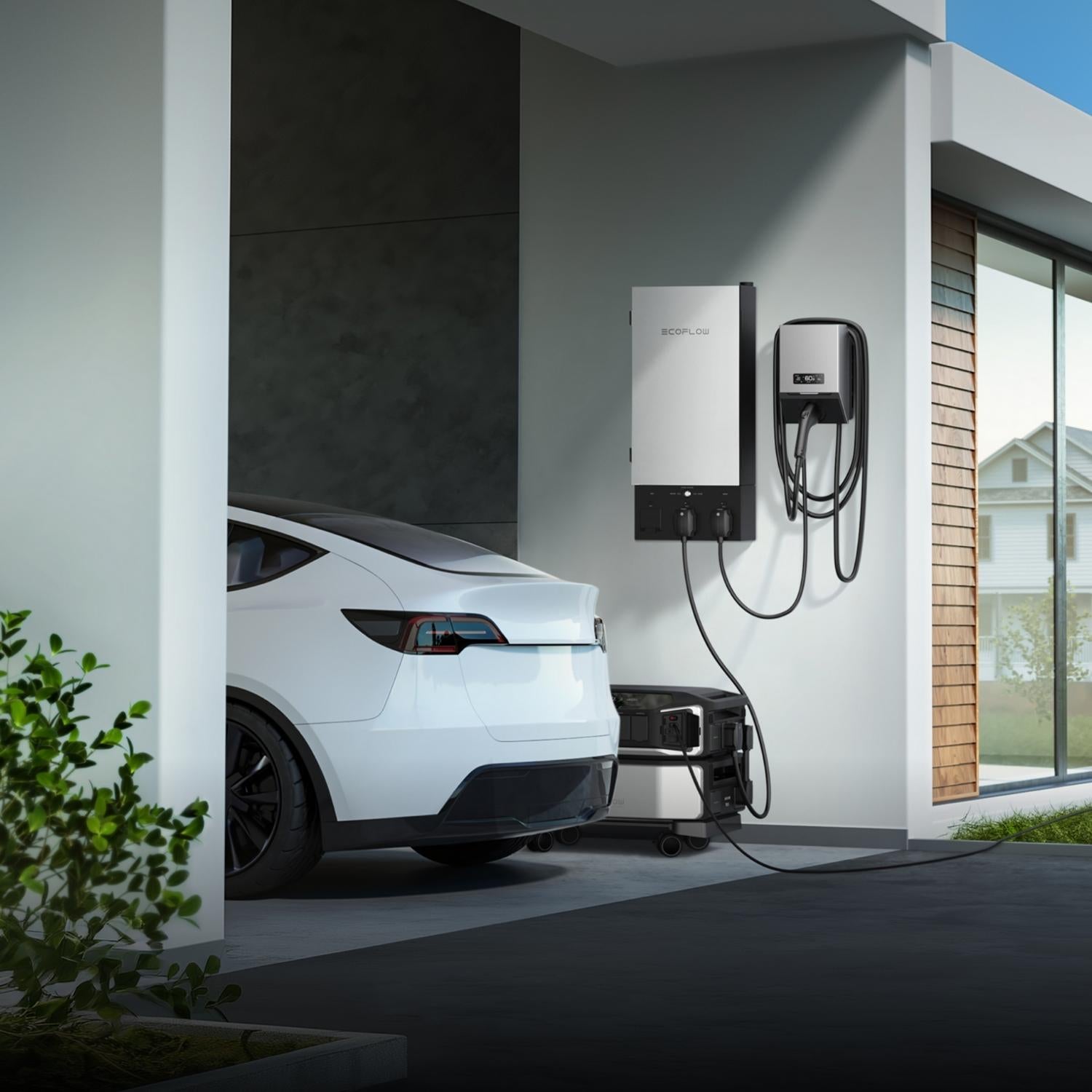

Paired with a DELTA Pro Ultra, the charger can draw stored battery power, so you can charge your EV even during a power outage. An SOC threshold stops charging from the battery once it falls below the level you set, which keeps energy in reserve for your home.
On grid power alone, choose Smart mode, Fast charge or Custom. Smart mode uses the electricity rates you enter in the EcoFlow app to charge before your departure time, favoring off-peak hours. Fast charge delivers the highest available current, and Custom lets you set the current to suit your home's power.
Add the charger in the EcoFlow app over Bluetooth, then connect it to your home's 2.4G Wi-Fi to start, stop and monitor charging remotely. Turn on the plug-and-play setting and charging starts as soon as you plug into your car. An LCD screen shows charging status, and the indicator light glows white while charging and orange for a fault.
The NEMA 4-rated charging box is designed for indoor and outdoor installation and operates from -22°F to 122°F (-30°C to 50°C). Protection covers AC over and undervoltage, overcurrent, over and underfrequency, overtemperature, leakage, surges and ground faults. EcoFlow lists compliance with UL2594, UL2231-1, UL2231-2, UL1998, UL991 and ENERGY STAR.
The Smart Home Panel 2 is a 12-circuit smart subpanel that switches your backup to battery power in 20 ms with EPS mode on, and it can rank circuits by priority during an outage. The DELTA Pro Ultra pairs a 7200W inverter with a 6,144Wh LFP battery, and one inverter supports up to 5 batteries.
Daily commuting. Set a departure time in Smart mode and let the charger finish before you leave, using off-peak hours where it can.

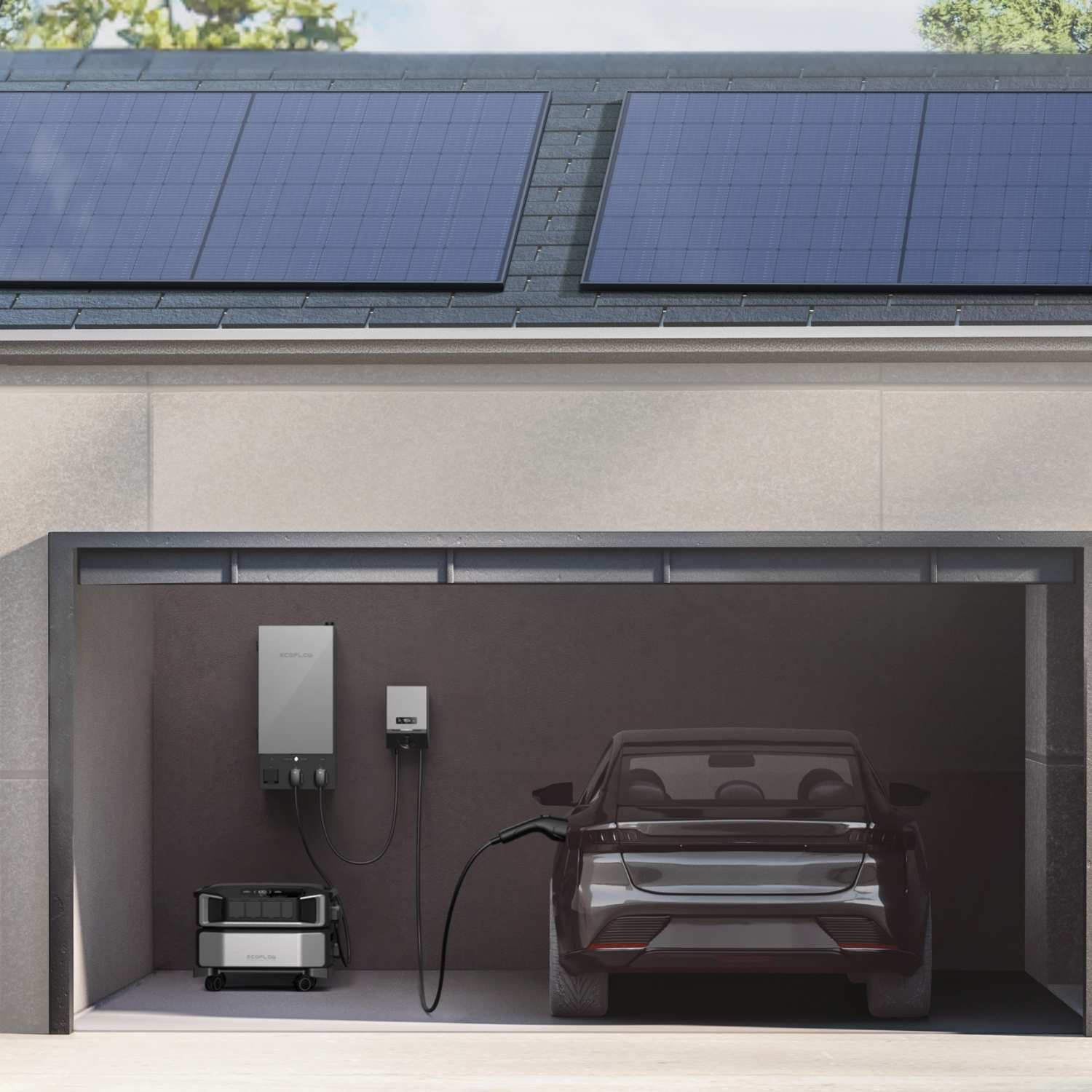

Solar homes. Use Surplus solar only mode so your EV charges only from extra solar energy.
Outage-ready households. With a DELTA Pro Ultra, keep charging your EV during a power outage while an SOC threshold protects your home's reserve.
Versus a grid-only setup. Standalone on the grid, the charger reaches up to 9.6kW with three basic modes. In a Smart Home Panel 2 or DELTA Pro Ultra setup, it tops out at 7.2kW but adds solar-first modes and, with a DELTA Pro Ultra, battery power and the SOC threshold.
Versus adding the Smart Home Panel 2 only. The panel routes grid and solar power to the charger and adds TOU and self-powered modes. Adding a DELTA Pro Ultra as well brings stored battery power, so you can charge through an outage.
This may be a good fit if
Yes, with the PowerPulse Input Cable (NEMA 14-50P), which is sold separately. The included 5P8 input cable connects only to a Smart Home Panel 2 or DELTA Pro Ultra.
Yes, with a separately purchased NACS adapter. The charger works with most major electric vehicles in the U.S.
Yes, when it is connected to a DELTA Pro Ultra. The charger draws stored battery power, and the SOC threshold you set decides when it stops so your home keeps a reserve.
The EcoFlow PowerPulse EV Charger gives you up to 9.6kW of charging on grid power and solar-first, battery-aware charging when it's paired with a Smart Home Panel 2 or DELTA Pro Ultra. If you have questions about installation, input cables or which option suits your home, the Outbound Power team is happy to help.
EcoFlow PowerPulse EV Charger Specifications |
|
|---|---|
| General | |
| Model | EF-EVAC-9K6-DIY |
| SKU (Charger Only) | EFPOWERPULSE9.6KW-US |
| Electrical | |
| Charge Power (Configurable) | 9.6kW |
| Max Output, Grid Only | 9.6kW |
| Max Output, Smart Setup | 7.2kW with Smart Home Panel 2 or DELTA Pro Ultra |
| Rated Input/Output Voltage | 208/240V AC (L1, L2, PE) |
| Rated Input/Output Current | 40A |
| Rated Frequency | 60Hz |
| Smart Setup Charging Current | 6A to 30A |
| Approved Grid Configurations | TN, TT |
| Circuits and Connections | |
| Connector Type | SAE J1772 |
| Charging Cable Length | 24.6 ft (7.5 m) |
| Input Cable Included | PowerPulse Input Cable (5P8 Port) |
| Included Input Cable Length | About 4.9 ft |
| 5P8 Input Cable Works With | Smart Home Panel 2, DELTA Pro Ultra |
| Grid-Only Input Cable | NEMA 14-50P (sold separately) |
| Grid-Only Outlet | NEMA 14-50 |
| Branch Circuit Protection | 60A max, dedicated circuit |
| Overcurrent Protection | External device required (RCCB) |
| Compatibility | |
| Vehicles | Most major EVs in the U.S. |
| Tesla | With NACS adapter (sold separately) |
| EcoFlow Systems | Smart Home Panel 2, DELTA Pro Ultra |
| Installation | |
| Installation | Wall-mounted, indoor or outdoor |
| Cable Holster Height | 24 in. to 4 ft above ground |
| Wiring | Qualified electrician |
| Drill | Hammer drill with 15/64 in. bit |
| Other Tools | Marker, level, mallet |
| Screwdrivers | PH2 electric, T20 Torx |
| Connectivity | |
| Wi-Fi | 2.4G |
| Bluetooth | Supported |
| App | EcoFlow app |
| Protection and Certifications | |
| Protective Class | NEMA 4 |
| Voltage Protection | AC overvoltage and undervoltage |
| Frequency Protection | AC overfrequency and underfrequency |
| Other Protection | Output overcurrent, overtemperature |
| Leakage and Surge | Leakage, surge, ground fault protection |
| Relay | Relay contact sticking alarm |
| UL Standards | UL2594, UL2231-1, UL2231-2, UL1998, UL991 |
| Energy Rating | ENERGY STAR |
| Size and Weight | |
| Dimensions | 13.1 x 8.9 x 5.7 in (333 x 226 x 145 mm) |
| Net Weight | About 13.7 lbs (6.2 kg) |
| Environment | |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Relative Humidity | 5% to 95% |
| Altitude | Up to 6561 ft (2000 m) |
