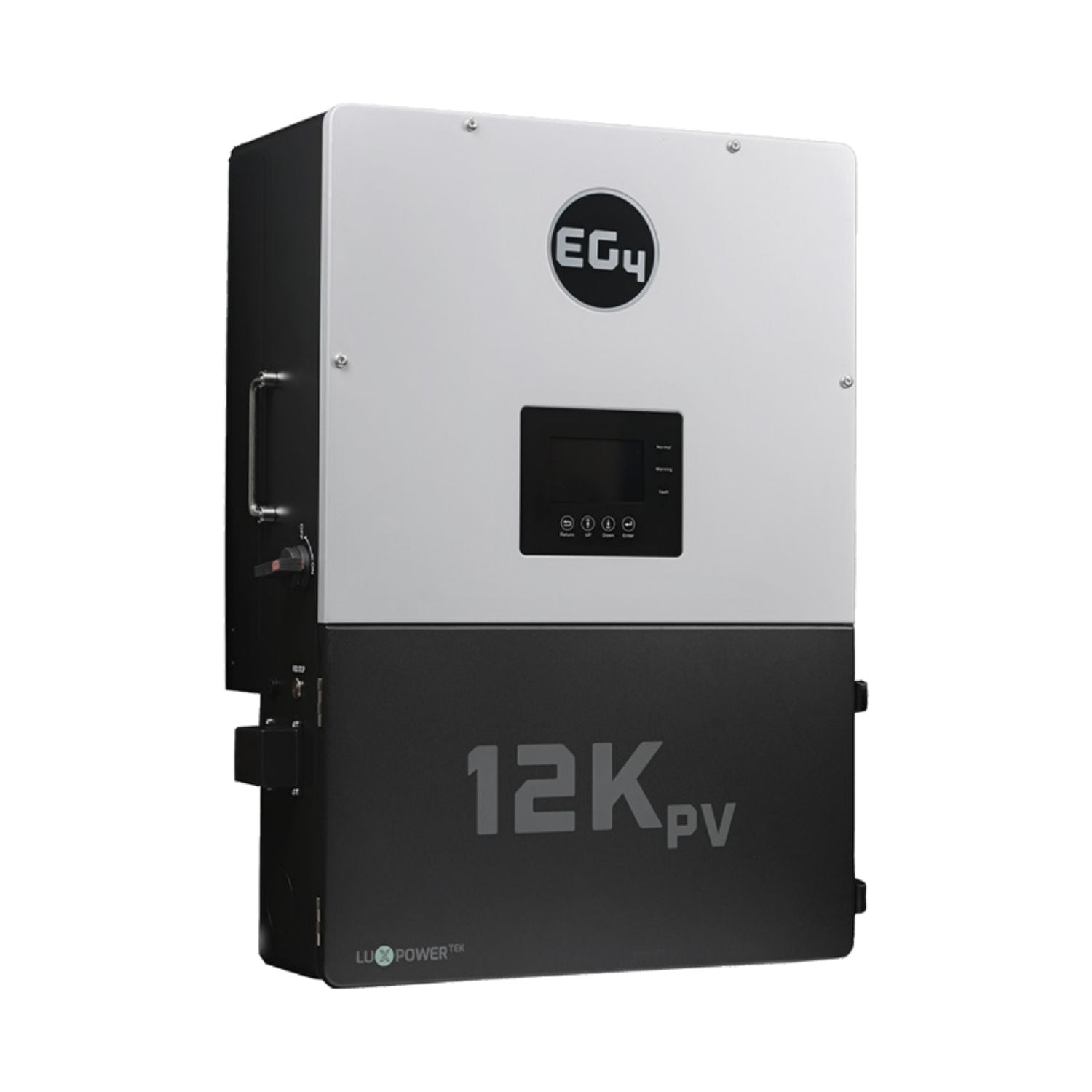

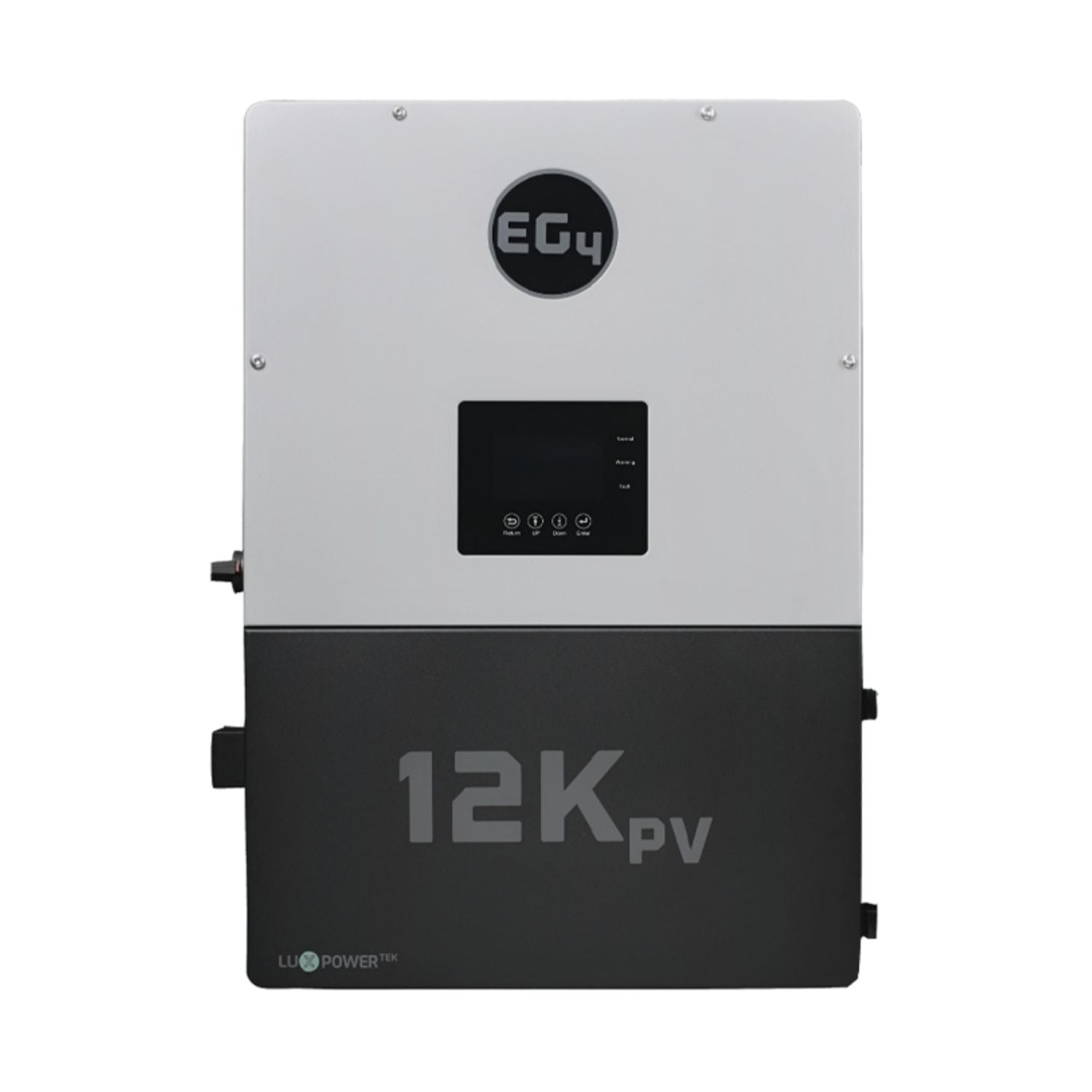

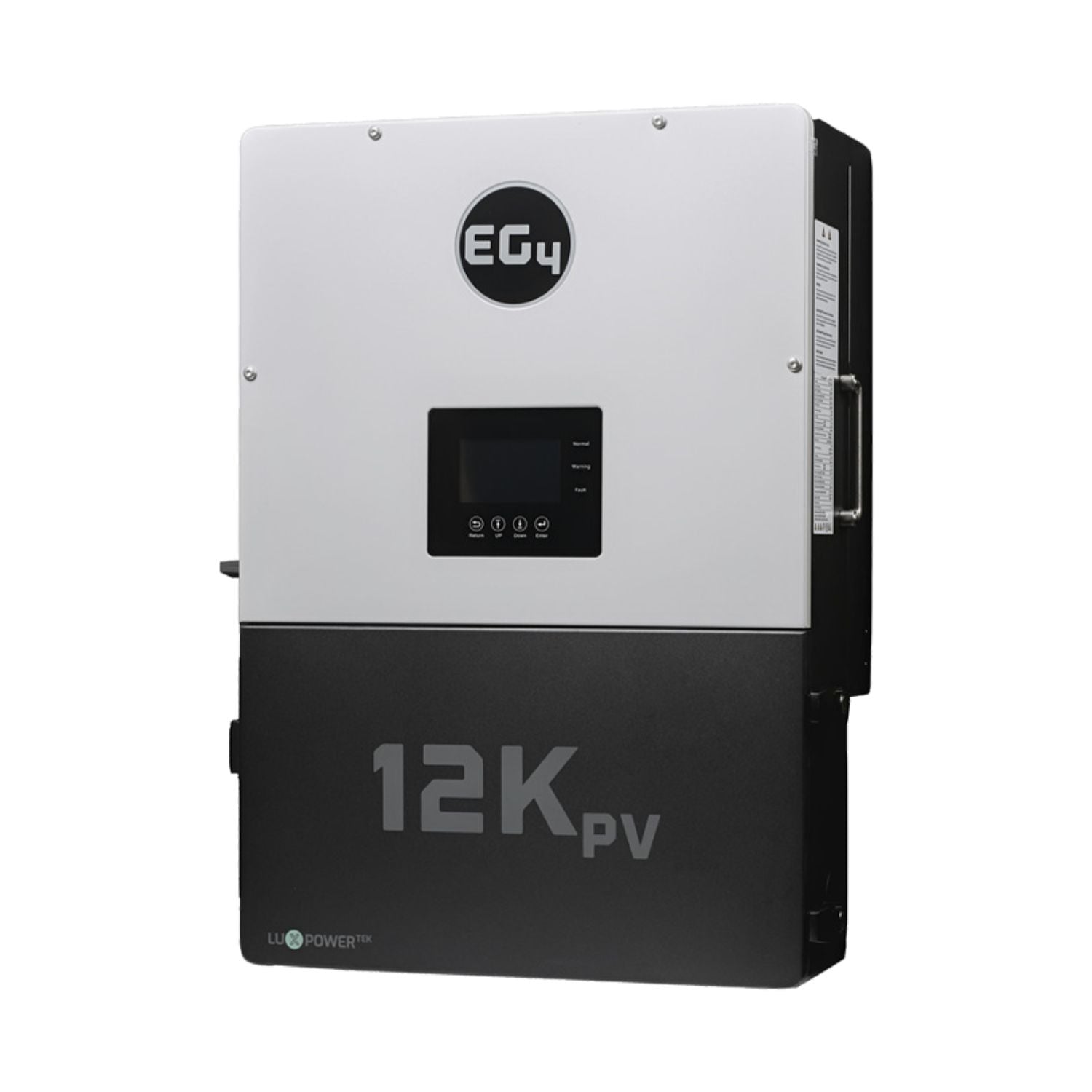

The EG4 12kPV Hybrid Inverter is designed for anyone who needs dependable, high-capacity power. Delivering 8,000W of continuous AC output with support for up to 12,000W of photovoltaic (PV) input, this hybrid inverter handles both grid-tied and off-grid applications with ease. Its transformer-free design and dual MPPT inputs ensure energy-efficient operation while accommodating surge loads and maintaining line balance.
With smart load management, AC coupling, and peak shaving, the inverter optimizes electricity usage, lowering energy bills while protecting your devices from voltage fluctuations. Its intuitive LCD touchscreen and remote monitoring simplify control, and plug-and-play installation makes setup fast and straightforward. Compared to standard inverters, the EG4 12kPV Hybrid Inverter combines reliability, efficiency, and flexibility in a single system, delivering a seamless energy experience for any setting.
Invest in an EG4 12kPV Hybrid Inverter from Outbound Power and enjoy dependable energy solutions backed by expert support. From home backup to off-grid adventures, this inverter provides high-capacity, efficient, and easy-to-manage power for years of reliable operation. Choose confidence, efficiency, and performance for your energy system with Outbound Power.
The EG4 12kPV Hybrid Inverter uses dual MPPT inputs to pull maximum energy from multiple solar arrays. This ensures your home, RV, or off-grid system gets more power efficiently, reducing electricity bills and dependence on the grid.
Unlike traditional inverters, this model has no heavy transformer. It is lighter, more energy-efficient, and easier to install. You save time during setup, experience less energy loss, and enjoy smoother, faster power response for all your devices and appliances.
Intelligent load management automatically directs power where it’s needed most. This prevents energy waste, balances electricity across your home or mobile setup, and lowers monthly costs while keeping essential appliances running without interruption.
The built-in UPS switch reacts in just 20 milliseconds to prevent interruptions. Sensitive electronics, medical devices, and entertainment systems stay powered during blackouts, making this inverter ideal for homes, RVs, or mobile worksites that cannot afford downtime.
This inverter manages energy flow intelligently, combining AC coupling and peak shaving. It limits peak grid demand, optimizes battery use, and ensures your system runs efficiently, saving money while keeping power available when it’s needed most.
Monitor energy production, battery status, and system performance easily. The LCD touchscreen and remote access provide real-time insights, letting homeowners, RV travelers, and off-grid users adjust settings and track performance without needing technical expertise.

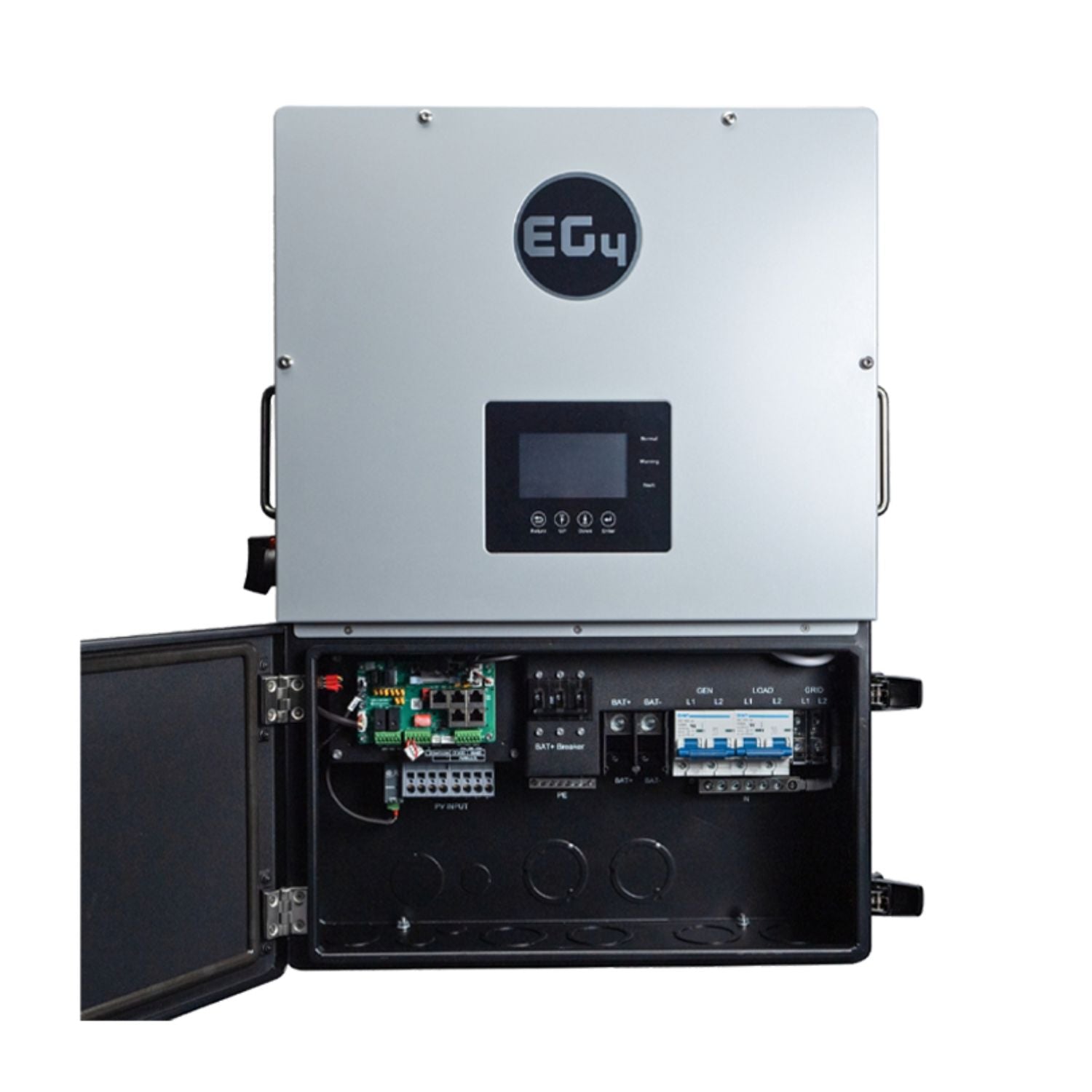

Designed for simplicity, this hybrid inverter is ready for plug-and-play installation. Whether you’re adding solar to your home, RV, or mobile business, setup is fast and stress-free, letting you enjoy reliable, high-capacity power immediately.
EG4 provides a 10-year limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
EG4 12kPV Hybrid Inverter Specifications
|
|
|---|---|
| Nominal AC Voltage | 120/240VAC; 120/208VAC (L1/L2/N required) |
| Frequency | 50/60Hz |
| Max. AC Input Power | 8000W |
| Min. Generator Size | >5000W |
| Max. Gen / Grid Passthrough Current | 80A / 80A |
| Max. Output Current | 33.3A @ 240VAC / 38.5A @ 208VAC |
| Output Voltage | 120/240VAC; 120/208VAC |
| Nominal Power Output | 8000W |
| Output Frequency | 50/60Hz |
| Power Factor | 0.99 @ Full Load |
| Reactive Power Adjust Range | ±0.8 |
| Max Continuous Line Wattage | 4000W |
| Peak Power | 0.5 s / 1 s / 1 min / 12 min: 16kW / 12kW / 10kW / 8.8kW |
| THD (V) @ Full Load | <3% |
| Transfer Time | Single: 20 ms – Default, 10 ms – Selectable; Parallel: 20 ms |
| Number of MPPTs | 2 |
| Inputs per MPPT | 2 |
| Max. Usable Input Current | 25A / 25A per MPPT; 41.6A total |
| Max. Short Circuit Input Current | 31A / 31A |
| DC Input Voltage Range | 100–600 VDC |
| Unit Startup Voltage | 100 VDC |
| MPPT Operating Voltage Range | 120–500 VDC |
| Nominal MPPT Voltage | 360 VDC |
| MPPT Voltage High Protection | 550 VDC |
| Maximum Utilized Solar Power | 12,000W |
| Recommended Maximum Solar Input | 15,000W |
| Maximum Efficiency (PV → Grid) | 97.5% |
| Maximum Efficiency (Battery → Grid) | 94% |
| Maximum Efficiency (PV → Battery) | 99.9% |
| CEC Weighted Efficiency | 96.4% |
| Idle Consumption (Standby Mode) | <55W |
| Compatible Battery Types | Lead-Acid / Lithium |
| Max. Charge/Discharge Current | 167A @ 48VDC |
| Nominal Voltage | 48VDC |
| Voltage Range | 40–60 VDC (Lithium); 40–60 VDC (Lead-Acid) |
| Recommended Battery Capacity per Inverter | >200Ah |
| Max. Units in Parallel | 10 |
| Product Dimensions (H×W×D) | 29.5×20.5×11.2 in (750×520×285 mm) |
| Unit Weight | 110 lbs (50 kg) |
| Design Topology | High-Frequency – Transformerless |
| Relative Humidity | 0–100% |
| Operating Altitude | <2000m (<6561 ft) |
| Operating Ambient Temperature Range | -13°F – 140°F (-25°C – 60°C) |
| Storage Ambient Temperature Range | -13°F – 140°F (-25°C – 60°C) |
| Noise Emission (Typical) | <50 dB @ 3 ft |
| Locked Rotor Amps (LRA) | 195A |
| Communication Interface | RS485 / Wi-Fi / CAN |
| Standard Warranty | 10-year standard warranty |
| Enclosure Rating | NEMA 4X |
| Protections | PV Arc Fault, PV Ground Fault, PV Reverse Polarity, Pole Sensitive Leakage Monitoring, Surge Protection, Integrated PV Disconnect |
