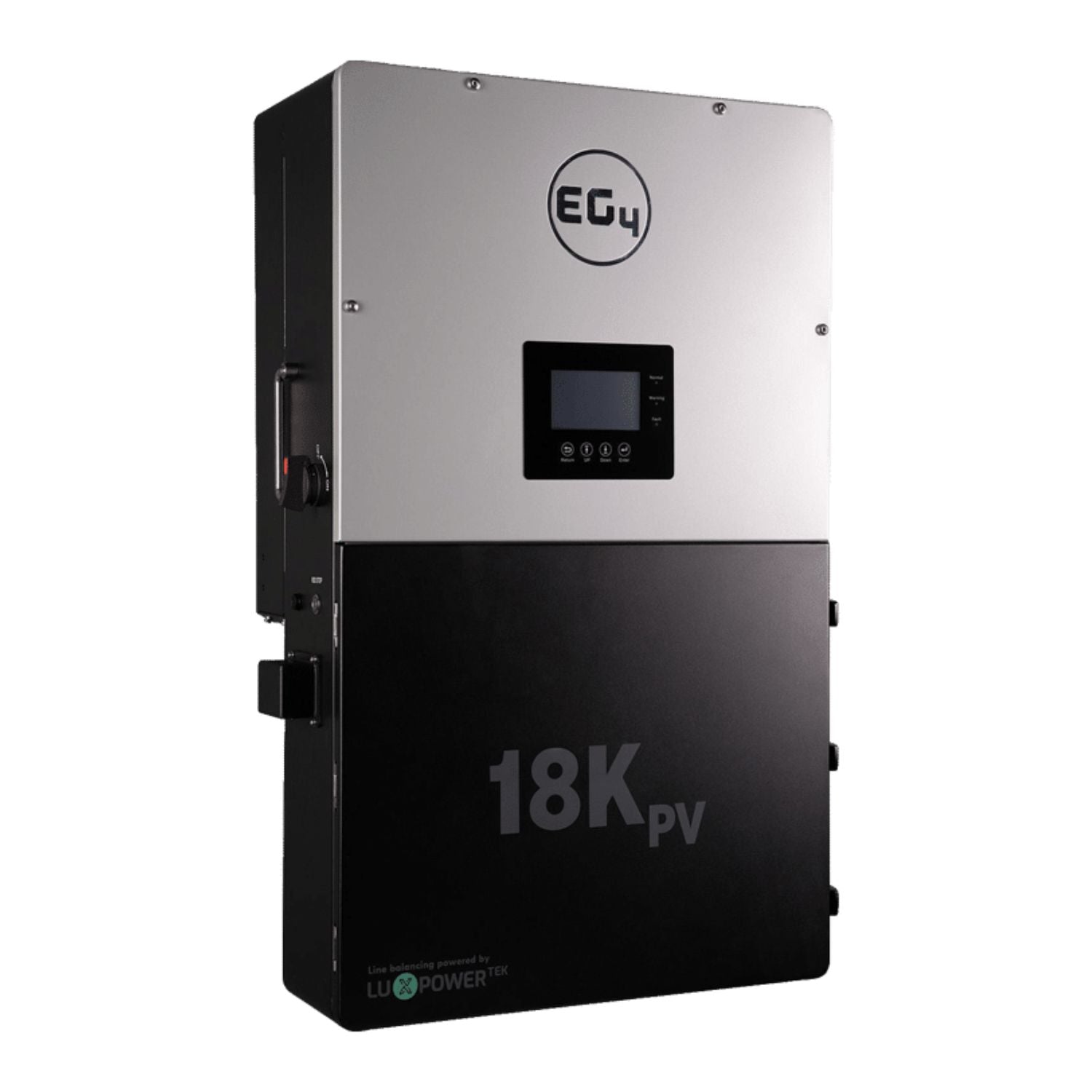

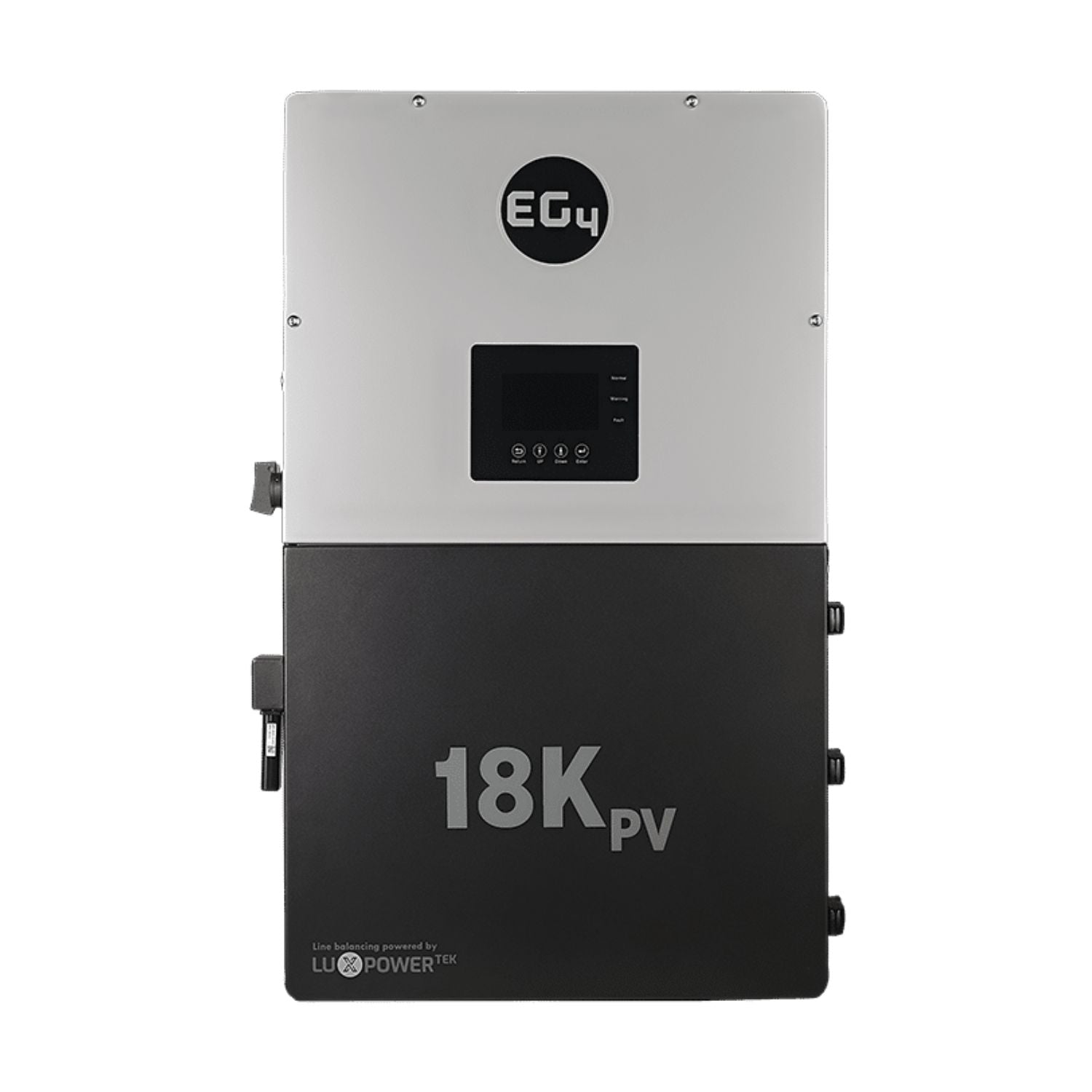

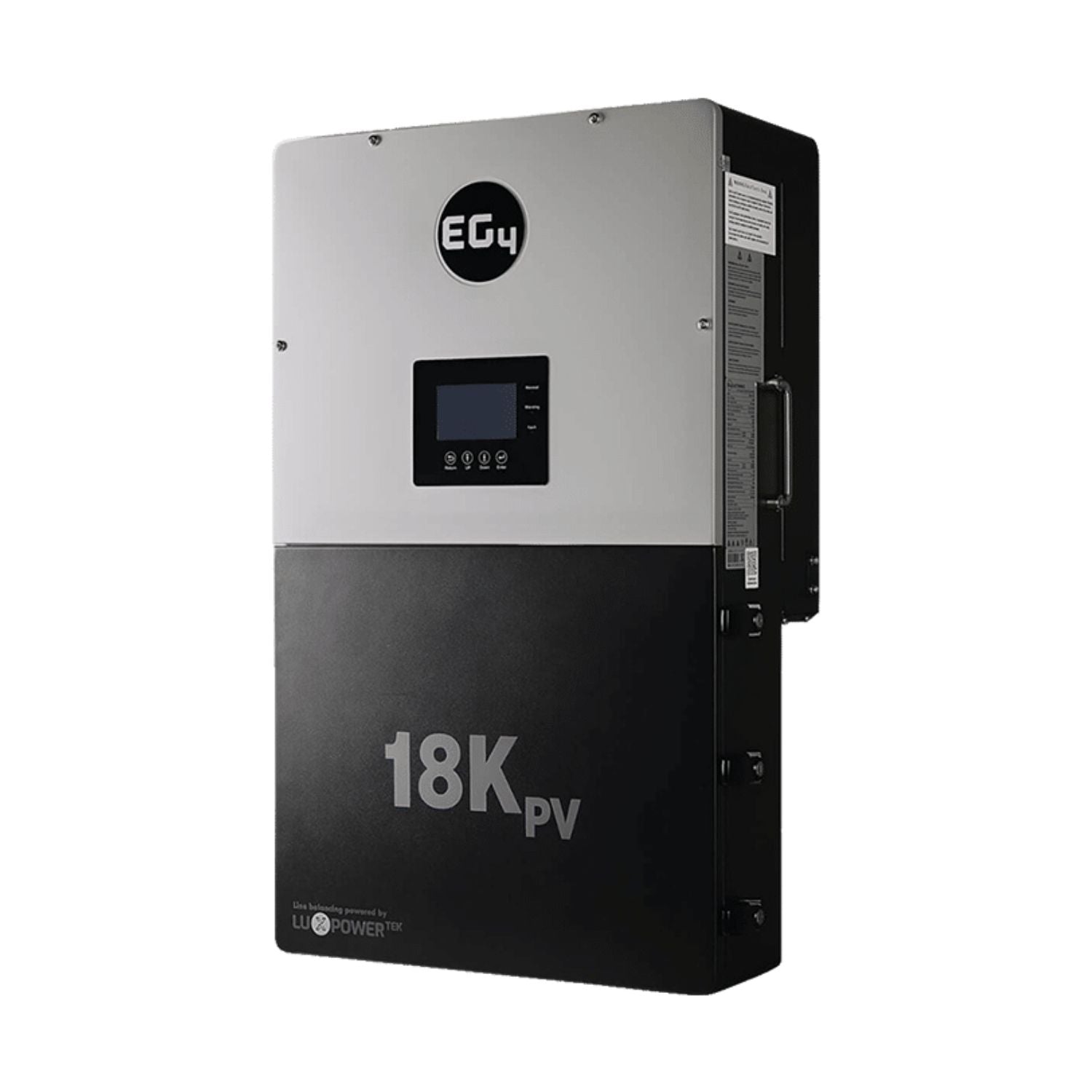

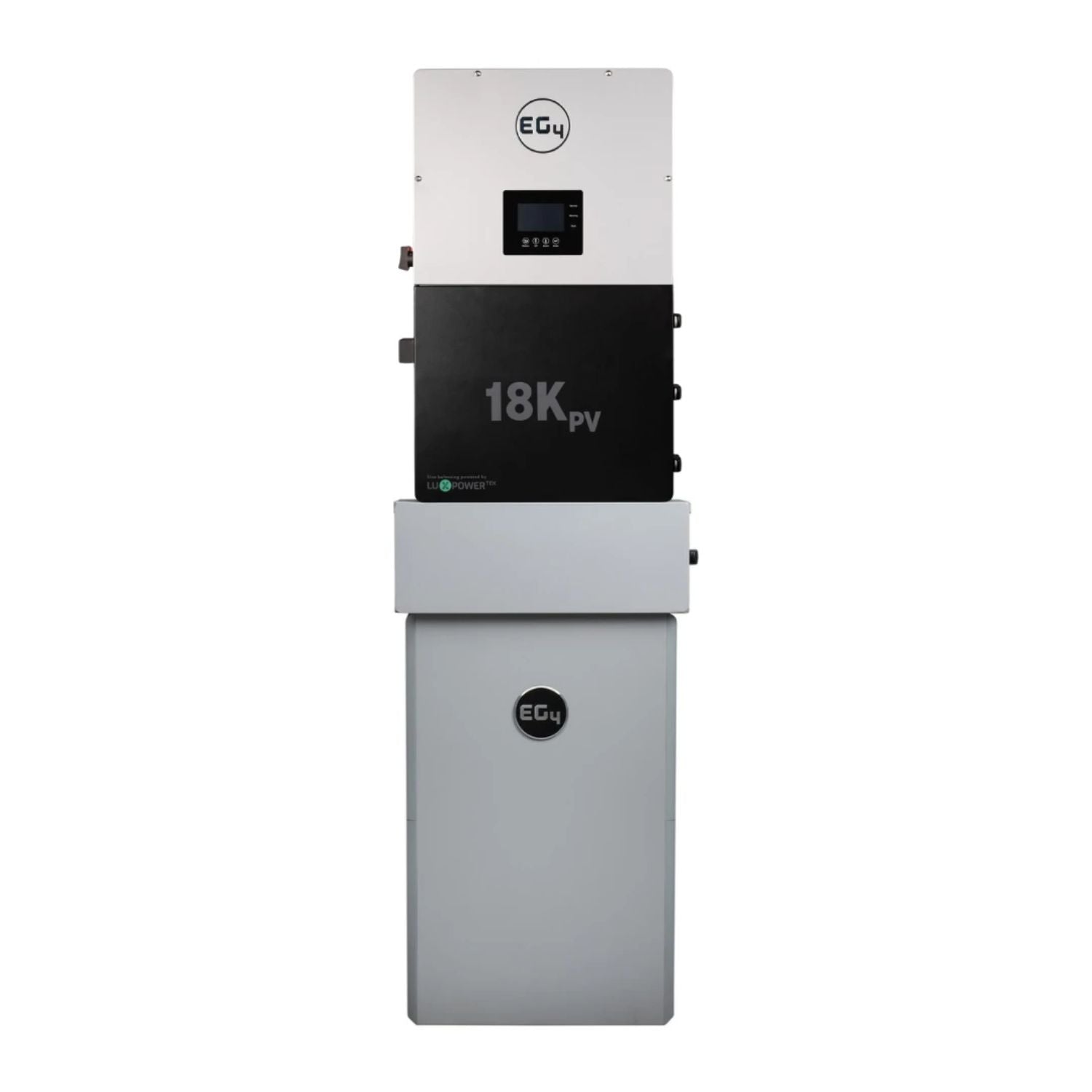

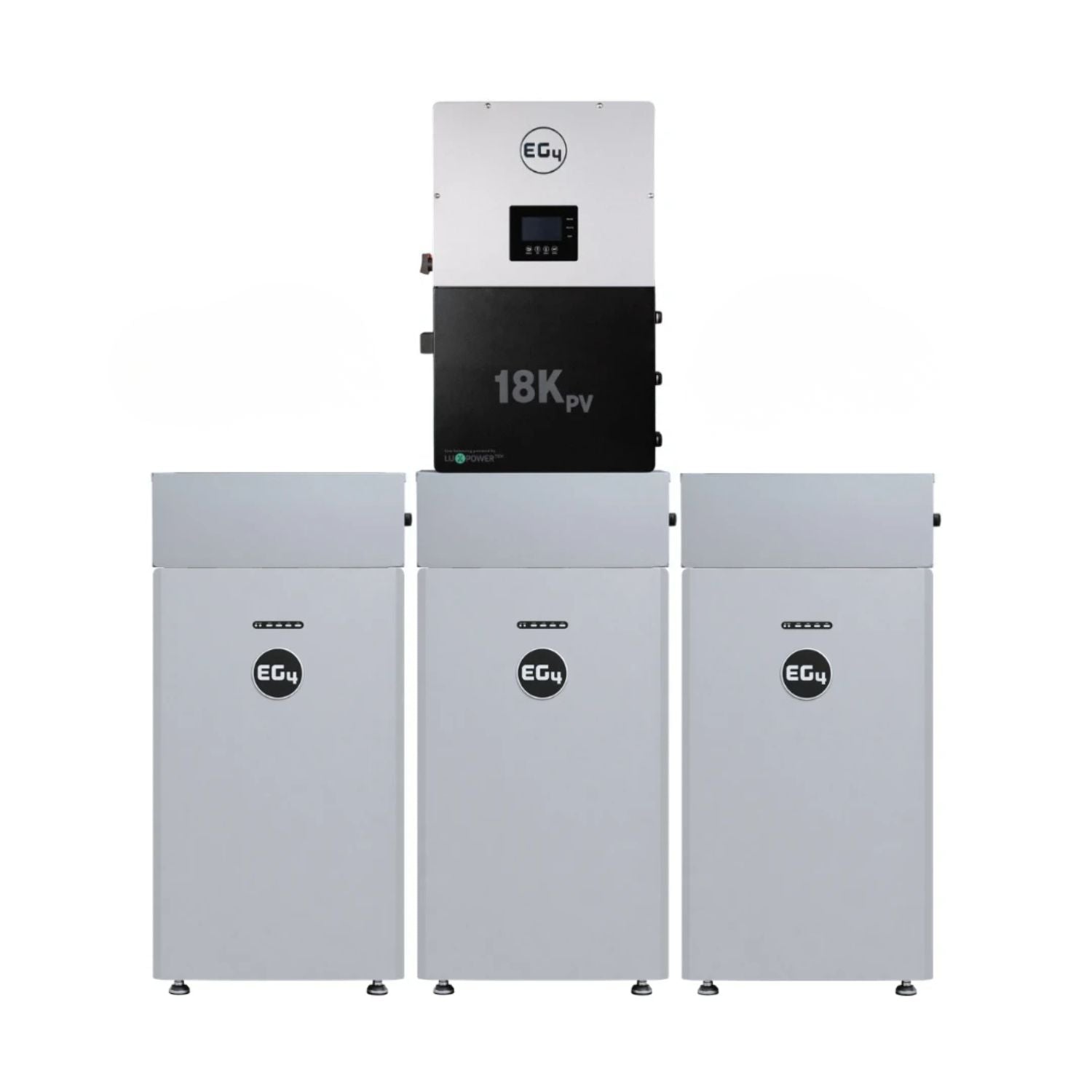

The EG4 18kPV Hybrid Inverter is built for people who refuse to compromise on power. With up to 12,000W of continuous output and an impressive 18,000W solar input capacity, this system gives you the control and confidence to power your life on your terms.
This isn’t just another inverter. It’s a complete energy management system designed to simplify your setup while maximizing performance. Instead of juggling multiple components like charge controllers and separate inverters, the EG4 18kPV Hybrid Inverter combines everything into one streamlined unit. That means fewer installation headaches, fewer points of failure, and a cleaner, more efficient system overall.
When the grid goes down or when you choose to step away from it you won’t even notice the difference. With ultra-fast UPS switching in as little as 10–20 milliseconds, your lights, appliances, and critical systems stay powered without interruption. It’s the kind of reliability that turns uncertainty into peace of mind.
And thanks to its advanced energy management features, you’re not just generating power you’re using it smarter. From peak shaving to load prioritization, this inverter helps reduce energy costs while making the most of your solar investment. It’s a practical, forward-thinking solution for anyone serious about energy independence.

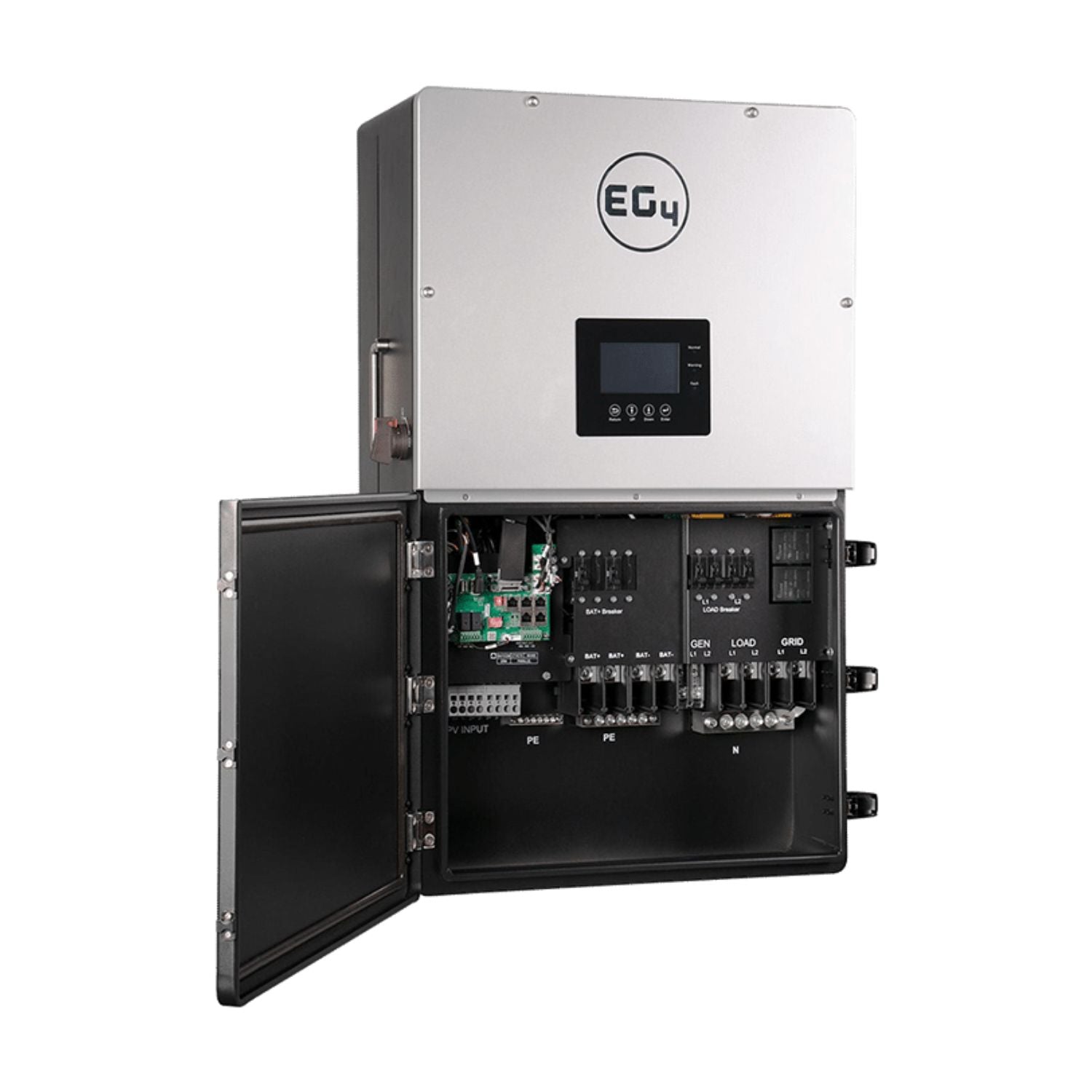

The EG4 18kPV Hybrid Inverter combines inverter, charger, and solar controller in one unit. This reduces extra parts, saves space, and makes installation easier for users who want a simple and reliable power system.
With up to 18,000W solar input and three MPPT trackers, this inverter collects more sunlight from different panel angles. It helps you get better energy output throughout the day, even when sunlight changes.
Delivering up to 12,000W continuous power, this inverter can run heavy appliances like air conditioners, refrigerators, and tools. It is a great choice for homes, RVs, and off-grid setups needing steady and strong power.
The built-in UPS function switches power in just 10 to 20 milliseconds during outages. This keeps your lights, devices, and important equipment running without interruption, giving you peace of mind anytime.
Advanced features like peak shaving and load control help you manage energy use better. You can reduce grid usage, save money on electricity, and make sure your most important devices always get enough power.
The transformer-free design reduces weight while improving system efficiency. This makes the inverter easier to carry, mount, and install, saving time and effort for both professionals and first-time users.
You can monitor performance and adjust settings using remote access and the LCD display. This allows you to track energy use, check system status, and stay in control wherever you are.
EG4 provides a 10-year limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
EG4 18kPV Hybrid Inverter Specifications
|
|
|---|---|
| AC Voltage | 120V AC / 240V AC |
| AC Frequency | 50 Hz / 60 Hz |
| Nominal Voltage | 48VDC |
| Max Continuous AC Current | 50A @ 240V AC |
| Output Voltage | 120V AC / 240V AC |
| Output Power | 12000W |
| Max Continuous Output Current | 50A |
| Max Continuous Line Wattage | 6000W |
| Power Factor | 0.99 (Full Load) |
| Reactive Power Adjustment | -0.8 ~ +0.8 Leading Adjustable |
| Total Harmonic Distortion | <5% (Full Load) |
| Transfer Time | 10–20 ms (Single) / 20 ms (Parallel) |
| Max AC Input Power | 12000W |
| Operating Voltage Range | 180 – 270V AC |
| AC Bypass | 200A |
| AC Bypass (Generator) | 90A |
| Surge Capacity (with PV) | 14700W (10 min) / 15500W (5 min) |
| Surge Capacity (without PV) | 13500W (10 min) |
| Max Output Power (with PV) | 14700W (10 min) / 15500W (5 min) |
| Max Output Power (without PV) | 13500W (10 min) |
| Max Continuous Line Wattage (120V) | 8000W per 120V |
| Switching Time | 10 ms |
| Total Harmonic Distortion Voltage | <5% |
| Battery Voltage Range | 40 – 60VDC |
| Max. Charge / Discharge Current | 250A |
| Number of MPPTs | 3 |
| Inputs per MPPT | 2 (MPPT 1) / 1 (MPPT 2) / 1 (MPPT 3) |
| Max. Usable Input Current | 25A (MPPT 1) / 15A (MPPT 2) / 15A (MPPT 3) |
| Max. Short Circuit Input Current | 31A (MPPT 1) / 19A (MPPT 2) / 19A (MPPT 3) |
| DC Input Voltage Range | 100 – 600VDC |
| Unit Start-Up Voltage | 100VDC |
| MPPT Operating Voltage Range | 140 – 500VDC |
| Nominal MPPT Voltage | 360VDC |
| Max. Utilized Solar Power | 18,000W |
| Recommended Max. Solar Input | 21,000W |
