Mango Power S Pro 10-in-1 Cable for 240V S Pro Microinverters

The Mango Power S Pro 10-in-1 Cable Connects Ten S Pro Microinverters on One AC Cable Run

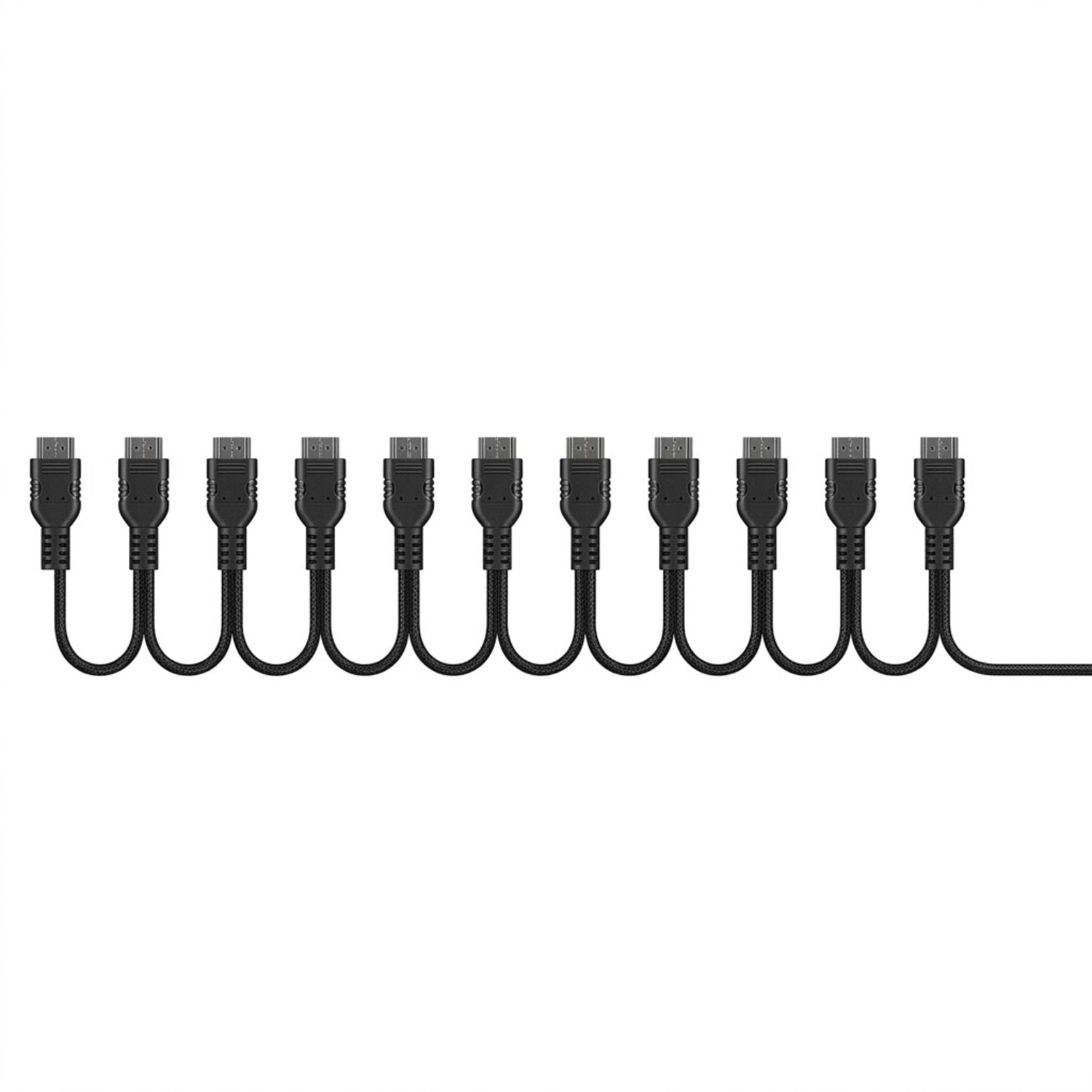

The Mango Power S Pro 10-in-1 Cable is the AC cable for Mango's S Pro 240V/5000W microinverter system. It carries ten AC connectors on short branches off a single cable, one for each S Pro microinverter, and a long lead that an electrician wires into the AC junction box.

Mango states that this cable is required for proper operation of the S Pro microinverter and is sold separately. It is for homeowners and installers building an S Pro array, and Mango recommends having the system installed by a licensed local electrician.

Mango Power S Pro 10-in-1 Cable Features

Ten AC Connectors on One Cable

Each of the ten connectors sits on its own short branch, so ten microinverters share one cable run.

Made for the S Pro 240V System

Mango states that it is specifically compatible with the S Pro 240V/5000W system. Each S Pro microinverter has a nominal output of 500VA.

Routes Along the Mounting Rails

Mango has the AC cable routed along the rails with a connector lined up at each microinverter. Leave slack to avoid tension, secure the cable with clips or UV-resistant zip ties, and tuck excess cable beneath the panels.

Connectors Marked Do Not Disconnect Under Load

Each AC connector carries a printed STOP warning not to disconnect it under load. Mango calls for an AC disconnect tool when connectors need to come apart.

Real-World Applications

Rooftop Arrays. The cable runs along the mounting rail under the panels, with a connector at each microinverter position.

Roofs With Shade or Mixed Orientation. Mango says the S Pro suits roof installations with shading and multiple orientations because each microinverter tracks its own panel.

Practical Comparison

S Pro 10-in-1 Cable Versus Generic AC Wiring

A generic AC cable has no S Pro connectors on it. The 10-in-1 cable brings a matching connector to each of ten microinverter positions on one run, and Mango lists it as required for the S Pro.

Buyer Guidance

Branch Size and Installation

Mango lists a maximum of 7 S Pro microinverters per 20A branch on 12AWG cable and 11 per 30A branch on 10AWG cable, and a 30A branch needs a 30A breaker. Mango calls these recommended maximums; local regulations set the actual number. A licensed electrician should install the system and size the branch circuit, and local codes, permits and utility interconnection approval apply before the system connects to the grid.

This May Be A Good Fit If

• You are installing Mango Power S Pro microinverters
• You need ten microinverter connectors on one cable run
• Your licensed electrician is handling the 240V wiring

Common Questions

Is the 10-in-1 Cable Required for the S Pro?

Yes. Mango states that the S Pro 10-in-1 cable is required for proper operation of the S Pro microinverter and is sold separately.

Do I Need an Electrician to Install It?

Mango recommends a licensed local electrician. Mango says 240V hardwired grid-tie systems must comply with local utility policies and NEC standards and complete any required registration and inspection.

How Do I Protect Unused Connectors?

Mango has you seal unused cable ends with end caps and unused terminals with seal caps, so no exposed conductor is left open.

What's Included

• 1 x Mango Power S Pro 10-in-1 Cable

Ten Microinverters on One Cable Run

The Mango Power S Pro 10-in-1 Cable links up to ten S Pro microinverters on a single AC run for Mango's 240V system. Have a licensed electrician confirm the branch size, and the Outbound Power team is happy to help with questions about fit.
