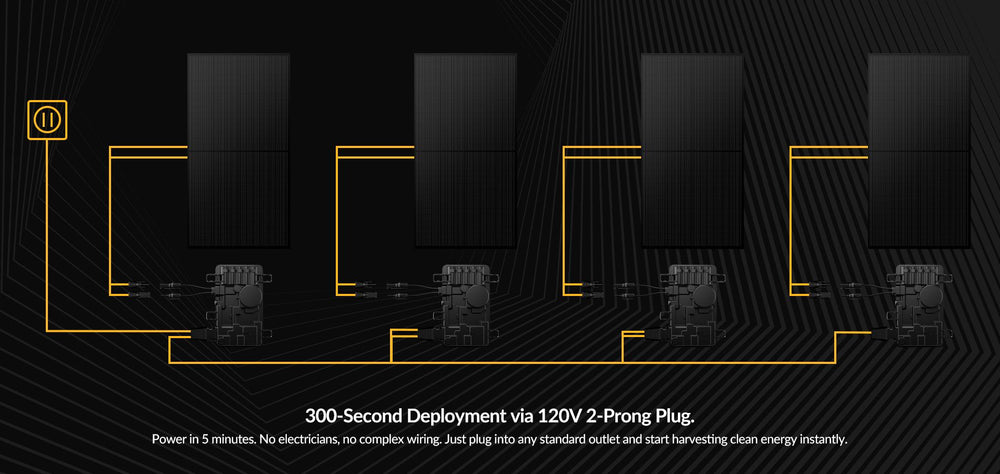

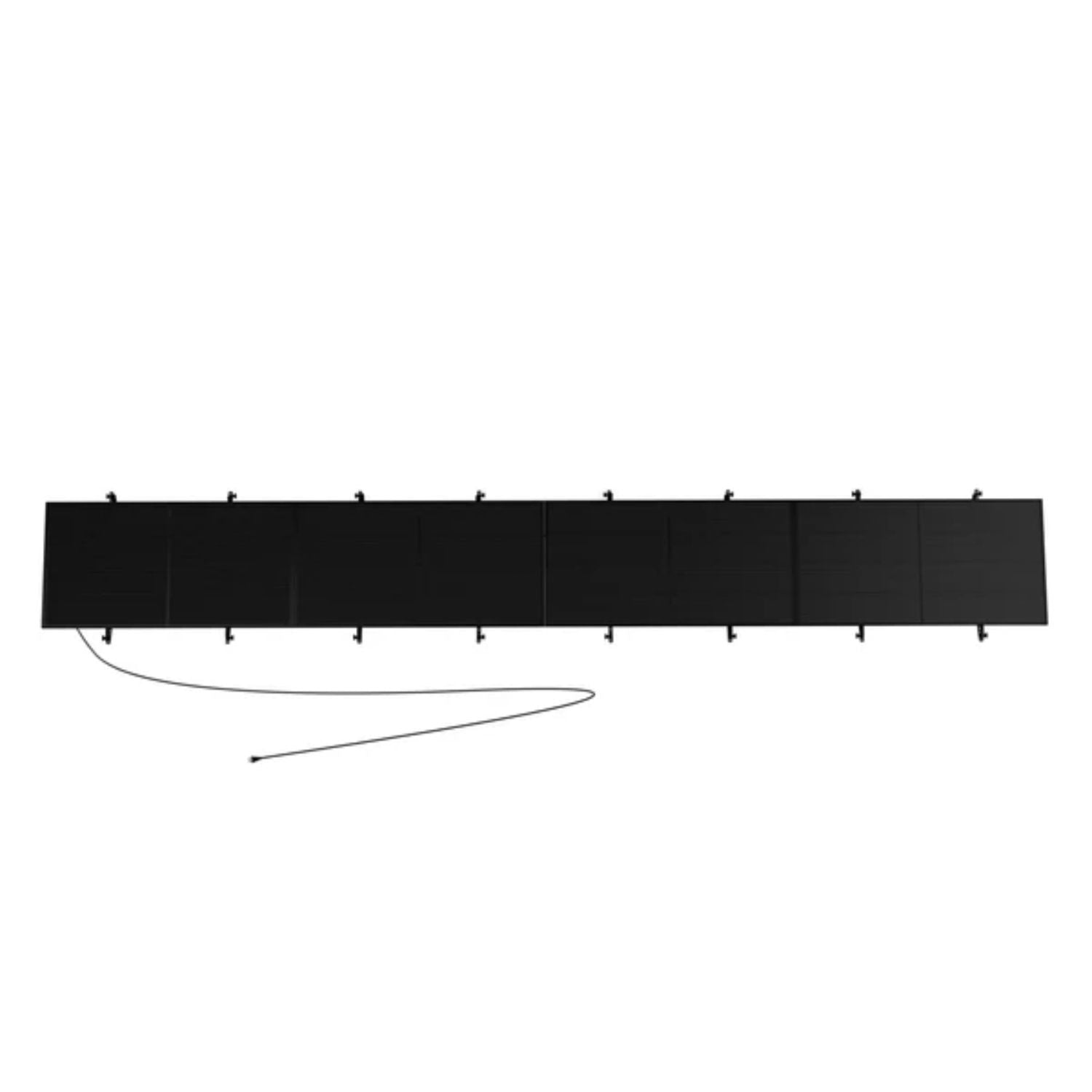

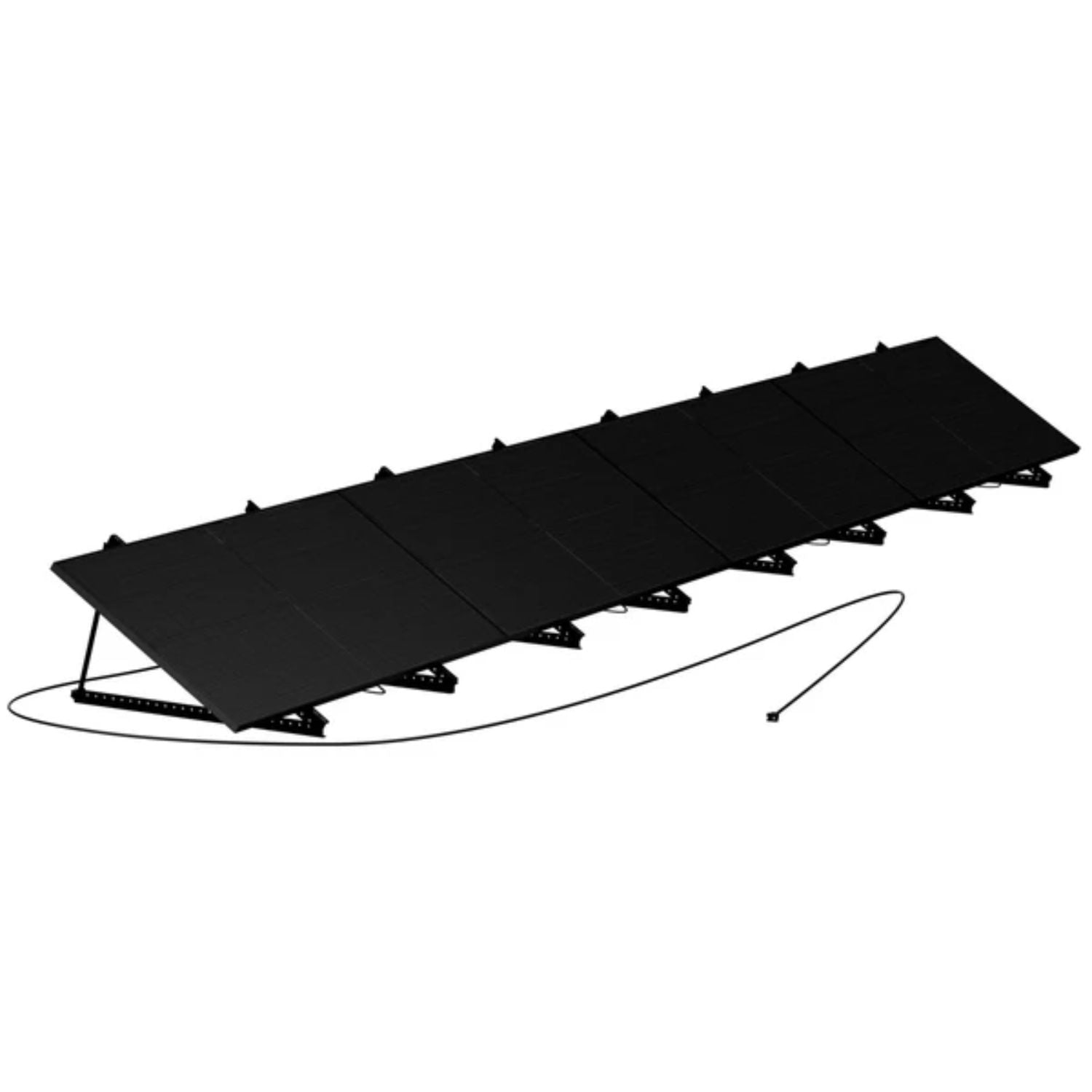

The Mango Power S PIPV 1200W Plug-In Solar System Kit pairs four 300W solar panels with four microinverters, one mounted behind each panel, plus tilt stands and a 4-in-1 AC trunk cable that joins all four 120V outputs into one plug. Mango rates the system at 120V and 1200W of panel power (4 x 300W).
The kit is for homeowners who want solar from a patio, backyard, flat roof or carport without roof penetrations. Connecting any solar system to the grid is subject to your utility's interconnection approval and local codes, so confirm what applies where you live before you plug it in.

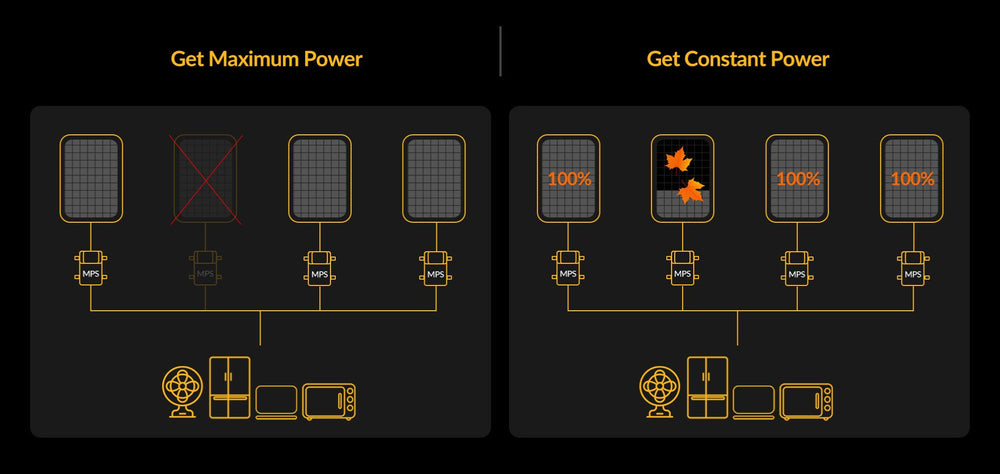

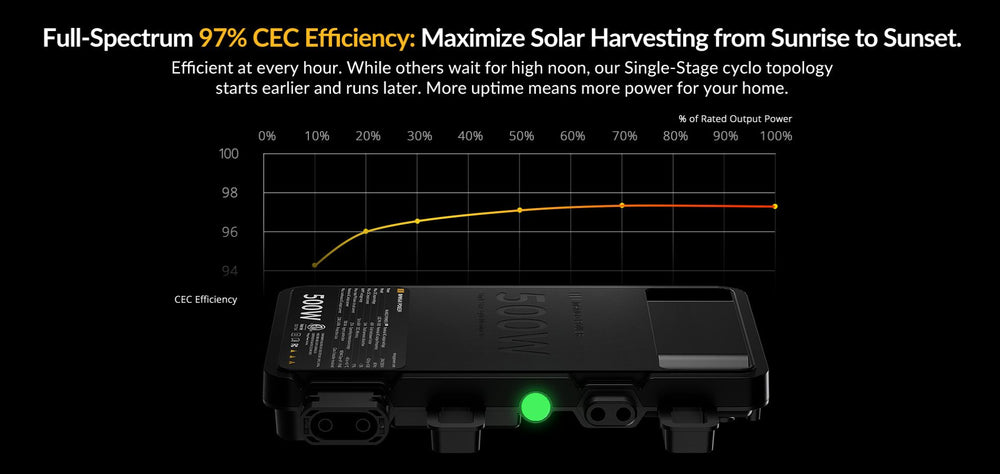

Each panel has its own microinverter with module-level MPPT, so Mango says shade on one panel does not reduce the output of the others. The microinverters carry a 97% CEC efficiency rating and 99.9% MPPT efficiency, with a 22V start-up voltage. If one module fails, only that module needs replacing while the rest keep running.
Mango states the system's DC voltage stays below 60V, with no high-voltage DC bus. The microinverter is UL Listed as PV rapid shutdown equipment under NEC Section 690.12. Its anti-islanding protection immediately stops exporting power when the outlet loses grid power, whether from a tripped breaker, an unplugged cord or a utility outage. It cannot energize a dead circuit on its own.

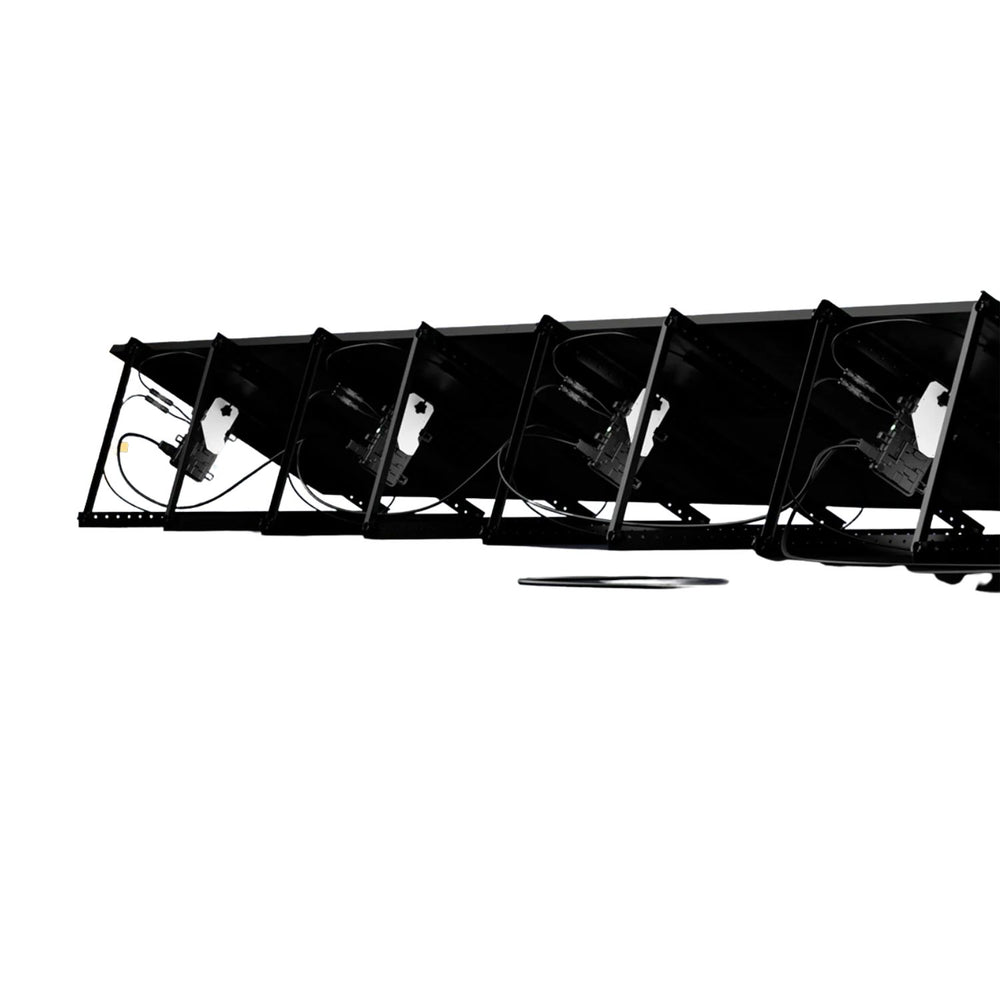

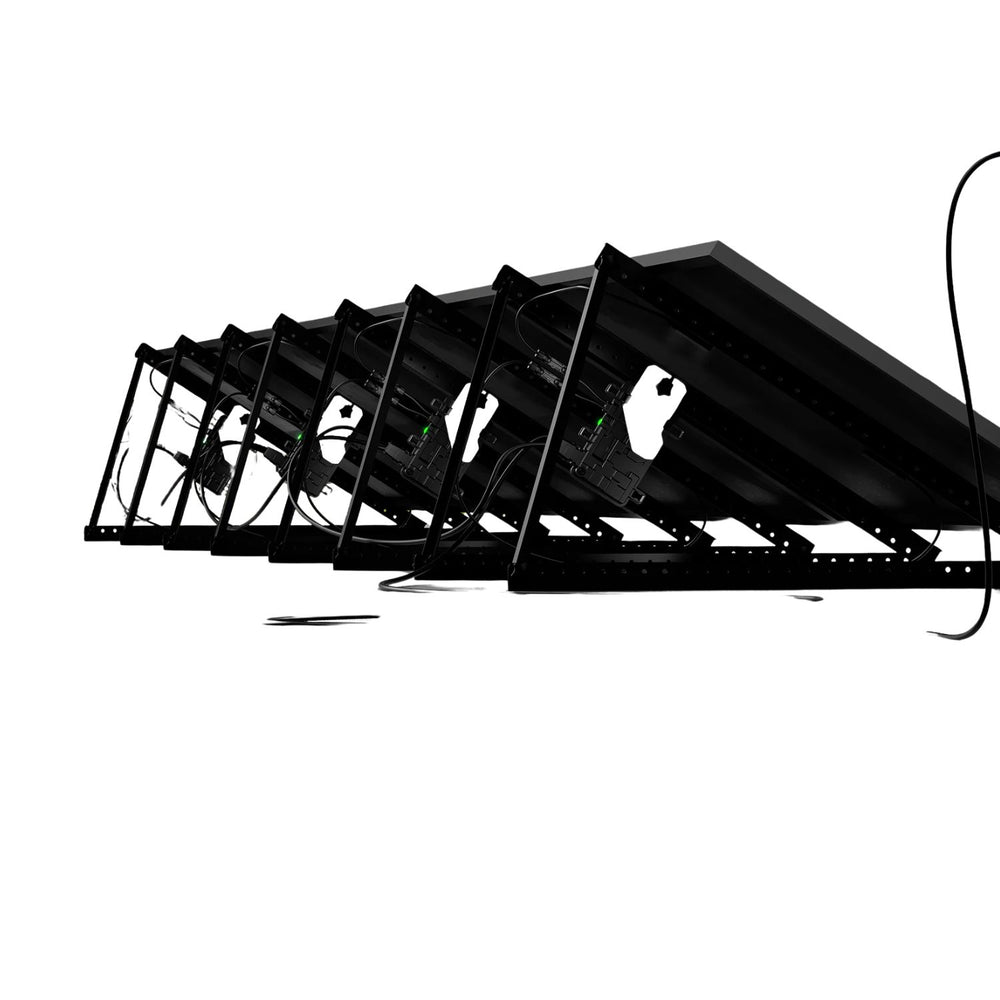

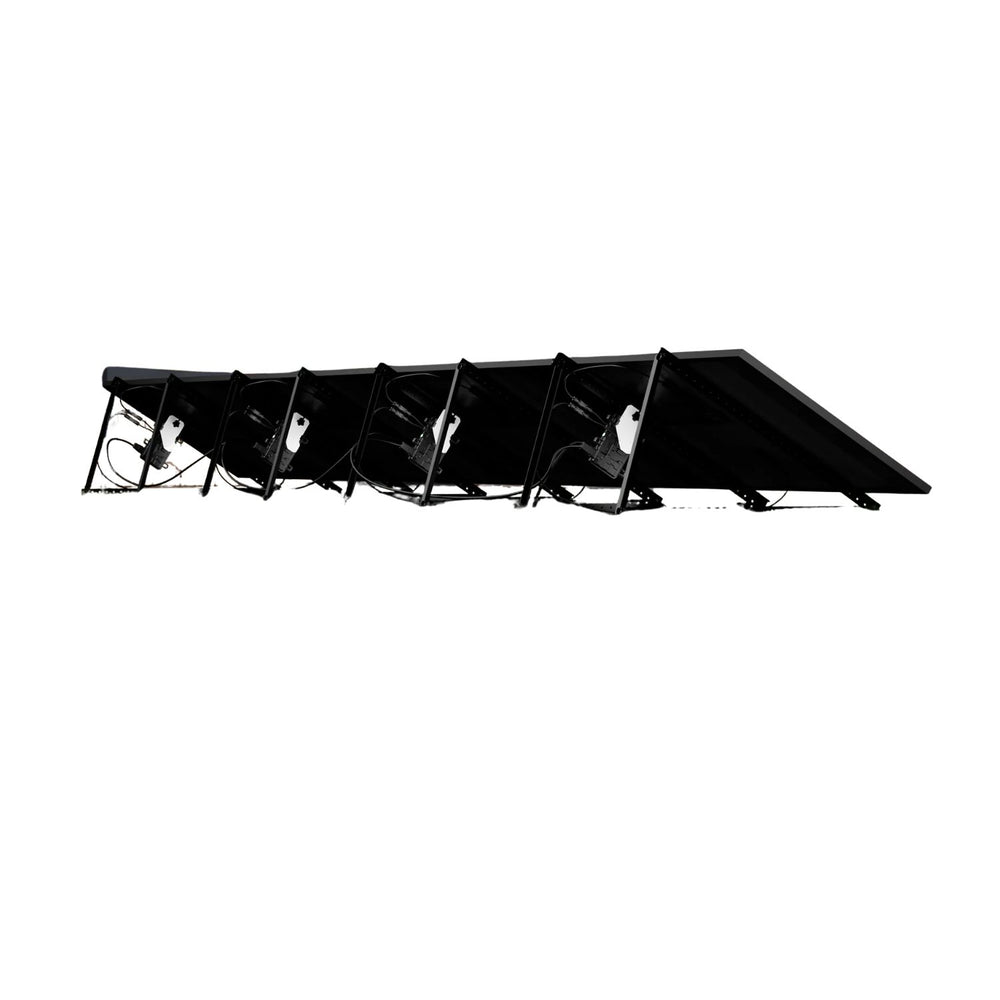

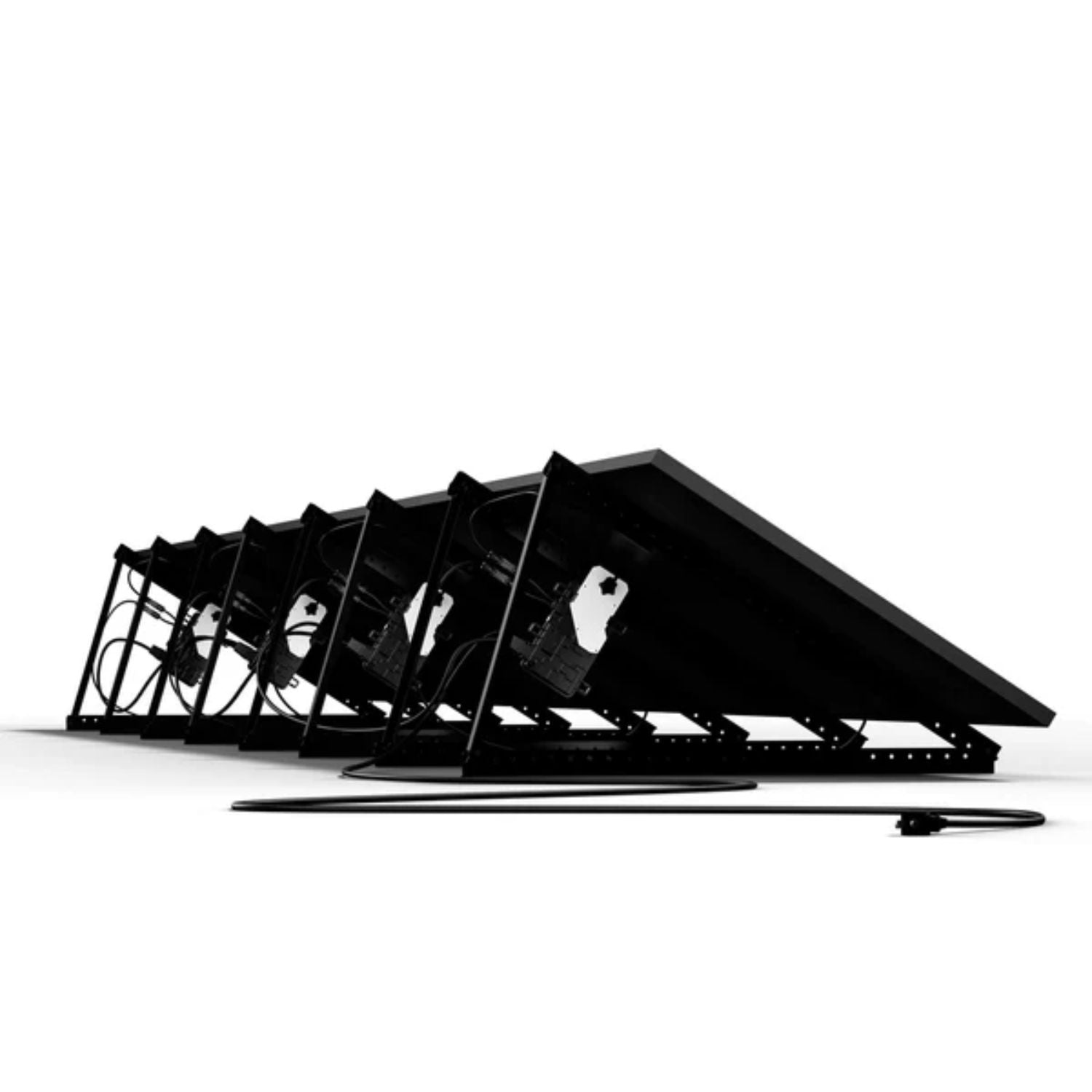

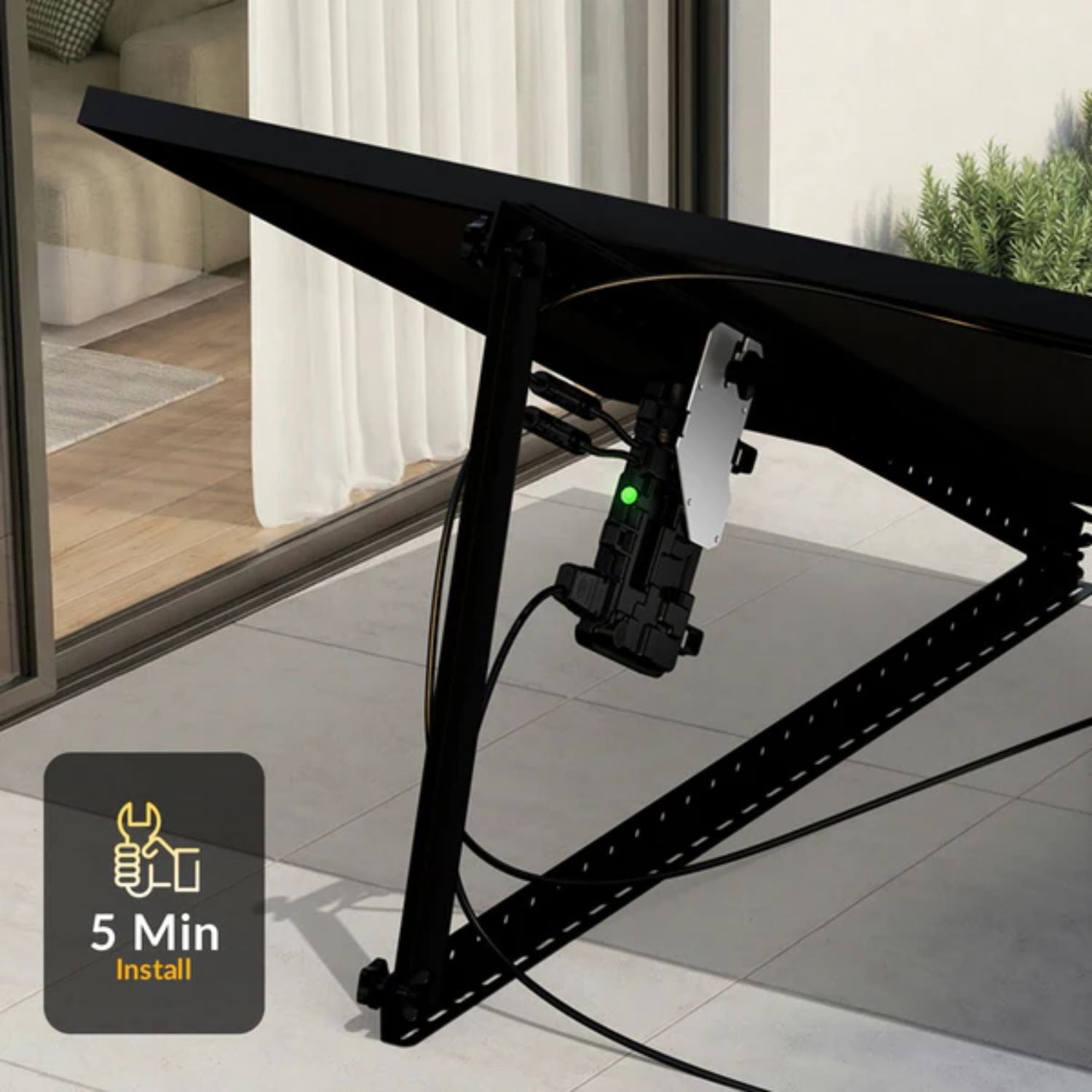

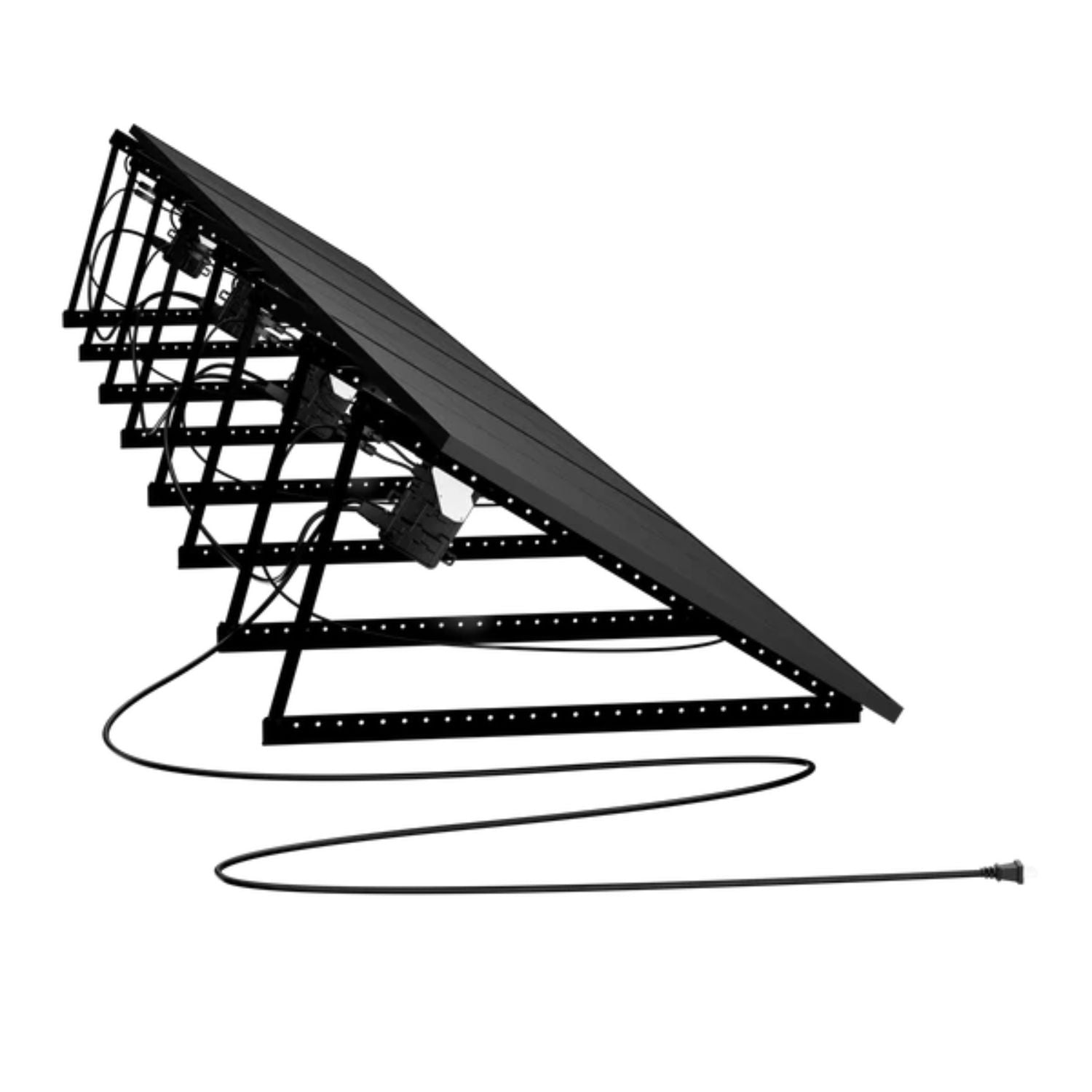

Each panel sits on two triangles, each made from two support frames and an adjustable support bar and fastened with hand-tightening screws and hex bolts. You need an M6 socket wrench, an adjustable wrench and cable ties. You can weigh the stands down with sandbags or stones, or fasten them to a concrete floor with self-tapping screws.

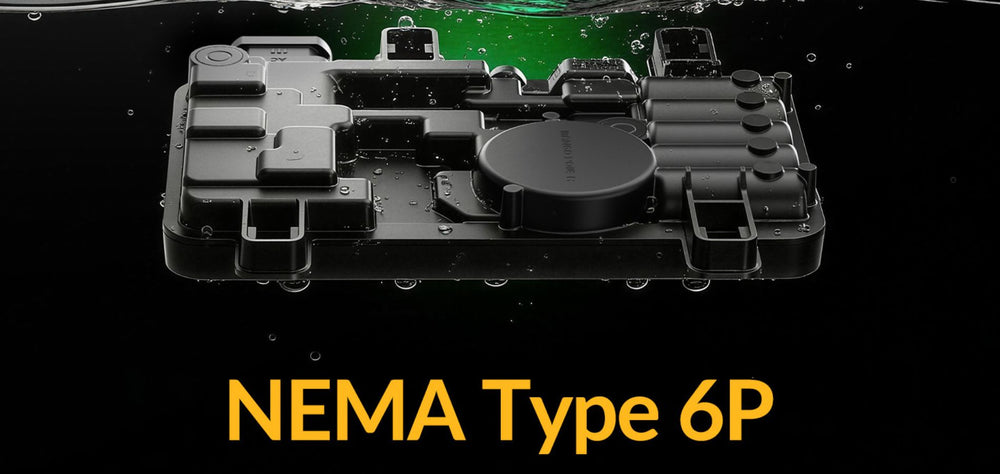

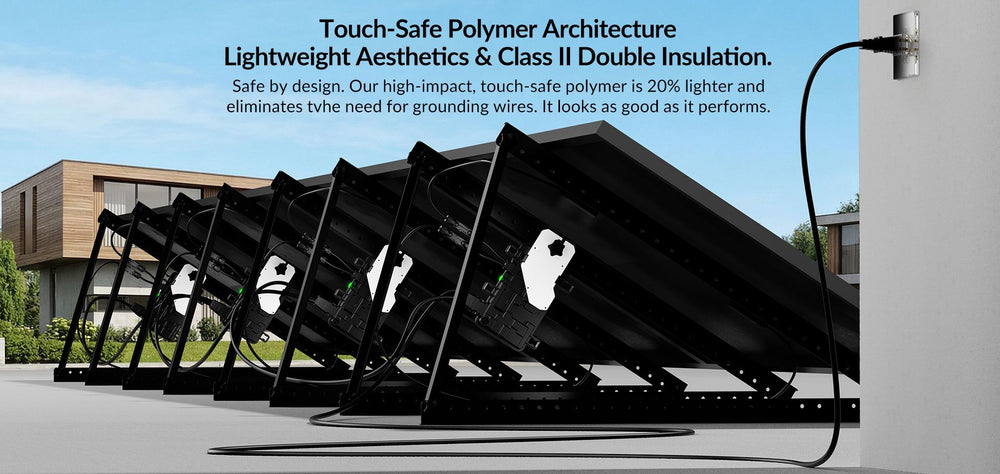

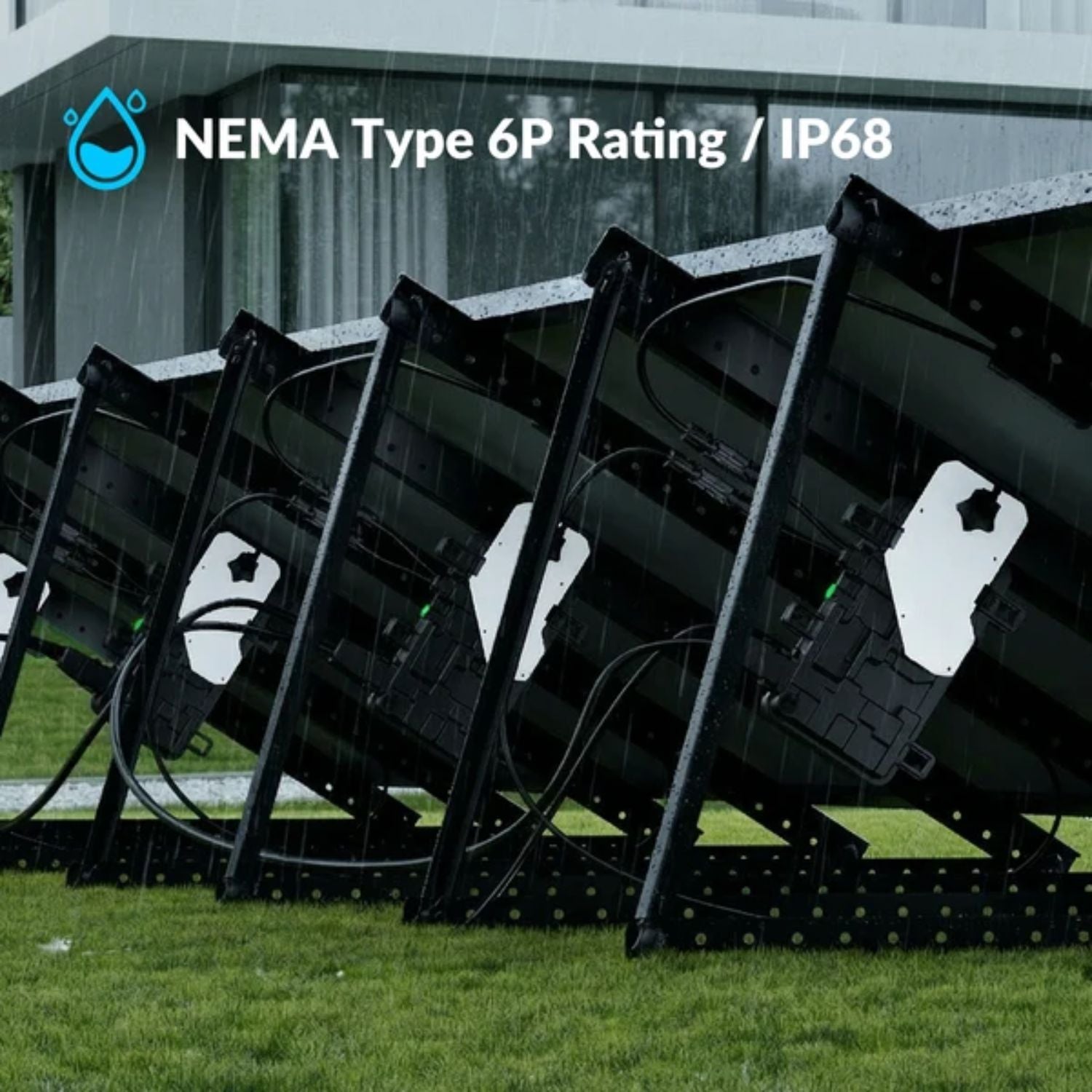

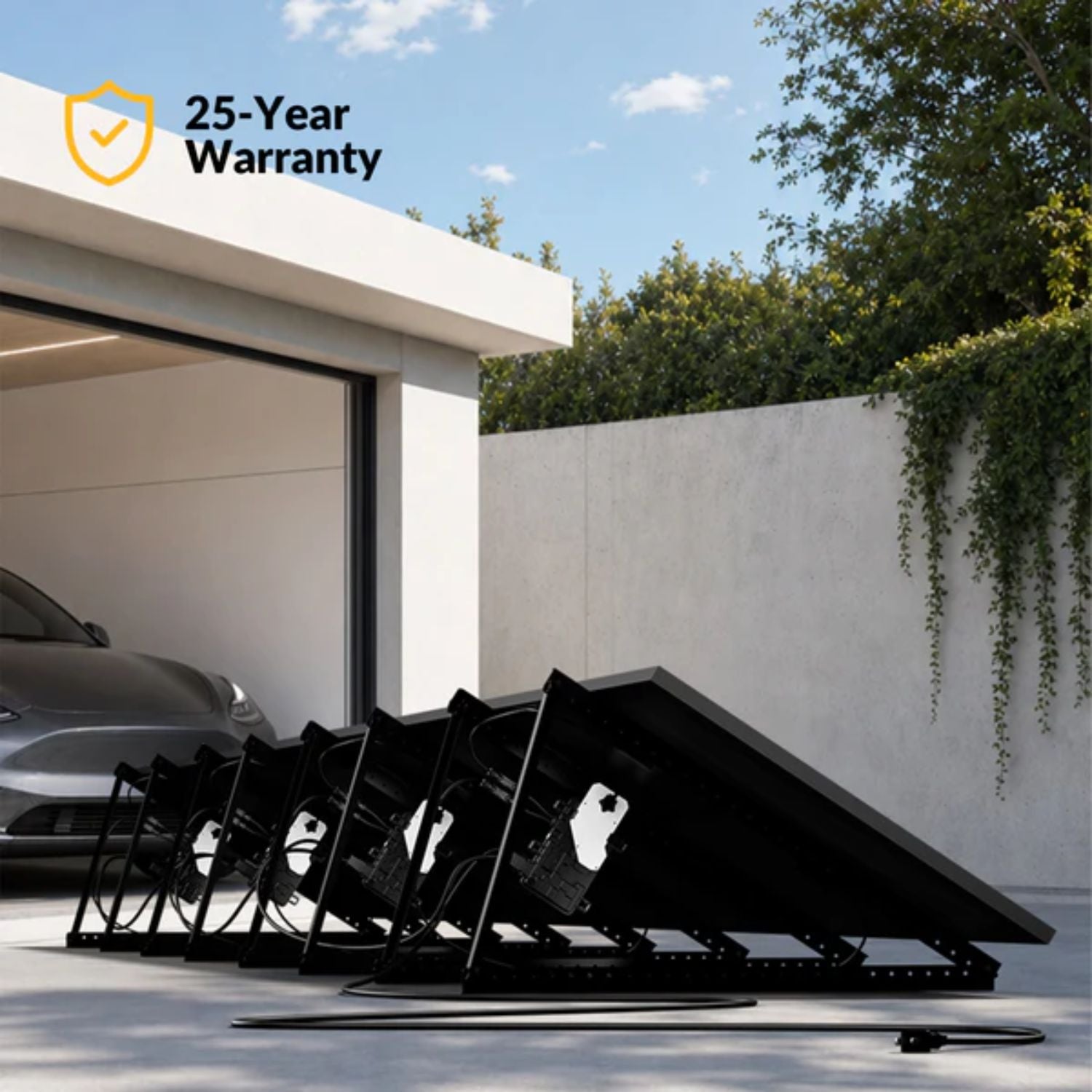

The microinverters carry NEMA Type 6P and IP68 ratings, run from -40°F to +149°F, cool by natural convection and are Class II double-insulated. Mango says they can operate in heavy rain and high humidity. Mango covers the microinverters and PV modules for 25 years and the cable kit for 3 years.

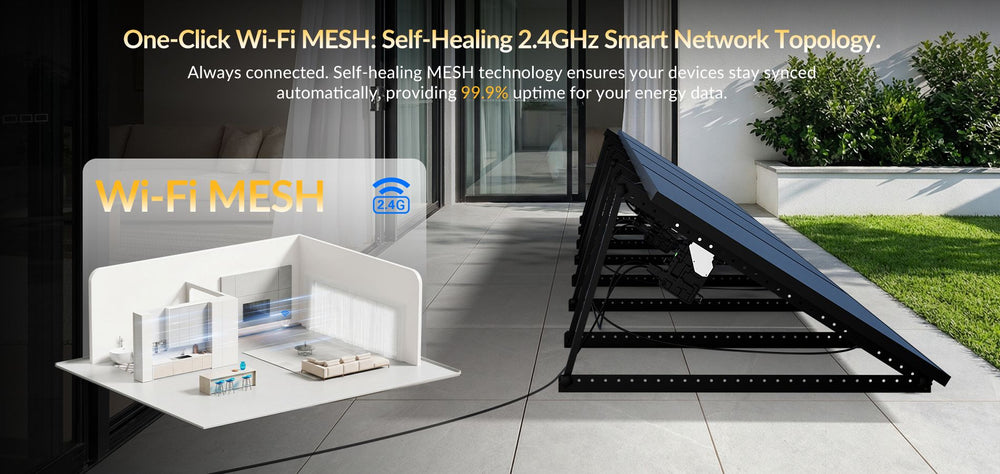

The microinverters connect to your home Wi-Fi and report to the Mango Power App. You add them over Bluetooth, enter your Wi-Fi details, then watch power generation in real time. A status LED on each microinverter shows whether it is generating.

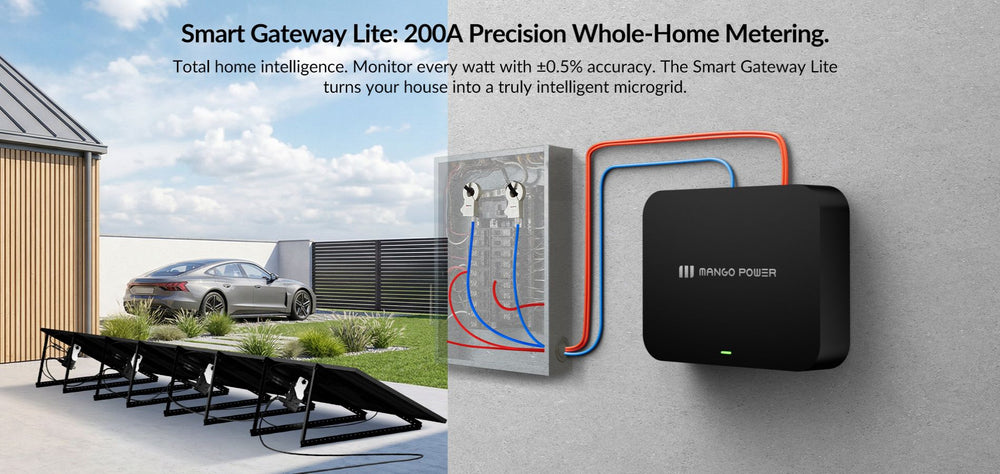

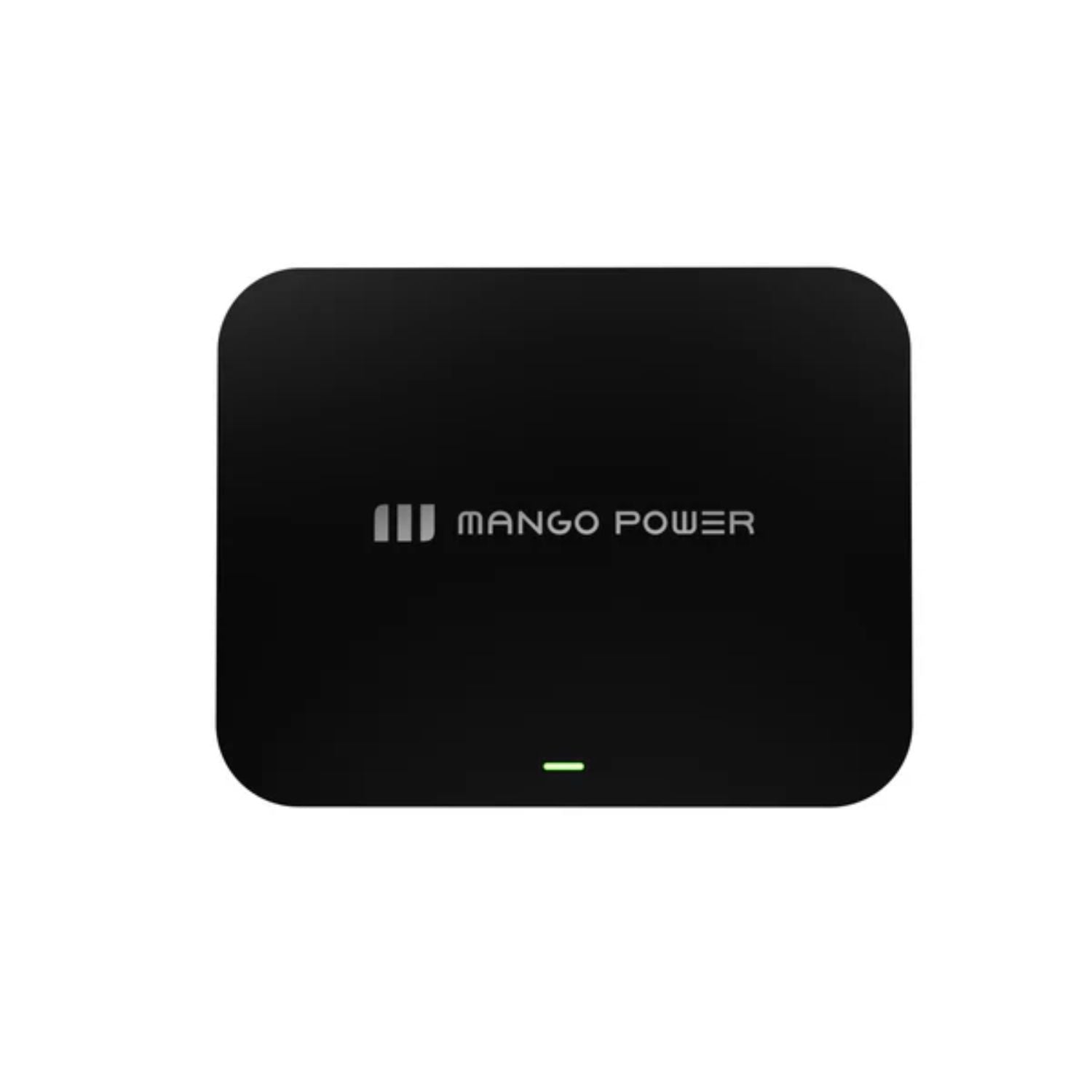

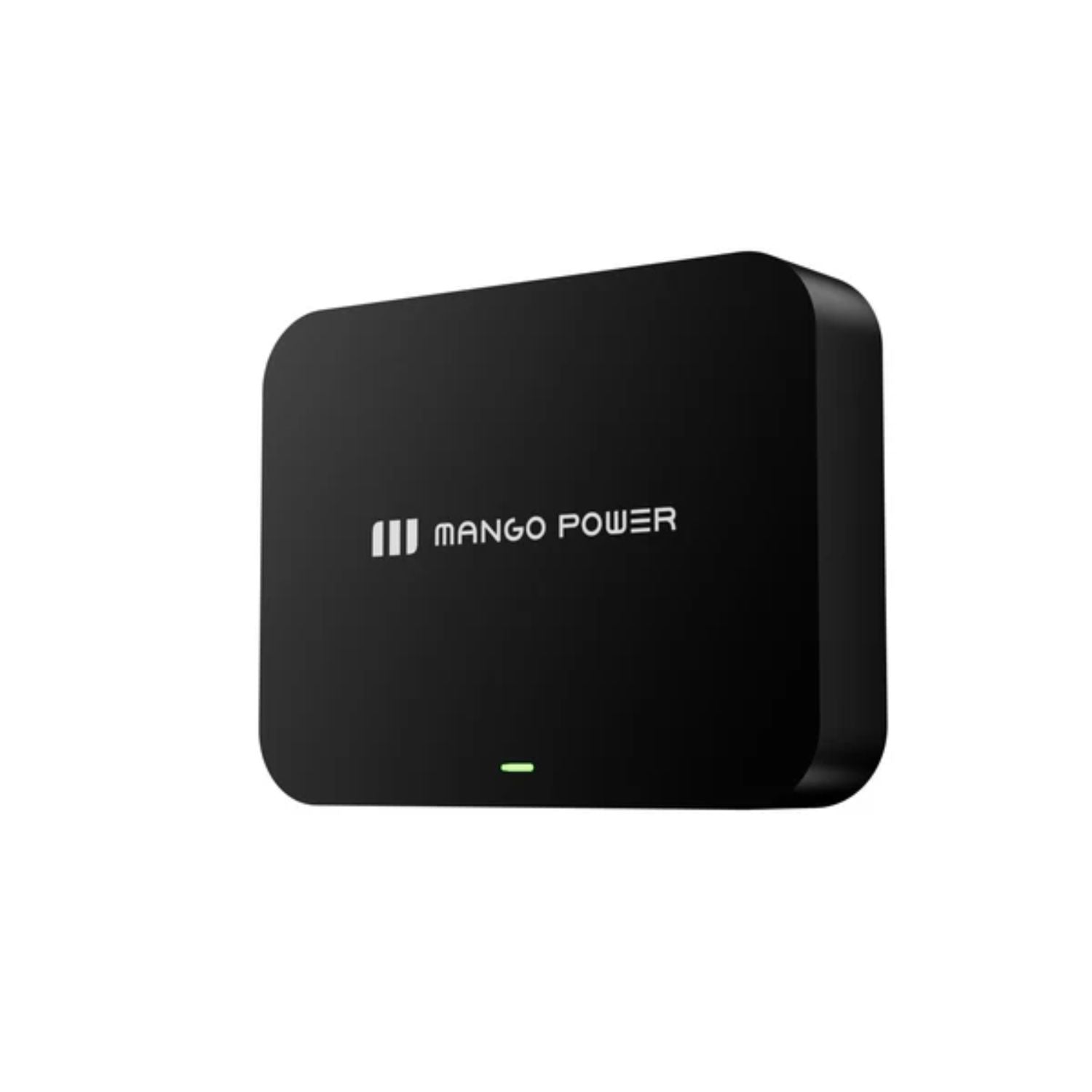

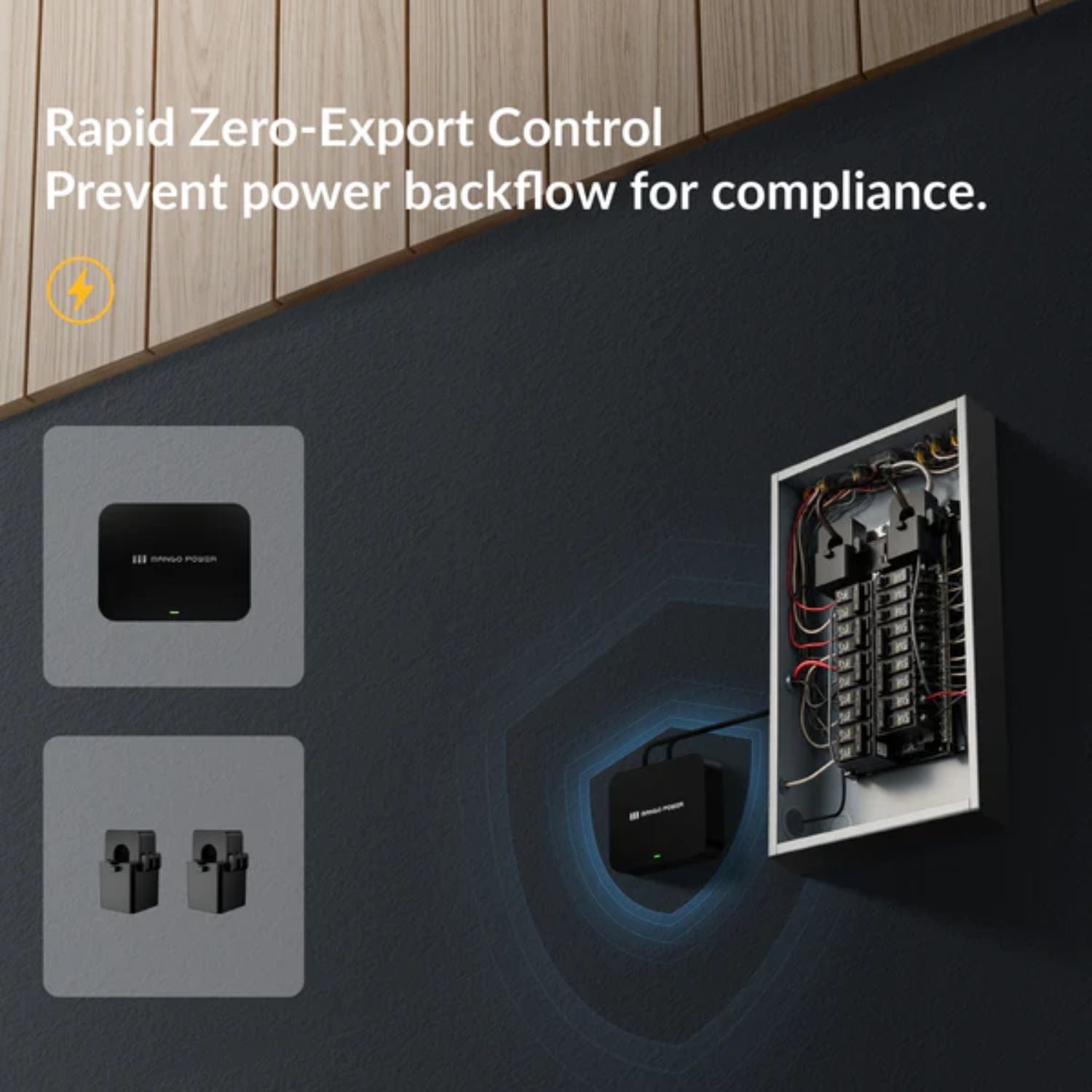

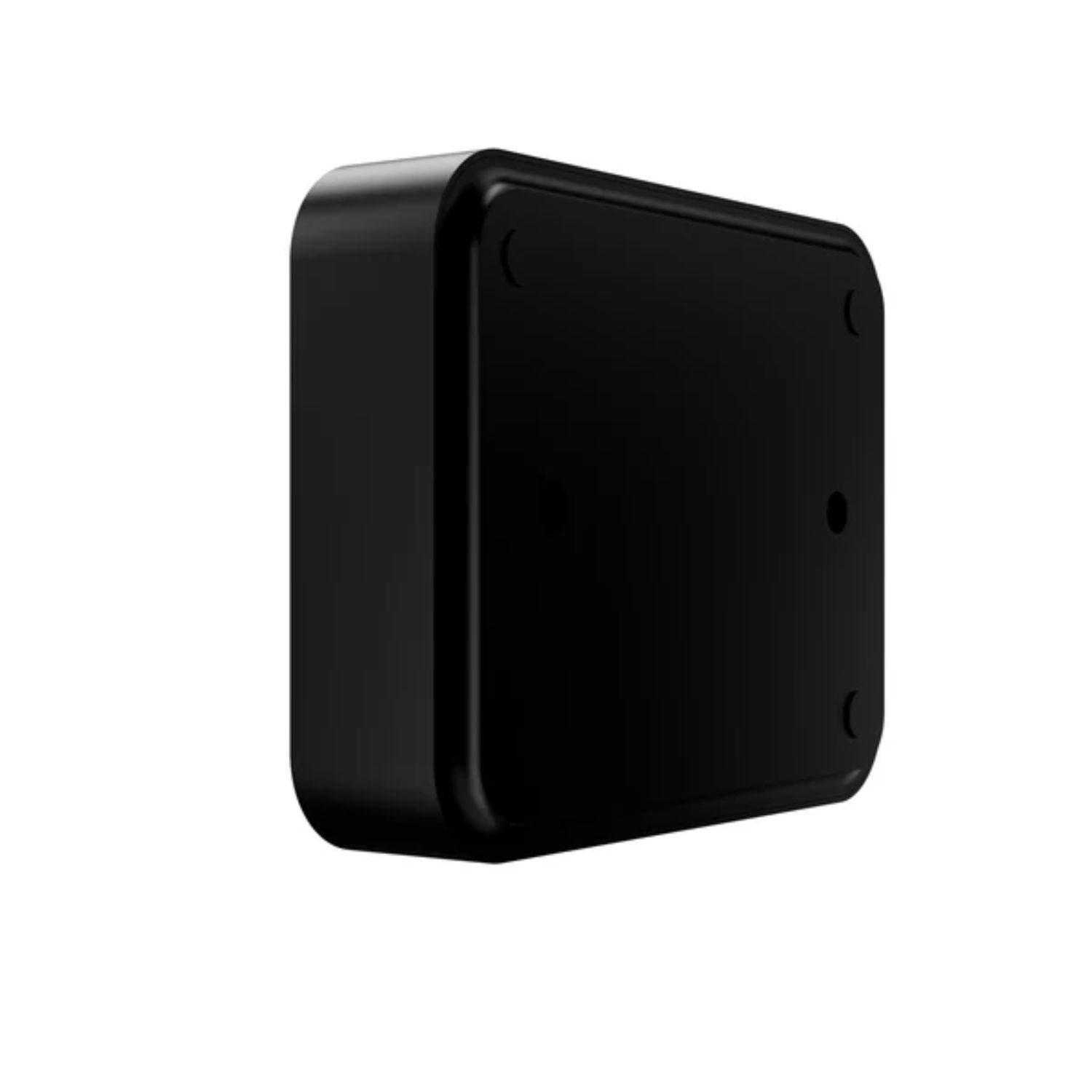

The gateway package adds a 200A Smart Gateway Lite. It connects to the L1 and L2 lines at your main panel, monitors power flow and limits export so power does not backfeed into the utility grid. You bind it to the microinverters in the app, where the anti-backflow function is on by default.

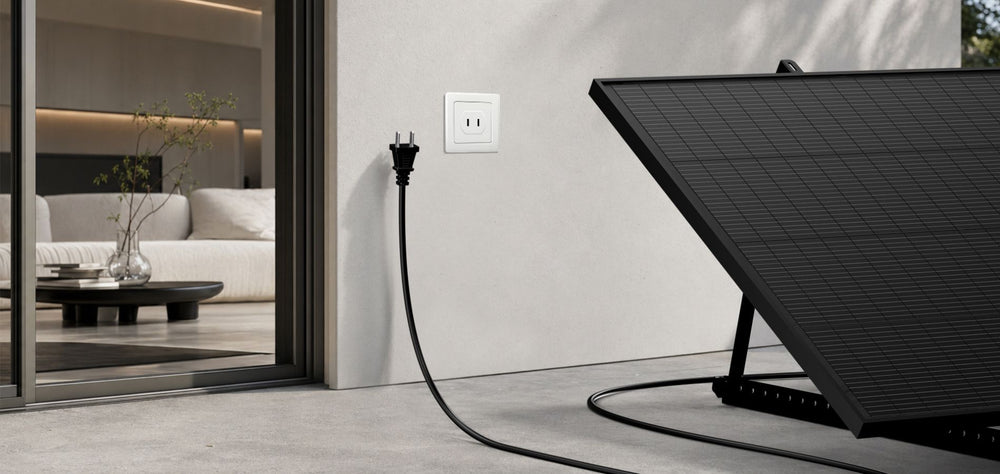

Backyard or Patio. Set the four panels on their stands in a south-facing spot with no shading, then run the trunk cable to a nearby outlet.
Flat Roofs and Carports. Mango lists flat roofs, carports, balconies and ground-mounted setups as suitable spots, as long as the location gets enough sun and has an outlet nearby.
Renters Who May Move. Mango designed the kit to be taken down and moved. Check your lease, your utility and your local rules first.
Homes With a Battery System. Mango says the S PIPV works alongside UL-certified home battery storage systems. It does not support off-grid Mango Power E configurations.
Mango contrasts this kit with conventional rooftop systems. It operates at low DC voltage, needs no roof penetrations and can be moved later. Both still depend on your utility's interconnection rules and local codes.

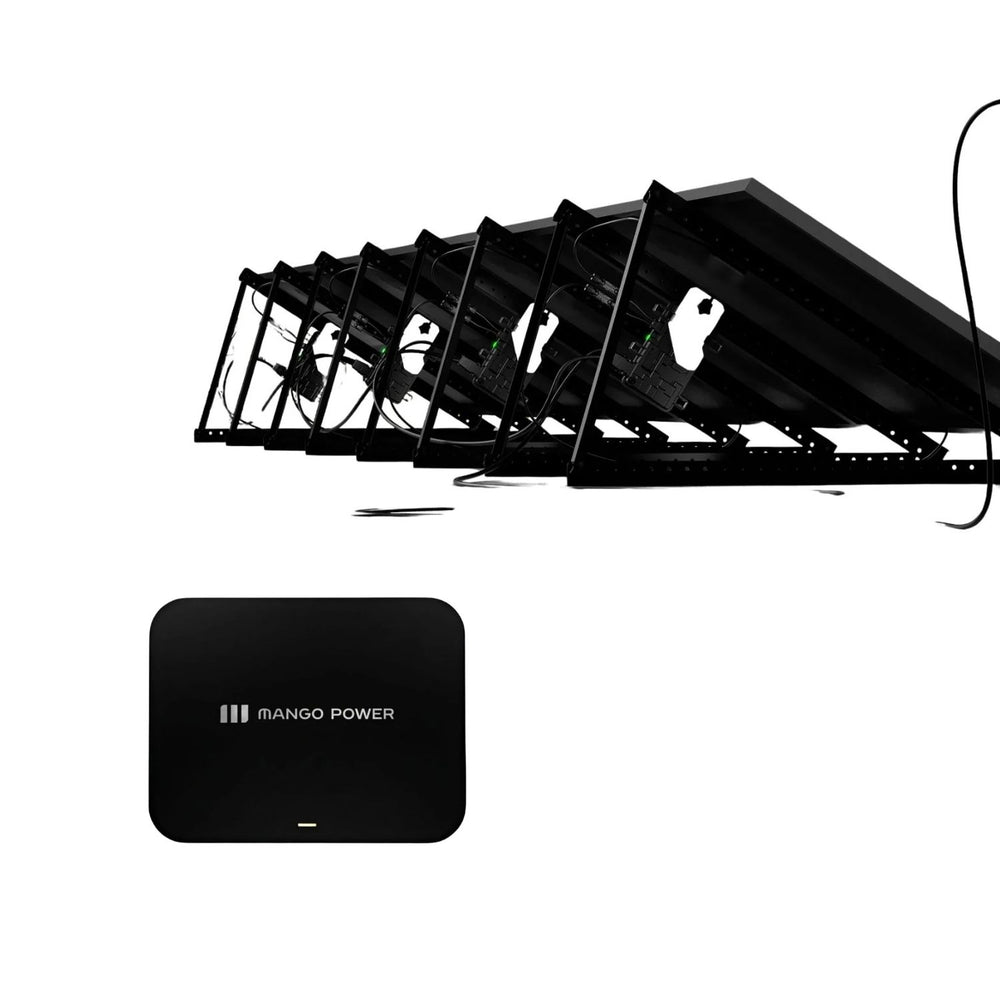

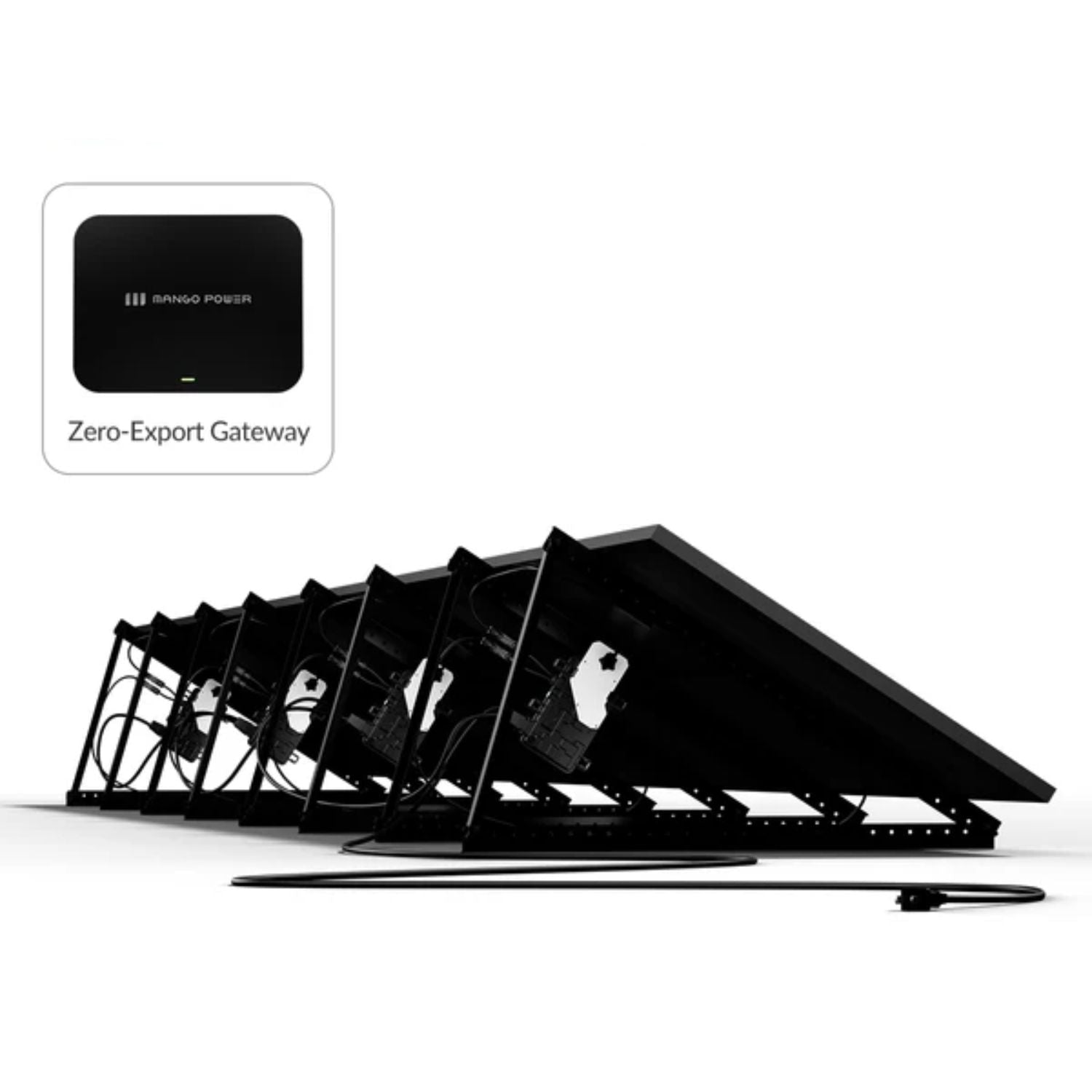

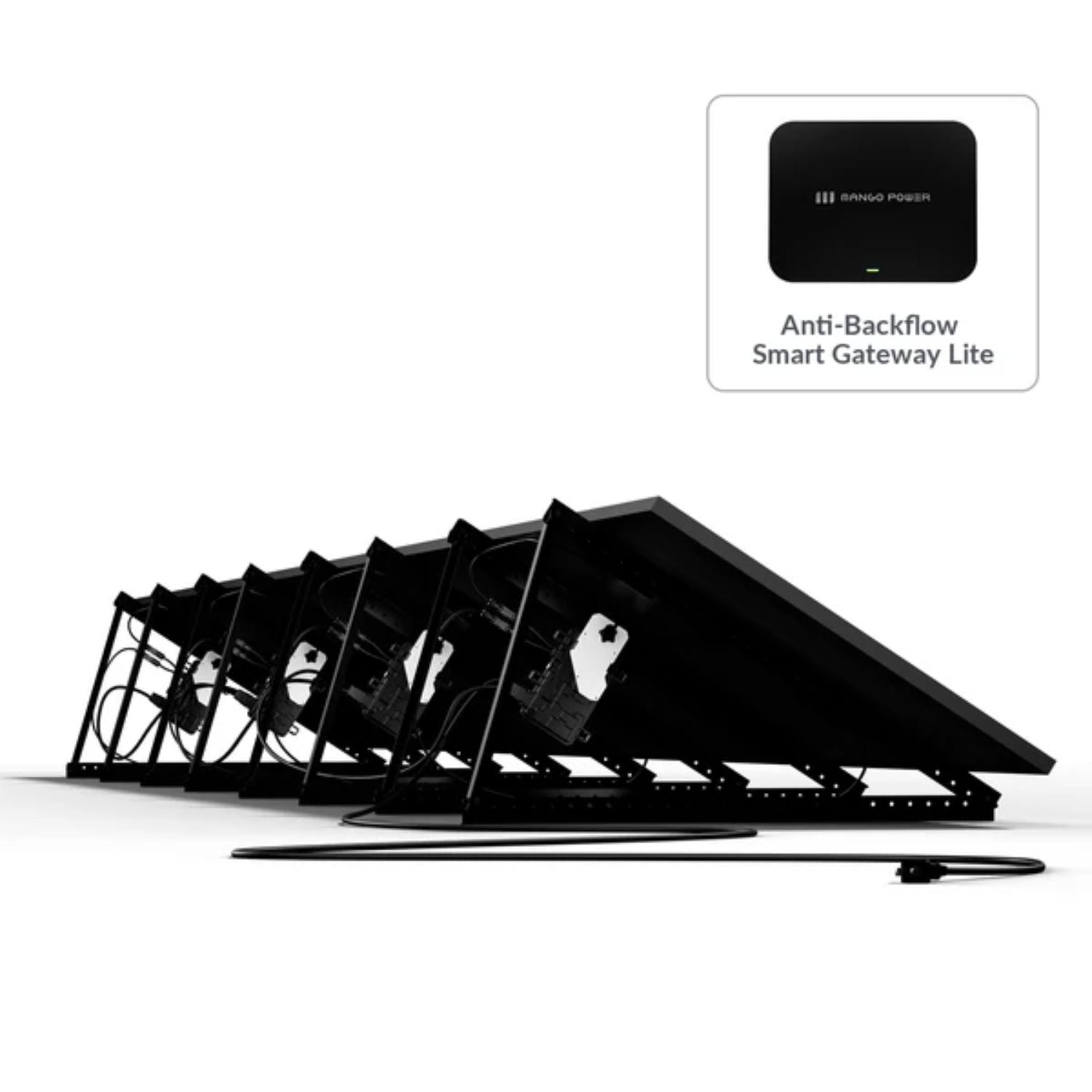

Both packages include the same panels, microinverters, stands and 4-in-1 cable. The gateway package adds the Smart Gateway Lite for zero-export control, which Mango requires for S PIPV systems outside Utah. Choose the base kit only if you already own a Smart Gateway Lite or Mango's guidance and your utility clearly allow it where you live.
Mango says to consult your local power utility before connecting the microinverters to the grid and to connect only after you have approval. Permitting or notification requirements depend on your Authority Having Jurisdiction. Plug-in solar is not allowed everywhere, so confirm the rules for your address first.
Mango states that the Smart Gateway Lite is required for all S PIPV systems outside Utah to enable zero-export, and that its use is subject to local grid interconnection approval. If you live outside Utah and buy the base kit, you will need a Smart Gateway Lite before the system can operate as Mango intends. The gateway connects to the L1 and L2 lines at your main electrical panel, so a licensed electrician should install it, and local codes and permits apply.
No. The microinverters are grid-tied, so they stop exporting when grid power is lost. Mango says the system can keep operating during an outage if your home has an energy storage system.
Mango estimates about 6 kWh per day from the 1.2 kW kit with 5 peak sun hours in good weather. Your results depend on sunlight, shading, tilt and season.
Mango explains that the S Pro microinverter is rated 240V and 500W, and firmware configures the S PIPV version to output 120V at 280W for plug-in use. Mango calls this standard factory power limiting for 120V grid compliance, not a defect.

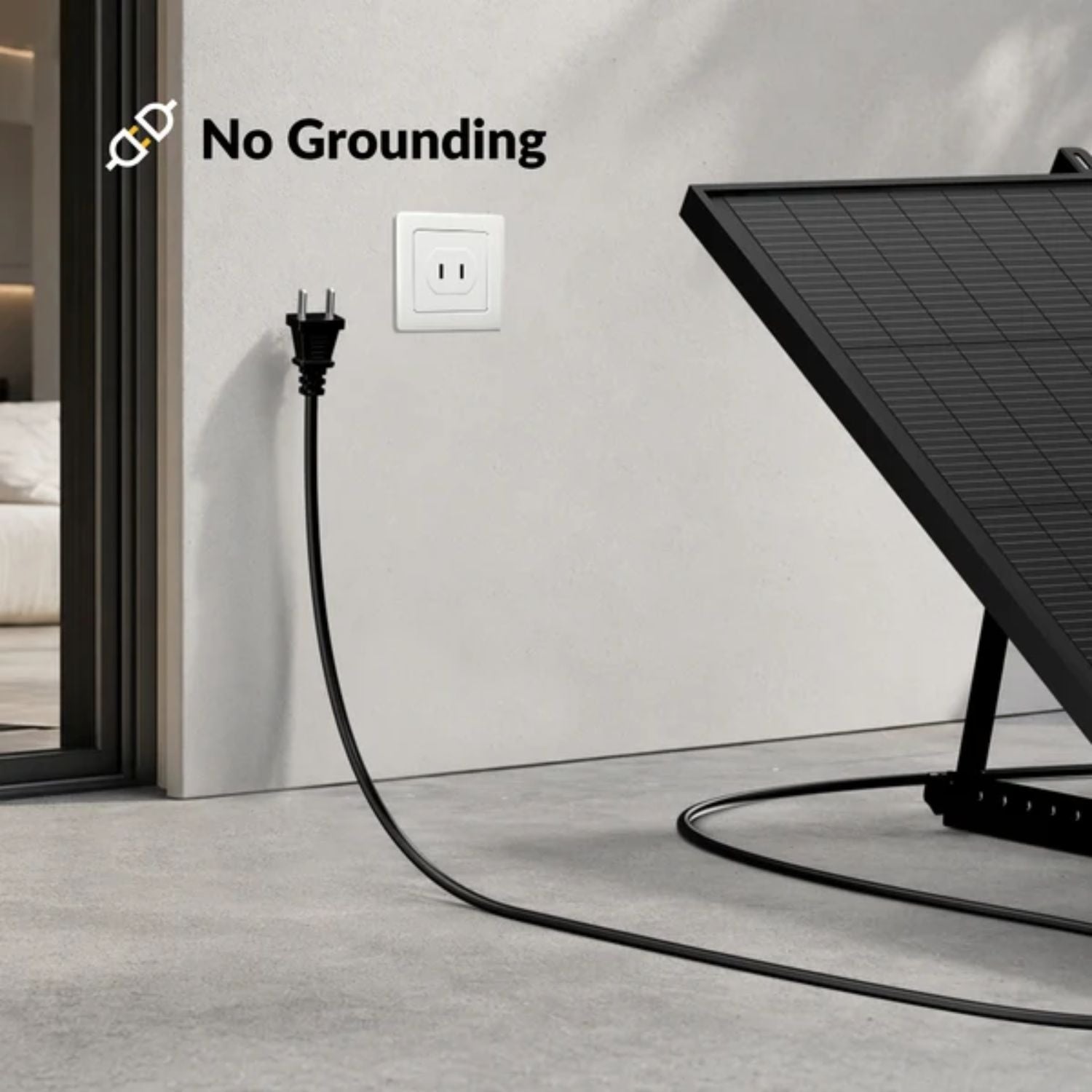

Mango says no additional grounding is required for the system. The AC trunk cable has no polarity requirement and can plug in either way.

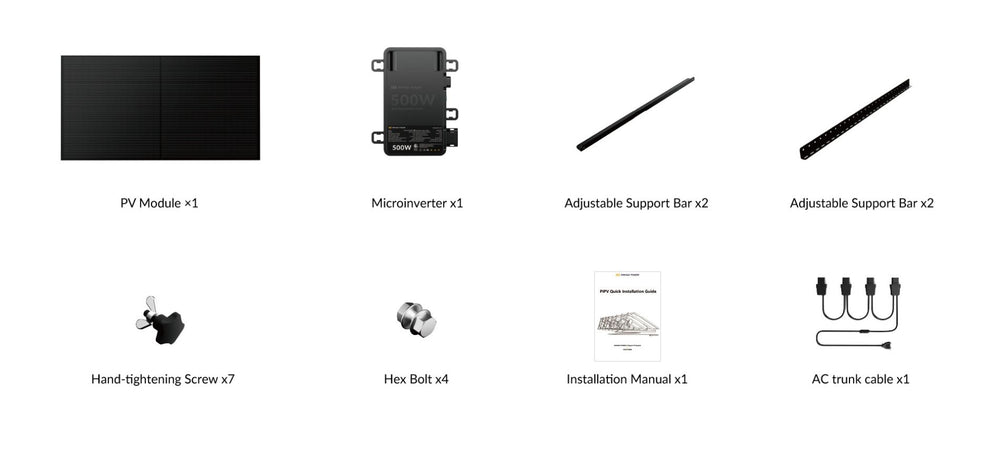

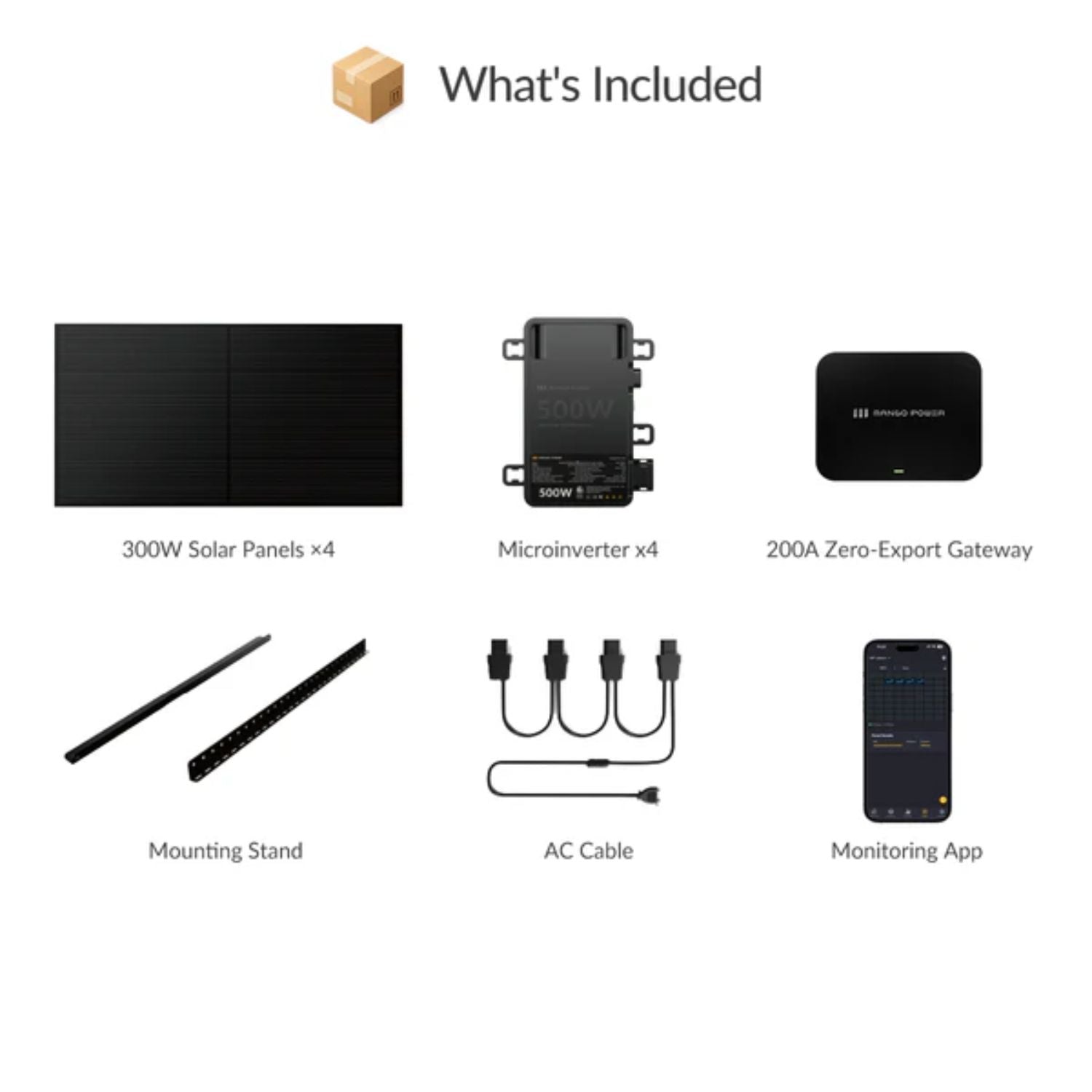

Mango lists each stand set as 2 adjustable support bars, 4 support frames, 7 hand-tightening screws and 4 hex bolts. The Plug-In Solar Kit + Smart Gateway Lite package adds 1 x Mango Power Smart Gateway Lite.
The Mango Power S PIPV 1200W Plug-In Solar System Kit gives you four independent 300W panels, outdoor-rated microinverters with a 25-year warranty and live app monitoring in a setup that plugs into a nearby outlet once your utility approves it. If you have questions about the gateway, utility approval or which package fits your home, the Outbound Power team is happy to help.
Mango Power S PIPV 1200W Plug-In Solar System Kit Specifications |
|
|---|---|
| System | |
| System Rating | 120V / 1200W (4 x 300W) |
| Solar Panels | 4 x 300W |
| Microinverters | 4 (1 per panel) |
| Daily Energy Estimate | About 6 kWh with 5 peak sun hours (Mango estimate) |
| Electrical (DC Per Panel) | |
| PV Peak Power @ STC | 300 W |
| PV Peak Operating Voltage @ STC | 36 V |
| PV Peak Operating Current @ STC | 8.39 A |
| MPPT Voltage Range | 16-60 V |
| Peak Power MPPT Voltage Range | 36-55 V |
| Start-Up Voltage | 22 V |
| Maximum Input Short Circuit Current | 25 A |
| Number of MPPTs | 1 per microinverter |
| MPPT Efficiency | 99.9% |
| Electrical (AC Per Microinverter) | |
| Nominal Output Power | 280 VA |
| Maximum Continuous Output Current | 2.33 A |
| Nominal Output Voltage / Range | 120 V (L-N) / 90-160 V |
| Nominal Frequency / Range | 60 Hz / 55-65 Hz |
| Power Factor Setting | 0.99 |
| Power Factor (Adjustable) | 0.8 leading to 0.8 lagging |
| Total Harmonic Distortion | < 3% |
| CEC Efficiency | 97% |
| Cable Kit | |
| Cable Type | 14AWG-2C-TC ER |
| AC Connectors | 4 per cable |
| Cable Length | 5/3 m (extension cable length) |
| Plug Type | 1-15P |
| Polarity | No polarity requirement |
| Installation | |
| Mounting | Tilt stands for ground, patio or flat surfaces |
| Securing | Sandbags or stones, or self-tapping screws into concrete |
| Tools Needed | M6 socket wrench, adjustable wrench, cable ties |
| Additional Grounding | Not required |
| Grid Connection | Utility interconnection approval and local codes apply |
| Zero-Export Gateway | Smart Gateway Lite (required outside Utah per Mango) |
| General | |
| Dimensions (L x W x H) | 1675 x 880 x 30 mm |
| Weight per Panel Set | 19.15 kg (module + bracket + microinverter) |
| Enclosure Rating | NEMA Type 6P / IP68 |
| Enclosure Protection Class | Class II double-insulated |
| Cooling | Natural convection |
| Operating Temperature | -40 to +65 °C (-40 to +149 °F) |
| Storage Temperature | -40 to +85 °C (-40 to +176 °F) |
| Altitude | < 4000 m (< 13,123 ft) |
| Noise | < 25 dB |
| Communication | Wi-Fi Mesh |
| Indicator | 1 x LED |
| App | Mango Power App |
| Compliance | |
| Grid Compliance | CA Rule 21 (UL 1741-SB), UL 62109-1, UL 1741/IEEE 1547, FCC Part 15 Class B |
| Rapid Shutdown | UL Listed PV rapid shutdown equipment, NEC 2014/2017/2020/2023 Section 690.12, CEC 2021 Section 64-218 |
| Additional Listings | CEC Listed, UL 3700, UL 1741-SA, IEEE 1547:2018, CSA C22.2 |
| Smart Gateway Lite (Gateway Package Only) | |
| Rating | 200A zero-export gateway |
| Function | Limits export to the grid (anti-backflow) |
| Warranty | |
| Microinverter and PV | 25 years |
| Cable Kit | 3 years |
