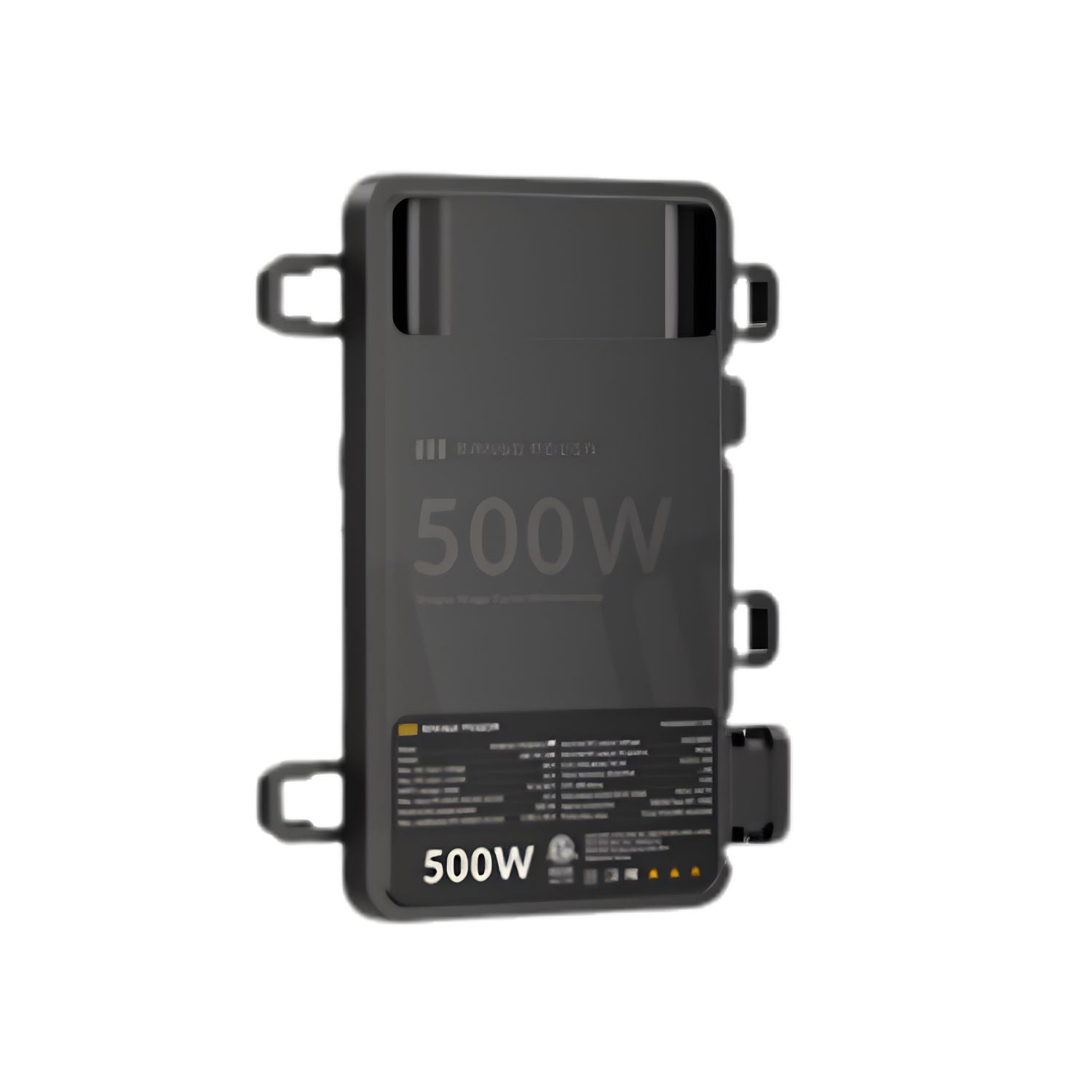

The Mango Power S Pro 5000W Microinverter Set is a grid-tied 240V kit with ten S Pro 500W microinverters, a 10-in-1 AC cable and a Smart Gateway Lite for zero-export control. You supply the solar panels and racking. Each microinverter converts one panel's DC output into grid-compliant AC. Choose the 240V Hardwire version, or the 240V Plug-In version whose 10-in-1 cable ends in an L14-30 plug.
The set suits homeowners and installers planning an array of up to ten panels who want panel-level monitoring and control over export to the grid. Mango recommends installation by a licensed electrician. Connecting solar to the grid is subject to your utility's interconnection approval, the NEC and local codes.
Each microinverter tracks one panel with its own MPPT, so Mango says shade on one panel will not drag down the whole system. Mango lists 97% CEC efficiency, 97.5% peak efficiency and 99.9% MPPT efficiency, with a 16-60V MPPT range and a 22V start-up voltage.
Mango's single-stage cyclo topology removes extra conversion stages, which Mango says cuts the component count by 30%. Mango rates each microinverter for a 219,000-hour design life and backs it with a 25-year warranty. Night power draw is under 50 mW.
The enclosure carries NEMA Type 6P and IP68 ratings, cools by natural convection with no fan, and runs from -40°F to +149°F. It is Class II double-insulated, measures 221.5 x 129.0 x 32.5 mm and weighs 1.2 kg without its bracket. Mango has you mount each unit below its panel with the label facing down.
Mango lists module-level shutdown in 100 microseconds, and the S Pro is UL Listed as PV rapid shutdown equipment under NEC Section 690.12. Its anti-islanding protection stops export as soon as grid power is lost, then waits for normal voltage and frequency before it resumes.
The included 200A Smart Gateway Lite tracks home usage, solar generation and grid flow in real time and limits export to the grid. You bind it to your microinverter group in the app, where the anti-backflow function is on by default.
The microinverters link to your home router over built-in Wi-Fi in a self-healing mesh. Nodes join on their own and reroute if one drops off. In the Mango Power App you map each microinverter to its panel position and watch output panel by panel.
Roofs With Shade or Several Orientations. Mango says independent panel tracking suits roofs with partial shading and panels facing different directions.
Homes With Battery Storage. Mango says the S Pro works with UL-certified home battery storage systems.
Utilities That Restrict Export. The included gateway limits power flowing back to the grid where your interconnection terms call for it.
Choosing Your Own Panels. Mango says the S Pro works with third-party modules whose voltage and current fall within its operating range, including 54-cell to 72-cell half-cell designs and qualifying bifacial modules.
Mango compares the S Pro with string inverters and says its independent MPPT keeps one shaded panel from cutting the output of the whole system. Each panel runs on its own low-voltage microinverter, and you can see each panel's output in the app.
Both versions include the same ten microinverters and Smart Gateway Lite. The Hardwire version's 10-in-1 cable runs to an AC junction box, then through a breaker to your main panel. The Plug-In version's 10-in-1 cable ends in an L14-30 plug for a matching receptacle. Either way, Mango recommends a licensed electrician, and utility approval and local codes apply.
Solar panels and racking are not included. Use one panel per microinverter, and keep each panel's open-circuit voltage within the 60V maximum input. Mango recommends a DC/AC ratio between 1.2 and 1.5 and lists 400-670W+ as the common panel range. The installer provides the AC junction box, terminal blocks, combiner box and circuit breakers. Mango also recommends a surge protection device.
Mango says to consult your utility and connect only after approval. A 240V grid-tied system must follow utility policy and the NEC, with any required registration and inspection. A licensed electrician should install the set and the in-panel Smart Gateway Lite, and local codes and permits apply. Mango requires the Smart Gateway Lite for S PIPV plug-in systems outside Utah. For this 240V set, your interconnection terms decide whether zero-export is required.
No. The set includes ten microinverters, a 10-in-1 AC cable and a Smart Gateway Lite. You choose panels that fit the microinverter's input range.
No. The S Pro is a grid-tie microinverter, so it cannot supply your home during an outage. Mango says it can keep operating if your home has an energy storage system.
Mango says that where an anti-backflow function is not required, the gateway does not need to be installed, but you must turn off the anti-backflow function in the app, since it is on by default. Your utility's interconnection terms decide which applies to you.
Mango lists up to 7 S Pro units on a 12AWG (20A) branch and up to 11 on a 10AWG (30A) branch, and notes that local regulations set the final number.
The 240V Plug-In L14-30 option comes with the 10-in-1 cable fitted with an L14-30 plug in place of the hardwire cable.
The Mango Power S Pro 5000W Microinverter Set gives each of up to ten panels its own sealed 500W microinverter with a 25-year warranty, plus a Smart Gateway Lite for zero-export control and whole-home data. If you would like help choosing panels, planning branch circuits or picking the hardwire or plug-in version, the Outbound Power team is ready to help.
Mango Power S Pro 5000W Microinverter Set With Zero-Export Gateway Specifications |
|
|---|---|
| Set | |
| Microinverters | 10 x Mango Power S Pro 500W (LBZ-PV-500) |
| Total Nominal Output | 5000W (10 x 500 VA) |
| AC Cable | Mango Power S Cable 10-in-1 (hardwire or L14-30 plug version) |
| Zero-Export Gateway | Mango Power Smart Gateway Lite (200A) |
| Solar Panels | Not included |
| Electrical (Input Per Microinverter) | |
| Commonly Used Module Power | 400-670+ W |
| Maximum Input Voltage | 60 V |
| MPPT Voltage Range | 16-60 V |
| Peak Power MPPT Voltage Range | 36-55 V |
| Start-Up Voltage | 22 V |
| Maximum Input Current | 16 A |
| Maximum Input Short Circuit Current | 25 A |
| Number of MPPTs | 1 |
| Inputs per MPPT | 1 |
| Electrical (Output Per Microinverter) | |
| Nominal Output Power | 500 VA |
| Maximum Continuous Output Current | 2.08 A / 2.40 A (240 V / 208 V) |
| Nominal Output Voltage / Range | 240 V (L-L) / 211-264 V; 208 V (L-L) / 183-228 V |
| Nominal Frequency / Range | 60 Hz / 55-65 Hz |
| Power Factor Setting | 0.99 |
| Power Factor (Adjustable) | 0.8 leading to 0.8 lagging |
| Total Harmonic Distortion | < 3% |
| Efficiency | |
| CEC Efficiency | 97% |
| Peak Efficiency | 97.5% |
| MPPT Efficiency | 99.9% |
| Night Power Consumption | < 50 mW |
| Compatibility | |
| PV Modules | 54-cell/108 half-cell, 60-cell/120 half-cell, 66-cell/132 half-cell, 72-cell/144 half-cell |
| Bifacial Modules | Compatible if within input requirements |
| Recommended DC/AC Ratio | 1.2-1.5 |
| Home Battery Systems | UL-certified home battery storage systems |
| Installation | |
| Panels per Microinverter | 1 |
| Max Units per Branch (12AWG, 20A) | 7 |
| Max Units per Branch (10AWG, 30A) | 11 |
| Grid Type | Single-phase or three-phase |
| Mounting | Below the PV module on the racking rail, label facing down |
| Clearance | At least 2 cm around the microinverter |
| Mounting Torque | 9 N·m |
| Installer-Supplied Parts | AC junction box, terminal blocks, combiner box, circuit breakers |
| Surge Protection | Passed 6000V surge test; SPD recommended |
| Installation | Licensed electrician recommended; utility approval, NEC and local codes apply |
| General | |
| Dimensions (L x W x H) | 221.5 x 129.0 x 32.5 mm |
| Weight (Without Bracket) | 1.2 kg per microinverter |
| Enclosure Rating | NEMA Type 6P / IP68 |
| Enclosure Protection Class | Class II double-insulated |
| Cooling | Natural convection (fanless) |
| Pollution Degree | III |
| Operating Temperature | -40 to +65 °C (-40 to +149 °F) |
| Storage Temperature | -40 to +85 °C |
| Altitude | 4000 m (< 13,123 ft) |
| Noise | < 25 dB |
| Communication | Wi-Fi (mesh) |
| Indicator | 1 x LED |
| App | Mango Power App |
| Rapid Shutdown | Module-level, 100 µs |
| Design Life | 219,000 hours |
| Compliance | |
| Grid Compliance | UL 1741:2023, UL 1741 SA:2021, UL 1741 SB:2021, CSA C22.2 No. 107.1:2021, IEEE 1547:2018, IEEE 1547.1:2020, HECO SRD 2.0, FCC Part 15 Class B, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 |
| Rapid Shutdown Listing | UL Listed PV rapid shutdown equipment, NEC 2014/2017/2020/2023 Section 690.12, CEC 2021 Section 64-218 |
| Additional Listings | CEC Listed, CA Rule 21 |
| Warranty | |
| Microinverter | 25 years |
