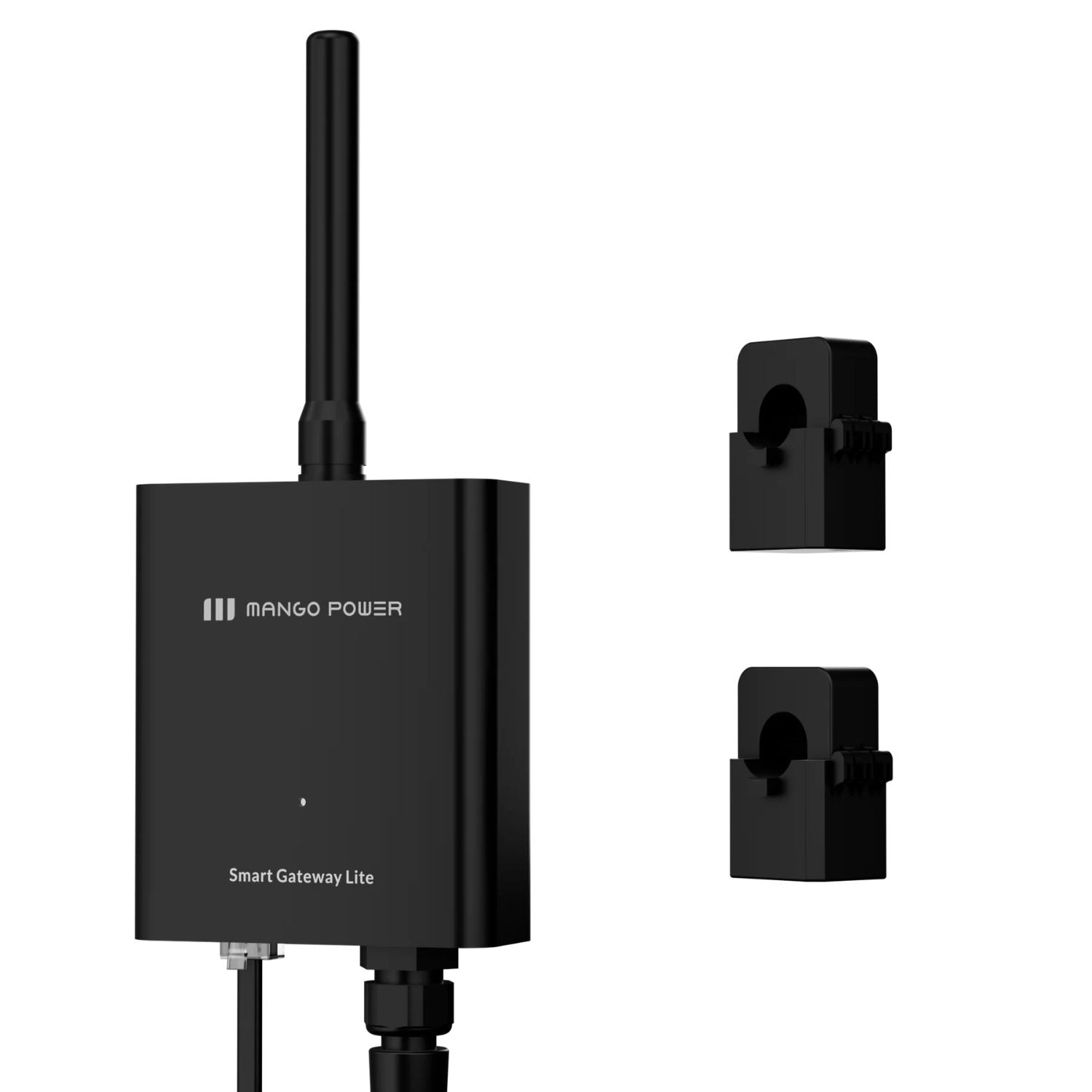

The Mango Power Smart Gateway Lite is a 200A smart meter built for Mango Power S series microinverters. Current sensors on the L1 and L2 lines in your main panel let it watch power flow between your home and the grid, and it adjusts the microinverters' output in real time so excess solar does not flow back to the utility.
It is for owners of Mango Power S PIPV plug-in solar kits and S Pro microinverter systems whose location restricts export. Mango states that the Smart Gateway Lite is required for all Mango Power S PIPV systems outside Utah to enable zero-export, and that its use is subject to local grid interconnection approval.
Mango rates the anti-backflow response at 0.25 seconds or less. When your home uses less power than your panels produce, the gateway tells the microinverters to reduce output so generated power stays in your home.
The gateway handles a maximum operating current of 200A and runs on 100-240V (L-N) at 60 Hz. Mango lists ±0.5% voltage and power accuracy and ±0.5% current accuracy from 2 to 80A, so you can see how much power your home is using in real time.
The Smart Gateway Lite detects phase sequence errors and reversed CT direction. If the app shows a negative value on L1 or L2 after installation, you can correct the CT direction in the gateway's settings.

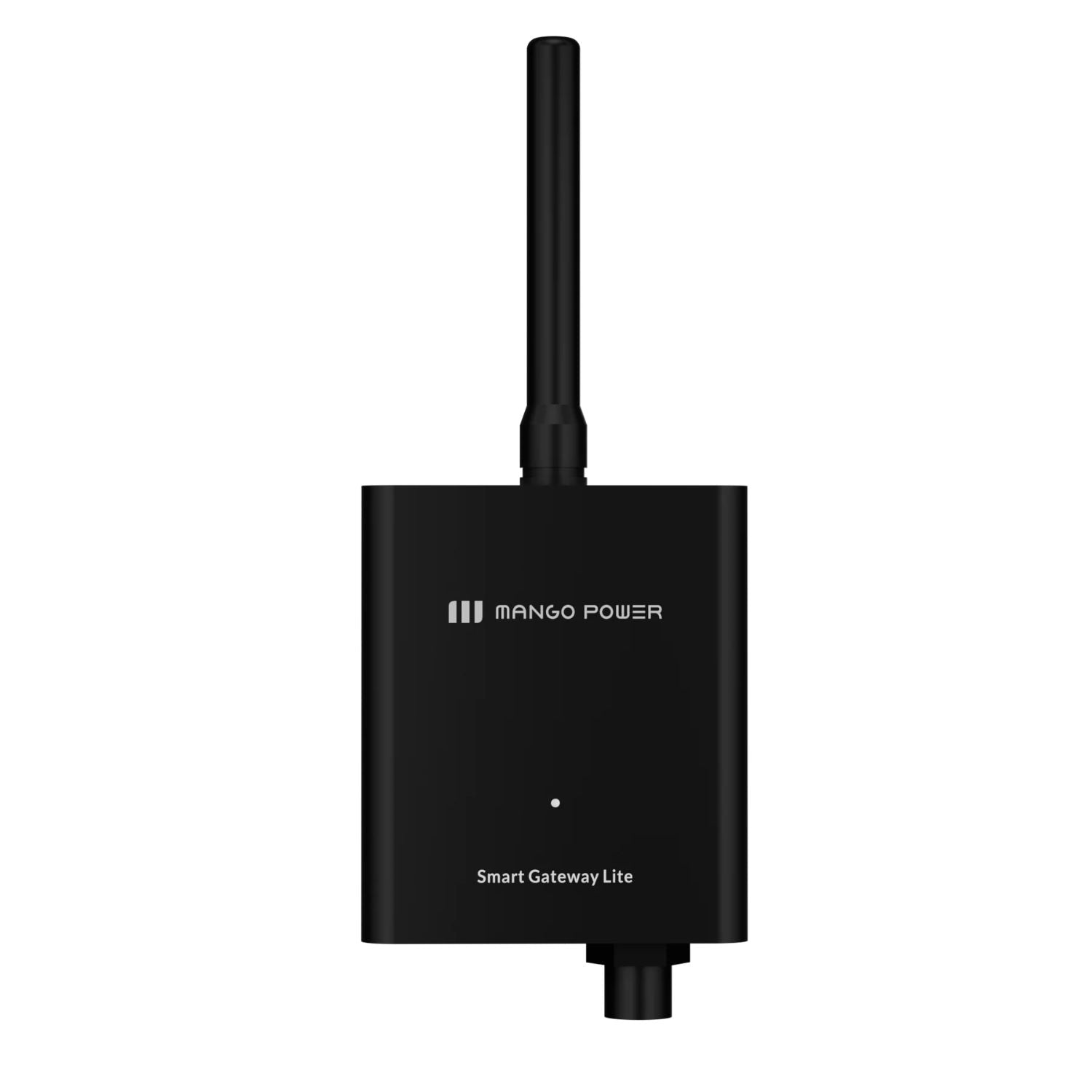

The gateway connects to 2.4GHz Wi-Fi, with a range of 30 m (100 ft) indoors and 50 m (160 ft) outdoors. Data history is stored in the cloud and shown in the Mango Power App. A status LED flashes green during normal operation and shows red patterns for voltage, CT or communication faults.
The gateway weighs 0.2 kg, draws under 1W and mounts on a wall or surface with 3M double-sided tape. It is rated IP20 for indoor use only. If you mount it inside a metal electrical panel, route the antenna outside the enclosure so the signal can get through.
Plug-In Solar Outside Utah. S PIPV owners outside Utah need the Smart Gateway Lite to enable zero-export, subject to local grid interconnection approval.
S Series Systems With Export Limits. Where your utility does not allow solar to feed the grid, the gateway keeps your Mango Power S microinverters from exporting.
Homes With More Than One Array. One Gateway Lite can manage several Mango Power S device groups on the same Wi-Fi network.
Mango says you do not need a separate gateway for each PIPV system. One Gateway Lite can be bound to multiple device groups and still manage anti-reverse flow, as long as its CT clamps sit on the main L1 and L2 lines and every device uses the same Wi-Fi network.
The gateway is what provides anti-reverse flow protection for Mango Power S microinverters. Mango notes that in many U.S. states grid feed-in is not permitted for plug-and-play systems, and says the Gateway Lite is required there. Your state, utility and local rules decide which applies to you.

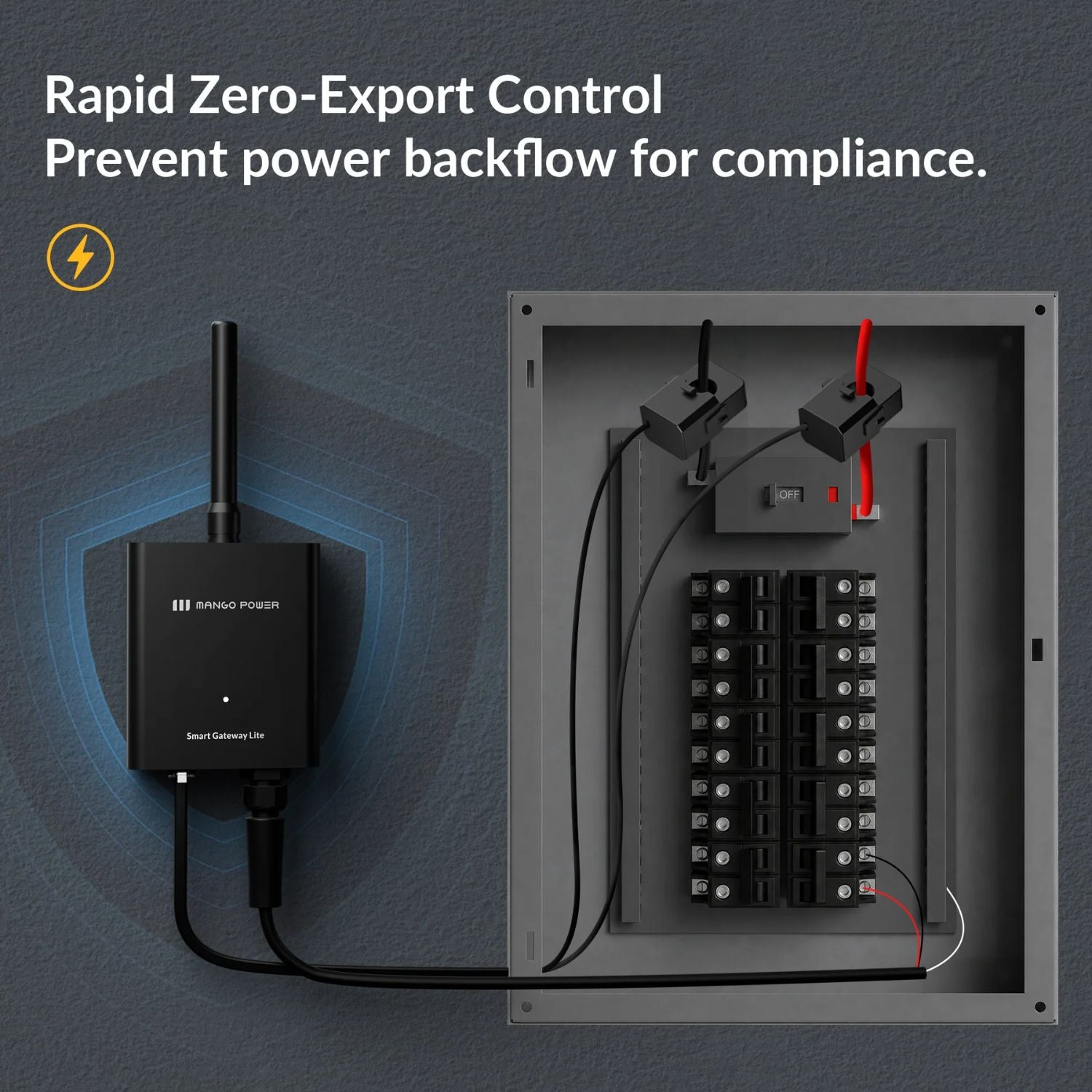

Mango says mounting and connecting the device to the power grid must be done by a qualified electrician only. The CTs clamp onto the L1 and L2 busbars below the main breaker, and the voltage sampling leads connect to L1 and L2 branch breakers plus the neutral and ground busbars. Hire a licensed electrician, follow local codes and permits, and get your utility's interconnection approval.
The gateway and microinverters must be on the same 2.4GHz Wi-Fi network. Mango warns that mesh systems or multiple access points, even with the same network name, can break communication and stop anti-reverse flow from working. Aim for a signal stronger than -50 dBm at the gateway.
No. Mango designed the Smart Gateway Lite for Mango Power S series microinverters only.
You bind it in the app by entering the gateway's serial number in your device group. If it is installed but not bound, Mango says the gateway and microinverters cannot communicate, anti-reverse flow will not work and the microinverters will not generate power.
If the CT clamps are not on the L1 and L2 lines of the main breaker, the gateway cannot see your total home load. The microinverters then limit output to the load they can detect. Unstable Wi-Fi on either device can also interrupt generation.
The Mango Power Smart Gateway Lite gives your Mango Power S microinverters fast zero-export control, 200A whole-home metering and app monitoring, backed by a 3-year warranty. If you have questions about whether your system needs it or how it fits your panel, the Outbound Power team is glad to help.
Mango Power Smart Gateway Lite Specifications |
|
|---|---|
| Electrical | |
| AC Input Voltage Range | 100-240 V (L-N) |
| Nominal AC Frequency | 60 Hz |
| Max. Operating Current | 200 A |
| Power Consumption | < 1 W, < 10 VA |
| Insulation Resistance | Input and output terminals to casing > 100 MΩ |
| Measurement | |
| Zero-Export Response | ≤ 0.25 s |
| Voltage Accuracy | ±0.5% |
| Current Accuracy | ±0.5% (2-80 A), ±1% (1-2 A), ±2% (0-1 A) |
| Power Accuracy | ±0.5% |
| Mains Frequency Accuracy | 45-65 Hz, ±0.2% |
| Phase Sequence Error Detection | Yes |
| CT Direction Reverse Connection Detection | Yes |
| Compatibility | |
| Compatible Microinverters | Mango Power S series only (S PIPV, S Pro) |
| Systems per Gateway | Multiple device groups on the same Wi-Fi network |
| Required for | Mango Power S PIPV systems outside Utah (zero-export) |
| Communication | |
| Interface | Wi-Fi (2.4 GHz) |
| Max. RF Power | < 20 dBm |
| Communication Range | 30 m (100 ft) indoors, 50 m (160 ft) outdoors |
| App | Mango Power App |
| Data Storage | Cloud-dependent (app history) |
| Installation | |
| Installer | Qualified electrician only; local codes, permits and utility interconnection approval apply |
| CT Placement | L1 and L2 busbars below the main breaker |
| Voltage Sampling | L1 and L2 branch breakers, neutral and ground busbars |
| Powering Method | Hard wired |
| Mounting Type | Wall-mount / surface-mount (3M double-sided tape) |
| Location | Indoor use only; antenna outside any metal panel |
| General | |
| Dimensions (W x H x D, Without Antenna) | 80 x 68 x 27 mm |
| Weight | 0.2 kg |
| Ingress Protection Rating | IP20 |
| Operating Temperature | -25 to 55 °C (-13 to 131 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | ≤ 95% (without condensation) |
| Altitude | ≤ 2000 m (6562 ft) |
| Warranty | |
| Warranty | 3 years |
