Empower Your Off-Grid Adventures or Optimize Your Home Solar System with the Rich Solar 20 Amp MPPT Solar Charge Controller

This intelligent device maximizes your solar energy harvest, ensuring efficient and reliable battery charging for RVs, boats, cabins, and more.

Rich Solar 20 Amp MPPT Solar Charge Controller Features

Automatically detects 12V or 24V DC system voltages
Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

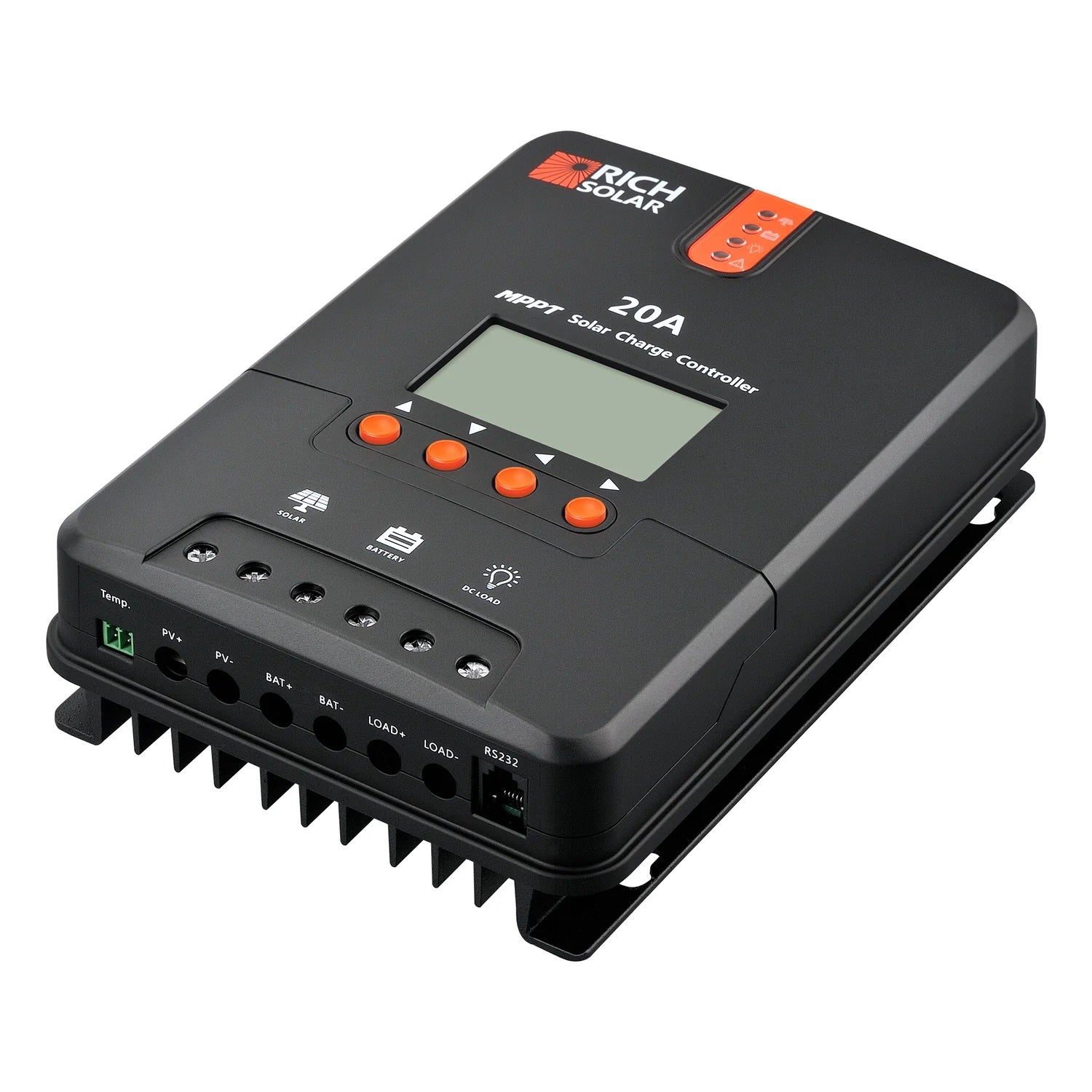

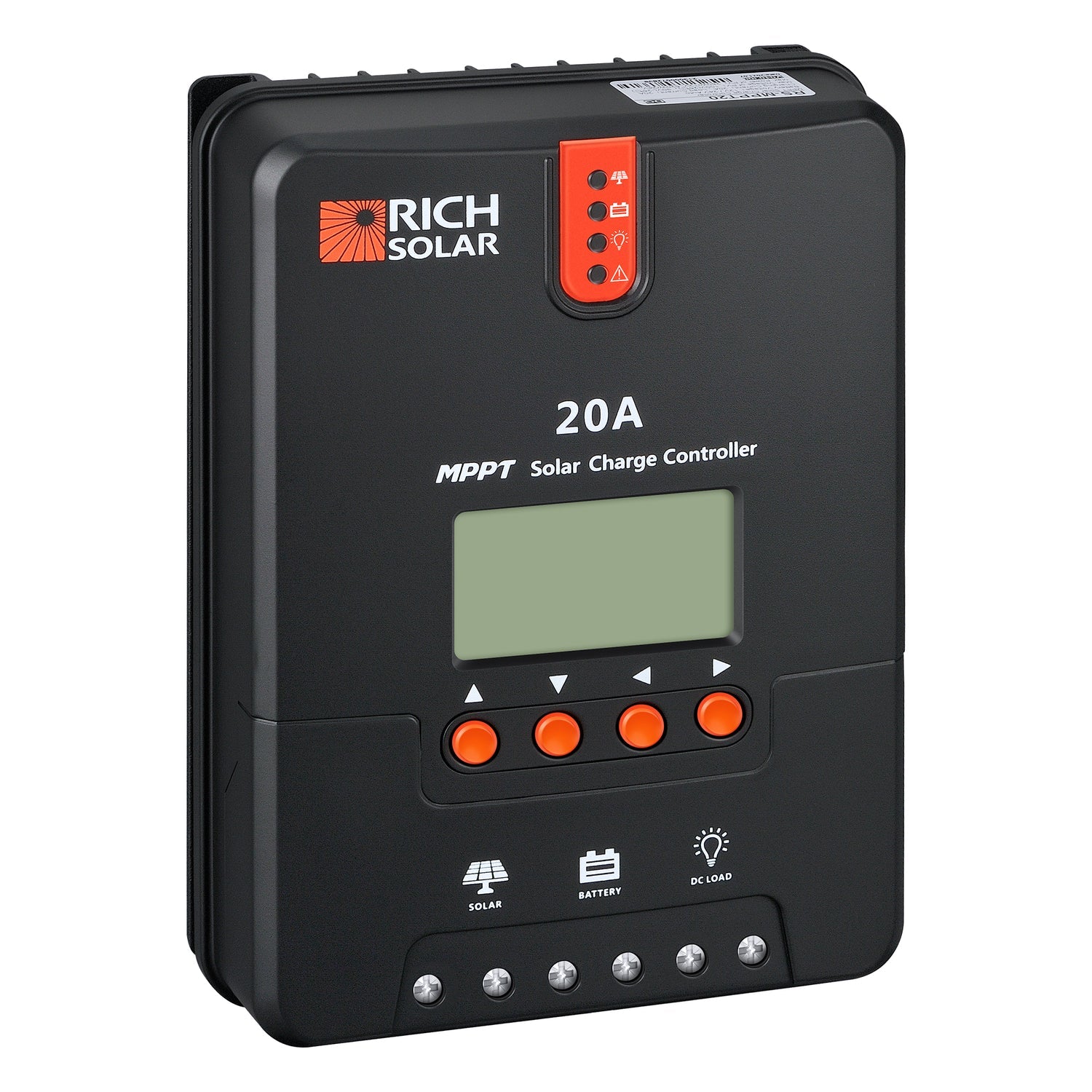

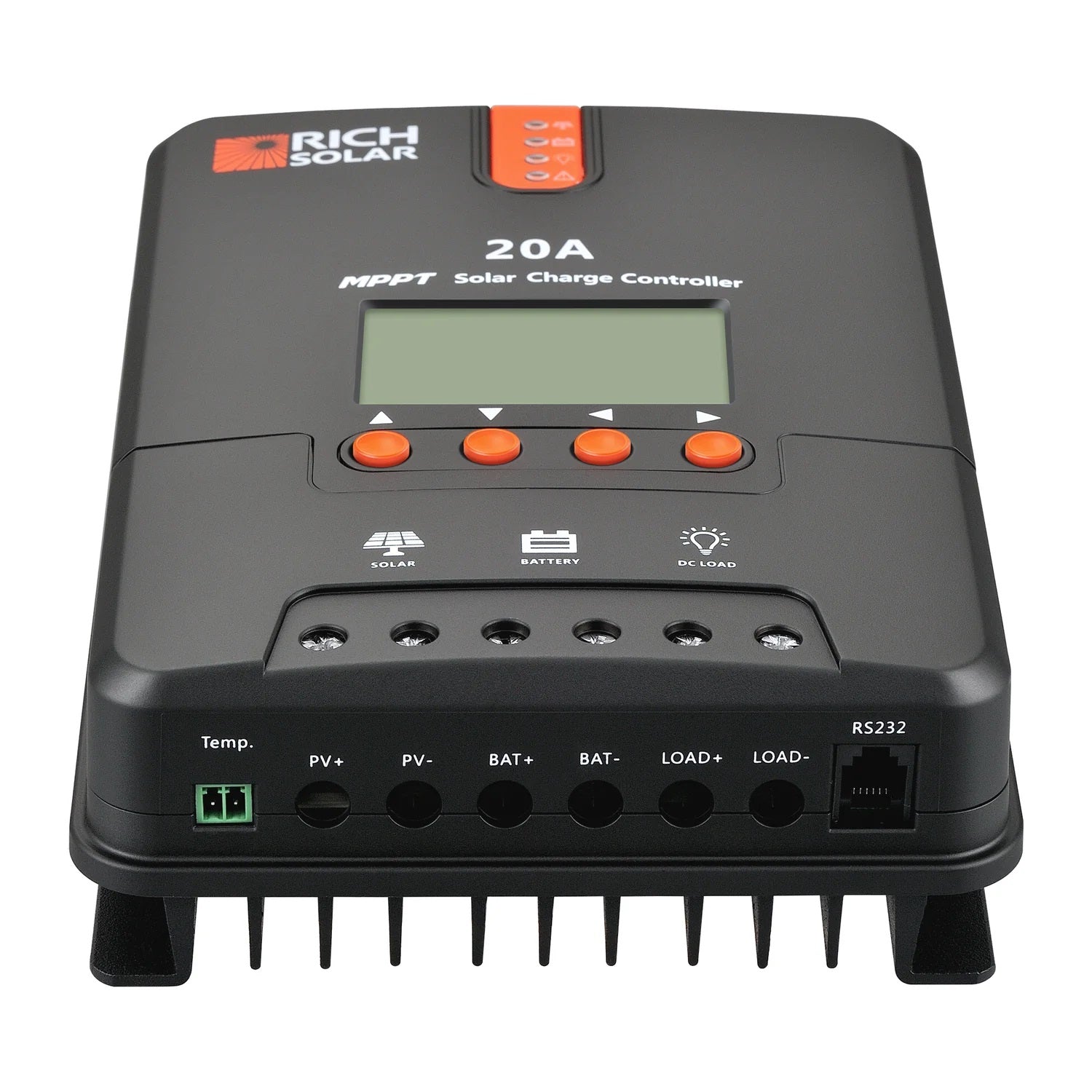

LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
Features diverse load control; also capable of charging over-discharged lithium batteries

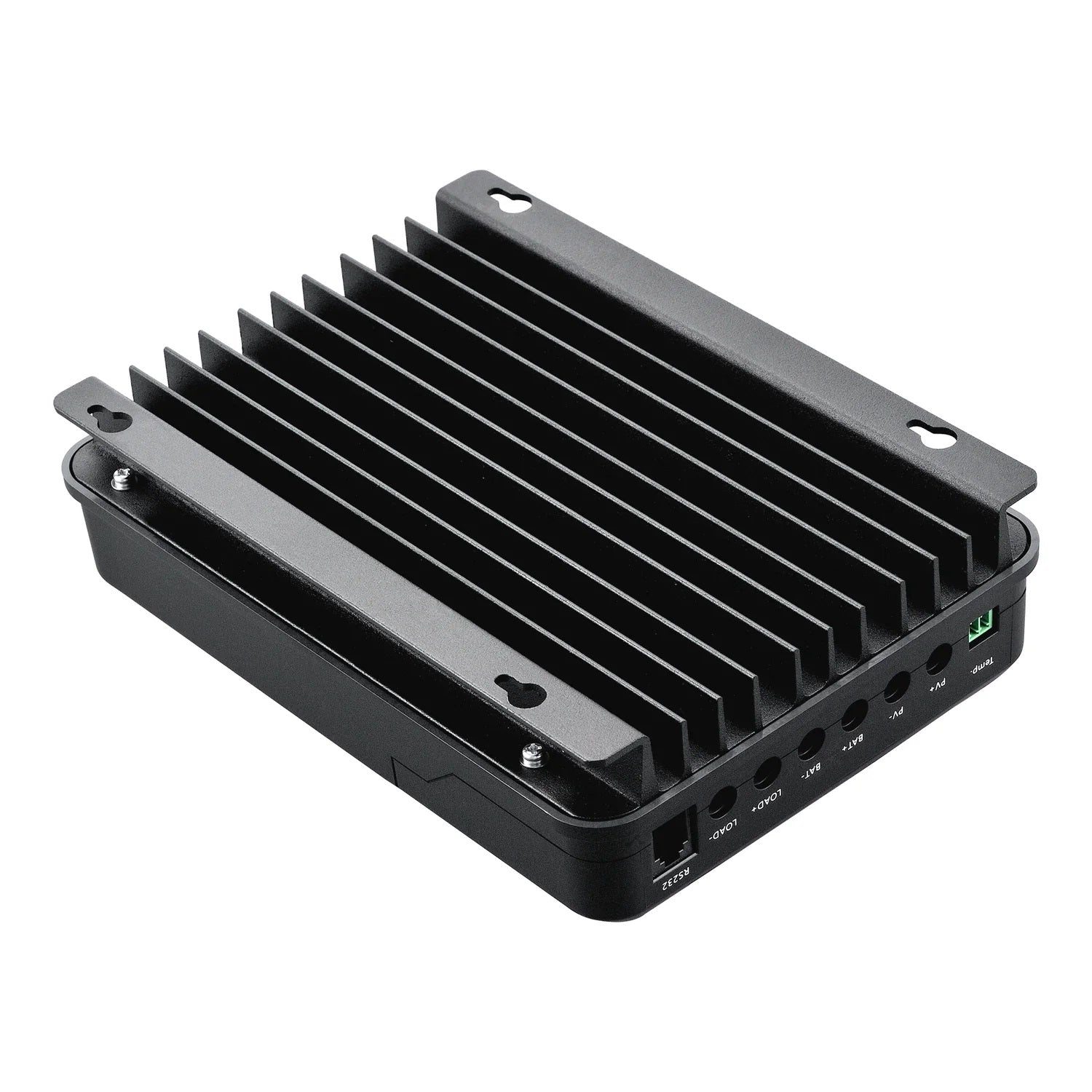

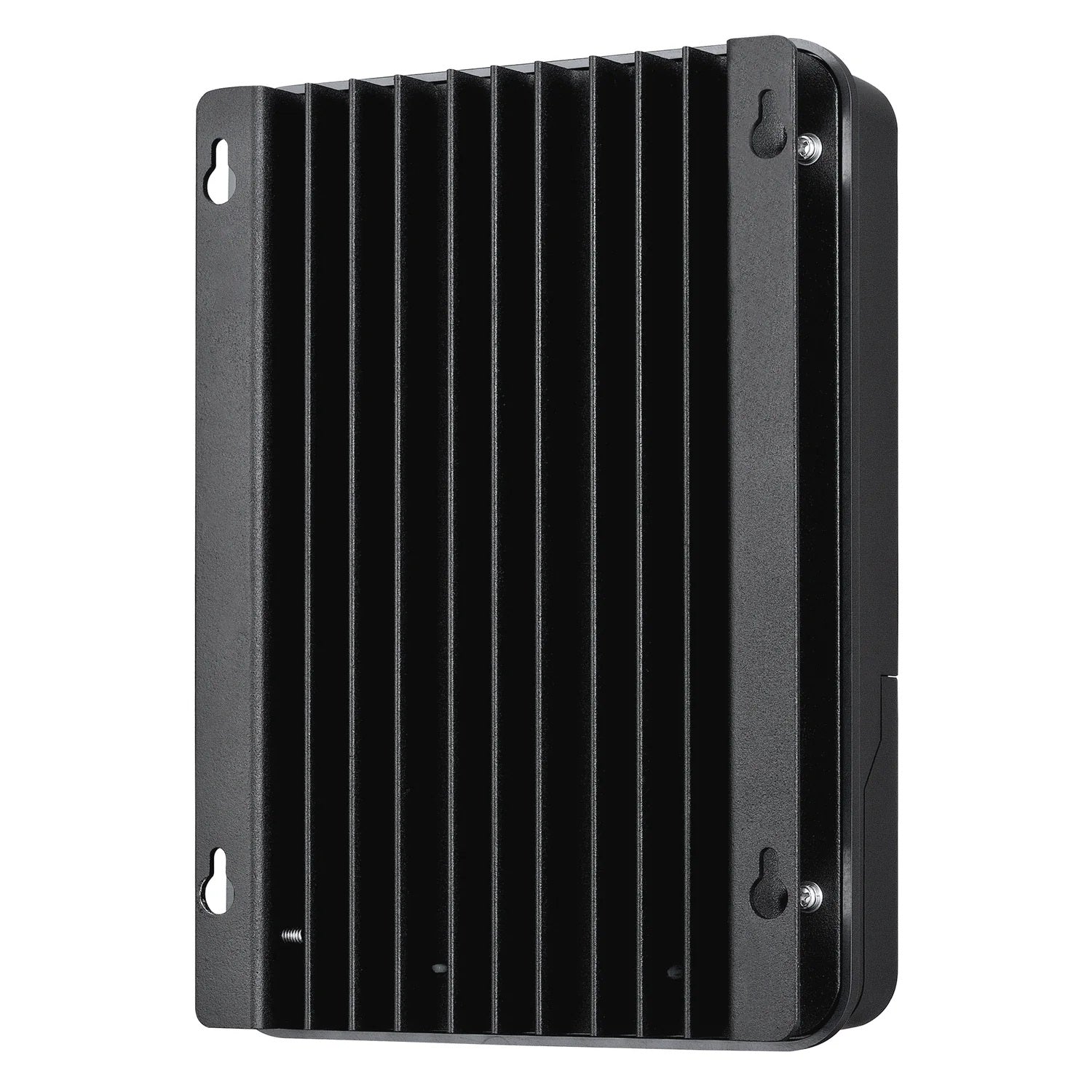

Die-cast aluminum design allows for efficient heat dissipation
RS232 port to communicate with BT-1 Bluetooth module.

What's In The Box

1 x RICH SOLAR 20 Amp MPPT Solar Charge Controller

Rich Solar 20 Amp MPPT Solar Charge Controller Specifications

Nominal System Voltage:	12V/24V Auto Recognition
Rated Battery Current:	20A
Rated Load Current:	20A
Max. PV Input Short Current:	25A
Max. Battery Voltage:	32V
Max Solar Input Voltage:	100 VDC
Mounting Oval:	0.30 x 0.18 in
Net Weight:	3.08 lb
Discharge Circuit Voltage Drop:	≤ 0.15V
Overall Dimension:	8.27 x 5.94 x 2.34 in
