The Rich Solar 200 Watt Solar Kit Pairs a MEGA 200 Panel With a BRAVO 30 MPPT Controller for Expandable 12V Charging
The Rich Solar 200 Watt Solar Kit is a 12V solar charging kit built around one MEGA 200 monocrystalline panel and a BRAVO 30 30A MPPT charge controller. It produces about 0.7kWh per day with 4 peak sun hours, enough to keep an RV, trailer, boat or cabin battery charged for lights, fans, a water pump and small electronics.

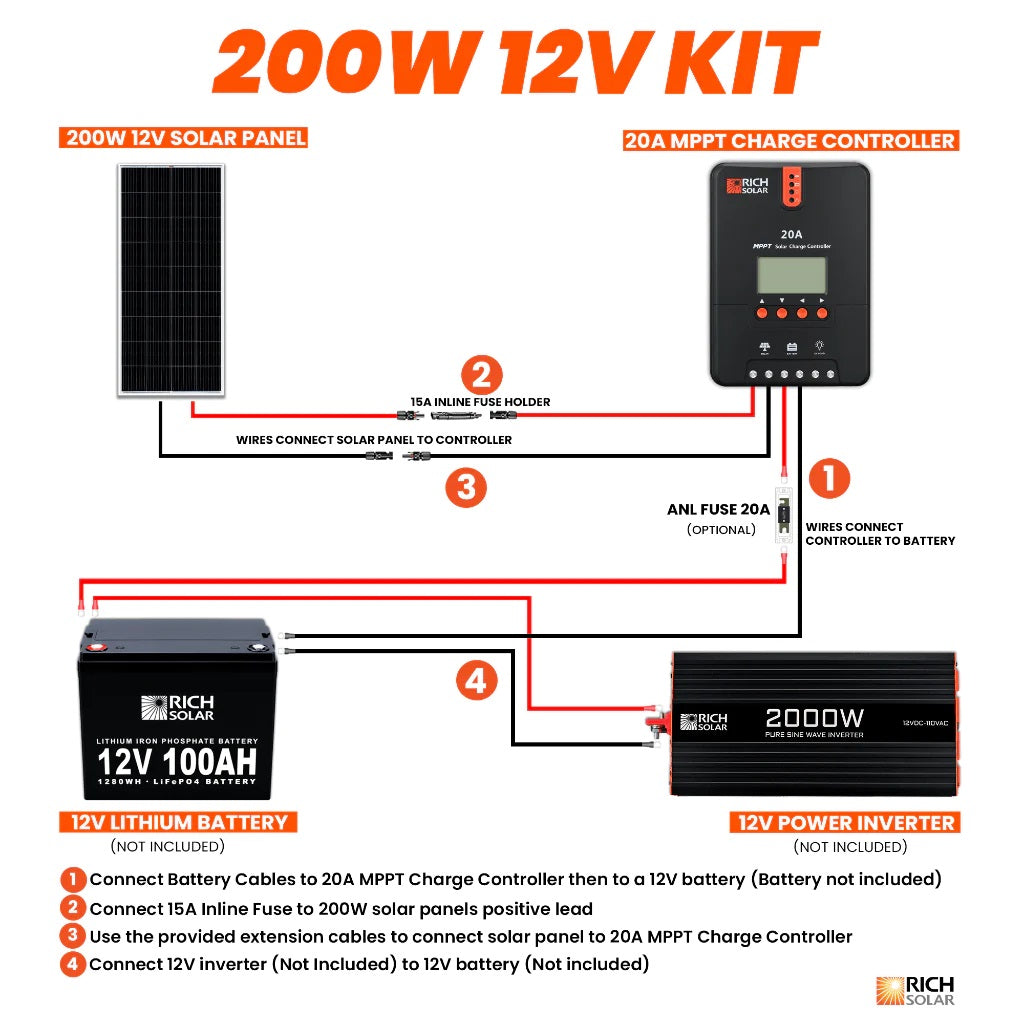

The kit includes everything between the panel and the battery: a set of four Z brackets, a cable entry housing for a clean roof pass-through, a 30 ft panel-to-controller cable set, a 10 ft controller-to-battery cable set and a 15A inline fuse. Add a 12V battery, and an inverter if you want AC power, to finish the system.
Rich Solar 200 Watt Solar Kit Features
MEGA 200 Monocrystalline Panel
The MEGA 200 generates 10.9A at its maximum power point to charge 12V batteries. It is built with anti-reflective coated tempered glass and an anodized aluminum frame, performs well in low light, and carries a 25-year power output warranty and 10-year workmanship warranty.
BRAVO 30 MPPT Charge Controller
The BRAVO 30 uses an MPPT algorithm with up to 99.5% tracking efficiency and 98% peak conversion efficiency, and it stays stable in low light or partial shade. It auto-detects 12V or 24V systems and supports GEL, AGM, flooded, calcium, LiFePO4 and custom battery profiles.
Built-In Bluetooth and Clear Display
An LCD and LED display shows solar input and battery status at a glance, and built-in Bluetooth lets you monitor the system from the RICH SOLAR app. An optional remote meter and temperature sensor are available.
Full System Protection
The controller protects against over-voltage, reverse polarity, short circuits and over-temperature, with an IP43-rated circuit board and IP22 connections. The included 15A inline fuse adds circuit protection on the panel side.
Plenty of Room to Expand
The BRAVO 30 is rated for about 500W of solar on a 12V system and 1,000W on a 24V system. With one 200W panel, you can add more compatible Rich Solar panels later without changing the controller.
Real-World Applications
RVs and travel trailers. Keep house batteries charged for lights, fans and the water pump while camping off-grid.
Boats. Maintain house batteries at the mooring and while cruising.
Cabins and sheds. Run lighting and small electronics without running power lines.
Vans. Start with one panel on a small roof and add a second as your power needs grow.
How It Compares to Common Alternatives
Versus buying components separately. The kit bundles a matched panel, controller, cables, brackets, cable entry housing and fuse, so you do not have to work out wire sizes and connectors yourself.
Versus the 400 Watt Solar Kit. The 400W kit uses two MEGA 200 panels with the same BRAVO 30 controller for about 1.4kWh per day. Start with the 200W kit if roof space or budget is limited, and add a panel later.
Versus a PWM kit. An MPPT controller like the BRAVO 30 converts excess panel voltage into charging current, typically harvesting more energy than a PWM controller, especially in cool weather.
Is This Kit the Right Fit
-
Battery. The kit does not include a battery. It charges 12V lead-acid, AGM, gel or LiFePO4 batteries.
-
AC power. Add an inverter if you want to run household appliances from the battery.
-
Roof space. The MEGA 200 panel measures 58.7 x 26.8 x 1.2 inches and weighs 24 pounds.
-
Daily energy. Plan on about 0.7kWh per day with 4 peak sun hours. Actual output depends on location, season, tilt and shading.
This may be a good fit if
- You want a complete solar charging kit for a 12V RV, trailer, boat or cabin
- You have modest daily power needs
- You want app monitoring and MPPT efficiency
- You plan to add more panels later
Common Questions
Does the Kit Include a Battery or Inverter?
No. This is a solar charging kit. It includes the panel, controller, mounting brackets, cable entry housing, cables and fuse. The battery and inverter are sold separately.
Can I Use This Kit With a Lithium Battery?
Yes. The BRAVO 30 has a LiFePO4 charging profile and works with other lithium and lead-acid battery types.
Can I Add More Panels Later?
Yes. The BRAVO 30 is rated for about 500W of solar at 12V and up to 1,000W at 24V, with an 8V to 100V solar input range. Stay within the controller's input voltage and current limits.
What Is the Cable Entry Housing For?
It gives the solar cables a clean pass-through on an RV or van roof on the way to the controller.
What's Included
- 1 x 200 Watt Monocrystalline Solar Panel (RS-M200)
- 1 x BRAVO 30A MPPT Charge Controller (RS-MPPT30PB)
- 1 x Mounting Z Bracket Set, 4 Brackets per Set (RS-ZB4C)
- 1 x Cable Entry Housing (RS-C2B)
- 1 x 15A Inline Fuse Holder With Fuse (RS-SC15F)
- 1 x 30 ft 10 AWG Solar Cable Set, Panel to Controller (RS-30101)
- 1 x 10 ft 10 AWG Battery Cable Set, Controller to Battery (RS-1010)
A Simple Start With Room to Grow
The Rich Solar 200 Watt Solar Kit gives you a MEGA 200 panel, a Bluetooth MPPT controller with room to expand, and all the cables and brackets needed for a clean 12V install. At Outbound Power, we help customers pick the right batteries and inverters to complete their systems. If you have questions, our team is happy to help.
Rich Solar 200 Watt Solar Kit Specifications
|
| Kit |
| Model |
RS-K2002 |
| Solar Array |
200W (1 x 200W) |
| System Voltage |
12V |
| Estimated Daily Energy |
About 0.7kWh with 4 peak sun hours |
| MEGA 200 Solar Panel (RS-M200) |
| Maximum Power (Pmax) |
200W |
| Maximum Power Voltage (Vmp) |
18.4V |
| Maximum Power Current (Imp) |
10.9A |
| Open Circuit Voltage (Voc) |
21.8V |
| Short Circuit Current (Isc) |
11.6A |
| Maximum Series Fuse Rating |
15A |
| Operating Temperature |
-40°F to 185°F |
| Dimensions |
58.7 x 26.8 x 1.2 in |
| Weight |
24 lbs |
| Warranty |
25-year power output, 10-year workmanship |
| BRAVO 30 MPPT Charge Controller (RS-MPPT30PB) |
| Maximum Charging Current |
30A |
| Maximum Solar Input Current |
30A |
| Recommended Solar Power |
500W (12V), 1,000W (24V) |
| Nominal System Voltage |
12V/24V auto-detect |
| Solar Input Voltage Range |
8V to 100V |
| MPPT Voltage Range |
15V to 72V |
| Peak Conversion Efficiency |
98% |
| MPPT Tracking Efficiency |
Up to 99.5% |
| Battery Types |
GEL, AGM, flooded, crystal, calcium, LiFePO4, LTO, LCO, custom |
| Monitoring |
LCD and LED display, built-in Bluetooth (RICH SOLAR app) |
| Protection |
Over-voltage, reverse polarity, short circuit, over-temperature |
| Protection Rating |
IP43 PCBA, IP22 connections |
| Dimensions |
7.0 x 5.5 x 2.9 in |
| Weight |
1.8 lbs |
| Certifications |
ETL, FCC, CE, RoHS |
