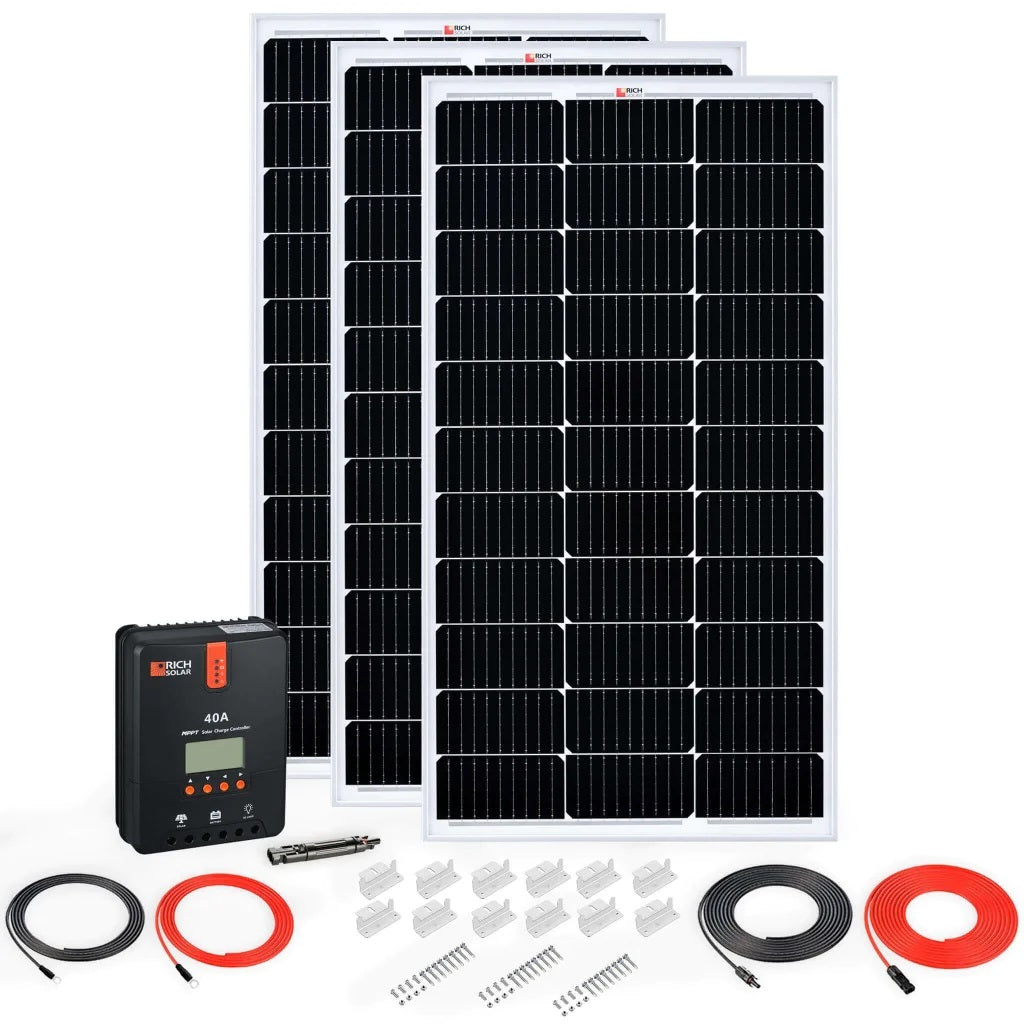

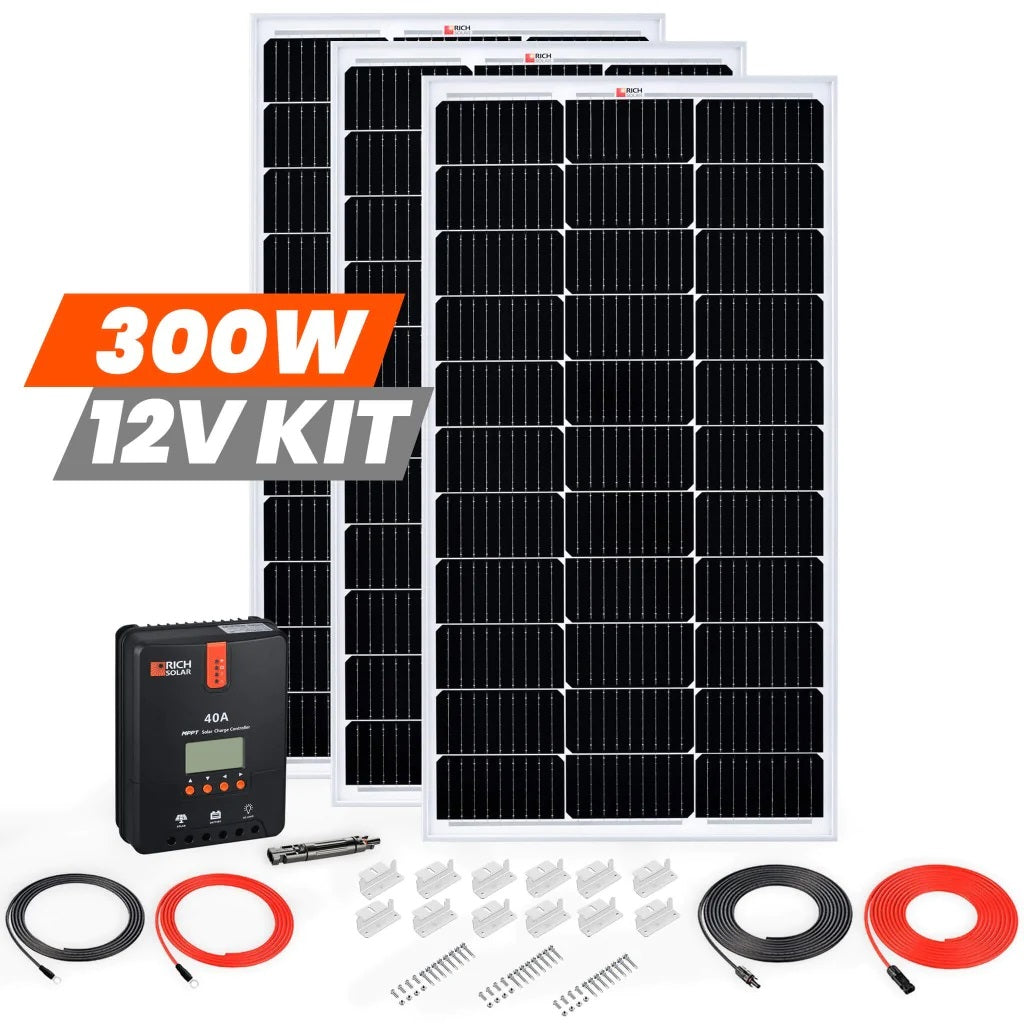

Rich Solar 300 Watt Solar Kit

The Rich Solar 300 Watt Solar Kit Pairs Three MEGA 100 Panels With a BRAVO 40 MPPT Controller for Flexible 12V Charging

The Rich Solar 300 Watt Solar Kit is a 12V solar charging kit built around three MEGA 100 monocrystalline panels and a BRAVO 40 40A MPPT charge controller. Rich Solar rates the kit at about 1.1kWh of energy per day with 4 peak sun hours, enough to keep an RV, trailer, boat or cabin battery bank charged through daily use.

Three smaller panels are easier to fit around roof vents, fans and racks than one or two large panels. The kit includes three sets of Z brackets, a 20 ft panel-to-controller cable pair, a 10 ft 8 AWG controller-to-battery cable pair and a 10A inline fuse. Add a 12V battery, and an inverter if you want AC power, to finish the system.

Rich Solar 300 Watt Solar Kit Features

Three MEGA 100 Monocrystalline Panels

Each MEGA 100 is a 12V panel rated at 100W, with a guaranteed positive power output of 0 to +5W. Strong tempered glass, an aluminum frame and an IP67 rating help the panels handle tough climates, and they perform well in low light on cloudy days, mornings and evenings.

BRAVO 40 MPPT Charge Controller

The BRAVO 40 uses MPPT charging with conversion efficiency as high as 98%. It adapts automatically to 12V or 24V systems and accepts up to 100V of panel open-circuit voltage, which gives you flexibility when wiring the three panels.

Lead-Acid and Lithium Battery Presets

The controller has presets for gel, AGM, flooded, crystal and calcium lead-acid batteries, plus LiFePO4, LTO and LCO lithium batteries. It also stores charging data so you can review system performance.

Built-In Protection

The BRAVO 40 includes reverse discharge protection, overvoltage protection and extensive internal circuit protections. It uses a common negative connection, has a conformal-coated circuit board, and is designed according to UL1741 and EN/IEC 62109-1.

Room to Grow

The BRAVO 40 is rated for up to 600W of solar on a 12V system and 1,200W on a 24V system. That leaves room to double the array later with more compatible panels.

Real-World Applications

RVs and travel trailers. Keep house batteries charged for lights, fans, the water pump and a 12V fridge while boondocking.

Boats. Maintain house batteries at the mooring and while cruising.

Cabins and sheds. Run lighting, a small fridge and electronics without running power lines.

Vans and truck campers. Fit three compact panels around roof fans and racks.

How It Compares to Common Alternatives

Versus buying components separately. The kit bundles matched panels, a controller, cables, brackets and a fuse, so you do not have to work out wire sizes and connectors yourself.

Versus the 200 Watt Solar Kit. The 300W kit adds 50% more panel power and a larger 40A controller, for about 1.1kWh per day compared with about 0.7kWh.

Versus a PWM kit. An MPPT controller converts excess panel voltage into charging current, typically harvesting more energy than a PWM controller, especially in cool weather.

Is This Kit the Right Fit

• Battery. The kit does not include a battery. It charges 12V or 24V lead-acid and lithium batteries.
• AC power. Add an inverter if you want to run household appliances from the battery.
• Roof space. Each MEGA 100 panel measures 39.0 x 21.3 x 1.2 inches and weighs 13.2 pounds.
• Daily energy. Plan on about 1.1kWh per day with 4 peak sun hours. Actual output depends on location, season, tilt and shading.

This may be a good fit if

• You want a complete solar charging kit for a 12V RV, trailer, boat or cabin
• You need to work around roof vents, fans or racks
• You use a lithium or lead-acid battery bank
• You want room to expand to 600W at 12V

Common Questions

Does the Kit Include a Battery or Inverter?

No. This is a solar charging kit. It includes the panels, controller, Z brackets, cables and fuse. The battery and inverter are sold separately.

Can I Use This Kit With a Lithium Battery?

Yes. The BRAVO 40 has LiFePO4, LTO and LCO presets in addition to lead-acid types.

Can I Add More Panels Later?

Yes. The BRAVO 40 is rated for up to 600W of solar at 12V and 1,200W at 24V. Keep the array's open-circuit voltage under 100V and follow the controller manual.

How Should I Wire the Three Panels?

The MEGA 100 panels can be wired in series or parallel. Follow the BRAVO 40 manual for your battery voltage, cable run and the included 10A inline fuse.

What's Included

• 3 x MEGA 100 12V 100W Solar Panels (RS-M100)
• 1 x 40A MPPT Charge Controller (RS-MPPT40P)
• 1 x 20 ft 10 AWG Solar Cable (Red), Panel to Controller (RS-20101)
• 1 x 20 ft 10 AWG Solar Cable (Black), Panel to Controller (RS-20101)
• 1 x 10 ft 8 AWG Battery Cable (Red), Controller to Battery (RS-810)
• 1 x 10 ft 8 AWG Battery Cable (Black), Controller to Battery (RS-810)
• 3 x Mounting Z Bracket Sets, 4 Brackets per Set (RS-ZB4C)
• 1 x 10A Inline Fuse Holder With Fuse (RS-SC10F)

Compact Panels, Expandable Charging

The Rich Solar 300 Watt Solar Kit gives you three compact MEGA 100 panels, a BRAVO 40 MPPT controller with room to grow, and the cables and brackets for a clean 12V install. At Outbound Power, we help customers choose the right batteries and inverters to complete their systems. If you have questions, our team is happy to help.
