Rich Solar 800 Watt Solar Kit

The Rich Solar 800 Watt Solar Kit Pairs Four MEGA 200 Panels With a BRAVO 60 MPPT Controller for Large 12V Battery Banks

The Rich Solar 800 Watt Solar Kit is a 12V solar charging kit built around four MEGA 200 monocrystalline panels and a BRAVO 60 60A MPPT charge controller. Rich Solar rates it at about 2.9kWh of energy per day with 4 peak sun hours, which suits larger RVs, tiny homes, cabins and boats that rely on a big battery bank every day.

The kit includes four sets of Z brackets, a cable entry housing for a clean roof pass-through, a 30 ft panel-to-controller cable set, a 10 ft controller-to-battery cable set and a 15A inline fuse. Add a battery bank, and an inverter if you want AC power, to complete the system.

Rich Solar 800 Watt Solar Kit Features

Four MEGA 200 Monocrystalline Panels

Each MEGA 200 generates 10.9A at its maximum power point to charge 12V batteries. The panels use anti-reflective coated tempered glass and anodized aluminum frames, perform well in low light, and carry a 25-year power output warranty and 10-year workmanship warranty.

BRAVO 60 MPPT Charge Controller

The BRAVO 60 is a true MPPT controller with tracking efficiency above 99.5% and charge conversion efficiency as high as 98%. It adapts automatically to 12V or 24V systems and accepts up to 100V of panel open-circuit voltage.

Lead-Acid and Lithium Battery Presets

The controller has presets for gel, AGM, flooded, crystal and calcium lead-acid batteries, plus LiFePO4, LTO and LCO lithium batteries. It also stores charging data for reviewing system performance.

Optional Remote Display and Temperature Sensor

The BRAVO 60 supports an optional external digital remote display and an optional external battery temperature sensor, so you can check the system from inside your RV or cabin and adjust charging to battery temperature.

Built-In Protection

Reverse discharge protection, overvoltage protection and extensive internal circuit protections guard the system. The controller uses a common negative connection and a conformal-coated circuit board, and the included 15A inline fuse adds protection on the panel side.

Room to Grow

The BRAVO 60 is rated for up to 900W of solar on a 12V system and 1,800W on a 24V system. Rich Solar designed the kit so you can add compatible batteries or panels as your needs grow.

Real-World Applications

Full-time RVs and fifth wheels. Keep a large house battery bank charged for a residential fridge, fans, lights and an inverter.

Tiny homes. Recharge a battery bank that runs lights, electronics and small appliances every day.

Cabins. Provide reliable daily charging where running power lines is not practical.

Boats. Charge house batteries on larger boats with deck or bimini space for four panels.

How It Compares to Common Alternatives

Versus the 600 Watt Solar Kit. The 600W kit uses three MEGA 200 panels and a BRAVO 40 for about 2.2kWh per day. The 800W kit adds a fourth panel and a 60A controller for about 2.9kWh per day with headroom to grow.

Versus buying components separately. The kit bundles matched panels, a controller, cables, brackets, a cable entry housing and a fuse, so you do not have to source each part yourself.

Versus a PWM kit. An MPPT controller converts excess panel voltage into charging current, typically harvesting more energy than a PWM controller, especially in cool weather.

Is This Kit the Right Fit

• Battery. The kit does not include a battery or inverter. The BRAVO 60 charges 12V or 24V lead-acid and lithium batteries.
• Roof space. Each MEGA 200 panel measures 58.7 x 26.8 x 1.2 inches and weighs 24 pounds, so plan for four full-size panels.

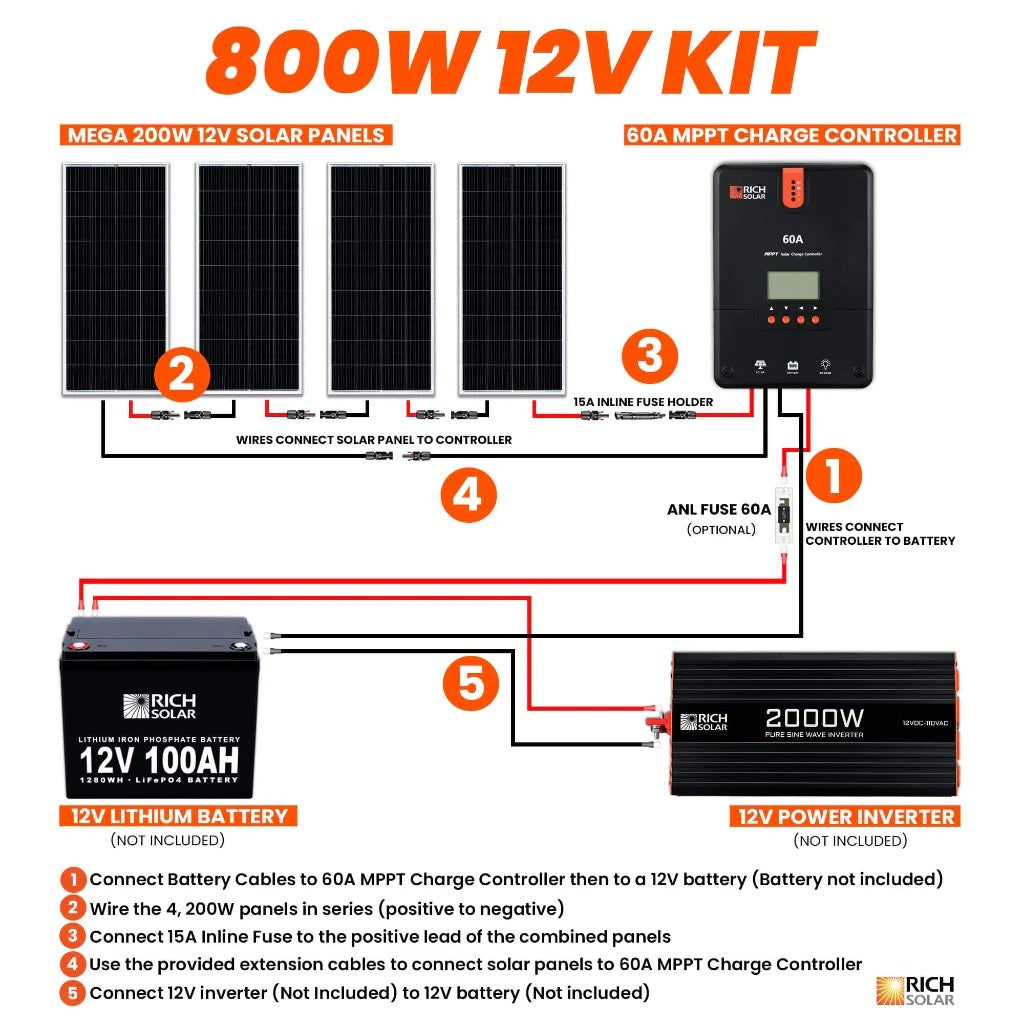

• Wiring. The panels work in series or parallel. Keep the array's open-circuit voltage under the controller's 100V limit and follow the BRAVO 60 manual.
• Daily energy. Plan on about 2.9kWh per day with 4 peak sun hours. Actual output depends on location, season, tilt and shading.

This may be a good fit if

• You run a large 12V battery bank with daily inverter loads
• You have roof or ground space for four full-size panels
• You want an MPPT controller with room to expand
• You want a complete charging kit with brackets and cables

Common Questions

Does the Kit Include a Battery or Inverter?

No. This is a solar charging kit. It includes the panels, controller, Z brackets, cable entry housing, cables and fuse. The battery and inverter are sold separately.

Can I Use This Kit With a Lithium Battery?

Yes. The BRAVO 60 has LiFePO4, LTO and LCO presets in addition to lead-acid types.

Can I Add More Panels Later?

Yes. The BRAVO 60 is rated for up to 900W of solar at 12V and 1,800W at 24V. Stay within the controller's voltage and current limits.

Does the Controller Have a Remote Display?

An external digital remote display is available as an option, along with an external battery temperature sensor.

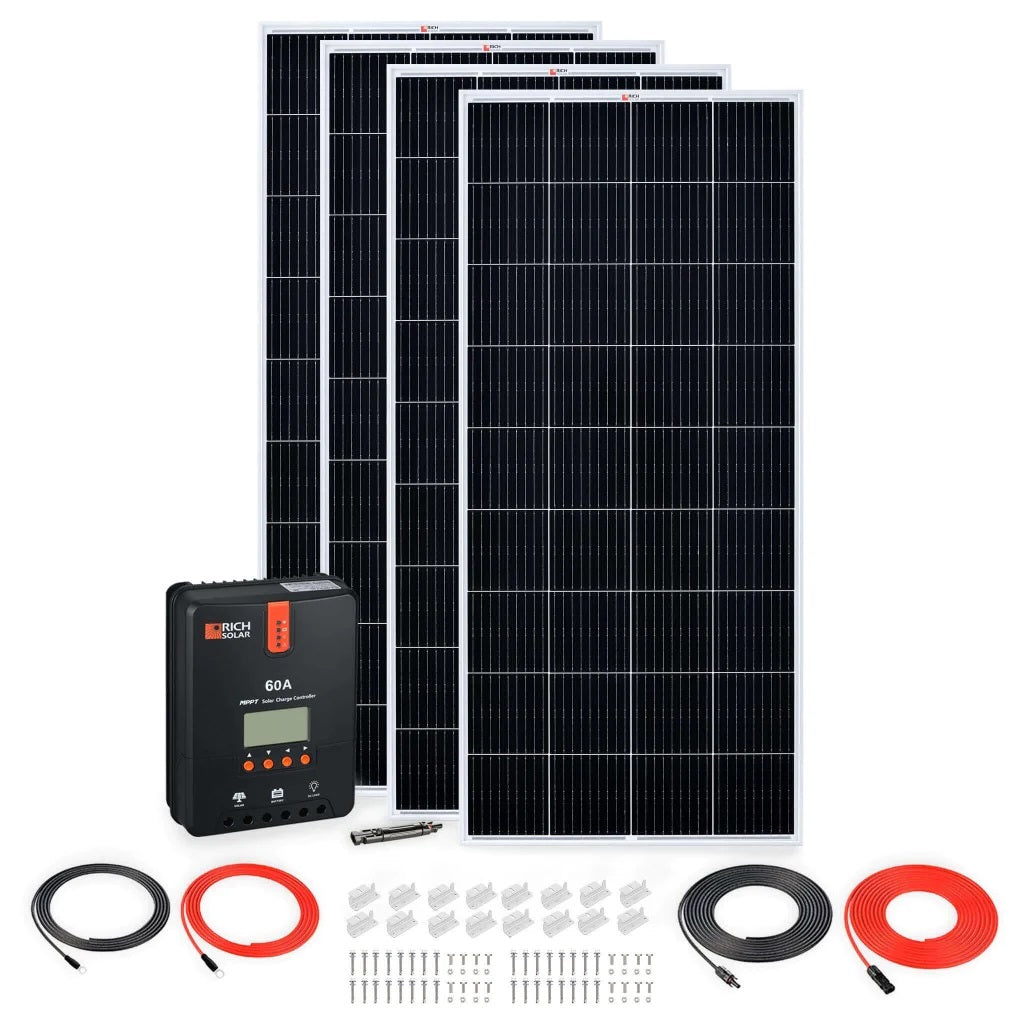

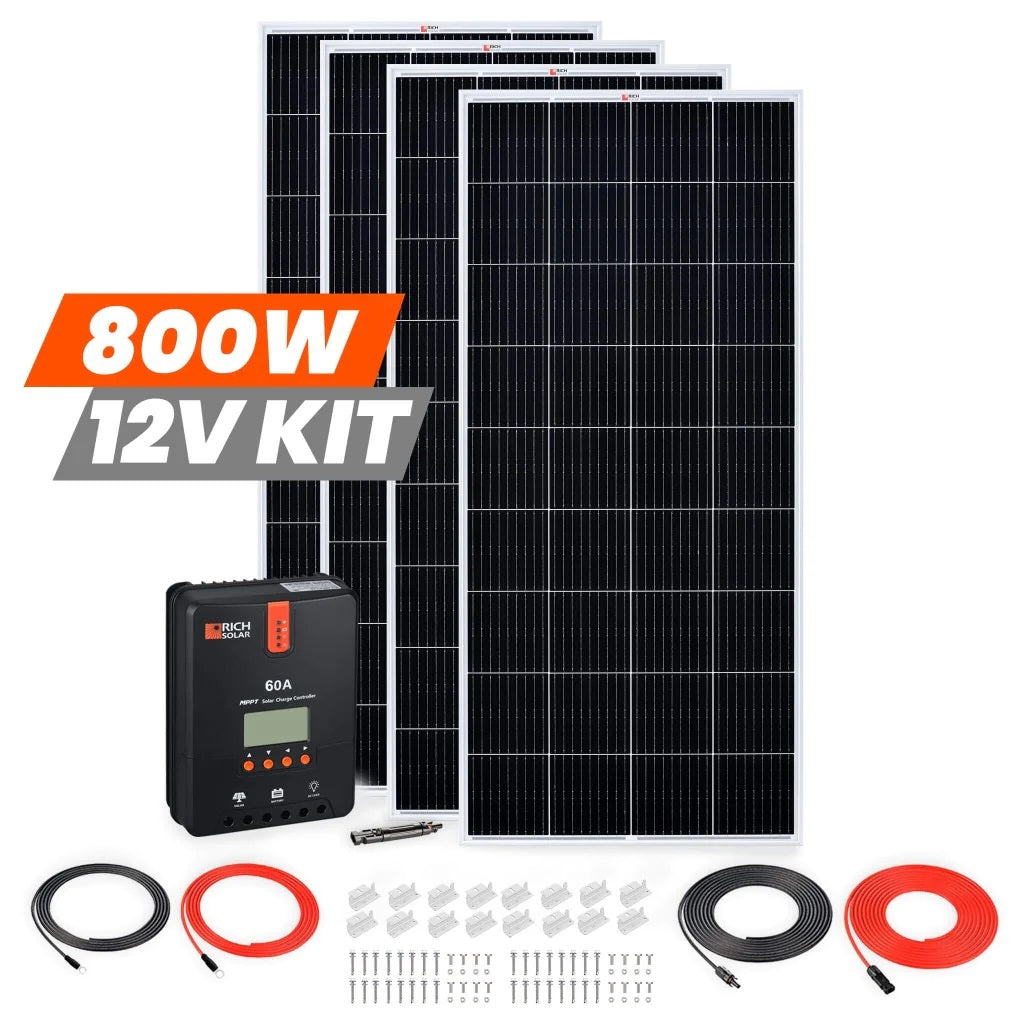

What's Included

• 4 x 200 Watt Monocrystalline Solar Panels (RS-M200)
• 1 x BRAVO 60 60A MPPT Charge Controller (RS-MPPT60PB)
• 4 x Mounting Z Bracket Sets, 4 Brackets per Set (RS-ZB4C)
• 1 x Cable Entry Housing (RS-C2B)
• 1 x 15A Inline Fuse Holder With Fuse (RS-SC15F)
• 1 x 30 ft 10 AWG Solar Cable Set, Panel to Controller (RS-30101)
• 1 x 10 ft 10 AWG Battery Cable Set, Controller to Battery (RS-1010)

High-Output Charging for Bigger Systems

The Rich Solar 800 Watt Solar Kit gives you four MEGA 200 panels, a BRAVO 60 MPPT controller with room to grow, and the cables and brackets needed for a clean install. At Outbound Power, we help customers size battery banks and inverters to complete their systems. If you have questions, our team is happy to help.
