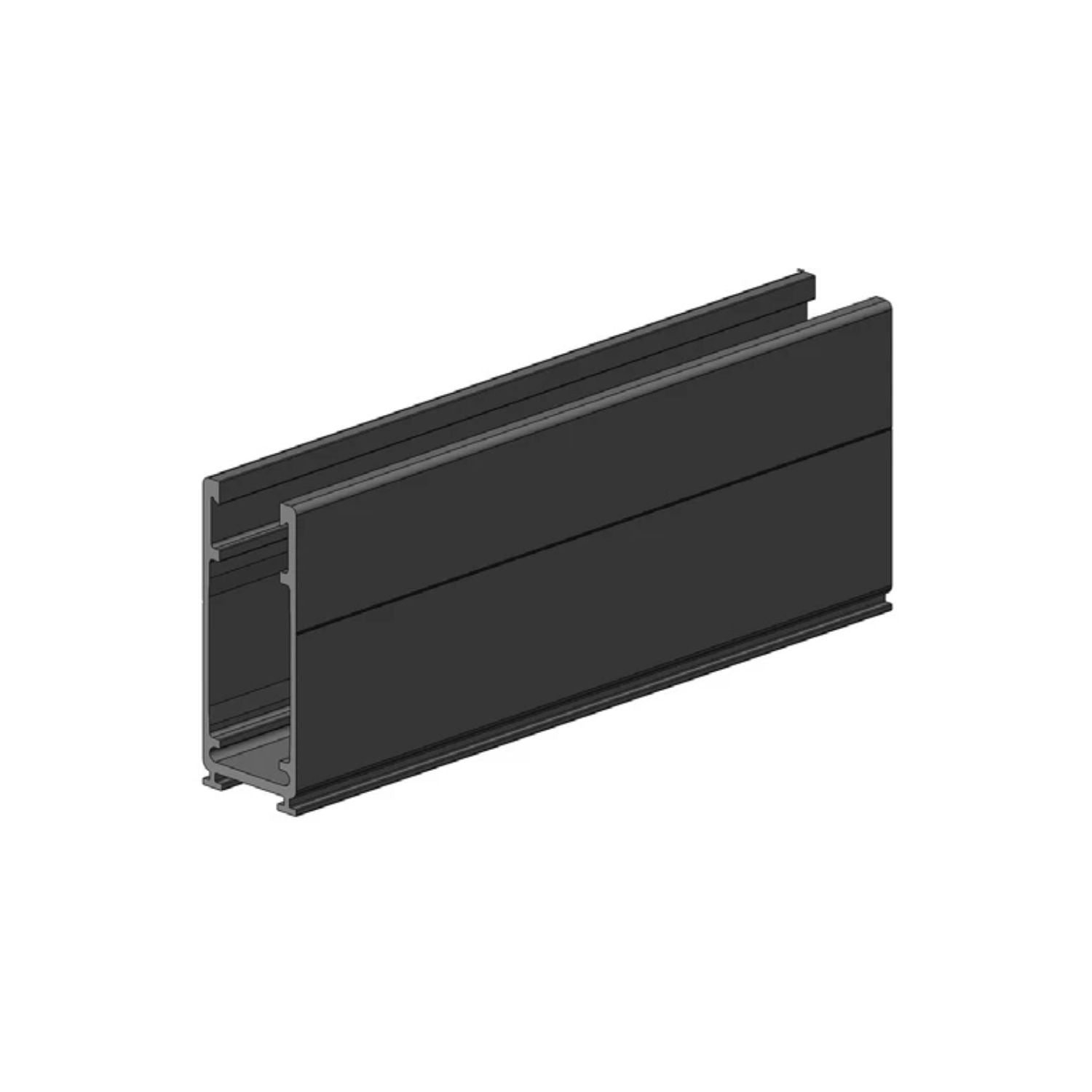

Tamarack 3.1 Solar Mounting Rail

Tamarack 3.1 Solar Mounting Rail Gives You A Stronger Foundation For Large Solar Arrays

The Tamarack 3.1 Solar Mounting Rail is a 3.1-inch aluminum rail designed for Tamarack’s flush-mount racking system, giving solar installers a practical option for heavy-load applications and longer spans. Built to work with Tamarack rail mounts, clamps, splices, end caps, wire-management clips, and grounding components, this rail helps create a configurable mounting structure without unnecessary fabrication work. With multiple lengths and package configurations available, it can be selected around the needs of a specific solar array and site.

Tamarack 3.1 Solar Mounting Rail Features

Heavy-Duty Aluminum Construction For Demanding Solar Applications

The 3.1-inch aluminum rail is intended for heavy-load applications and longer spans. That makes the profile useful when planning larger solar arrays where rail selection needs to account for site-specific wind and snow loads. Tamarack recommends selecting the rail profile and span according to the conditions of the installation and its engineering guidance.

Multiple Rail Lengths So You Can Configure Your Array

The available configurations include 70-inch and 93-inch rails, giving customers options for different array layouts. Four 70-inch rails combined with two structural splices per column can form two 140-inch rails for mounting three modules per column. Four 93-inch rails with two structural splices per column can form two 186-inch rails for mounting four modules per column.

• 70-inch mill-finish rail available in a box of 8 or pallet of 144
• 93-inch mill-finish rail available in a box of 8 or pallet of 144
• Structural splices are used with the described extended rail configurations
• Maximum PV module width is 45 inches on 4-module columns
• Maximum PV module width is 46.16 inches on 3-module columns

Integrated Component Compatibility For A More Organized System

The Tamarack 3.1 rail integrates with Tamarack rail mounts, clamps, splices, end caps, wire-management clips, and grounding components. Using components designed to work within the same rail system can make configuration and assembly more straightforward when building a solar mounting structure.

Built-In Wire Management So Cables Stay Inside The Rails

Solar installations involve more than supporting panels. Cable routing matters too. The Tamarack rail system allows cables and wires to fit inside the rails, providing a simple approach to wire management while keeping the mounting system organized.

Fast Assembly For A Range Of Terrain Conditions

Tamarack describes the system as quick and easy to assemble and suitable for almost any terrain. The supplied features also specify that installation requires no welding or drilling and that two wrench sizes fit all fasteners. Always follow Tamarack’s engineering guidance and installation instructions for the specific project.

Adjustable System Design For Flexible Solar Layouts

The system is designed around arrays of three or four modules high and can accommodate the width required by the project. It supports tilt angles from 0 to 45 degrees and is designed to be adjusted for alignment, including on irregular surfaces.

Engineered For Significant Environmental Loads

The provided product information lists the system as rated for wind speeds up to 170 MPH and ground snow loads up to 70 PSF. These figures should not be treated as a universal installation guarantee. Rail profile, span, and system configuration should be selected according to the site-specific wind and snow conditions and Tamarack engineering guidance.

Real-World Applications For The Tamarack 3.1 Solar Mounting Rail

Large Solar Arrays For Fixed Installations

The Tamarack 3.1 rail is suited to fixed solar mounting projects where longer spans and heavier loads are part of the design requirements. Its available 70-inch and 93-inch lengths provide options for building longer rail configurations with structural splices.

Solar Projects Across Different Terrain

Because the system is described as suitable for almost any terrain and allows adjustment for alignment on irregular surfaces, the rail can be useful when a solar mounting project does not have a perfectly uniform installation surface.

Three And Four Module High Array Designs

The system is specifically described for arrays three or four modules high. Four 70-inch rails can be combined with structural splices to create 140-inch rail runs for three-module columns, while four 93-inch rails can create 186-inch rail runs for four-module columns.

How The Tamarack 3.1 Rail Compares To A Basic Solar Mounting Rail

A standard solar rail may provide a straightforward mounting surface, but the Tamarack 3.1 system is designed as part of a broader flush-mount racking system. The rail integrates with Tamarack mounting and grounding components, supports internal wire management, and is offered in configurations intended for different array layouts.

The key distinction is not simply rail length. For a properly designed solar array, rail profile, span, module width, environmental loads, and the associated mounting components all need to work together. The Tamarack 3.1 rail is therefore better considered as part of a complete mounting-system design rather than as an isolated piece of aluminum.

Buyer Guidance For Choosing The Right Tamarack 3.1 Rail

This rail may be a good fit for customers planning a Tamarack flush-mount solar installation and needing a 3.1-inch aluminum profile for heavy-load applications or longer spans. Before ordering, pay close attention to the required rail length, package quantity, module layout, and site conditions.

This May Be A Good Fit If

• You are building a Tamarack flush-mount solar racking system.
• You need a 3.1-inch aluminum rail for heavy-load applications or longer spans.
• Your project uses three- or four-module-high array configurations.
• You want a rail system with integrated wire-management options.
• You need to account for site-specific wind and snow loads during system planning.
• You need 70-inch or 93-inch mill-finish rail configurations.

For projects using the described extended rail layouts, the 70-inch and 93-inch configurations use structural splices. The product information also specifies combining the 3.1 rails with 2-inch Schedule 40 or Schedule 80 galvanized steel pipe, purchased separately. Confirm the exact components, quantities, and engineering requirements for your installation before purchase.

Common Questions About The Tamarack 3.1 Solar Mounting Rail

What Is The Tamarack 3.1 Solar Mounting Rail Used For?

It is an aluminum rail for Tamarack’s flush-mount racking system. It is suited to heavy-load applications and longer spans and integrates with Tamarack mounting, clamping, splicing, wire-management, and grounding components.

What Rail Lengths Are Available?

The provided configurations include 70-inch and 93-inch mill-finish rails. Both lengths are available in boxes of 8 and pallets of 144.

Can The Rails Be Used For Longer Rail Runs?

Yes. The provided system configurations describe using four 70-inch rails with two structural splices per column to create two 140-inch rails, or four 93-inch rails with two structural splices to create two 186-inch rails.

How Much Environmental Load Can The System Handle?

The provided features list ratings of up to 170 MPH wind speeds and up to 70 PSF ground snow loads. Actual rail profile and span selection should be based on the site's specific conditions and Tamarack engineering guidance.

Does The Rail Help With Solar Cable Management?

Yes. The Tamarack system is designed so cables and wires can fit inside the rails, providing built-in wire-management functionality.

What’s Included With The Tamarack 3.1 Solar Mounting Rail

Available package quantities depend on the selected configuration.

• 8 x Tamarack 3.1 Solar Mounting Rail — Box Of 8 Configuration
• 144 x Tamarack 3.1 Solar Mounting Rail — Pallet Of 144 Configuration

Structural splices, rail mounts, clamps, end caps, wire-management clips, grounding components, and galvanized steel pipe are referenced as system components or separately purchased items and are not stated as included with the rail package.

Build Your Solar Mounting System With Outbound Power

The Tamarack 3.1 Solar Mounting Rail gives solar projects a configurable aluminum rail profile for longer spans, heavy-load applications, organized wire management, and three- or four-module-high array layouts. With multiple rail lengths and package quantities available, you can select a configuration around the needs of your project rather than forcing your installation into a one-size-fits-all approach.

At Outbound Power, we focus on helping customers select practical components that make sense as part of the complete power system. If you are planning a Tamarack solar mounting project, review your module layout, rail span, environmental loads, and required components carefully before ordering so your system can be planned around the actual installation.
