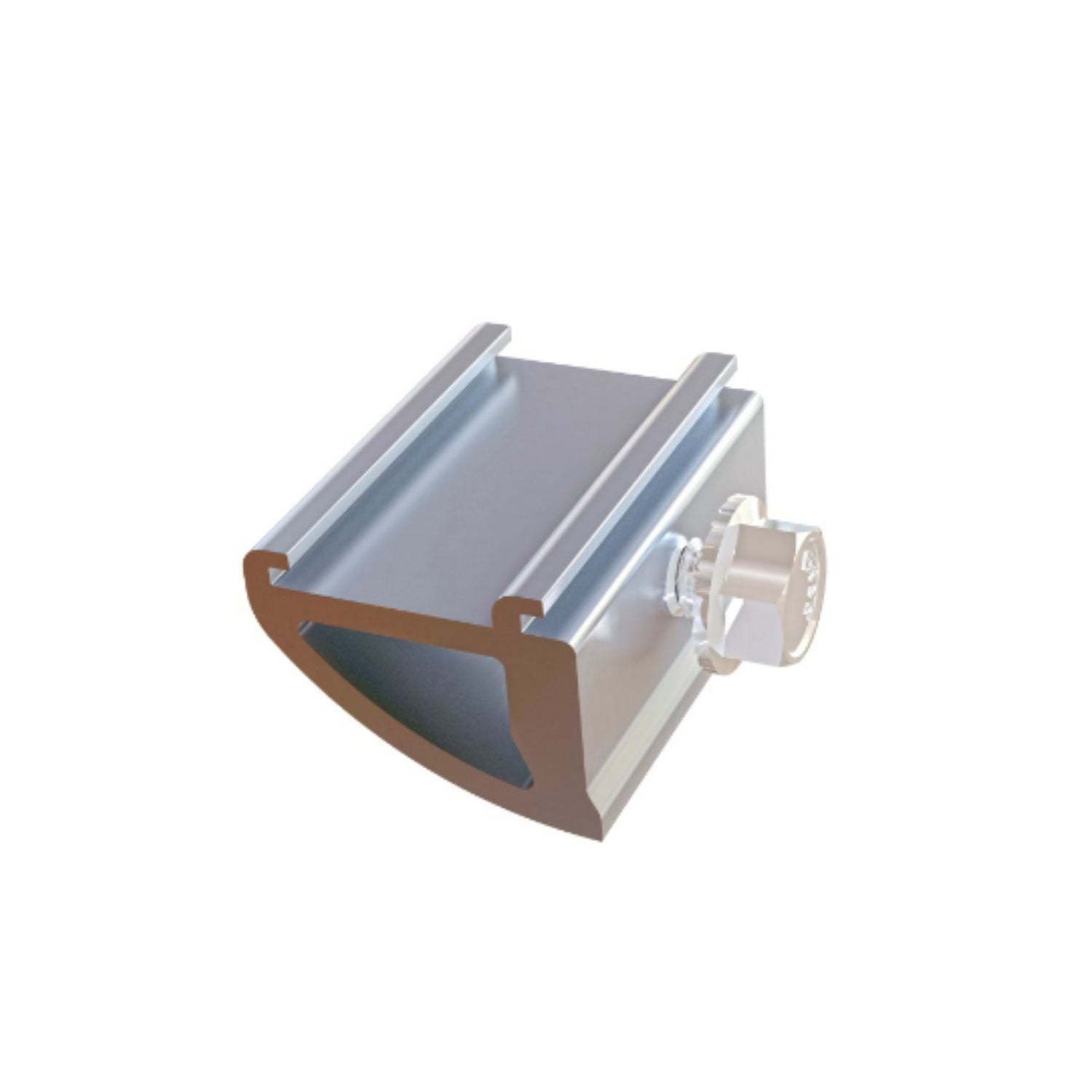

Tamarack 5/16-Inch Rail Mount - Mill Finish

Tamarack 5/16-Inch Rail Mount - Mill Finish Makes PV Installation Simple And Efficient

The Tamarack 5/16-Inch Rail Mount - Mill Finish is a low-profile rail mounting adapter designed to help solar installation professionals quickly and securely attach Tamarack rails to compatible roof attachment points. It works with an L-Foot, Tile Hook, or specialty flashing that has a hole or slot for a 5/16-inch bolt. By simplifying the rail connection, this mount helps reduce installation complexity while supporting a clean, organized photovoltaic (PV) installation.

Tamarack 5/16-Inch Rail Mount - Mill Finish Features

Mount Rails From Either Side For Flexible Installation

The adapter is designed to mount the rail from either side, giving installers practical flexibility when positioning components on the roof. The adapter fits into the T-slots of the rail, after which the bolt can be tightened to secure the connection.

• Designed for Tamarack rail-based PV mounting systems
• Mounts the rail from either side
• Fits rail T-slots
• Works with compatible 5/16-inch bolt attachment points

Use Compatible Roof Attachments For Straightforward Rail Mounting

The Tamarack 5/16-Inch Rail Mount - Mill Finish can mount to an L-Foot, Tile Hook, or specialty flashing with a hole or slot for a 5/16-inch bolt. This provides a practical connection point between the roof attachment and the PV rail system.

The L-Foot is not included with this product, so customers should confirm that their existing roof attachment or planned attachment hardware provides the required 5/16-inch bolt connection before purchasing.

Use The Open Rail Space For Cleaner Wire Management

Tamarack's FM System is designed with open rail channels that can accommodate PV cables and wiring for module-level power electronics. Keeping wiring inside the rail can help avoid time-consuming wire management during installation and contributes to a cleaner overall system layout.

Use Fewer Tools For A More Efficient Installation

The Tamarack FM System is designed around simple rail mounting and single-tool installation. A 1/2-inch socket fits all fasteners, helping installers work with a consistent tool size across the system.

The mounting process is straightforward: position the adapter into the rail's T-slots and tighten the bolt. The system is designed so parts can be brought onto the roof fully assembled and ready to install, with no drilling required for the rail mounting process described by Tamarack.

Pair With Shorter Rails For Easier Handling

The Tamarack FM System uses 10.5-foot and 7-foot rail options. The shorter rail lengths are intended to make transportation, stocking, shipping, and handling easier. Tamarack also notes that kits using 7-foot rails can be shipped via UPS, which can be useful for simplifying logistics.

Use The Internal Splice Design For Flexible Rail Lengths

The rails feature an internal splice design that allows shorter rails to be joined economically. The tool-free splice does not interfere with module clamps or roof mounts, giving installers another practical way to work with shorter rail sections.

Build Around A Low-Profile PV Mounting System

Tamarack describes its flush mount system as a visually appealing, low-profile photovoltaic module installation system. The system is designed to reduce installation cost by allowing professionals to stock fewer parts and complete installations in less time.

Where The Tamarack 5/16-Inch Rail Mount Fits In Real Solar Projects

This rail mount is intended for photovoltaic installations rather than as a power-producing component itself. Its role is to provide a connection between compatible roof attachment hardware and the Tamarack rail system that supports PV modules.

It can be useful for residential and other solar installation projects where a rail-based mounting arrangement is appropriate. Because the adapter depends on compatible roof attachment hardware, installers should verify the roof attachment type, rail system, and 5/16-inch connection requirements for the specific project.

How This Rail Mount Compares With Simpler Mounting Approaches

A rail mounting system gives installers a structured way to support PV modules while also providing open rail channels for cable and module-level electronics wiring. Compared with an approach that requires more individual mounting components or separate wire-management solutions, the Tamarack FM System is designed to combine several installation functions into a streamlined rail-based setup.

The system also emphasizes shorter rail sections, tool-free internal splicing, and a consistent 1/2-inch socket size for fasteners. These details are particularly relevant to installers who value straightforward handling and repeatable installation procedures.

What To Consider Before Buying The Tamarack Rail Mount

The Tamarack 5/16-Inch Rail Mount - Mill Finish is most appropriate for customers building or maintaining a compatible Tamarack rail-based PV mounting system. Before ordering, make sure the rest of the mounting arrangement matches the adapter's requirements.

This May Be A Good Fit If:

• You are installing a Tamarack rail-based PV mounting system.
• You need a rail adapter for a compatible 5/16-inch bolt attachment point.
• Your roof attachment is an L-Foot, Tile Hook, or specialty flashing with the required hole or slot.
• You want to use the Tamarack FM System's open rail channels for PV wiring.
• You prefer a mounting approach designed for straightforward rail installation.

Before purchasing: confirm your roof attachment hardware and rail system are compatible with this adapter. The L-Foot is not included, and the product should be selected as part of a complete PV mounting system rather than as a standalone solar power component.

Common Questions About The Tamarack 5/16-Inch Rail Mount - Mill Finish

What Is The Tamarack 5/16-Inch Rail Mount Used For?

It is used to connect Tamarack PV rails to compatible roof attachment hardware with a hole or slot for a 5/16-inch bolt.

Does The L-Foot Come With This Rail Mount?

No. The L-Foot is not included with this product. Customers should confirm that they have or are purchasing compatible attachment hardware separately.

What Roof Attachments Can This Adapter Work With?

The adapter can mount to an L-Foot, Tile Hook, or specialty flashing that has a hole or slot for a 5/16-inch bolt.

How Is The Adapter Installed Into The Rail?

The adapter is positioned into the T-slots of the rail, and the bolt is then tightened to secure the connection.

Can The Rail Be Mounted From Either Side?

Yes. The Tamarack system is designed so the rail can be mounted from either side of the adapter.

What’s Included With The Tamarack 5/16-Inch Rail Mount - Mill Finish

• 1 x Tamarack 5/16-Inch Rail Mount - Mill Finish

Note: The L-Foot is not included.

Choose The Tamarack 5/16-Inch Rail Mount For A Practical PV Mounting Setup

A well-planned solar installation starts with the mounting system, and the right connection hardware can make the installation process much more straightforward. The Tamarack 5/16-Inch Rail Mount - Mill Finish provides a practical connection between compatible 5/16-inch roof attachment points and Tamarack PV rails while fitting into the FM System's broader approach to simple installation, wire management, and efficient rail handling.

At Outbound Power, we focus on helping customers select components that make sense as part of the complete power system. If you're building a Tamarack PV installation, confirm your rail, roof attachment, and 5/16-inch connection requirements before ordering so every component works together as planned.
