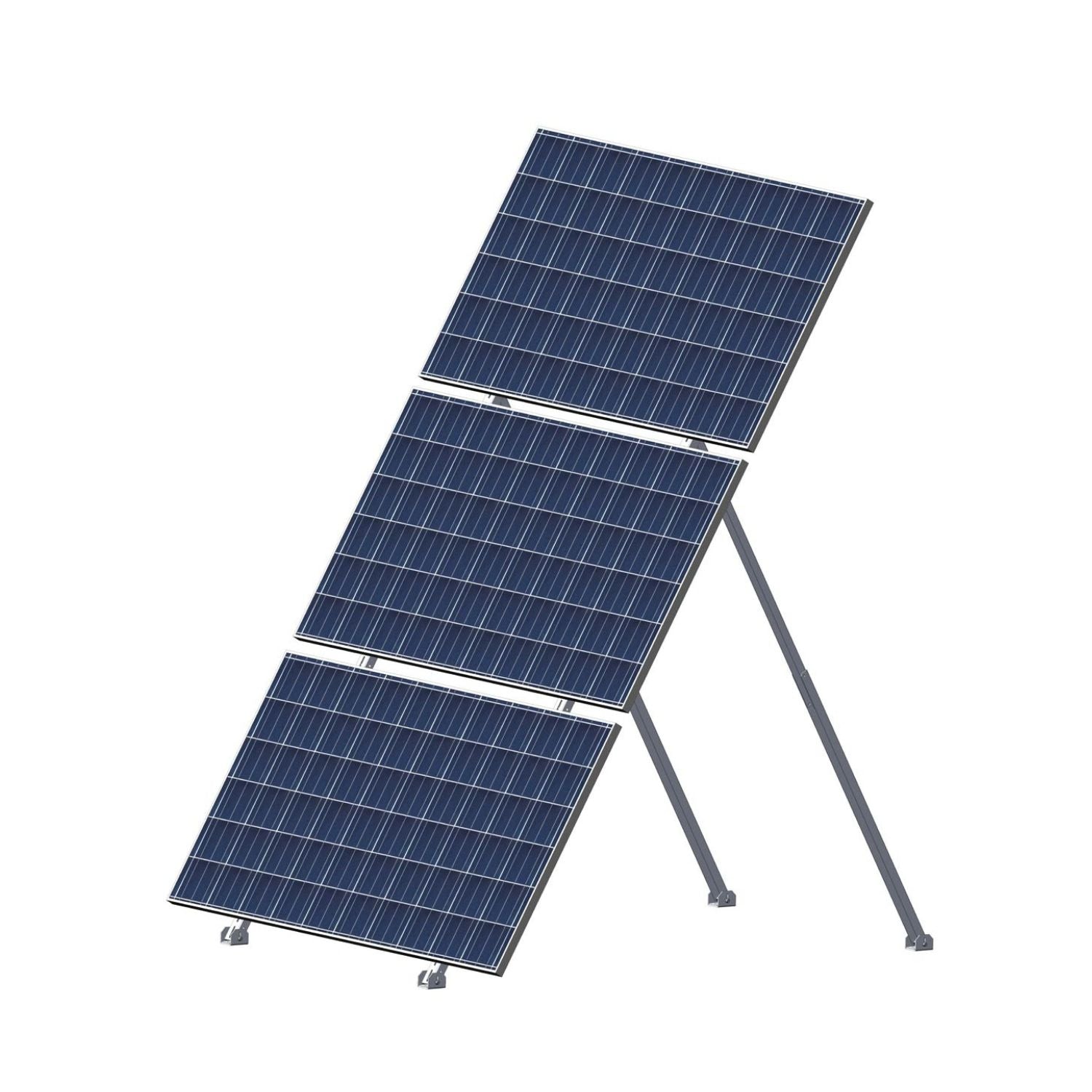

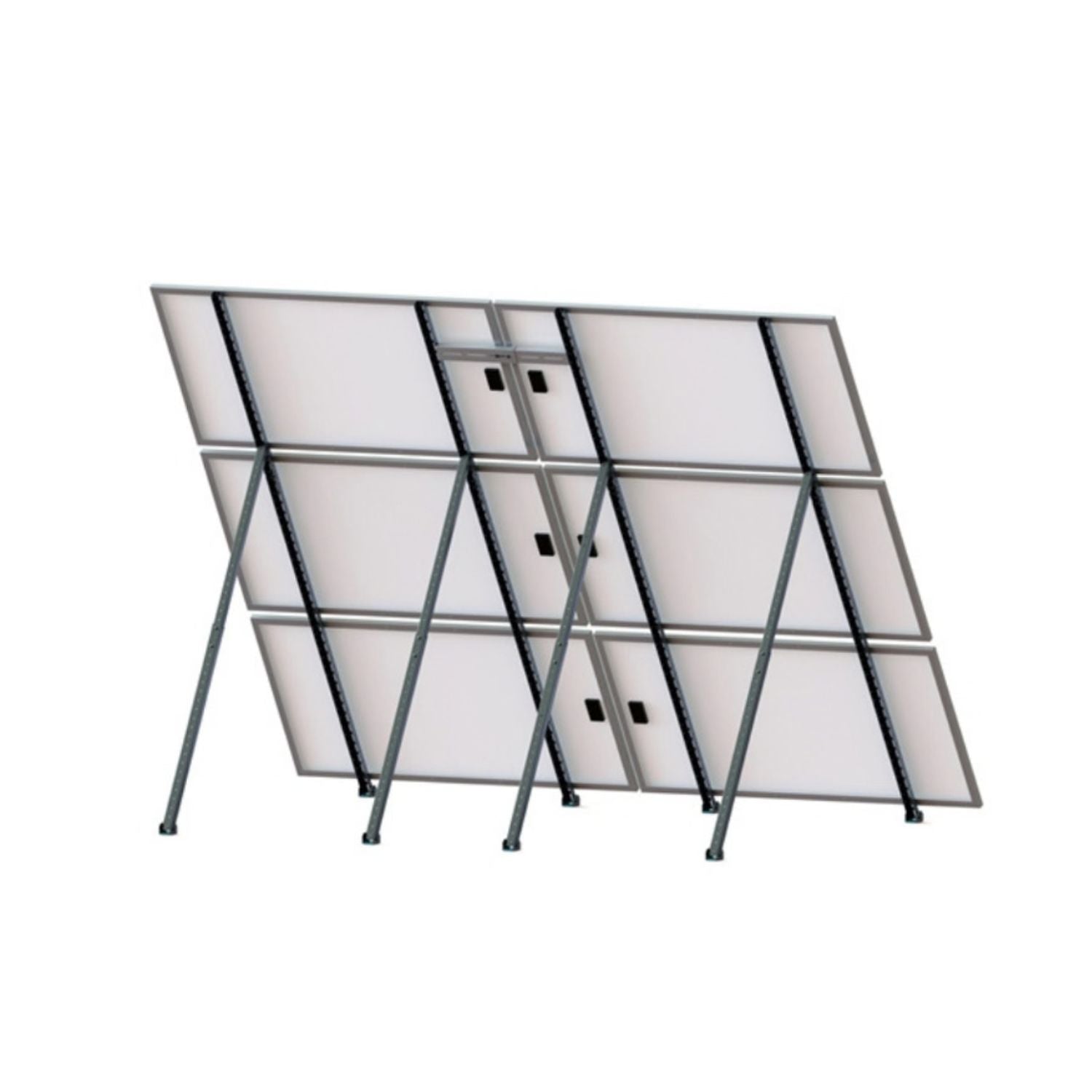

Tamarack Adjustable Ground/Roof Solar Mount

Tamarack Adjustable Ground/Roof Solar Mount Gives You Flexible Panel Placement

The Tamarack Adjustable Ground/Roof Solar Mount is a light-duty solar mounting solution designed for off-grid, flat-roof, ground, and similar solar applications where flexible panel placement matters. With adjustable tilt from 20° to 60°, this mount helps you position compatible solar modules at an angle that suits your installation. Choose between 90-inch and 130-inch rail configurations for mounting 2 or 3 modules, depending on the model. For larger arrays, an optional intertie kit can join multiple mounts together into a single array.

Tamarack Adjustable Ground/Roof Solar Mount Features

Adjustable Tilt From 20° To 60° For Flexible Solar Positioning

The mount provides a tilt range of 20° to 60°, giving you flexibility when positioning your solar modules. This is particularly useful for off-grid and flat-roof applications where the mounting surface itself may not provide the desired panel angle. The adjustable design lets you select an appropriate position for your installation rather than being limited to one fixed angle.

90-Inch Or 130-Inch Rails For Different Module Configurations

The Tamarack Adjustable Ground/Roof Solar Mount is available with either 90-inch or 130-inch panel-support rails. The 90-inch configuration is designed for 2 modules, while the 130-inch configuration is designed for 3 modules. Both configurations accommodate modules with widths under 43 inches.

• UNI-GR/90 uses 90-inch rails and supports 2 modules.
• UNI-GR/130 uses 130-inch rails and supports 3 modules.
• Module widths must be less than 43 inches.

Rear Frame Mounting Holes For A Practical Module Connection

This ground and roof solar mount accommodates modules with rear mounting holes in their frames. That makes the module frame itself an important part of the mounting setup. Before purchasing, confirm that your solar modules have the required rear mounting holes and meet the stated size limitations.

Optional Intertie Kit So You Can Build A Larger Array

If a single mount is not enough for your planned installation, the optional intertie kit allows multiple mounts to be joined together to create a single array. This provides an expansion option for installations that need more than one mount, while keeping the configuration based on the Tamarack mounting system.

Light-Duty Design For Off-Grid And Similar Solar Applications

This mount is designed as a light-duty solution for off-grid, flat-roof, ground, and similar solar applications. It can be useful where you need an adjustable mounting structure without selecting a mount intended for heavier environmental loads.

Real-World Applications For The Tamarack Adjustable Ground/Roof Solar Mount

Off-Grid Solar Setups For Flexible Panel Placement

Off-grid systems often require practical equipment choices that work with the available installation space. The adjustable tilt range and two rail configurations make this mount suitable for certain off-grid solar applications where compatible modules can be positioned on a ground or roof surface.

Flat Roof Solar For Adjustable Panel Angles

Flat roofs do not naturally provide much panel angle, so an adjustable mount can provide more flexibility in positioning solar modules. The 20° to 60° adjustment range gives installers several angle options for suitable flat-roof applications.

Ground-Mounted Solar For Suitable Locations

The Tamarack Adjustable Ground/Roof Solar Mount can also be used for ground applications where its light-duty design and adjustable configuration fit the project. Because the manufacturer specifically notes that the mount is not intended for heavy wind or snow loads or installations in open areas, the installation environment should be evaluated carefully before purchase.

Plug-In Solar Applications For Practical Mounting

For plug-in solar projects that require a ground or roof mounting solution, this Tamarack mount provides adjustable positioning and support for 2 or 3 compatible modules, depending on the selected configuration.

How The Tamarack Adjustable Ground/Roof Solar Mount Compares

Compared with a fixed-angle mounting solution, this Tamarack mount provides a wider range of positioning through its 20° to 60° tilt adjustment. Compared with choosing one universal rail length, the available 90-inch and 130-inch configurations give customers a choice based on whether they need to mount 2 or 3 modules.

It is important to view this product as a light-duty solar mount, not as a mounting solution for every environment. The manufacturer specifically states that it is not intended for heavy wind or snow loads or installations in open areas. Customers should therefore consider the installation location and environmental conditions before selecting this mount.

Buyer Guidance For The Tamarack Adjustable Ground/Roof Solar Mount

This mount may be a good fit when you need an adjustable solar mounting option for an appropriate off-grid, flat-roof, ground, or similar application. Start by checking your solar module dimensions and frame design, then select the rail configuration that matches your project.

This May Be A Good Fit If

• You need a light-duty ground or roof solar mounting solution.
• You are installing 2 or 3 solar modules.
• Your modules are less than 43 inches wide.
• Your modules have rear mounting holes in their frames.
• You want adjustable tilt from 20° to 60°.
• You may want to connect multiple mounts using the optional intertie kit.

Before Purchase, Confirm

• The selected 90-inch or 130-inch rail configuration matches your module count.
• Your modules are less than 43 inches wide.
• Your module frames have rear mounting holes.
• Your intended installation location is appropriate for this light-duty mount.
• Your project does not require a mount designed for heavy wind or snow loads or exposed open-area installations.

Common Questions About The Tamarack Adjustable Ground/Roof Solar Mount

What Types Of Solar Applications Is This Mount Designed For?

It is designed for off-grid, flat-roof, ground, plug-in solar, and similar light-duty solar applications.

How Many Solar Modules Can It Mount?

The 90-inch configuration supports 2 modules, while the 130-inch configuration supports 3 modules. Modules must have widths under 43 inches.

What Tilt Angle Can The Mount Provide?

The tilt angle is adjustable from 20° to 60°.

Can Multiple Mounts Be Connected?

Yes. An optional intertie kit allows multiple mounts to be joined together to create a single array.

Can This Mount Be Used In Heavy Wind Or Snow?

No. The provided manufacturer information states that this light-duty mount is not intended for heavy wind or snow loads or installations in open areas.

What’s Included With The Tamarack Adjustable Ground/Roof Solar Mount

• 1 x Tamarack Adjustable Ground/Roof Solar Mount

The provided product information does not specify additional included accessories. Rail length and module capacity vary by the selected configuration, so confirm the exact package contents and configuration before purchase.

Choose The Tamarack Adjustable Ground/Roof Solar Mount With Confidence

When your solar project calls for adjustable positioning without needing a heavy-duty mounting structure, the Tamarack Adjustable Ground/Roof Solar Mount provides a practical option for suitable ground, roof, off-grid, and similar applications. Its 20° to 60° tilt adjustment, choice of 90-inch or 130-inch rails, and optional intertie capability give you useful flexibility when planning a compatible solar array.

Outbound Power focuses on helping customers match equipment to the actual requirements of their power projects. Review your module dimensions, frame mounting holes, desired module count, and installation environment before choosing your configuration. With the right application and conditions, this Tamarack mount can be a straightforward part of a carefully planned solar setup.
