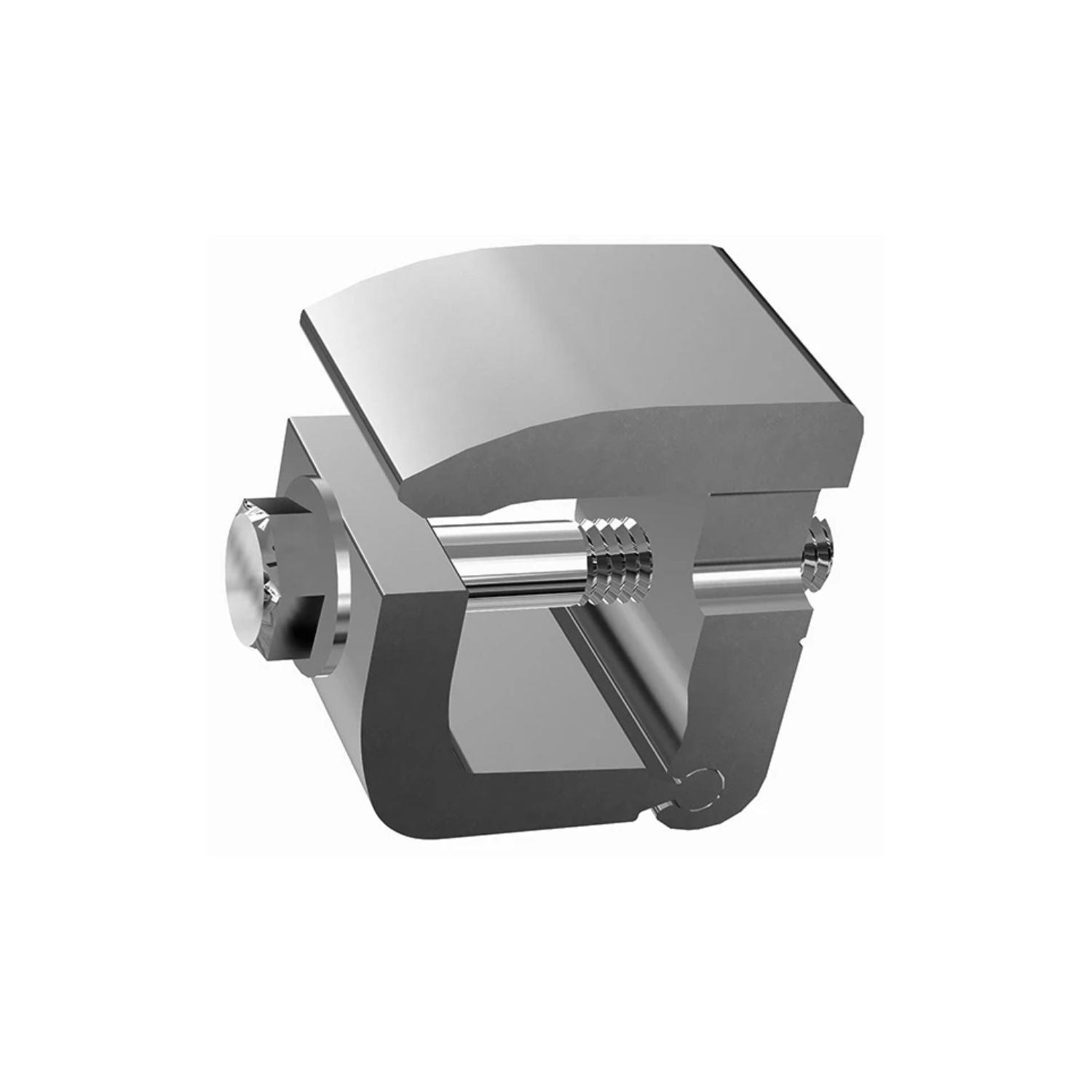

Tamarack Channel End Clamp

Tamarack Channel End Clamp Makes Flush Rail-End Module Mounting Simple

The Tamarack Channel End Clamp is a simple, low-cost component designed to allow PV modules to be mounted flush to the end of a Tamarack rail. For solar installers and DIY builders working with rail-based PV mounting systems, it provides a straightforward way to finish the end of a rail while keeping the mounting process simple and organized. The clamp works with Tamarack’s rail system, where components are positioned into the rail’s T-slots and secured by tightening the bolt.

Tamarack Channel End Clamp Features

Flush End Mounting For A Clean Rail Layout

The Tamarack Channel End Clamp is designed specifically to allow a PV module to sit flush to the end of the rail. This can help create a straightforward, organized mounting arrangement when the module reaches the end of the rail system.

Simple Rail Installation So You Can Work Efficiently

Rail mounting with the Tamarack system is designed to be simple and easy. The adapter is positioned into the T-slots of the rail and the bolt is tightened to secure the component. The system is designed around single-tool installation, with a 1/2-inch socket fitting all fasteners.

Low-Cost Rail Component For Practical Solar Builds

This end clamp provides a focused solution for a specific mounting need without adding unnecessary complexity. It is part of Tamarack’s low-cost rail-based PV module mounting system, which is designed around easy installation, simple wire management, and strong rail construction.

Rail T-Slot Design For Straightforward Assembly

The Tamarack rail system uses T-slots that allow mounting components to be positioned directly in the rail. This approach helps make rail assembly straightforward and avoids the need to drill holes for component placement.

Open Rail Channels For Easier Wire Management

The Tamarack FM System uses the open rail channels for module and module-level power electronics wiring. PV cables and wiring for module-level electronics can fit inside the rails, helping reduce the need for time-consuming wire management around the installation.

Why A Tamarack Channel End Clamp Matters

Solar mounting systems rely on small hardware components to create a complete installation. An end clamp may not be the largest part of the system, but it has a specific job: helping secure the module at the end of the rail while maintaining the intended rail layout.

That makes the Tamarack Channel End Clamp useful when planning a rail-based PV installation around the actual dimensions and positioning of the solar modules. Rather than treating mounting hardware as an afterthought, choosing the appropriate rail component helps keep the installation organized from the beginning.

The Tamarack FM System is also designed with practical handling in mind. Its rails are available in 10.5-foot and 7-foot lengths, with the shorter rail lengths intended to make shipping, transportation, stocking, and handling easier. Kits using 7-foot rails can be shipped via UPS.

Real-World Applications For Solar Rail Mounting

Residential Solar Installations For Organized Module Mounting

The Tamarack Channel End Clamp can be used as part of a rail-based PV module mounting system where a module needs to be mounted flush to the end of the rail. Its focused design makes it suitable for installations using the Tamarack rail system.

DIY Solar Projects So You Can Build With Purpose

For customers assembling their own solar projects, using components designed for the specific rail system can make the mounting process easier to understand and manage. The Tamarack system is designed around simple assembly and minimal tools.

PV Installations With Module-Level Electronics

When a solar installation includes module-level electronics, Tamarack’s open rail channels can also be used for module and MLPE wiring. This helps keep wiring within the rail rather than requiring additional wire-management work around the system.

How The Tamarack Rail System Simplifies Installation

The Tamarack FM System is designed around a straightforward rail-based approach. Parts can be brought onto the roof fully assembled and ready to install, and the mounting process does not require drilling. Components are positioned into the rail’s T-slots and secured by tightening the bolt.

The rail system also includes an internal splice design that allows shorter rails to be used economically. The splice is designed for tool-free installation and does not interfere with module clamps or roof mounts. These details are useful when handling, transporting, and assembling a PV mounting system.

The system can also mount to roof attachments that accept a 5/16-inch bolt, including QuickBolt, QuickMount, FlashFoot, and S-5! products, according to the provided Tamarack information.

What To Consider Before Buying

The Tamarack Channel End Clamp is a good fit for customers who are specifically building or maintaining a Tamarack rail-based PV mounting system and need a component that allows modules to be mounted flush to the end of the rail.

Before purchasing, confirm that your planned installation uses the appropriate Tamarack rail system and that this end clamp matches the mounting arrangement you are building. The product information provided identifies this component as the Channel End Clamp, sold in bags of 8, but does not provide additional dimensional specifications for the clamp itself.

This May Be A Good Fit If:

• You are using a Tamarack rail-based PV mounting system.
• You need to mount a PV module flush to the end of a rail.
• You want a simple component for rail-based solar module mounting.
• You prefer a mounting system designed for straightforward assembly and minimal tools.
• You need a component supplied in an 8-piece bag.

Common Questions About The Tamarack Channel End Clamp

What Does The Tamarack Channel End Clamp Do?

It is designed to allow PV modules to be mounted flush to the end of the rail.

How Many Channel End Clamps Are Included?

The provided product information identifies the product as being sold in bags of 8.

Does The Tamarack Rail System Require Drilling?

The provided Tamarack information states that rail mounting does not require drilling. Components are positioned into the rail’s T-slots and secured by tightening the bolt.

What Tool Is Used With The Tamarack Rail System?

The provided information states that a 1/2-inch socket fits all fasteners in the system.

Can Wiring Be Routed Through The Tamarack Rails?

Yes. The Tamarack FM System uses the open rail channels for module and module-level electronics wiring, allowing PV cables and wiring to fit inside the rails.

What’s Included

• 1 x Tamarack Channel End Clamp Bag Of 8

Choose Tamarack Channel End Clamp For Practical Solar Mounting

When building a rail-based PV system, the right small components help turn a collection of rails and modules into a properly organized mounting system. The Tamarack Channel End Clamp provides a specific solution for mounting modules flush to the end of a Tamarack rail, while fitting into a system designed around simple installation and practical wire management.

Outbound Power focuses on helping customers select power and solar equipment based on how the products will actually be used. If you are building a Tamarack rail-based PV installation, this end clamp is a practical component to consider when you need clean, straightforward end-of-rail module mounting.
