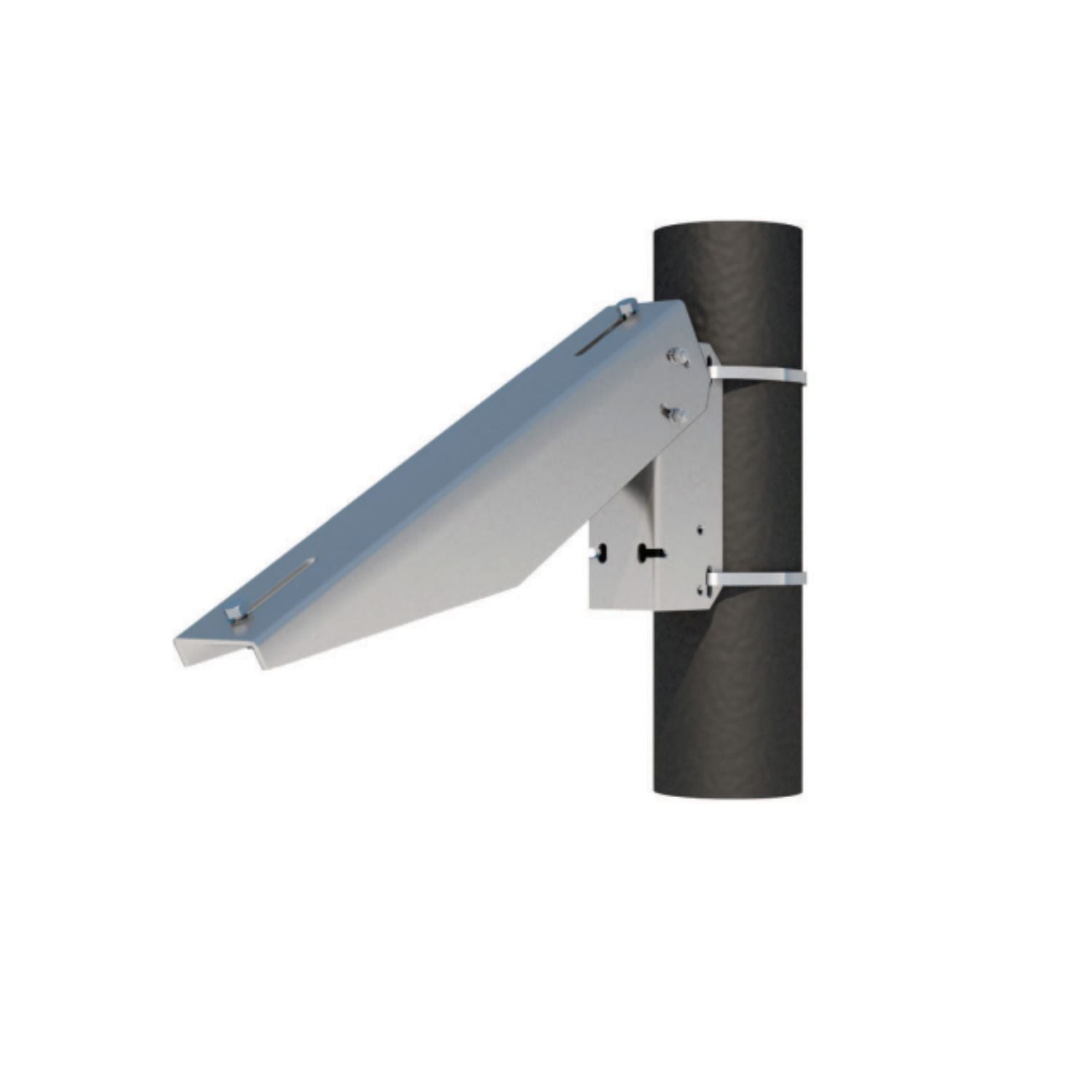

Tamarack Single Arm Side Pole Solar Mount

Tamarack Single Arm Side Pole Solar Mount Makes Small Module Mounting More Practical

The Tamarack Single Arm Side Pole Solar Mount is a compact mounting solution for small solar modules that need to be installed on a suitable pole or similar surface. Designed to fit 2-inch to 4-inch Schedule-40 poles, this single-arm mount attaches to the inside edges of the module frame rather than depending on factory mounting holes. That gives customers a practical option when selecting a mount for a small solar module and provides a straightforward way to build a compact solar setup.

Tamarack Single Arm Side Pole Solar Mount Features

Compact Single Arm Design For Small Solar Modules

The single-arm configuration keeps the mounting hardware focused on supporting a small solar module without requiring a larger mounting assembly. Three arm lengths are available, allowing customers to select a configuration based on the module's inside frame or extrusion dimension.

Inside Frame Clamping So You Can Match The Module

Instead of relying on factory mounting holes, the mount clamps to the inside edges of the module frame. This makes the inside frame dimension an important part of choosing the correct configuration. Measure the inside frame or extrusion dimension of your module before selecting the arm length.

• 14.0-inch arm fits inside frame distances from 5.26 to 12.6 inches
• 21.5-inch arm fits inside frame distances from 12.66 to 20.1 inches
• 26.0-inch arm fits inside frame distances from 20.11 to 25.5 inches

2-Inch To 4-Inch Pole Compatibility For Flexible Placement

The Tamarack Single Arm Side Pole Solar Mount is designed for 2-inch to 4-inch Schedule-40 poles. This makes it suitable for customers working with a compatible pole-based solar mounting arrangement and looking for a compact way to position a small module.

5000-Series Aluminum For Corrosion Resistance

The mount is manufactured from heavy-duty, corrosion-resistant 5000-series aluminum. For a solar mounting component, material selection matters because the hardware becomes part of the long-term structure supporting the module. Tamarack's specified aluminum construction provides the corrosion-resistant material called for in the product design.

90 Mph Wind Rating For Confident Planning

According to Tamarack's product data, the mount is engineered for 90 mph wind speeds. This provides a defined wind-speed specification to consider when planning a mounting application. Customers should still confirm that the overall installation, pole, module, and mounting location are appropriate for their specific conditions.

Three Arm Lengths So You Can Select The Right Fit

Choosing the correct arm length is not simply a matter of picking the longest option. The correct configuration depends on the inside frame dimension of the solar module. Available options include 14.0-inch, 21.5-inch, and 26.0-inch arms.

Real-World Applications For The Tamarack Single Arm Side Pole Solar Mount

This mount is intended for compact solar module applications where a pole-based mounting arrangement makes sense. Its small-module focus and available arm lengths make it useful when a customer needs a dedicated mounting component rather than a larger solar racking system.

• Small Off-Grid Solar Setups — Use it as part of a compact solar arrangement where a compatible pole is available.
• Remote Power Applications — A pole-mounted small module can be useful where space is limited and a suitable mounting location is available.
• RV And Mobile Applications — It may be considered for mobile power projects when the pole, module, and mounting surface are suitable for the intended installation.
• Outdoor And Remote Equipment — The compact design can suit projects where a small solar module needs to be positioned on a compatible pole.

Flat-wall installation is also possible using alternate fastening, but Tamarack notes that this is not the configuration for which the product was designed. If you are considering a wall installation, confirm that the mounting approach and fastening method are appropriate for your specific project before purchasing.

Choosing The Right Tamarack Single Arm Side Pole Solar Mount

The most important step in selecting this mount is measuring the inside frame or extrusion dimension of the solar module. Do not select the arm based only on the module's overall outside dimensions. The available configurations are matched to specific inside frame distances.

• UNI-SA/14.0 — 14.0-inch arm with a 5.26 to 12.6-inch inside frame distance
• UNI-SA/21.5 — 21.5-inch arm with a 12.66 to 20.1-inch inside frame distance
• UNI-SA/26.0 — 26.0-inch arm with a 20.11 to 25.5-inch inside frame distance

Customers should also confirm that the intended pole is a 2-inch to 4-inch Schedule-40 pole and that the overall mounting location is appropriate for the application. If you are unsure which configuration matches your module, the inside frame measurement is the place to start.

How This Mount Compares To Larger Solar Mounting Systems

A single-arm side pole mount serves a different purpose from a larger multi-module racking system. If your project involves a small solar module and a compatible pole, a compact single-arm design can provide a more focused mounting solution. Larger systems may require different mounting hardware and should not be substituted simply because they support more modules.

The key advantage here is fit and application. The Tamarack Single Arm Side Pole Solar Mount is built around a specific mounting approach: a small module, a compatible pole, and an inside-frame clamping method. That makes accurate measurement more important than simply choosing a mount based on appearance or overall module size.

Common Questions About The Tamarack Single Arm Side Pole Solar Mount

What Size Poles Does This Mount Fit?

It is designed to fit 2-inch to 4-inch Schedule-40 poles.

How Do I Choose The Correct Arm Length?

Measure the inside frame or extrusion dimension of your solar module. The 14.0-inch, 21.5-inch, and 26.0-inch configurations each cover a different inside frame dimension range.

Does The Mount Use Factory Mounting Holes?

No. The mount clamps to the inside edges of the module frame rather than relying on factory mounting holes.

Can It Be Installed On A Flat Wall?

Flat-wall installation is possible with alternate fastening, but Tamarack notes that this is not the configuration for which the product was designed. Confirm the appropriate fastening approach for your application before installation.

What Is The Wind Speed Specification?

According to Tamarack's product data, the mount is engineered for 90 mph wind speeds. The complete installation should be evaluated for the specific project and conditions.

What’s Included

• 1 x Tamarack Single Arm Side Pole Solar Mount

The specific arm length is selected as the product configuration: 14.0 inches, 21.5 inches, or 26.0 inches. Confirm the selected configuration before ordering to ensure it matches your module's inside frame dimension.

Build Your Solar Mounting Solution With Tamarack

When a solar project calls for a compact mounting solution, getting the fit right is just as important as choosing the module itself. The Tamarack Single Arm Side Pole Solar Mount combines a single-arm design, inside-frame clamping, corrosion-resistant 5000-series aluminum, and three configuration options to help customers match the mount to their specific small-module application. With a 10-year manufacturer warranty and a 90 mph wind-speed specification from Tamarack's product data, it provides useful specifications for practical project planning.

At Outbound Power, we focus on helping customers select power and solar equipment based on the actual requirements of their setup. Measure your module's inside frame dimension, confirm your pole specifications, and choose the Tamarack configuration that matches your project.
