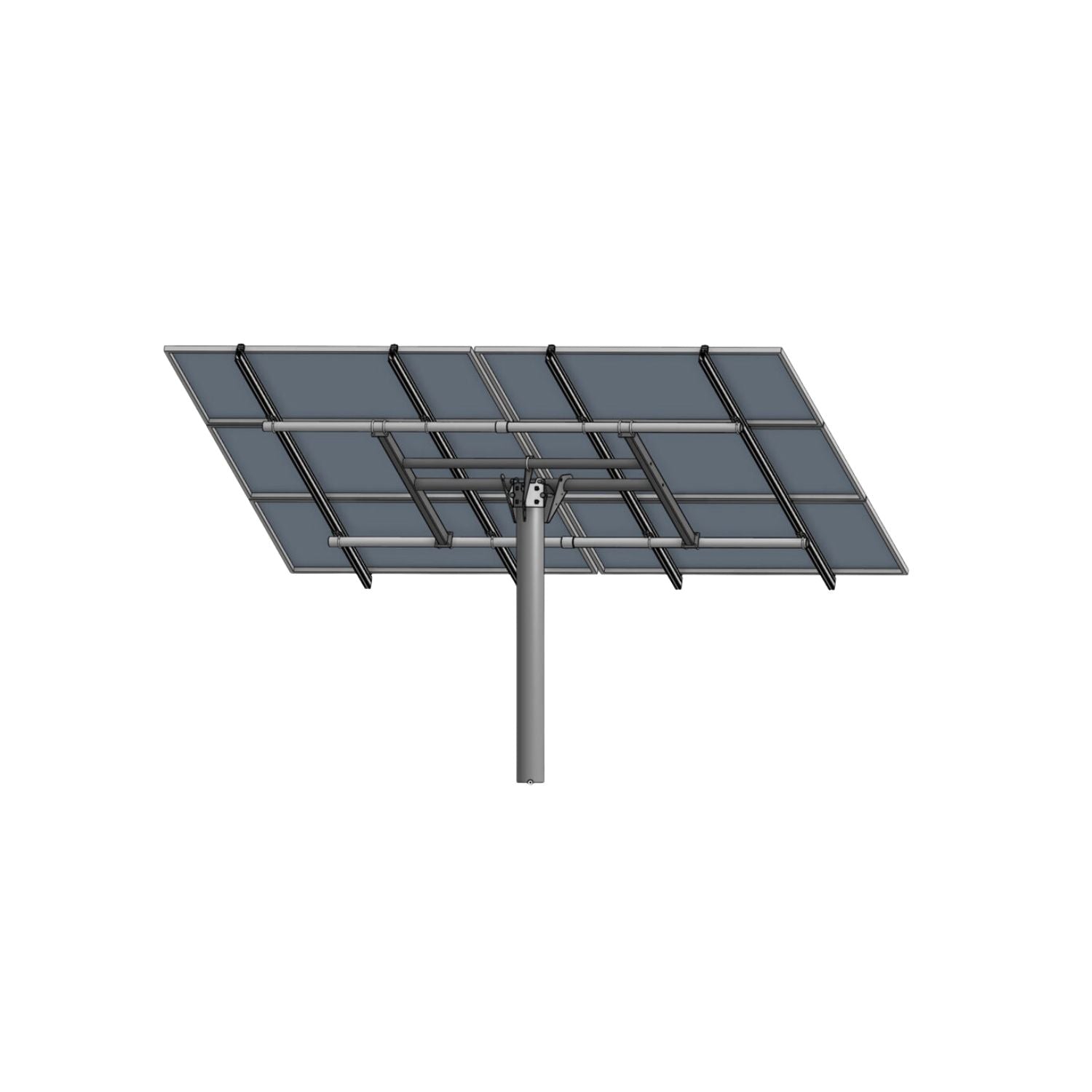

Tamarack Top of Pole Landscape Solar Mount

Tamarack Top of Pole Landscape Solar Mount Supports Multiple Modules With Adjustable Tilt

The Tamarack Top of Pole Landscape Solar Mount is a heavy-duty mounting system designed to install multiple solar modules in landscape orientation on a single vertical steel post. With configurations for 2, 3, 4, or 6 modules, this Tamarack mounting solution gives solar installers a structured way to build larger pole-mounted arrays while keeping the modules supported by Tamarack 3.1 aluminum mounting rails and a steel support structure. Adjustable tilt from 10 to 60 degrees also lets you select an angle appropriate for your installation and site conditions. Because the vertical post and required horizontal steel pipe are not included unless purchased separately, planning the complete mounting system before installation is important.

Tamarack Top of Pole Landscape Solar Mount Features

Multiple Module Configurations For Larger Pole Mounted Arrays

Choose a configuration based on the number and width of solar modules you need to mount. Available models support 2, 3, 4, or 6 modules in landscape orientation. The 2-module configuration accommodates modules up to 45 inches wide, while the 3-module and 6-module configurations accommodate modules up to 46 inches wide. The 4-module configuration accommodates modules up to 45 inches wide.

• 2-module configuration with 93-inch rails
• 3-module configuration with 70-inch rails
• 4-module configuration with 93-inch rails
• 6-module configuration with 70-inch rails

Adjustable Tilt For More Flexible Solar Positioning

The mounting system provides an adjustable tilt range from 10 to 60 degrees. This gives installers flexibility when positioning the solar modules for a particular project. Since wind and snow ratings can vary based on the model, pipe size, tilt angle, and site conditions, Tamarack engineering documentation should be consulted before installation.

Landscape Orientation For Efficient Array Planning

These top-of-pole mounts are specifically designed for landscape-oriented solar modules. That makes them useful when your panel dimensions and array layout call for a landscape configuration rather than portrait mounting. Selecting the correct rail length and module capacity is an important part of matching the mount to your planned array.

Steel Support Structure With Tamarack 3.1 Rails For Solid Mounting

The system combines a steel support structure with Tamarack 3.1 aluminum module mounting rails. This construction provides the mounting framework needed to position multiple solar modules on a vertical steel post while keeping the rail system integrated with the support structure.

Multiple Pipe Options For Different Mount Configurations

The available models are designed for different vertical steel pipe sizes. The 2- and 3-module models use a 4-inch Schedule-40 or Schedule-80 vertical steel pipe. The 4- and 6-module models use a 6-inch Schedule-40 or Schedule-80 vertical steel pipe. The horizontal cross pieces require 2-inch pipe, which is sold separately.

Frame Clamp Options For Common Module Frames

Standard clamps are designed for solar module frames approximately 30 to 40 mm deep. Taller-frame clamp options are available separately. Before ordering, confirm your solar module frame dimensions so you can determine whether the standard clamp configuration matches your panels.

10-Year Manufacturer Warranty For Long-Term Planning

The Tamarack Top of Pole Landscape Solar Mount includes a 10-year manufacturer warranty. For customers planning a long-term solar installation, having a stated manufacturer warranty provides useful information when evaluating the mounting hardware as part of the overall system.

Real-World Applications For Tamarack Top Of Pole Solar Mounting

Off Grid Solar Systems For Remote Power Projects

A pole-mounted solar array can be useful when a project calls for solar modules to be installed away from a building or other structure. The available 2-, 3-, 4-, and 6-module configurations allow the mounting system to be selected according to the planned array size.

Home Backup Power For Dedicated Solar Arrays

For a home backup power system that uses solar generation, this mount can serve as the structural mounting hardware for a multi-module array. The appropriate configuration depends on the number and dimensions of the modules, along with the required pipe arrangement and site conditions.

Remote And Mobile Power Projects For Flexible Installation Locations

Remote power projects can have different mounting requirements than conventional rooftop installations. A top-of-pole arrangement provides a way to position multiple landscape-oriented modules on a vertical steel post when that type of installation suits the project.

How This Tamarack Solar Mount Compares To Typical Alternatives

A top-of-pole mounting system differs from a typical rooftop solar mounting approach because the modules are supported from a vertical steel post rather than attached directly to a roof structure. It also differs from a small single-panel pole mount because these Tamarack configurations are designed for multiple modules, with options for 2, 3, 4, or 6 panels.

The main advantage of choosing among several configurations is that you can match the mounting hardware to the planned array instead of treating every pole-mounted project the same way. However, the mount is not a complete standalone installation package. The required vertical post and horizontal 2-inch steel pipe are not included unless purchased separately, so those components need to be planned as part of the project.

Buyer Guidance For Choosing The Right Tamarack Pole Mount

Match Module Count And Width So You Can Build The Intended Array

Start with the number of solar modules you plan to install and check their dimensions. The available models have different module capacities and rail lengths, so selecting the correct SKU is important.

• TTP-A-2-93 supports 2 modules up to 45 inches wide.
• TTP-A-3-70 supports 3 modules up to 46 inches wide.
• TTP-A-4-93 supports 4 modules up to 45 inches wide.
• TTP-A-6-70 supports 6 modules up to 46 inches wide.

Confirm Pipe Requirements Before You Order

The 2- and 3-module models require a 4-inch Schedule-40 or Schedule-80 vertical pole. The 4- and 6-module models require a 6-inch Schedule-40 or Schedule-80 vertical pole. All configurations also require two lengths of 2-inch pipe as cross pieces. These pipes are not included with the mount and must be purchased separately.

Review Site Conditions Before Finalizing The Mount

Wind and snow ratings depend on the selected model, pipe size, tilt angle, and site conditions. For that reason, the mounting system should be selected with the actual installation environment in mind. Consult Tamarack engineering documentation before installation to verify the appropriate configuration for your project.

This May Be A Good Fit If

• You need to mount multiple solar modules in landscape orientation.
• You want a 2-, 3-, 4-, or 6-module top-of-pole configuration.
• Your project uses a compatible vertical steel pipe structure.
• You need adjustable tilt from 10 to 60 degrees.
• Your solar module frames are approximately 30 to 40 mm deep or can use an available taller-frame clamp option.

Common Questions About The Tamarack Top Of Pole Landscape Solar Mount

How Many Solar Modules Can This Mount Hold?

Available configurations support 2, 3, 4, or 6 modules. The correct configuration depends on the model selected and the dimensions of the solar modules.

What Size Vertical Pole Does It Require?

The 2- and 3-module models are designed for a 4-inch Schedule-40 or Schedule-80 vertical steel pipe. The 4- and 6-module models are designed for a 6-inch Schedule-40 or Schedule-80 vertical steel pipe.

Is The Vertical Steel Post Included?

No. The vertical steel post is not included and must be purchased separately unless otherwise specified as part of a separate purchase.

Does The Mount Include The Horizontal Pipe?

No. The required horizontal cross pieces use two lengths of 2-inch pipe, which are sold separately. Specific pipe kit options are listed for the 4- and 6-module configurations.

What Tilt Range Does The Mount Offer?

The tilt angle is adjustable from 10 to 60 degrees. Wind and snow considerations should be reviewed using Tamarack engineering documentation for the specific installation.

What’s Included With The Tamarack Landscape Solar Mount

Included components vary by configuration. The vertical steel post and required horizontal steel pipe are not included.

• 1 x Top Of Pole Mount Assembly
• 1 x Tamarack 3.1 Aluminum Rail Set
• 1 x Steel Support Structure
• 1 x Module Clamp Set

Note: The exact components and quantities can vary by SKU. Confirm the configuration and package contents before purchase.

Choose Tamarack Mounting Hardware With Practical Solar Planning In Mind

The Tamarack Top of Pole Landscape Solar Mount gives you a configurable foundation for mounting multiple landscape-oriented solar modules on a vertical steel post. With 2-, 3-, 4-, and 6-module options, adjustable 10-to-60-degree tilt, Tamarack 3.1 aluminum rails, and a 10-year manufacturer warranty, it can be selected around the needs of a specific solar array rather than forcing every project into the same layout. Just be sure to account for the required vertical post, horizontal 2-inch pipe, module dimensions, and site-specific wind and snow conditions. At Outbound Power, we focus on practical equipment selection so you can build a solar and backup power solution around the hardware your project actually requires.
