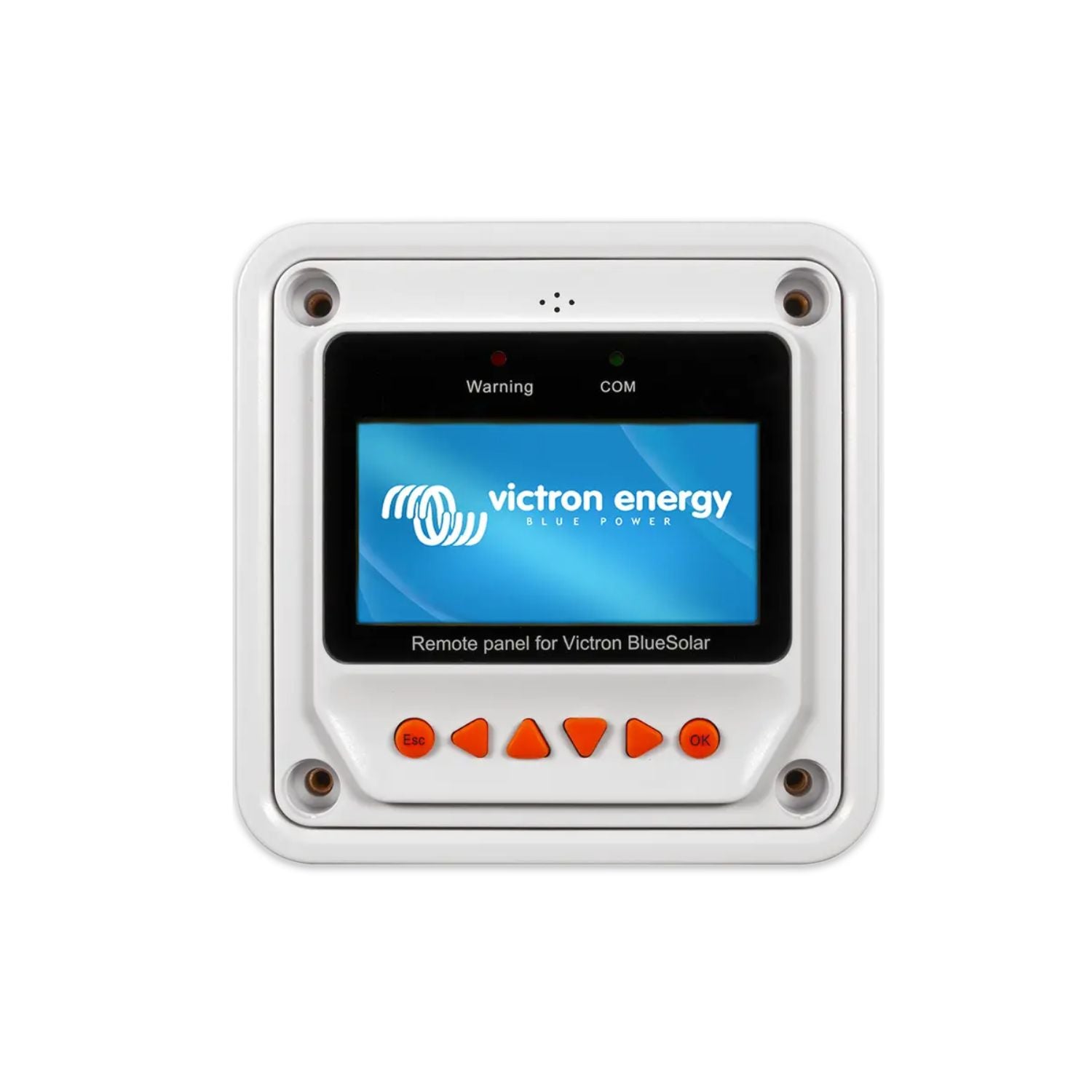

The Victron Energy Remote Panel for BlueSolar PWM Pro Charge Controller gives you a practical way to monitor and adjust a connected BlueSolar PWM-Pro charge controller from a dedicated remote display. Designed for BlueSolar PWM-Pro 12/24V 5A, 10A, 20A, and 30A charge controllers, the panel provides an LCD display, monitoring information, warning indicators, audible alarm functions, and access to charge controller settings. For customers building a solar charging system where seeing system information and managing settings matters, this remote panel puts useful information and controls in one convenient interface.
The LCD screen provides a convenient view of important charging and load information. The monitoring display can show PV voltage and current, battery voltage and current, load voltage and current, battery status, load status, and day or night information. Instead of relying only on the charge controller itself, you can use the remote panel to keep an eye on operating information from the panel location.
The remote panel connects to the BlueSolar PWM-Pro charge controller using a standard RJ45 UTP cable. This allows the display to be positioned remotely from the controller, with the manual specifying a maximum cable length of 20 meters. That can make system information easier to access when the controller is not positioned where you want to check it regularly.
The panel provides access to a range of battery-related control parameters. Depending on the charge controller setup, settings available through the interface include battery type, battery capacity, temperature compensation, rated system voltage, charge limits, boost charging, float charging, equalization, and low-voltage load settings. A password is required before settings can be changed.
The remote panel provides access to load output settings including Manual Control, Light On/Off, Light On+Timer, and Time Control. These options allow the connected charge controller to manage its load output according to the selected operating mode. Light-related modes can use solar input conditions, while Time Control uses the controller's internal clock.
The panel includes a warning LED, communication LED, and audible alarm. The warning indicator flashes when the connected charge controller experiences a failure, while the communication LED indicates communication status between the display and charge controller. The audible failure alarm can also be activated or deactivated.
The interface can display failure information such as over-voltage, overload, or short-circuit conditions. Having this information available through the remote panel can make it easier to understand what is happening with the connected charge controller when troubleshooting a solar charging system.
This remote panel is intended specifically for systems using the compatible BlueSolar PWM-Pro charge controller, so its most useful applications are those where monitoring and managing that controller from a convenient location is important.
For off-grid solar systems, the panel provides a dedicated place to monitor PV, battery, and load information while accessing charge controller settings. It can be useful where the charge controller is installed away from the preferred monitoring location.
For RV and mobile solar installations, the remote display can provide convenient access to charging and load information when the BlueSolar PWM-Pro controller itself is installed somewhere less accessible. Customers should confirm their specific controller model and system requirements before purchase.
For remote solar applications, having monitoring information and controller settings available through a dedicated panel can simplify routine checks and help users understand system status without needing to interact directly with the controller.
For solar lighting applications, the available Light On/Off and Light On+Timer modes provide control options based on solar input conditions, while Time Control provides scheduled operation through the controller's internal clock.
A charge controller can perform its normal function without necessarily requiring a dedicated remote display, but the BlueSolar Pro Remote Panel adds a separate interface for monitoring and configuration. Instead of treating the controller as a component that is only checked occasionally, the remote panel provides a dedicated LCD interface with system information, control menus, warning indicators, and configurable parameters.
The main benefit is convenience rather than adding power generation or battery capacity. This is a monitoring and control accessory for compatible BlueSolar PWM-Pro charge controllers, not a replacement for the charge controller itself.
The most important consideration is compatibility. The product is designed for BlueSolar PWM-Pro charge controllers, including 12/24V 5A, 10A, 20A, and 30A models. Customers should confirm their exact controller model before ordering.
The panel uses an RJ45 connector and connects to the charge controller with a standard RJ45 UTP cable. The manual specifies a maximum cable length of 20 meters. If your planned installation requires a different cable arrangement or distance, confirm the requirements before purchase.
This may be a good fit if:
It is designed for BlueSolar PWM-Pro charge controllers in 12/24V 5A, 10A, 20A, and 30A versions. Confirm your exact controller model before purchasing.
The display can show PV voltage and current, battery voltage and current, load voltage and current, battery status, load status, and day or night information.
The remote panel connects to the BlueSolar PWM-Pro charge controller using a standard RJ45 UTP cable. The specified maximum cable length is 20 meters.
Yes. The panel provides access to control parameters and other device settings. A password must be entered before settings can be changed.
Yes. The interface can display failure information such as over-voltage, overload, and short-circuit conditions. The warning LED also flashes when the connected charge controller experiences a failure.
Victron Energy Remote Panel for BlueSolar PWM Pro Charge Controller Specifications |
|
|---|---|
| Self-Consumption, Backlight and Acoustic Alarm On | Max. 65mA |
| Backlight On | Max. 23mA |
| Backlight Off | Max. 15mA |
| Faceplate Dimensions | 98 × 98 mm / 3.86 × 3.86 in |
| Frame Dimensions | 114 × 114 mm / 4.49 × 4.49 in |
| Connector Type | RJ45 |
| Cable Length | Max. 20 m |
| Weight | 0.2 kg |
| Ambient Temperature | -20°C to +70°C / -4°F to 158°F |
The Victron Energy Remote Panel for BlueSolar PWM Pro Charge Controller is a focused monitoring and control accessory for compatible BlueSolar PWM-Pro systems. With an LCD display, PV, battery and load monitoring, configurable controller parameters, load control options, warning indicators, and failure information, it gives you a practical interface for keeping track of your solar charging setup.
At Outbound Power, we focus on helping customers select power equipment based on how it will actually be used. If you are building or maintaining a BlueSolar PWM-Pro system and want convenient access to its information and settings, confirm your controller compatibility and cable requirements, then choose the remote panel that fits your setup.
