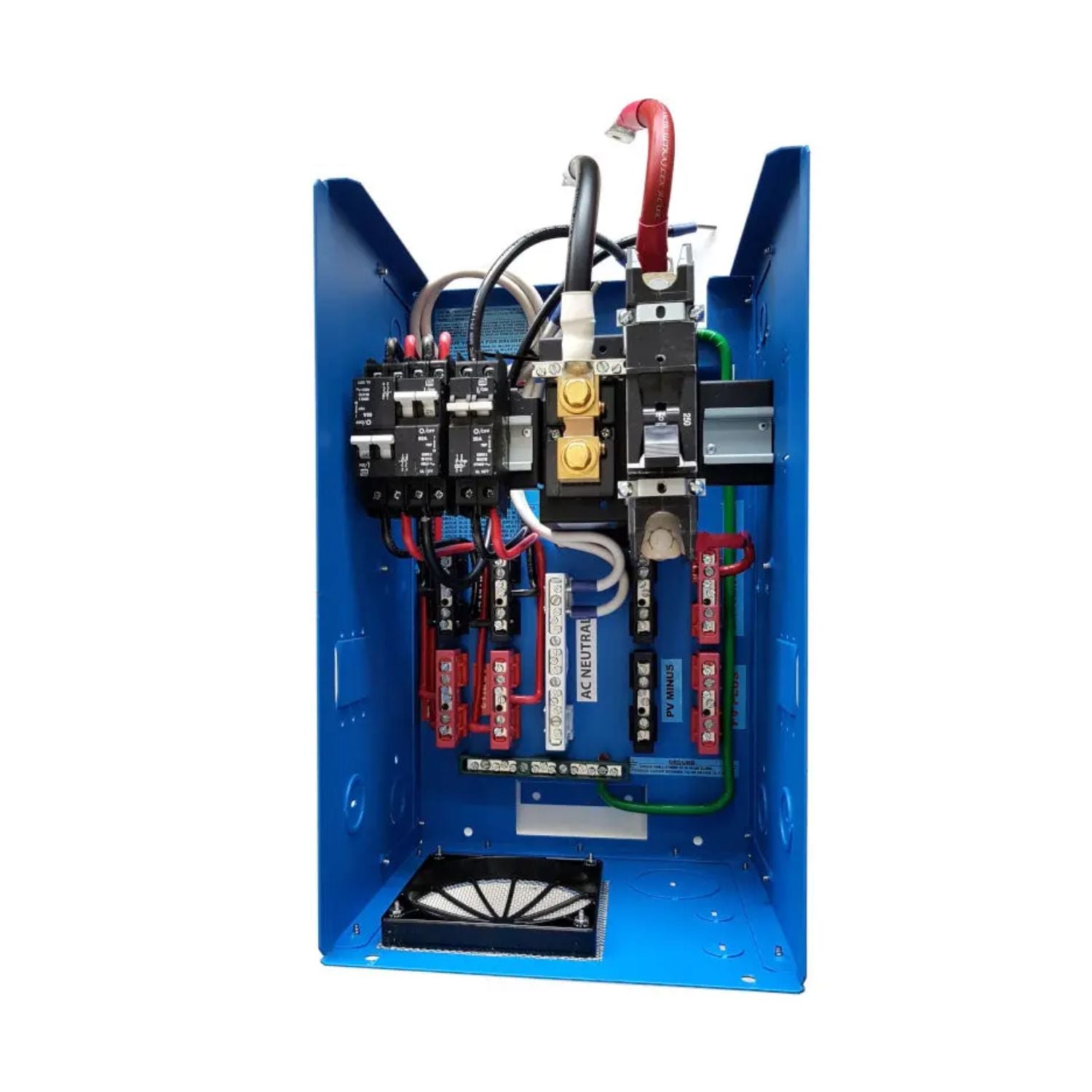

The Victron VE Panel 5KVA 120/240 NA Primary 48VDC is a pre-wired electrical panel designed to organize AC and DC connections for compatible Victron inverter/chargers. Built for 48V DC systems with a 120/240V North American configuration, this primary panel brings essential circuit breakers, labeled busbars, and battery monitoring components together in one assembly. Its integrated AC bypass allows an available AC source to continue supplying the load panel during inverter system inspection or maintenance. For homeowners, off-grid property owners, and power system installers planning a stationary backup solution, this panel provides a structured way to integrate key electrical components while simplifying system planning.
The pre-wired design helps simplify AC and DC connections to compatible Victron inverter/chargers. Instead of starting with a collection of separate components and arranging every internal connection from scratch, installers can work with an integrated panel featuring pre-wired cabling and labeled busbars. This organized approach can help streamline system assembly and make important connection points easier to identify during installation and servicing.
The built-in AC bypass assembly allows an available AC source to continue supplying the load panel while the inverter system is being inspected or maintained. This is a useful consideration when designing a backup power installation where maintaining access to an AC supply during service matters. The panel includes a 60A bypass breaker. Actual operation depends on the connected equipment, available AC source, and correctly configured electrical system.
The Victron VE Panel includes designated breakers for AC input, AC output, bypass operation, and DC disconnection. These components provide defined points for circuit protection and isolation within the installation.
These ratings help installers evaluate the panel against the requirements of the planned system. Confirm that the selected equipment, conductor sizes, protection devices, and electrical design meet the manufacturer's instructions and applicable electrical codes.
The included 500A/50mV DC shunt provides a measurement point for compatible battery monitoring equipment. Monitoring battery activity can help system owners better understand energy use and make informed decisions about managing their stored power. This is particularly relevant for backup and off-grid systems, where battery status is an important part of power planning. A separate monitoring display or device may be required, so confirm the monitoring equipment needed for your setup before ordering.
Labeled busbars help organize electrical connections within the panel. Combined with the pre-wired internal layout, they give installers a more structured arrangement for integrating compatible equipment. A clearly organized electrical panel can also make it easier to identify connection points when performing inspections or planning future changes.
The panel provides extra DIN rail space for compatible equipment, including DC load breakers and charge controllers such as Victron SmartSolar MPPT models. This offers flexibility when planning an installation that requires additional components. Available space alone does not guarantee compatibility, so verify the dimensions, electrical ratings, and installation requirements of any equipment you intend to add.
This primary VE Panel is designed for a 120/240V North American configuration and a 48V DC system. Selecting the correct configuration is essential when integrating an inverter/charger, battery bank, and AC distribution equipment. Verify the exact inverter/charger model and electrical requirements before purchase rather than relying on voltage or capacity figures alone.
For a stationary home backup installation, the VE Panel can help organize the electrical connections between a compatible inverter/charger and the rest of the power system. Its bypass assembly supports maintenance planning, while its circuit breakers and labeled busbars provide designated connection points. The panel is one component of a larger installation and does not independently provide backup electricity.
Off-grid properties need coordinated electrical equipment to manage stored energy and supply AC loads. The VE Panel can serve as part of a compatible 48V DC installation, helping organize connections and accommodate suitable additional equipment. It may be worth considering for permanent off-grid buildings where an integrated electrical panel is more appropriate than a portable power station.
Suitable commercial or technical power systems can benefit from an organized arrangement of electrical connections and protection devices. The VE Panel provides a pre-wired option for system designers working with compatible Victron inverter/chargers and a 120/240V configuration. The intended loads, electrical design, and installation requirements should determine whether this model is appropriate.
This product is an electrical panel rather than a standalone generator, portable power station, or solar panel. It is intended for integration into a properly designed power system, not direct use as an independent source of electricity for camping or mobile applications.
A custom-built panel allows an installer to select individual components and configure the arrangement for a particular project. However, the installer must also coordinate the components, wiring, breakers, and connections as part of the complete electrical design.
The Victron VE Panel offers a pre-wired alternative that brings together AC input and output breakers, a bypass breaker, a DC disconnect breaker, labeled busbars, and a DC shunt. This integrated arrangement can simplify component selection and internal wiring work when the panel suits the intended system.
Unlike a portable power station, the VE Panel does not combine a battery and inverter into a self-contained unit. It also does not replace the inverter/charger, battery bank, or other equipment required for a complete backup power installation. Buyers should compare solutions based on their actual electrical requirements and the work needed to build a complete system.
This panel is worth considering if you are designing a stationary power system and need an organized connection and protection assembly for compatible Victron inverter/chargers. Before purchasing, confirm that the model matches your intended system configuration and installation requirements.
This May Be A Good Fit If
What To Check Before Ordering
Do not assume that every 5kVA inverter/charger or 48V battery system is compatible simply because the specifications appear similar. Confirm the complete configuration before making your purchase.
It provides a pre-wired electrical panel for organizing AC and DC connections and circuit protection for compatible Victron inverter/chargers. It also includes an AC bypass assembly and a DC shunt.
Yes. This model is specified for 48V DC systems with a 120/240V North American AC configuration. Confirm compatibility with your specific inverter/charger and battery system before ordering.
The product is an electrical panel intended to connect with compatible inverter/chargers. An inverter/charger and battery bank should not be assumed to be included. Confirm the seller's package contents before purchase.
Yes. The bypass assembly is designed to allow an available AC source to continue supplying the load panel while the inverter system is inspected or maintained. Correct system configuration and an available AC source are necessary.
The panel has additional DIN rail space for suitable equipment, including compatible charge controllers. Confirm the controller's specifications, physical fit, and installation requirements before adding it to the system.
The available product description identifies the following built-in components and documentation. Confirm the seller's exact package inventory before ordering, as a separate itemized packing list was not provided.
A dependable backup or off-grid system starts with components selected to work together. The Victron VE Panel 5KVA 120/240 NA Primary 48VDC provides a pre-wired approach to organizing key AC and DC connections, circuit protection, and battery monitoring within a compatible power system. Confirm your inverter/charger, electrical configuration, and installation requirements before ordering. At Outbound Power, we focus on helping customers choose practical power equipment that fits their actual needs. Build your system with careful planning, informed product selection, and long-term value in mind.
