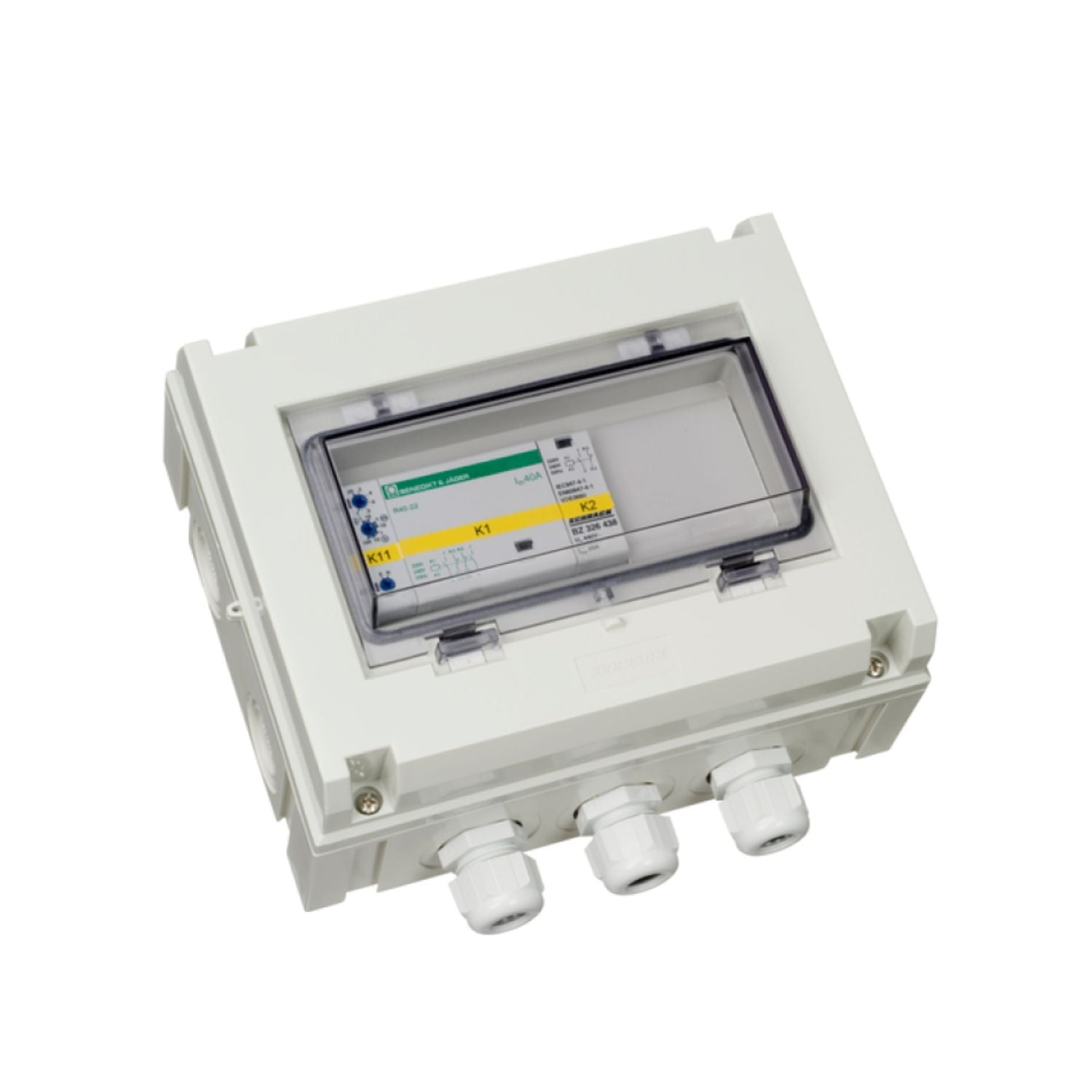

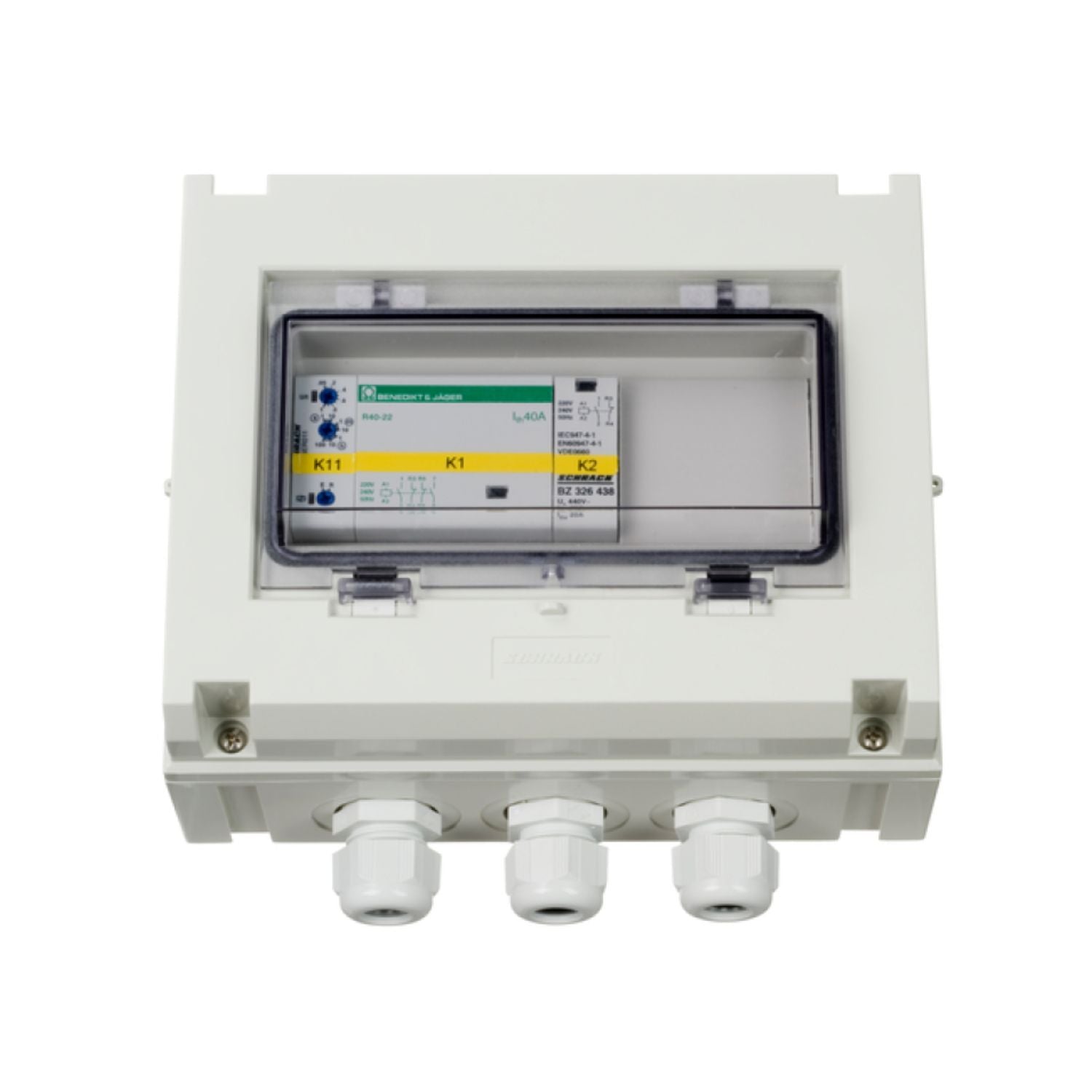

Victron VE Transfer Switch 5kVA, single phase, 200-250VAC

Victron VE Transfer Switch 5kVA, Single Phase, 200-250VAC for Automatic Power Source Switching

The Victron VE Transfer Switch 5kVA, single phase, 200-250VAC simplifies power management by automatically switching between two AC power sources and transferring the available power to a single output. Designed for systems that need to switch between an inverter, generator, or shore power, this transfer switch is a practical component for backup power installations and other systems that rely on more than one electricity source. Instead of manually changing power sources, you can build a system that handles the transfer automatically, making power management more convenient when your primary source changes.

Victron VE Transfer Switch 5kVA Features

Automatic Power Source Switching for Convenient Power Management

The Victron VE Transfer Switch automatically transfers available AC power from one of its two inputs to its single output. This allows you to configure a system around two suitable power sources, helping reduce the need for manual switching when changing between them.

Common configurations include:

• Generator and shore power
• Inverter and generator
• Inverter and shore power

For installations where access to a suitable AC supply matters, automatic transfer switching helps simplify the transition between available sources.

5kVA Capacity for Suitable Single-Phase Power Systems

This model is rated at 5kVA and designed for single-phase AC systems operating at 200–250VAC. Choosing a transfer switch with an appropriate rating is essential for building a system that operates within its intended limits.

Before purchasing, compare the transfer switch rating with the inverter output, expected electrical loads, and the requirements of both AC sources. The goal is to select a switch that suits your actual setup rather than choosing equipment based on capacity alone.

Two Inputs and One Output for Flexible System Design

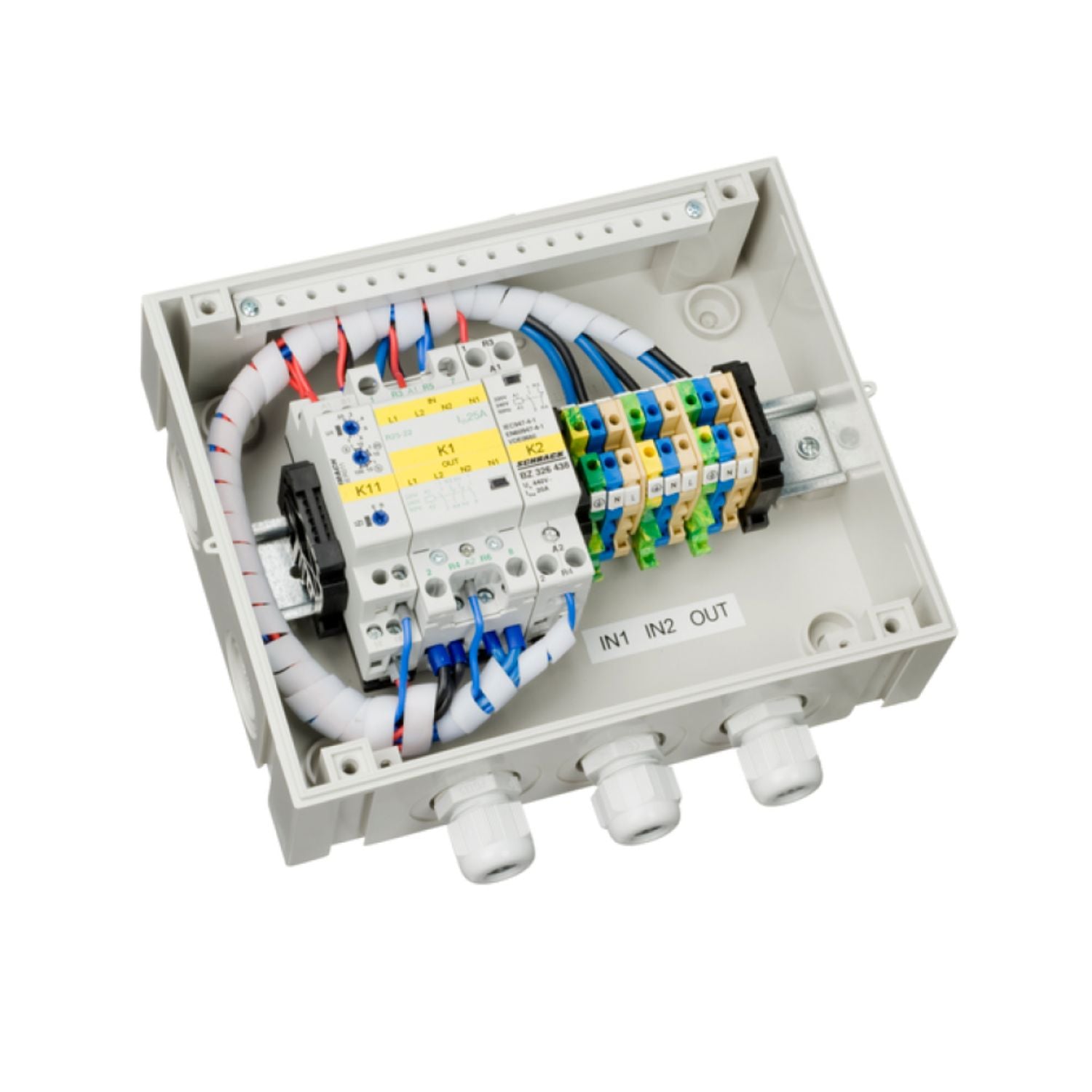

With two AC inputs and one output, the VE Transfer Switch provides a straightforward way to direct power from either of two sources to the connected output.

This configuration is useful when your system includes a primary supply and an alternative source, such as shore power and a generator. It can also support an arrangement involving an inverter and another AC source, provided the complete installation is appropriately rated and configured.

The switch can be used with Victron Energy inverters when the inverter's power rating does not exceed the transfer switch rating. Confirm the ratings of the specific equipment in your system before installation.

Automatic Transfer for More Convenient Backup Power Planning

Backup power is about more than having an inverter or generator available. The system also needs a suitable way to manage how AC power reaches the intended loads.

The Victron VE Transfer Switch provides automatic switching between two AC sources, making it a useful consideration for installations where power-source changes are part of the design. It helps organize the electrical system while allowing you to select the sources that suit your application.

As with any transfer switch, the rest of the installation matters. Source ratings, output requirements, protective devices, and wiring must all be considered when planning a properly functioning power system.

Real-World Applications for the Victron VE Transfer Switch

Home Backup Power Systems

For a home backup system designed around an inverter and a generator, the VE Transfer Switch can automatically transfer available AC power between the two sources. This may be useful for installations where the power arrangement calls for an alternative source when the primary source is unavailable.

The switch does not generate electricity or store energy. Its role is to manage the transfer of available AC power, so the inverter, generator, batteries, and other system components must be selected separately.

RV and Marine Shore Power Systems

In suitable RV or marine installations, the switch may be considered for managing power between shore power and an inverter or generator. This can be helpful when a system uses different AC sources depending on whether an external supply is available or onboard equipment is providing power.

However, not every RV or marine electrical system uses the same voltage, current rating, or wiring arrangement. Verify that the 200–250VAC single-phase design and 5kVA rating match your installation before selecting this model.

Off-Grid and Remote Power Installations

Off-grid systems sometimes combine inverter power with generator power to accommodate different operating conditions. The VE Transfer Switch can form part of such a setup when the equipment ratings and electrical design are appropriate.

For remote properties or work areas, careful planning is especially important because servicing equipment or correcting an unsuitable installation may be inconvenient. Confirm the intended loads, source capacities, and protection requirements before building the system around a transfer switch.

Victron VE Transfer Switch Compared With Manual Source Switching

A manual switching arrangement requires someone to operate the appropriate switching equipment when changing between power sources. An automatic transfer switch, by contrast, is designed to perform the transfer automatically between its configured inputs.

The VE Transfer Switch is intended for this automatic role and offers two inputs with one output. It is not a replacement for an inverter, battery bank, or generator because it does not independently supply or store energy.

Compared with choosing a larger transfer switch, the 5kVA model may suit installations whose requirements fall within its rating. The appropriate choice depends on the system's electrical specifications, not simply on the number of appliances you hope to operate.

Is the Victron VE Transfer Switch 5kVA Right for Your System?

This model may be worth considering if you need automatic switching between two AC sources in a compatible single-phase installation.

This May Be a Good Fit If

• You want automatic transfer between an inverter and a generator.
• Your installation needs to switch between shore power and another AC source.
• You are designing a suitable backup or off-grid power system.
• Your application matches the 200–250VAC single-phase specification.
• Your inverter and expected loads fall within the transfer switch's applicable ratings.

Before ordering, confirm the required voltage, frequency, input and output current, inverter rating, and installation requirements. The product's nominal input and output current ratings are 20A for this 5kVA model. Protective equipment such as miniature circuit breakers and earth-leakage breakers is not included according to the published technical specifications; the required protection depends on the installation.

Professional installation and verification of the system design are important when working with AC power. If you are unsure whether this model suits your equipment, confirm the details with a qualified installer before purchasing.

Common Questions About the Victron VE Transfer Switch 5kVA

What Does the Victron VE Transfer Switch Do?

It automatically switches between two AC power sources and transfers the available power from the selected input to one output. Typical arrangements include an inverter and generator or generator and shore power.

What Voltage Does This Model Support?

The 5kVA model is designed for single-phase AC systems with a nominal voltage of 200–250VAC and a nominal frequency of 50–60Hz.

Can I Use It With a Victron Inverter?

The VE Transfer Switch can be used with Victron Energy inverters, provided the inverter's power rating does not exceed the transfer switch rating. You should still verify the specific inverter model and the requirements of your complete electrical installation.

Does It Include Circuit Breakers?

The published technical specifications state that miniature circuit breakers and earth-leakage breakers are not included and depend on the installation. Confirm which protective devices your system requires before purchasing.

Is the 5kVA Model Suitable for Every RV or Home Backup System?

No. Suitability depends on the system voltage, phase, current requirements, inverter rating, connected loads, and installation design. Check these details before choosing this model.

What's Included

• 1 x Victron VE Transfer Switch 5kVA, Single Phase, 200-250VAC

Additional accessories and protective devices are not confirmed as included. Please verify the complete package contents with the seller before purchase.

Build a More Organized Power System With Outbound Power

Choosing the right transfer switch can make your power system easier to manage, but getting the ratings and system components right is just as important. The Victron VE Transfer Switch 5kVA provides automatic switching between two suitable AC sources in a single-phase 200–250VAC installation. Review your system requirements, verify compatibility, and plan for the appropriate electrical protection before committing to a configuration. At Outbound Power, our focus is helping you select practical power equipment that fits your needs today and supports a well-planned system for the long term.
