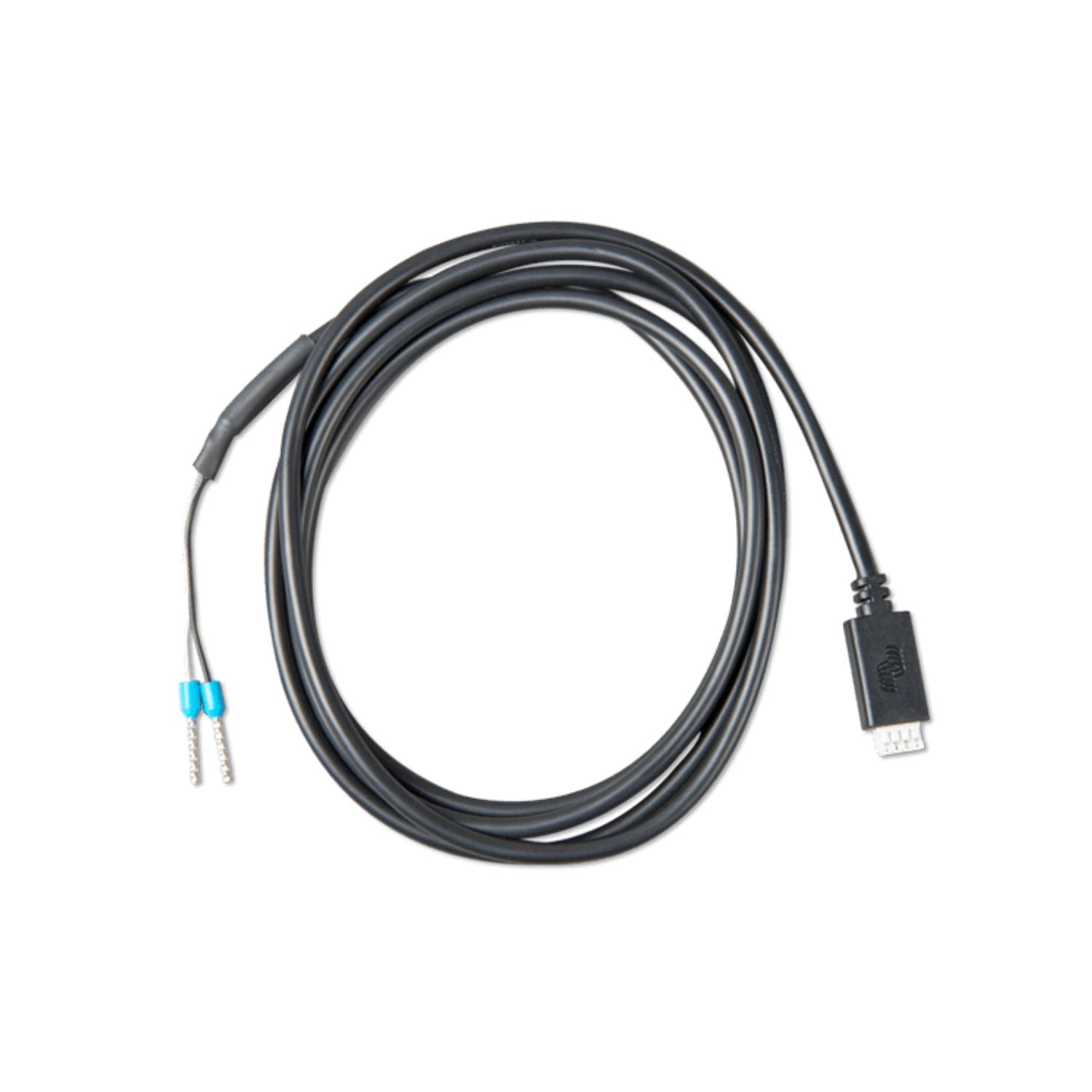

Victron VE.Direct TX Digital Output Cable

Victron VE.Direct TX Digital Output Cable Helps Control Solar System Functions

The Victron VE.Direct TX Digital Output Cable gives compatible BlueSolar and SmartSolar MPPT chargers a practical way to use the VE.Direct TX output for specific control functions. It is designed for applications such as solar lighting and virtual load output, making it useful when you need your solar charge controller to interact with another part of a solar power system.

Victron VE.Direct TX Digital Output Cable Features

VE.Direct TX Connection For Practical System Control

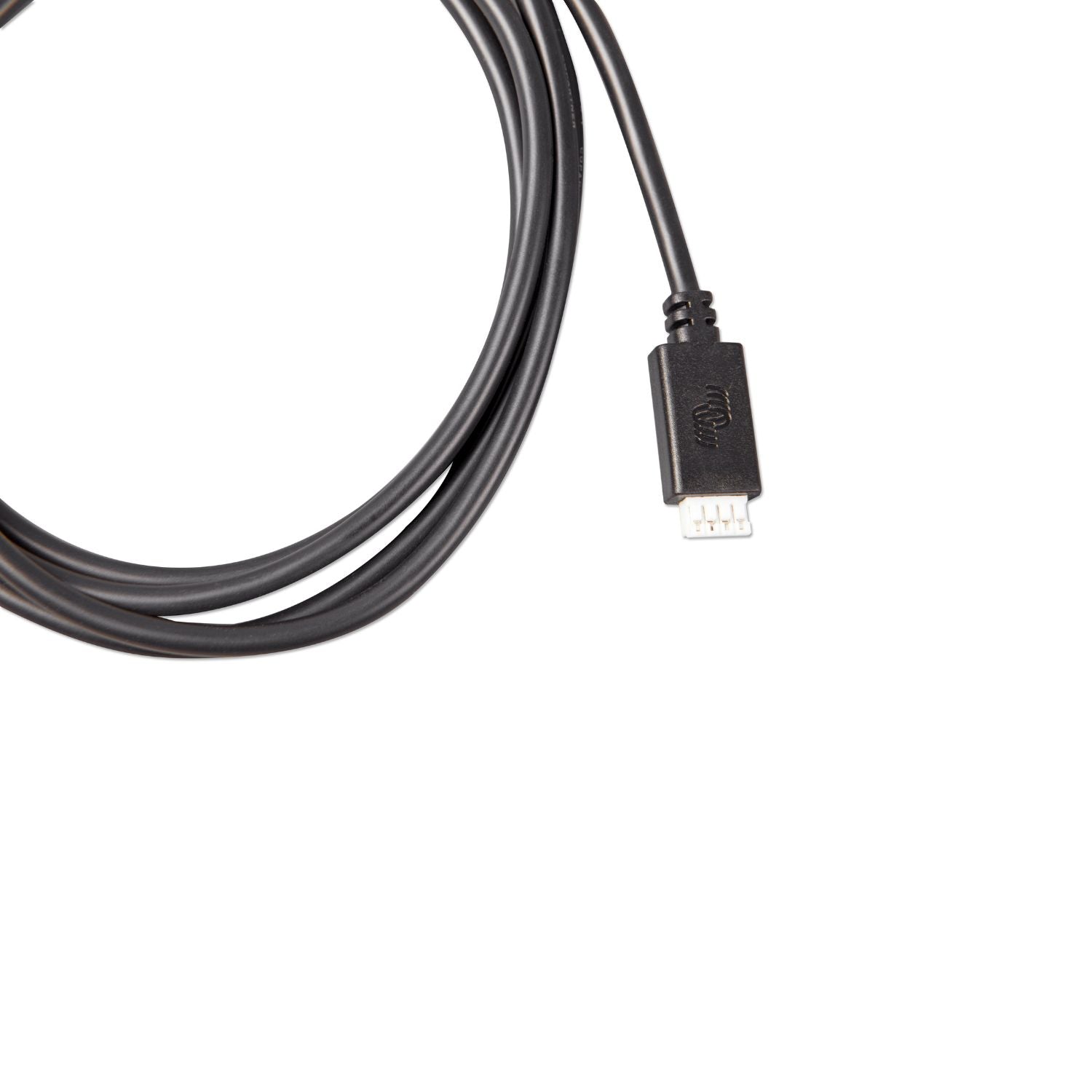

The cable connects to the VE.Direct port of a compatible BlueSolar or SmartSolar MPPT charger and exposes the TX output for use with supported external devices. The TX port functionality can be configured through the VictronConnect app on supported solar chargers.

Solar Lighting Control So You Can Reduce Lighting Energy Use

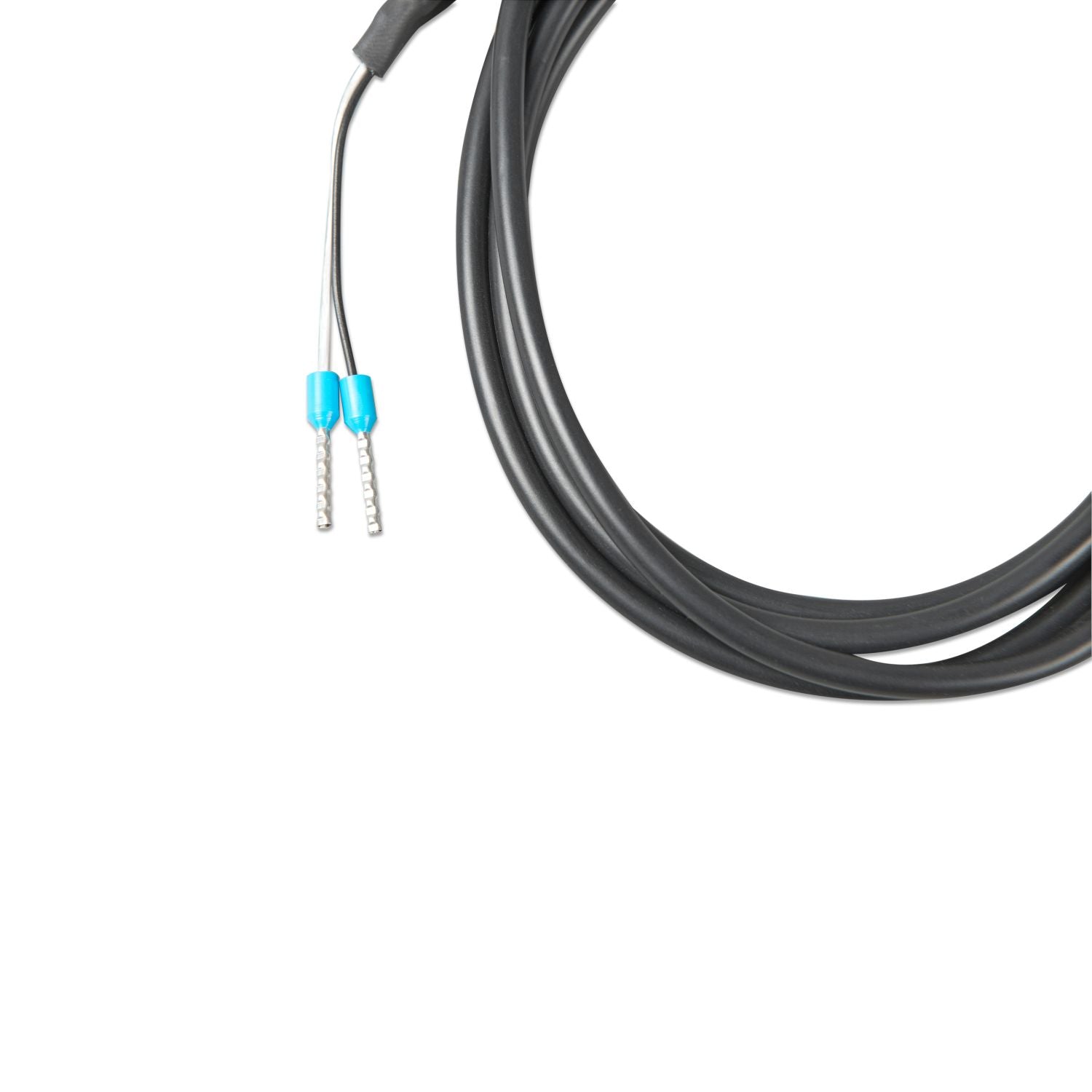

In solar lighting applications, the cable connects the MPPT charger's TX output to the PWM dimmer input of an LED driver. Dimming lighting when full brightness is not needed can reduce energy consumption and help maintain lighting availability when the battery is only partially charged because of low sunlight.

• Connects the MPPT charger TX output to a compatible LED driver's PWM dimming input.
• Supports normal or inverted light-dimming functions where supported by the charger.
• Helps solar lighting systems adjust energy consumption when full lighting output is unnecessary.

Virtual Load Output For MPPT Chargers Without A Physical Load Output

The cable can add load output functionality to larger MPPT chargers that do not have a physical load output. In this configuration, the TX output can connect to a BatteryProtect or solid-state relay, which can then be used to switch a load on or off.

Configurable TX Function So You Can Match The Cable To Your Application

The TX port functionality can be configured through the solar charger's settings in the VictronConnect app. Depending on the supported MPPT charger and application, available TX functions include light dimming and virtual load output.

Purpose Built For Victron MPPT Solar Charging Systems

This is a specialized accessory rather than a general-purpose cable. Victron specifies its use with BlueSolar and SmartSolar MPPT chargers, with the exact supported application depending on the charge controller. Customers should confirm their specific MPPT model and supported TX functions before purchase.

Real World Applications For The Victron VE.Direct TX Digital Output Cable

The most useful applications for this cable are solar systems where the MPPT charger's TX output needs to interact with lighting or load-control equipment. It is particularly relevant to fixed or semi-fixed solar installations where lighting and DC loads need to respond to system conditions.

• Solar Lighting — Connect the MPPT TX output to a compatible LED driver so lighting can be dimmed according to the configured solar lighting settings.
• Solar Street Lighting — Use the cable as part of a solar lighting setup where controlled LED dimming can help reduce energy consumption.
• Off Grid Solar Systems — Create a virtual load output on supported larger MPPT chargers that do not provide a physical load output.
• Remote Solar Installations — Provide a control connection between a compatible MPPT charger and supported load-control equipment.

How The Victron VE.Direct TX Digital Output Cable Compares

A standard connection cable generally exists to connect equipment or provide communication between devices. The Victron VE.Direct TX Digital Output Cable serves a more specific purpose by making the MPPT charger's TX output useful for supported control applications.

For solar lighting, its role is to connect the charge controller's TX output to the PWM dimming input of an LED driver. For virtual load control, it can connect the TX output to a BatteryProtect or solid-state relay. This makes it a specialized accessory for supported TX-output applications.

Is The Victron VE.Direct TX Digital Output Cable Right For You

This cable makes the most sense when you already have, or are planning, a compatible Victron BlueSolar or SmartSolar MPPT system and need one of the supported TX-output functions.

This May Be A Good Fit If:

• You are building a solar lighting system using a compatible MPPT charger and LED driver.
• You want to use TX-based PWM light dimming in a supported solar lighting application.
• You have a larger MPPT charger without a physical load output and need a virtual load output.
• You need to connect the MPPT TX output to a BatteryProtect or solid-state relay for load switching.
• You need a dedicated accessory for a supported Victron MPPT TX-output application.

Compatibility deserves particular attention. Victron's documentation identifies specific BlueSolar and SmartSolar MPPT chargers for use with this cable. Confirm your exact MPPT model and its supported TX functionality before ordering.

Common Questions About The Victron VE.Direct TX Digital Output Cable

What Does The Victron VE.Direct TX Digital Output Cable Do?

It connects to the VE.Direct port of a compatible BlueSolar or SmartSolar MPPT charger and provides access to the TX output for supported applications such as solar lighting and virtual load output.

Can This Cable Be Used For Solar Lighting?

Yes. The cable can connect the TX output of a compatible MPPT charger to the PWM dimming input of an LED driver for supported solar lighting applications.

Can It Create A Load Output On An MPPT Charger?

It can be used to create a virtual load output on supported larger MPPT chargers that do not have a physical load output. A BatteryProtect or solid-state relay can be used to switch the load.

Can The TX Function Be Configured?

The TX port functionality can be configured through the solar charger's settings using the VictronConnect app. Available functions depend on the compatible solar charger and its supported settings.

Will It Work With Any Solar Charge Controller?

No. The cable is specified for use with BlueSolar and SmartSolar MPPT chargers. Confirm your exact charger model and supported TX functions before purchase.

What’s Included

• 1 x Victron VE.Direct TX Digital Output Cable

Choose The Victron VE.Direct TX Digital Output Cable With Confidence

The Victron VE.Direct TX Digital Output Cable is a focused accessory for customers who need to put an MPPT charger's TX output to work. Whether the goal is controlled solar lighting or a virtual load output, the cable provides a practical connection between a compatible Victron MPPT charger and supported external equipment.

At Outbound Power, we believe good power-system planning starts with choosing components that actually match the job. Check your MPPT model, confirm the supported TX function, and make sure the connected equipment matches the intended application before ordering.
