ACOPower 1 Pair Solar Panel PV T/Y Connectors
$29.99
We Beat Any Price
Found the same price or less? Just ask & we'll beat it.
ACOPower Solar Panel T/Y Branch Connectors Join Two Panels in Parallel With Plug-In Connections

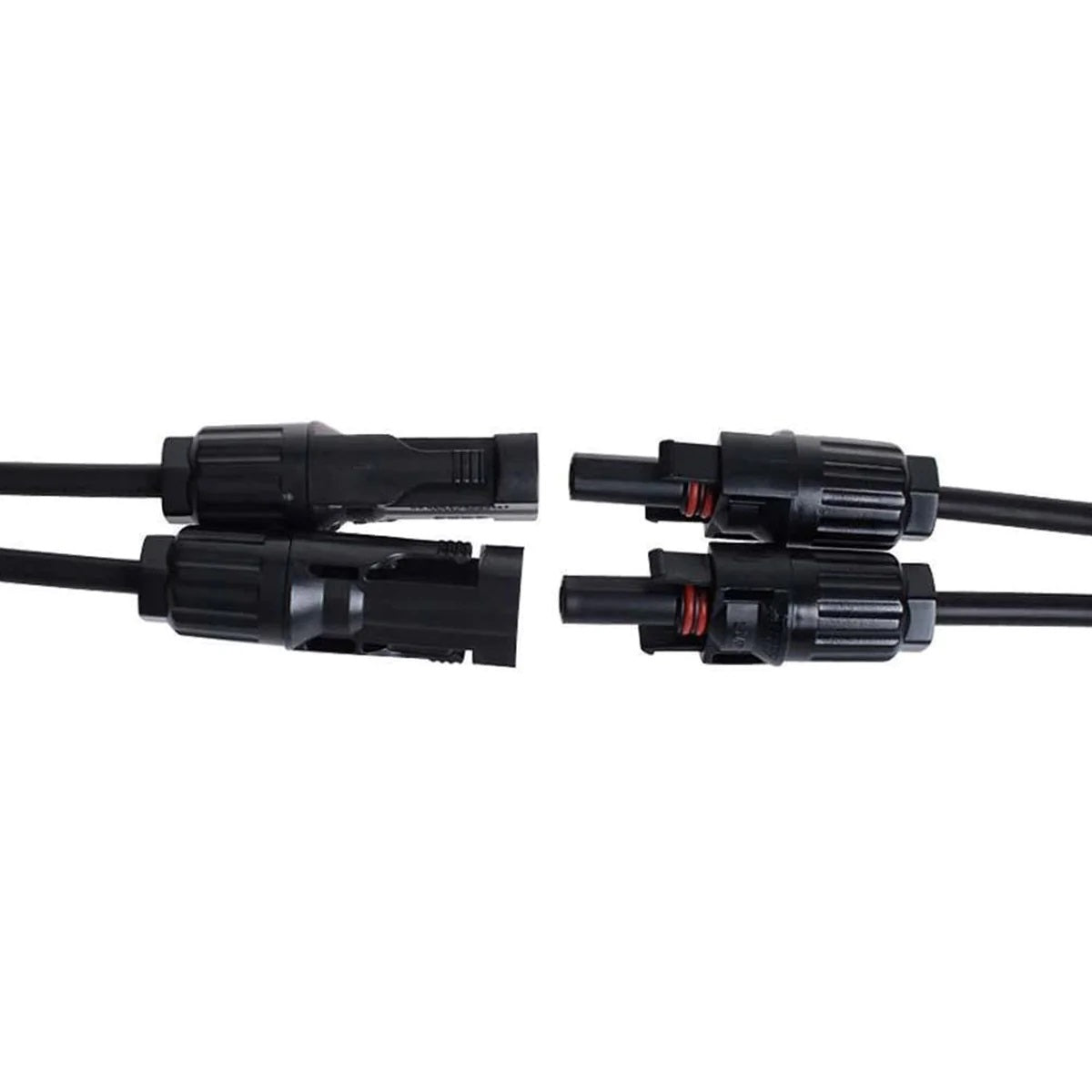

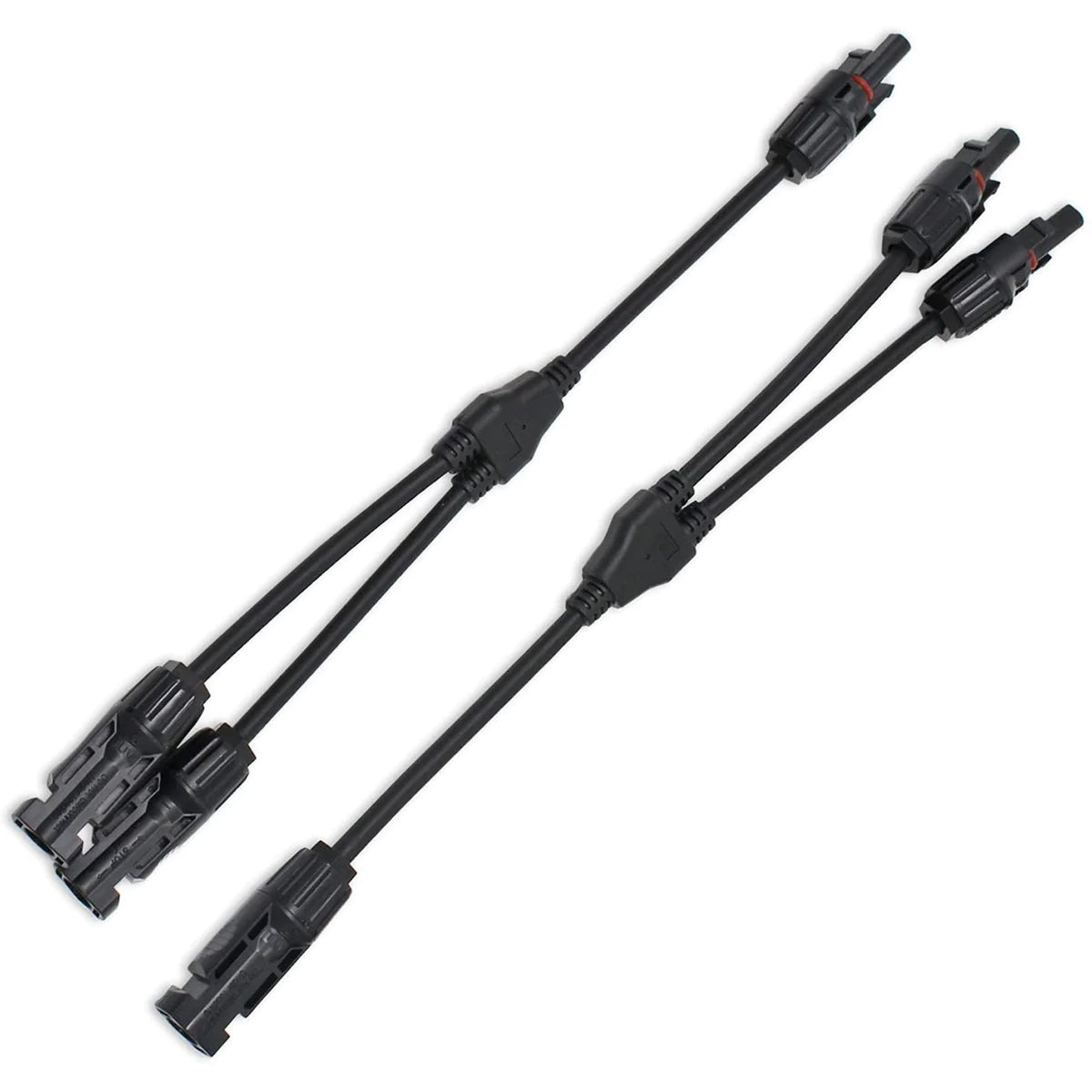

The ACOPower 1 Pair Solar Panel PV T/Y Connectors combine two solar panels in parallel. One branch has two male connectors and one female (M/M/F) and the other has two female connectors and one male (F/F/M). Plug the two panels' positive leads into one branch and their negative leads into the other, and run a single pair of leads to your charge controller.
Parallel wiring keeps your array at single-panel voltage while doubling the current, which suits 12V panels on a 12V battery with a PWM controller and is also used to build parallel strings for MPPT controllers.
ACOPower Solar Panel T/Y Connector Features
Two-Panel Parallel Connection
Combine two panels or strings into one set of leads with no splicing.
Self-Locking

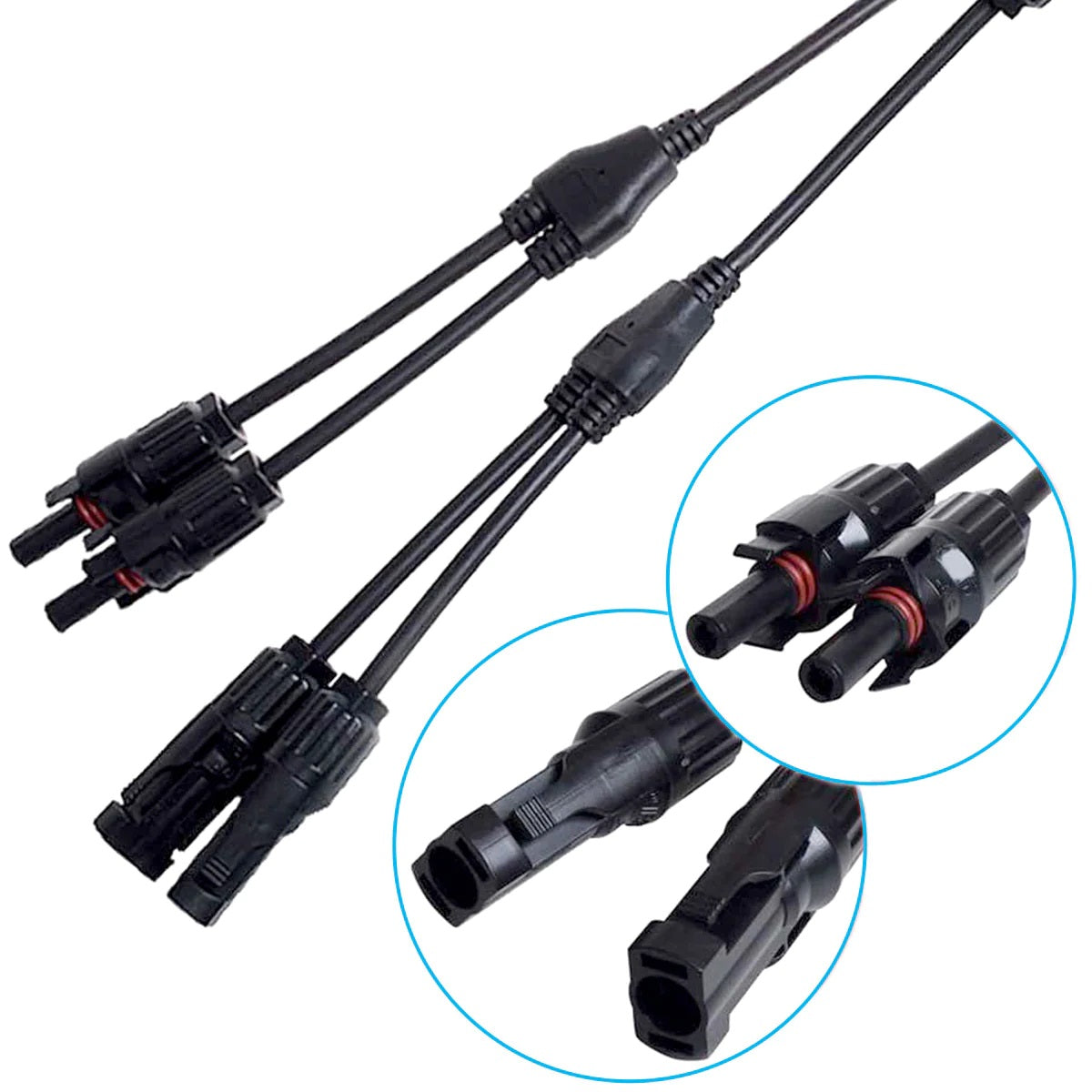

MC4-compatible connectors lock together and release only when the latch is pressed.
IP67 Weatherproof
Mated connections are sealed against water and dust.
High Voltage Rating
Rated 1000V DC (TUV) and 600V (UL), with silver-plated copper contacts and a UL94-V0 or 5VA flame rating.
Wide Temperature Range
Works from -40°C to +90°C for roof and ground-mount installs.
Real-World Applications
Adding a second panel. Expand a one-panel RV or portable kit to two panels.
Parallel strings. Combine two series strings for an MPPT controller.
How It Compares to Common Alternatives
Versus the 1 to 4 branch. The 1 to 4 branch combines four panels. The T/Y pair is simpler for two.
Is This T/Y Connector the Right Fit
- Panels. Two panels or strings of similar voltage.
- Current. Combined current within your cable and controller ratings.
This may be a good fit if
- You are adding a second panel to your system
- You want plug-in parallel wiring
Common Questions
What Is Included?
One M/M/F branch and one F/F/M branch, enough to parallel two panels.
Can I Use These for Series Wiring?
No. They are for parallel connections only.
What's Included
- 1 x PV T/Y branch connector, M/M/F
- 1 x PV T/Y branch connector, F/F/M
Two Panels, One Set of Leads
The ACOPower T/Y connector pair is the easy way to wire two solar panels in parallel. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
ACOPower 1 Pair Solar Panel PV T/Y Connectors Specifications |
|
|---|---|
| Model | HY-AS-MC4TY |
| Configuration | 1 x M/M/F + 1 x F/F/M |
| Connector | MC4-compatible, self-locking |
| Ingress Protection | IP67 (mated) |
| Rated Voltage | 1000V DC (TUV), 600V (UL) |
| Contact Material | Silver-plated copper |
| Insulation | PC/PA |
| Flame Class | UL94-V0 or UL94-5VA |
| Temperature Range | -40°C to +90°C |
| Unmating Force | 200 N |
| Color | Black |
