ACOPower 1 to 4 Solar Y Branch Connectors | 1 Pair M/FFFF + F/MMMM Y Branch Parallel Adapter

ACOPower 1 to 4 Solar Y Branch Connectors Combine Four Panels in Parallel Without a Combiner Box

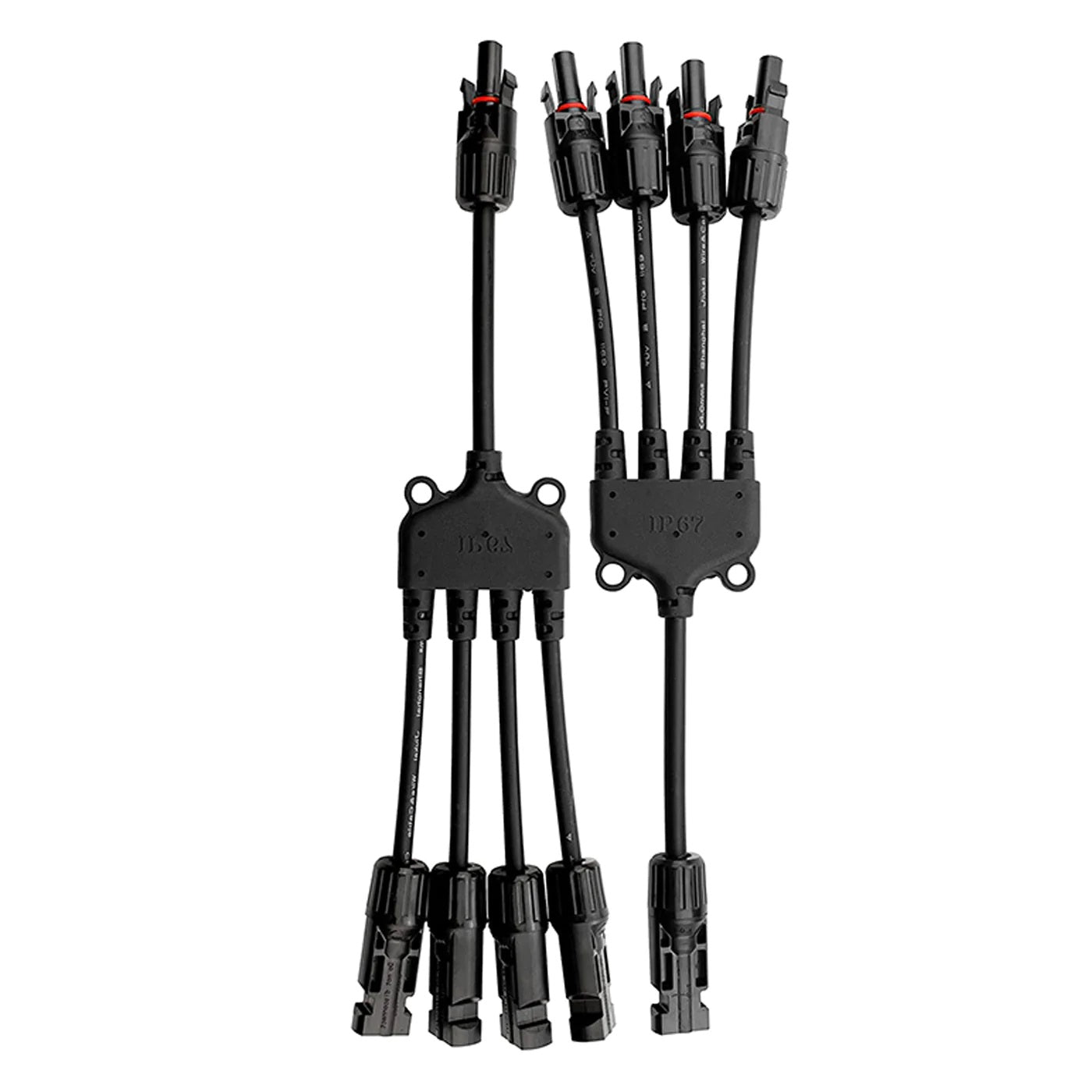

The ACOPower 1 to 4 Solar Y Branch Connector pair joins four solar panels in parallel with plug-in connections. One branch has four female inputs and one male output, and the other has four male inputs and one female output. Together they combine the positive and negative leads of four panels into a single pair of leads that runs to your charge controller.

Wiring panels in parallel keeps the array voltage the same as a single panel while adding their currents together. That is the usual way to connect 12V panels to a PWM controller, or to build parallel strings for an MPPT controller.

ACOPower 1 to 4 Solar Y Branch Connector Features

Four-Way Parallel Connection

Combine up to four panels or strings into one positive and one negative lead.

Plug-In Installation

MC4-compatible connectors snap onto your panel leads with no splicing, crimping or junction box required.

Fits Common Solar Cable

Compatible with solar connectors on 10 to 14 AWG cable, for single-core cable from 1.5 mm² to 6 mm².

Sealed Connections

Waterproof rings on each connection seal out water and dust to prevent corrosion.

Real-World Applications

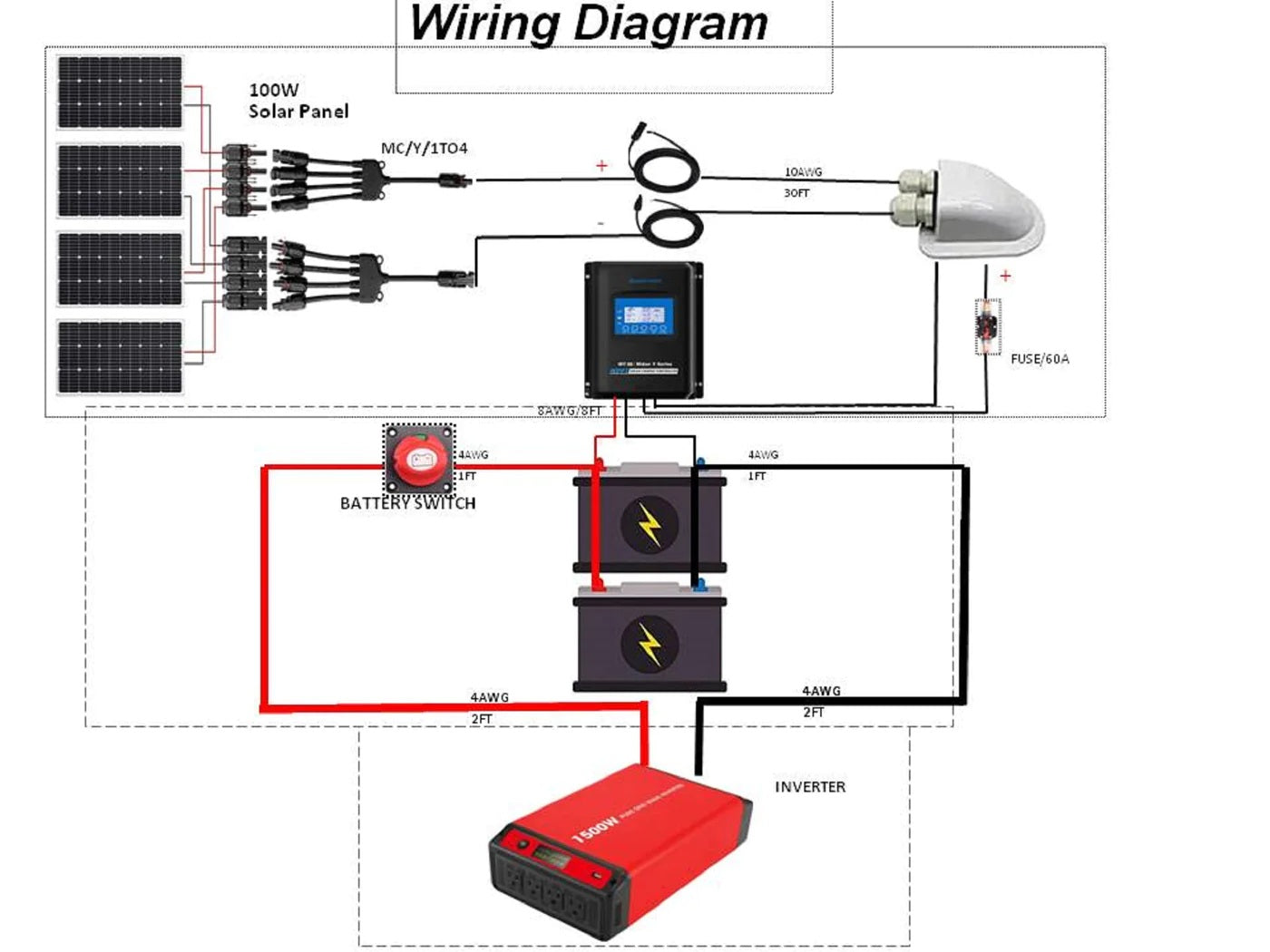

RV roofs. Connect four 100W panels in parallel to a single roof entry.

Portable arrays. Quickly join several folding panels at camp.

Off-grid cabins. Build parallel strings for a ground-mounted array.

How It Compares to Common Alternatives

Versus a combiner box. A combiner box adds fuses or breakers for each string and is preferred for larger arrays. Branch connectors are a simpler, lower-cost option for small systems.

Versus 1 to 2 Y connectors. Two-way Y connectors handle two panels. This 1 to 4 pair handles four in one step.

Is This Branch Connector the Right Fit

• Panels. Up to four panels or strings with similar voltage.
• Current. The combined current of all four panels must stay within the cable and connector ratings. Consider fusing each panel on larger arrays.
• Controller. Choose a charge controller rated for the combined current.

This may be a good fit if

• You are connecting four panels in parallel
• You want plug-in wiring without a junction box
• You have a 12V solar system

Common Questions

What Is Included?

One pair: a male to four female branch (M/FFFF) and a female to four male branch (F/MMMM).

Do Parallel Panels Need Fuses?

With three or more panels in parallel, inline fuses on each panel are commonly recommended so one shorted panel cannot back-feed the others.

Can I Use It for Series Wiring?

No. Branch connectors are for parallel wiring. For series wiring, connect panels positive to negative directly.

What's Included

• 1 x M/FFFF branch connector (1 male to 4 female)
• 1 x F/MMMM branch connector (1 female to 4 male)

Simple Four-Panel Parallel Wiring

The ACOPower 1 to 4 Solar Y Branch Connector pair joins four panels into one set of leads with sealed, plug-in connections. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
