The ACOPower 60A MPPT Solar Charge Controller Handles Larger 12V to 48V Solar Arrays With a 150V PV Input
The ACOPower 60A MPPT Solar Charge Controller is a 60 amp maximum power point tracking controller from ACOPower's Midas series, built for battery banks from 12 to 48 volts. It automatically detects 12V, 24V, 36V or 48V lead-acid systems and tracks the maximum power point of your array with at least 99.5% tracking efficiency.
A 150 volt PV input limit (138V at 25°C) allows longer series strings than 100V controllers, which means fewer parallel connections and lighter wire between the array and the battery. Dry contact outputs, an isolated RS485 port and support for multiple controllers in parallel make it a good base for a larger off-grid or backup system.
ACOPower 60A MPPT Solar Charge Controller Features
Fast and Accurate MPPT
The advanced MPPT algorithm finds the maximum power point quickly and recognizes multiple peaks when part of the array is shaded. Maximum DC to DC conversion efficiency is 98.0%.
12V, 24V, 36V and 48V Systems
The controller works with batteries from 8 to 68 volts and detects the system voltage automatically for lead-acid batteries. For lithium batteries, the system voltage is set manually.
Lead-Acid and Lithium Profiles
Charging profiles cover sealed (default), gel and flooded lead-acid batteries, plus LiFePO4 and Li(NiCoMn)O2 lithium. A user mode lets you program custom voltages. Lead-acid temperature compensation defaults to -3mV per °C per 2V cell, and the optional remote temperature and voltage sensor reads battery temperature and terminal voltage directly to offset cable voltage drop.

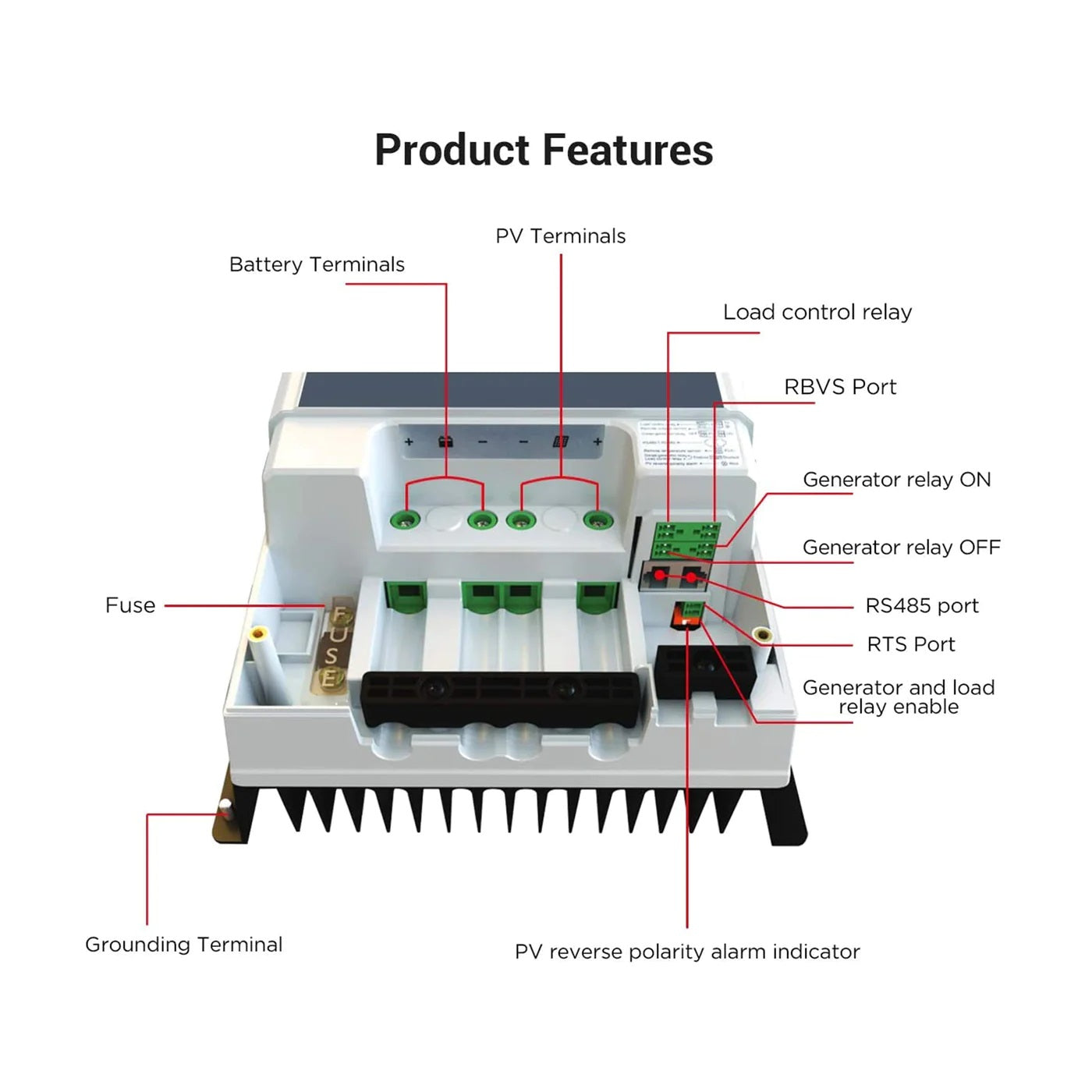

Load, Utility and Generator Dry Contacts
Instead of a direct load output, the controller has dry contacts rated 5A at 30VDC. One can switch an external load relay, with first and second disconnect voltages set in software. The other can signal utility power or a generator to start, which makes it simple to build a hybrid system.
RS485 With Modbus and Parallel Operation
Two RJ45 RS485 ports (5V, 200mA, short circuit protected) use the standard Modbus protocol for PC software, app monitoring or a remote meter. According to ACOPower's manual, up to 6 controllers can be connected in parallel on larger arrays.
Comprehensive Protection
Electronic protection covers overcharging, over-discharging and PV reverse polarity. The controller reduces its charging power automatically at high temperature, so it keeps working safely in hot equipment rooms.
Real-World Applications
Off-grid cabins and homes. Charge a 24V or 48V battery bank from a series-wired array.
Large RV and van systems. Run several roof panels into a 12V or 24V lithium bank.
Backup power. Use the generator dry contact to start a generator when the battery runs low.
Remote sites. Monitor telecom, pumping or security systems over RS485.
How It Compares to Common Alternatives
Versus the 50A model. The 50A version has the same platform and features with less charging current. Choose by your array size and battery voltage.
Versus the Midas 30A and 40A. The smaller Midas models are limited to 12V and 24V with a 100V PV input, but include direct load terminals with timer modes.
Versus PWM controllers. PWM controllers waste panel voltage above battery voltage. MPPT converts it into extra charging current, especially with series strings and in cold weather.
Is This Charge Controller the Right Fit
-
Battery bank. 12V, 24V, 36V or 48V lead-acid or lithium.
-
Solar array. Open circuit voltage below 150V at the coldest expected temperature.
-
Wiring. Recommended cable is 6 AWG (16 mm²).
-
Mounting. Indoor, dry location. The enclosure is rated IP20.
This may be a good fit if
- You have a 24V or 48V battery bank
- You want to wire panels in longer series strings
- You want generator start or load relay control
- You may add parallel controllers later
Common Questions
Does It Have Load Terminals?

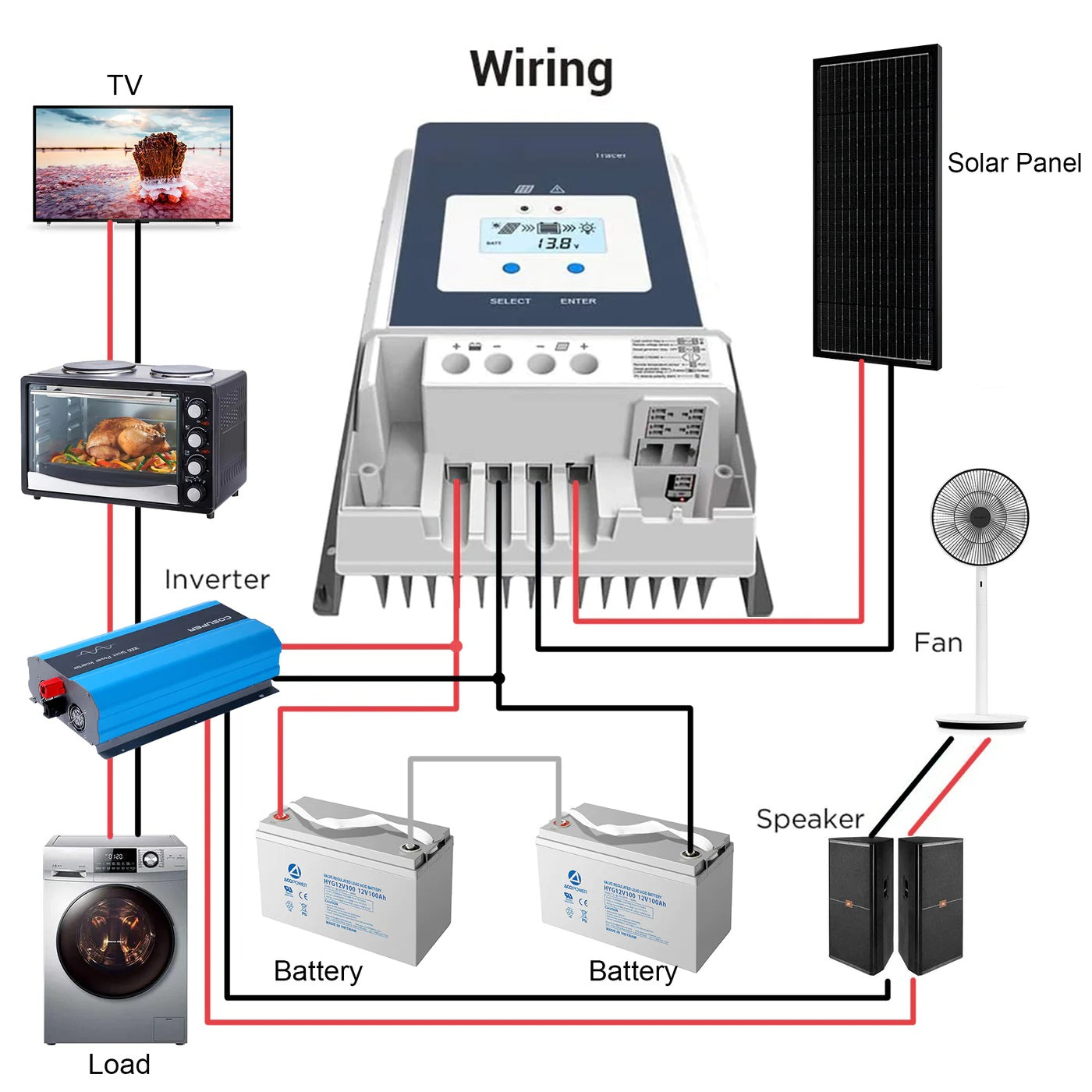

No. Loads are switched through the load dry contact and an external relay, so large DC loads should connect directly to the battery through a fuse or breaker.
Does It Work With Lithium Batteries?
Yes. It includes LiFePO4 and Li(NiCoMn)O2 profiles and a user mode. Set the system voltage manually when using lithium.
What Is the Maximum Solar Voltage?
150V open circuit at the lowest operating temperature, or 138V at 25°C. Exceeding it can damage the controller.
Can I Monitor It Remotely?
Yes. The RS485 ports work with ACOPower's PC software and app accessories, such as a USB to RS485 cable or an RS485 Bluetooth adapter.
What's Included
- 1 x ACOPower 60A MPPT Solar Charge Controller (HY6415A)
- 1 x User Manual
MPPT Charging Built for Growing Systems
The ACOPower 60A MPPT Solar Charge Controller combines a 150V PV input, 12V to 48V battery support and hybrid system controls in one unit. At Outbound Power, we help customers size controllers, arrays and battery banks. If you have questions, our team is happy to help.
ACOPower 60A MPPT Solar Charge Controller Specifications
|
| Model |
MY60 (HY6415A) |
| System Voltage |
12/24/36/48VDC auto (set manually for lithium) |
| Rated Charge Current |
60A |
| Battery Voltage Range |
8 to 68V |
| Max PV Open Circuit Voltage |
150V at lowest temperature, 138V at 25°C |
| MPPT Tracking Efficiency |
99.5% or higher |
| Max Conversion Efficiency |
98.0% |
| Self-Consumption |
98mA/12V, 60mA/24V, 50mA/36V, 46mA/48V |
| Lead-Acid Battery Types |
Sealed, Gel, Flooded, User |
| Lithium Battery Types |
LiFePO4, Li(NiCoMn)O2, User |
| Temperature Compensation |
-3mV/°C/2V (lead-acid default) |
| Grounding |
Common negative |
| Dry Contacts |
5A at 30VDC rated |
| Communication |
RS485 Modbus, two RJ45 ports (5VDC/200mA) |
| Battery Fuse |
80A/58V |
| Working Temperature |
-25°C to +60°C (derates at 45°C and above) |
| Enclosure |
IP20 |
| Dimensions |
340 x 232 x 105.2 mm (13.4 x 9.1 x 4.1 in) |
| Mounting Dimensions |
260 x 220 mm |
| Recommended Cable |
6 AWG (16 mm²) |
| Weight |
3.5 kg (7.7 lbs) |
| Certifications |
EN/IEC62109-1, EN61000-6-1/3, FCC Part 15 Subpart B |
| Workmanship Warranty |
1 year |
