ACOPower Flexible RV Solar System

The ACOPower Flexible RV Solar System Pairs Lightweight Roof Panels With LiFePO4 Batteries and a Pure Sine Inverter

The ACOPower Flexible RV Solar System is a complete off-grid power package built around ACOPower's 110W semi-flexible solar panels and 12V LiFePO4 lithium batteries. Each system includes the panels, an MPPT charge controller, a lithium battery bank, a pure sine wave inverter, a battery monitor, a switch, a fuse and the cables to connect it all.

Choose the battery bank and array that fit your rig. Systems with 200Ah or 300Ah of lithium storage use a 1500W inverter, and systems with 400Ah or 600Ah use a 3000W inverter. Arrays range from 220W to 660W. Because the panels weigh just 4.85 lbs each and are 0.12 inches thick, they suit curved van and bus roofs and rigs where weight matters.

ACOPower Flexible RV Solar System Features

110W Semi-Flexible Panels

Each panel produces 110W at 17.6V and 6.25A and can flex to follow a curved roof. Two to six panels are included depending on the option you choose, for 220W to 660W of solar.

LiFePO4 Lithium Battery Bank

ACOPower's 12V lithium iron phosphate batteries are rated for 100% depth of discharge, so nearly all of their capacity is usable. A 100Ah battery stores 1,280Wh and weighs 23.8 lbs, and a 200Ah battery stores 2,560Wh and weighs 48.94 lbs, far less than lead-acid batteries of the same capacity.

Pure Sine Wave Inverter

The 1500W inverter delivers 3000W of surge power, and the 3000W inverter delivers 6000W of surge, both with clean 120V AC output for electronics and appliances. Protection covers under-voltage, over-voltage, overload and short circuit.

MPPT Charge Controller

An ACOPower MPPT controller from 30A to 60A, matched to the array in each option, tracks the panels' maximum power point and includes lithium charging profiles.

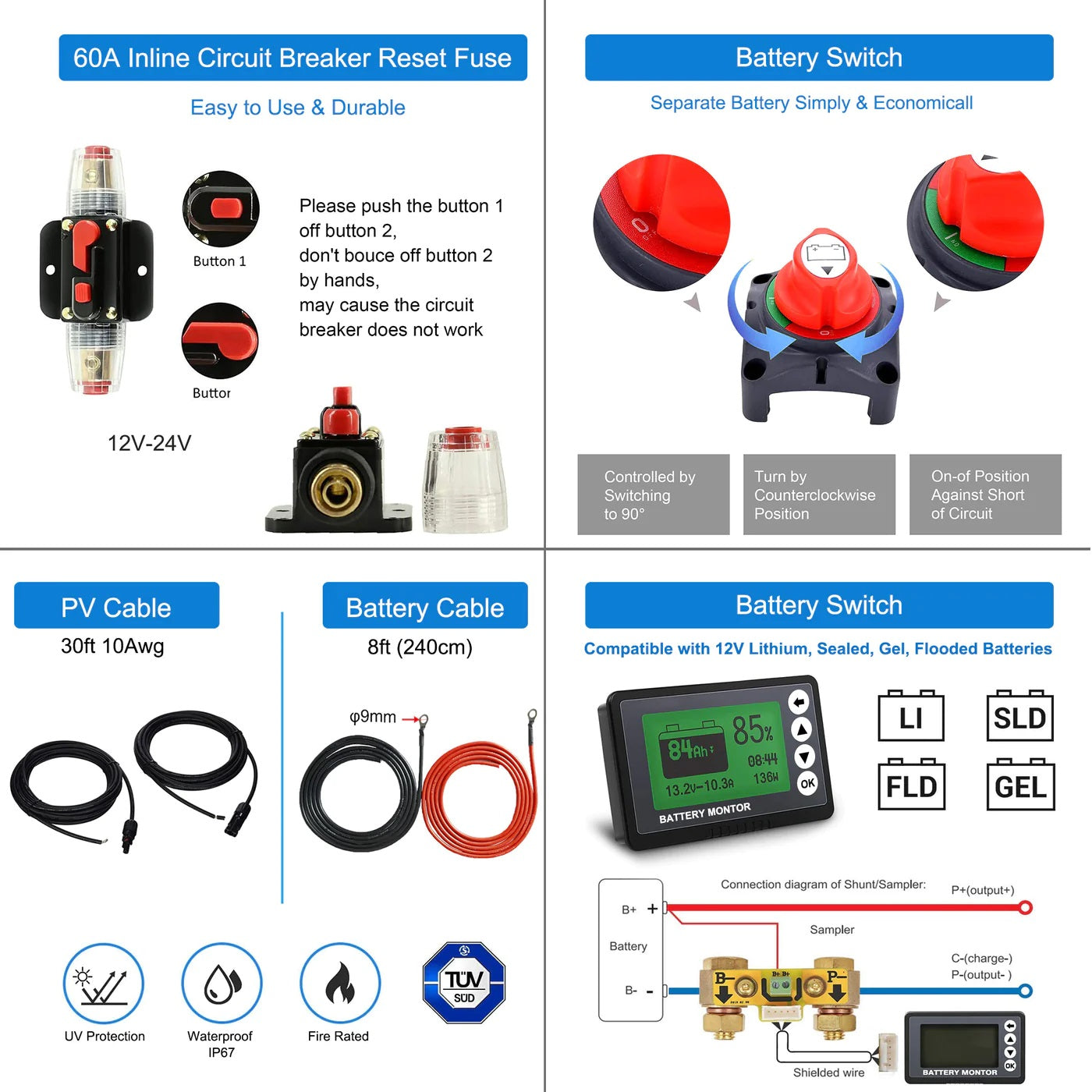

Battery Monitor, Switch and Fuse

A battery monitor shows state of charge, a battery switch isolates the bank for service, and a 60A fuse protects the wiring.

Real-World Applications

Camper vans and buses. Flexible panels follow curved roofs, and the lithium bank fits tight spaces.

Travel trailers. Lightweight components help you stay within your payload.

Boats. Mount panels on curved hard tops and run AC loads at anchor.

Off-grid cabins. Power lights, a fridge and electronics without a generator.

How It Compares to Common Alternatives

Versus ACOPower's mono RV systems. The mono systems use rigid framed panels and GEL batteries. This system uses lighter flexible panels and lithium batteries with more usable capacity per pound.

Versus GEL batteries. LiFePO4 costs more up front but offers deeper usable capacity, a much lower weight and a longer cycle life.

Versus rigid panels. Framed panels last longer and run cooler, while flexible panels win on weight and fit on curved roofs.

Is This RV Solar System the Right Fit

• Roof. Room for two to six panels of about 44.7 x 21.3 inches each. Curved roofs are fine within the panels' flex range.
• Battery bank. 200Ah to 600Ah at 12V, with 2,560Wh to 7,680Wh of storage.
• AC loads. Up to 1500W with the 200Ah and 300Ah options, or 3000W with the 400Ah and 600Ah options.
• Installation. Installation and wiring should be done by a qualified person to local codes.

This may be a good fit if

• You want lithium storage and a complete system in one order
• Your roof is curved or weight-limited
• You want clean AC power for electronics
• You want a battery monitor included

Common Questions

How Do I Choose the Right Option?

Pick the battery bank for how long you need to run without sun, and the array for how much you use each day. Each 110W panel adds roughly 500Wh per sunny day.

How Long Will the Batteries Last on a Charge?

A 200Ah lithium bank stores about 2,560Wh. A steady 200W load would run for roughly 12 hours.

Can the Batteries Handle the Inverter?

Yes. Each 100Ah battery supports 100A continuous discharge and each 200Ah battery 200A, and the batteries connect in parallel to share the load.

Will It Charge While I Drive?

The solar array charges whenever there is sun, moving or parked. Alternator charging requires a separate DC to DC charger.

What's Included

• 2 to 6 x ACOPower 110W Semi-Flexible Solar Panels, per selected option
• LiFePO4 batteries per selected option (2 x 100Ah for 200Ah, 3 x 100Ah for 300Ah, 2 x 200Ah for 400Ah, 3 x 200Ah for 600Ah)
• 1 x Pure Sine Wave Inverter (1500W for 200Ah and 300Ah, 3000W for 400Ah and 600Ah)
• 1 x MPPT Charge Controller per selected option
• 1 x Battery Monitor
• 1 x Battery Switch
• 1 x 60A Fuse
• Mounting bracket sets, one per panel
• Battery cables, one pair per battery
• All necessary connecting cables

Lightweight Lithium Solar Power for the Road

The ACOPower Flexible RV Solar System combines thin, light panels with lithium storage and a pure sine inverter in a package sized to your rig. At Outbound Power, we help customers choose the right battery bank and array for how they travel. If you have questions, our team is happy to help.
