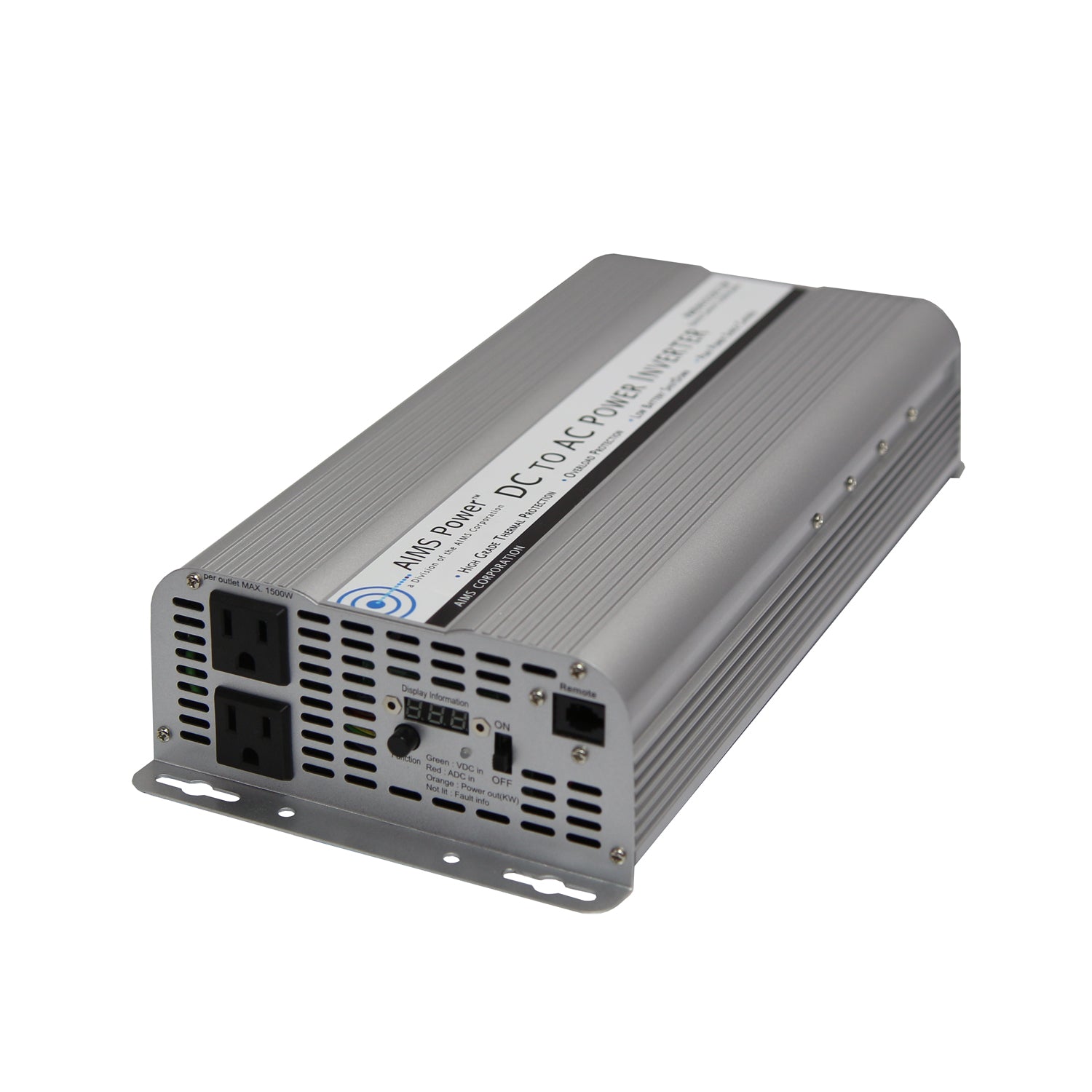

The AIMS Power 2500 Watt 24 Volt Modified Sine Power Inverter Brings Dependable AC Power to Buses, Vans, and 24 Volt Systems
The AIMS Power 2500 Watt 24 Volt Modified Sine Power Inverter converts 24 volt DC battery power into 2500 watts of continuous 120 volt AC power, with a 5000 watt surge rating. It is built for the 24 volt electrical systems common in buses, vans, and commercial vehicles, and it requires no vehicle modifications. It is also a strong fit for 24 volt solar setups, RV and camper conversions, marine applications, job sites, and home or cabin backup power, delivering quiet, emission-free power for tools, appliances, and essential equipment.
AIMS Power 2500 Watt 24 Volt Modified Sine Power Inverter Features
2500 Watts Continuous and 5000 Watts Surge on a 24 Volt System
This inverter delivers 2500 watts of continuous power and 5000 watts of surge, with 21 amps of AC output. Running on 24 volts, it draws about 104 DC amps at full output, roughly half the current a 12 volt inverter of the same size would need, which means smaller cables and less heat.
Front-Panel Volt and Watt Meters for Real-Time Monitoring
A volt meter displays your battery voltage, and a watt meter shows your power use, so you can manage loads and battery health at a glance. A green and red LED indicates ready or fault status.
Dual AC Receptacles With Clear Limits
Two three-prong AC outlets let you connect equipment easily, with a UL maximum recommendation of 1500 watts per outlet.
Remote-Ready, Mountable, and Efficient
The inverter is pre-wired for a remote on/off switch and includes a pre-slotted mounting plate. Efficiency reaches 95% at one-third load and 90% at full load, with a no-load current under 0.6 amps. A thermally controlled cooling fan and aluminum case keep it running cool.
Built-In Protections for Long-Term Durability
- Over temperature protection with automatic shutdown
- Overload protection
- AC output short circuit protection
- Internal fuse protection
- Battery low voltage shutdown (20.0V ±0.5V)
- High input voltage protection (30V to 34V)
- Isolated ground neutral
- Auto reset on most fault conditions
Real-World Applications
Buses, vans, and commercial vehicles. Add AC outlets to 24 volt vehicles without modifying the electrical system.
Mobile businesses. AIMS Power highlights mobile offices and service vehicles, food trucks and mobile kitchens, construction and contractor vehicles, and lawn and field service equipment.
Solar and backup power. Use it with a 24 volt solar battery bank for home or cabin backup.
RVs, campers, and boats. Power everyday appliances and tools on 24 volt platforms.
How It Compares to Common Alternatives
Versus a 12 volt 2500 watt inverter. The 24 volt design draws about half the DC current, which reduces cable size and resistive losses. Choose the version that matches your battery system voltage.
Versus a generator. Inverter power is quiet and emission-free, creating a better customer experience and supporting green energy goals.
Versus pure sine wave inverters. Modified sine wave runs most small tools, pumps, motors, and everyday appliances. Sensitive electronics may need a pure sine wave model.
Is This 24 Volt Inverter the Right Fit
-
System voltage. It requires a 24 volt battery system, operating from 20 to 30 volts DC.
-
Fusing. AIMS Power recommends a 150 amp inline fuse.
-
Operating temperature. AIMS Power lists an operating range of 30°F to 150°F, with automatic shutdown.
-
Waveform. Confirm your equipment works with modified sine wave power.
This may be a good fit if
- You operate a 24 volt bus, van, truck, or commercial vehicle
- You have a 24 volt solar or backup battery bank
- You want built-in voltage and wattage monitoring
- Your loads run well on modified sine wave power
Common Questions
Will This Work on a 12 Volt System?
No. It is a 24 volt DC inverter with an operating range of 20 to 30 volts. AIMS Power offers 12 volt models for 12 volt systems.
What Fuse Should I Use?
AIMS Power recommends its 150 amp inline fuse.
Can I Add a Remote Switch?
Yes. The inverter is pre-wired for a remote on/off switch.
What Warranty Does It Carry?
AIMS Power backs this inverter with a 2 year warranty and free lifetime technical support.
What's Included
- 1 x AIMS Power 2500 Watt 24 Volt Modified Sine Power Inverter
- 1 x Instruction Manual
Efficient 24 Volt Power for Work and Travel
The AIMS Power 2500 Watt 24 Volt Modified Sine Power Inverter delivers practical AC power with lower current draw, helpful monitoring, and solid protections. At Outbound Power, we help customers match inverters to their battery voltage, cabling, and real-world loads. If you have questions about your 24 volt system, our team is ready to help.
AIMS Power 2500 Watt 24 Volt Modified Sine Power Inverter Specifications
|
| Continuous Output Power |
2500 Watts (Use 150 Amp Inline Fuse) |
| Surge Power Capability (Peak Power) |
5000 Watts |
| DC Input / Operating Voltage |
20–30 Volts |
| Output Voltage |
120 Volts AC ±10% |
| Output Waveform |
Modified Sine Wave With Phase Correction |
| Output Frequency |
60 Hz ±1 Hz |
| AC Amps |
21 |
| DC Amps |
104 |
| AC Outlets |
2 x Type 2 (3-Prong), UL Maximum Recommended 1500W Per Outlet |
| Meters |
Front Panel Volt Meter and Watt Meter |
| Full Load Efficiency |
90% |
| 1/3 Load Efficiency |
95% |
| No Load Current |
< 0.6 Amps |
| Battery Low Voltage Shutdown |
20.0 ±0.5 Volts |
| Low Input Voltage Shutdown |
20V |
| High Input Voltage Protection |
30V–34V |
| Operating Temperature |
30°F–150°F (Automatic Shutdown) |
| Indicators |
Green/Red Ready and Fault LED |
| Cooling |
Thermally Controlled Fan, Aluminum Case |
| Protections |
Over Temperature, Overload, AC Output Short Circuit, Internal Fuse, Auto Reset on Most Faults |
| Other Features |
Isolated Ground Neutral, On/Off Switch, Pre-Wired for Remote On/Off Switch, Pre-Slotted Mounting Plate |
| Product Size (D × W × H) |
14.6" × 6.6" × 3.3" |
| Unit Weight |
6.2 lbs |
| Warranty |
2 Years, Plus Free Lifetime Tech Support |
