The AIMS Power 30 Amp PWM Flush Mount Solar Charge Controller Keeps Your Batteries Charged With a Clean, Compact Installation
The AIMS Power 30 Amp PWM Flush Mount Solar Charge Controller keeps batteries efficiently charged whenever sunlight is available. Using PWM charging with state of charge monitoring, it automatically adjusts charging based on battery voltage to help extend battery life. A built-in LCD screen shows battery voltage, solar panel voltage, charging current and battery status in real time, and the slim flush mount design fits tight spaces in RVs, boats and off-grid systems. It works with 12 and 24 volt battery systems, handles up to 360 watts of solar at 12 volts or 720 watts at 24 volts, and charges all battery types including lithium.

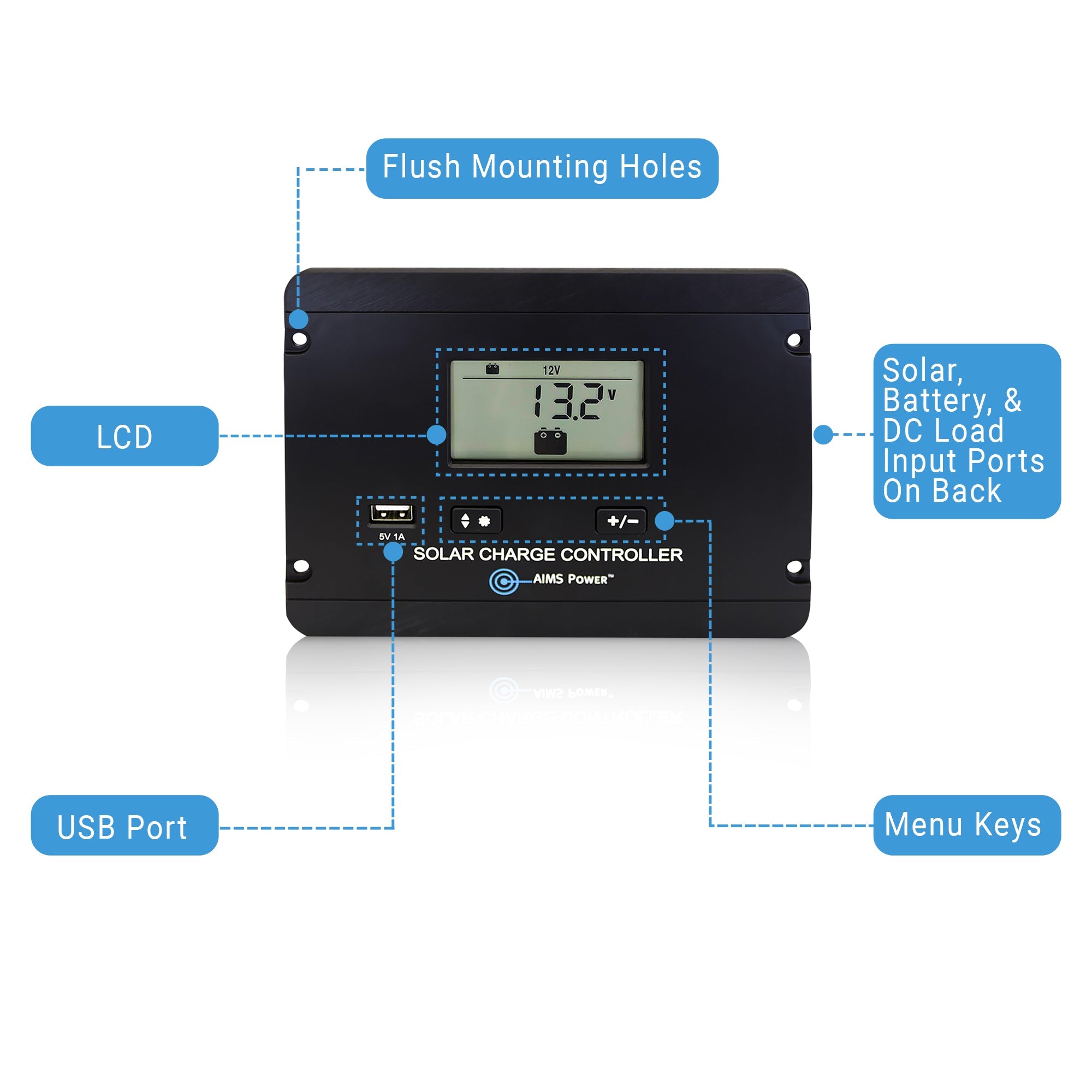

AIMS Power 30 Amp PWM Flush Mount Solar Charge Controller Features
Compact Flush Mount Installation

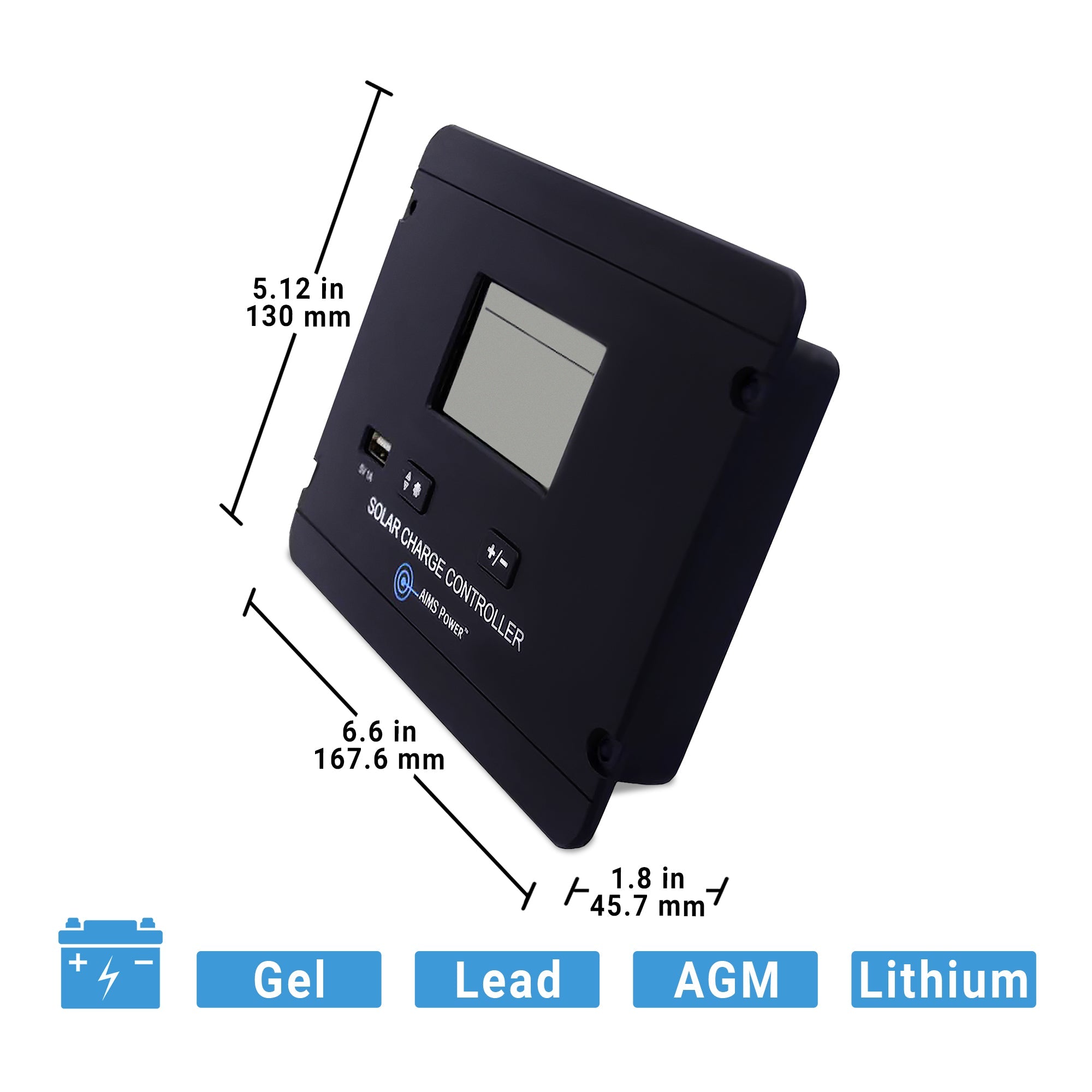

The controller measures 5.125" W x 3.5" L x 0.75" H and includes a mounting bracket, so it installs flush in a wall or panel for a clean appearance in tight spaces.
Real-Time LCD Monitoring
The built-in LCD displays battery voltage, solar panel voltage, charging current and battery status, so users and installers can quickly understand system performance and diagnose issues.
3-Stage Charging
Boost, float and equalize charging stages help maintain battery health and optimize charging across supported battery chemistries.
Wide Battery Compatibility
Preloaded profiles support gel, sealed, AGM, flooded and lithium batteries, plus a user-defined setting with adjustable voltage for flexible system design.
Built-In System Protection
Safeguards include overload, short circuit, high voltage, high temperature and low voltage protection, with automatic correction. The circuit board is conformal coated for marine environments.
Efficient, Low Self-Consumption Design
The controller operates at 97% efficiency with self power consumption under 2 watts, and a heatsink provides cooling.
Real-World Applications
RVs and campers. Flush mount the controller in an interior wall and monitor solar charging on the LCD.
Boats. The conformal coated circuit board is designed for marine environments.
Off-grid cabins and sheds. Manage charging for 12 or 24 volt battery banks from small to mid-size arrays.
Mobile solar systems. Vans, trailers and service vehicles benefit from the compact footprint.
How It Compares to Common Alternatives
Versus MPPT controllers. AIMS Power MPPT controllers support larger arrays and higher panel voltages. For 12 or 24 volt systems with panels under 55 volts open circuit, this PWM controller is a compact, economical choice.
Versus surface mount controllers. The flush mount design and included bracket give a finished look in RV walls and control panels.
Versus the AIMS Power 11 amp waterproof controller. The 11 amp model is pre-wired and IP68 waterproof for small 12 volt systems. This 30 amp model adds an LCD, 24 volt support and more solar capacity, but it is rated IP32 and should be mounted in a protected location.
Is This Charge Controller the Right Fit
-
System voltage. It supports 12 and 24 volt battery systems.
-
Array size. Rated PV input is 360 watts at 12 volts and 720 watts at 24 volts.
-
Panel voltage. Maximum PV open circuit voltage is 55 volts.
-
Environment. The enclosure is rated IP32, with an operating range of -31°F to 113°F (-35°C to 45°C).
-
Warranty. AIMS Power lists a 1 year warranty.
This may be a good fit if
- You have a 12 or 24 volt battery system with a small to mid-size array
- You want a flush mounted controller with an LCD display
- You use gel, AGM, flooded, sealed or lithium batteries
- You are installing solar in an RV, boat or cabin
Common Questions
Does It Charge Lithium Batteries?
Yes. It supports lithium with user-defined charge voltages from 10 to 15 volts, along with gel, sealed, AGM and flooded batteries.
How Much Solar Can I Connect?
Up to 360 watts on a 12 volt system or 720 watts on a 24 volt system, with a maximum open circuit voltage of 55 volts.
What Does the Display Show?
Battery voltage, solar panel voltage, charging current and battery status.
Is the Low Voltage Disconnect Adjustable?
Yes. It is set at 11.1 volts and adjustable from 10.5 to 12.5 volts, with reconnection at 12.6 volts.
What's Included
- 1 x AIMS Power 30 Amp PWM Flush Mount Solar Charge Controller
- 1 x Mounting Bracket
Clean Installation, Clear Information
The AIMS Power 30 Amp PWM Flush Mount Solar Charge Controller combines a slim flush mount design, real-time LCD monitoring and 3-stage charging for 12 and 24 volt systems. At Outbound Power, we help customers pair controllers with the right panels and batteries. Contact our team and we will help you plan your solar setup.
AIMS Power 30 Amp PWM Flush Mount Solar Charge Controller Specifications
|
| Battery System |
12V / 24V |
| Controller Type |
PWM With State of Charge Monitoring |
| Maximum Battery Current |
30A |
| PV Operating Voltage |
55Voc Max |
| Rated PV Input |
12V – 360 Watts, 24V – 720 Watts |
| Max PV Open Circuit Voltage |
55V |
| Self Power Consumption |
<2 Watts |
| Efficiency |
97% |
| Protections |
Overload, Short Circuit, High Voltage, High Temperature, Low Voltage, Auto Correct |
| Battery Types |
Gel, Sealed, AGM, Flooded, Lithium, User Defined (Adjustable Voltage) |
| Charging Stages |
3 Stage (Boost, Float, Equalize) |
| Boost Charge Voltage |
Sealed 14.4V, AGM/Gel 14.2V, Flooded 14.6V, Lithium User Defined 10–15V |
| Float Charge Voltage |
Sealed/AGM/Gel 13.8V, Flooded 13.8V, Lithium User Defined 10–15V |
| Equalize Charge Voltage |
Sealed 14.6V, AGM/Gel N/A, Flooded 14.8V, Lithium User Defined 10–15V |
| Low Voltage Reconnection |
12.6V |
| Low Voltage Disconnect |
11.1V (10.5–12.5V Adjustable) |
| Display |
LCD (Battery Voltage, Solar Panel Voltage, Charging Current, Battery Status) |
| Enclosure |
IP32 |
| Cooling |
Heatsink |
| Humidity |
100% Non-Condensing |
| Temperature Compensation |
-5mV/°C |
| Temperature Range |
-31°F to 113°F (-35°C to 45°C) |
| Coating |
Conformal Coated for Marine Environments |
| Dimensions |
5.125" W × 3.5" L × 0.75" H |
| Weight |
0.5 lb Unit, 1 lb Boxed |
| Warranty |
1 Year |
