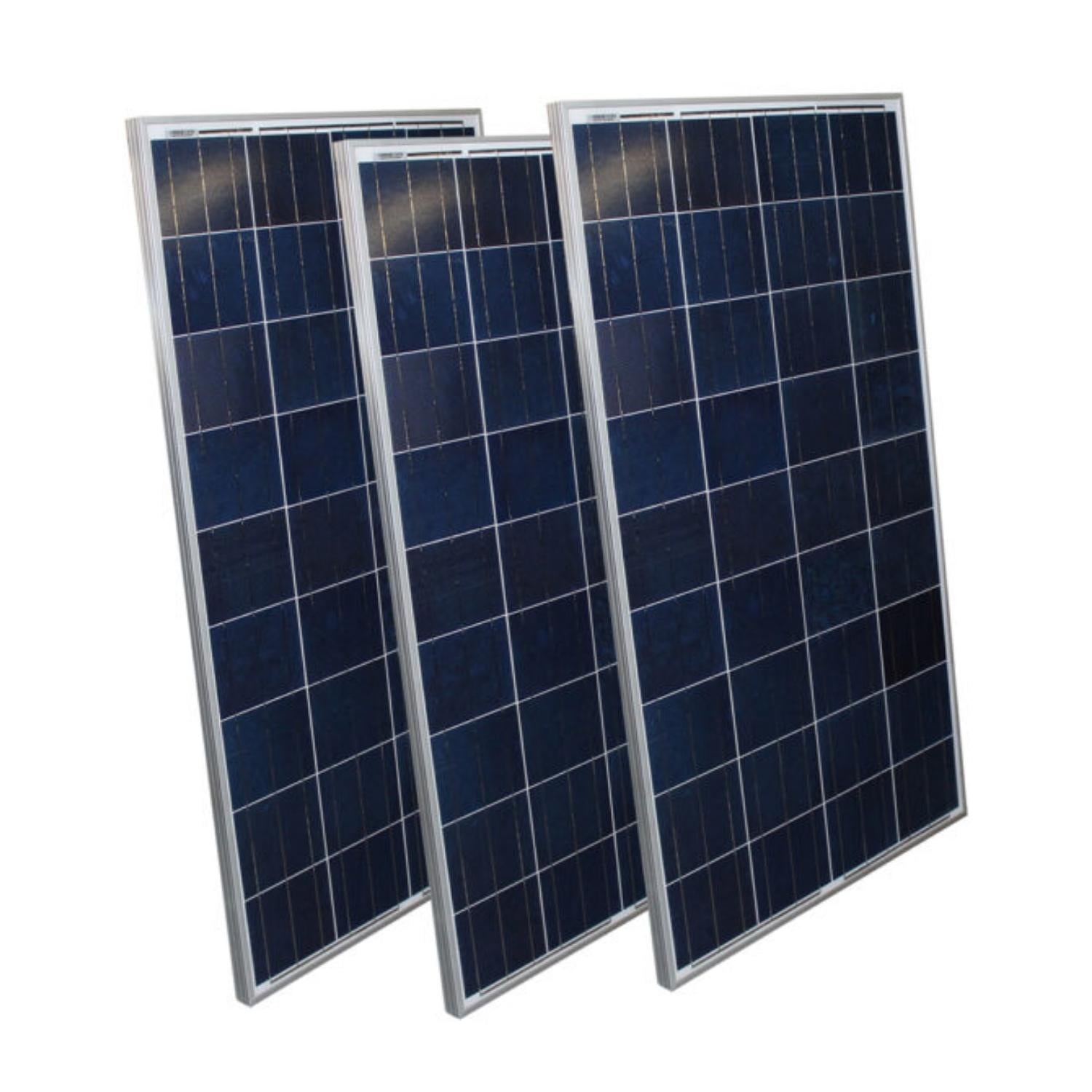

The AIMS Power 330 Watt Monocrystalline Solar Panels With Aluminum Frame Deliver High-Output Solar for Home and Industrial Arrays
The AIMS Power 330 Watt Monocrystalline Solar Panels With Aluminum Frame are versatile performers built for home and industrial solar applications. Each panel is constructed with tempered glass and a strong surface to protect against harsh weather, while high light-transmission cells and textured glass improve solar harvesting. A bypass diode minimizes the power drop caused by shade, and pre-drilled holes in the aluminum frame make installation straightforward. Available in multi-panel packs, these 60-cell panels are a solid foundation for grid-tied backup, off-grid homes, cabins, and commercial arrays.
AIMS Power 330 Watt Monocrystalline Solar Panels Features
High-Efficiency Monocrystalline Cells
Each panel uses 60 monocrystalline cells with 21.47% cell efficiency and 19.78% module efficiency, producing 330 watts with a 0 to +3 watt positive tolerance.
Built for Snow, Wind, and Hail
A 3.2 mm tempered glass front and strong aluminum frame are rated for 6000Pa snow loads, 3600Pa wind loads, and hail up to 45 mm at 30.7 meters per second. The panels operate from -40°C to +85°C.
Bypass Diode for Shade Tolerance
A 10 amp bypass diode helps minimize power loss when part of the panel is shaded.
Easy Installation With Pre-Drilled Frames and MC4 Cables
Pre-drilled aluminum frames simplify mounting, and 35 inch MC4 compatible male and female cables make series or parallel connections straightforward.
Long-Term Output Warranty
A 25-year limited warranty guarantees 91.2% output at 12 years and 80.6% at 25 years.
Real-World Applications
Home solar arrays. Build a high-output array for off-grid or backup power.
Industrial and commercial systems. AIMS Power describes these panels as perfect for home and industrial applications.
Cabins and remote properties. Pair with a charge controller and battery bank for off-grid power.
Ground and roof mounts. Use with compatible racking for fixed installations.
How It Compares to Common Alternatives
Versus smaller 100 to 190 watt panels. A 330 watt panel produces more power per panel, reducing mounting hardware and connections for larger arrays.
Versus flexible panels. Rigid framed panels with tempered glass are better for permanent, high-output installations.
Versus higher-voltage residential panels. Plan your charge controller around this panel's 41.5 volt open circuit voltage when wiring in series.
Is This Solar Panel Pack the Right Fit
-
Size and weight. Each panel measures 65" x 39.25" x 1.37" and weighs 39.7 pounds. Plan for appropriate racking and handling.
-
Charge controller. Choose an MPPT controller rated for your array's combined voltage and current.
-
Pack size. Confirm the pack quantity you select before ordering.
-
Array sizing. Estimate daily energy use and local sun hours to determine how many panels you need.
This may be a good fit if
- You are building a home or commercial solar array
- You want high-output, rigid panels with long warranties
- You need panels rated for snow, wind, and hail
- You prefer pre-drilled frames and MC4 connectors
Common Questions
What Are the Electrical Ratings?
Each panel has an operating voltage (Vmp) of 33.9 volts, operating current (Imp) of 9.73 amps, open circuit voltage (Voc) of 41.5 volts, and short circuit current (Isc) of 10.22 amps.
How Many Panels Come in a Pack?
Pack quantity depends on the option you select at checkout.
Can I Wire Panels in Series?
Yes. Keep the combined open circuit voltage within your charge controller's maximum input rating, including cold-weather voltage rise.
What Warranty Does It Carry?
AIMS Power provides a 25-year limited warranty with 91.2% output at 12 years and 80.6% at 25 years.
What's Included

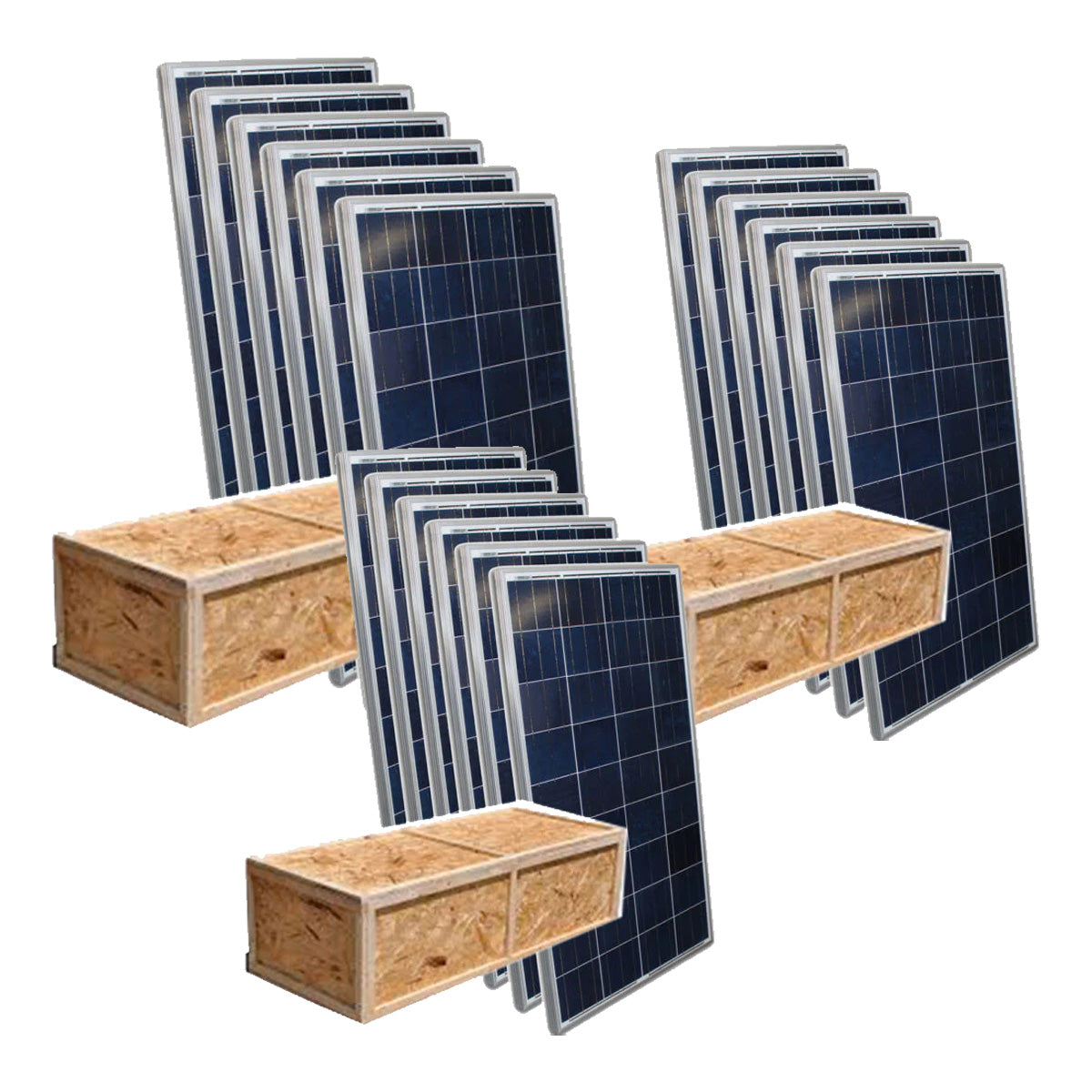

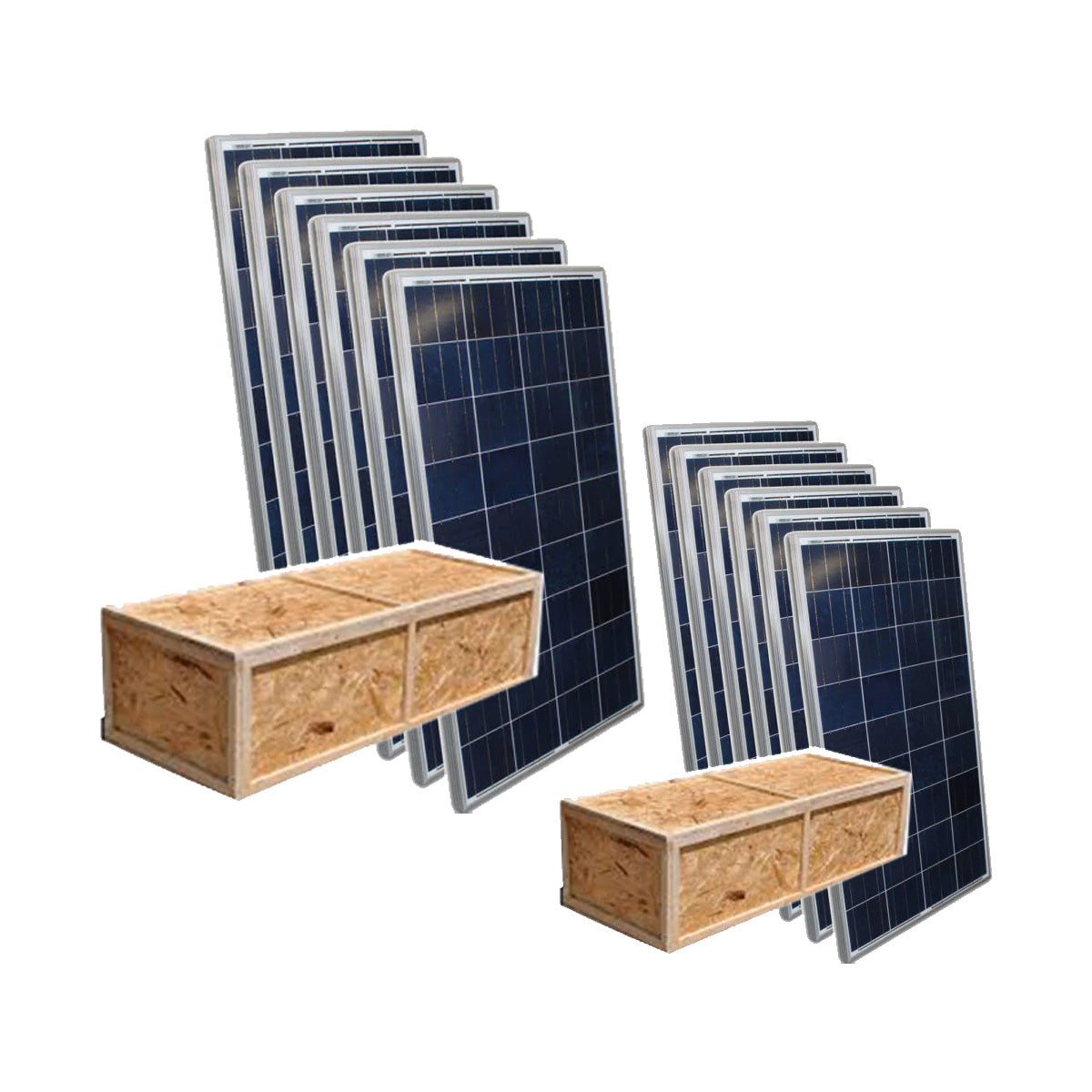

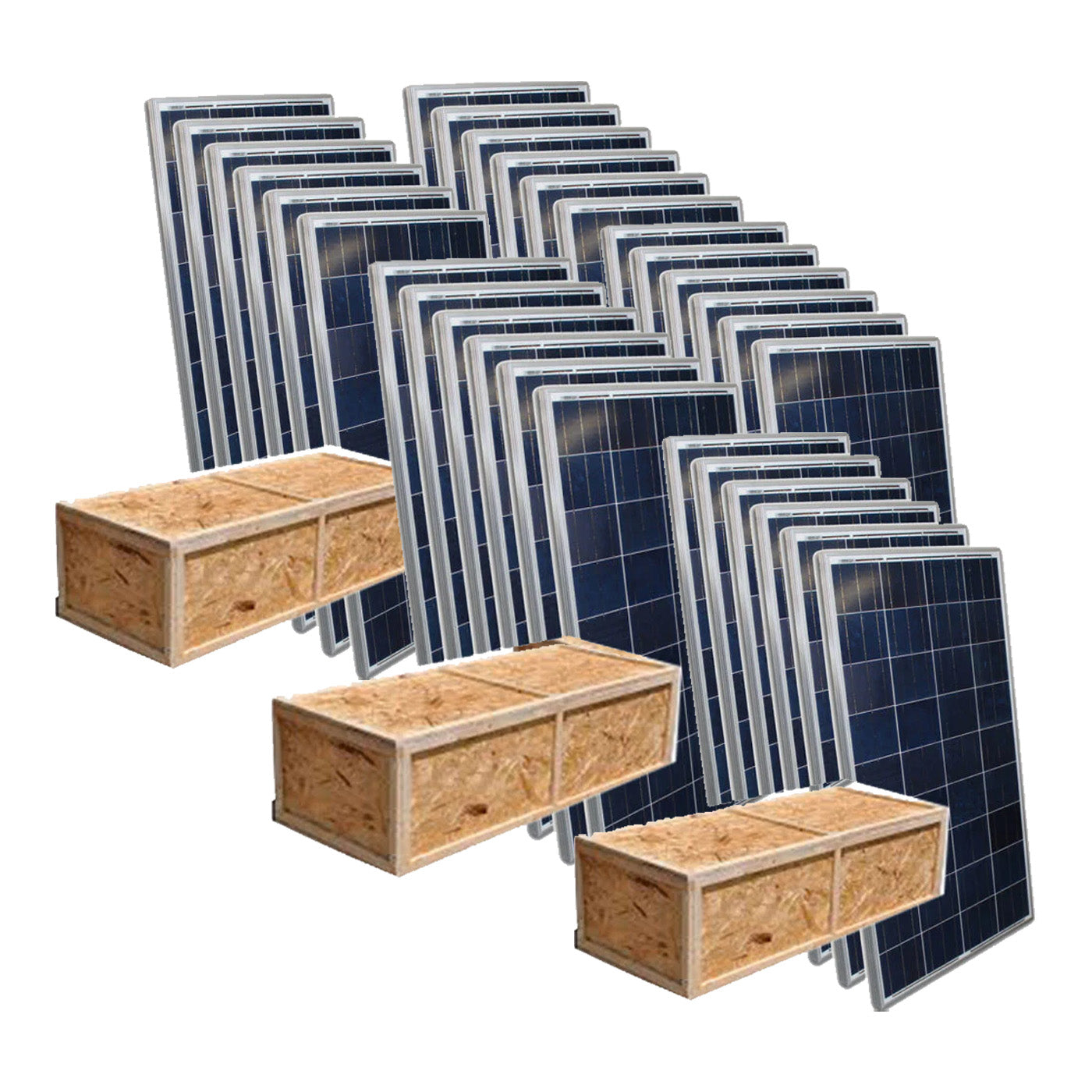

- AIMS Power 330 Watt Monocrystalline Solar Panels With Aluminum Frame (Quantity Per Pack Option Selected)
- 35 Inch MC4 Compatible Male and Female Cables (Attached to Each Panel)
Serious Solar for Serious Systems
The AIMS Power 330 Watt Monocrystalline Solar Panels With Aluminum Frame provide high output, rugged construction, and long-term warranty coverage for home and industrial arrays. At Outbound Power, we help customers design solar systems with the right panels, racking, controllers, and batteries. Contact our team to plan your array.
AIMS Power 330 Watt Solar Panel Specifications
|
| Maximum Power (Per Panel) |
330 Watts |
| Operating Voltage (Vmp) |
33.9 Volts |
| Operating Current (Imp) |
9.73 Amps |
| Open Circuit Voltage (Voc) |
41.5 Volts |
| Short Circuit Current (Isc) |
10.22 Amps |
| Solar Cell |
158.75 mm × 158.75 mm Monocrystalline |
| Number of Cells |
60 (10 × 6) |
| Front Glass Thickness |
3.2 mm Tempered Glass |
| Temperature Coefficient of Isc |
-0.048%/°C |
| Temperature Coefficient of Voc |
-0.29%/°C |
| Temperature Coefficient of Pm |
-0.37%/°C |
| Temperature Range |
-40°C to +85°C |
| Power Tolerance |
0 to +3 Watts |
| Surface Maximum Load Capacity |
6000Pa Snow, 3600Pa Wind |
| Allowable Hail Load |
45mm at 30.7m/s |
| Bypass Diode Rating |
10A |
| Cell Efficiency |
21.47% |
| Module Efficiency |
19.78% |
| Cables |
35" MC4 Compatible Male and Female |
| Dimensions (Per Panel) |
65" × 39.25" × 1.37" |
| Weight (Per Panel) |
39.7 lbs |
| Warranty |
25-Year Limited (91.2% Output at 12 Years, 80.6% at 25 Years) |
