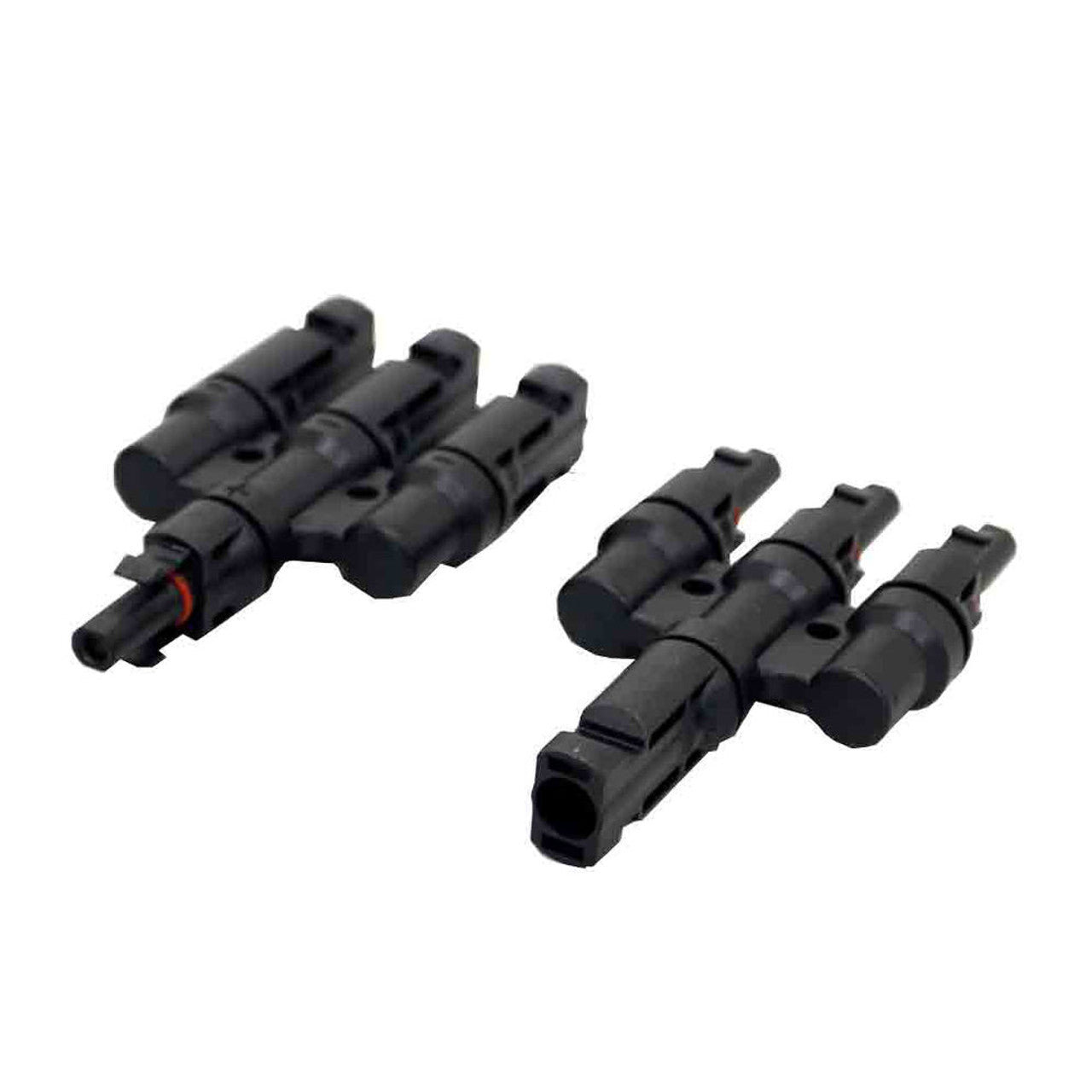

The AIMS Power MC4 Branch Connector 3 to 1 Pair Makes It Easy to Connect Solar Panels in Parallel
The AIMS Power MC4 Branch Connector 3 to 1 Pair lets you easily parallel connect your solar panels. Also known as T-branch connectors, this pair combines three MC4 compatible connections into one: one MMMF connector and one FFFM connector, sold as a pair to join both the positive and negative sides. Rated for 30 amps and 1000 volts (600 volts UL), with an IP67 rating and UL94-V0 flame class, they are built for outdoor solar installations.
AIMS Power MC4 3 to 1 Branch Connector Features
Parallel Connections Made Simple
Combine three panel leads into one on each side of your array without cutting or splicing wire.
Matched Pair
The set includes one MMMF connector and one FFFM connector, covering both polarities.
30 Amp, 1000V Rated
Each connector is rated for 30 amps and 1000 volts, or 600 volts under UL, with 4 mm pins.
IP67 and UL94-V0
An IP67 rating and UL94-V0 flame class suit outdoor solar use, with an ambient temperature range of -40°C to +90°C.
Real-World Applications
Parallel solar arrays. Combine panels in parallel to increase current at the same voltage.
RV and off-grid systems. Wire multiple panels to a single charge controller input.
How It Compares to Common Alternatives
Versus a combiner box. Branch connectors combine panels directly in the MC4 wiring. A combiner box adds an enclosure and fusing for larger arrays.
Versus the 2 to 1 version. AIMS Power offers both 2 to 1 and 3 to 1 branch connectors. Choose based on how many panels you are combining.
Is This Branch Connector the Right Fit
-
Current. Keep the combined current within the 30 amp rating.
-
Connectors. Your panels should use MC4 compatible connectors.
-
Configuration. This pair combines three connections into one.
This may be a good fit if
- You are wiring three solar panels in parallel
- Your panels use MC4 compatible connectors
- Your combined current is 30 amps or less
Common Questions
What Is Included?
One MMMF connector and one FFFM connector, sold as a pair.
What Is the Current Rating?
30 amps.
Are They Waterproof?
Yes. They are IP67 rated.
What's Included
- 1 x MC4 Compatible MMMF Branch Connector
- 1 x MC4 Compatible FFFM Branch Connector
Connect Your Panels the Easy Way
The AIMS Power MC4 Branch Connector 3 to 1 Pair is a simple way to wire solar panels in parallel. Contact our team at Outbound Power for help planning your array wiring.
AIMS Power MC4 Branch Connector 3 to 1 Pair Specifications
|
| Configuration |
3 to 1 Branch (T-Branch) |
| Connectors |
1 MMMF, 1 FFFM (Sold as a Pair) |
| Rated Current |
30A |
| Rated Voltage |
1000V, 600V (UL) |
| Ambient Temperature Range |
-40°C to +90°C |
| Pin Dimension |
4mm |
| Flame Class |
UL94-V0 |
| Protection |
IP67 |
