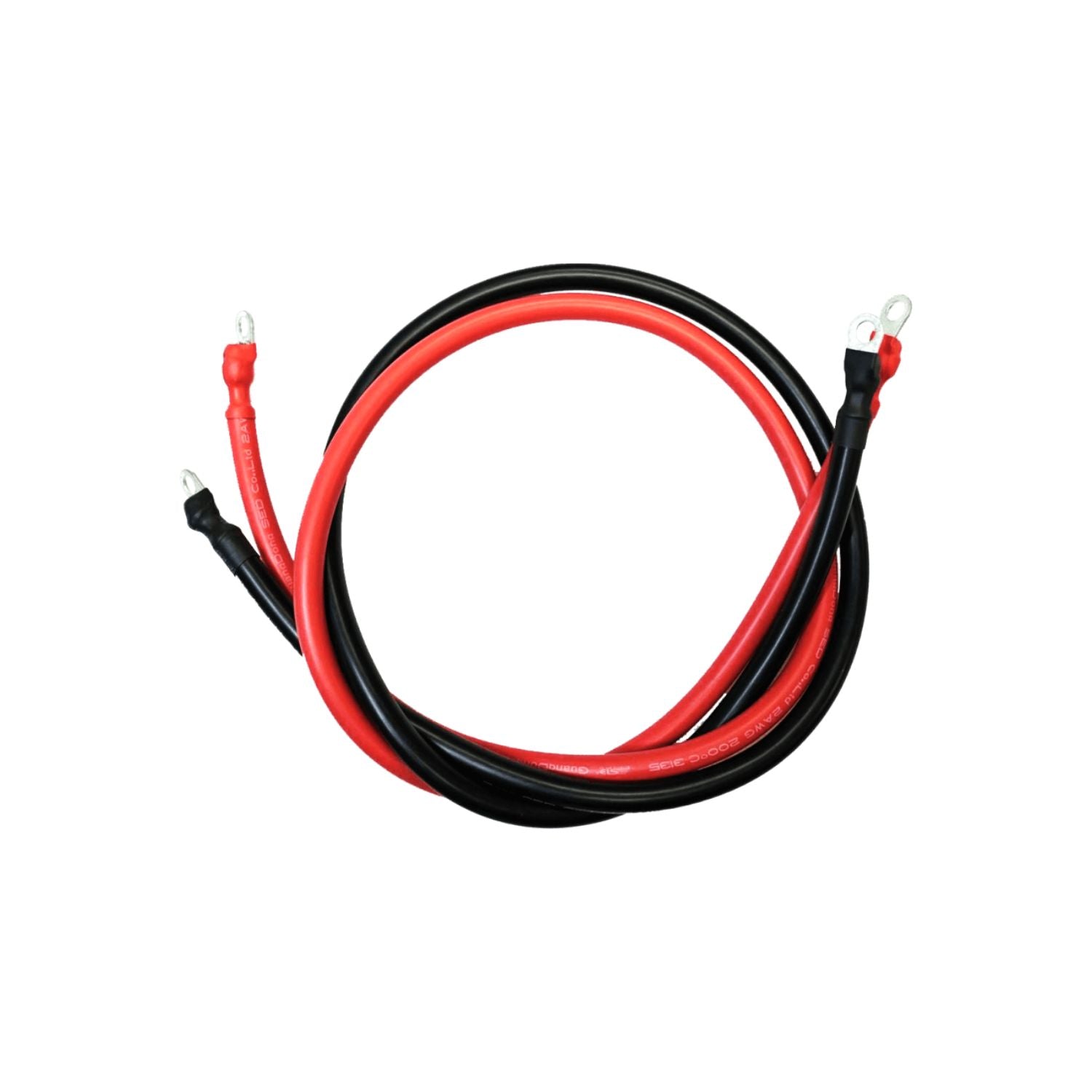

The BigBattery 4AWG 3 Ft Ring to Ring Cable Set Connects Batteries to Inverters and Components
This BigBattery cable set includes a red positive and a black negative 4AWG cable, each 3 ft long with a ring terminal on each end. BigBattery designed them for its lithium battery systems, to connect batteries to each other or to inverters, chargers, bus bars and other system components.
Heavy-duty 4AWG wire keeps resistance low for efficient power transfer, and the 5/16 in ring terminals bolt down securely to reduce the risk of loose connections or voltage drop. They suit mobile energy storage, golf carts, RVs, off-grid systems and other lithium battery setups. BigBattery provides lifetime USA-based technical support, and it ships from Texas.
BigBattery 4AWG Black and Red Ring to Ring Terminal Cable Set Features
4AWG Cable
Heavy-gauge 4AWG wire carries high current with minimal resistance.
Red and Black Set
A color-coded positive and negative pair makes correct polarity easy to see.
5/16 in Ring Terminals
Ring terminals on both ends bolt to battery posts and bus bars for a secure connection.
High Temperature Rating
The cable is rated to 392°F (200°C).
Real-World Applications
Battery to inverter. Connect a battery to a nearby inverter or charger.
Battery bank wiring. Link batteries to bus bars in larger banks.
Golf carts and RVs. Wire batteries in vehicles and trailers.
Common Questions
Is It a Pair?
Yes. The set includes one red and one black cable.
What Size Are the Ring Terminals?
5/16 in.
How Do I Choose a Cable Size?
Size cables for the maximum current in your system and the run length. Heavier gauge (lower AWG number) carries more current with less voltage drop. Our team can help you choose.
What's Included
- 1 x BigBattery 4AWG Red Cable with 3 ft Ring to Ring Terminal (CBL083)
- 1 x BigBattery 4AWG Black Cable with 3 ft Ring to Ring Terminal (CBL082)
Solid Connections for Your Battery System
This BigBattery 4AWG cable set gives you secure, color-coded connections for your lithium battery system. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
BigBattery 4AWG Black/Red Ring to Ring Terminal Cable Specifications
|
| SKU |
CBL100 |
| Configuration |
Red and black pair |
| Connector |
Ring terminal to ring terminal |
| Lug Size |
5/16 in |
| Cable Gauge |
4AWG |
| Cable Length |
3 ft (91.5 cm) |
| Weight |
2.1 lbs (0.95 kg) |
| Max Rated Temperature |
392°F (200°C) |
