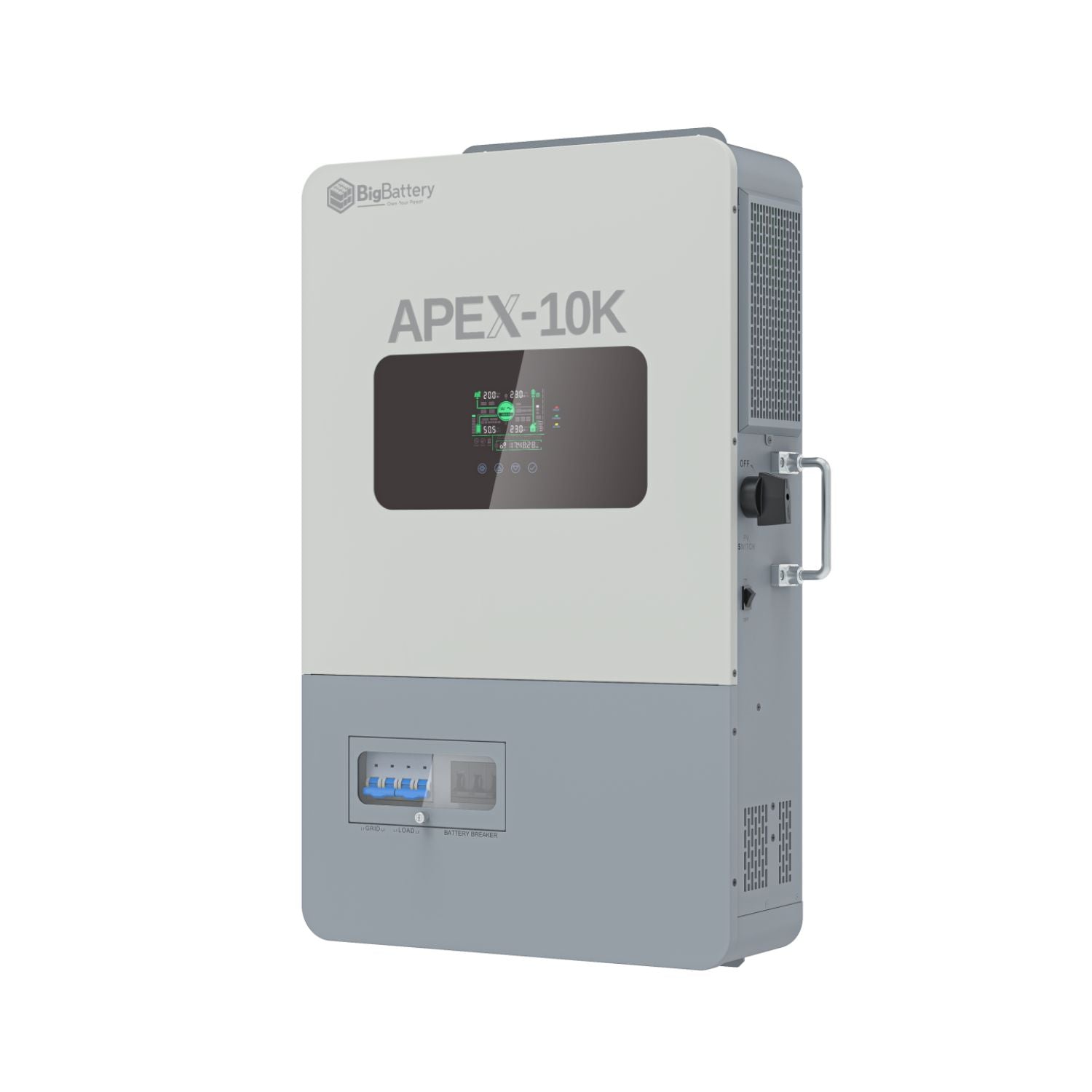

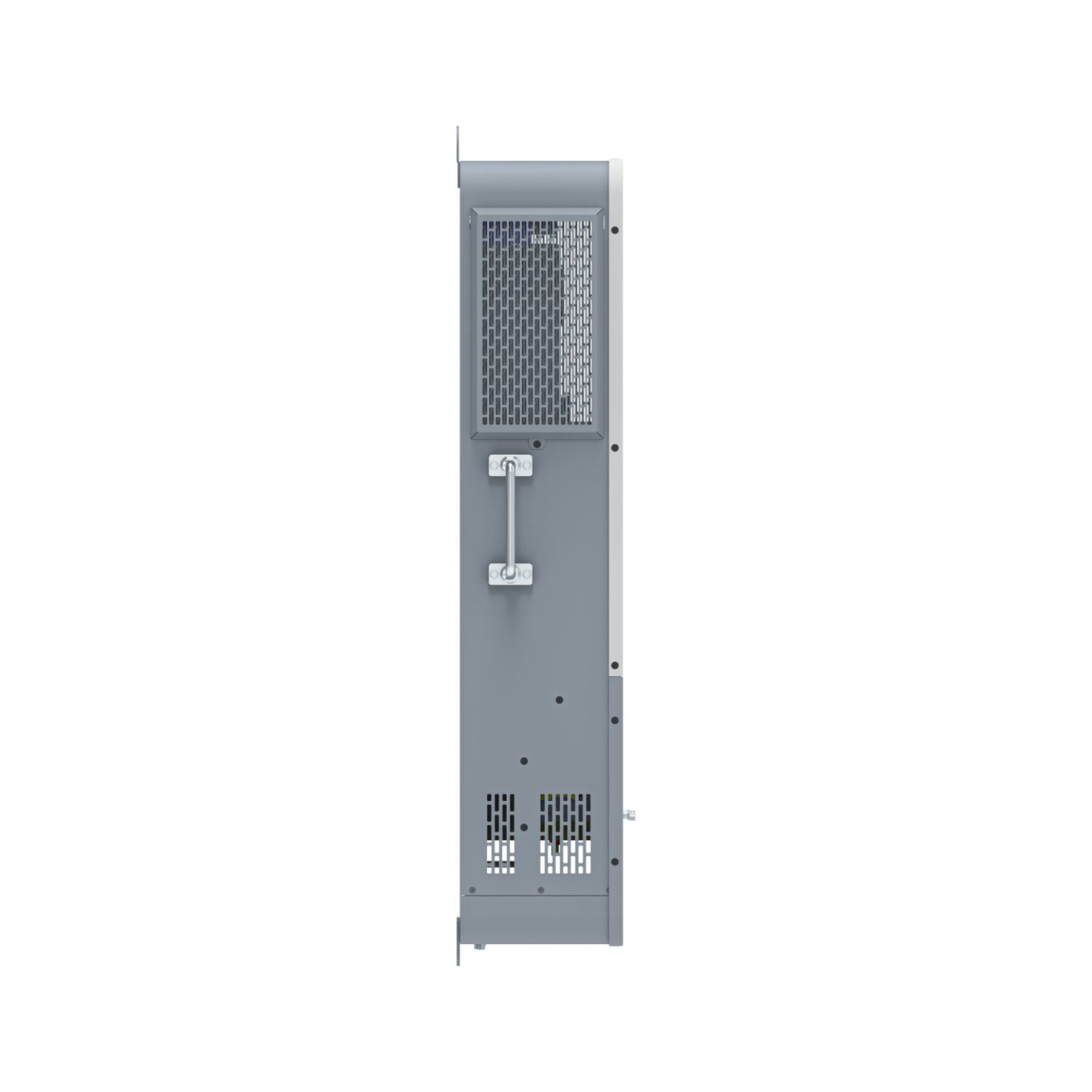

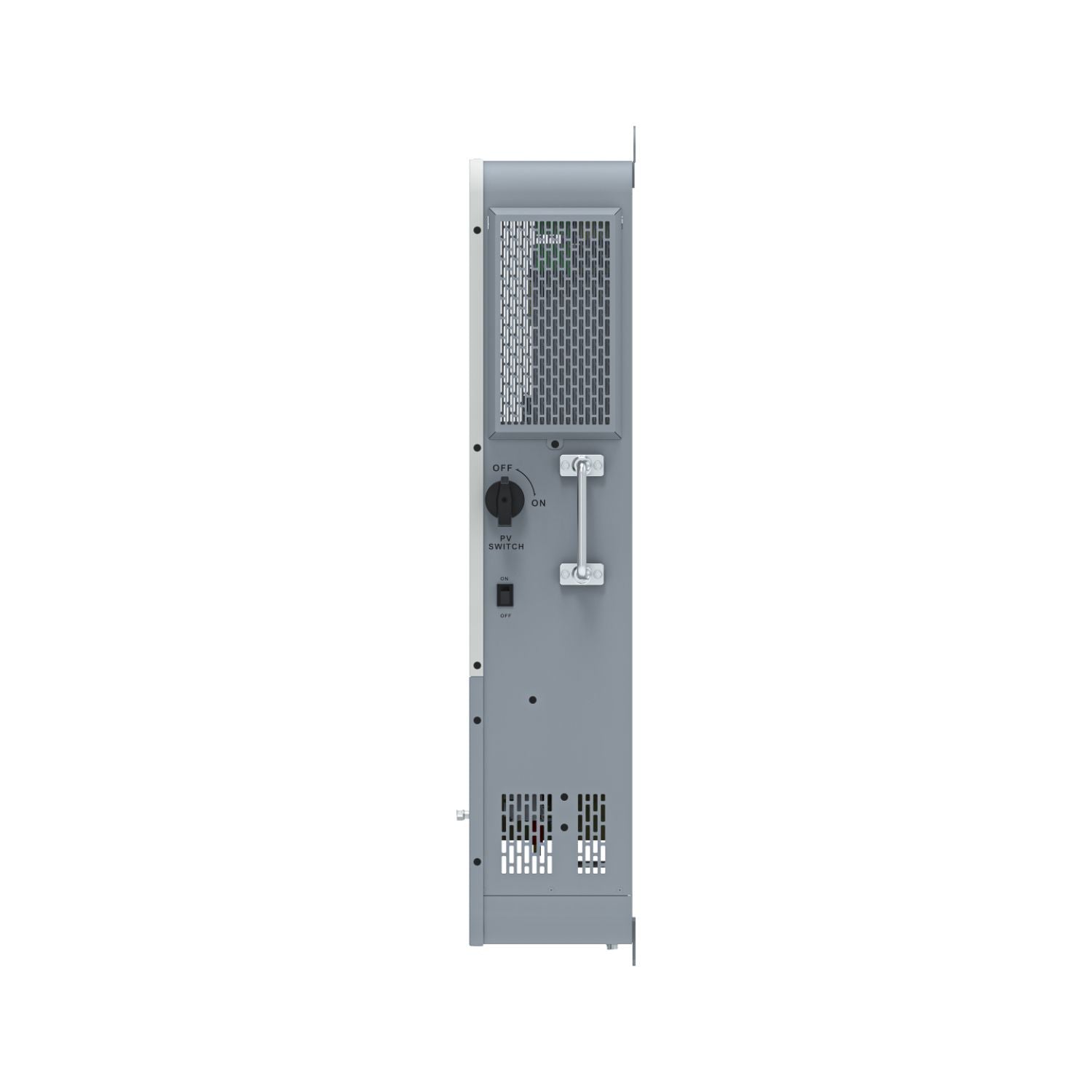

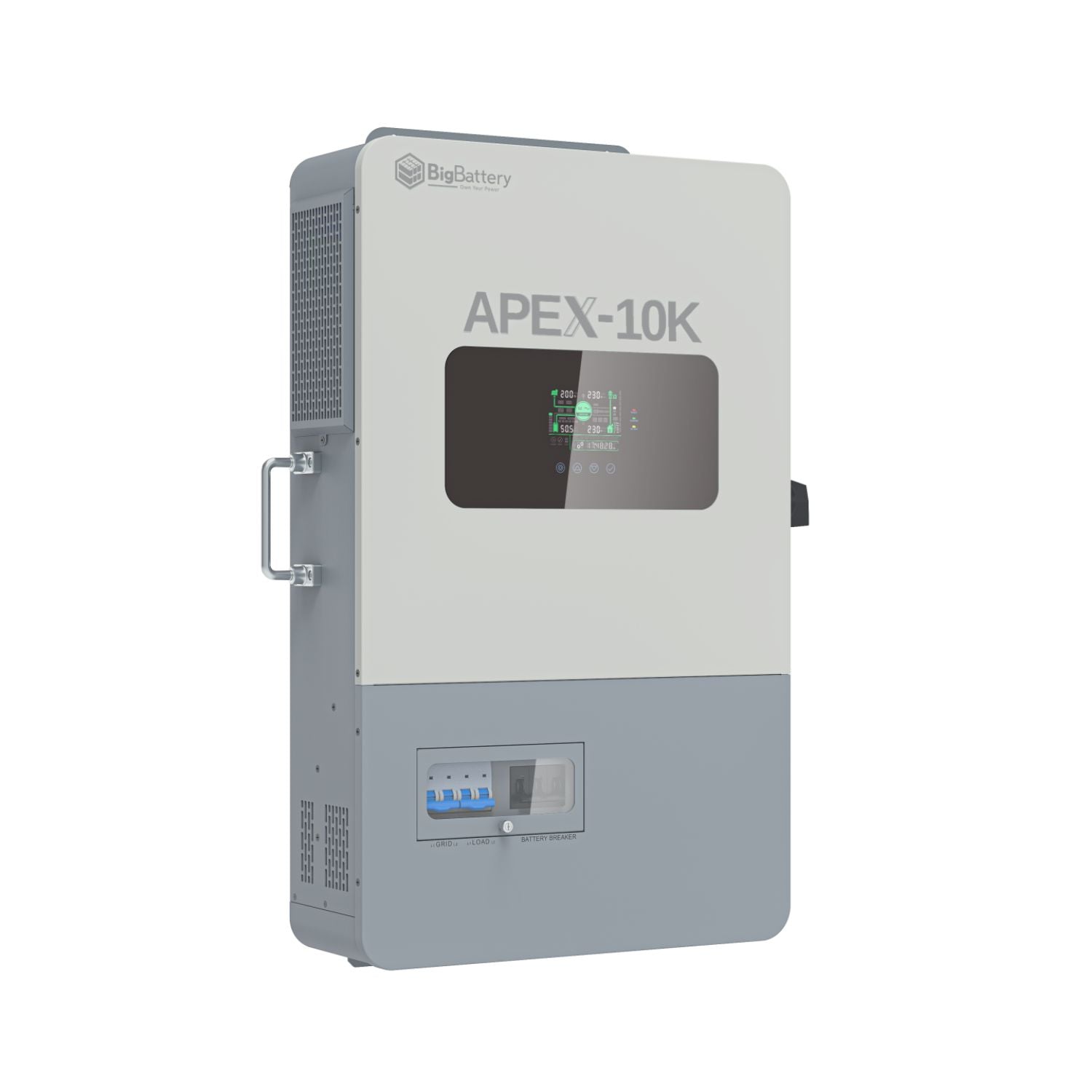

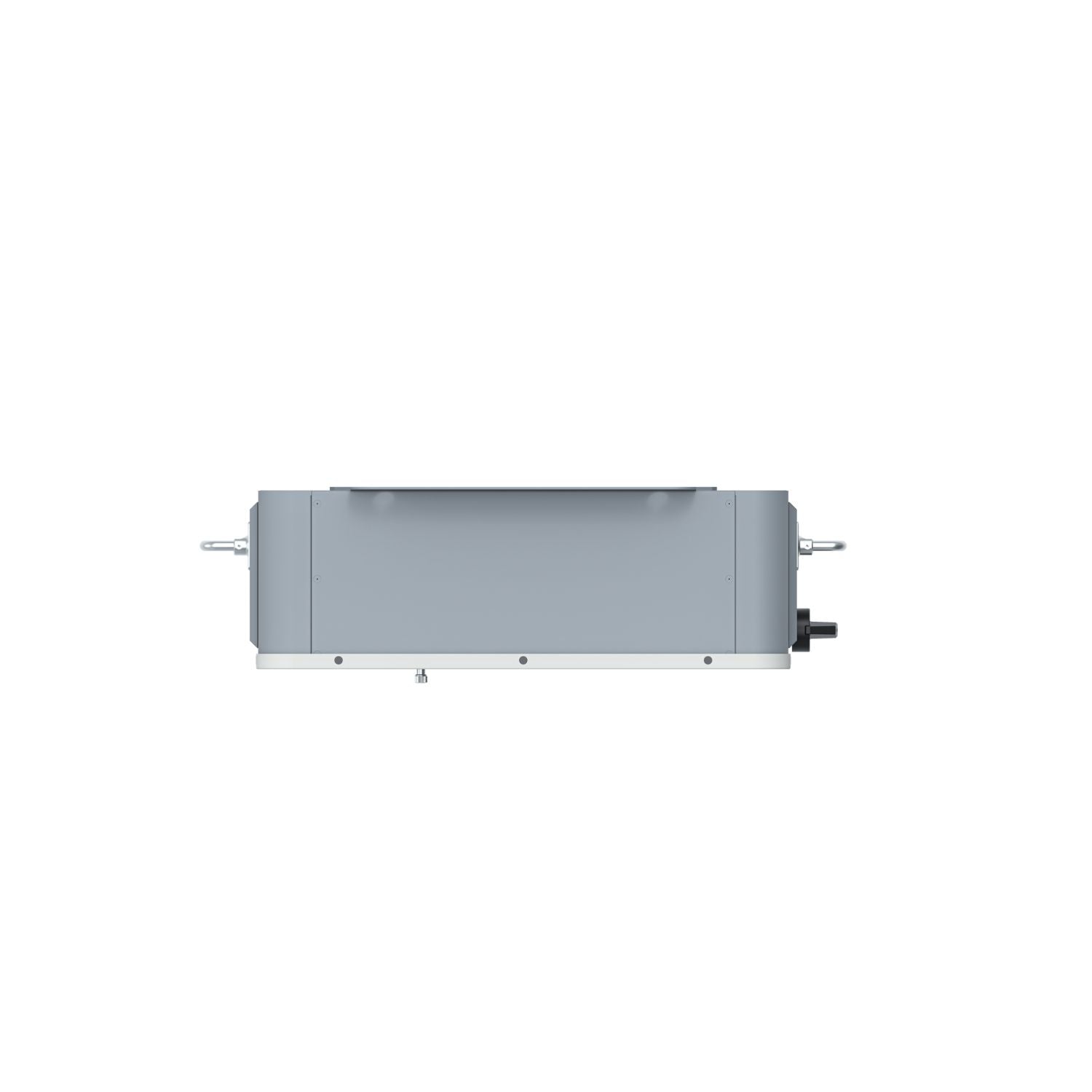

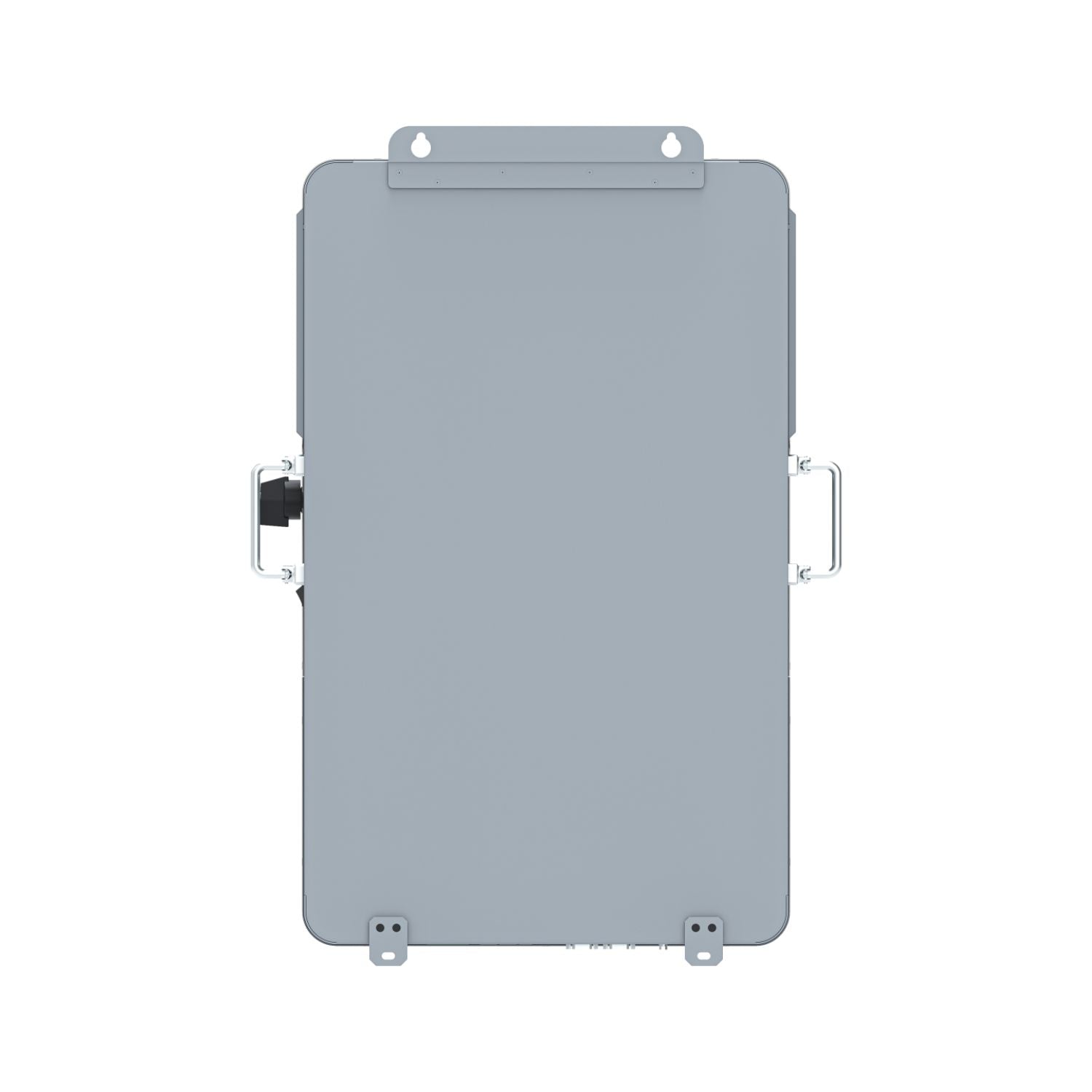

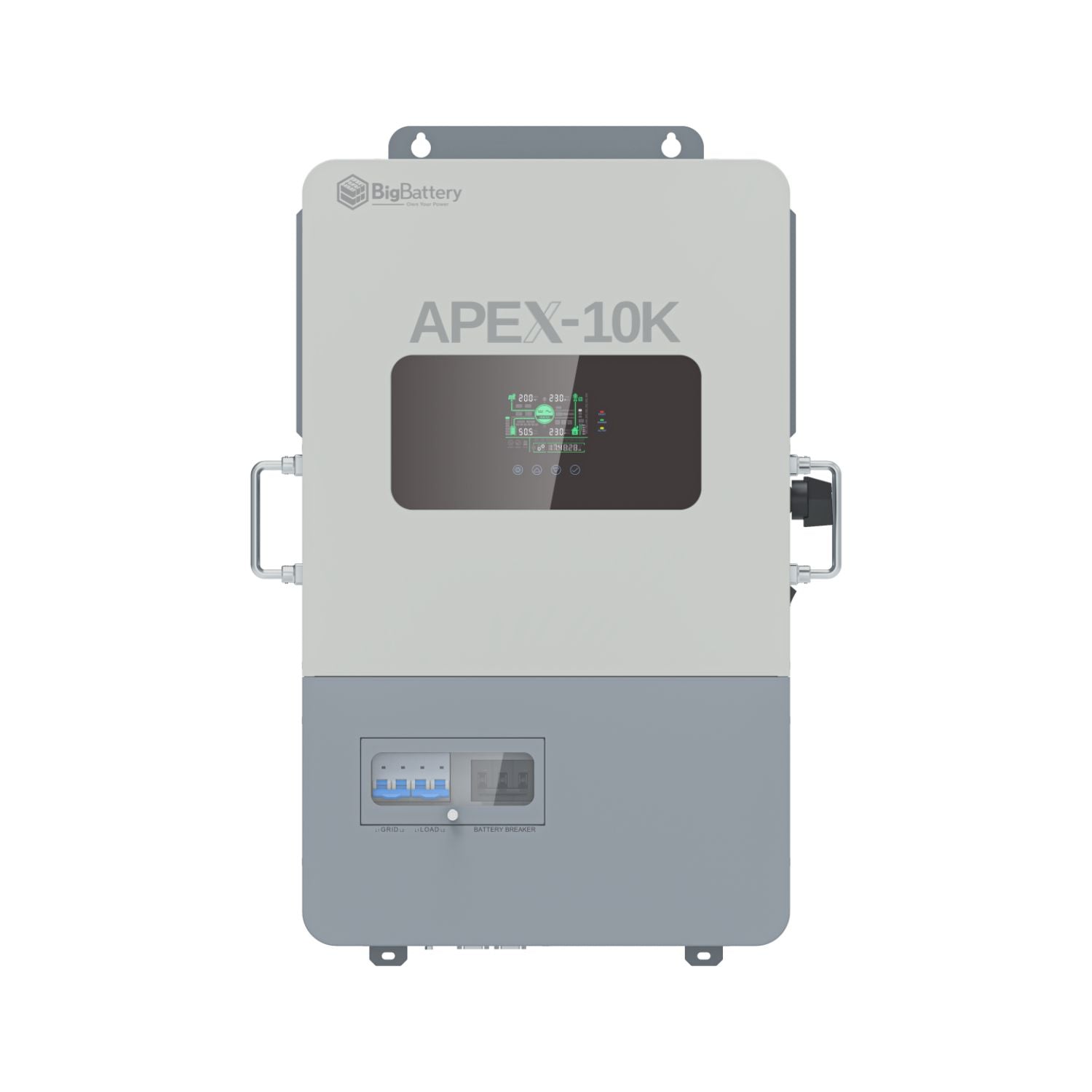

The BigBattery APEX-10K Off-Grid Inverter Delivers 10kW of Split-Phase 120/240V Power for Whole-Home Off-Grid Systems
The BigBattery APEX-10K is a 10kW off-grid hybrid inverter that delivers split-phase 120/240V pure sine wave power at 50 or 60Hz. It is built for off-grid homes that run a well pump, air conditioning and general household circuits together.
It runs on a 48V battery bank and communicates in closed loop with BigBattery NEXUS, ETHOS and HUSKY 2 INV batteries, and EG4 280Ah and 314Ah All Weather and Indoor wall-mount batteries in off-grid installations. An 80A pass-through keeps large appliances and critical circuits running, and two MPPT solar inputs accept up to 10,500W (5,000W + 5,500W) of PV. BigBattery backs the APEX with a 5-year warranty and lifetime USA-based technical support, and it ships from Texas.
BigBattery APEX-10K Off-Grid Inverter Features
10kW Split-Phase Output
The APEX-10K supplies 10kW of continuous 120/240V split-phase power, with a maximum of 20,000VA for motor starts and surges. It can start motors up to 6 HP.
Dual MPPT Solar Input
Two MPPT trackers accept 10,500W (5,000W + 5,500W) of solar in total, with a 125V to 450V operating range, 550V maximum open-circuit voltage and up to 22A per input.
Fast Battery Charging
Solar charging reaches 200A, and grid or generator charging reaches 120A.
Generator and Grid Inputs
The APEX-10K has one AC input that accepts either the grid or a generator, but not both at the same time.
80A Pass-Through
Large loads and critical circuits can pass straight through to the output while the inverter charges the batteries.
Closed-Loop Battery Communication
The APEX reads true state of charge from compatible lithium batteries for accurate charging. BigBattery lists BigBattery NEXUS, ETHOS and HUSKY 2 INV batteries, and EG4 280Ah and 314Ah All Weather and Indoor wall-mount batteries. It also supports lead-acid and user-defined battery settings.
Expand With Parallel Units
Connect up to 6 APEX inverters in parallel. Three or more units can form a three-phase output.
Installer-Friendly Design

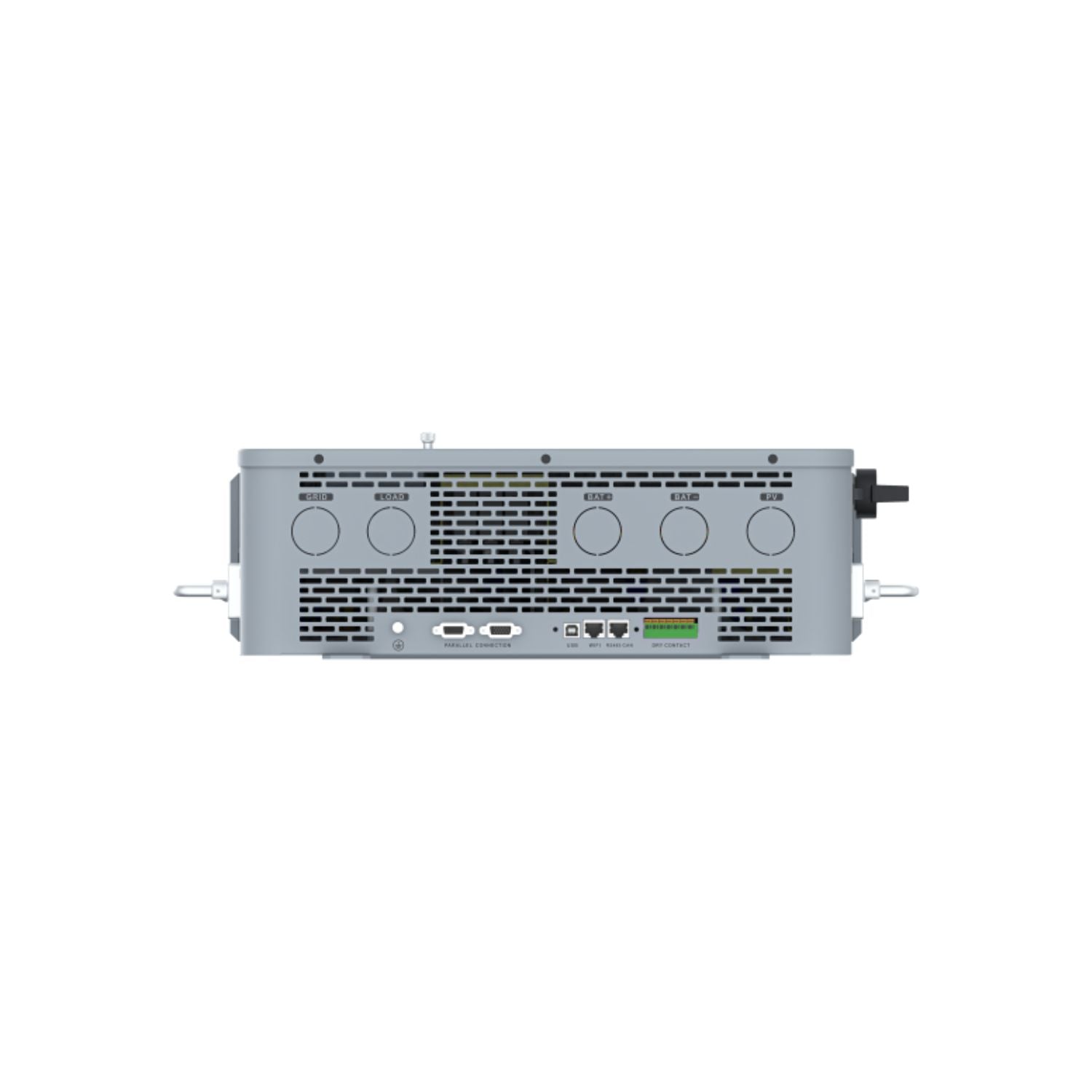

Bottom-entry wiring keeps conduit runs neat, an intelligent fan keeps noise under 60dB, and an optional Wi-Fi or GPRS module adds remote monitoring.
Real-World Applications
Whole-home off-grid. Power household circuits, air conditioning and a well pump from solar and batteries.
Ranches and large homesteads. Run shops, pumps and 240V equipment.
Home backup. Keep most of a home running during outages.
Paired systems. Combine with BigBattery NEXUS 2 batteries, a common pairing at 16kWh per unit.
How It Compares to Common Alternatives
Versus 120V-only inverters. Many off-grid inverters supply only 120V. The APEX provides 120/240V split-phase power for well pumps, ranges, dryers and other 240V loads.
Versus grid-tied hybrid inverters. Grid-tied hybrids with UL 9540 battery certification suit permitted grid-interactive systems. The APEX is designed for off-grid and backup systems, and its battery communication is listed for off-grid installations that do not require UL 9540.
Is This APEX Inverter the Right Fit
-
Battery. 48V battery bank, 40V to 60V DC.
-
Solar array. Strings within 125V to 450V MPPT range and 550V maximum open-circuit voltage, up to 10,500W (5,000W + 5,500W) in total.
-
Location. Indoor installation only (IP20), such as a garage or utility room. Operating range 14°F to 131°F, derating above 113°F.
-
Space and weight. 28.46 x 17.64 x 5.91 in, 62 lbs.
This may be a good fit if
- You are building an off-grid home, cabin or homestead
- You need 120/240V split-phase power
- You want solar and generator charging in one unit
- You use BigBattery or EG4 48V batteries
Common Questions
Is the APEX UL 9540 Certified?
No. BigBattery lists APEX closed-loop battery communication for off-grid installations that do not require UL 9540. For UL 9540 grid-tied systems, BigBattery points to the EG4 FlexBOSS18, FlexBOSS21 or 18kPV instead.
Which Batteries Work With It?
Closed-loop communication is supported with BigBattery NEXUS, ETHOS and HUSKY 2 INV batteries, and EG4 280Ah and 314Ah All Weather and Indoor wall-mount batteries. Any 48V battery bank can be used with the appropriate settings.
Is 10kW Enough for a Whole House?
For most homes, yes. BigBattery notes that all-electric homes with electric heat and an electric range may need a larger inverter or two units in parallel.
Can It Use Grid and Generator at the Same Time?
No. The APEX-10K has a single AC input for either grid or generator. If you need both connected at once, choose the APEX-6.5K.
What Size Battery Bank Do I Need?
Size the bank to your daily use rather than to the inverter. A home using 20kWh a day would want 40kWh or more for two days of autonomy.
Can It Run a Well Pump?
In most homes, yes. It provides 240V split-phase power and can start motors up to 6 HP. Check your pump's starting current against the inverter's surge rating before you buy.
What Is the Warranty?
5 years, with lifetime USA-based technical support from BigBattery.
What's Included
- 1 x BigBattery APEX-10K Off-Grid Inverter
- 2 x M6x60mm Expansion Screws
- 2 x M5x30mm Plastic Expansion Screws
- 5 x Phillips M8x12mm Screws
- 4 x SC50-8 Copper Lugs
- 2 x SC95-8 Copper Lugs
- 4 x Black M4x8mm Screws
- 1 x M8 Socket Screwdriver
- 1 x Flat-Head Screwdriver
- 1 x Parallel Communication Cable
- 1 x Wi-Fi Logger (optional)
- 1 x User Manual
- 1 x Warranty Card
- 1 x Quality Certificate
- 1 x Outgoing Inspection Report
Off-Grid Power for the Whole Property
The BigBattery APEX-10K gives off-grid homes clean split-phase power, solar and generator charging, and closed-loop battery communication in one inverter. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
BigBattery APEX-10K Off-Grid Inverter Specifications
|
| Model |
APEX-10K |
| Rated Output Power |
10,000W |
| Max Output Power |
20,000VA |
| Rated Output Voltage |
120/240V AC (single-phase or split-phase) |
| Motor Load Capacity |
6 HP |
| Rated Frequency |
50/60Hz |
| Output Waveform |
Pure sine wave |
| Switching Time |
10 ms typical |
| Battery |
| Rated Battery Voltage |
48V |
| Battery Voltage Range |
40V to 60V DC |
| Battery Type |
Lithium-ion, lead-acid or user-defined |
| Max Solar Charging Current |
200A |
| Max Grid or Generator Charging Current |
120A |
| Max Hybrid Charging Current |
200A |
| Solar Input |
| Number of MPPTs |
2 |
| Max PV Input Power |
10,500W (5,000W + 5,500W) |
| Max Input Current |
22A per MPPT |
| Max Open Circuit Voltage |
550V DC per MPPT |
| MPPT Voltage Range |
125V to 450V DC |
| MPPT Tracking Efficiency |
92% |
| Grid and Generator Input |
| AC Input Voltage Range |
65V to 140V AC |
| Input Frequency |
50/60Hz |
| AC Inputs |
1 (grid or generator) |
| Bypass Overload Current |
63A |
| Pass-Through |
80A |
| General |
| Max Efficiency |
99.9% |
| Parallel Capacity |
Up to 6 units (3 or more can form three-phase) |
| Dimensions |
28.46 x 17.64 x 5.91 in |
| Weight |
62 lbs |
| Protection Degree |
IP20 (indoor only) |
| Operating Temperature |
14°F to 131°F, derates above 113°F |
| Noise |
Under 60dB |
| Cooling |
Intelligent fan |
| Monitoring |
Optional Wi-Fi or GPRS module |
| Certifications |
UL1741, RoHS, FCC Part 15 Class B, IEC62109-1, IEC62109-2 |
| Warranty |
5 years |
