The DuroStar DS4000WGE Combines a 210-Amp Welder and a 4,000-Watt Generator in One Machine
The DuroStar DS4000WGE Gasoline Portable Welding Generator lets you weld and run power tools from one portable machine. Its 420cc DuroStar OHV engine powers a 210-amp welder plus 3,500 running watts and 4,000 peak watts of 120V generator power.
Built for farms, ranches, job sites and home shops, the DS4000WGE has key switch electric start, an all-metal frame, 100% copper windings and solid no-flat tires. It is EPA and CARB certified for sale in all 50 states and covered by a 3-year warranty.
DuroStar DS4000WGE Features
Weld on the Go

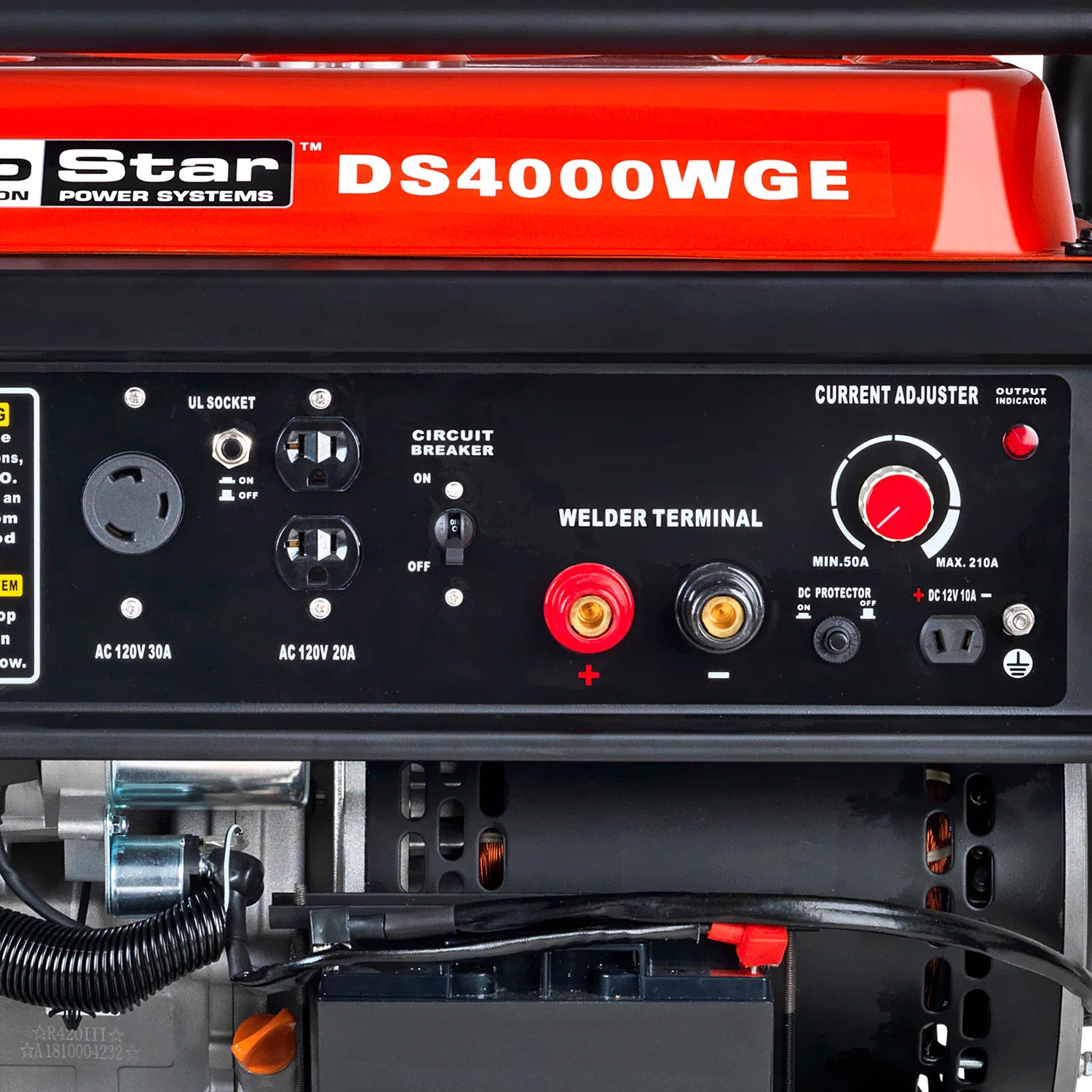

Positive and negative welding lead terminals and a current adjuster knob let you set the output for the job, so you can make field repairs without hauling a separate welder.
4,000 Watts of Generator Power
When you are not welding, the DS4000WGE runs tools, lights and equipment from two 120V 5-20R household outlets and a 120V 30A L5-30R twist-lock. A 12V DC post charges batteries.
Key Switch Electric Start
Start with the turn of a key using the included 12V battery, or use the recoil starter as a backup.
Stay Powered Longer
The 6.6-gallon tank with a fuel gauge delivers about 17 hours at 25% load and 8 hours at 50% load.
Built Tough to Last

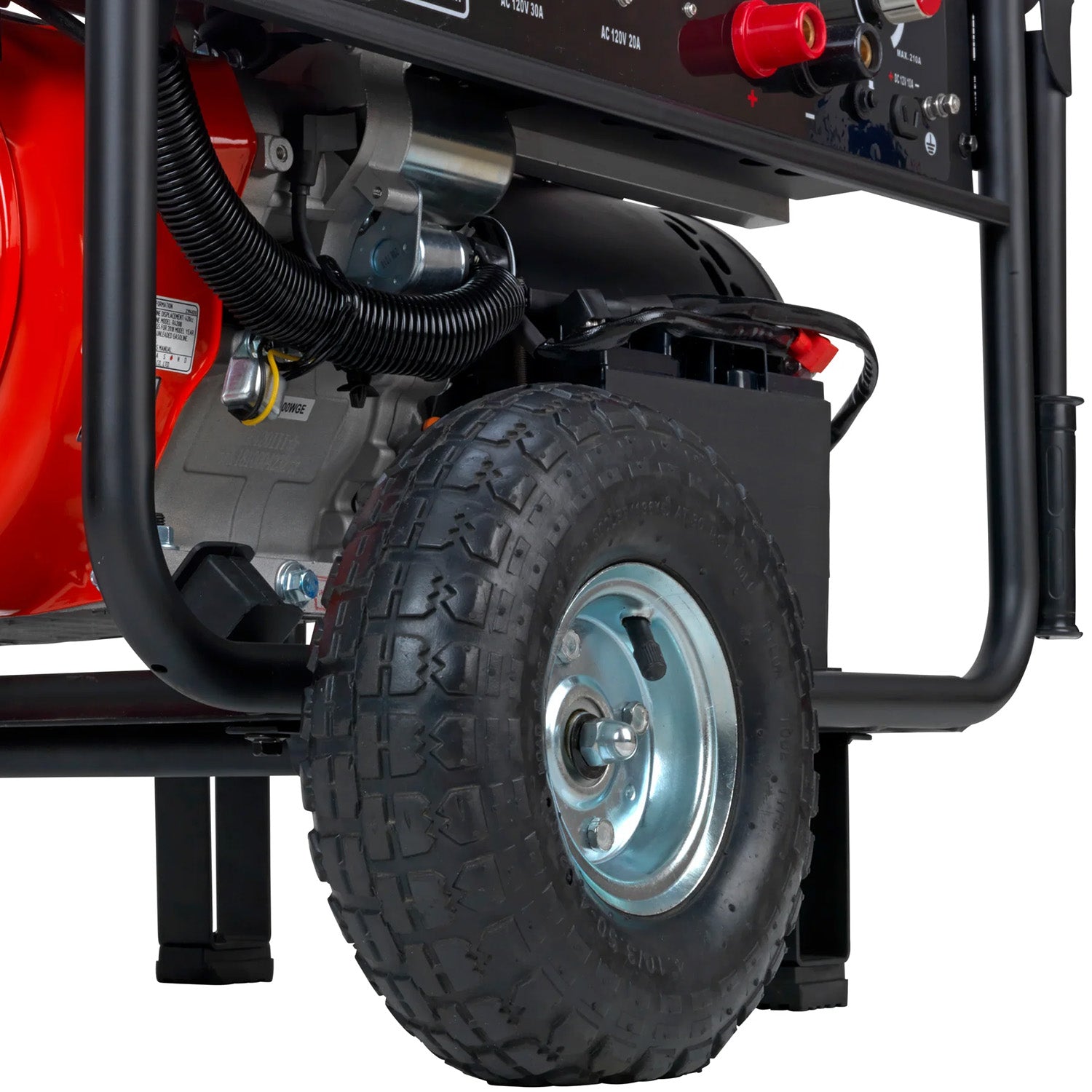

All-metal construction, 100% copper windings, an automatic voltage regulator, a cast iron sleeve and 10-inch metal-hub wheels with solid-filled tires hold up to rough work sites. Automatic low-oil shutdown protects the engine.
50-State Compliant
The DS4000WGE is EPA and CARB certified, so it can be sold and shipped to California.
Real-World Applications
Farm and ranch repairs. Fix gates, trailers, implements and fencing where they sit.
Job sites. Weld brackets and supports, then switch to running saws, grinders and lights.
Home shops and DIY. Take on metal projects without a dedicated 240V welding circuit.
Backup power. Keep essential 120V appliances running during an outage.
How It Compares to Common Alternatives
Versus a separate welder and generator. One machine is easier to transport, store and maintain than two.
Versus shop welders that need a 240V outlet. The DS4000WGE brings its own power, so you can weld anywhere.
Versus standard 4,000W generators. It weighs more, but adds welding capability.
Is the DS4000WGE the Right Fit
-
120V only. The generator outlets are 120V. It does not have a 240V outlet for home transfer switches.
-

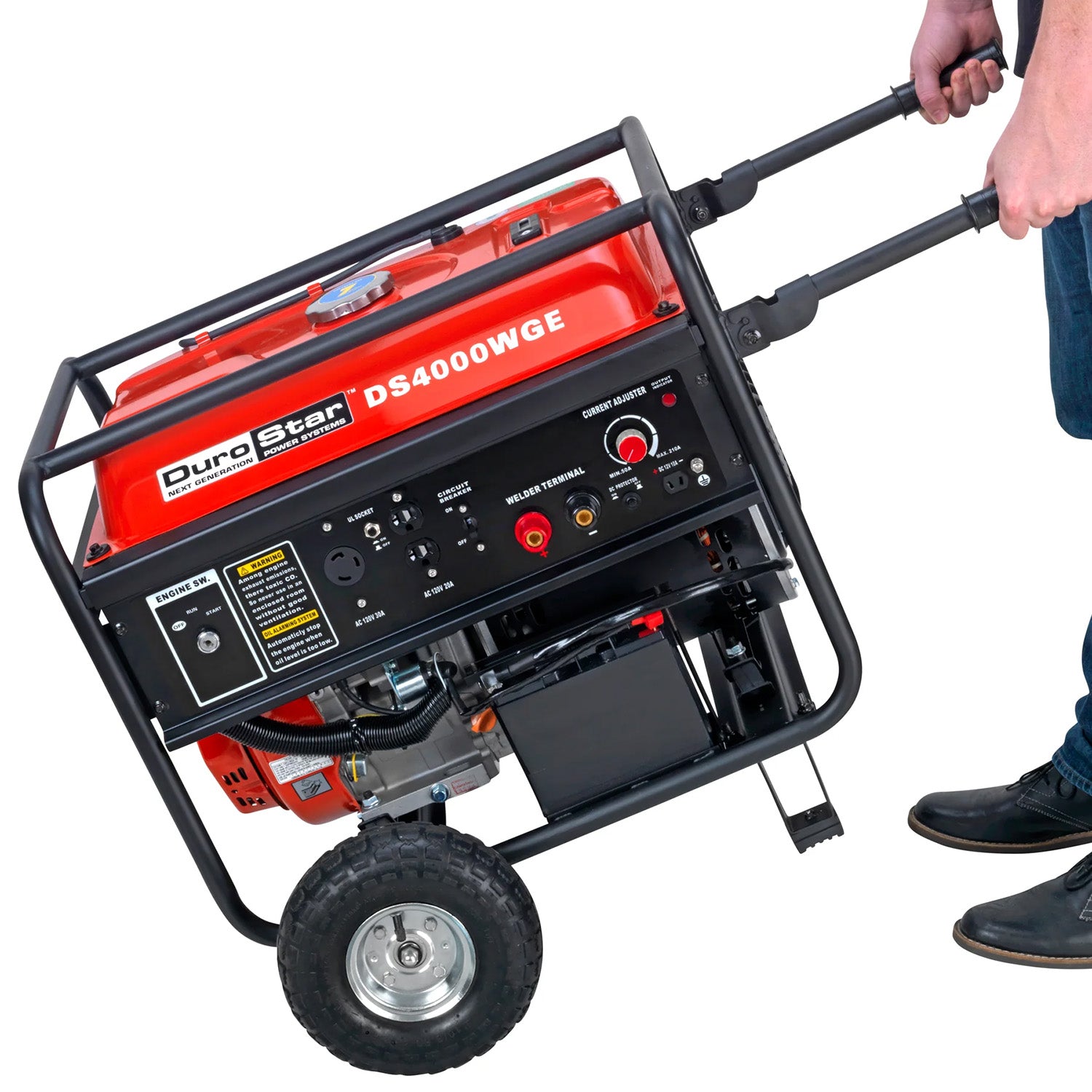

Weight. At 232 lbs dry, it moves on its wheel kit.
-
Welding gear. Plan for welding leads, an electrode holder, a ground clamp and safety equipment. Check the owner's manual for welding settings.
-
Placement. Always run it outdoors, away from doors, windows and vents.
This may be a good fit if
- You weld in the field, on a farm or at job sites
- You want 120V power and welding from one machine
- You need a 50-state compliant unit
Common Questions
Can I Weld and Use the Outlets at the Same Time?
Check the owner's manual for guidance on combined welding and generator use. Plan your work so the engine is not overloaded.
Is It Legal in California?
Yes. DuroStar lists the DS4000WGE as EPA and CARB certified and 50-state emissions compliant.
How Long Does It Run?
About 8 hours at 50% load and 17 hours at 25% load on a full 6.6-gallon tank.
What Warranty Does It Have?
DuroStar covers the DS4000WGE with a 3-year parts and technical service warranty, supported by DuroMax's USA-based team.
What's Included
- 1 x DuroStar DS4000WGE Welding Generator
- 1 x Male Welding Terminals
- 1 x DC Charging Cables
- 1 x Wheel and Handle Kit
- 1 x Oil Funnel
- 1 x Spark Plug Wrench
- 1 x Tool Set
- 1 x Owner's Manual
Welding Power and Generator Power Wherever the Work Is
The DuroStar DS4000WGE gives you a 210-amp welder and 4,000 peak watts of generator power in one rugged machine. At Outbound Power, we can help you choose the right generator for your work. If you have questions, our team is happy to help.
DuroStar DS4000WGE Generator Specifications
|
| Model |
DuroStar DS4000WGE |
| Gasoline |
| Peak Wattage |
4,000 W |
| Running Wattage |
3,500 W |
| Running Amperage at 120V |
29.17 A |
| Runtime at 25% Load |
17 hours |
| Runtime at 50% Load |
8 hours |
| Engine & Emission |
| Engine Type |
4-Stroke |
| Valve Type |
OHV |
| Engine Cooling Type |
Forced Air |
| Engine Size |
420cc |
| Engine Speed |
3600 RPM |
| Starting Type |
Key Switch |
| Electric Start |
Yes |
| Recoil Start |
Yes |
| Fuel Delivery System |
Carburetor |
| Fuel Types |
Gasoline |
| Oil Cooling Type |
Splash |
| Recommended Oil |
10W-30 |
| Recommended Oil Types |
Blended, Conventional, or Synthetic |
| Oil Capacity |
37 fluid oz |
| Automatic Low Oil Shutdown |
Yes |
| Cast Iron Sleeve |
Yes |
| Bearing Type |
Stainless Steel Ball Bearing |
| EPA Certified |
Yes |
| CARB Certified |
Yes |
| 50 State Emissions |
Yes |
| Panel |
| 5-20R |
2 |
| L5-30R |
1 |
| 12V Post |
1 |
| Generator |
| Voltage |
120 Volts |
| Frequency |
60 Hertz |
| Winding Material |
100% Copper Windings |
| Automatic Voltage Regulator |
Yes |
| Battery Type |
12V SLA |
| Battery Included |
Yes |
| RV Ready |
Yes |
| Fuel Tank Capacity Gasoline |
6.6 Gallons |
| Fuel Gauge |
Yes |
| All Metal Construction |
Yes |
| Product Dimensions |
29 x 28 x 26 in (L x W x H) |
| Product Dry Weight |
232 lbs |
| Product Weight |
239 lbs |
| Noise Level |
72 dB |
| Warranty |
3 Year |
| Wheel & Handle Kit |
Included |
| Wheel Type |
Metal Hub |
| Wheel Diameter |
10-Inches |
