The EcoFlow 100W Flexible Solar Panel Bends to Fit Curved RV, Van and Boat Roofs at About 5.1 lbs
The EcoFlow 100W Flexible Solar Panel is a lightweight monocrystalline panel that flexes up to 258° to follow curved surfaces. It weighs about 5.1 lbs (2.3 kg), carries an IP68 rating and charges an EcoFlow portable power station or Power Kits system.
It suits RV and van owners, boaters, and anyone who wants solar on a roof that can only carry a light load, such as a tent or an awning.
EcoFlow 100W Flexible Solar Panel Features
Light Enough for Tents and Awnings
At about 5.1 lbs (2.3 kg), the panel is easy to move and mount and adds little weight to a vehicle. That opens up roofs that can't carry a heavier panel.

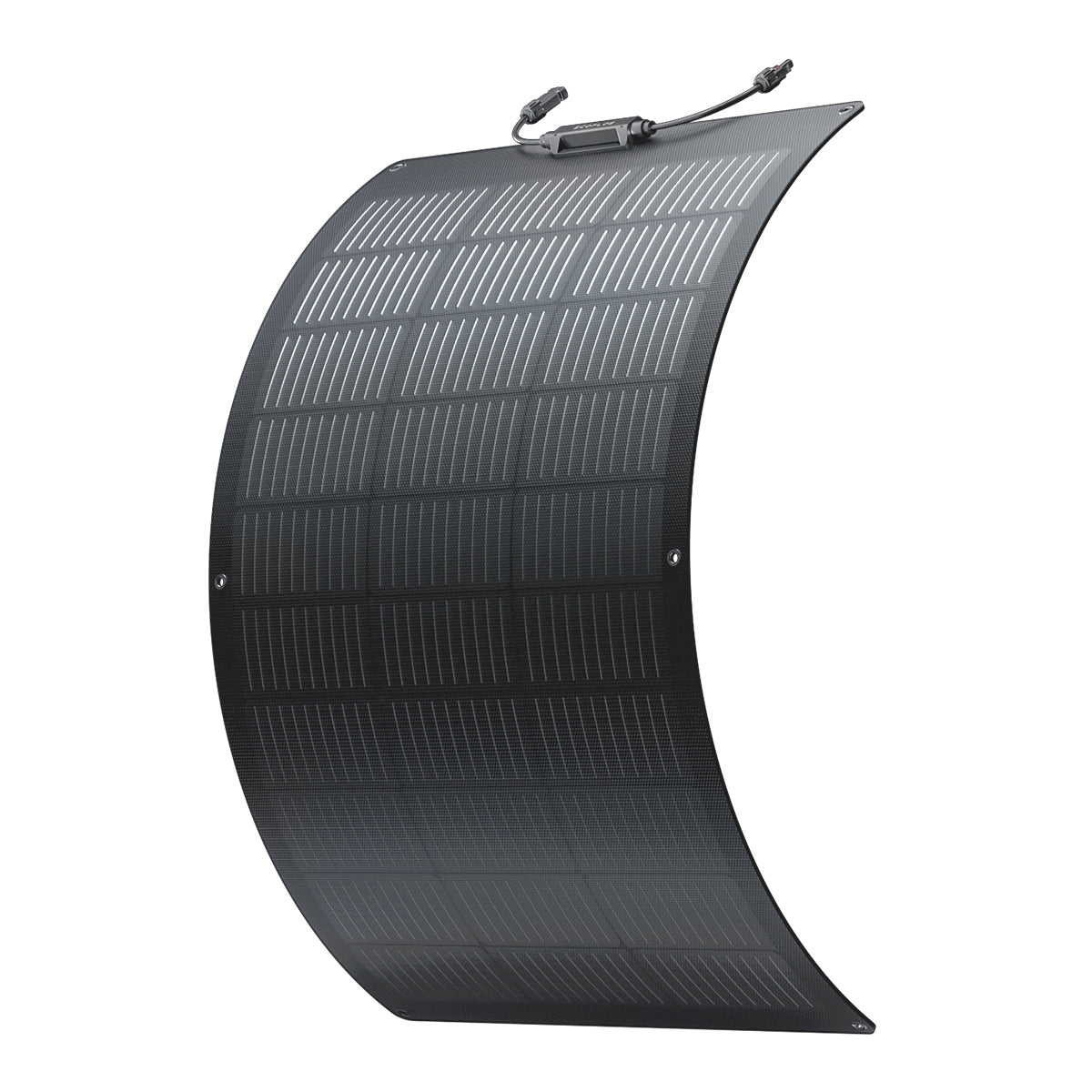

Flexes Up to 258°
The panel bends up to 258° to match the curve of an RV or van roof. EcoFlow notes that the more it bends, the less efficient it is, because different areas of the panel receive different amounts of light.
23% Efficient Cells With Bypass Diodes
EcoFlow rates the monocrystalline cells at 23% efficiency. Bypass diodes in the junction box help prevent overheating and maintain cell performance in shaded conditions.
Glass Fiber Lamination and ETFE Film
The cells are made with a glass fiber and lamination process, and a protective ETFE film covers them. EcoFlow lab-tested the panel to IP68 under IEC 60529, at a maximum water depth of 1 meter for up to 72 hours.
Bolt, Hook or Bond It in Place
Six holes with an 8 mm inside diameter line the edges for optional adapter bolts or hooks. You can also bond the back with structural adhesive or double-sided adhesive foam tape. Either way, leave a gap between the panel and the roof for airflow and heat dissipation.
Real-World Applications

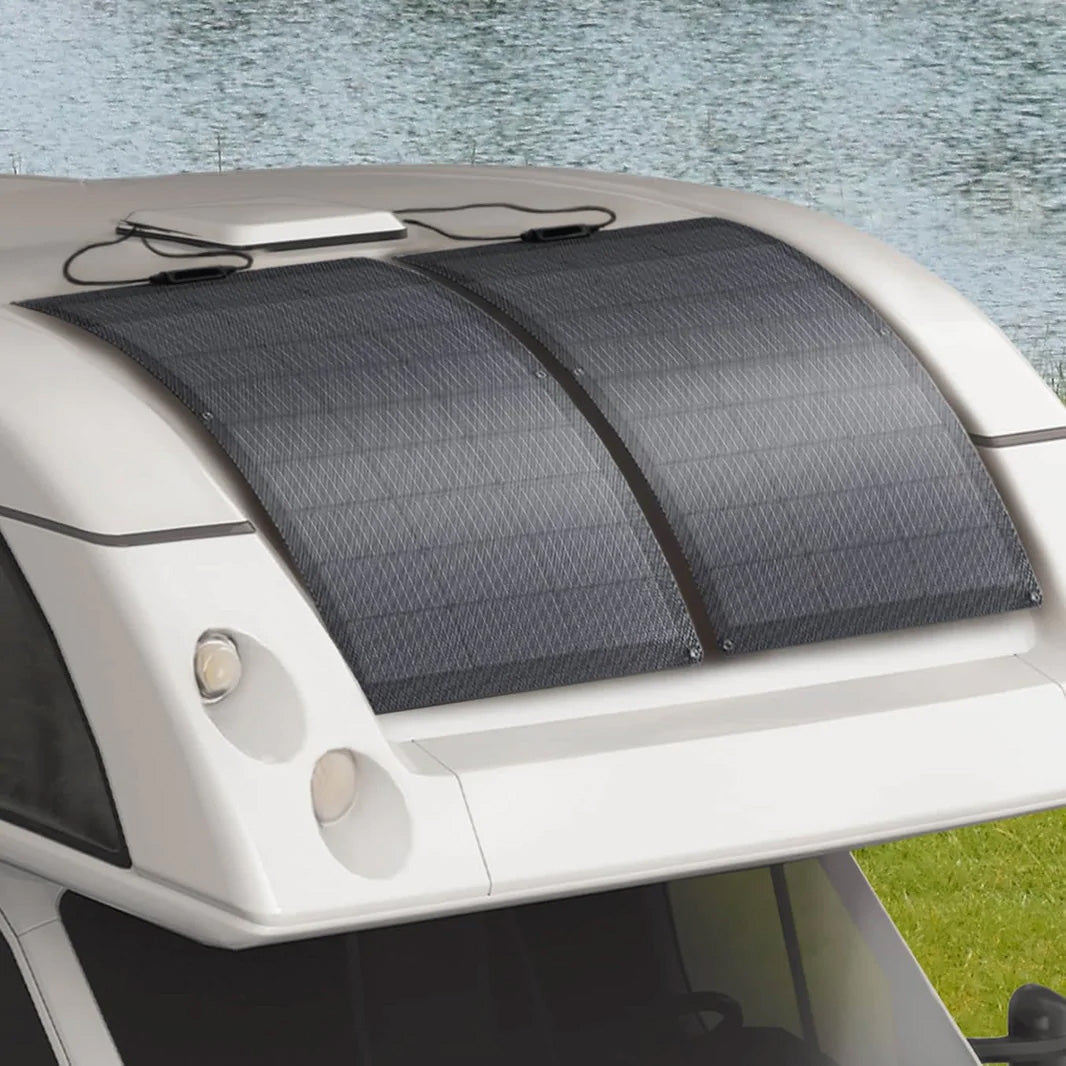

RV and van roofs. Mount the panel along a curved roof. Expect about 5%-10% less output from a roof mount that can't sit at the sun's angle.
Boats. EcoFlow lists boats among the surfaces the panel is made for.
Tents and awnings. Its light weight suits roofs that can only support a light load.
Power Kits and portable power stations. The panel's 3.3 ft solar cable leaves room to mount several panels for an EcoFlow Power Kits system or a portable power station.
How It Compares to Common Alternatives
Versus a rigid panel. A rigid panel needs a flat mount. This panel follows a curved roof at about 5.1 lbs, but bending reduces its efficiency and it needs a gap underneath for cooling.
Versus a folding portable panel. A portable panel sets up on the ground each time you stop. This panel stays mounted on the vehicle or boat, so there's nothing to unpack.
Is This Solar Panel the Right Fit
Installation. EcoFlow says solar PV systems must only be installed by qualified personnel, and it recommends qualified PV technicians for commissioning and maintenance.
Cable and hardware. No solar to XT60i charging cable comes in the box, and EcoFlow doesn't supply accessories for a complete vehicle installation.
Handle with care. Don't step, stand or sit on it, and don't bend it too far. Damage caused by human force isn't covered under the free warranty.
Wiring limits. Size cables and connectors for the system's maximum short-circuit current, and check your power station's input limits.
This may be a good fit if
You want solar on a curved RV, van or boat roof
Your roof can only carry a light load
You plan a professional installation
You have a charging cable that suits your power station
Common Questions
How Much Power Will It Produce?
On a clear day with sunlight at 90°, EcoFlow says the panel usually generates 70W–80W. Summer heat near 140°F (60°C) can cut nominal power by 10%–15%, and haze, clouds, rain and shade reduce it further.
Can I Connect Several Panels?
Yes, in series or in parallel. In series, use panels with the same electrical output. The number you can connect in parallel depends on your vehicle's controller and energy storage.
How Do I Clean It?
Use water and a soft sponge or cloth, with mild detergent for stubborn dirt. Clean in the morning or evening when the sun is weak, and inspect the electrical and mechanical connections every six months.
What's Included
1 x EcoFlow 100W Flexible Solar Panel
1 x User Manual
1 x Warranty Card
Lightweight Solar for Curved Roofs
The EcoFlow 100W Flexible Solar Panel brings 100W of rated solar to curved roofs at about 5.1 lbs, with 23% efficient cells and an IP68 rating. If you have questions about mounting or wiring it to your power station, the Outbound Power team is happy to help.
EcoFlow 100W Flexible Solar Panel Videos
EcoFlow 100W Flexible Solar Panel Specifications
General
Model Series
EF-Flex-M100
Electrical
Rated Power
100W (±5W)
Rated Power Test Conditions
1000W/m², AM1.5, 25°C (77°F)
Open Circuit Voltage
20.3V
Short Circuit Current
6.3A
Max Operating Voltage
17.1V
Max Operating Current
5.9A
Efficiency
23%
Max System Voltage
600 VDC (UL)
Max Fuse Current
15A
Temp. Coefficient (Power)
-0.39%/°C
Temp. Coefficient (Voc)
-0.33%/°C
Temp. Coefficient (Isc)
0.06%/°C
Cells and Construction
Cell Type
Monocrystalline silicon
Flex
Up to 258°
Surface
ETFE film
Cell Process
Glass fiber and lamination
Bypass Diodes
Integrated in the junction box
Mounting Holes
6 (8 mm inside diameter)
Size and Weight
Dimensions
41.5 x 24.1 x 1.0 in (1055 x 612 x 25 mm)
Weight
About 5.1 lbs (2.3 kg)
Connectors and Cables
Solar Cable Length
3.3 ft
Junction Box Wires
2.5 mm² (0.004 in²)
Solar to XT60i Charging Cable
Not included
Durability
IP Rating
IP68
IP68 Test
IEC 60529, 1 m water depth, up to 72 hours
Operating Temperature
-4°F to 185°F (-20°C to 85°C)
